1982 Passport

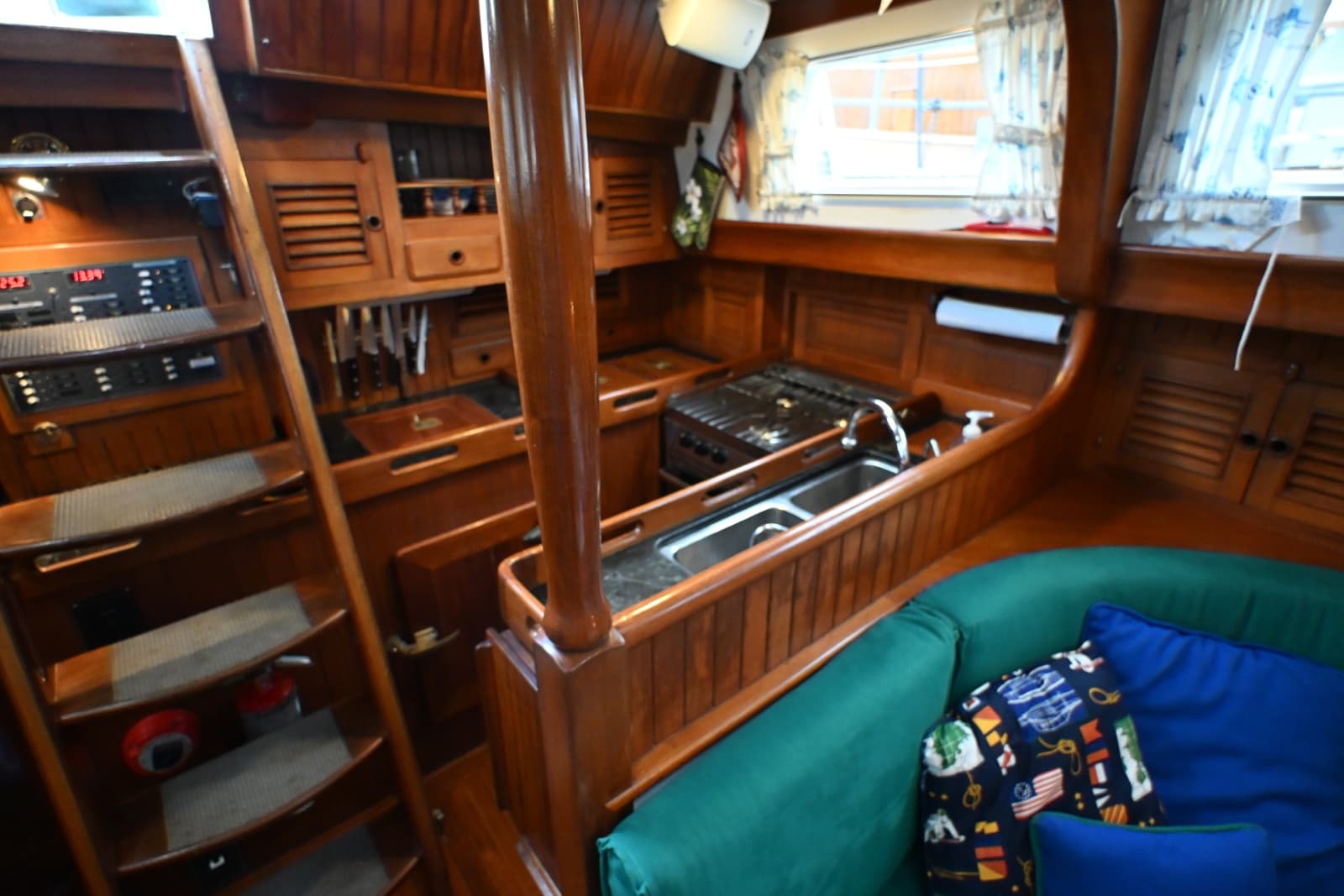

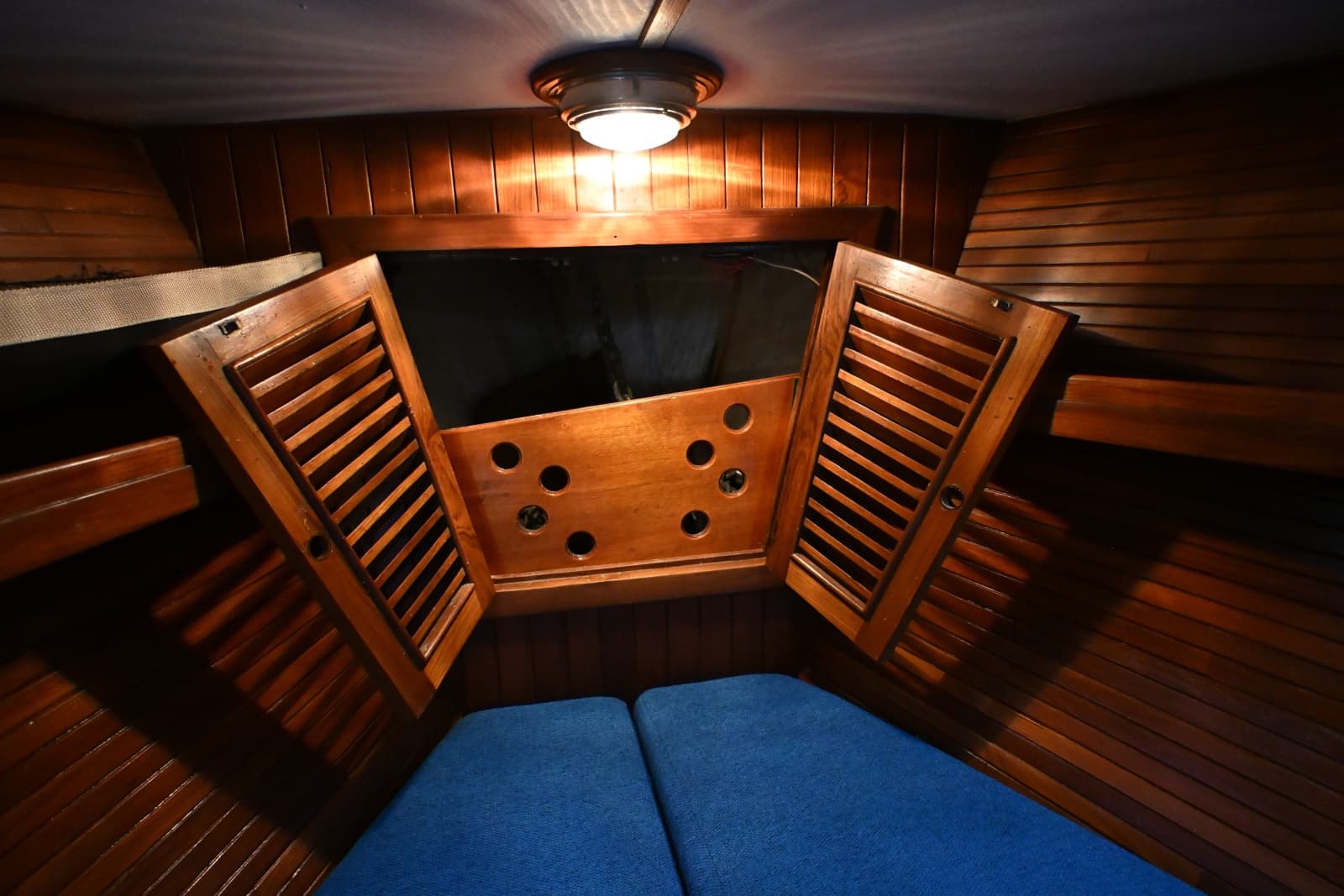

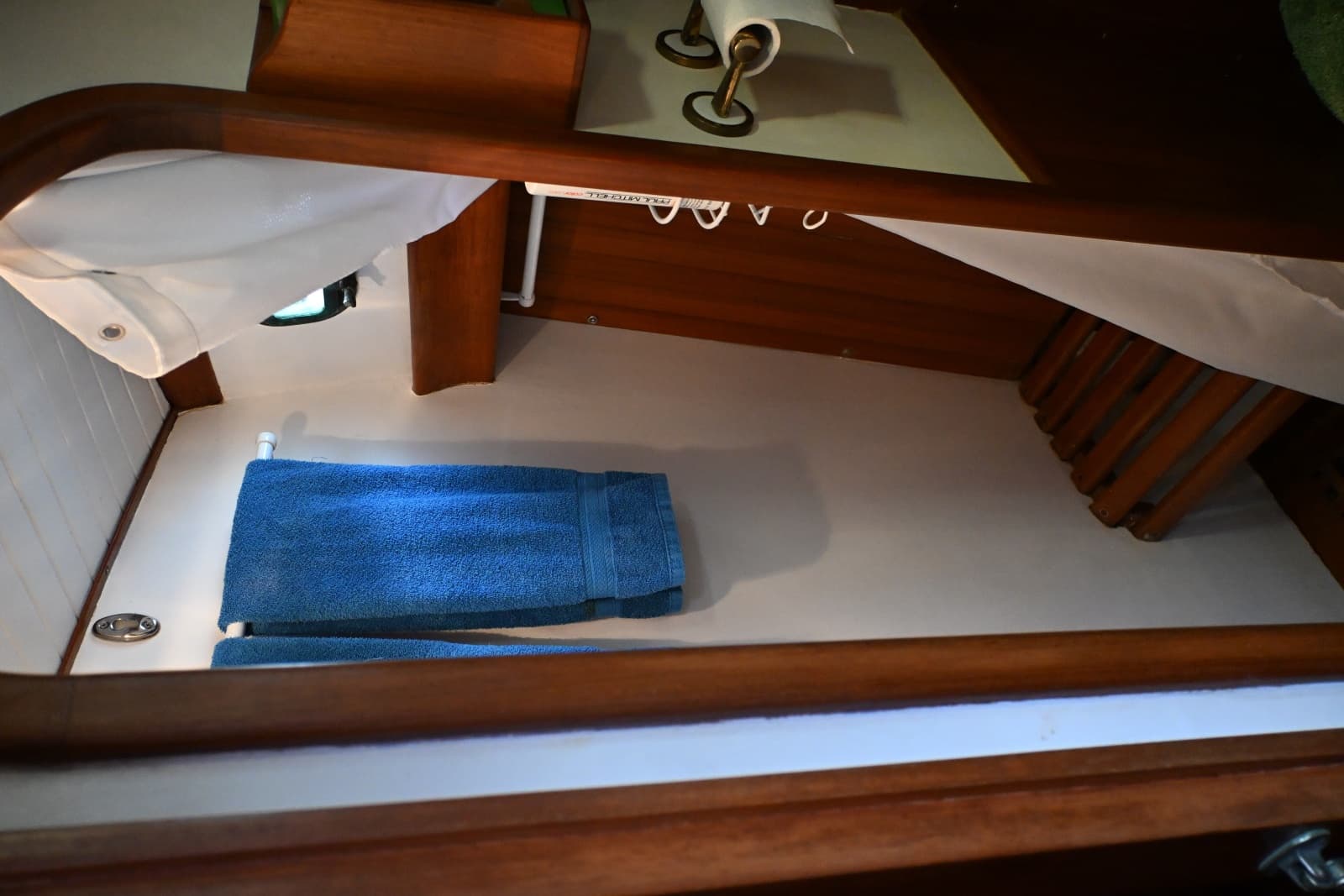

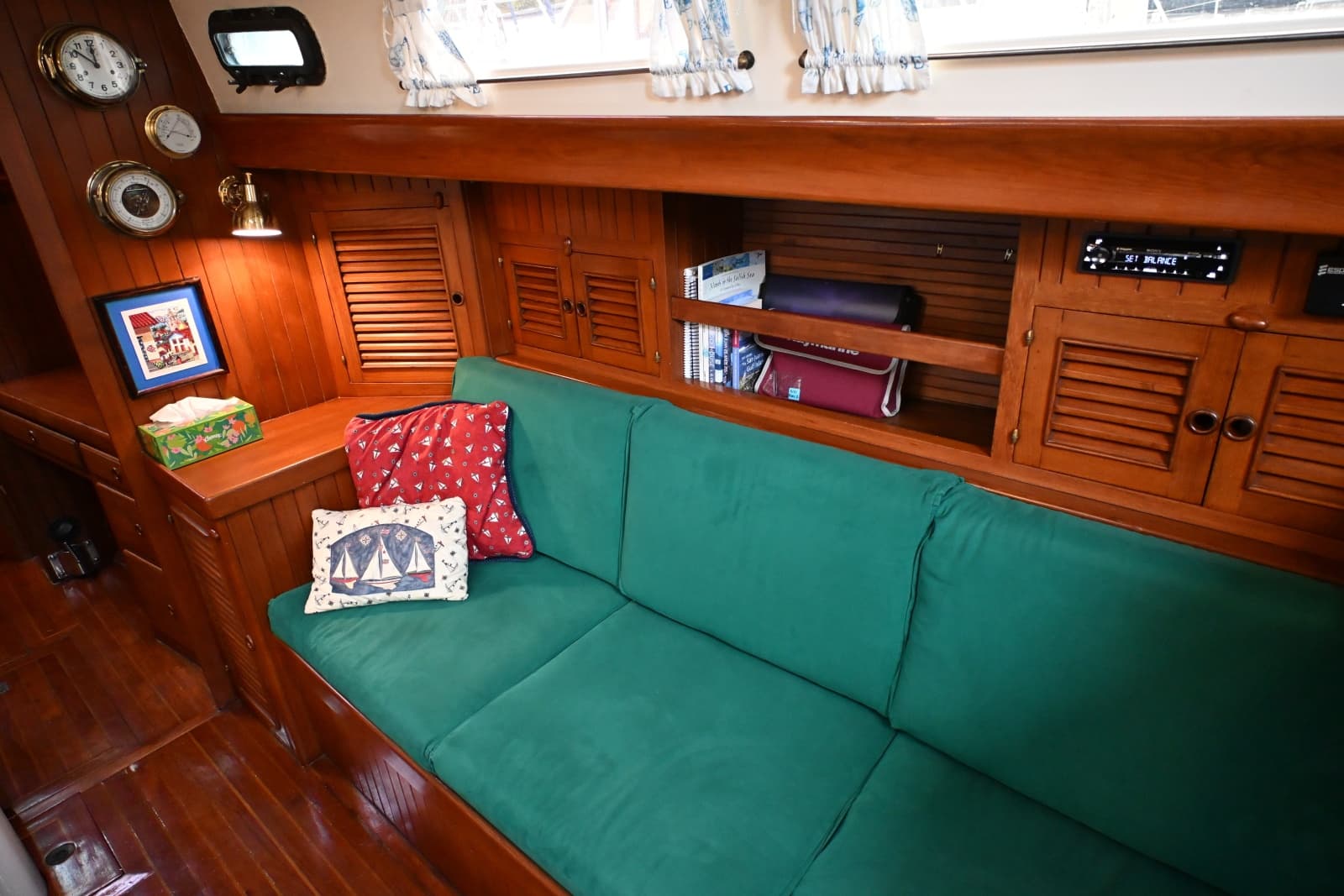

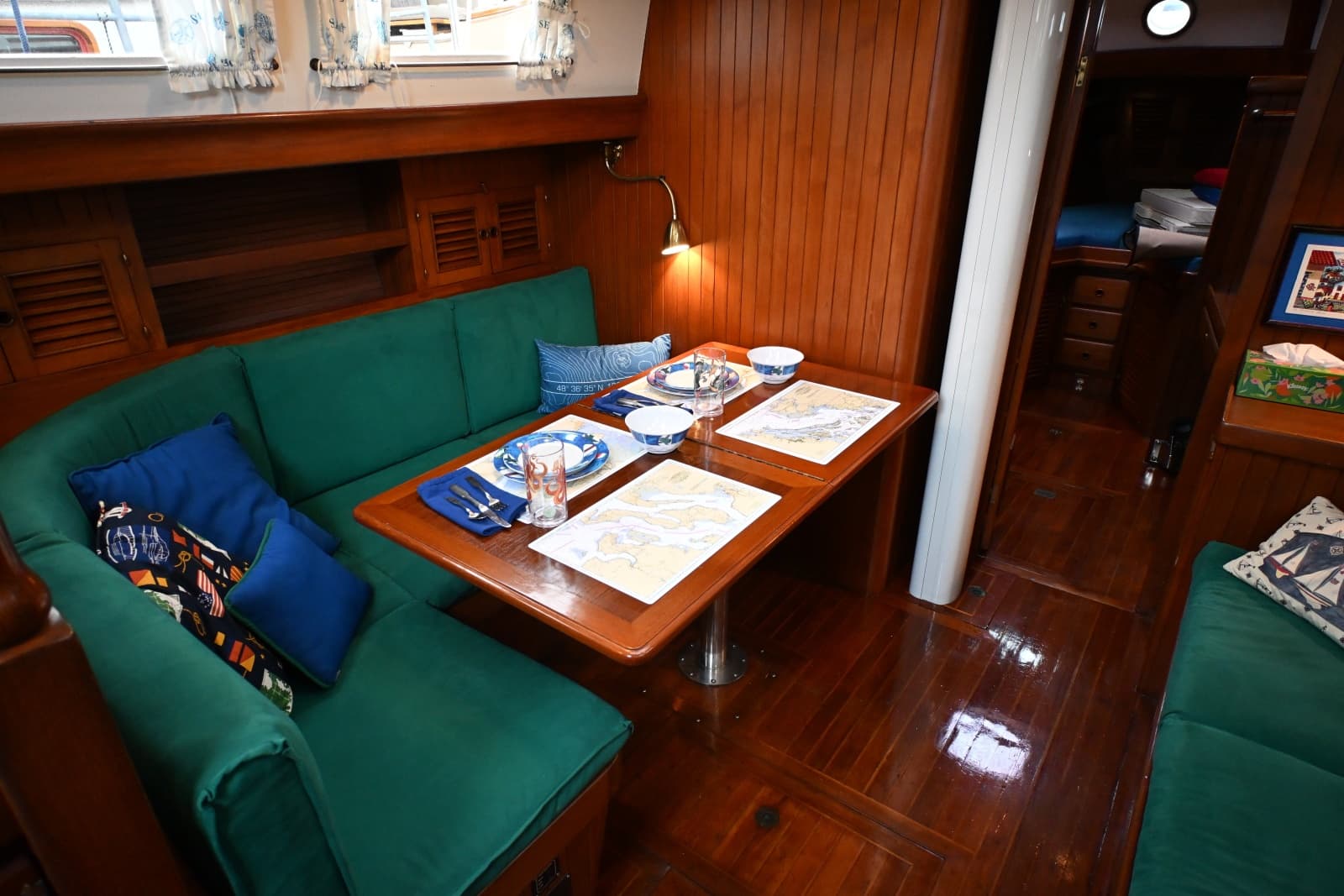

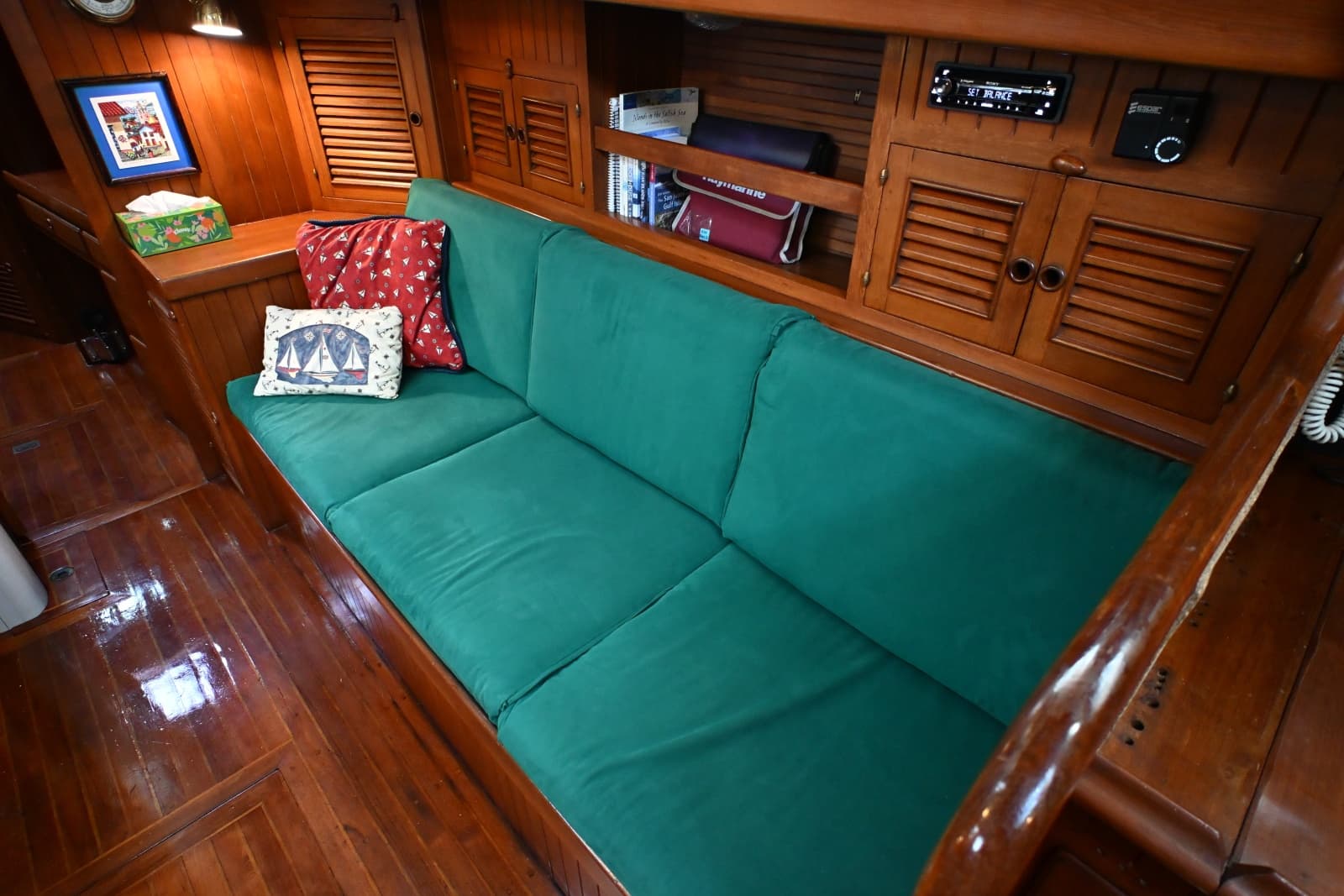

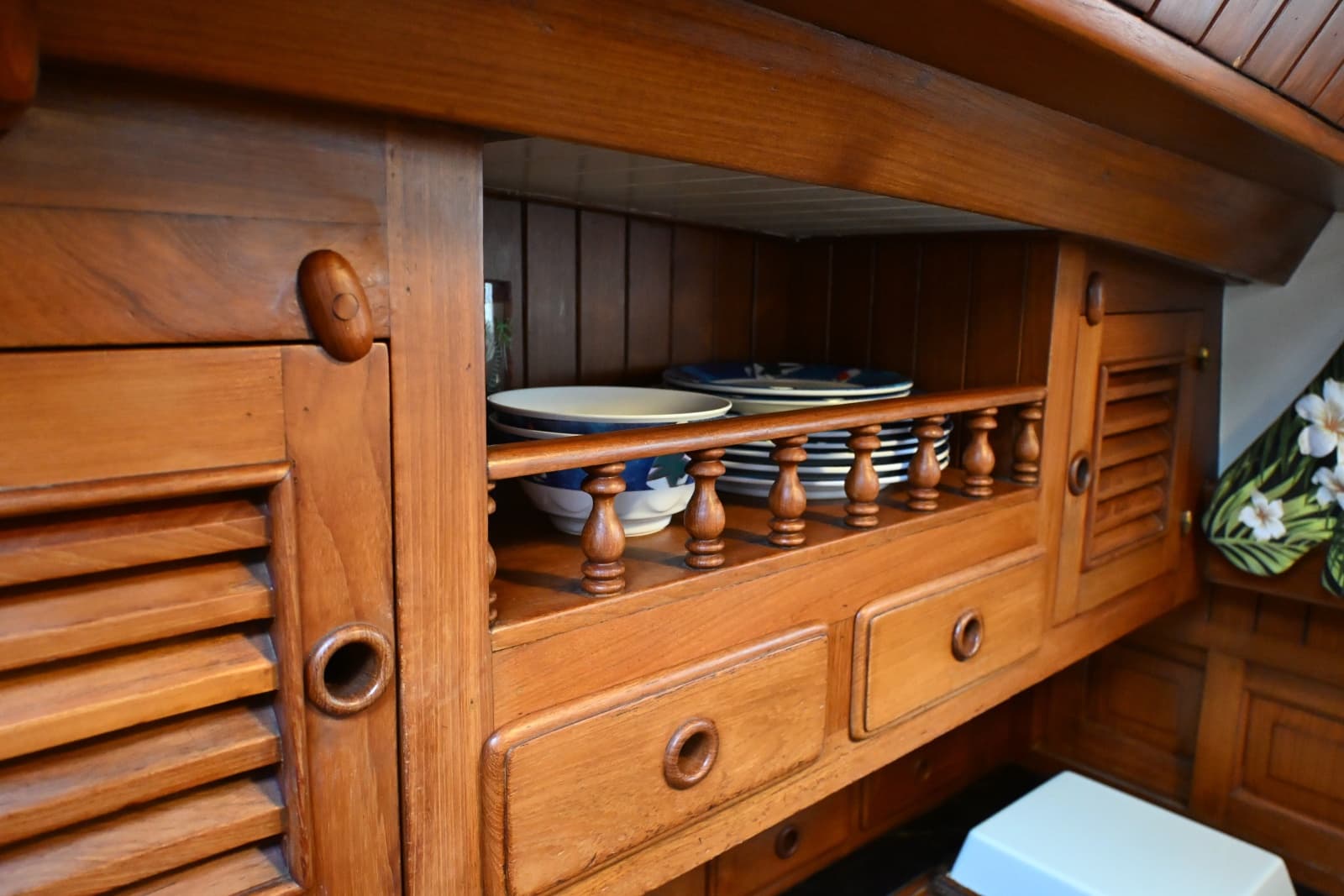

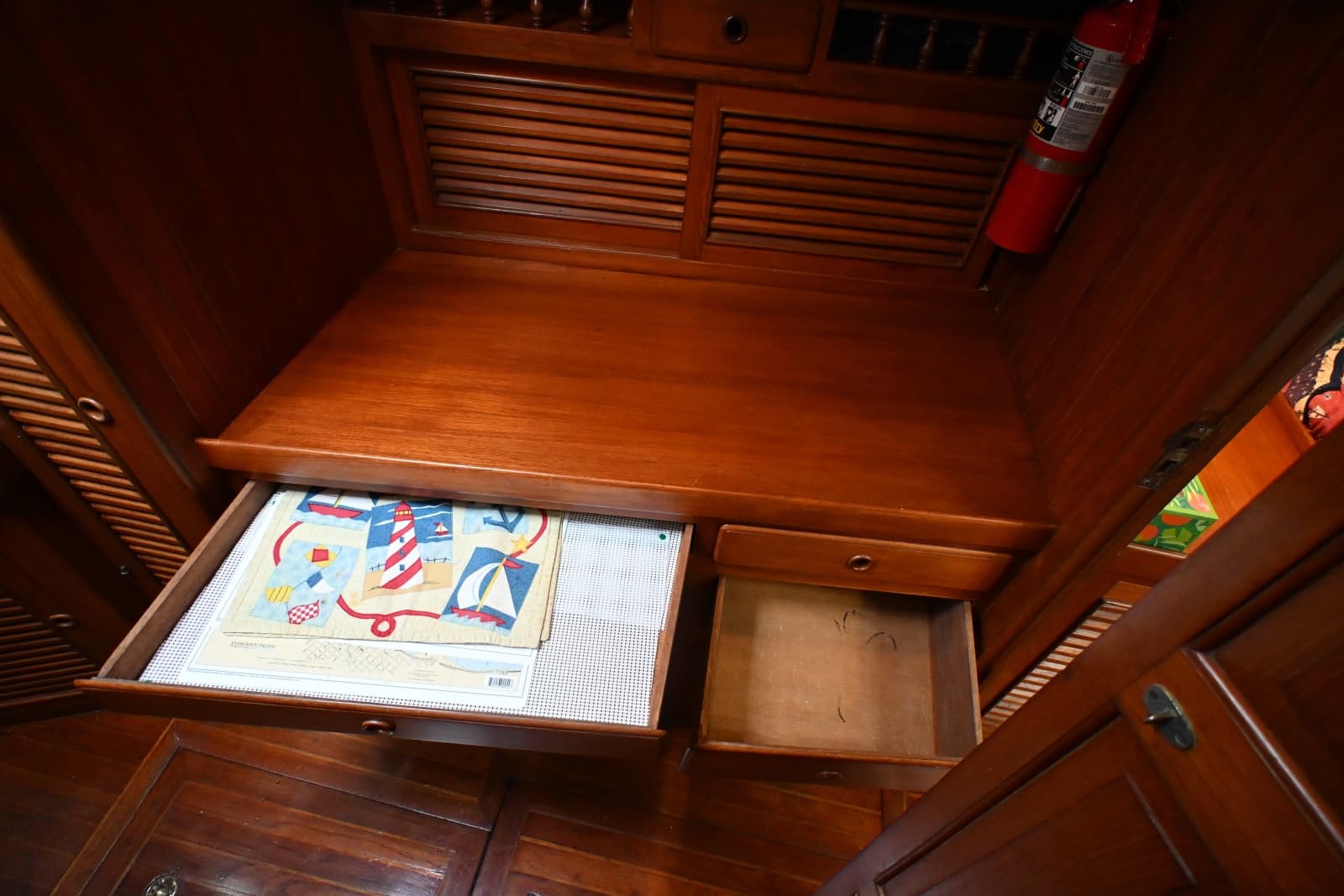

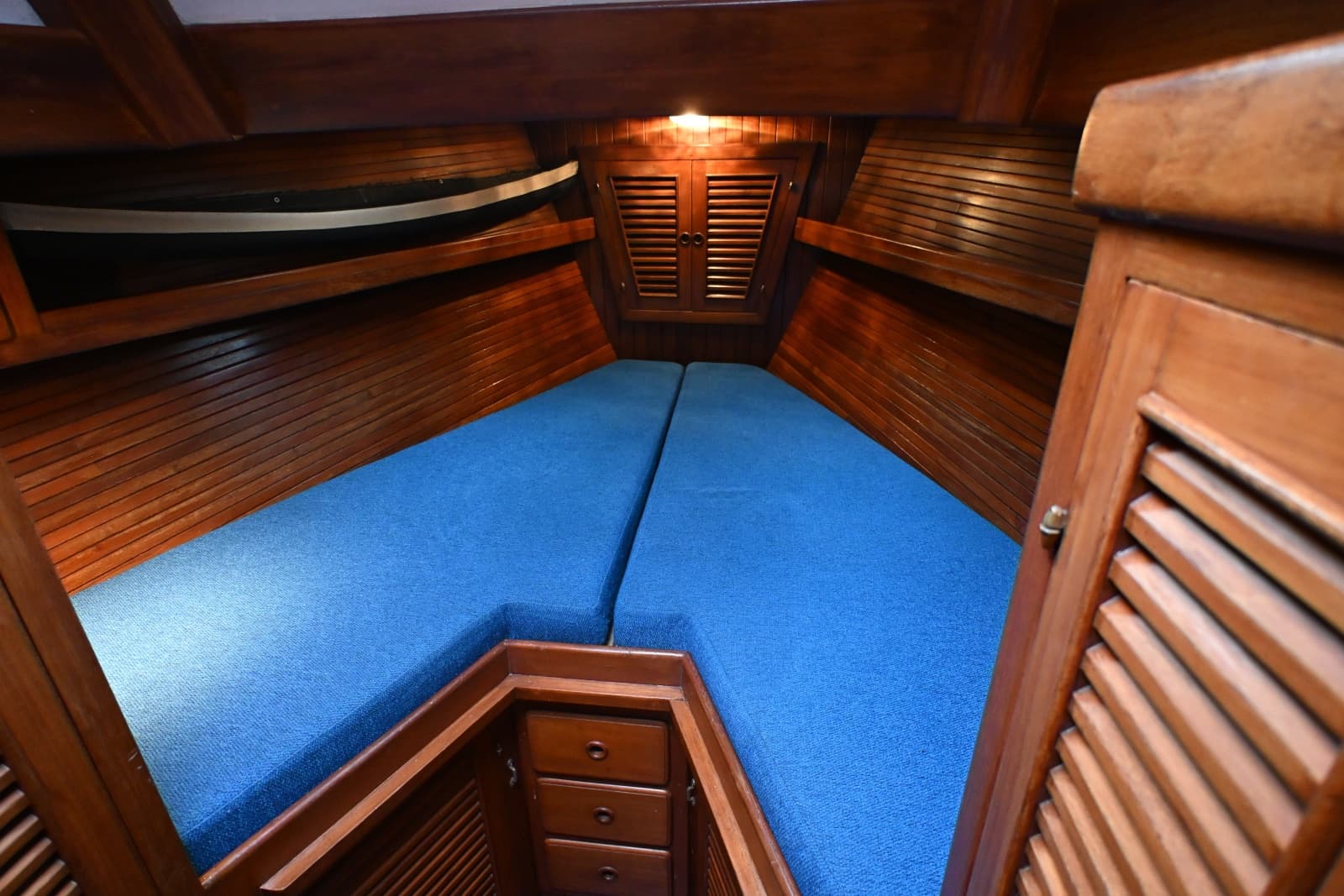

Julia Max's teak-and-holly cabin sole is both durable and beautiful. Forward is a large stateroom with a spacious V-berth fitted with memory foam cushions, hanging lockers immediately to port and starboard, and shelving with a cubby space above and outboard. Under the V-berth is generous storage with stacked shelving, ideal for longer-term stowage of items that need periodic replenishing during a voyage. Aft of the starboard hanging locker is a large outboard-facing desk and work area, with flat storage beneath the desktop and ample, easily accessed shelves and drawers both outboard and below. Opposite, to port, is a single head with a stone vanity, hot and cold pressure water, a shower head, a Jabsco manual pump with a 14-gallon holding tank, and a stand-alone shower stall. Aft of the keel-stepped mast, the main saloon is bright and well ventilated: to port, an L-shaped settee and dining table seating four, and to starboard, a bench settee. Shelves and storage lockers outboard of both settees offer excellent, easily accessible storage, and either settee could serve as an excellent full-length sea berth with lee cloths added by a new owner. Aft of the dining area, immediately to port of the companionway steps, is the U-shaped galley, featuring a counter-accessed Frigoboat condenser-driven refrigerator-freezer, a Force 10 three-burner gimbaled propane stove with oven, and a forward-facing double stainless-steel sink with hot and cold pressure water. The stone counter surfaces are durable and easy to maintain, rimmed with 2-inch teak fiddles that keep galley items within reach and off the floor. To starboard, opposite the galley, is a traditional, generously sized chart table and navigation/communication station equipped with both VHF and SSB radios. Electrical panels are located both at the nav station and immediately behind the companionway steps. Continuing aft from the nav station, a full-standing-height passageway leads to the owner's stateroom and its large memory-foam centerline berth. Outboard of the passageway is a bank of drawers and hanging lockers offering generous room for clothing and dry goods. Directly below the cockpit is the engine room, providing excellent access to Julia Max's fuel manifold, 4JH4-TE Yanmar powerplant, Hurth direct-drive transmission, dual Racor fuel filters, and stuffing box. Please note the condition of the engine in the photos — it's exceptional. Julia Max was repowered in 2008, has since logged 7,500 hours, and was overhauled in October 2025. Her battery bank is located behind the companionway steps.

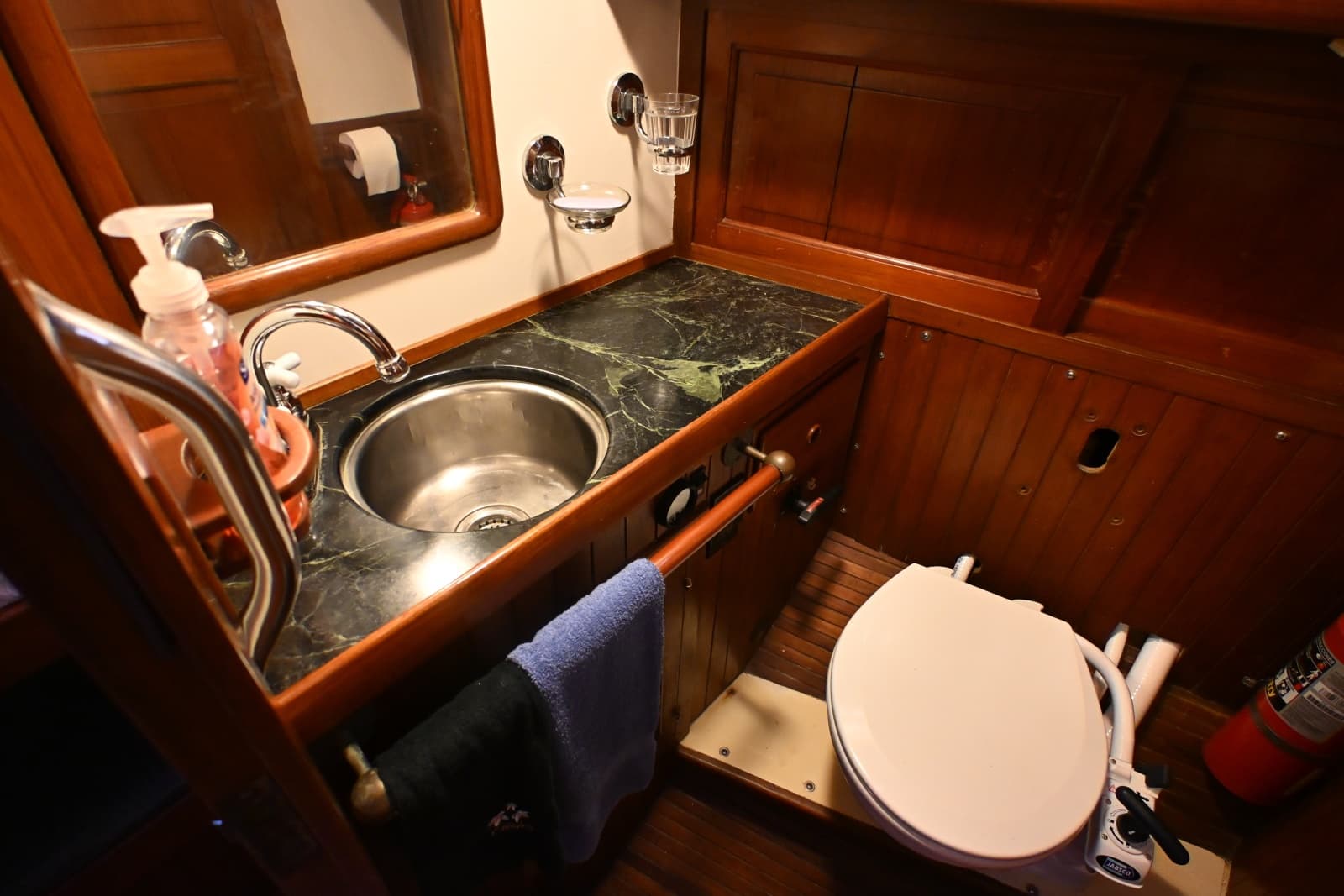

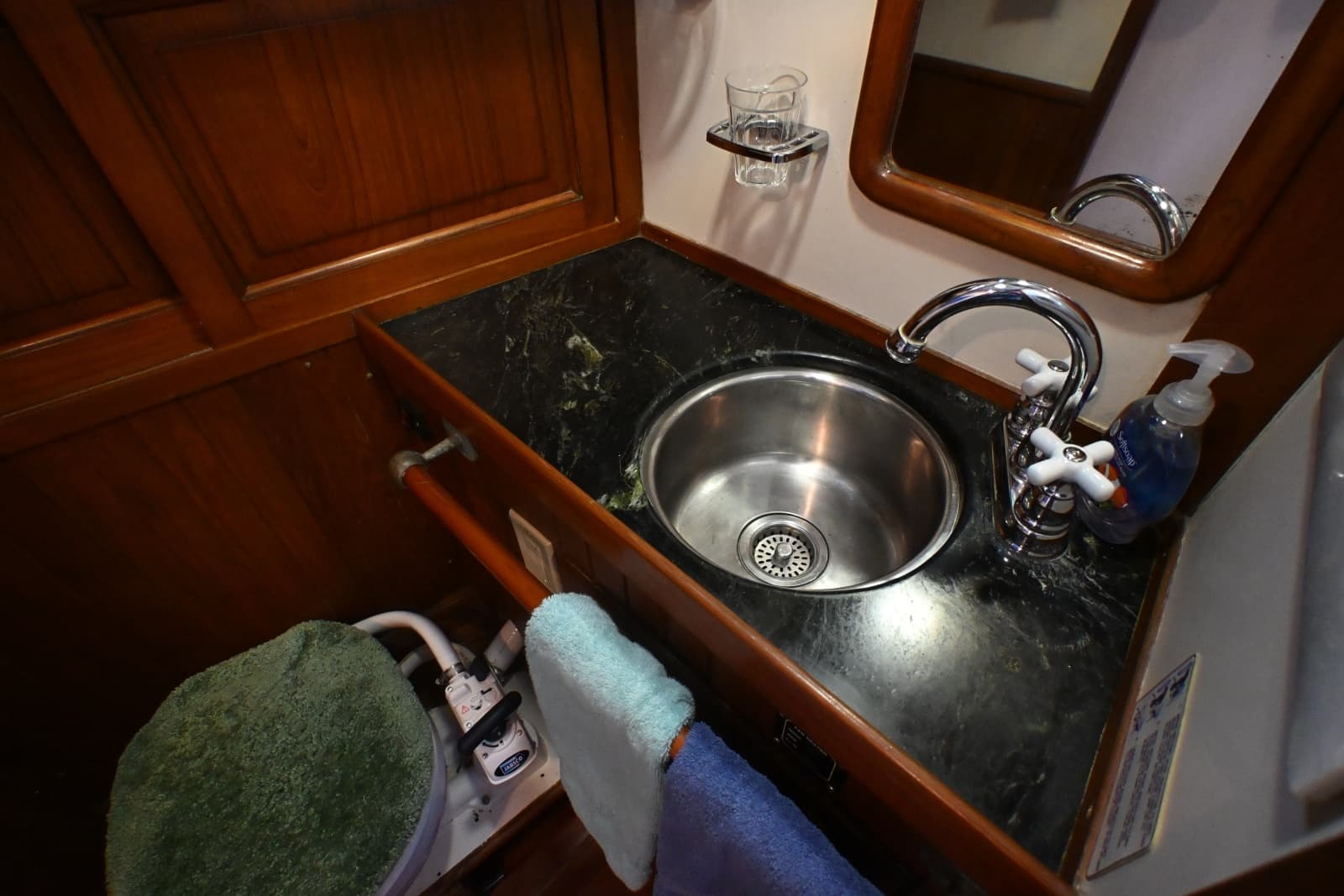

 To port of the engine compartment, accessed through a forward door in the owner's head, is a full-standing-height "garage" with additional access to the engine room, as well as through the port-side cockpit lazarette hatch. Outboard are tool and spare-parts storage drawers for self-sufficient offshore voyaging, preserving — rather than compromising — valuable provisioning space elsewhere on the boat. The owner's stateroom is built for both rest and traditional weather-watching: a chronometer, barometer, thermometer, and ceiling-mounted compass, all viewable from the berth, are beautifully analog and highly useful underway and at anchor. Access to the hydronic cabin heater and other mechanical gear is found in an insulated area beneath the master stateroom berth. The owner's head is equipped with a Jabsco manual head with a 19-gallon holding tank, a sink with a stone countertop, hot and cold pressure water, and an extendable shower head. For the well-founded offshore yacht, ease of movement through the vessel in a seaway, usable storage volume, and mechanical accessibility are paramount. Julia Max has these in abundance.

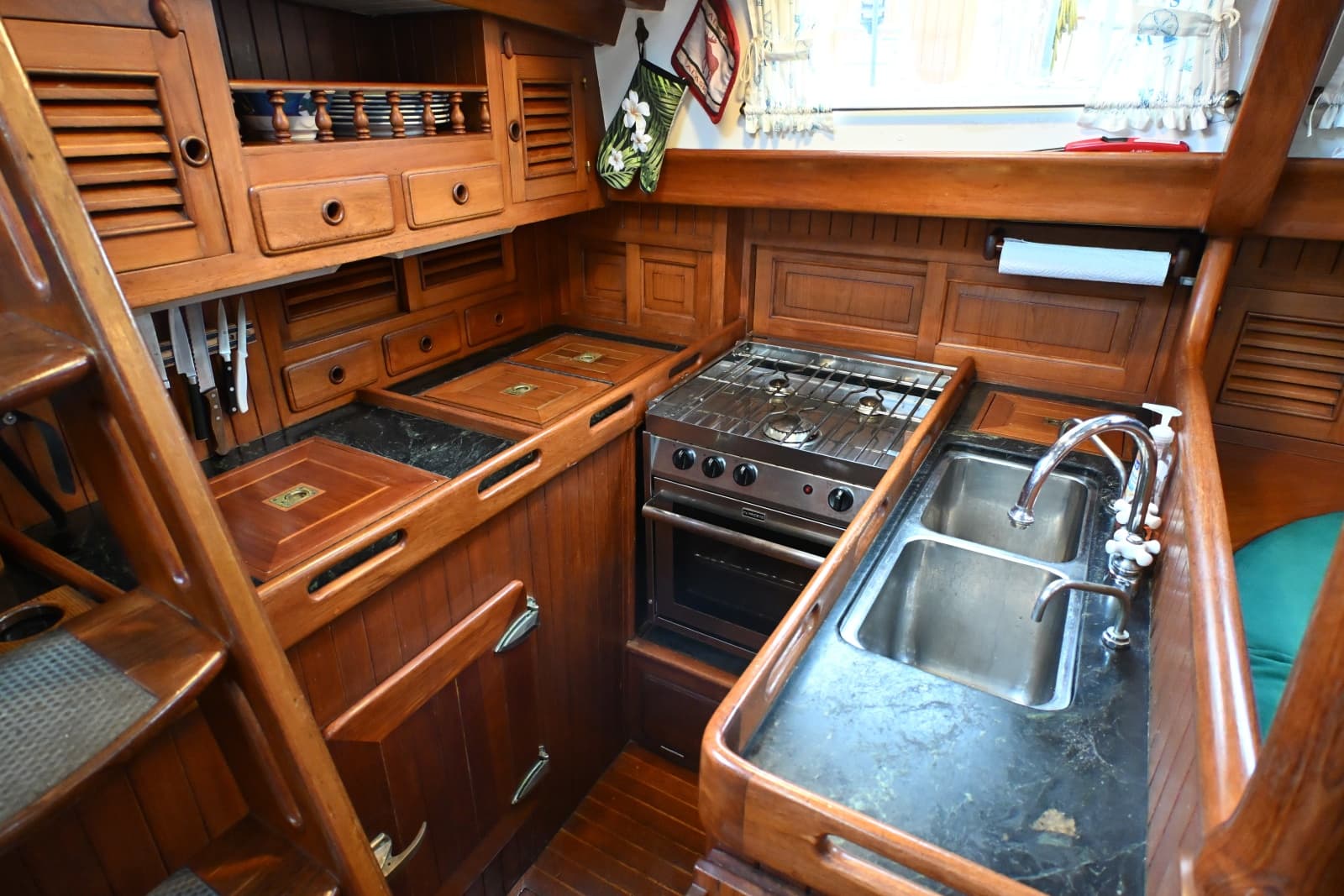

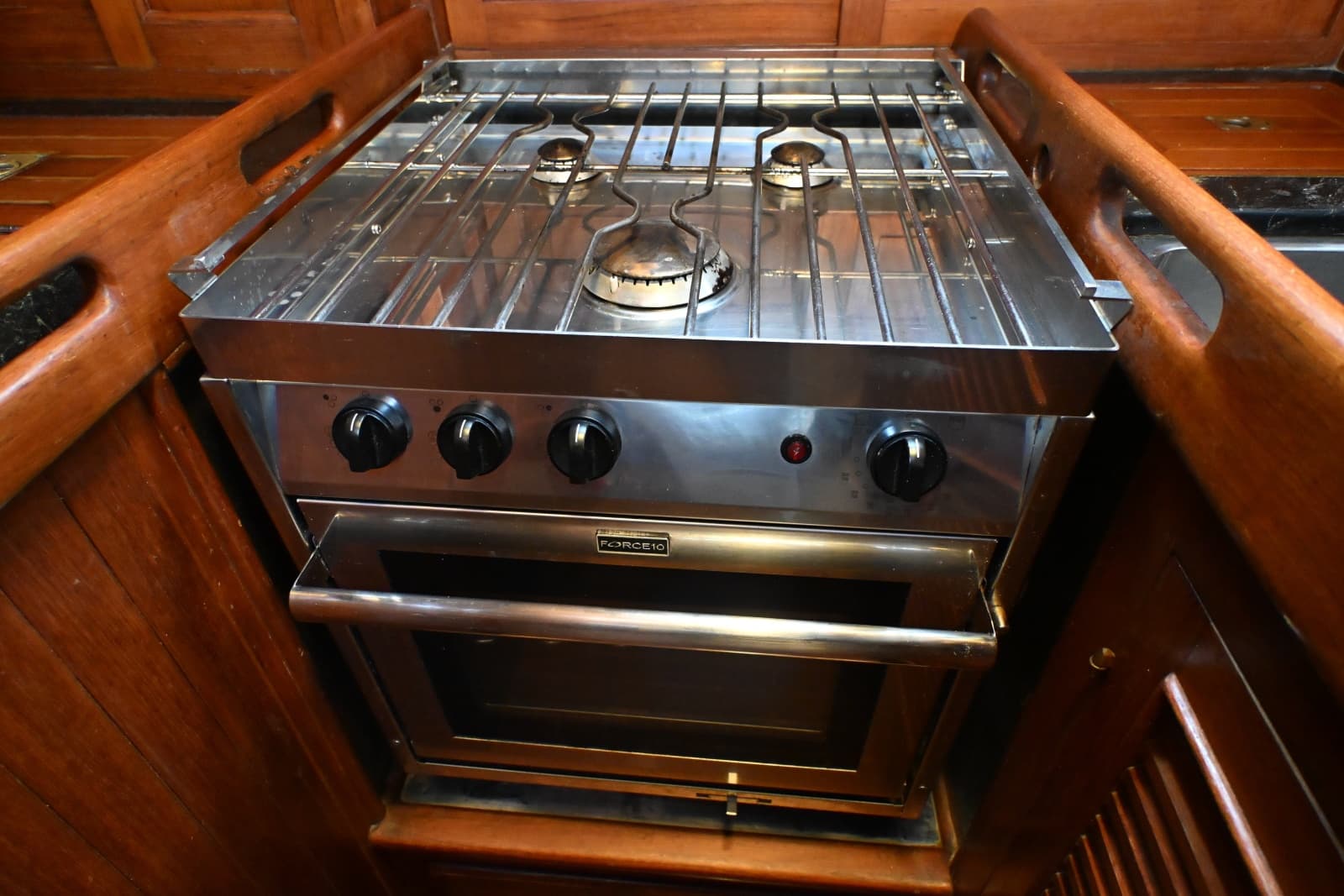

•  Force 10 propane three-burner stove with oven

•  Trident propane solenoid control panel with sniffer

•  (2) propane tanks

•  Trident gas cutoff switch

•  Top-loading refrigerator/freezer

•  Frigoboat K50-SSC water-cooled compressor and 340B evaporator

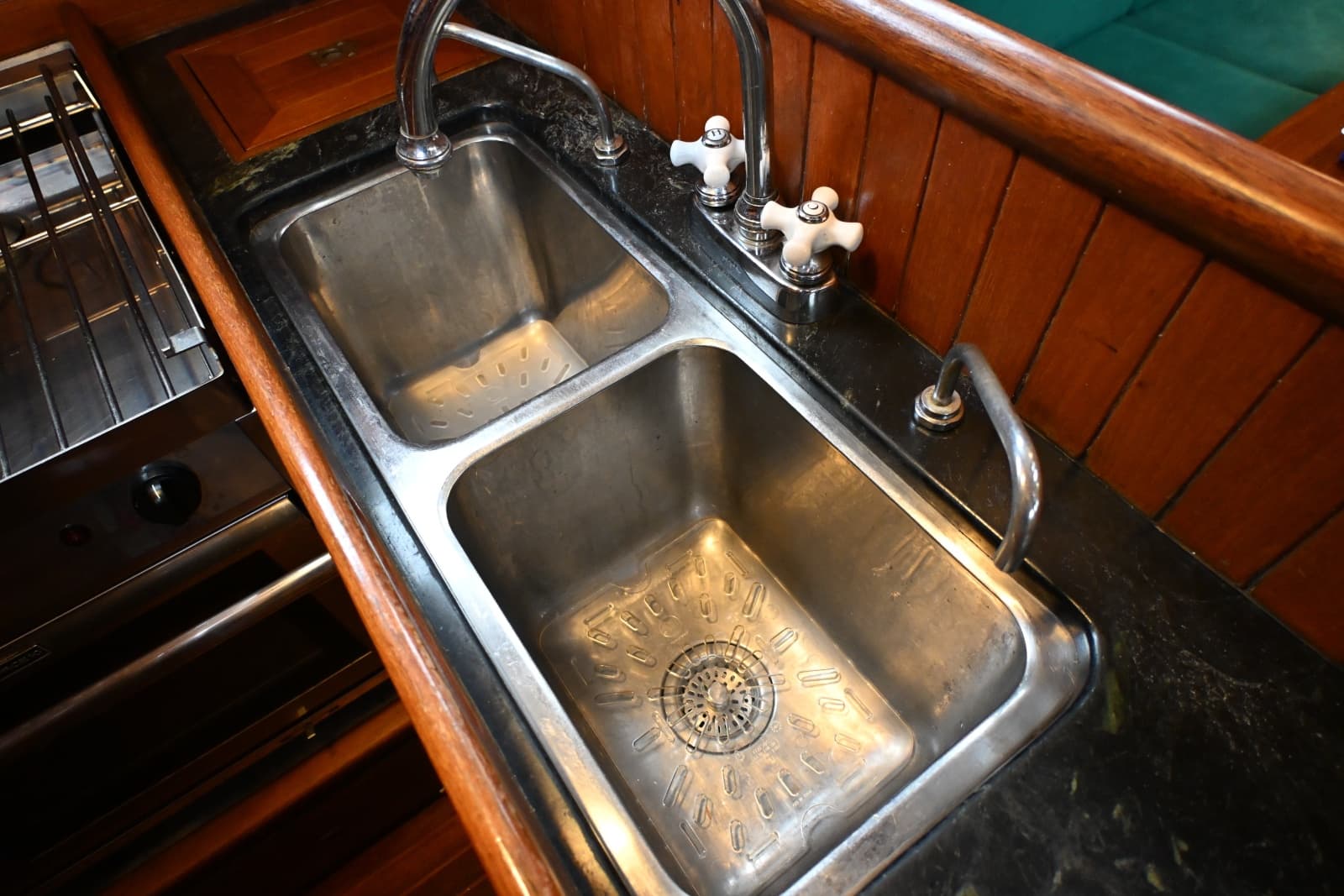

•  Double sink with hot and cold pressure water

•  Whale sink foot pumps for fresh and salt water

•  Granite countertops with teak fiddles

•  Raymarine Hybrid Touch 12" MFD

•  Raymarine autopilot controller

•  Raymarine Autohelm Tridata display

•  Raymarine AIS 700 Class B transceiver with splitter

•  Raymarine HSS SeaTalk network switch box

•  Humminbird PiranhaMax 4 fish finder/depth display

•  5" Ritchie binnacle-mounted compass

•  Raymarine RS150 GPS antenna

•  Raymarine EV-1 SeaTalk sensor core autopilot sensor

•  Standard Horizon GX1500S VHF radio (nav station) with wired cockpit handset

•  Icom IC-M700Pro SSB radio

•  Raymarine Airman 810 speed/depth/water temp sensor

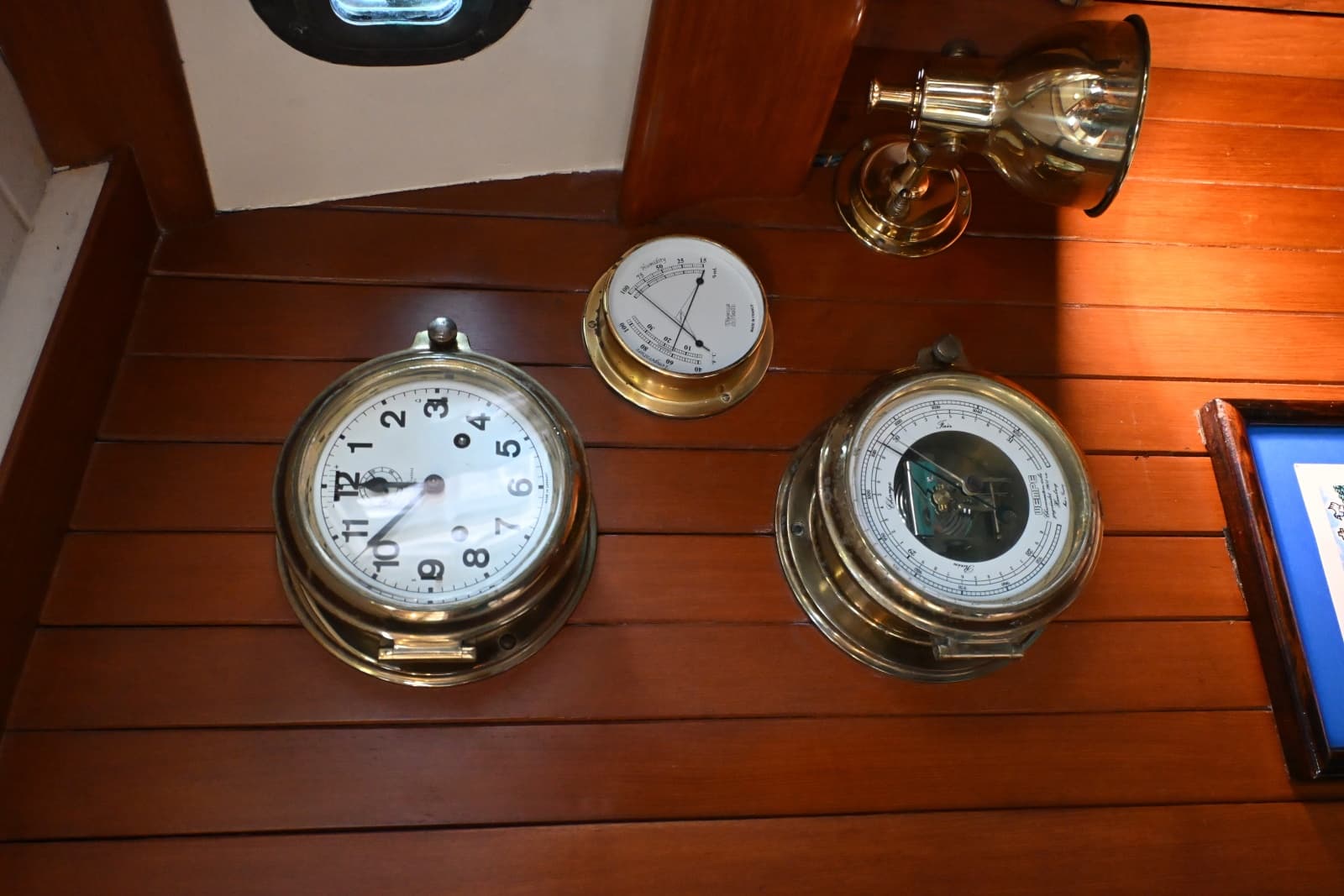

•  Wempe 5" chronometer (saloon)

•  Wempe 5" barometer (saloon)

•  Weems & Plath 3" air temp/humidity gauge (saloon)

•  Weems & Plath 3" barometer (aft stateroom)

•  Weems & Plath 3" chronometer (aft stateroom)

•  Danforth ceiling-mounted compass (aft stateroom)

•  Mercury thermometer (aft stateroom)

•  Sony 5300BT stereo receiver (AM/FM, USB, CD, Bluetooth)

•  Fusion stereo speakers (saloon)

•  30-amp shore power plug

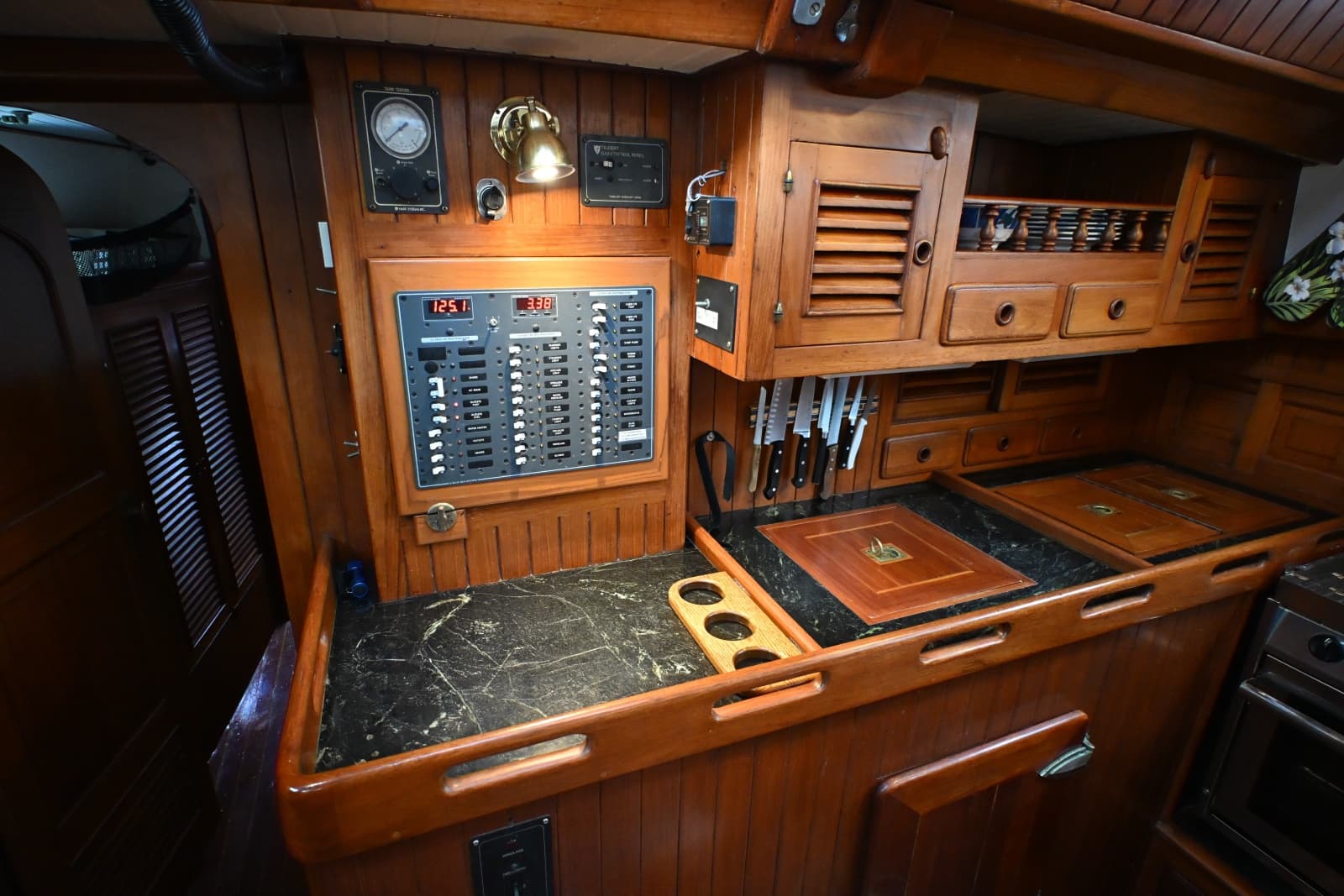

•  120V AC / 12V DC system breaker panels

•  (9) 6V AGM batteries (1,000 Ah)

•  Perko master battery selector switch

•  Xantrex Freedom 20 charger/inverter (2,000 W)

•  Xantrex ProLink Lite battery monitor

•  Xantrex Freedom remote panel

•  220V plug and inverter system for international travel

•  (2) Renogy 100W rail-mounted solar panels (2025)

•  Mizzen mast-mounted Air X wind generator

•  Masthead tricolor and anchor light

•  Steaming light

•  Spreader lights

•  Pulpit/pushpit running lights

•  4JH4-TE Yanmar 75 hp diesel engine (compression tested — 160 psi, 2025)

•  80-amp alternator

•  New fuel injection pump, 2025

•  Hurth ZF63 2:1 direct-drive transmission

•  Balmar alternator

•  Balmar MC-612 MaxCharge regulator

•  Dual Racor fuel filters

•  Yanmar engine control panel (RPM, oil pressure, engine temp)

•  18" 3-blade Maxprop (serviced 10/2025)

•  Shark line cutter (not installed)

•  Wagner hydraulic steering

•  Autohelm wind steering vane (in storage)

•  Espar D10WGM diesel hydronic furnace with thermostat and decoder

•  (2) Rule 2500 automatic bilge pumps

•  Ultra bilge pump switch with alarm

•  (1) manual bilge pump

•  6-gallon Torrid water heater (AC and engine powered)

•  Jabsco 32755 5-gpm 12V freshwater pump

•  SureFlow accumulator tank

•  Tank Tender water gauge

•  Fuel dipstick

Julia Max has a solid, hand-laid fiberglass hull with an extended keel, encapsulated lead ballast, and a skeg-hung rudder with a prop cutout (new bottom paint, 2025) — a configuration that delivers excellent stability and tracking while protecting both rudder and prop. Her chainplates were pulled, inspected, and re-bedded in 2020 at the same time her standing rigging was replaced.

Moving along the deck in a seaway, footing is sure thanks to her non-skid surfaces, and a six-inch bulwark — capped with varnished teak toe rails and fitted with 32-inch double lifelines — keeps feet, gear, and crew aboard. Stanchions are through-bolted to the bulwarks rather than the deck, a detail that both eliminates a common source of water intrusion into the deck substrate and creates a far stronger structural connection to the hull. A varnished teak rub rail protects the hull sides. Her center cockpit is deep, protected, and thoughtfully laid out, shielded by a new dodger that includes a forward glass port with a windshield wiper to ensure visibility in poor weather. Interior electric fans, six dorade boxes with cowl vents, ten bronze opening ports, a cabin-top butterfly hatch, and two opening deck hatches ensure excellent light and ventilation throughout.

 Her decks are exceptionally clean and well kept. Most notably, the original screwed teak planking was removed when she was purchased in 2006 and the decks were re-glassed; the cabin top and cockpit have since been re-decked in stages over the past ten years, this time with glued rather than screwed teak. From the spinnaker-handling basket just forward of the mainmast to her sheet leads, hardware choices, and anchoring gear, Julia Max's deck layout reflects decisions shaped by real use and hard-won experience.

•  New bottom paint (10/2025)

•  Stainless steel pulpit

•  Stainless steel anchor roller

•  66 lb Bruce anchor on bow roller (spare 66 lb Bruce anchor stored below)

•  Spare Bruce anchor, stored below (size TBD)

•  Lofrans X2 vertical windlass with capstan (2025), foot control switches

•  3/8" galvanized anchor chain, 225 ft

•  Pressure water deck wash outlet

•  (2) forward deck light prisms

•  24" x 24" forepeak hatch

•  6" deck perimeter bulwarks with teak cap rail

•  (6) bronze mooring cleats: 2 forward, 2 amidships, 2 aft

•  Pro-Furl genoa furler

•  Bulwark-mounted genoa tracks with adjustable pin cars

•  Stainless steel double lifelines (33" height) with bulwark-mounted stanchions

•  Lifeline gates, port and starboard amidships

•  Teak cabin-top handrails with canvas covers

•  Stainless steel spinnaker handling basket

•  Cockpit dodger with port-side glass port and Roca electric windshield wiper

•  (10) bronze opening ports

•  Bronze steering pedestal and binnacle with 30" wheel

•  (1) Barient #19 self-tailing mast-mounted halyard winch

•  (1) Barient #24 self-tailing mast-mounted halyard winch

•  (1) Lewmar #40 self-tailing mast-mounted halyard winch

•  (2) Barient #32 self-tailing primary cockpit winches

•  (2) Barient #27 self-tailing secondary cockpit winches

•  (1) Lewmar #30 self-tailing mizzen halyard winch

•  (1) Harken #30 self-tailing mizzen halyard winch

•  (1) Barient #23 self-tailing mainsheet winch

•  (4) Spinlock XT halyard clutches, mast-mounted (2 port, 2 starboard)

•  Cockpit coaming storage cubbies (1 port, 2 starboard)

•  Kato stern-mounted dinghy davits

•  Full canvas cockpit enclosure

•  Full canvas boat cover

•  Cockpit cushions

•  Aluminum double-spreader keel-stepped main mast

•  Aluminum single-spreader deck-stepped mizzen mast

•  Forespar aluminum extendable whisker pole

•  Rigid boom vang with 6:1 purchase (make TBD)

•  Harken 4:1 traveler with 4:1 end controls and cam cleats

•  Mizzen main pin traveler

•  Canvas main and mizzen sail covers

•  Masts repainted

•  New standing rigging

•  Running rigging in excellent condition

•  North Dacron full-batten cruising main (2019)

•  North Dacron 135% genoa (2019)

•  North Dacron mizzen main (2017)

•  North Dacron staysail (details TBD)

•  North spinnaker (year TBD)

•  Storm trysail (TBD)

•  Storm jib (unused/like new)

•  Main and mizzen deployable lazy jacks

•  Deck-mounted 4-person Viking liferaft in hard case (certification expired)

•  ACR GlobalFix Pro Cat 2 EPIRB

•  Lifesling 2 MOB system

•  Jacklines, stored on pushpit storage roller with canvas cover

•  Folding cockpit-mounted pad eye

•  Emergency tiller

•  Engine room fire extinguisher access port

•  (3) fire extinguishers

•  Suzuki 15 hp two-stroke outboard

•  Zodiac Cadet 300 Compact hard-bottom RIB with chaps

•  (4) fenders with covers

•  Miscellaneous dock lines

•  Owners' personal items

•  Aft cabin sheets and bedding

•  Main saloon throw pillows

•  Toilet repair tools

•  Dining and head towels

•  Paintings
