2001 Catalina 36 MK II
“Summit”
Description

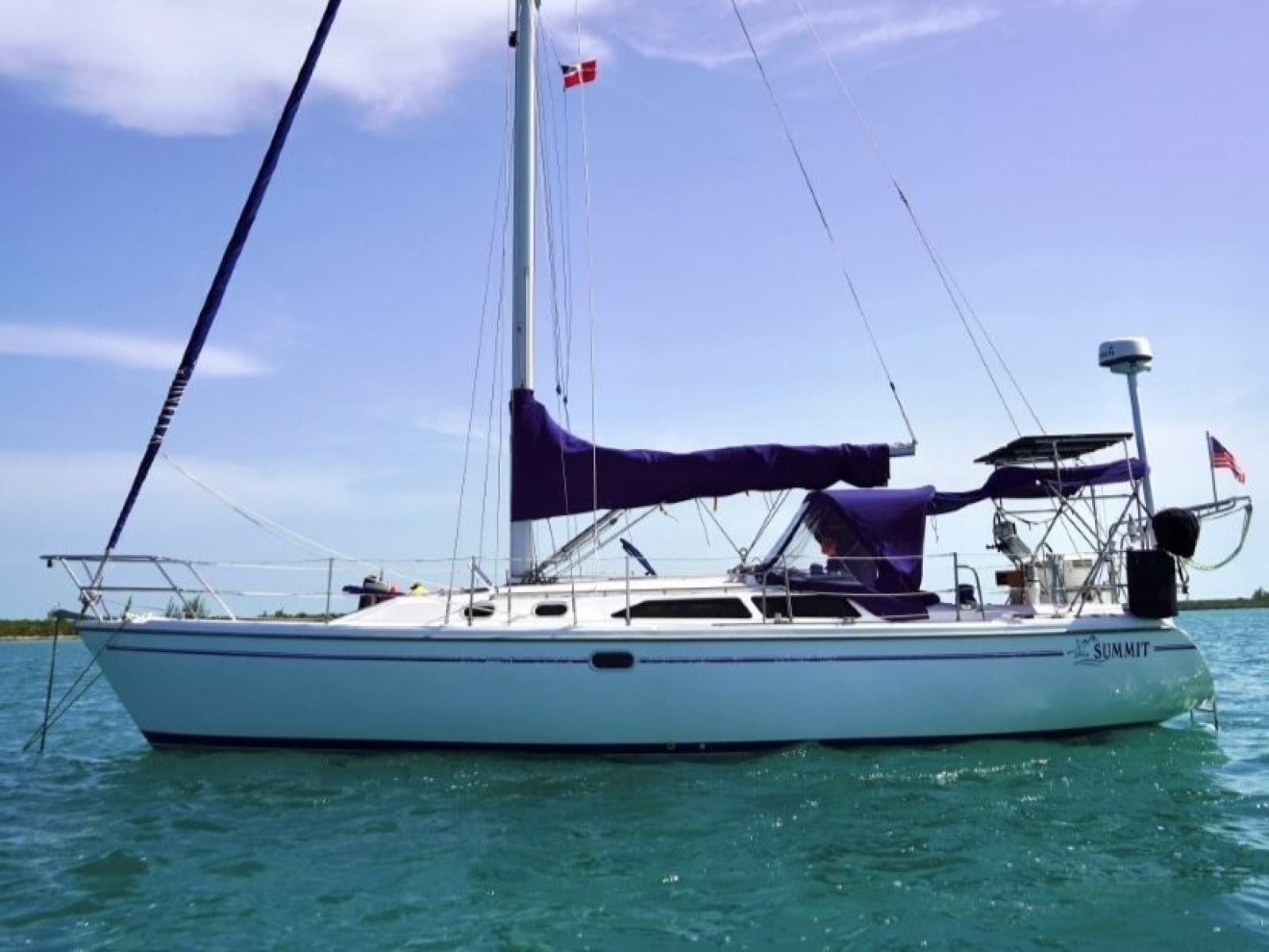

Summit is a well-equipped 2001 Catalina 36 MkII that has spent the past two seasons cruising the Bahamas. She combines the popular two-cabin layout and shallow-draft wing keel with an extensive cruising inventory, including solar, upgraded AGM batteries, air conditioning, radar, autopilot, an electric windlass, davits, a dinghy, and an outboard.
Recent upgrades include 360 watts of Renogy solar with Victron MPPT controller and SmartShunt (2026), two Lifeline 210Ah AGM house batteries (2025), and a 105Ah AGM starting battery (2025). A newer genoa complements the mainsail, with the original genoa retained as a spare.

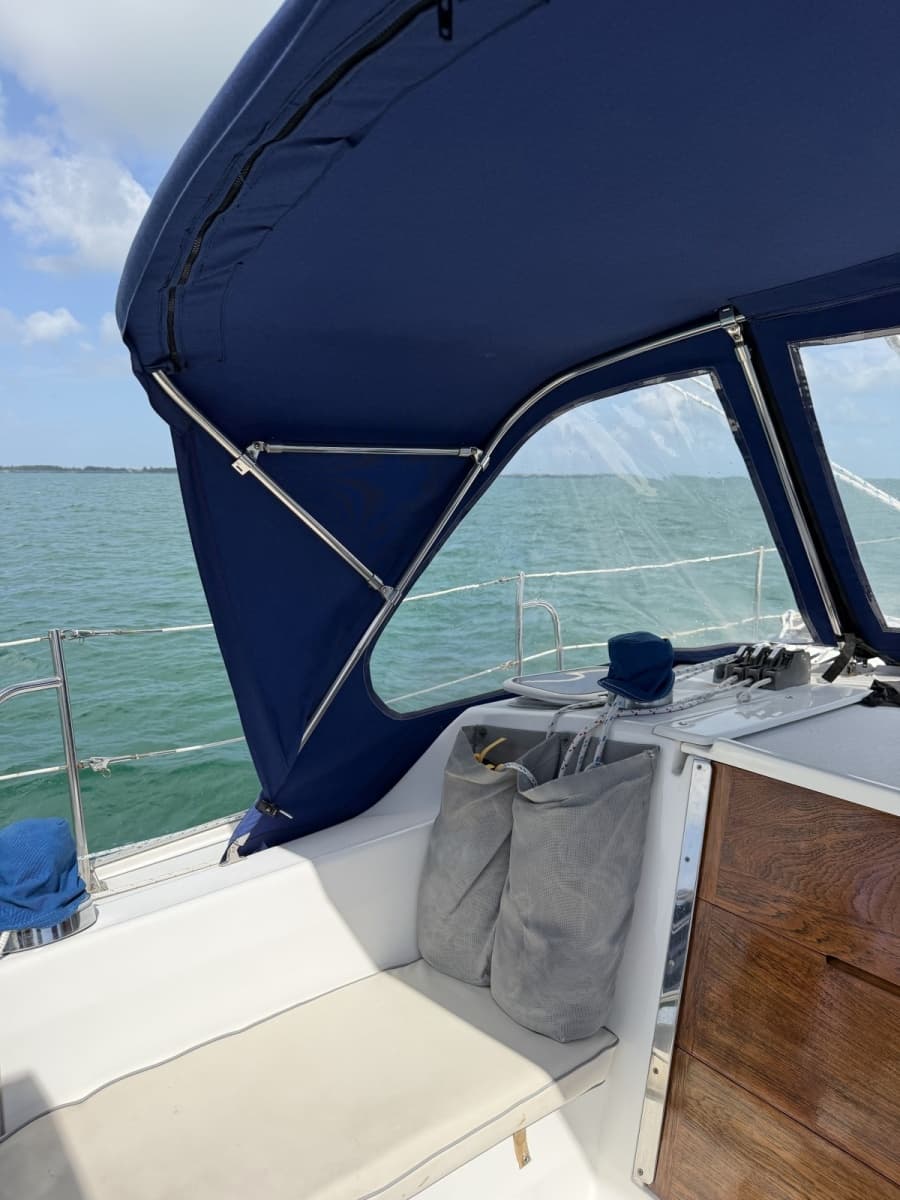

The cockpit is protected by a dodger and bimini and features a folding teak table, cockpit cushions, Magma grill, and sugar-scoop transom. Davits carry a 10' Achilles inflatable with a Yamaha 4 HP outboard.
Below decks, Summit offers a spacious two-cabin interior with private forward and aft cabins, an enclosed head, a comfortable salon, a well-equipped galley, and 16,000 BTU marine air conditioning.
Summit is equipped with a 35 HP Universal M35BC diesel with approximately 1,670 hours and a PYI Max-Prop. Electronics include a 9" Garmin chartplotter and radar, Raymarine autopilot, wind instrumentation, and ST60 TriData.
With her 4'6" draft, recent electrical upgrades, extensive cruising equipment, and proven Bahamas cruising history, Summit is well suited for the ICW, Florida, the Bahamas, and coastal cruising.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by S&J Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Highlights
- 4' 5" draft
- Achilles 10' RIB
- Air conditioning
- Solar
- Dinghy davits
Key Specifications
Weight & Measurements
Accommodation
Tankage
Registration & Documentation
Engines
Videos
2001 Catalina 36 Mk II Tour
Full Details
Notable Features and Updates
- Wing keel – approximately 4'6" draft
- Universal M35BC 35 HP diesel – approximately 1,670 hours
- PYI Max-Prop
- Two-cabin / one-head interior
- 16,000 BTU marine air conditioning
- (3) Renogy 120W solar panels – 360 watts total (2026)
- Victron MPPT solar charge controller (2026)
- Victron SmartShunt battery monitor (2026)
- (2) Lifeline 210Ah AGM house batteries (2026)
- West Marine 105Ah AGM starting battery (2026)
- Balmar high-output alternator
- 9" Garmin GPS/chartplotter
- Garmin 36 NM radar
- Raymarine autopilot
- Raymarine wind instrument
- Raymarine ST60 TriData
- Maxwell 1,500W electric windlass
- Rocna 33 lb primary anchor with approximately 150' of chain
- Newer genoa plus original genoa as spare
- Dodger and bimini
- Dinghy davits
- 10' Achilles inflatable dinghy
- Yamaha 4 HP outboard
- Magma grill
Interior

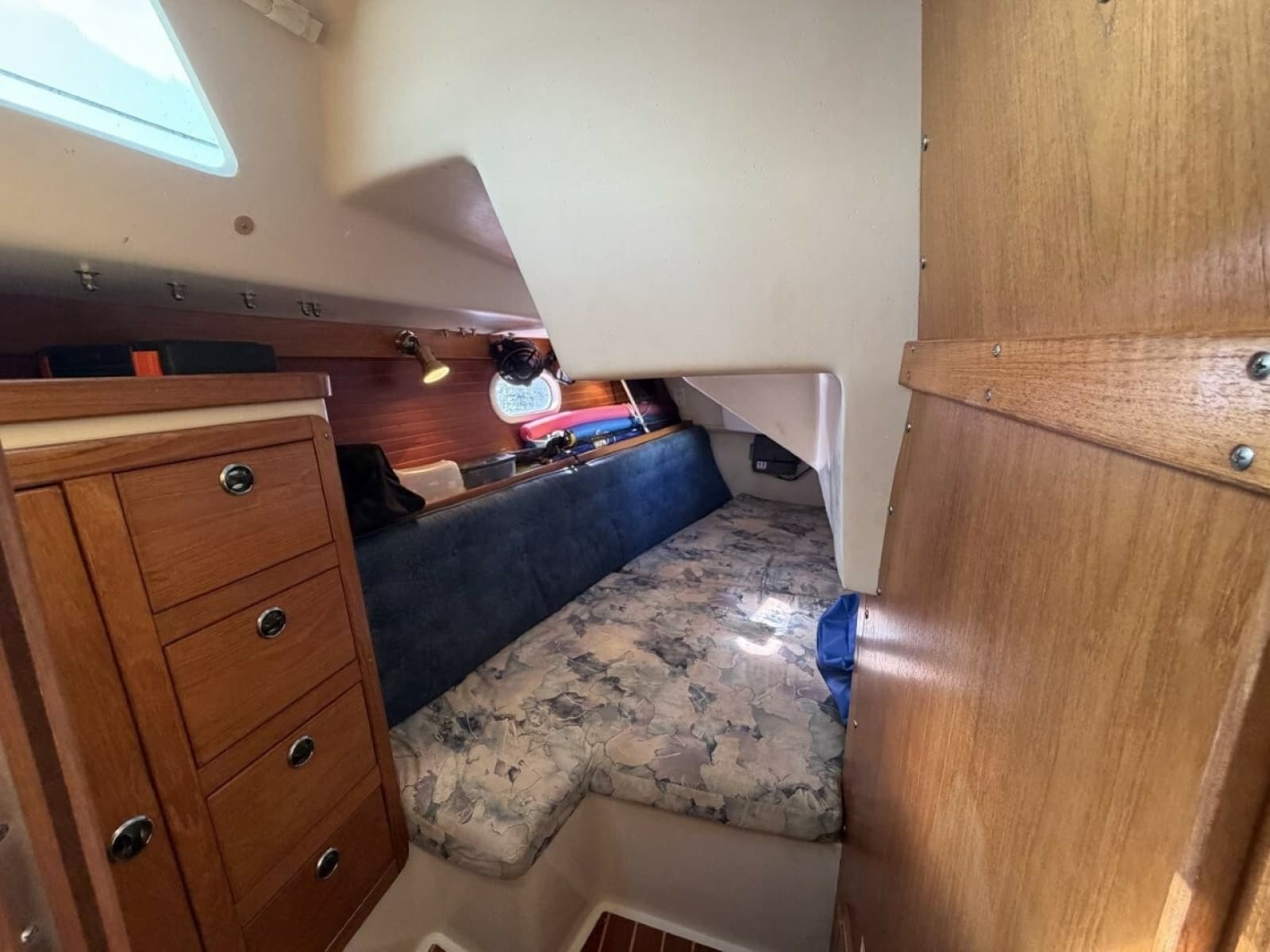

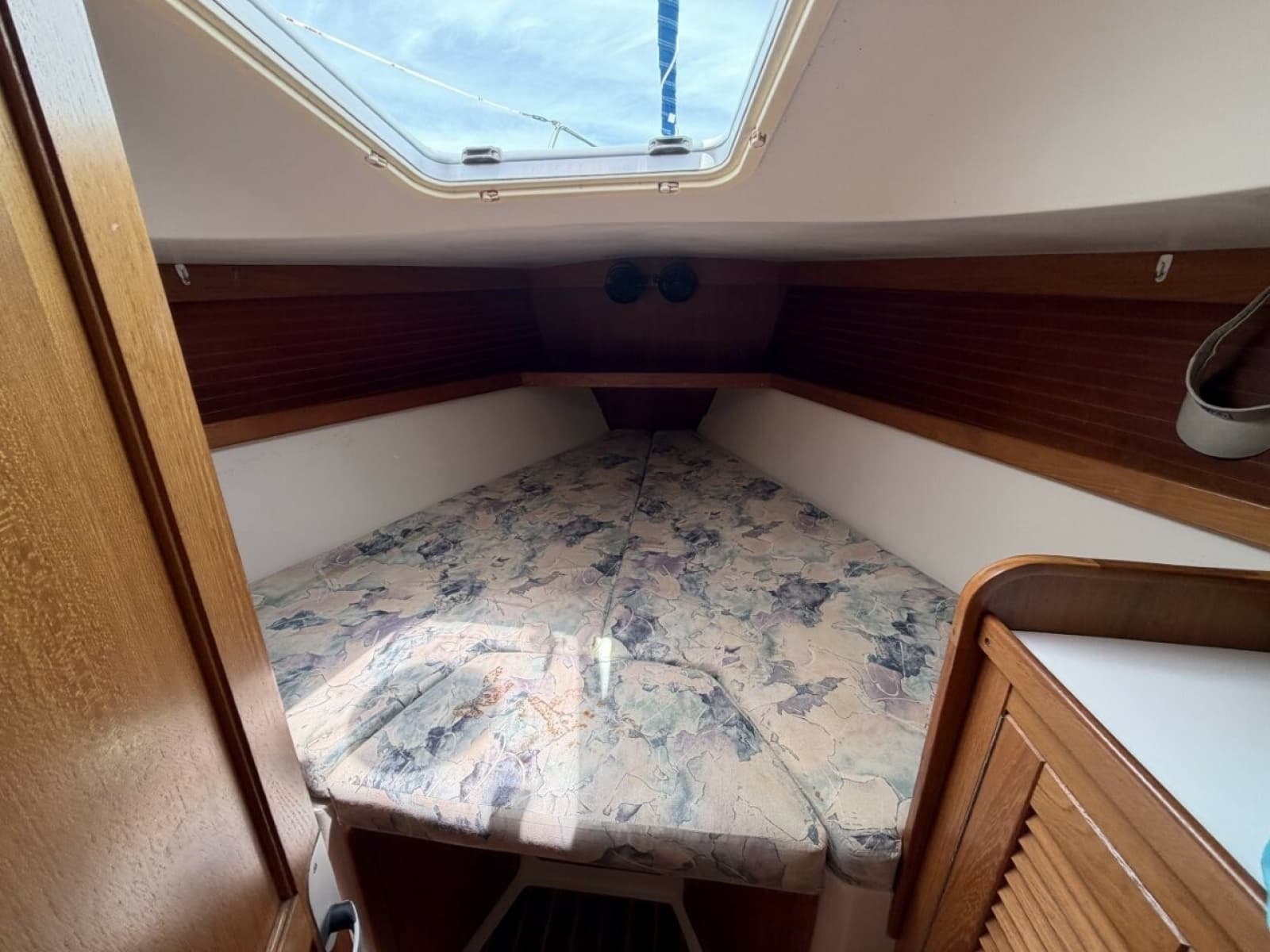

Summit features the Catalina 36 MkII's popular two-cabin layout with a private forward cabin, spacious aft cabin, enclosed head, large salon, and excellent storage throughout.

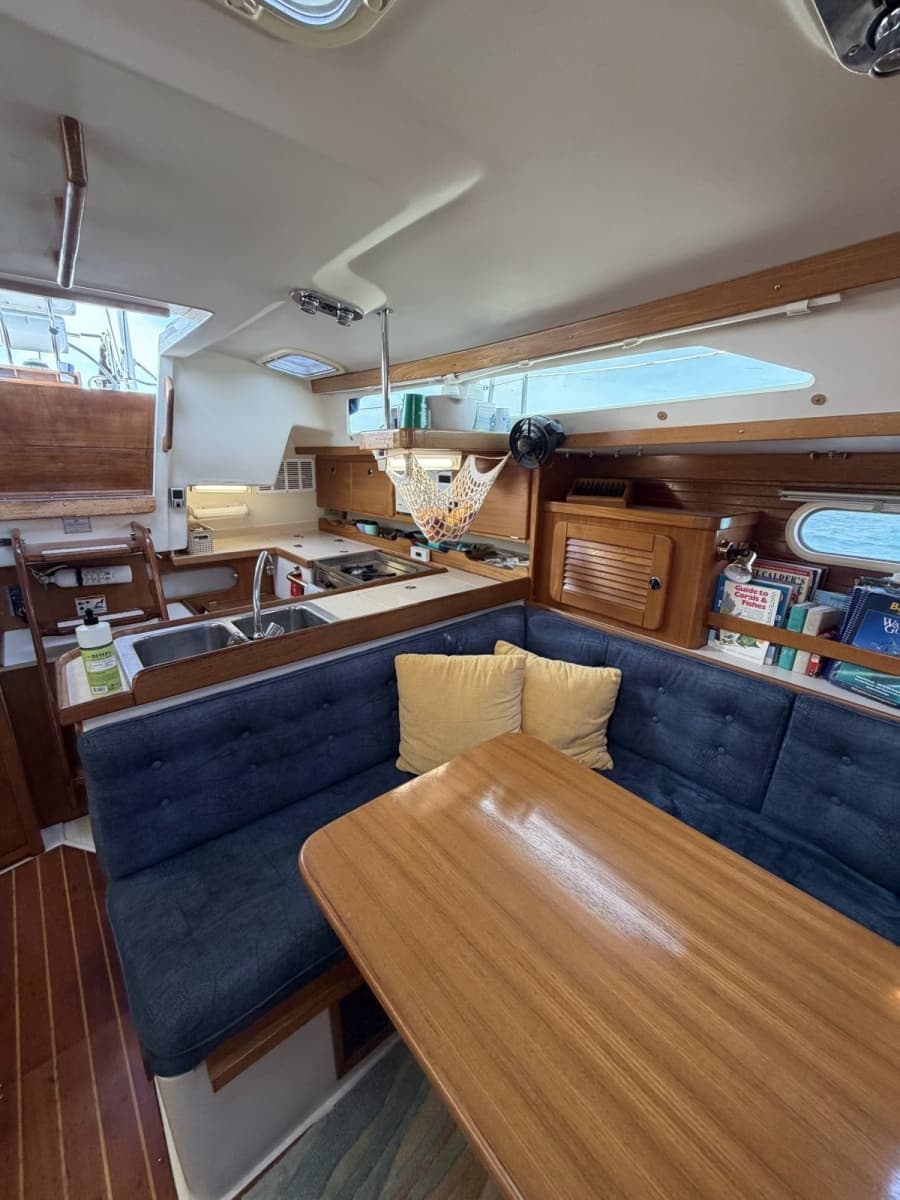

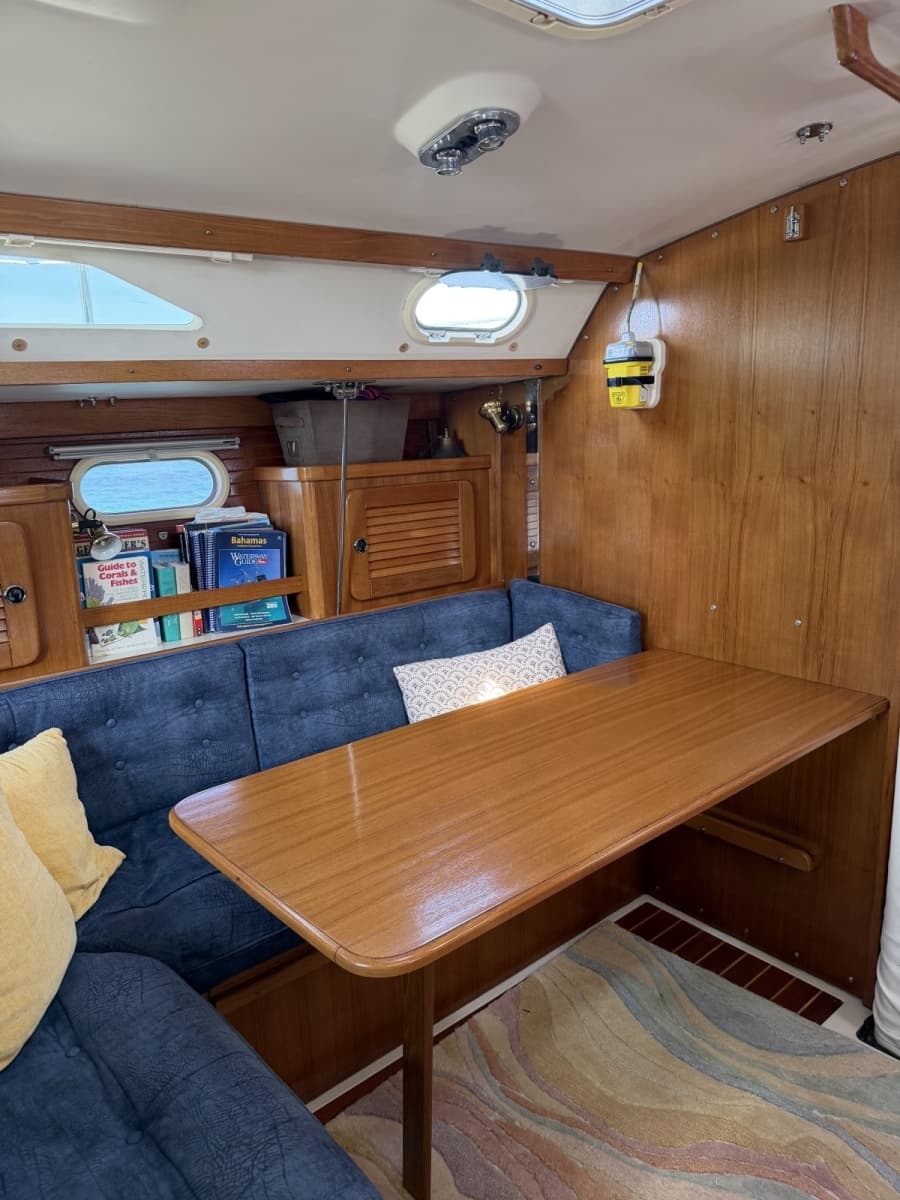

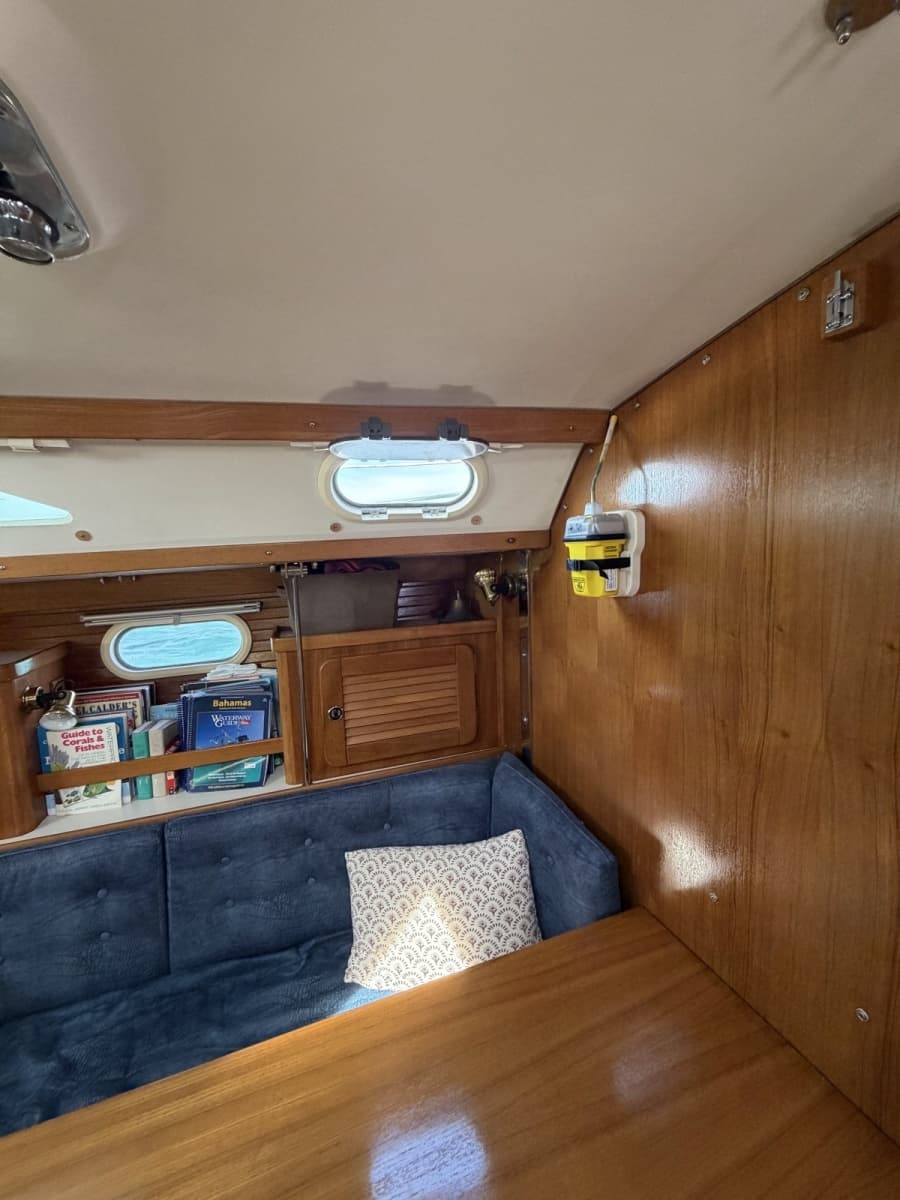

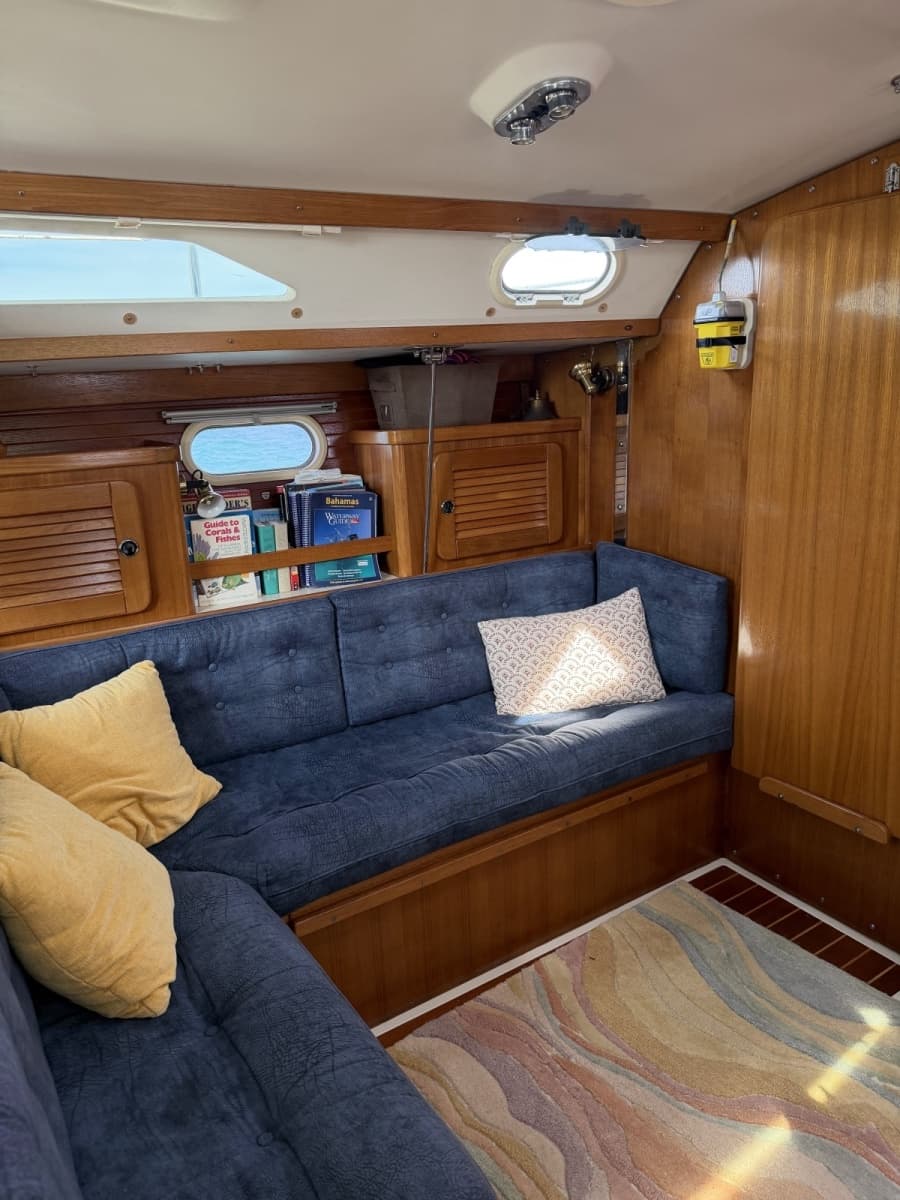

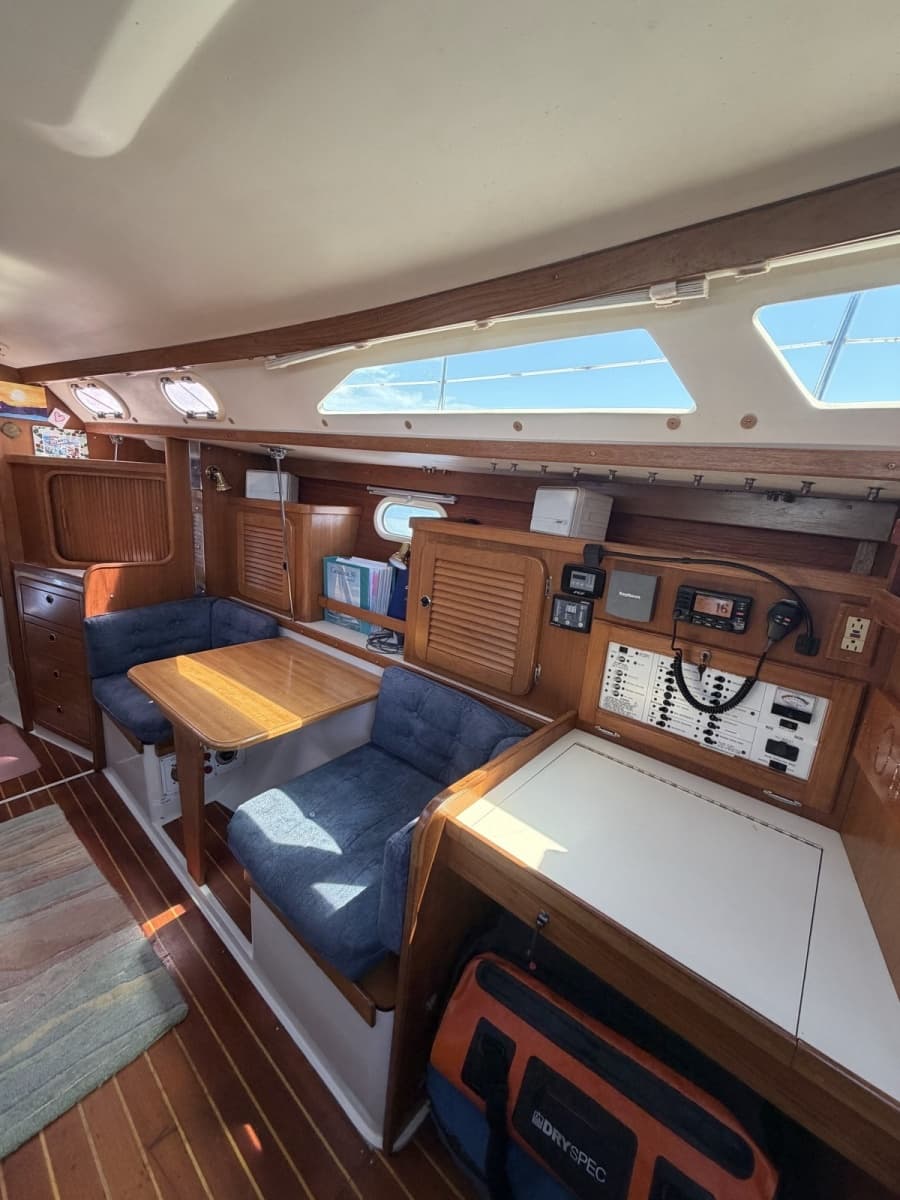

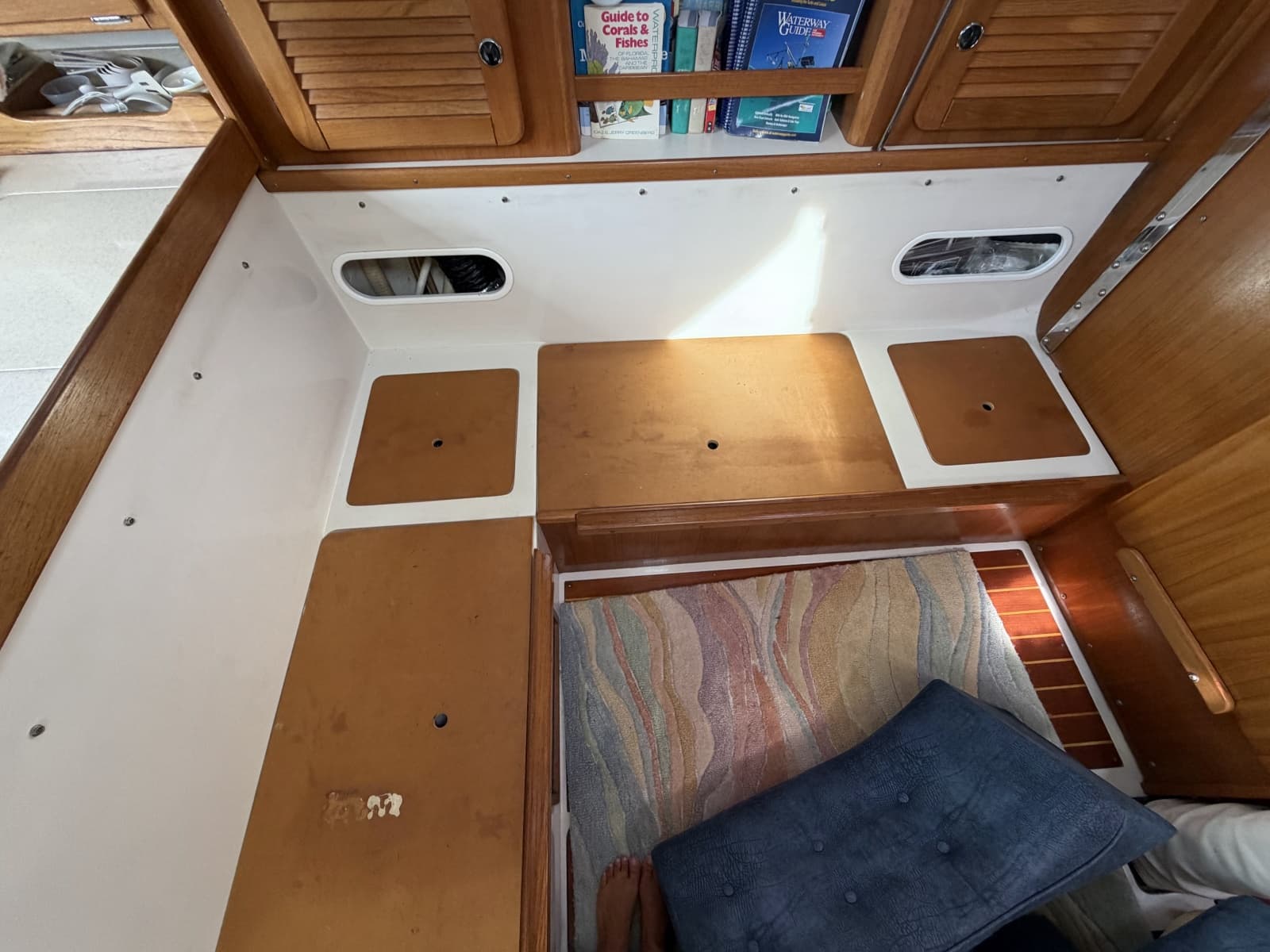

The main salon features an L-shaped port-side settee with a folding dining table. The table can be stored against the bulkhead when not in use, opened for dining, or incorporated into the settee to create additional sleeping accommodations.

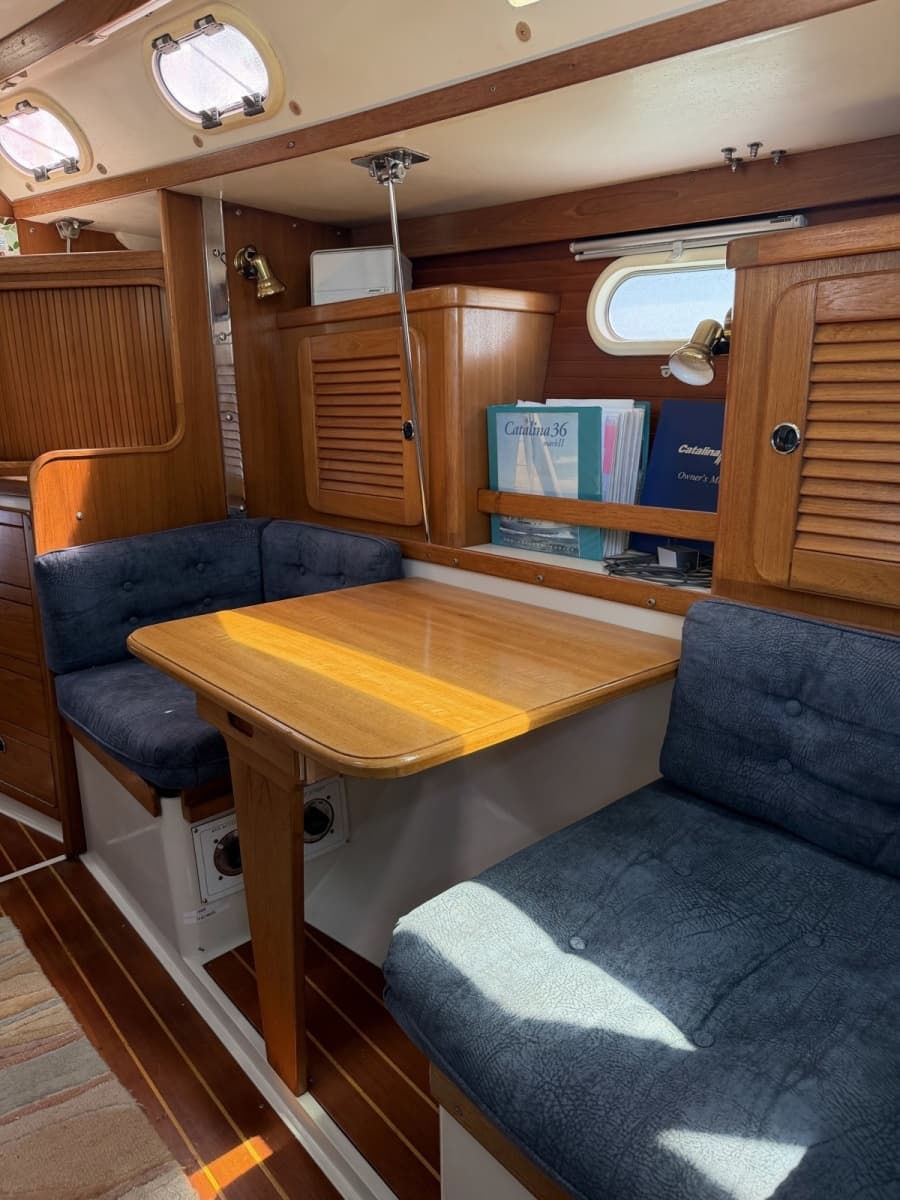

To starboard are two individual seats with a folding table. This area can also convert to provide an additional berth.
An overhead opening hatch and opening ports provide natural light and ventilation.
Additional features include:
- Teak-and-holly cabin sole
- 16,000 BTU marine air conditioning
- 12V cabin fan
- Cabin speakers
- Folding salon table
- Convertible salon berths
- Numerous lockers and storage compartments

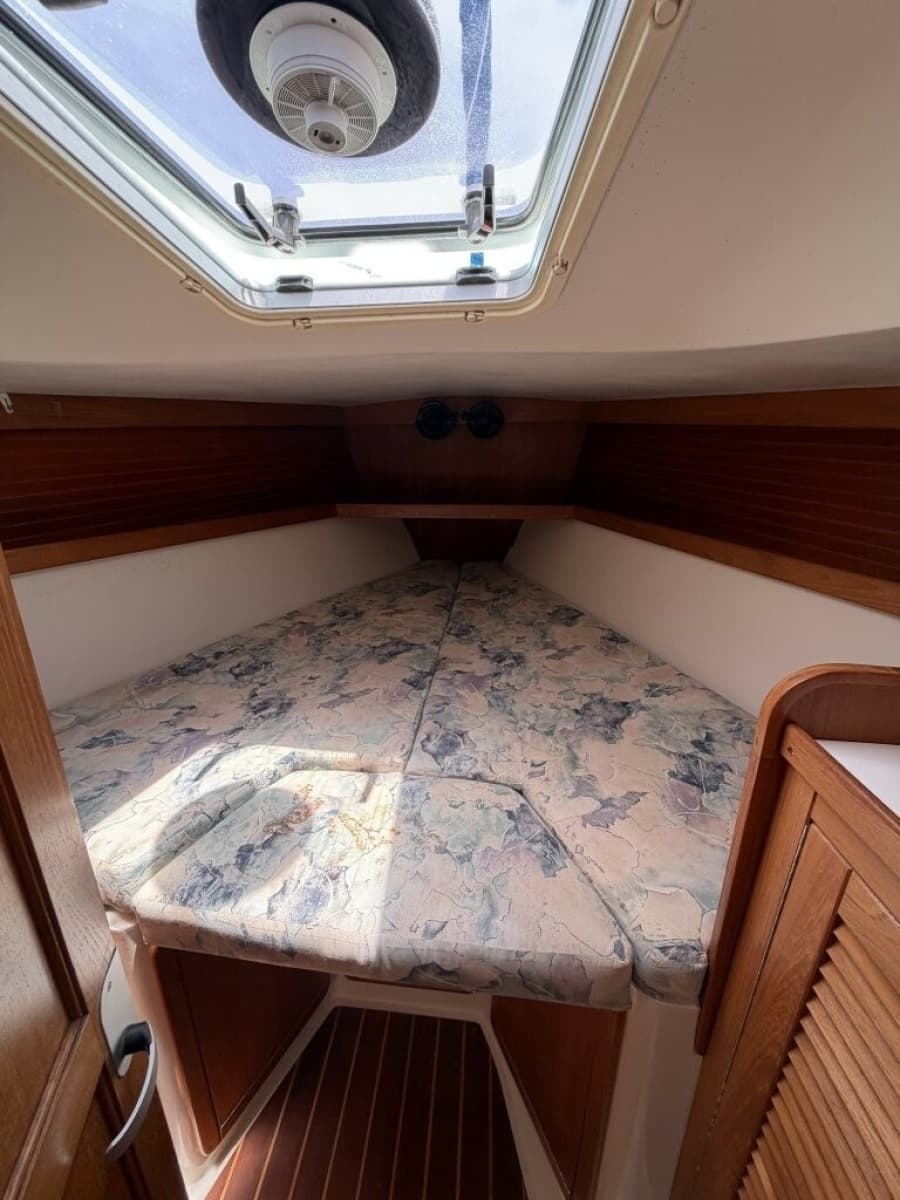

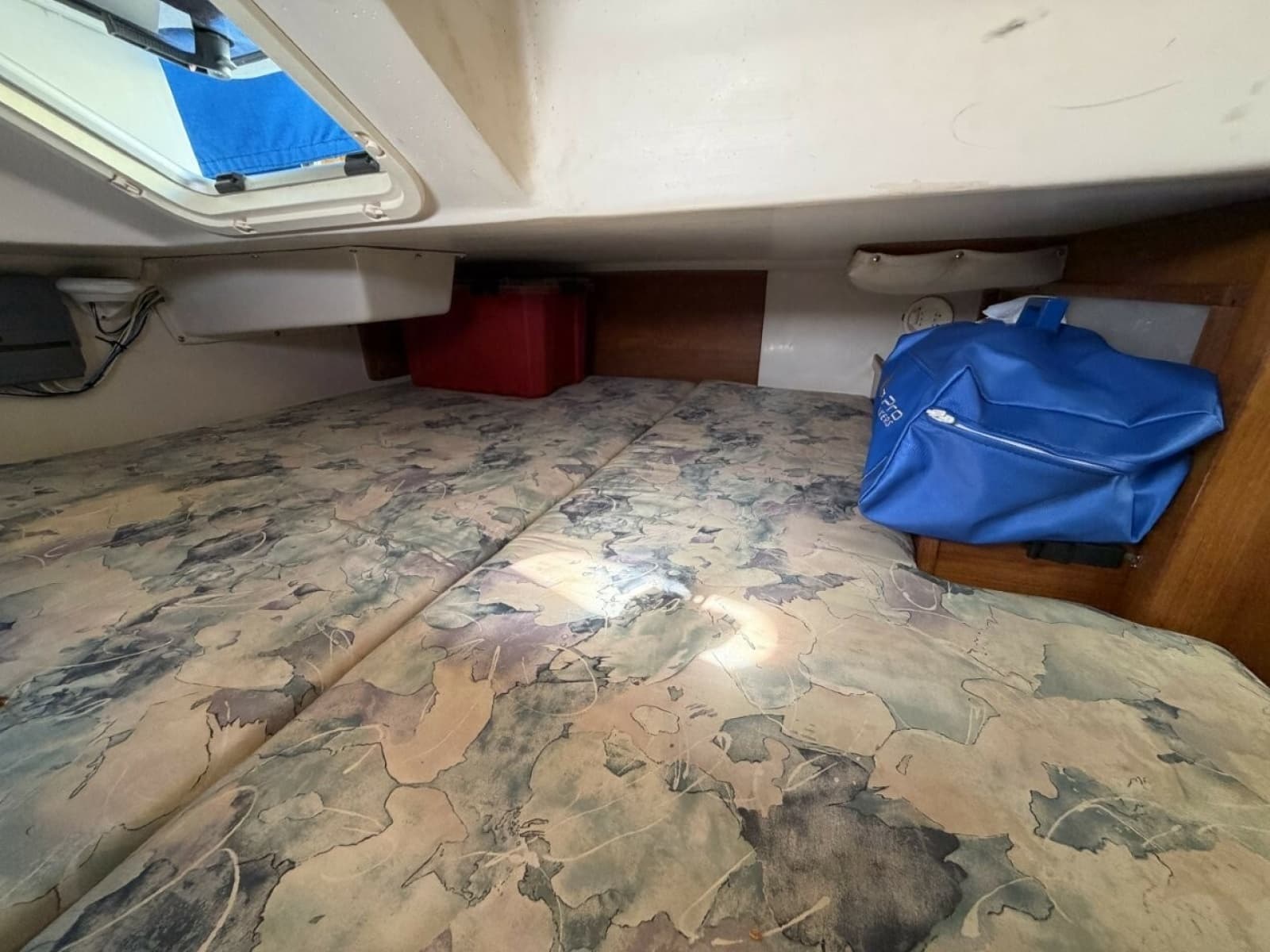

- Private forward cabin

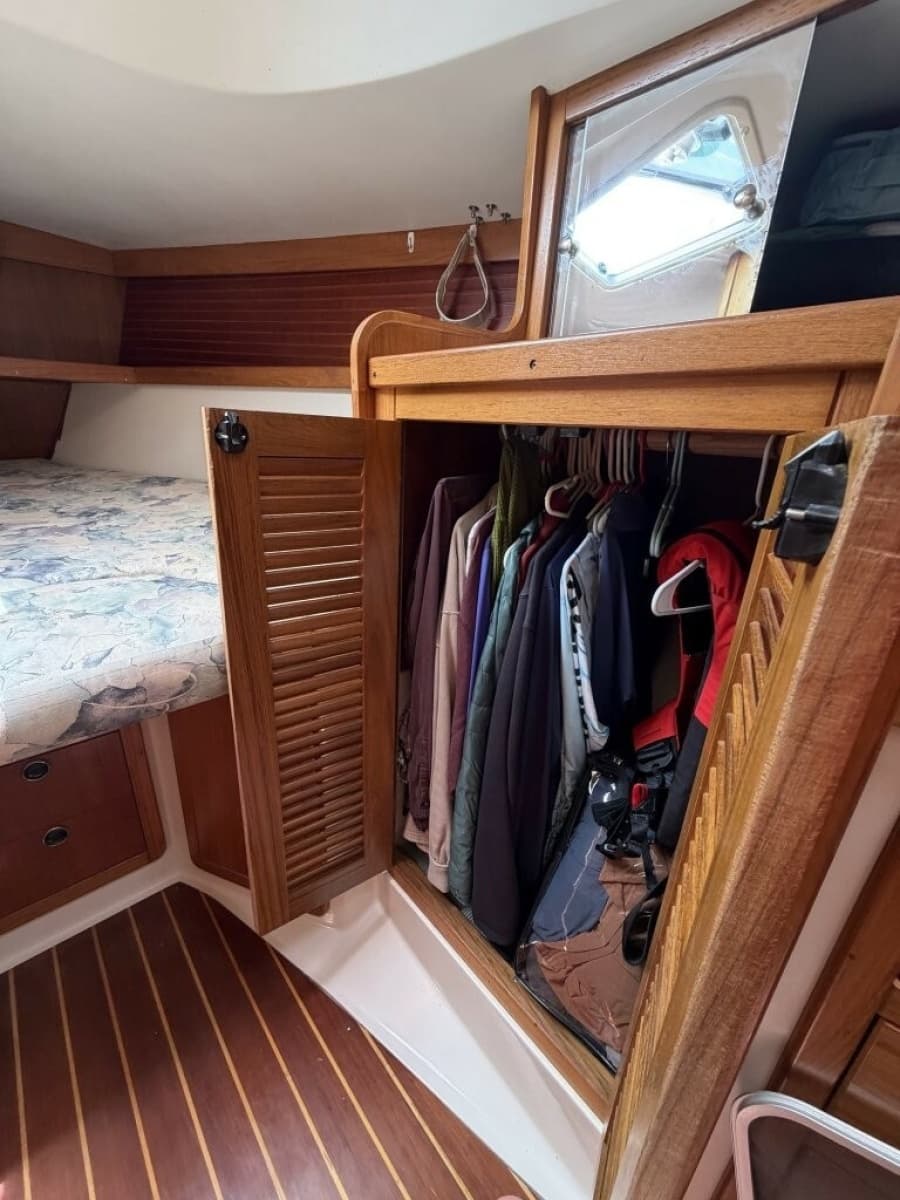

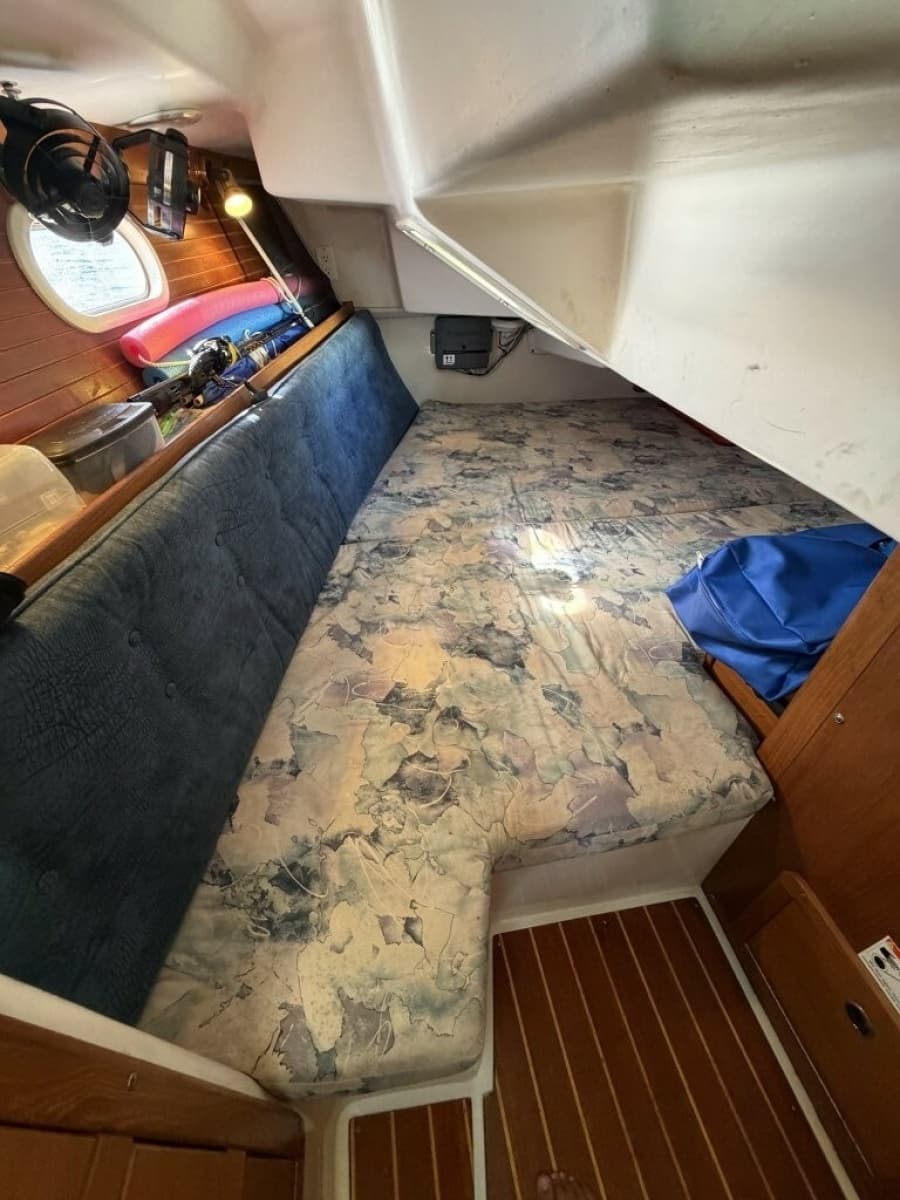

- Private aft cabin

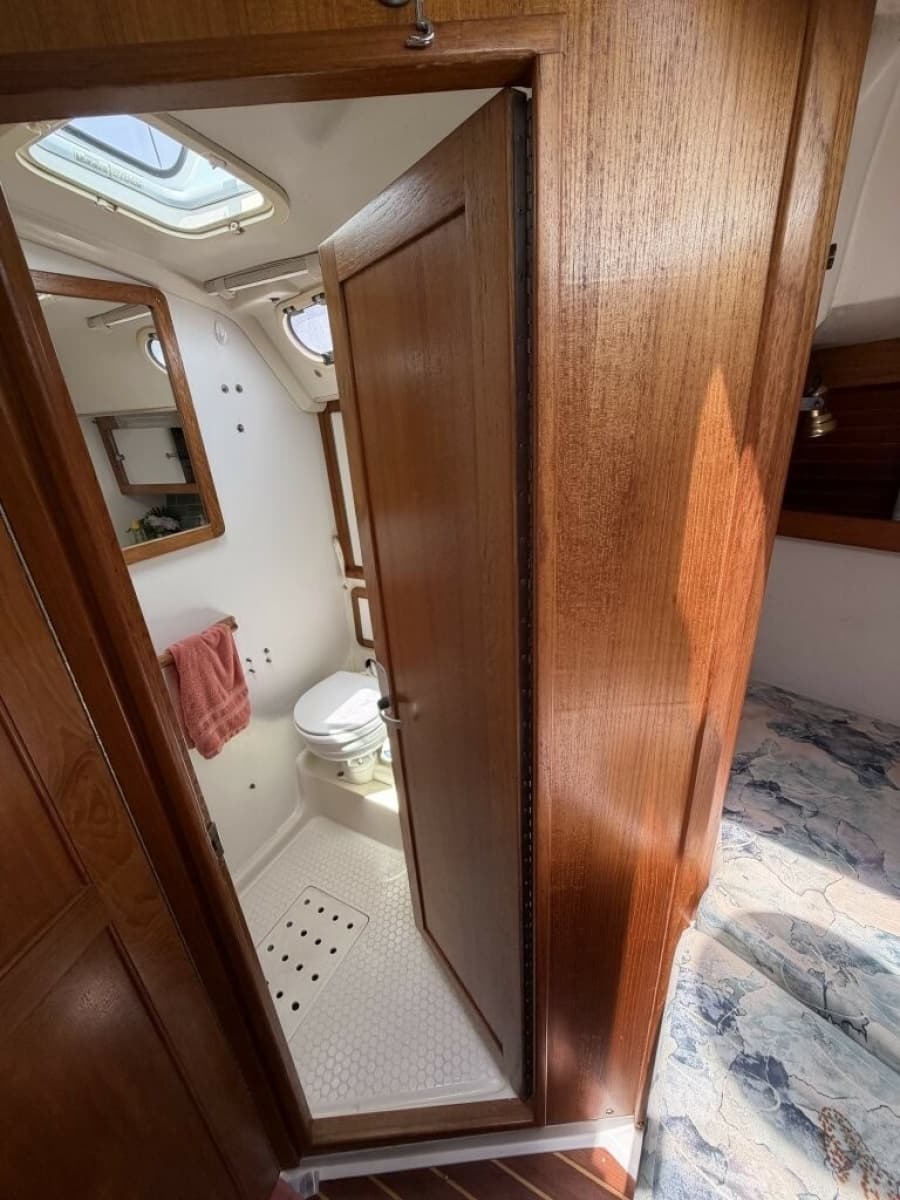

- Enclosed wet head

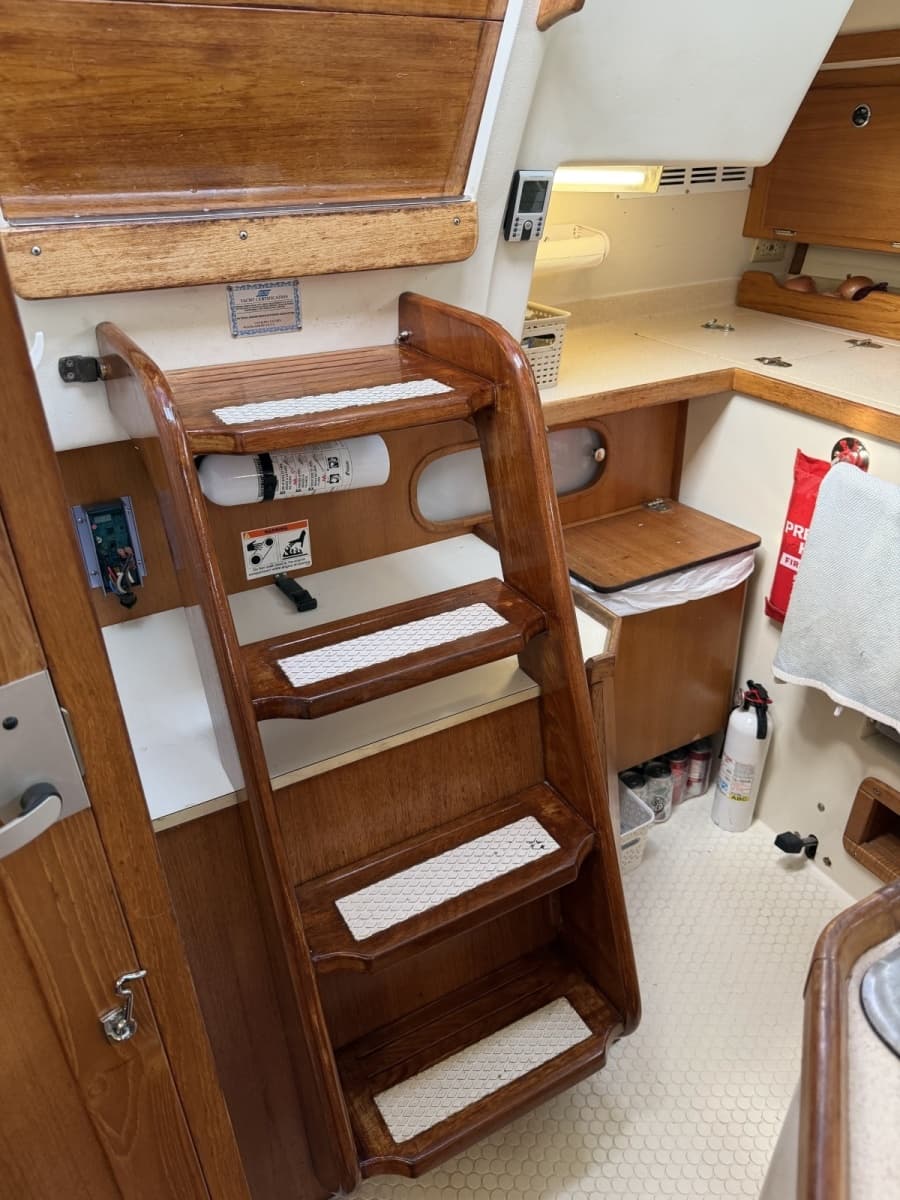

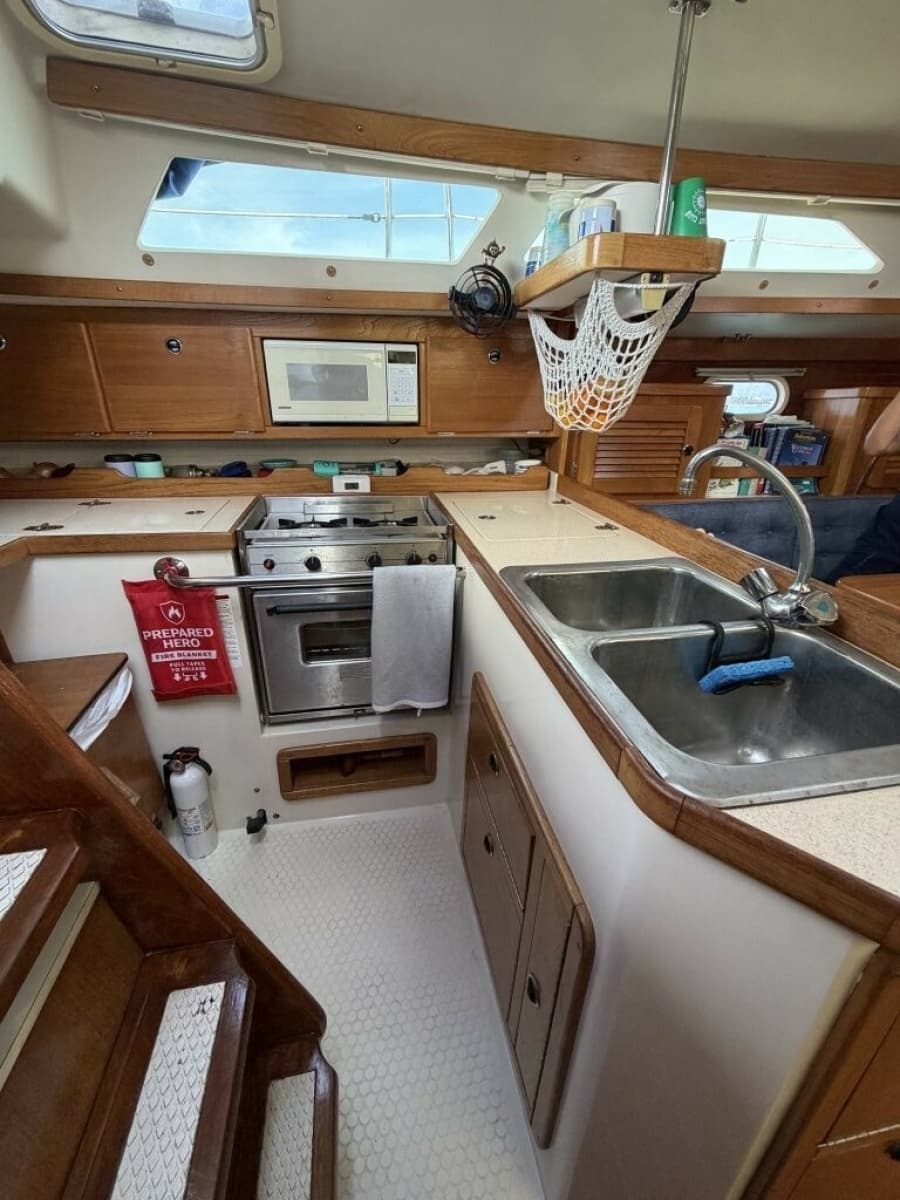

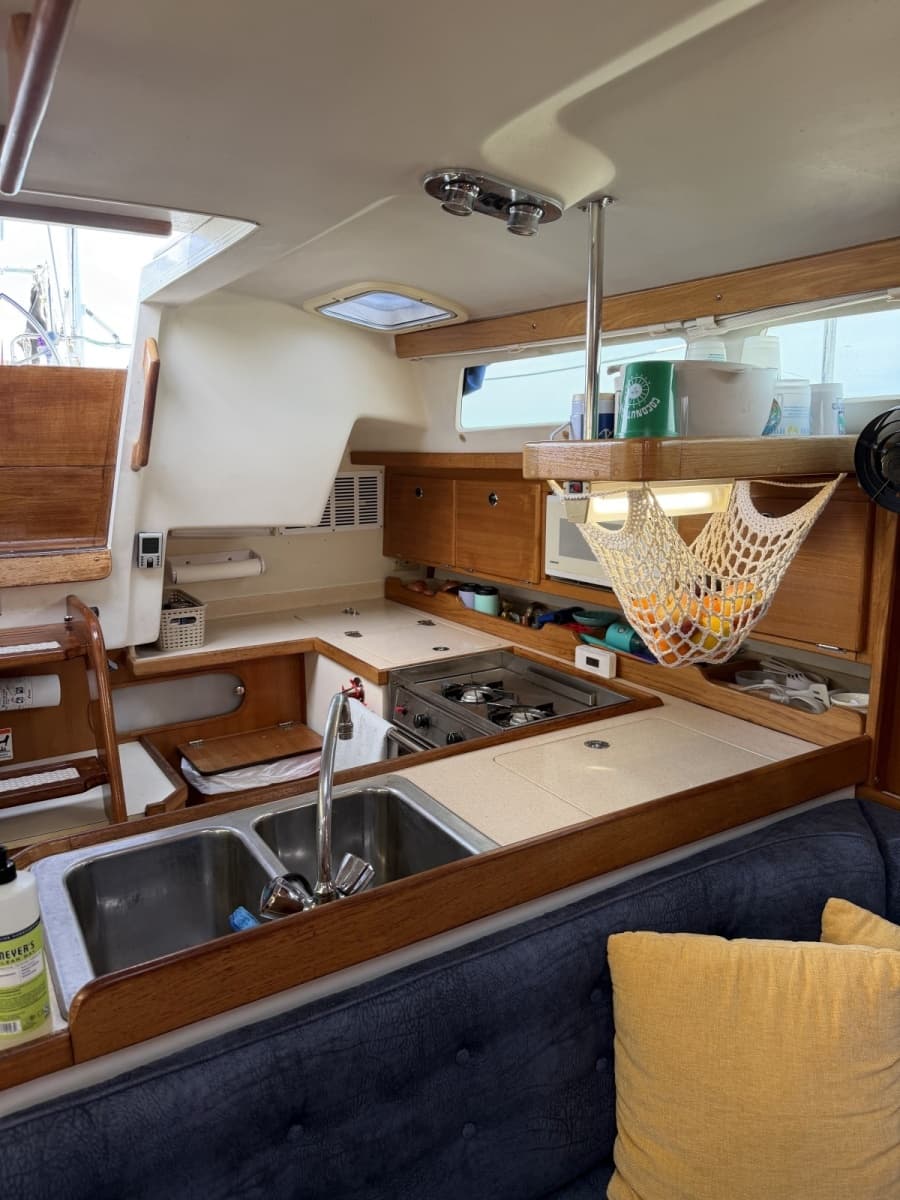

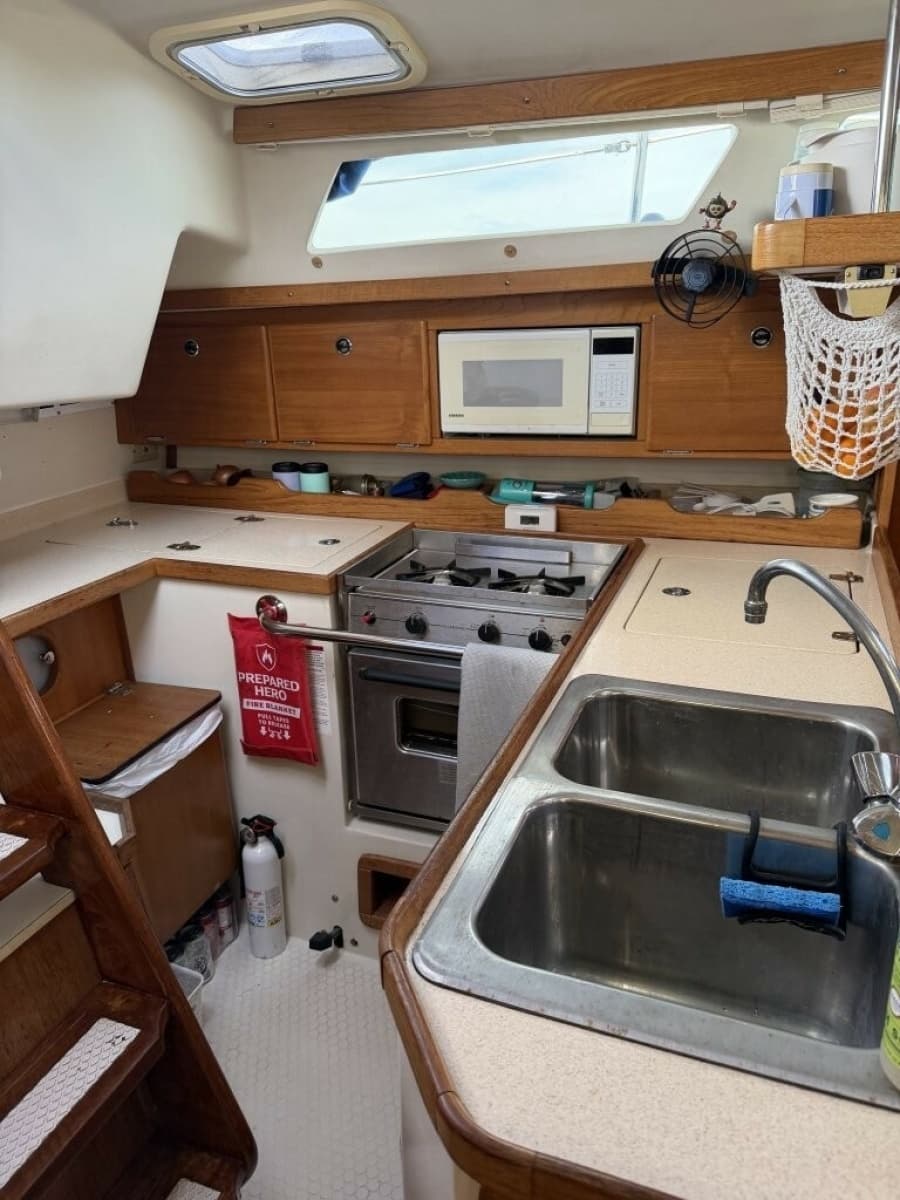

Galley:
- Seaward two-burner propane stove and oven
- Microwave
- WAECO refrigeration
- Stainless-steel sink
- Built-in trash receptacle
- Three large storage cabinets
- Countertop storage compartment
- Large drawer beneath sink
- Three additional galley drawers
- Produce hammock
- 12V ventilation fan
- Opening overhead hatch
- Fire blanket

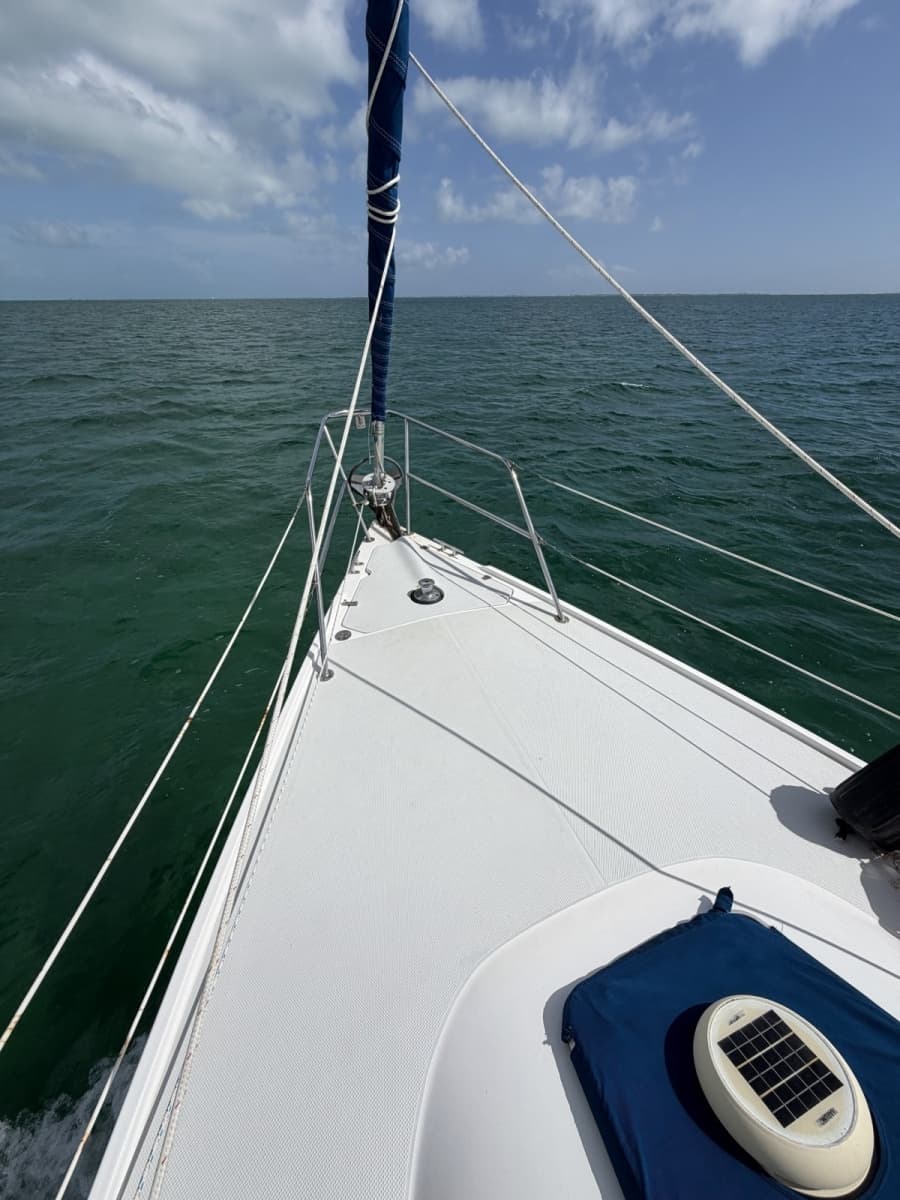

Deck and Cockpit
- Chain locker with roughly 150' of 7/16" anchor chain
- Electric Windlass: 12-volt DC Maxwell 1,500 w automatic anchor windlass with foot pedal controls
- Rocna 15 33 lbs anchor.
- Fortress Danforth-style spare anchor kept in the lazarette.
- (8) 10" stainless steel mooring cleats.
- Cockpit cushions
- Large port cockpit locker filled with spare lines, cleaning products, engine oil, dive belt, emergency tiller, etc.

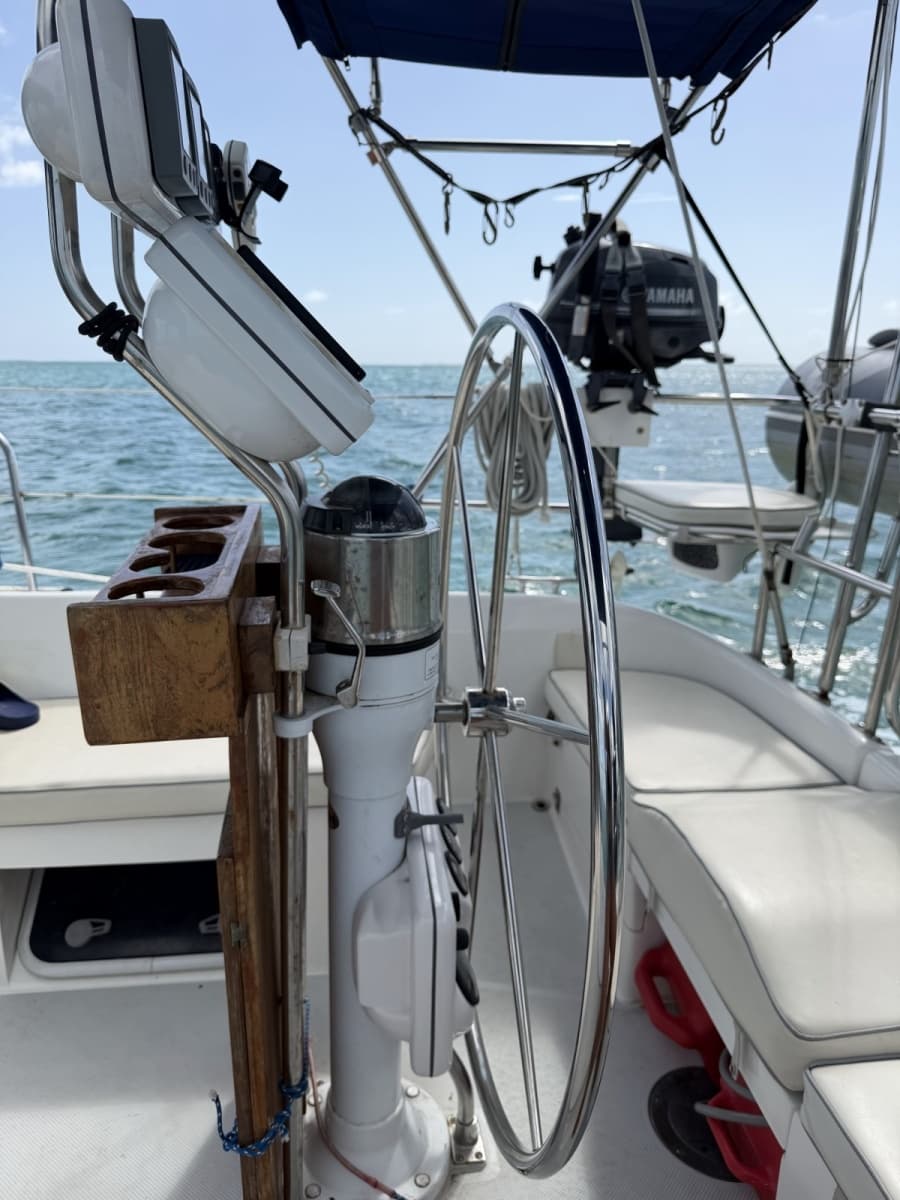

- Helm pedestal with a folding teak table.
- Magma grill mounted on the pushpit

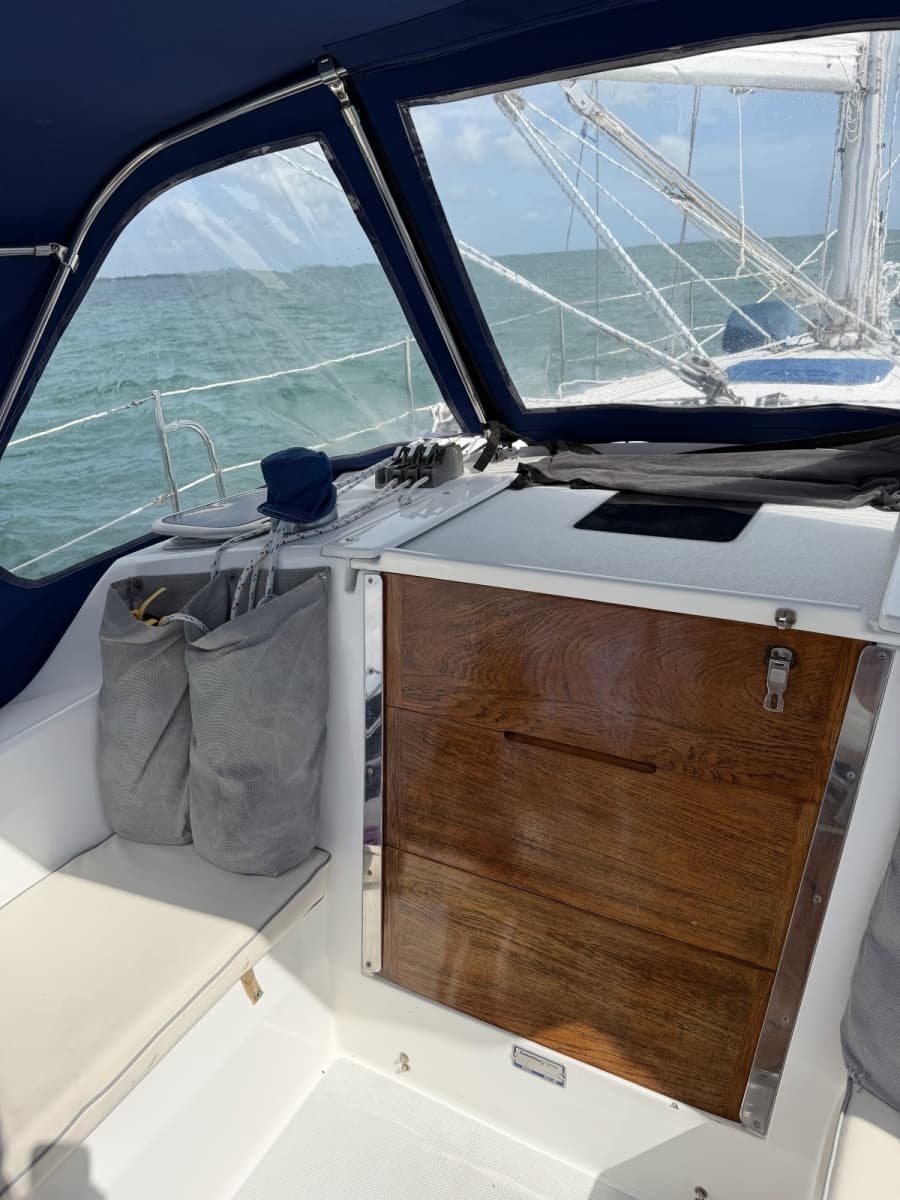

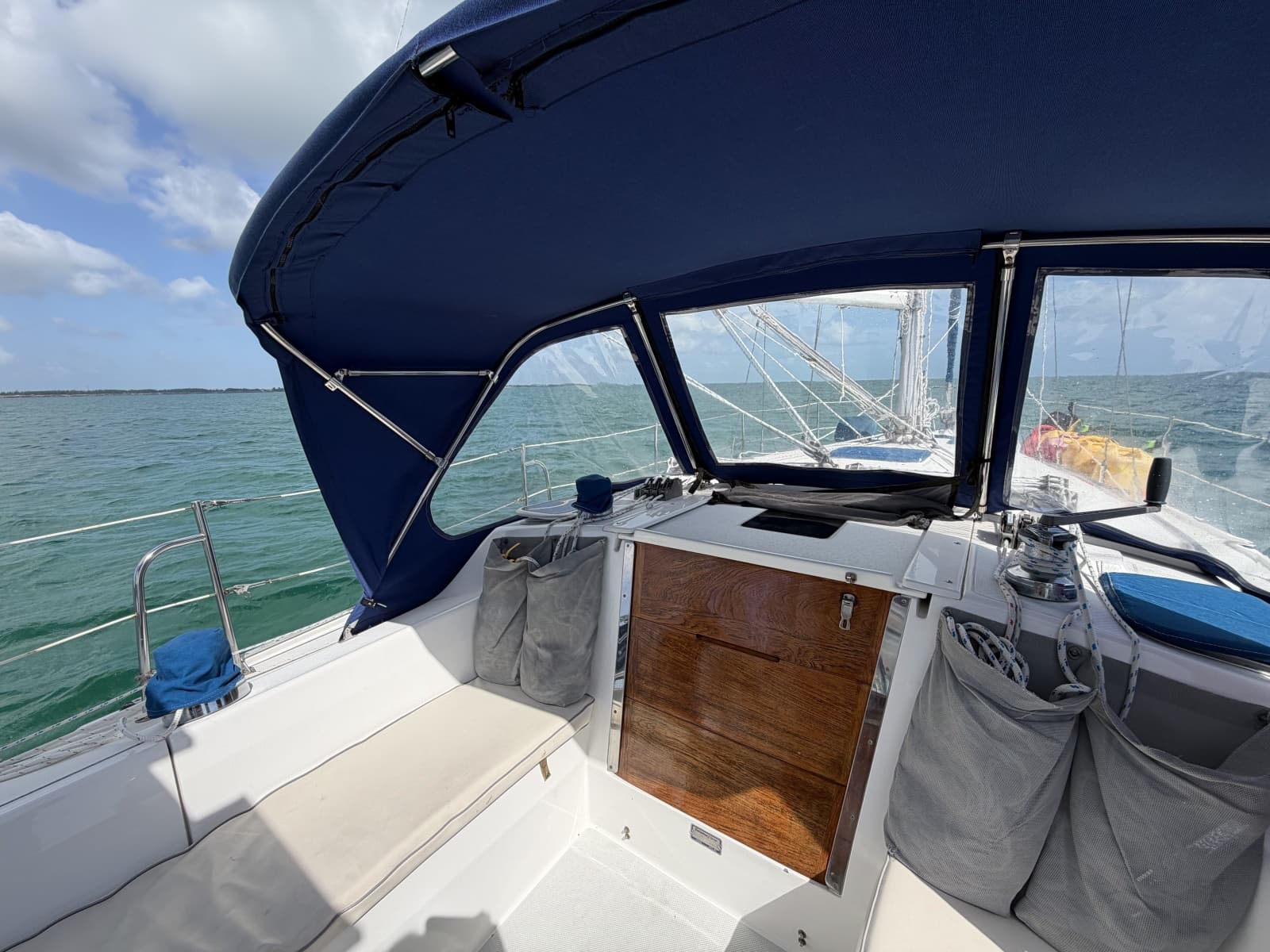

- Dodger, bimini, mainsail cover, winch covers, hatch covers
- Folding swim ladder on the sugar scoop transom
- Emergency tiller
- Achilles 10' soft-bottom inflatable dinghy (2017 Model 17-1-SPD310E-LG)
- Soft bottom with floor inserts
- Yamaha 4 HP outboard

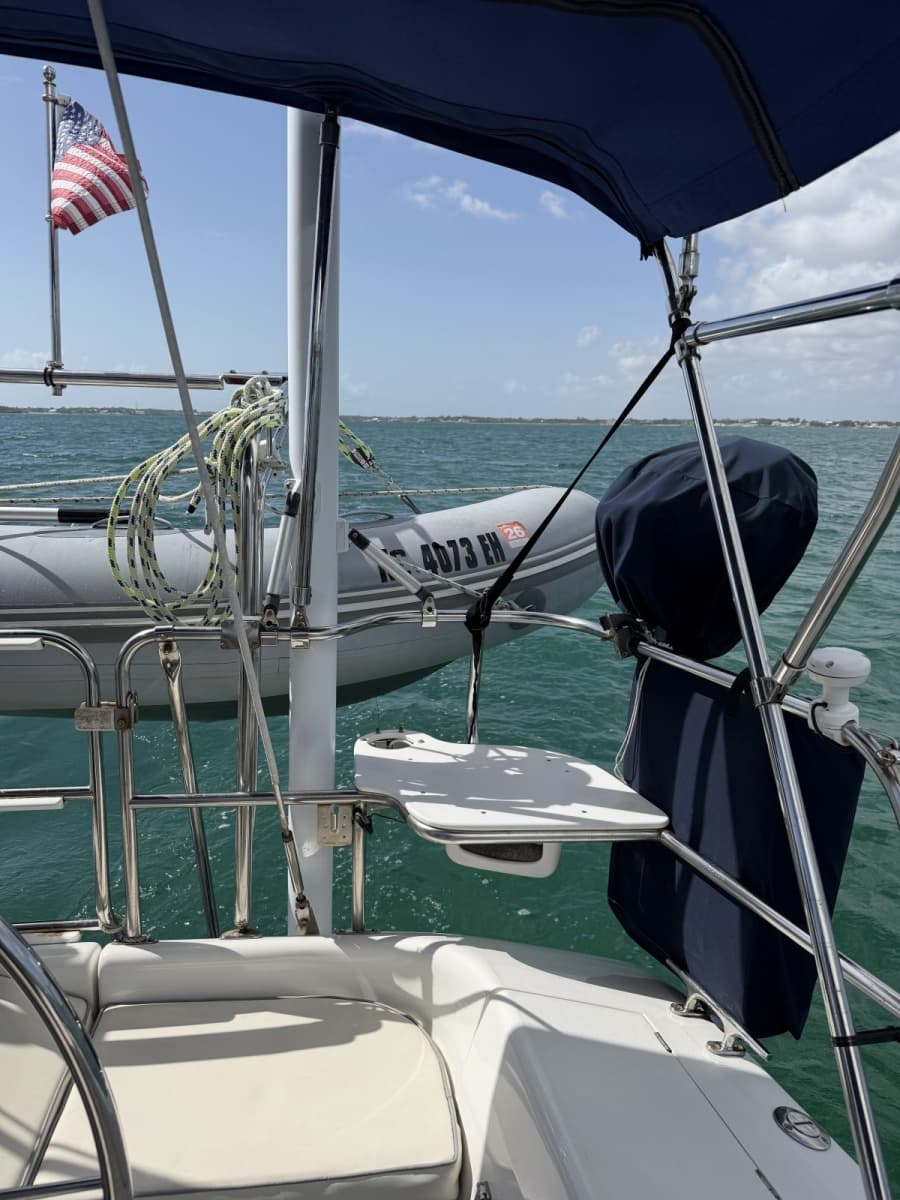

- Dinghy davits
Mechanical

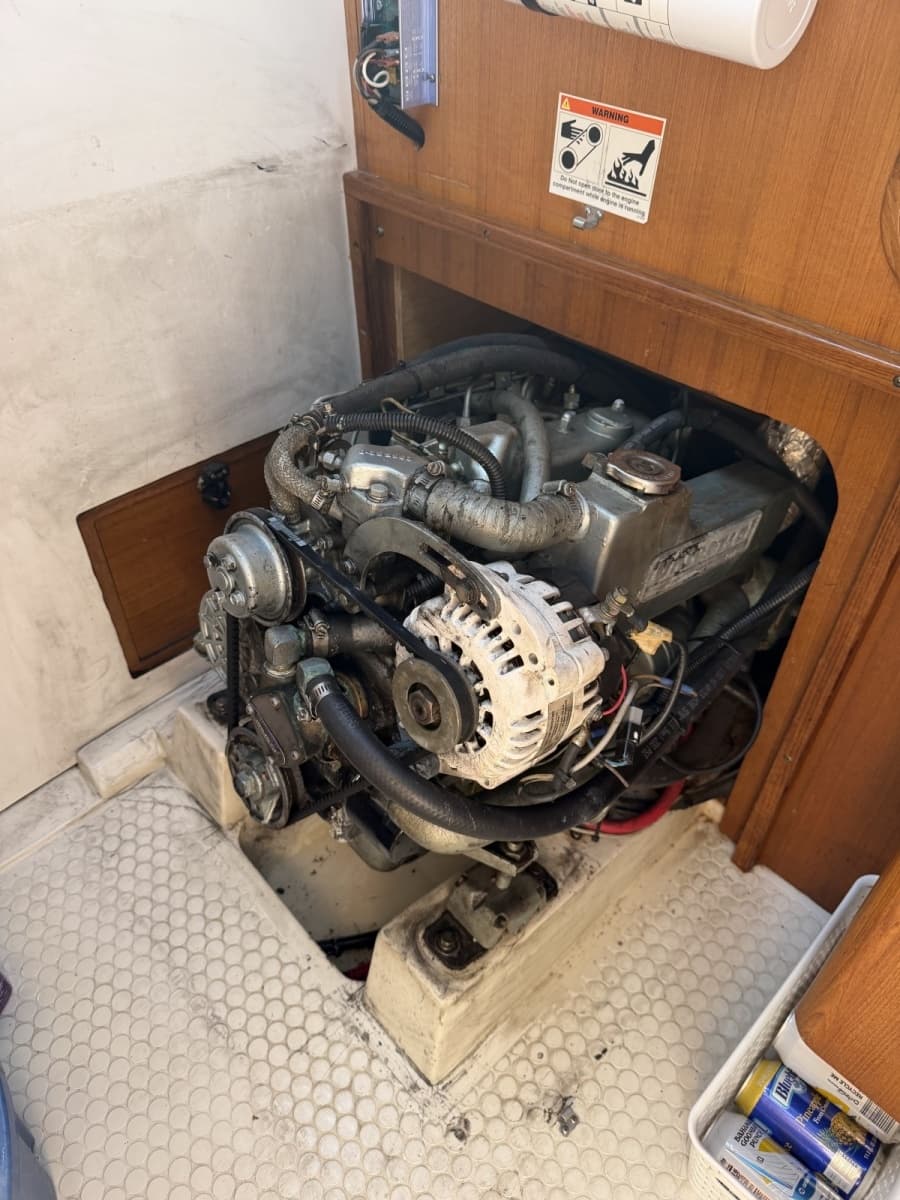

- Universal M35BC 35 diesel engine with approximately 1,670 hours
- PYI Max Prop - cleaned and re-greased in 2026 (original prop in cockpit locker)

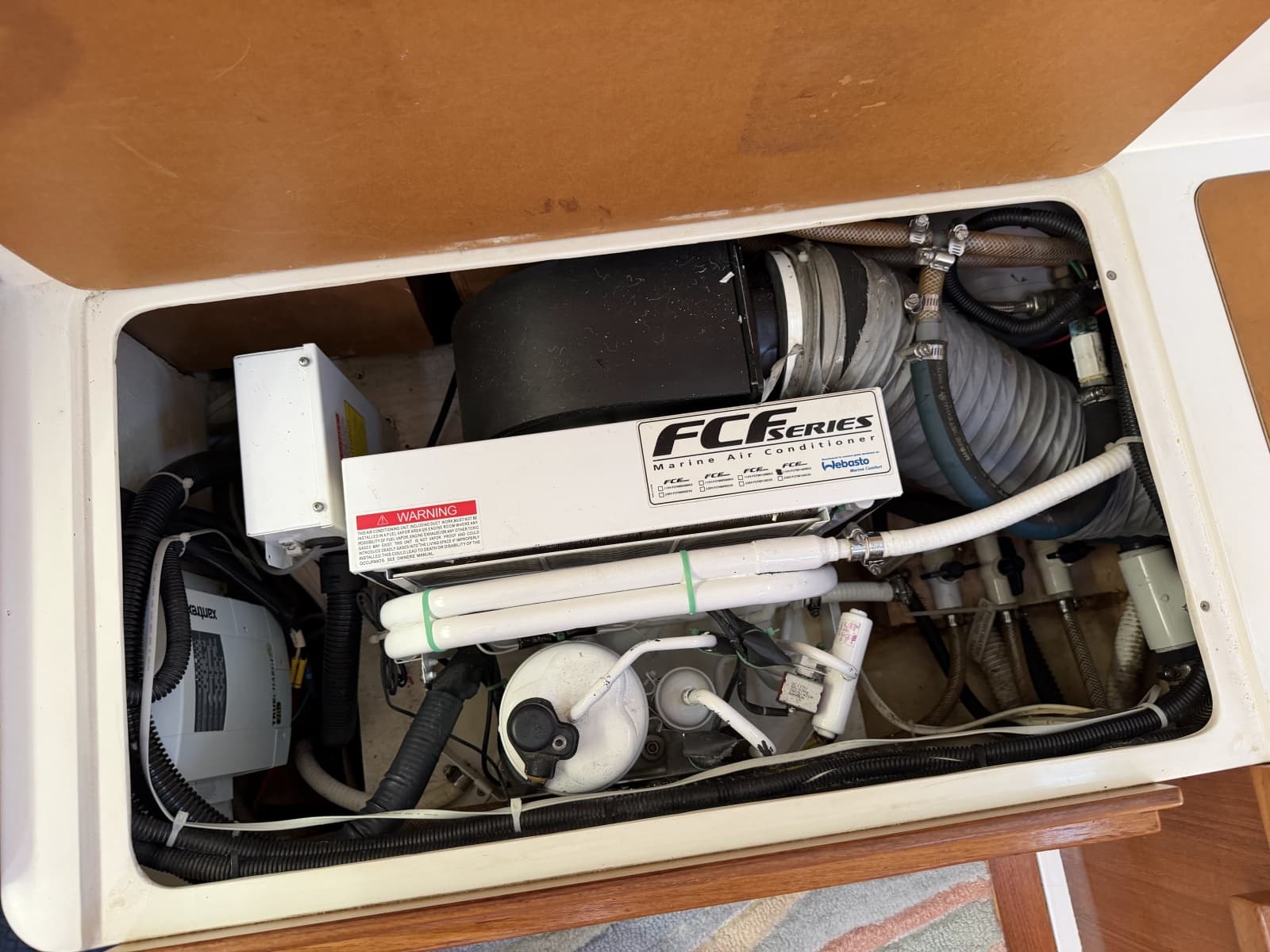

- 16,000 BTU Wabasto marine air-conditioning system
MAINTENANCE: The current owners change the oil and oil filters every 100 hours, fuel filters every 200 hours, and transmission fluid every 300 hours (as the manual recommends). The water pump was fully rebuilt in February 2025, and the heat exchanger zinc and impeller were replaced every 100 hours.
Electrical
12V System:

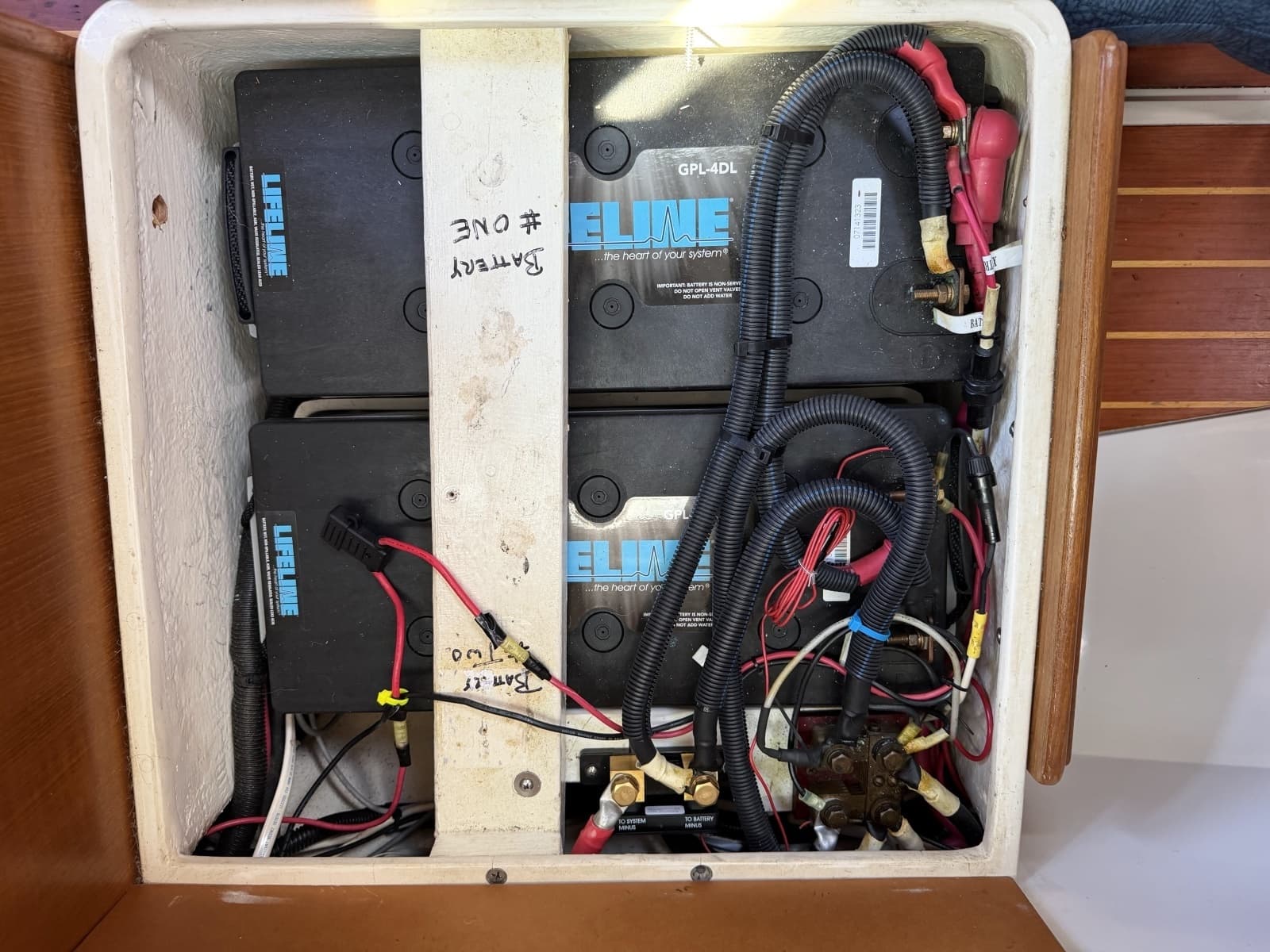

- (2) Lifeline GPL-4DL 210Ah AGM house batteries (2025)
- Approximately 420Ah nominal house-bank capacity

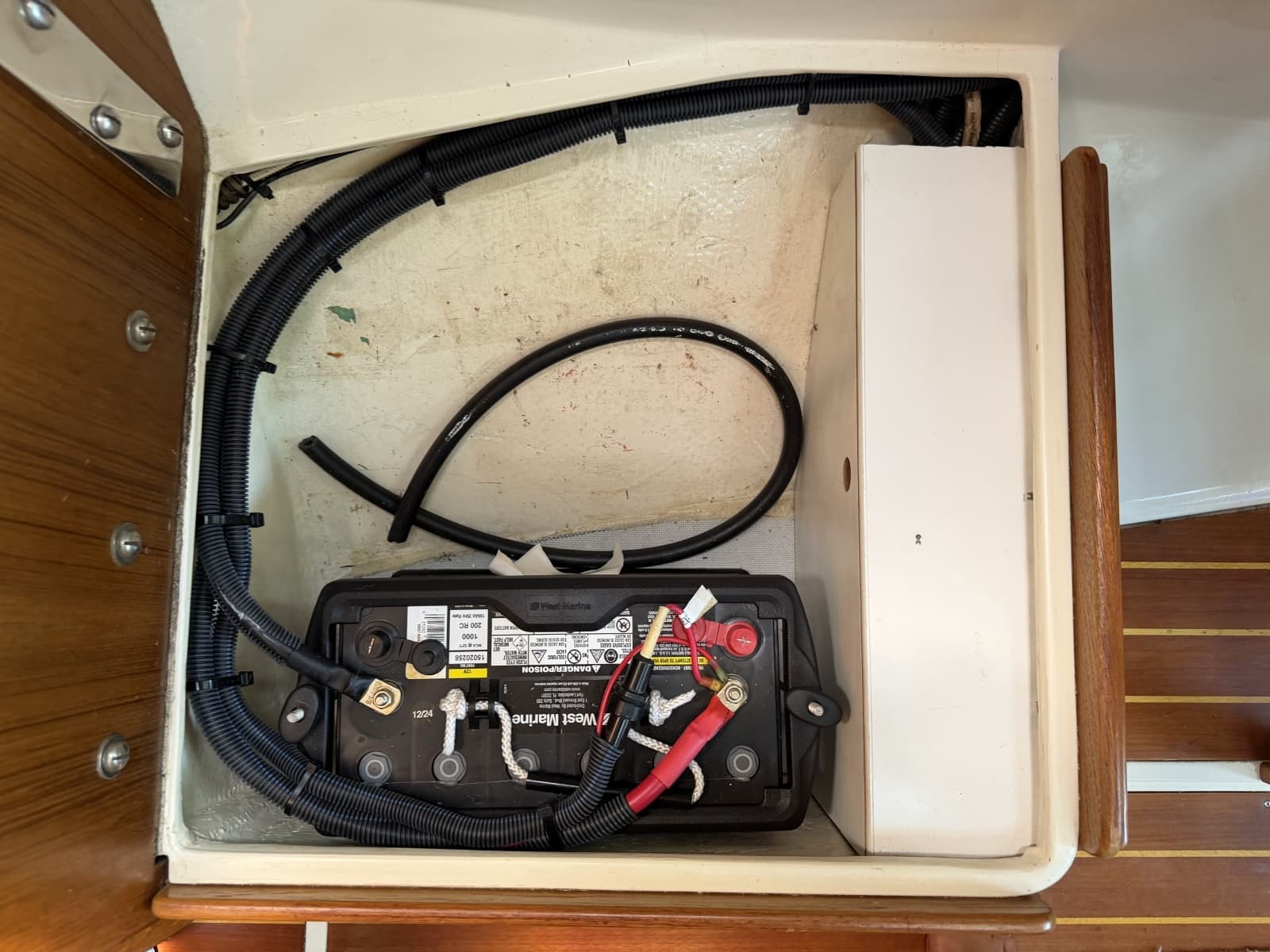

- West Marine 105Ah AGM starting battery (2025)
- Balmar high-output alternator
- Victron SmartShunt (2026)
- Xantrex TrueCharge battery equipment
- 12V outlet
Solar:

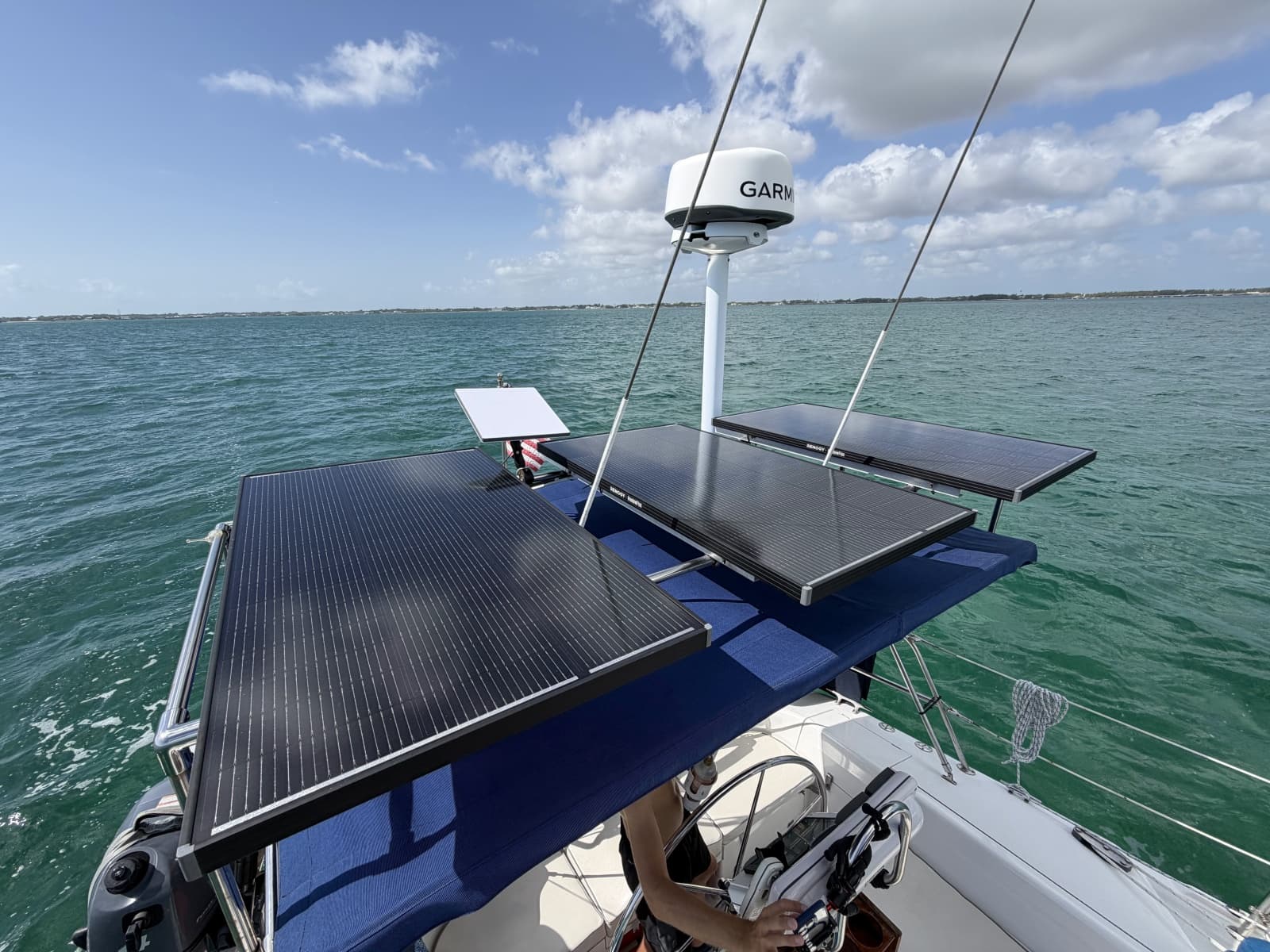

- (3) Renogy 120W ShadowFlux solar panels (2026)
- 360 watts total solar capacity

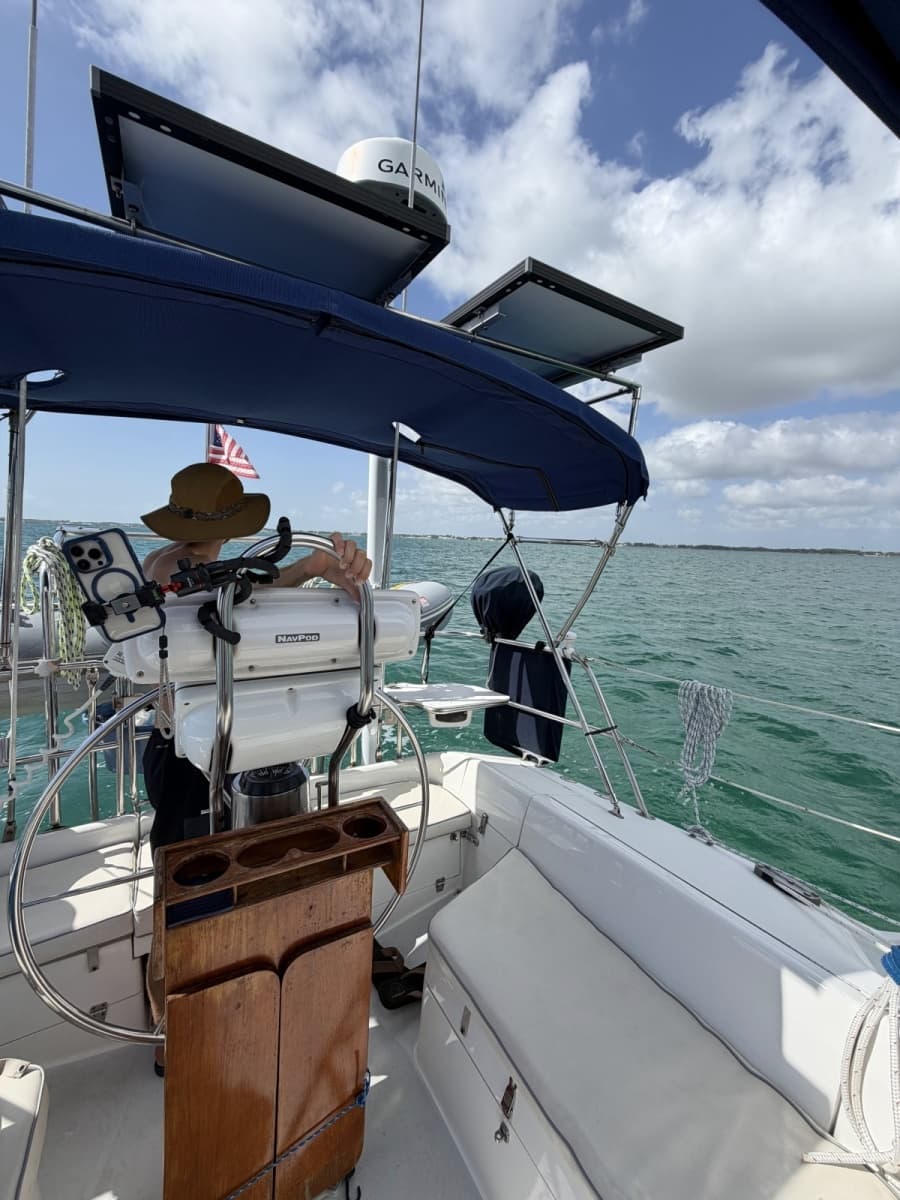

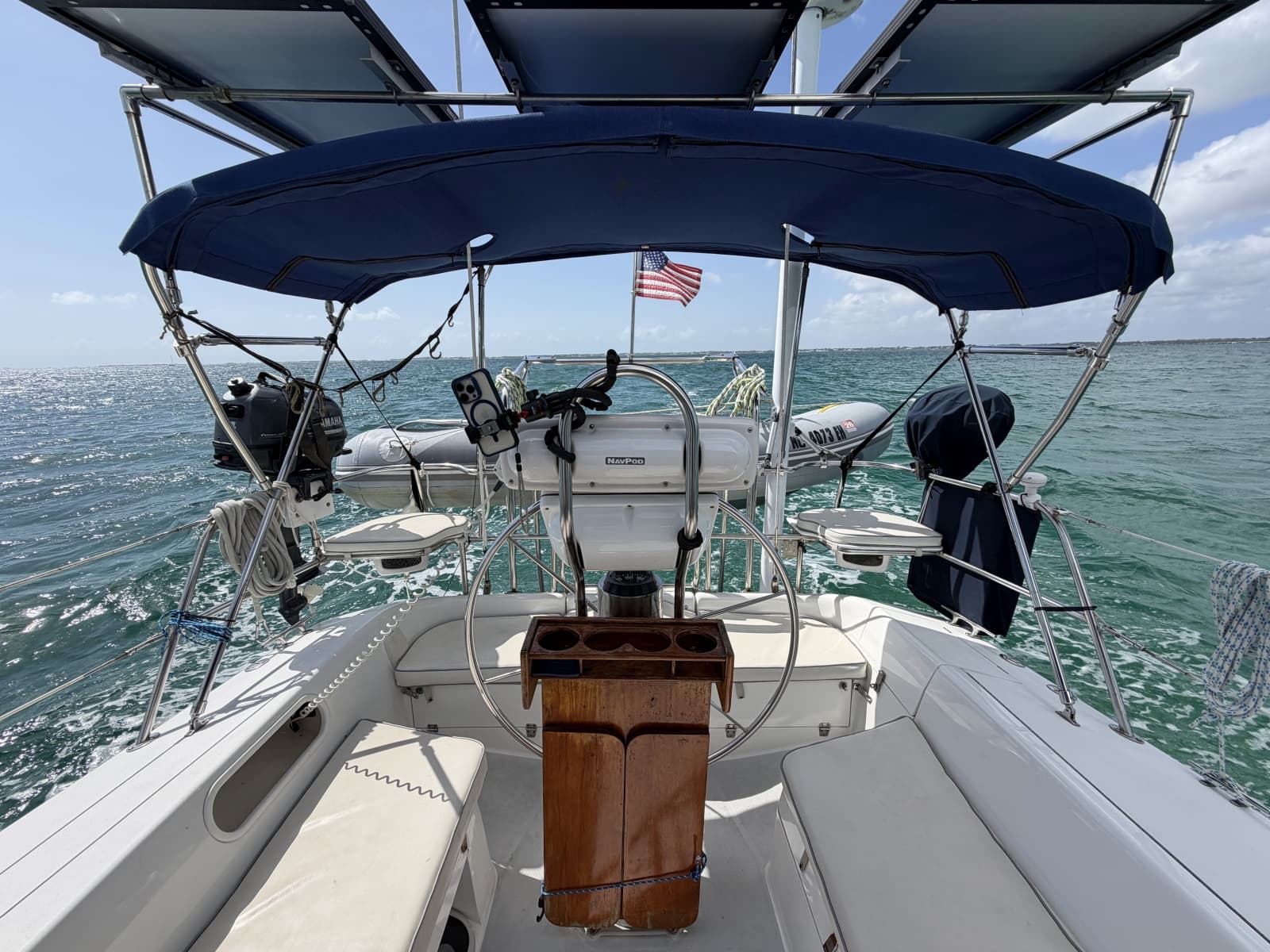

- Solar panels mounted above bimini
- Victron MPPT solar charge controller (2026)
120V System:
- (2) 120V / 30A shore-power connections
- 30A shore-power cable
- 110V outlets
- Xantrex TrueCharge 20A battery charger

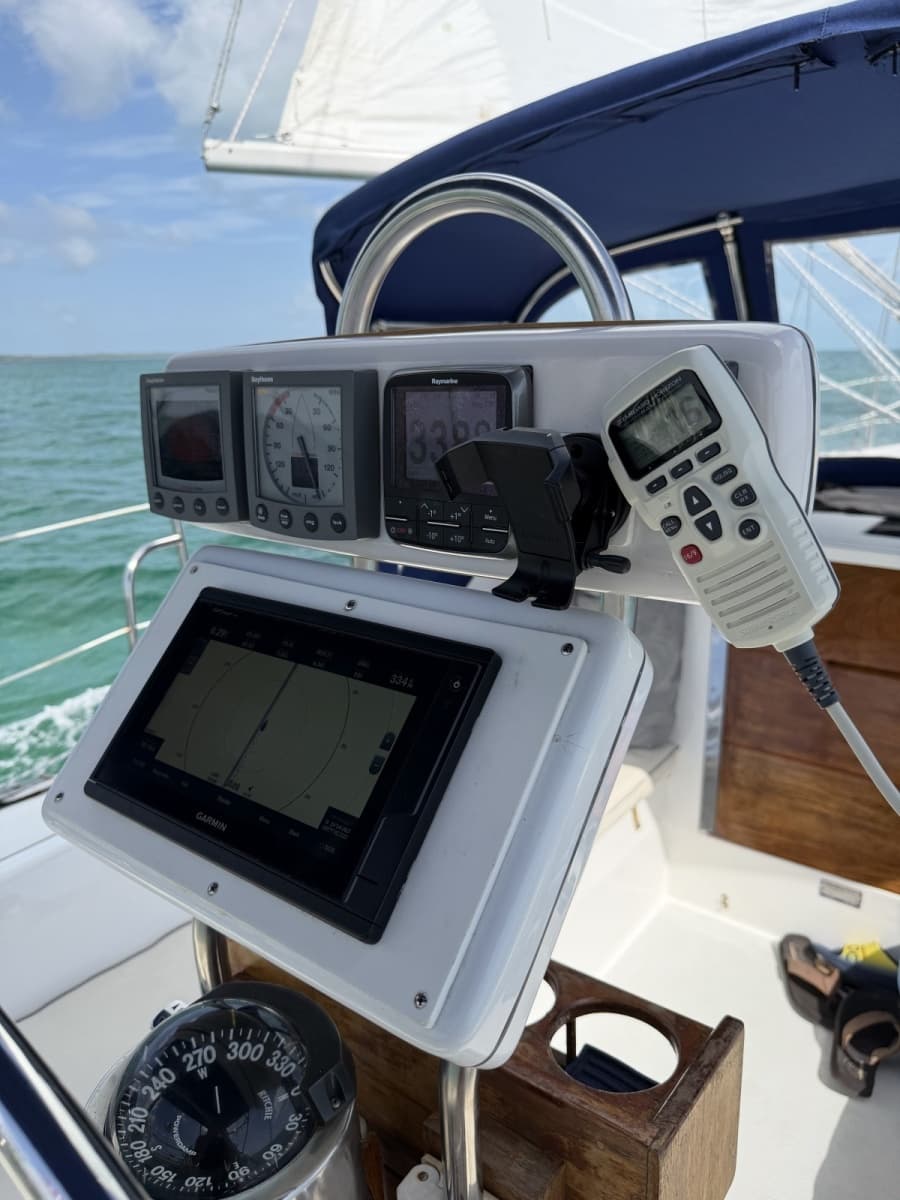

Electronics and Navigation
- Garmin 9" multifunction GPS/chartplotter
- Garmin 36 NM radar
- Raymarine autopilot
- Raymarine wind instrument
- Raymarine ST60 TriData
- Ritchie magnetic compass

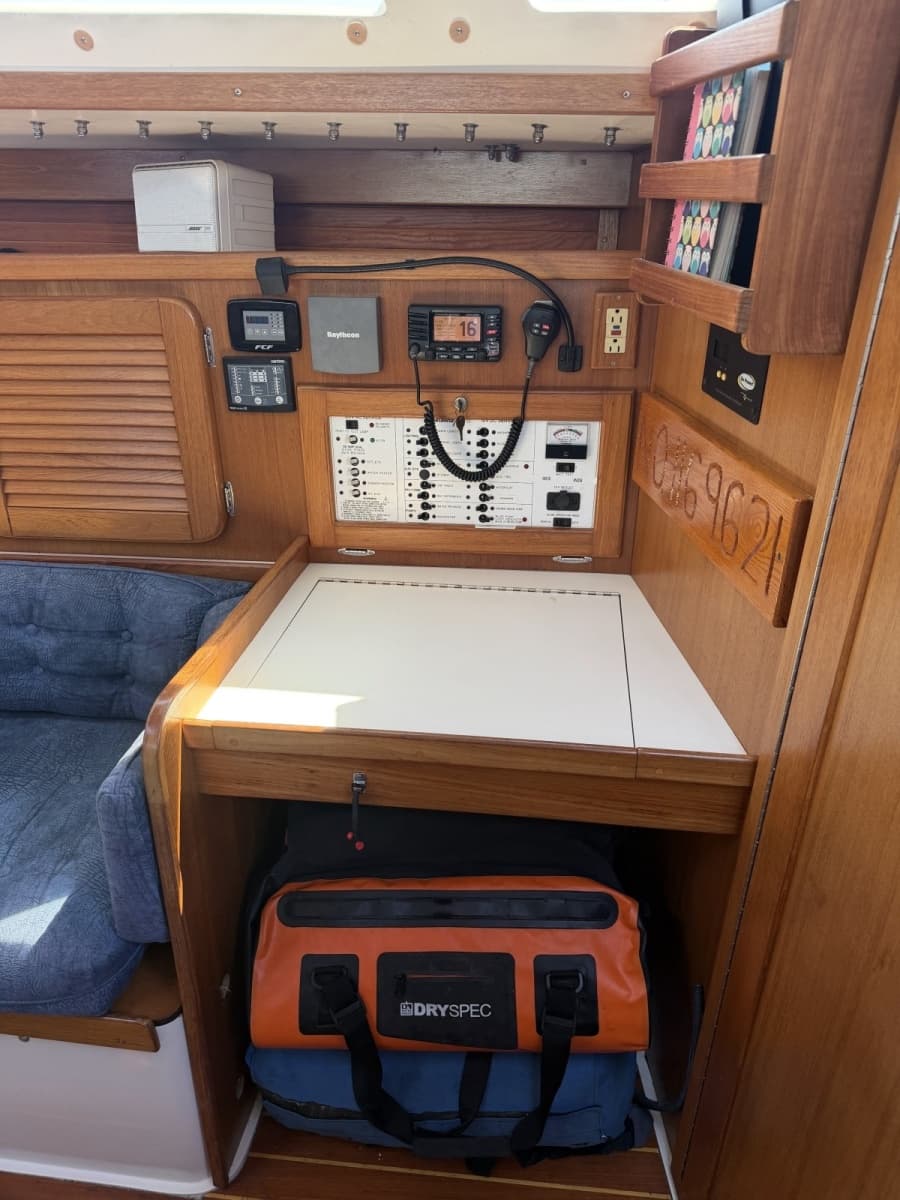

- Raymarine ST60 autopilot control at the Nav
- Standard Horizon Explorer VHF radio at the Nav
Plumbing
- Jabsco manual raw-water toilet (pump rebuilt 2026)
- 15-gallon polyethylene waste holding tank (waste pump-out on deck, macerating pump)
- Jabsco macerator pump fully rebuilt 2026
- Grey-water shower sump pump
- Fresh Water: Three polyethylene fresh water tanks - 80 gallons total.
- Water Heater: 6-gallon Whale water heater (running the engine will heat the water heater tank)
- Freshwater pressure pump, 3 valves to operate which tank is in use
- Freshwater shower faucet at the stern
- Vented propane locker in the cockpit.

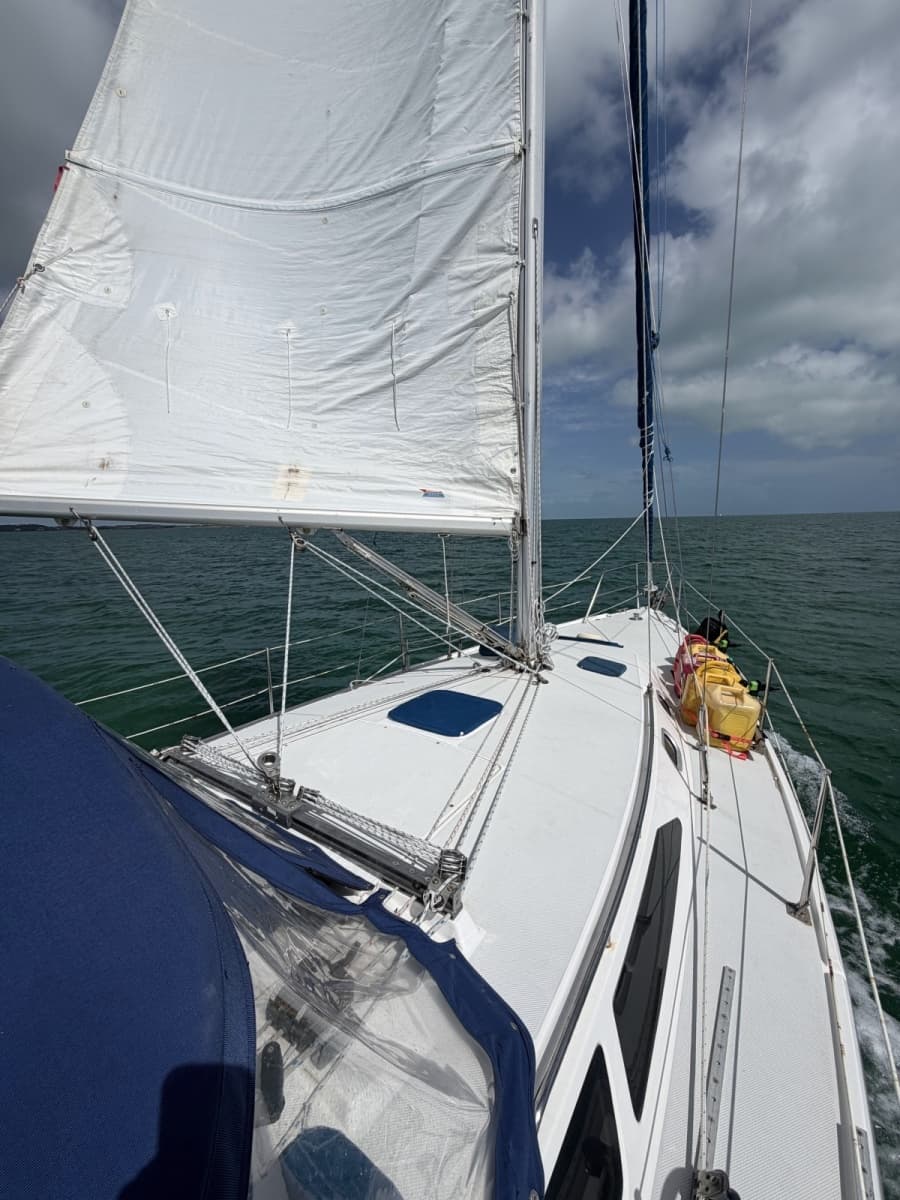

Sails and Rigging
- Aluminum keel-stepped mast and boom
- Schaefer Furlers headsail furling system
- Original mainsail, with newly added telltales, one reef point, and cover
- Schurr Sails genoa with UV cover (2021)
- Spare original genoa
- Boom vang
- Preventer Line

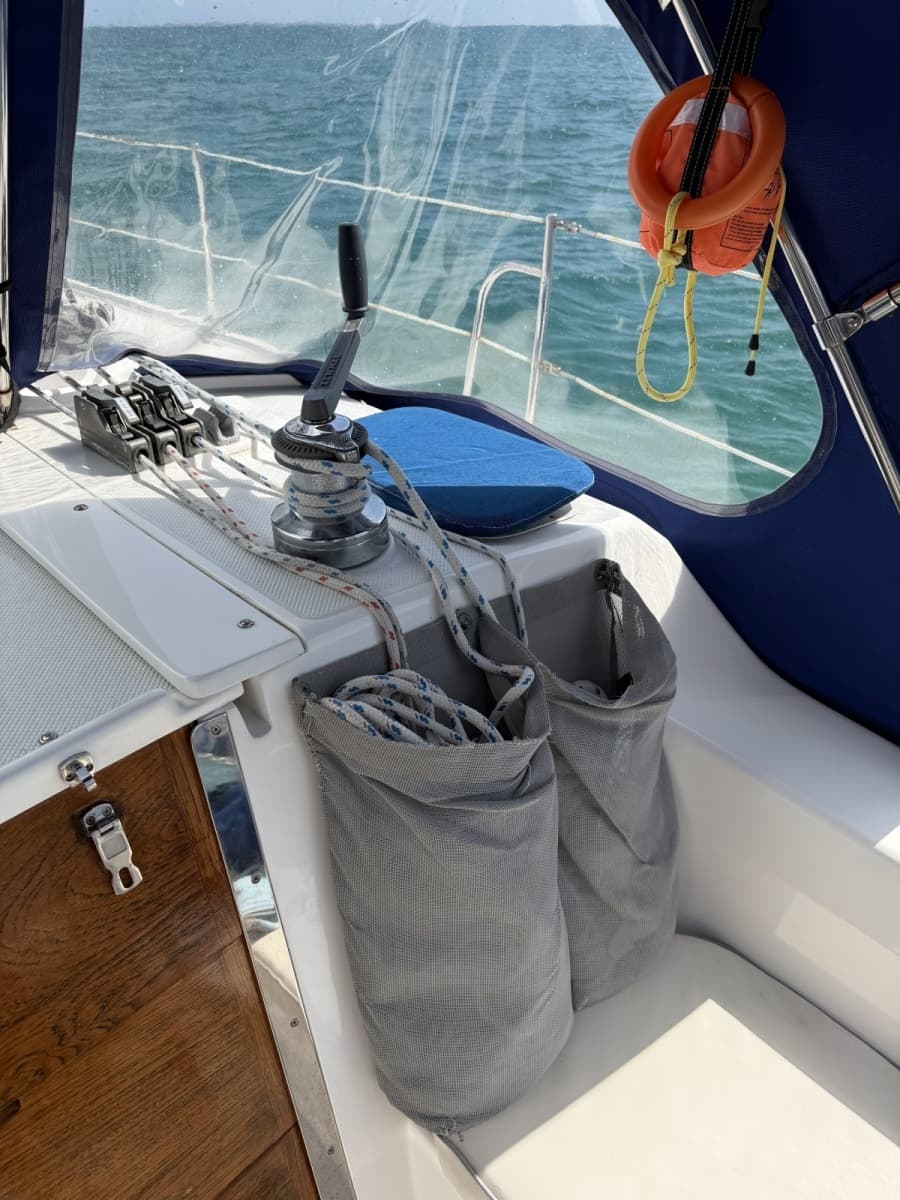

- 4) Lewmar manual winches.
- Line clutches
- New Genoa furling line and genoa sheets (2026)
Safety Equipment and MISC Items
- Ships Bell
- (8) USCG-approved Type I and II adult personal flotation devices.
- (2) Type IV throwable devices (cushions).
- Dock lines
- Taylor Made Fenders
- Boat hook
- First Alert smoke and carbon monoxide detector
- (5) Kidde Type ABC fire extinguishers
- Airhorn
- First Aid Kits
- Whistle
- EPIRB mounted on the forward salon bulkhead (battery expired 11/12/2015, but test light still turns on)
- 4-Person Life Raft - Service history unknown. Conveys in AS-IS condition.
- Lifesling-II man overboard system
- Jabsco manual bilge pump
- Rule-Mate 1,500 gallon-per-hour automatic bilge pump
- Emergency tiller
- Lots of spares! (fuel/oil filters, zincs, sail tape, light bulbs, hardware, oil, coolant, specialty tools, etc.)
- Catalina 36 MK II manual and a binder filled with every manual for every system/gadget on board
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
