2003 Grand Banks 54

Why Chaos Is Different

• The vessel has been extensively modified beyond its original Grand Banks 54 SX configuration
• The major rebuilds were carried out under the direction of established builders and C. Raymond Hunt Associates
• The resulting package combines a custom-lengthened hull, rebuilt propulsion plant, joystick maneuvering, flybridge and extensive systems upgrades
• The original specification describes Chaos as a long-distance express cruiser with a substantial maintenance and upgrade history

THE TRANSFORMATION

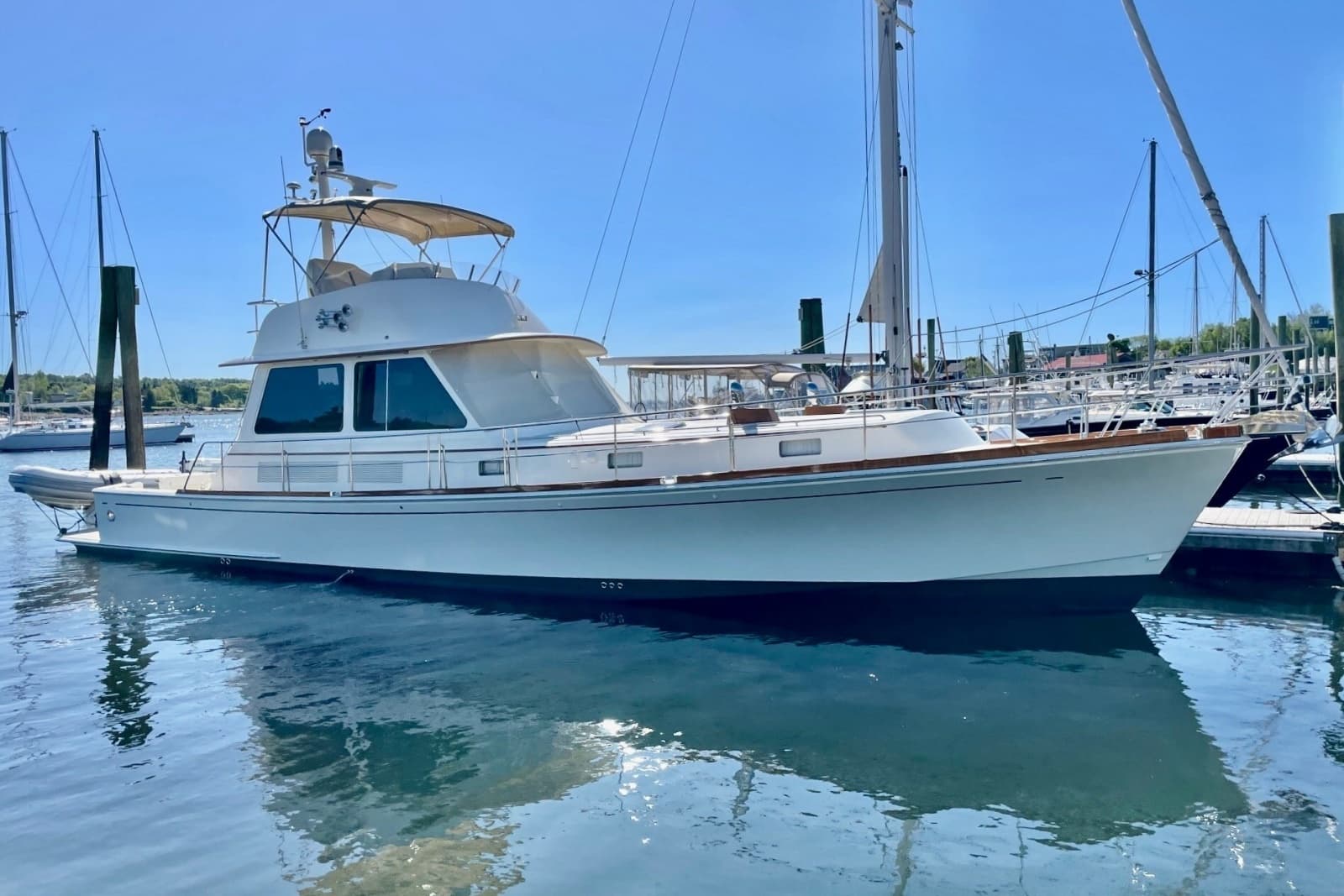

Chaos has undergone two major phases of customization. The work fundamentally changed the vessel from its original Grand Banks 54 SX configuration into the current custom 57 Flybridge.

2008–2010 | Lyman-Morse Rebuild

• Hull extended by 3 feet and fitted with a custom 5-foot swim platform
• Topsides and bottom faired and repainted
• Engine room completely stripped and rebuilt
• Twin Caterpillar C-18 ACERT electronic diesels installed in 2010, with CE tags and certification
• ZF 500 A gears, Aquadrive CV joints, soft engine mounts and thrust bulkhead installed
• Evolution 3-inch enclosed propeller shafts with shaft angle reduced to 11.5 degrees
• Custom 5-blade propellers with Propspeed
• Soundown mufflers with dry exhaust
• CAT FFD engine displays and ZF Smart Command controls with joystick
• Bow thruster upgraded with hydraulic PTO, oil cooler and reservoir
• Custom fuel rails, dual Separ filtration, new tank fittings and Reverso fuel polishing
• Engine-room ventilation upgraded with Delta T intake/exhaust blowers and moisture eliminators
• Hydraulic steering pump upgraded for increased power
• Spectra Newport 400 MKII watermaker
• Fireboy automatic engine-room fire suppression
• MarineAir five-zone, 66,000 BTU air-conditioning system
• New heads and plumbing, bilge systems, fresh-water washdown and hot/cold transom shower

2012–2016 | Front Street Shipyard Upgrades

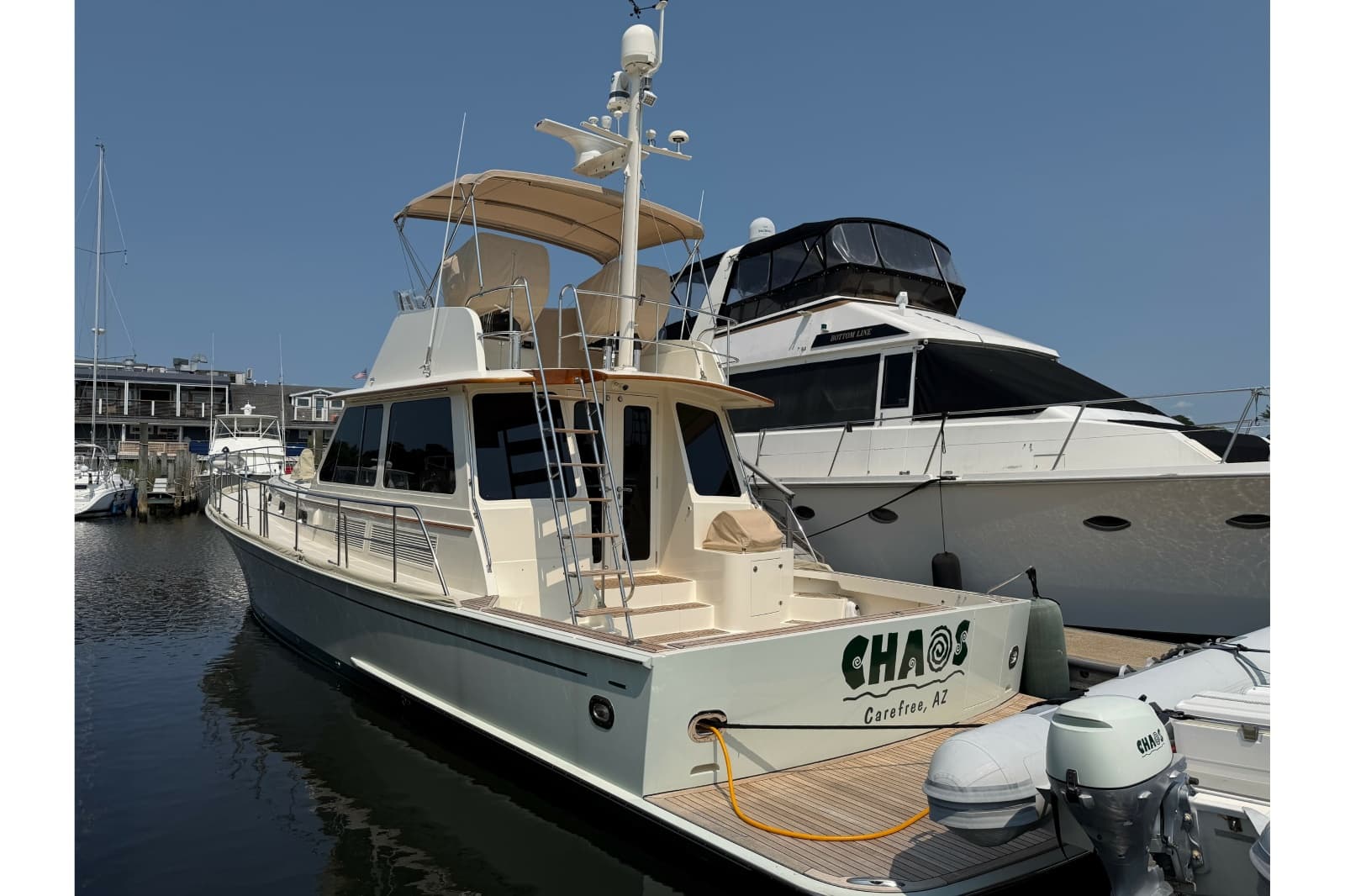

• Custom flybridge added in 2013, including mast, Bimini, electronics and two Stidd bench seats
• Joystick control system added 2013
• Freedom hydraulic lift added in 2013
• Cockpit grill and custom fiberglass grill cabinet added in 2013
• Security system and two additional Sub-Zero refrigeration/freezer units added in 2013
• Awlgripped in 2014; deck painted from brow down to hull
• Salon windows upgraded with tinted glass; auxiliary alternators and house battery bank replaced
• Props serviced and underwater gear treated with Propspeed in 2014
• Wiring diagrams updated in 2015
• Generator batteries replaced in 2016
• Radar displays upgraded with XM weather function; pilot-house Raymarine HybridTouch displays replaced
• Stern thruster installed in 2016

Mechanical & Systems Highlights

• ZF 500 A gears with electric shift and trolling valves
• Aquadrive CV joints with soft engine mounts and thrust bulkhead
• Evolution 3-inch enclosed propeller shafts; shaft angle reduced to 11.5 degrees
• Custom 5-blade propellers with Propspeed
• Soundown mufflers with dry exhaust
• CAT color FFD display units for engine functions, with engine-room repeaters
• ZF Smart Command controls with joystick management, Easidock and engine synchronizers
• Sidepower hydraulic bow thruster with PTO, oil cooler and reservoir
• Custom fuel rails with twin Separ filters per side and dual pick-up manifold
• Reverso fuel polishing and oil-change systems
• Delta T engine-room intake/exhaust blowers with positive pressure and moisture eliminators
• Upgraded hydraulic steering pump
• Headhunter Mach 5 AC water-pressure pump at 66 psi
• Seaward AC hot-water heater with starboard-engine heat exchanger input
• Three automatic bilge pumps plus one manual bilge pump
• Twin Tecma fresh-water toilets with new plumbing, holding tank and overboard discharge
• Twin Raymarine engine-room video cameras
• Hydraulic engine-room door lift installed in 2012
• Fireboy automatic fire suppression system

Accommodations, Equipment and Features

HULL, DECK & EXTERIOR

The hull and deck were substantially upgraded during the rebuild, including structural lengthening, fairing, barrier coating and a custom Awlgrip finish.

Hull & Deck

• Solid fiberglass hull with foam coring above the waterline
• Three feet added to hull following design and engineering work by C. Raymond Hunt and Associates
• Custom 5-foot swim platform
• Hull faired and finished with epoxy barrier coating and custom Awlgrip
• Fiberglass foam-cored deck with white Gelcoat and Moondust Tan Awlgrip non-skid
• Teak decking in cockpit and on custom swim platform
• Twin forward anchor lockers modified to self-drain properly in 2011
• House windows re-bedded in 2011 with blackened frames

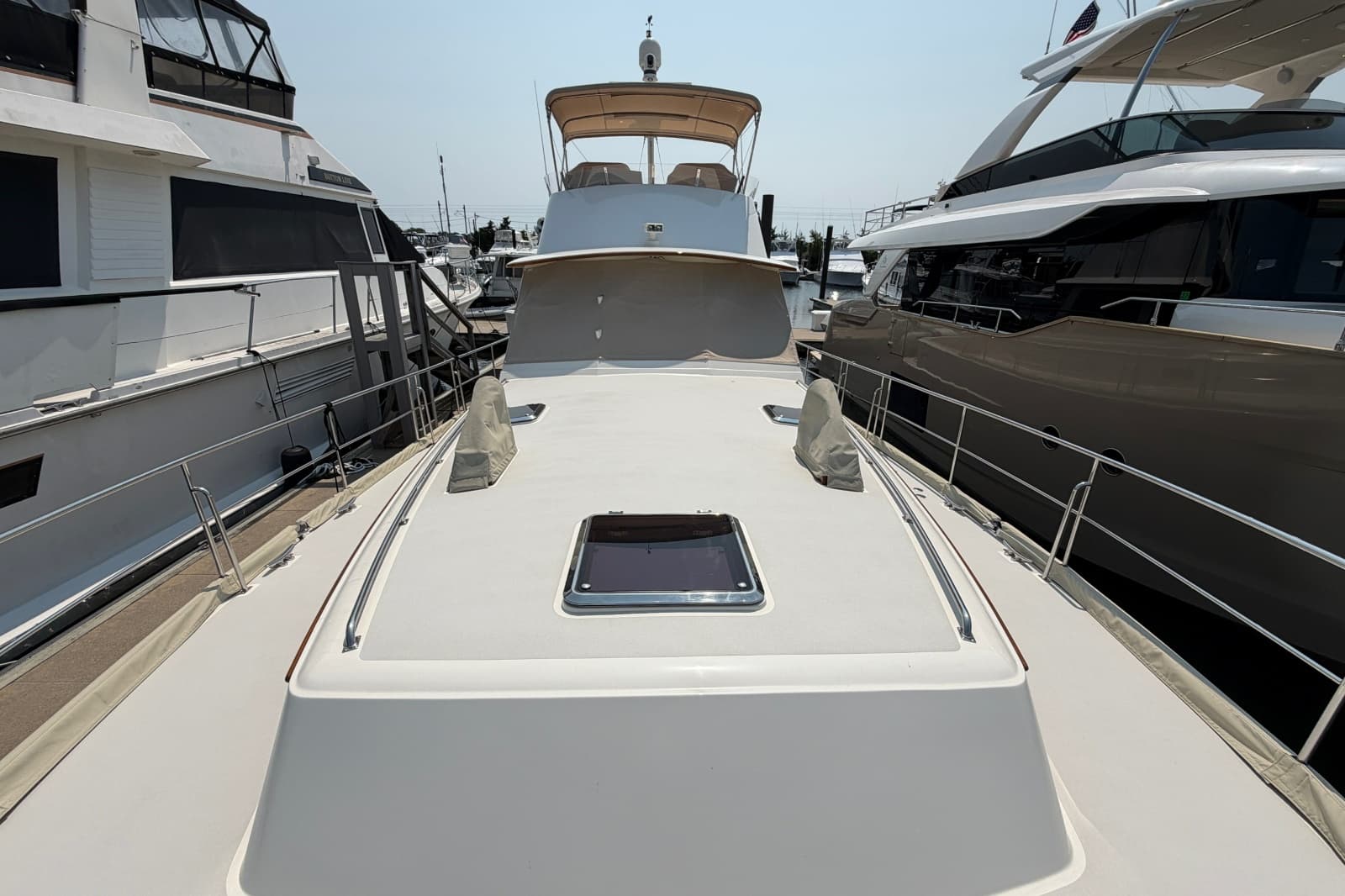

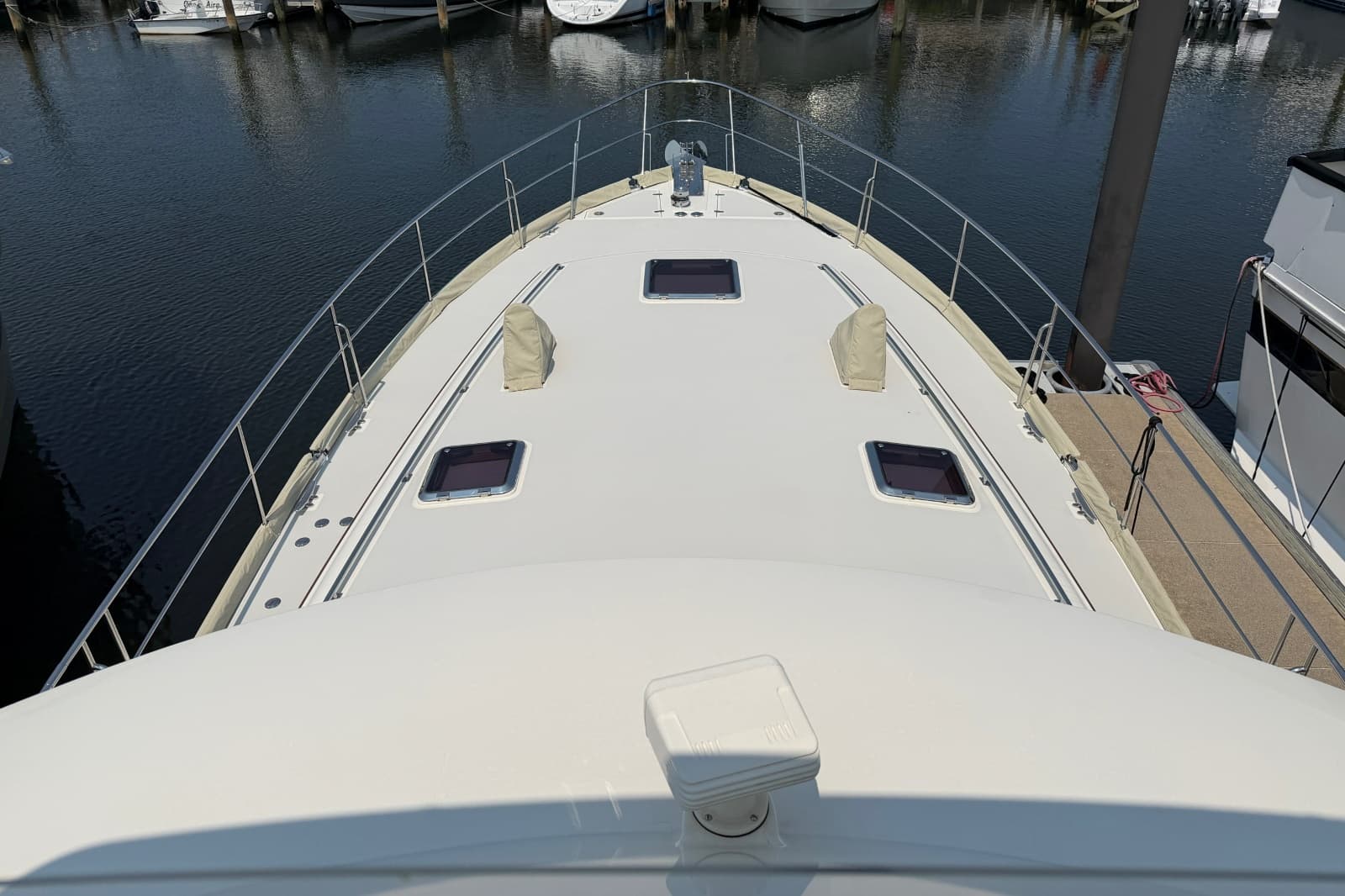

Deck Equipment

• Stainless rubrail striker and anchor roller/stemhead assembly
• Suncor 60 lb stainless plow anchor with 200 feet of all-chain rode
• Maxwell windlass with helm remote and wireless handheld chain-counter remote
• Full-length stainless side rails and custom vertical stainless grab rails
• Varnished teak toe rails, drip rails, eyebrows and dorade boxes, redone in 2012
• Stainless chocks and cleats plus pop-up cleats on swim platform
• Seven stainless opening portholes and five deck hatches
• Two dorade vents and upgraded hatch hardware/gas springs with overboard drainage
• Transom door and flip-down stainless under-mount swim ladder
• ACR GPS EPIRB, three dry-chemical fire extinguishers, first-aid kit, fenders and dock lines
• Varnished teak ensign and burgee staff.

ELECTRONICS & ELECTRICAL

Chaos combines extensive Raymarine navigation equipment with dedicated engine displays, communications, thruster controls and a robust AC/DC power system.

Upper Pilot Station

• CAT port and starboard engine display monitors
• Electronic throttles and Raymarine HybridTouch multifunction display
• AIS system and Raymarine ST60+ Graphics
• Raymarine ST70 autopilot repeater
• Icom IC-M504 marine VHFBow and stern thruster controls, ZF controls and Bennett trim-tab controls
• ARC Point Pad URP-102 searchlight controls
• Clarion CMD7 Sirius Ready audio with two Fusion speakers

Lower Pilot Station

• CAT port and starboard engine display monitors
• Two Raymarine HybridTouch multifunction displays
• AIS, Raymarine ST70 autopilot and ST60+ Speed, Wind, Depth and Graphics
• Raymarine Ray240 VHF and remote speaker
• Bennett trim-tab monitors, ARC searchlight controls and Kahlenberg M-511C/D whistle control panel
• Ritchie compass

Electrical System

• 110/220-volt, 60 Hz AC ship's system powered by shore power, generator or inverter
• 12/24-volt DC ship's system with AC/DC electrical switch panels
• Ocean remote panel with amp/volt meters
• Victron remote panel for monitoring and control from the salon
• AGM house and engine batteries replaced in 2014; generator batteries replaced in 2012
• Twin Victron heavy-duty charger/inverter units installed in 2012
• Engine alternators for house bank upgraded to 175 amps each, with one on standby and transfer switch
• Westerbeke 15 kW generator with sound shield
• Automatic transfer switch between generator and shore power with soft starts for high-load components
• Cablemaster shore-power cord system rebuilt in 2011 and 75-foot 50-amp shore cord

FLYBRIDGE & PILOTHOUSE

The custom flybridge added in 2013 gives Chaos a second command position and an elevated outdoor entertaining area while retaining the visibility and comfort of the enclosed pilot salon.

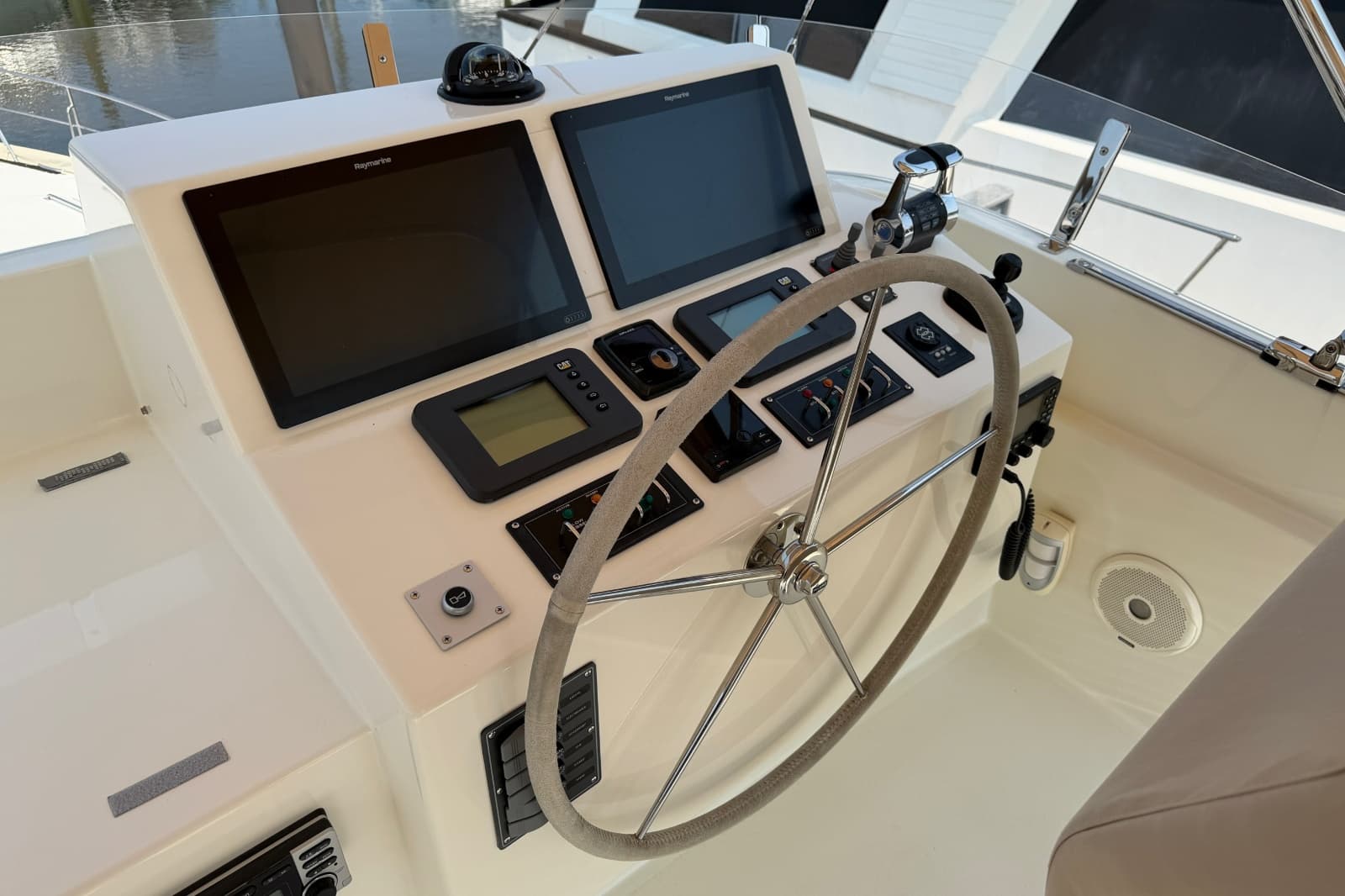

Flybridge

• Accessed by teak-treaded stainless ladder from cockpit
• Stainless rails and custom fiberglass forward console with wrap-around acrylic shield
• Bimini and custom radar/electronics mast
• Two adjustable upholstered Stidd bench seats with stainless bases and Sunbrella covers
• Suite of electronics and engine controls
• Independent Clarion CMD7 radio with two Fusion speakers

Pilot Salon

• Satin-varnished teak interior with selected gloss trim and teak-and-holly sole
• Large surrounding windows provide 360-degree views; portholes have screens and hatches use Ocean Air screens/blinds
• Flush overhead LED lighting with dimmers, stainless reading lights and hidden valance lighting
• Upholstery redone in September 2012
• L-shaped custom upholstered seating and convertible salon table
• Two additional armchairs
• Credenza with drawer, liquor cabinet and Sony 32-inch 1080p LCD TV with electric lift
• Sony Blu-ray DVD player, media center/charging station, chart table and blinds
• Overhead speakers, 110-volt outlets and dual swing-out entrance door

Pilot Station

• Custom upholstered bench seat with ice-maker below
• Fold-up footrest
• Full suite of electronics, full engine controls and electric panels

INTERIOR & ACCOMMODATIONS

The interior is finished in satin-varnished teak with selected gloss trim and a teak-and-holly sole. The layout emphasizes light, ventilation, storage and comfortable extended cruising.

Galley

• Corian countertops and double stainless-steel sinks
• Twin Sub-Zero over/under refrigerator/freezer units
• Princess three-burner propane cooktop with Seaward gas solenoid and two propane tanks in vented deck locker
• Sharp microwave/convection oven
• Generous counter space, lockers, overhead lighting and 110-volt outlet

Pantry / Office

• Expanded pantry storage while retaining a built-in desk with drawer storage
• Second twin Sub-Zero refrigerator/freezer over/under unit
• Splendide combination washer/dryer
• Overhead lighting and 110-volt outlets.

Guest Stateroom

• Two twin berths with drawer storage below
• Hanging locker between berths and additional locker storage above and outboard
• Overhead and reading lights, mirror, sliding door, two opening portlights and overhead hatch
• Custom bed shams

Guest / Day Head

• Corian vanity with storage above and below basin
• Single basin sink and Tecma fresh-water toilet
• Portlight and separate shower stall with bench seat, adjustable/removable mixer head, shelf storage and bi-fold door

Master Stateroom

• Centerline queen berth with surrounding storage and strong natural light
• Locker storage above and outboard; drawer storage below and beside berth
• Two hanging lockers, overhead hatch, full-length mirror and dedicated reading lights

Master Ensuite

• Corian vanity with storage above and below basin
• Single basin sink, Tecma fresh-water toilet and portlight
• Separate shower stall with adjustable/removable mixer head, overhead lighting and bi-fold door

TENDER

Tender

• Flexboat SR15STD Arctic Grey 866 Hypalon tender with custom hull reinforcements for Freedom Lift, 2014 model
• Yamaha F40LA electric-start outboard with power tilt/trim, 2013
• Yamaha tiller kit and fitting kit installed in 2013
• Rigging kit includes U-1 series AGM battery with box, small fuel/water separator, aluminum propeller and doel fin
