2006 Jeanneau 42DS

Accommodations

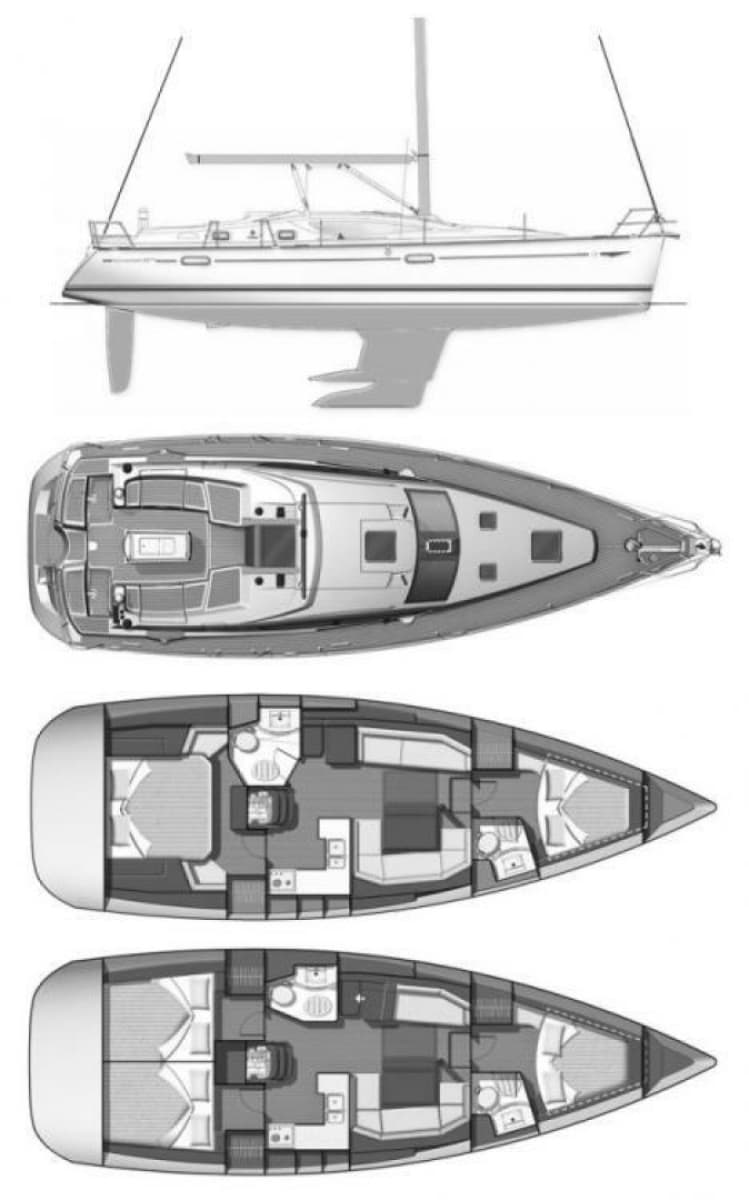

Conceived by naval architect Marc Lombard and styled by Vittorio Garroni, the interior architecture of the Jeanneau Sun Odyssey 42DS maximizes natural light, ambient space, and functional offshore ergonomics. The Deck Saloon design raises the coachroof profile to accommodate signature cat’s-eye wrap-around panoramic windows, drawing sunlight into the living spaces and providing panoramic horizon views from the companionway and salon seating.

Schmitten features the two-cabin, two-head Owner’s layout, dedicating the hull volume aft of the companionway to an expansive master stateroom rather than dividing the stern into cramped charter quarters. The interior joinery is finished in satin-varnished marine Alpi teak, offset by warm wood trim and low-maintenance composite teak-and-holly sole boards that show well, earning an eight-to-nine out of ten rating.

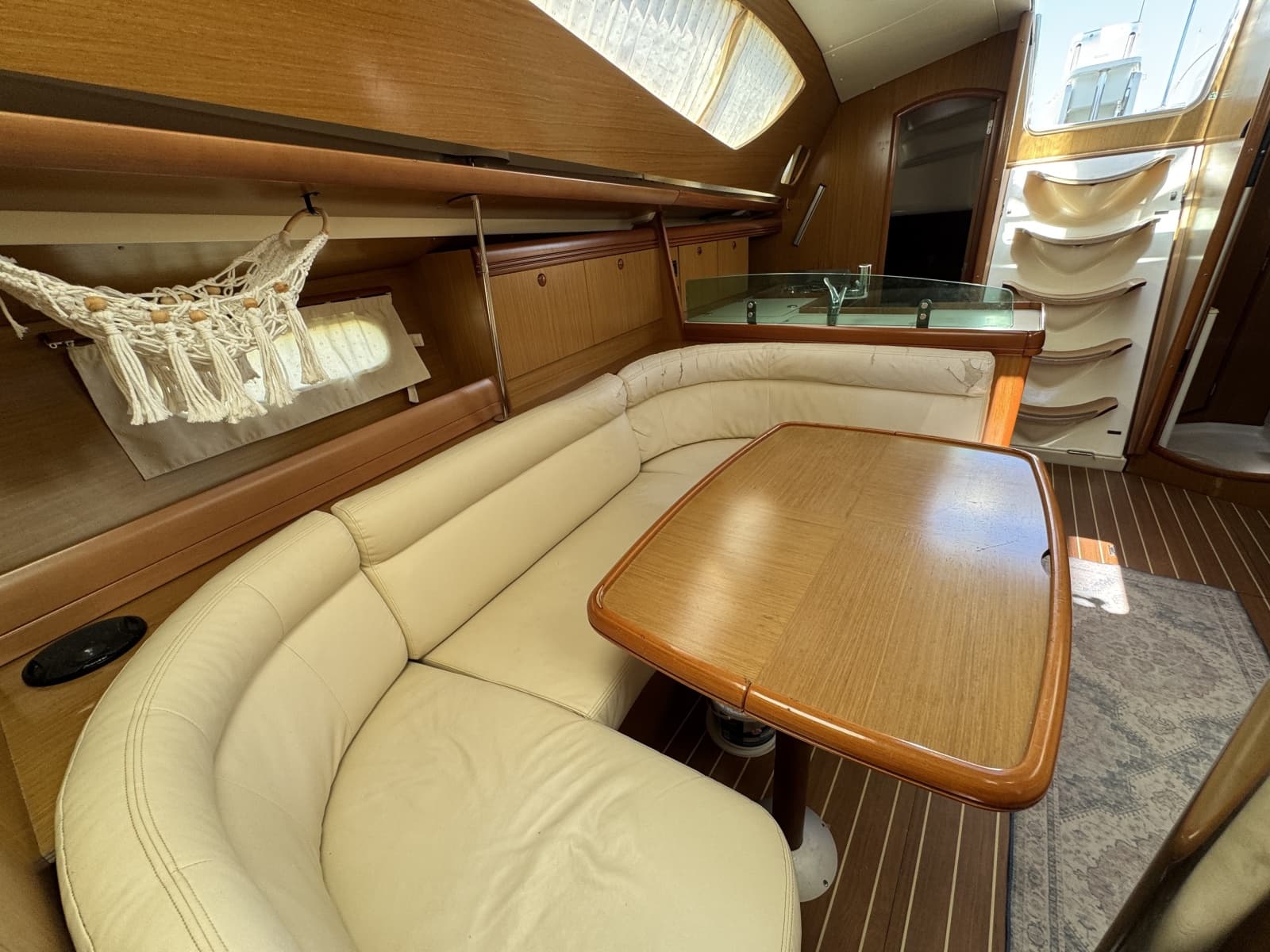

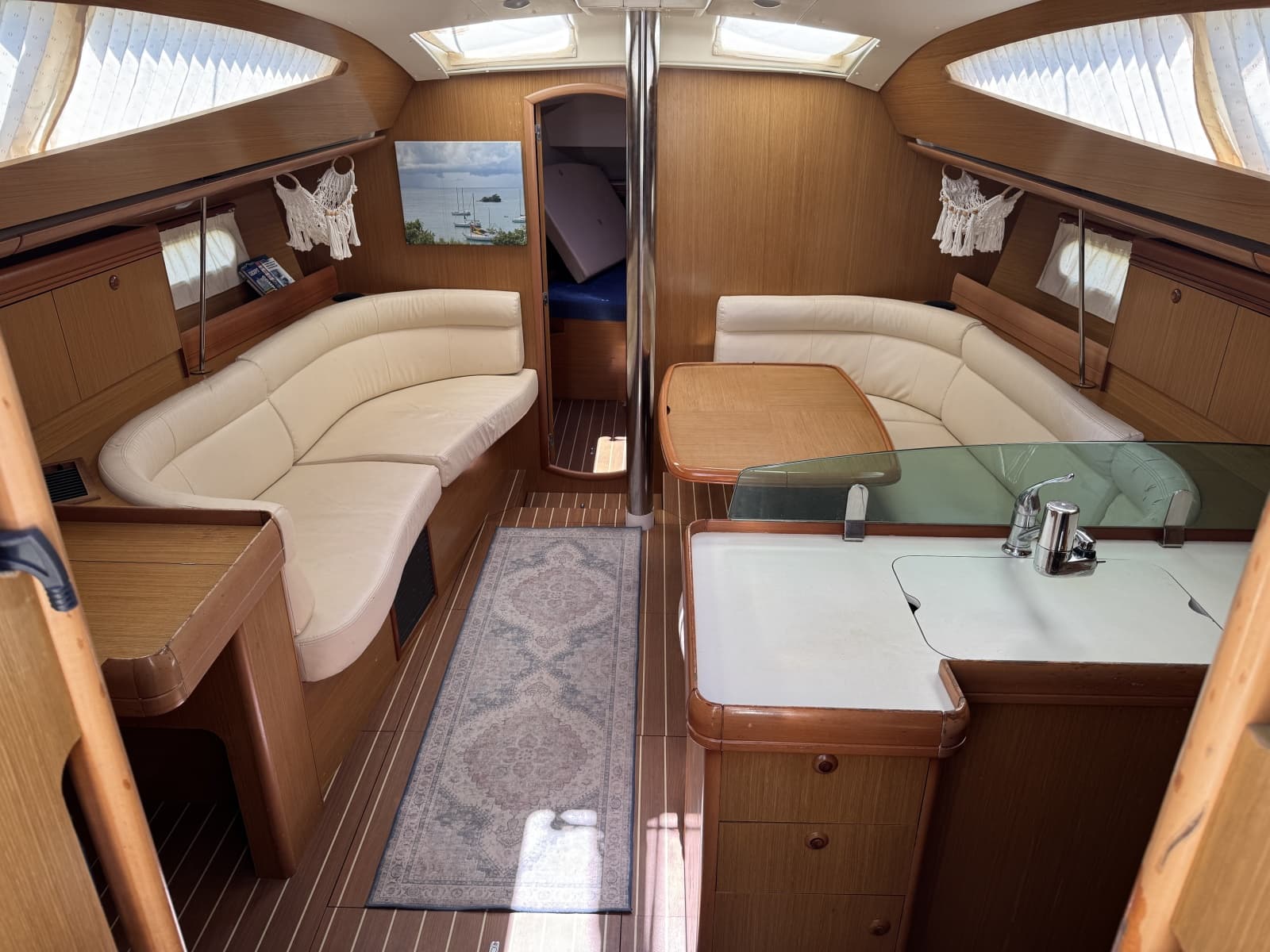

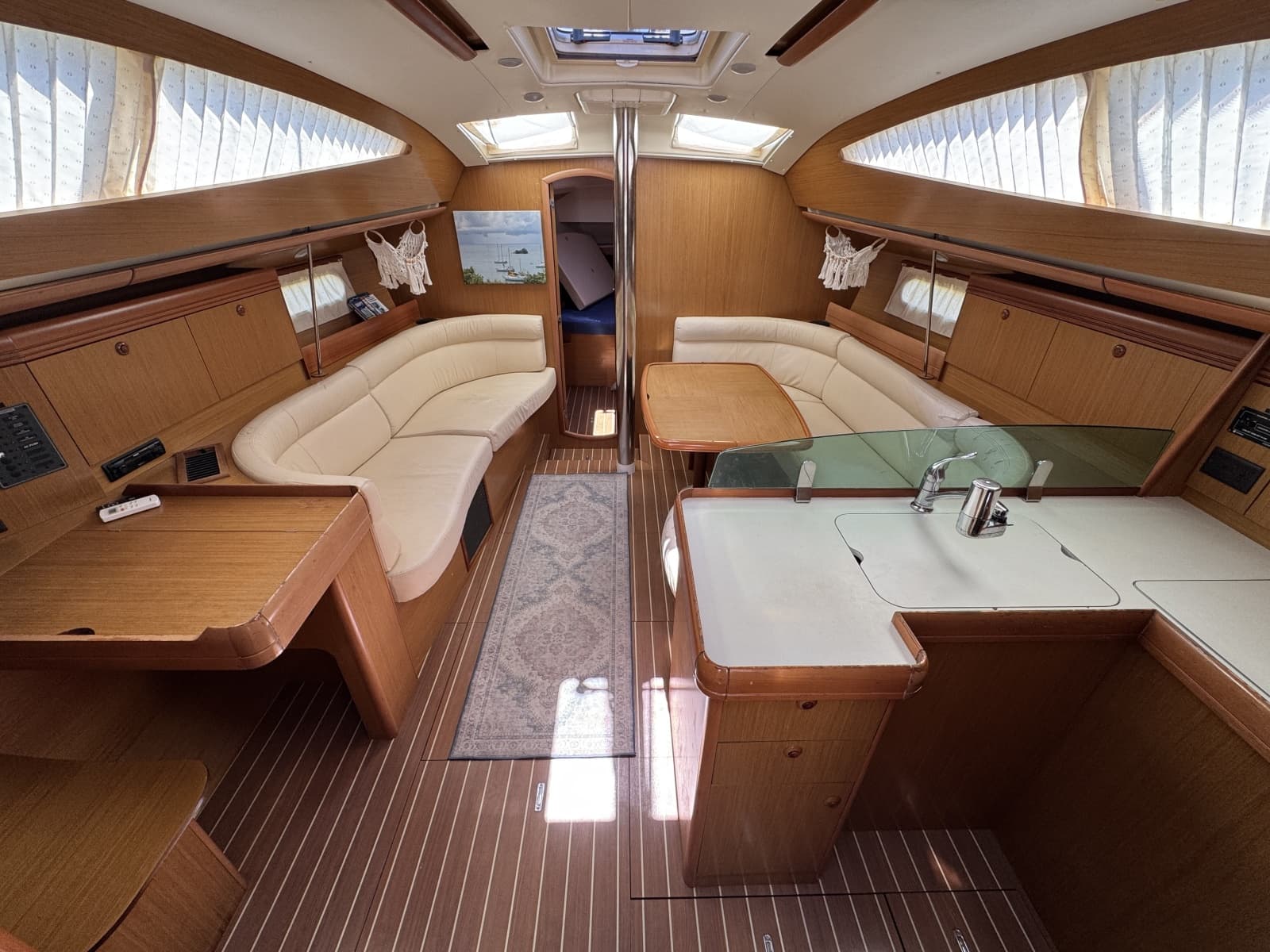

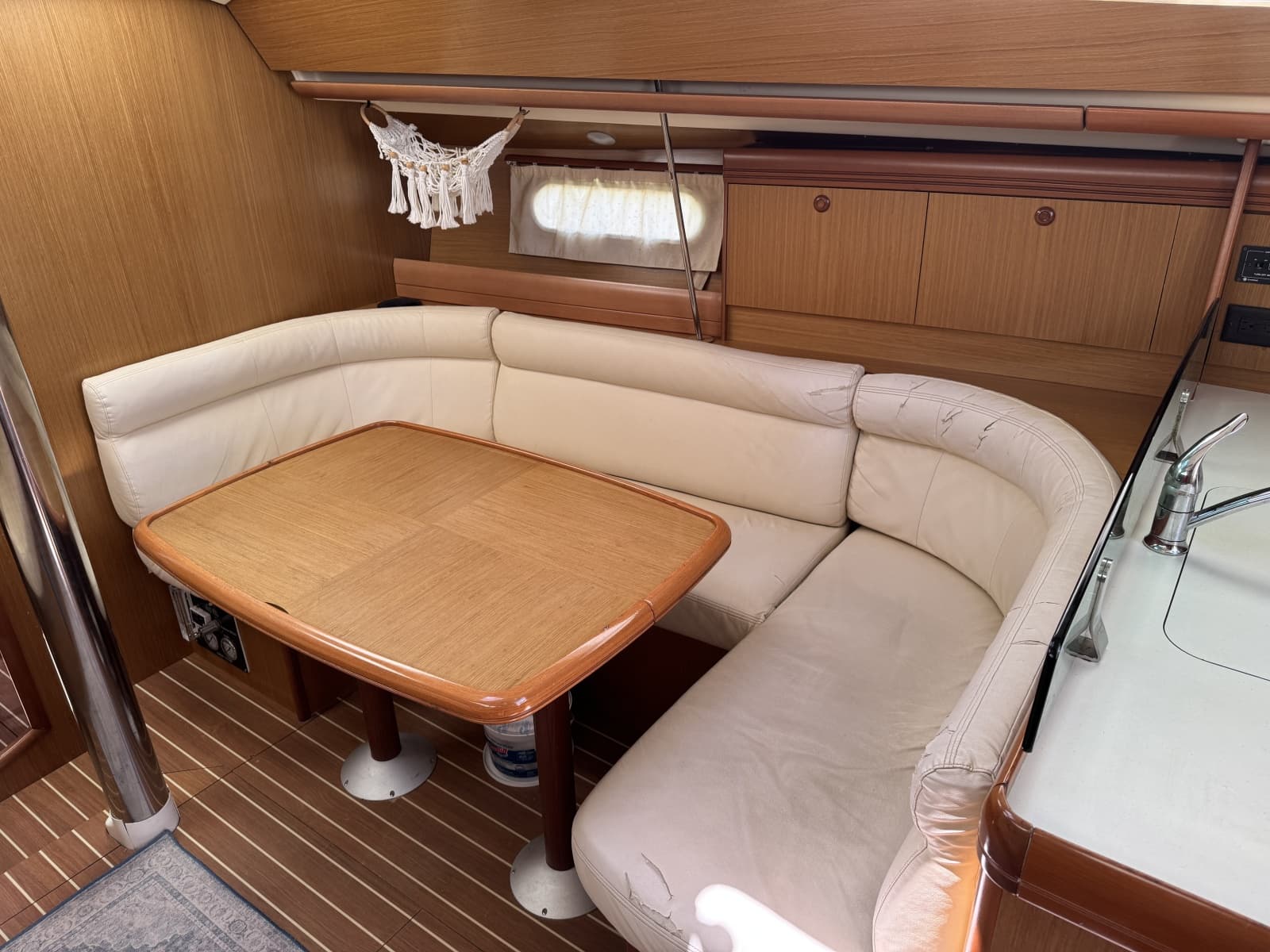

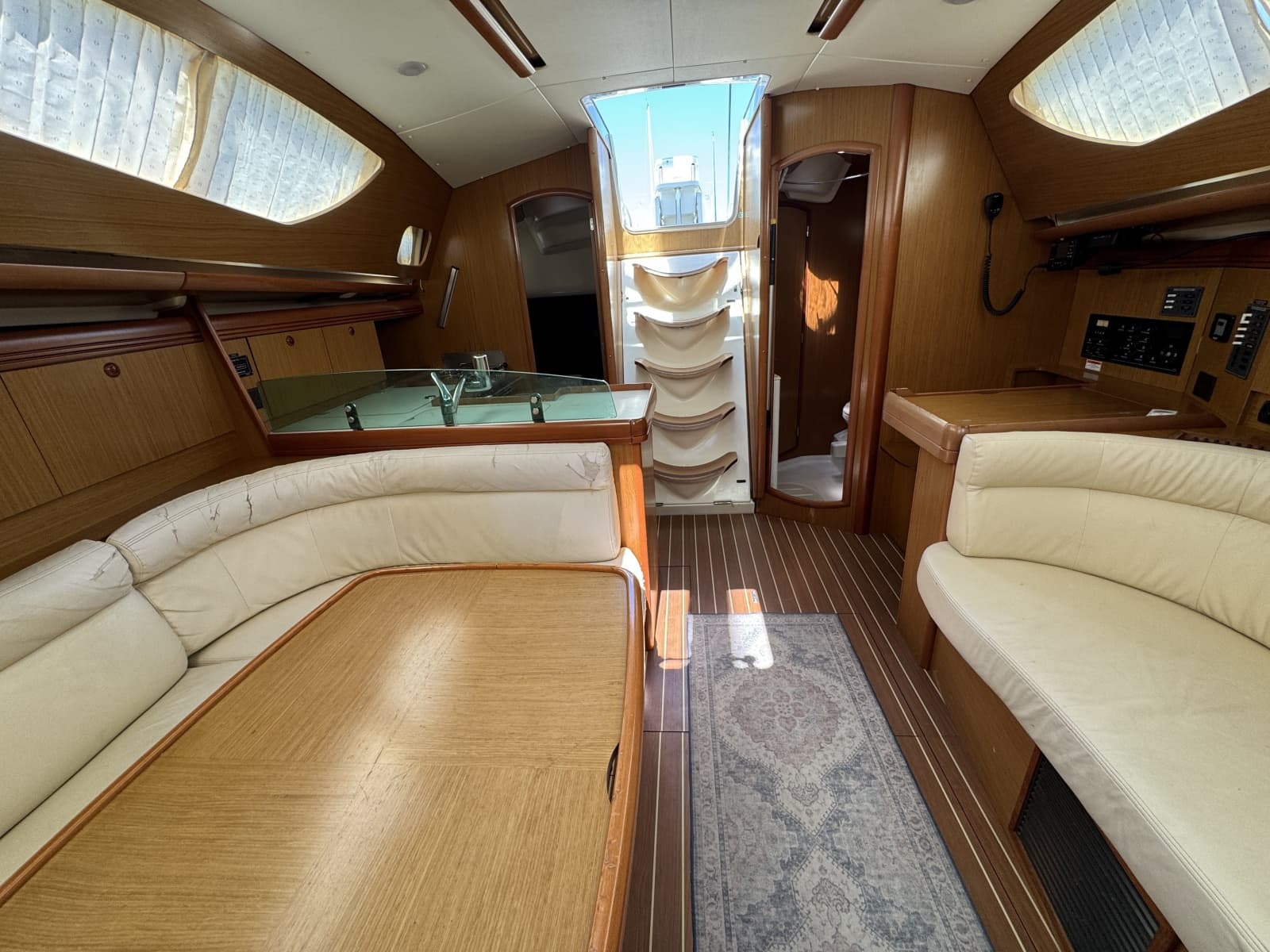

Entering through the low-angle companionway, the salon provides an open-concept living area with a continuous 6' 5" vertical headroom. To starboard, an expansive U-shaped dinette surrounds a finely varnished dining table. The dinette mechanism lowers to convert into an expansive double berth, allowing the vessel to accommodate six passengers overnight. Directly opposite to port is a full-length settee sofa that functions as a lounging area at anchor or a secure sea berth underway.

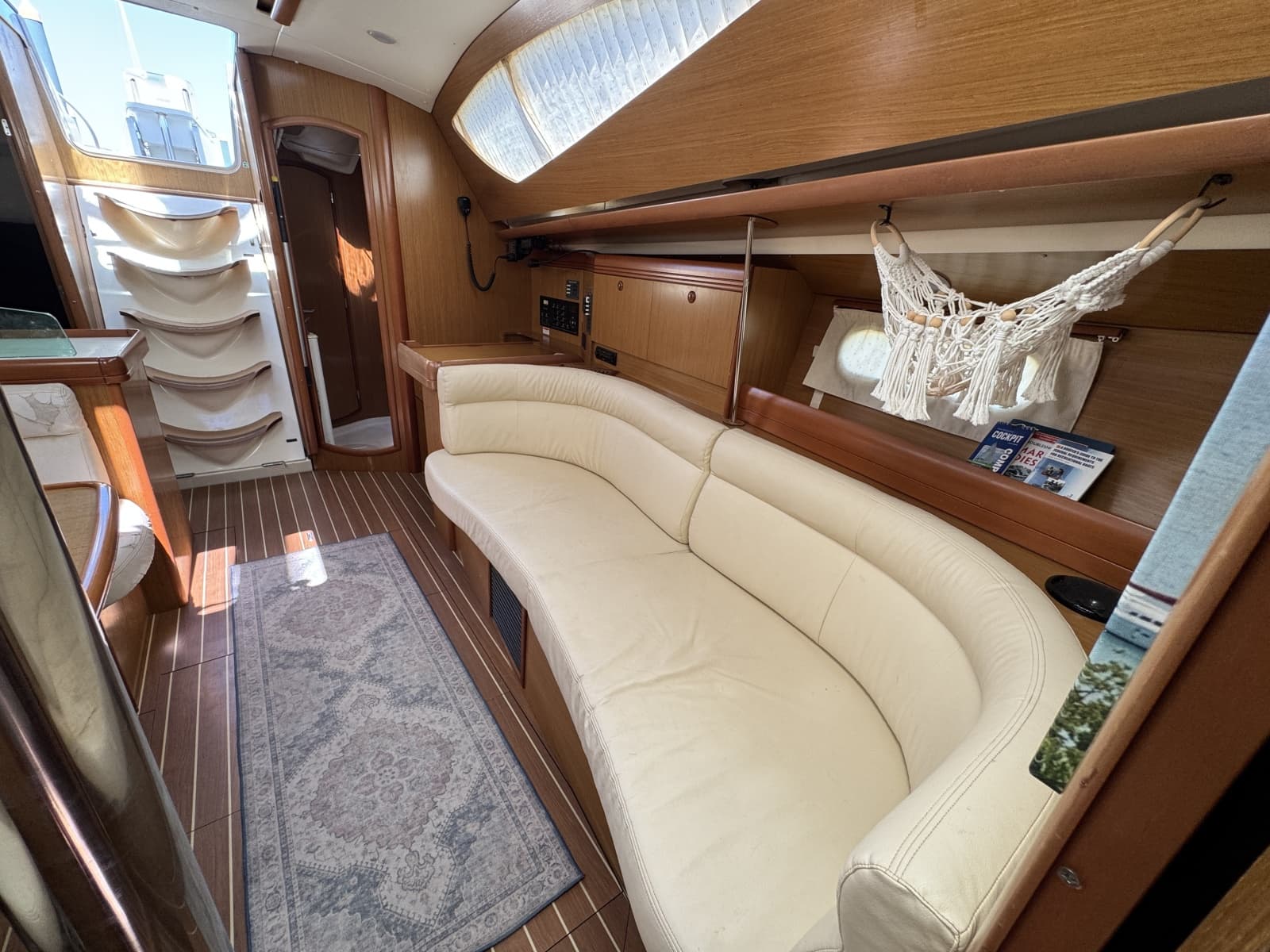

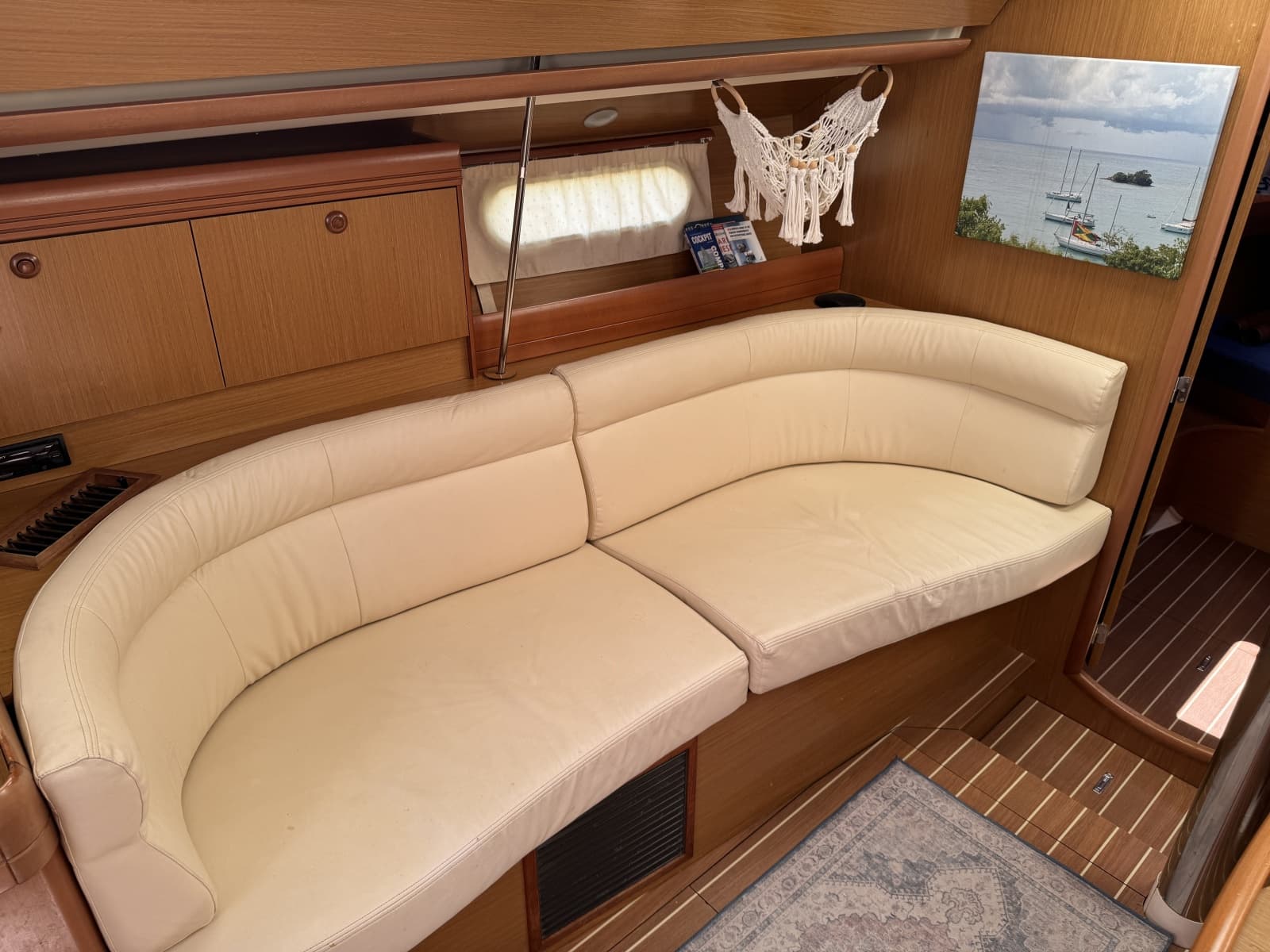

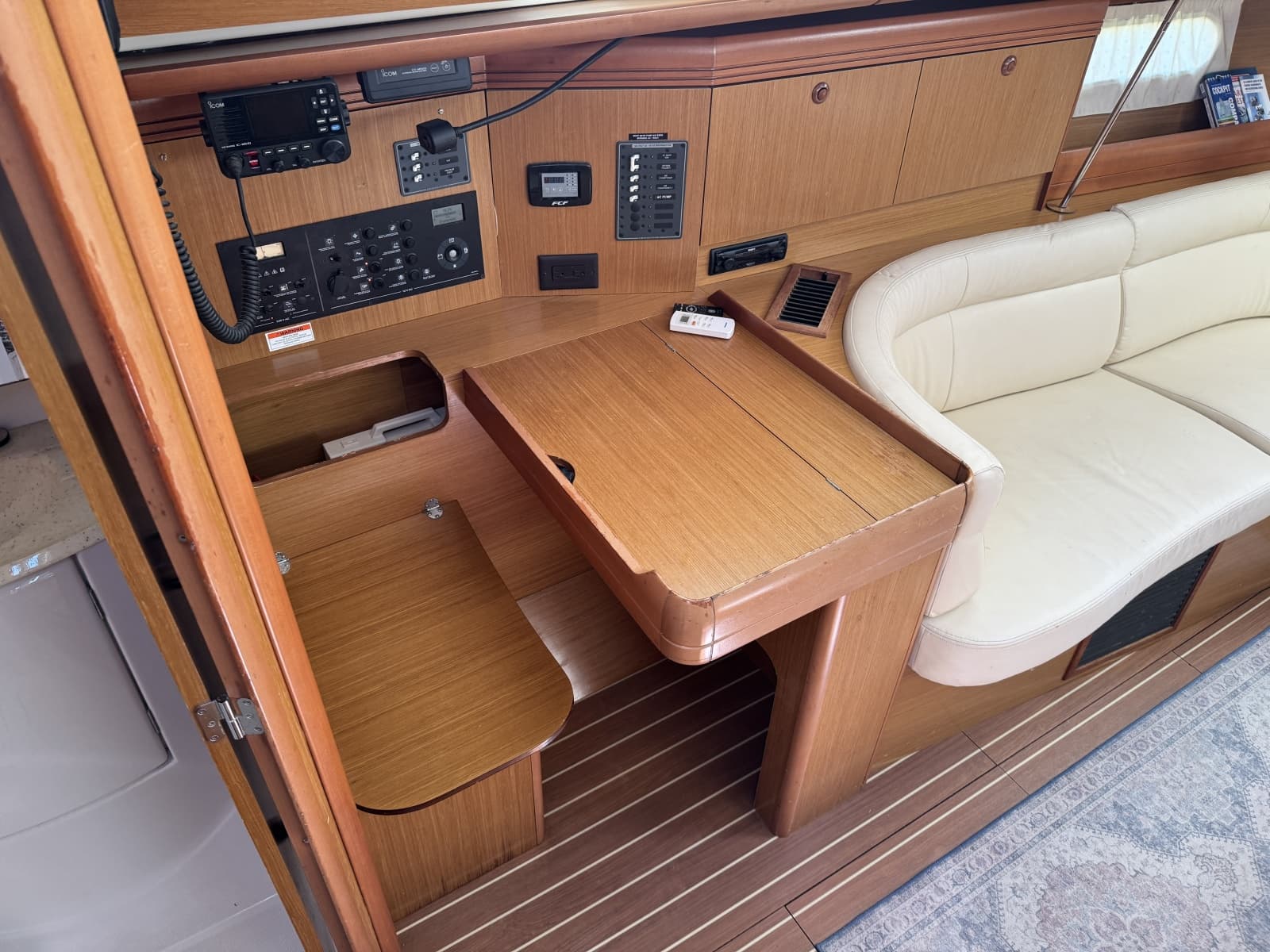

Aft of the port sofa is the dedicated navigation station, featuring a forward-facing chart table with internal storage, a 12V DC master circuit-breaker panel, 110V shore power selectors, and vessel monitoring instrumentation.

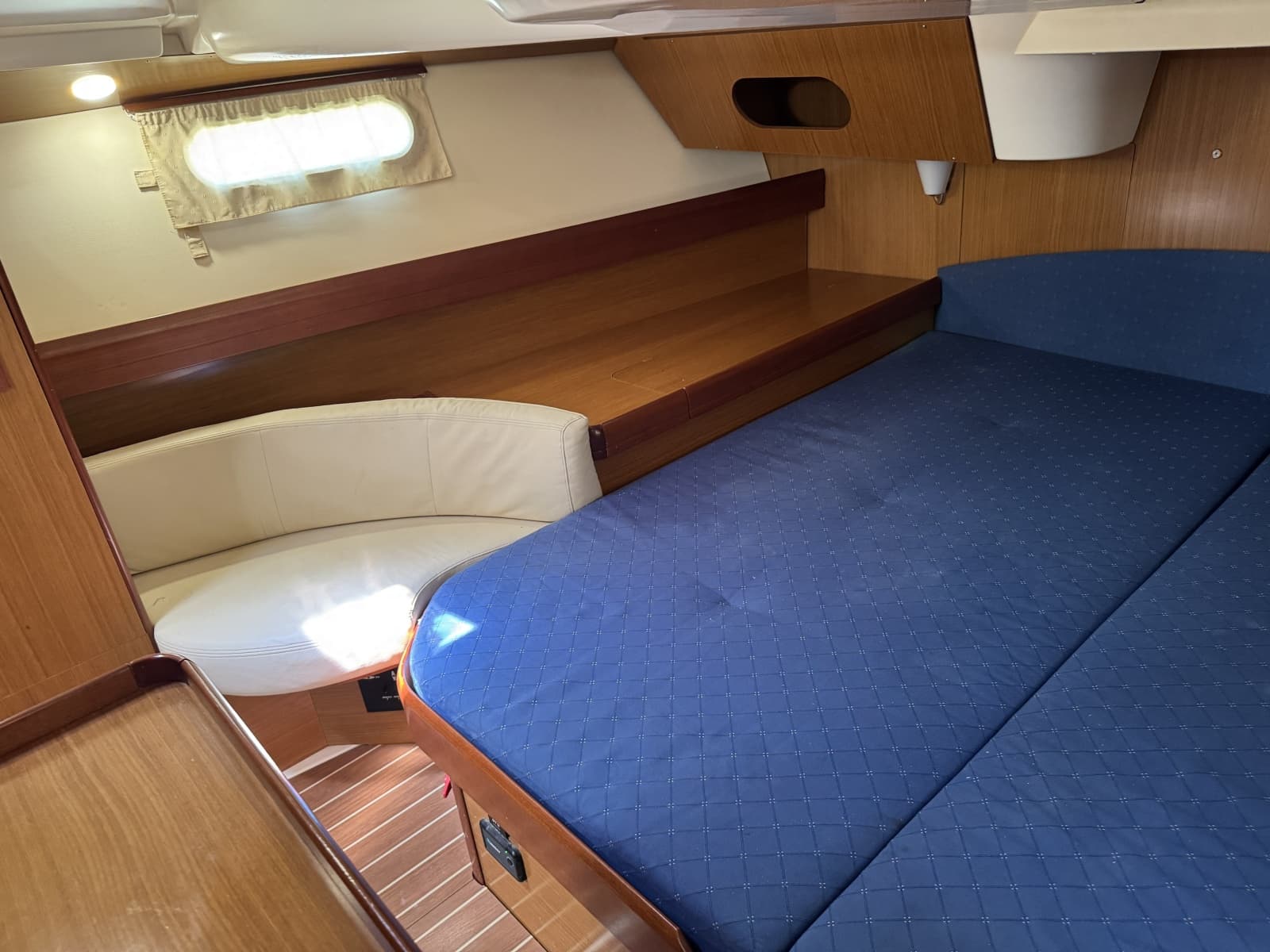

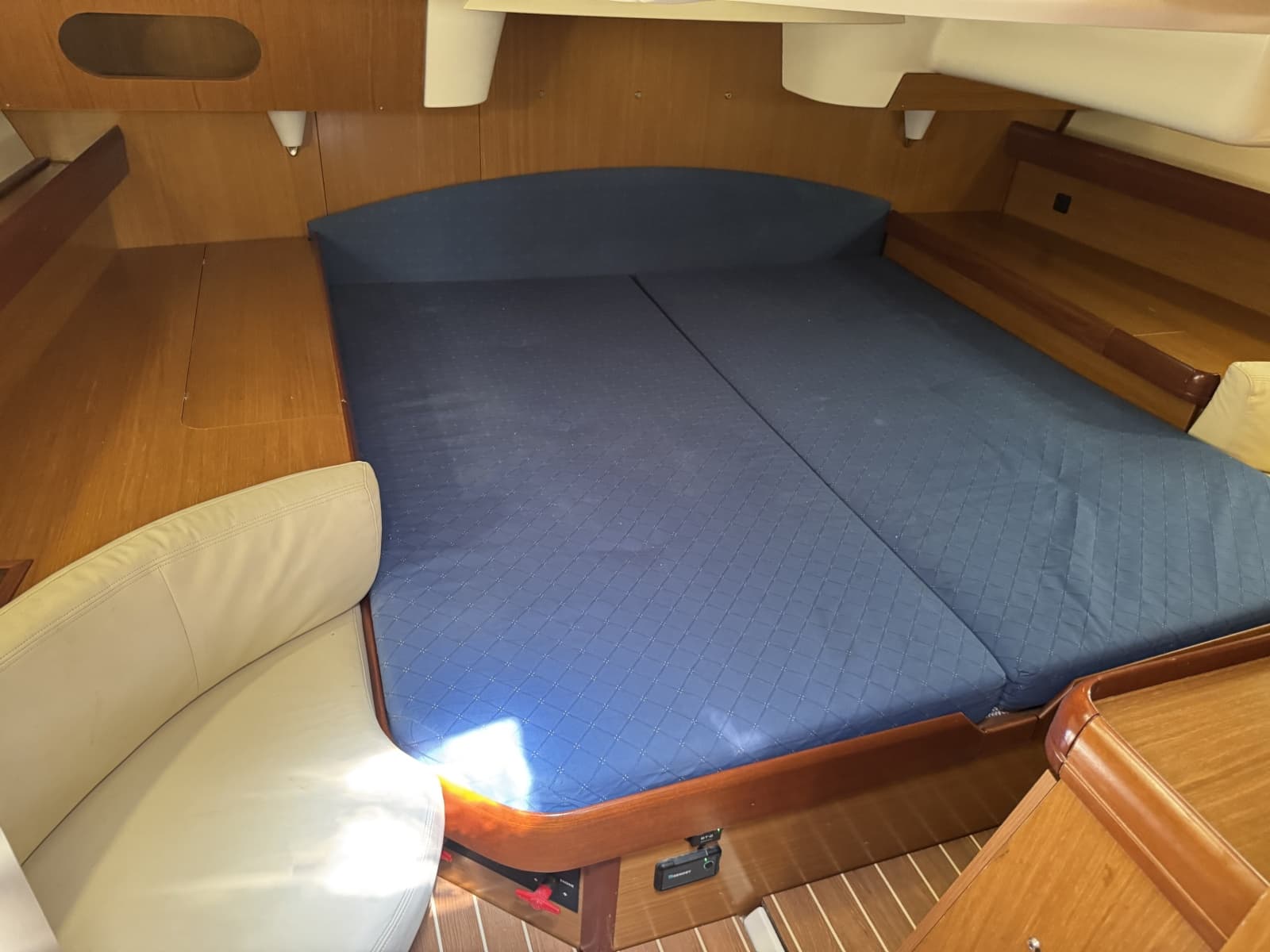

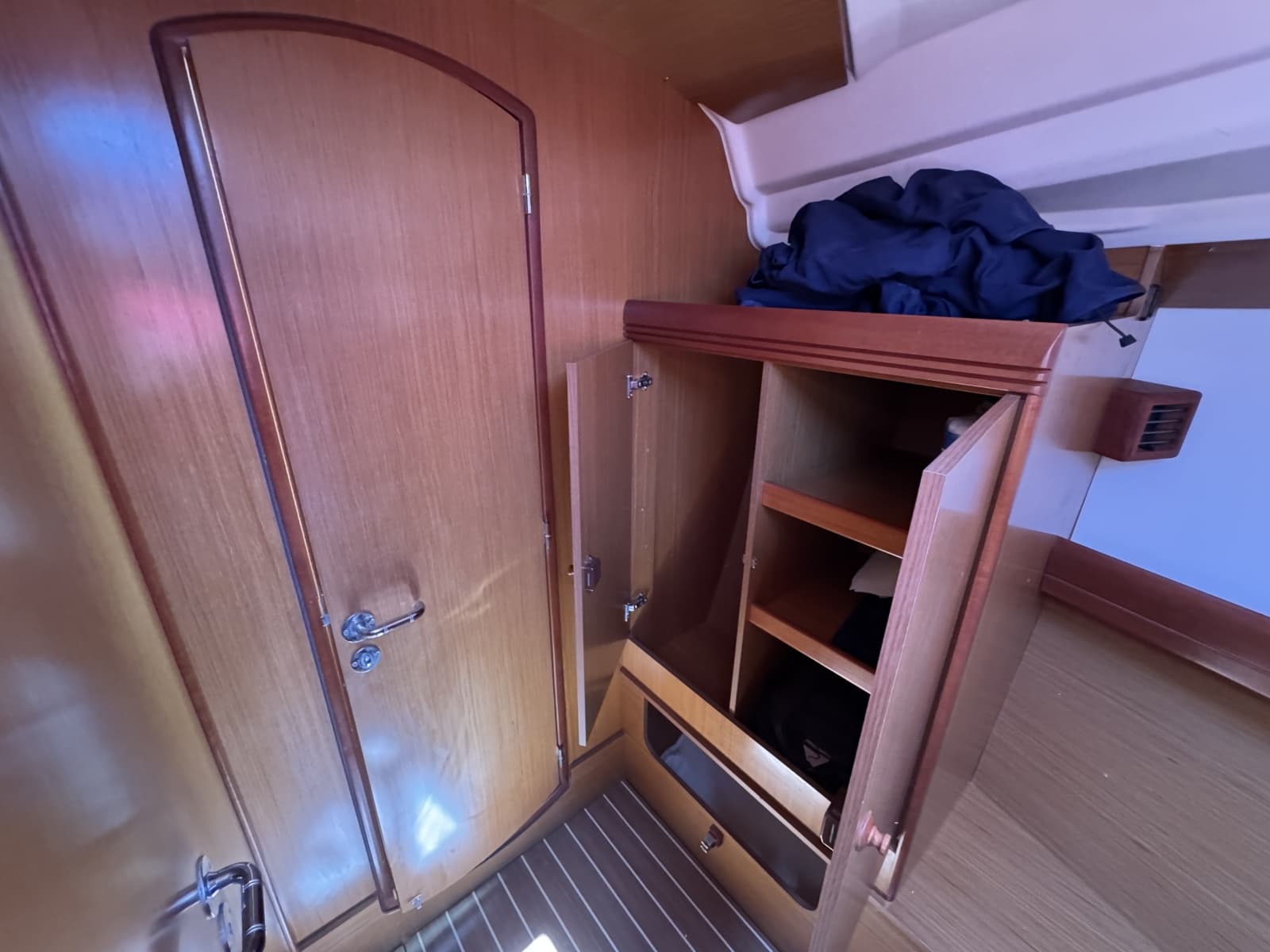

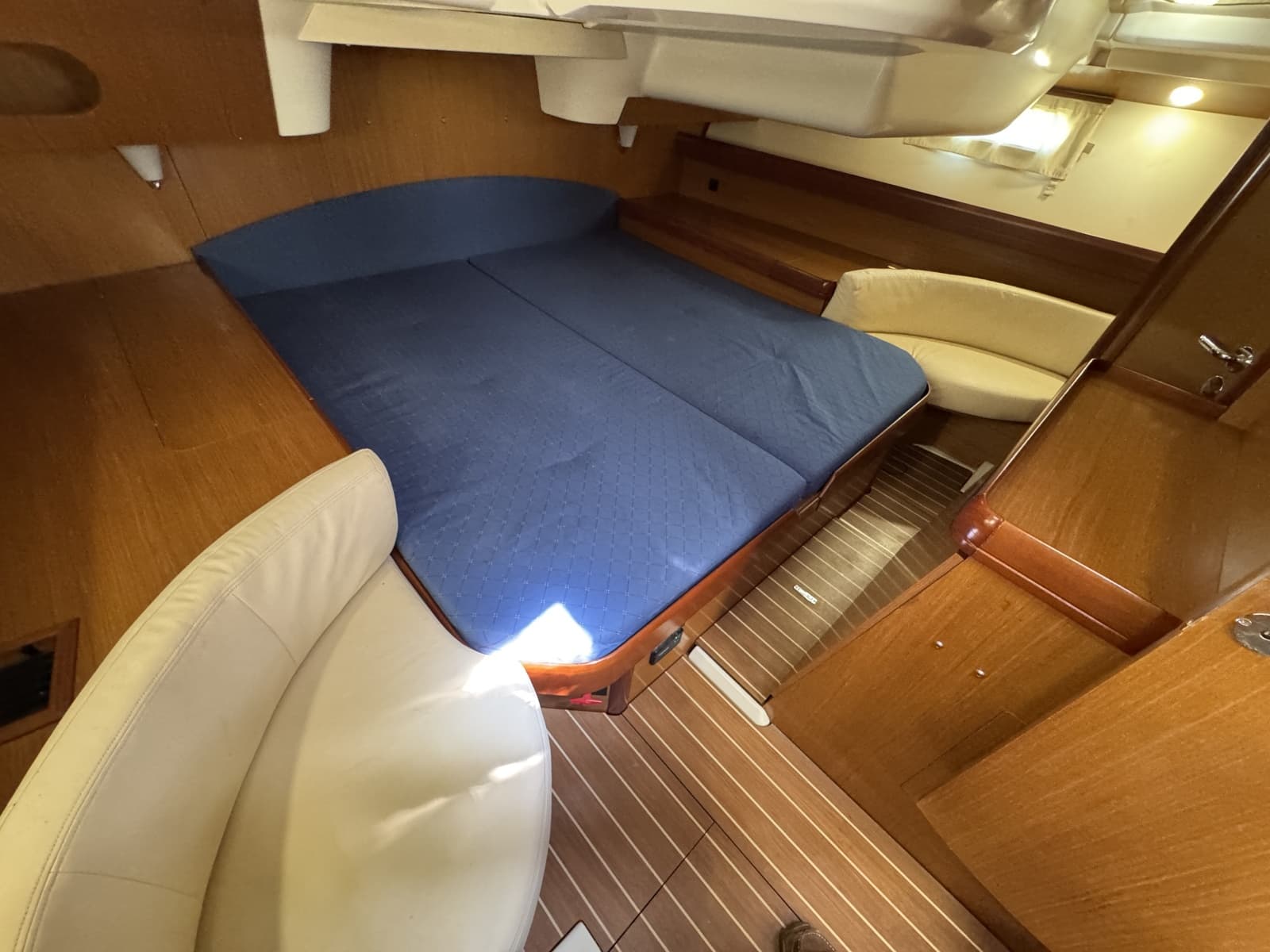

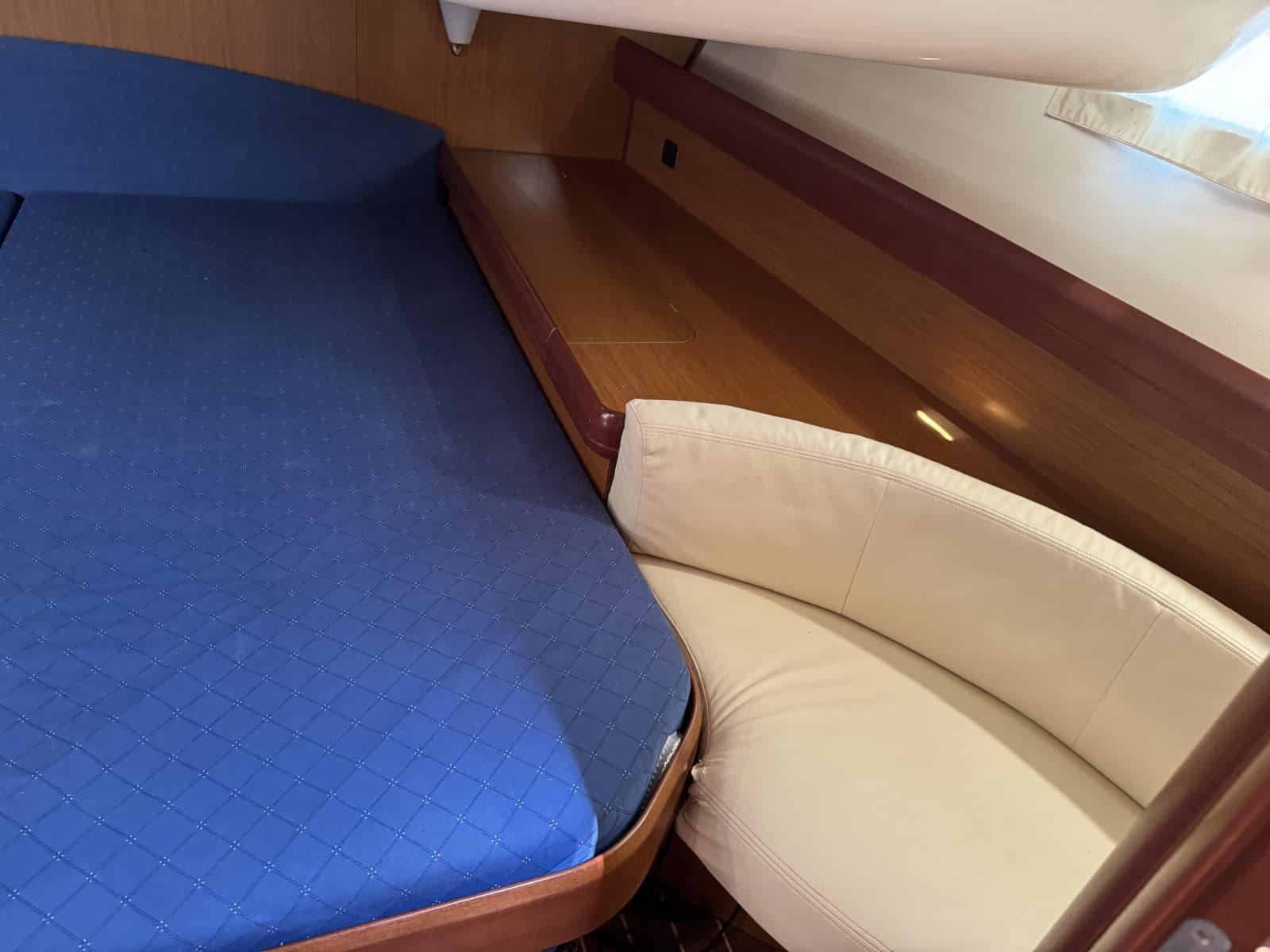

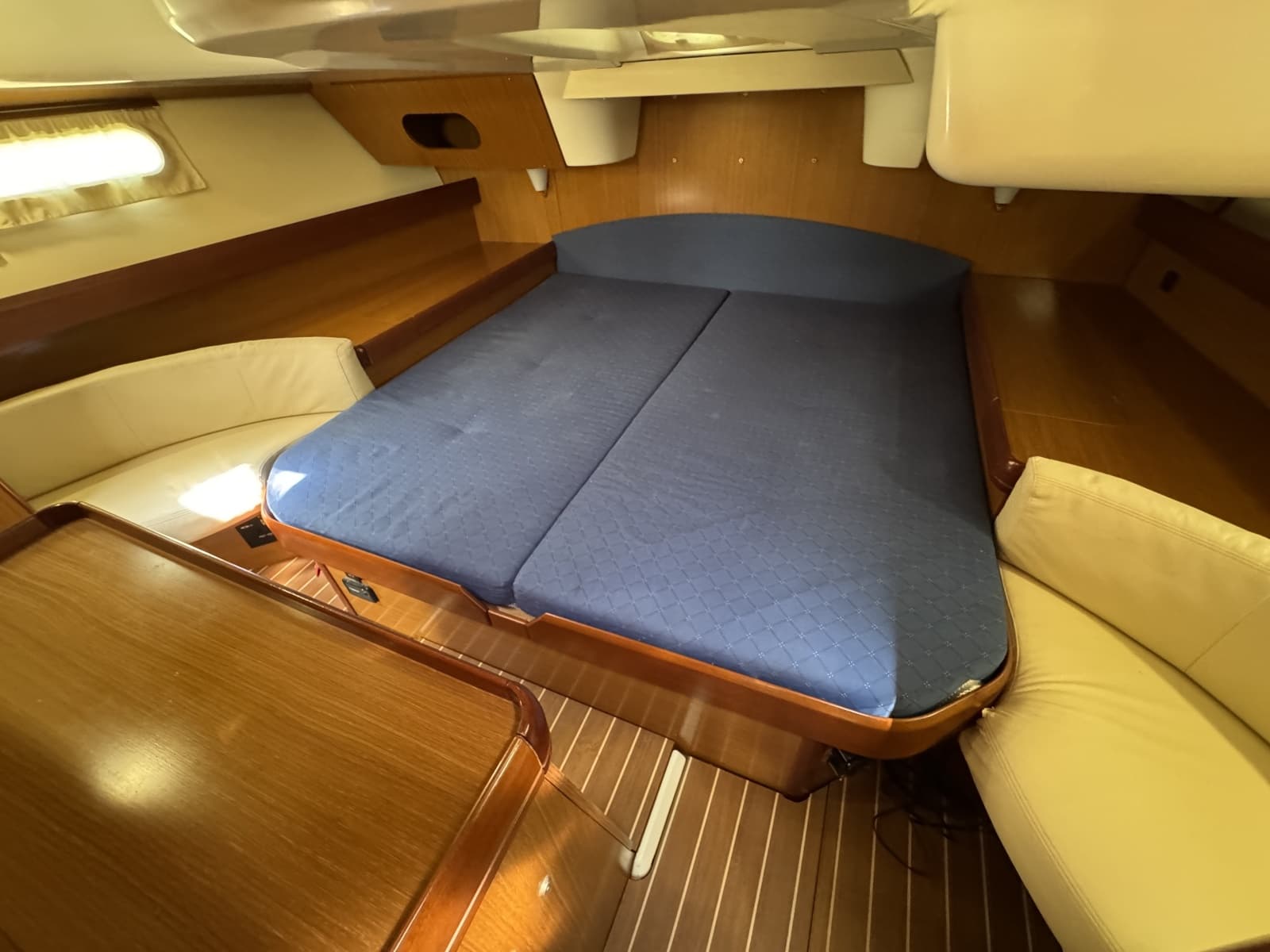

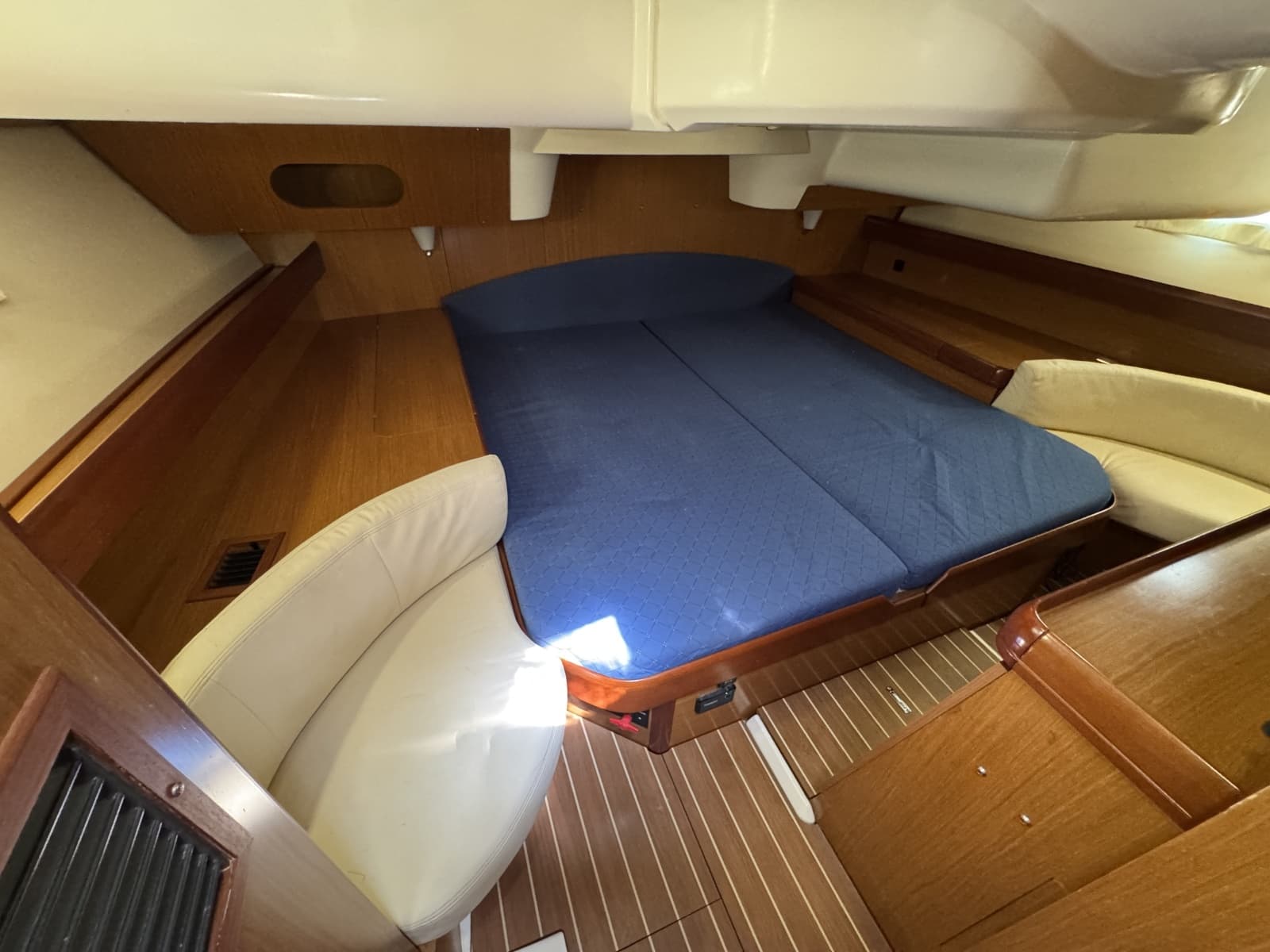

The aft master stateroom utilizes the full 13' 7" beam, providing an island king berth rarely found in forty-two-foot cruising yachts. This suite includes twin nightstands, built-in clothing wardrobes, reading lamps, deep under-berth storage, and overhead opening hatches providing cross-ventilation into the cockpit.

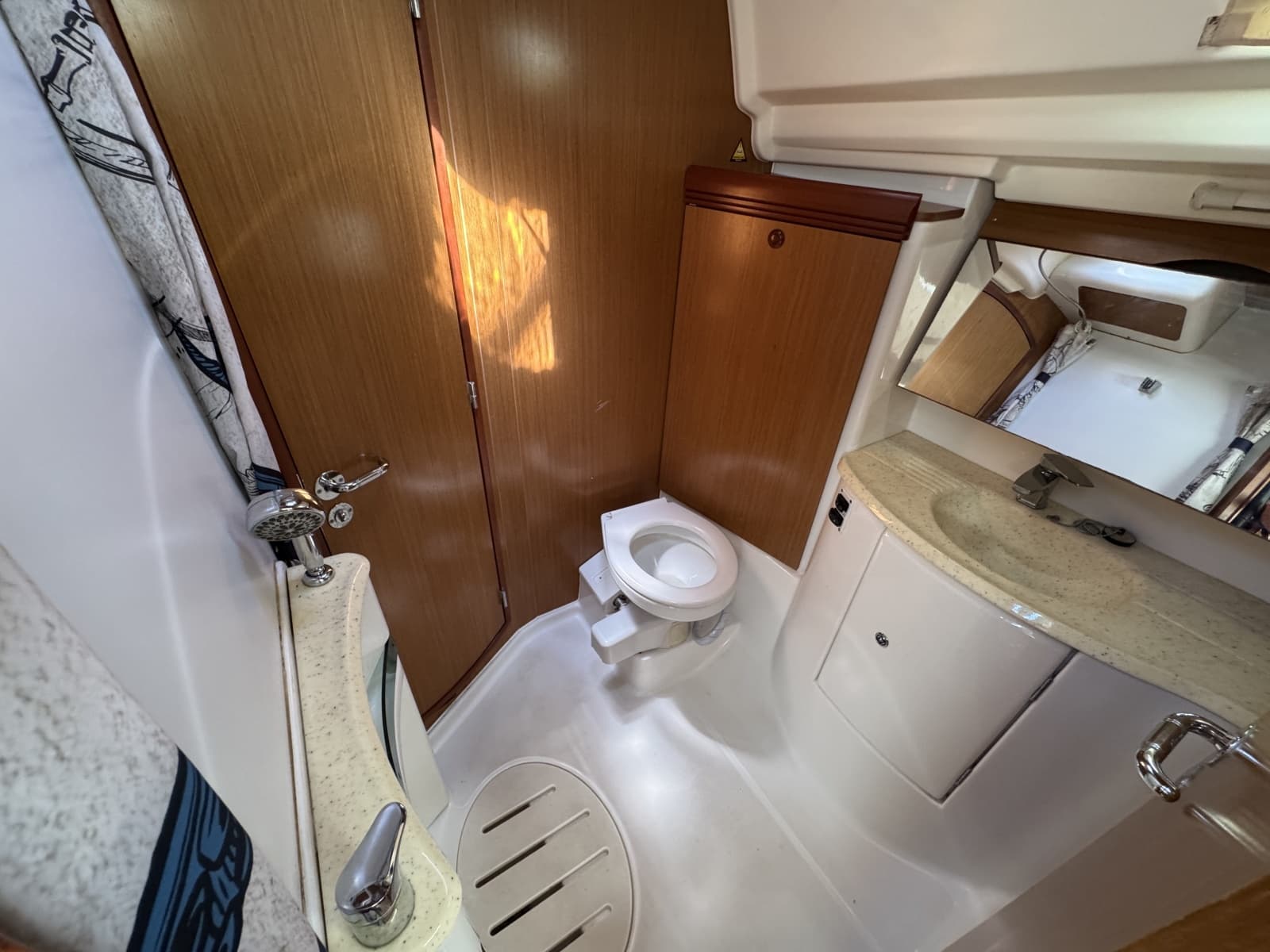

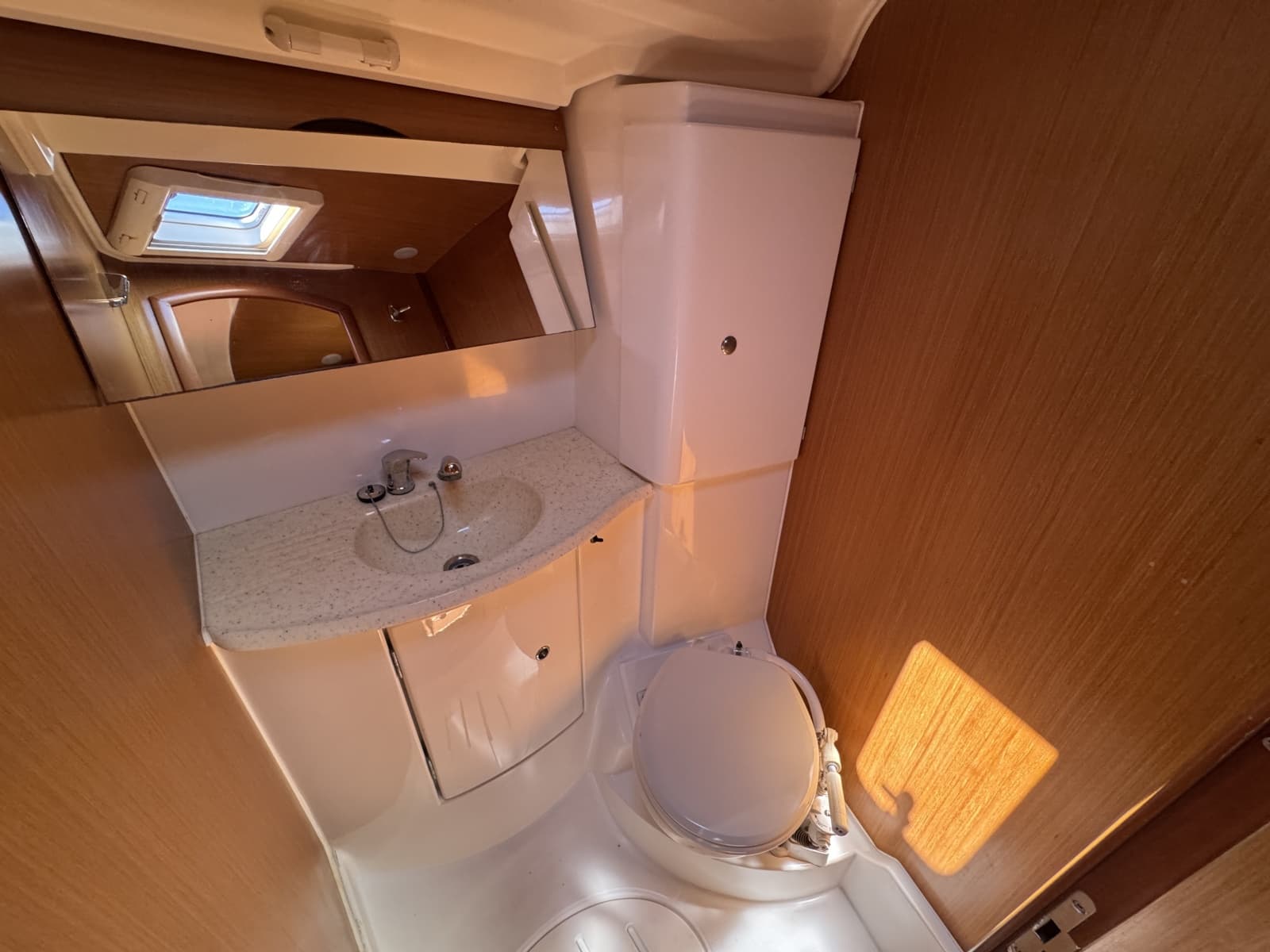

The private en suite master head compartment features an electric-flush marine toilet installed in 2024, a vanity with a molded basin and designer fixtures, mirrored storage lockers, and a Shower (Wet head). Additional 110V electrical outlets were wired into the master suite in 2024 to support personal electronics and appliances.

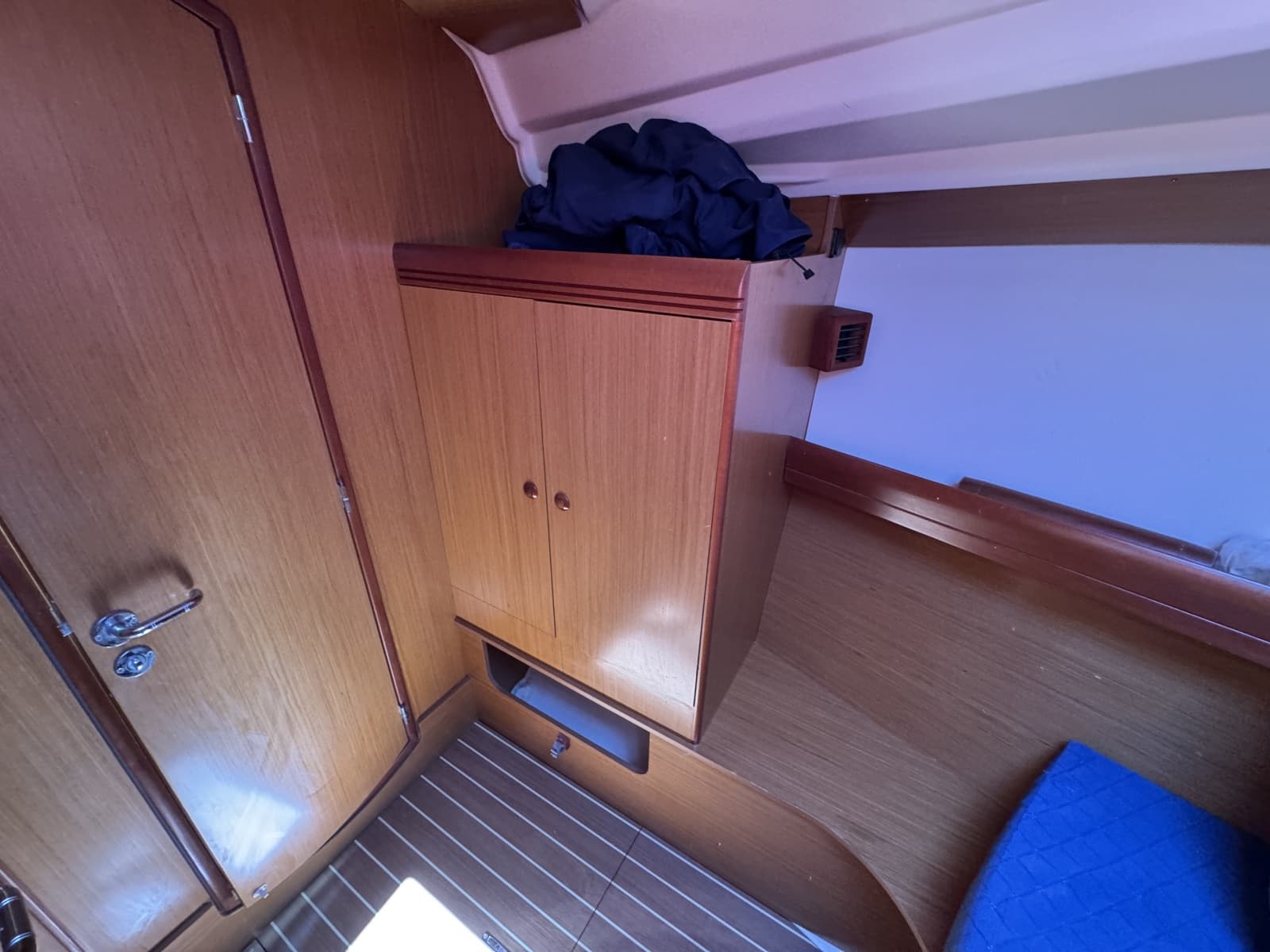

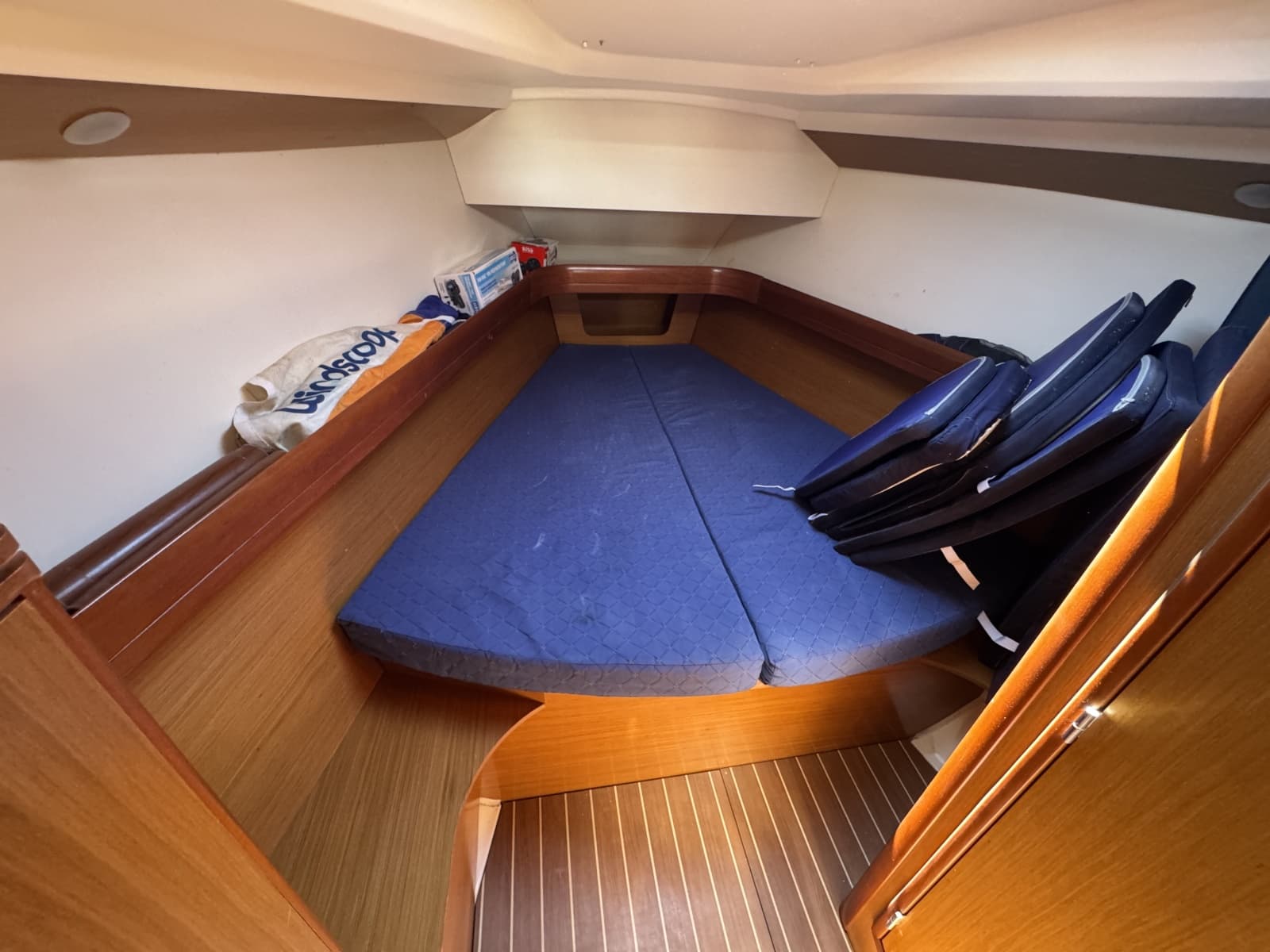

The forward guest stateroom provides a private retreat for guests, featuring a centerline double V-berth, hanging wardrobe, overhead storage shelves, and an opening Lewmar deck hatch replaced in 2026 for improved ventilation and light. The forward cabin includes direct private access to the forward head compartment, which is equipped with a marine toilet, stainless steel wash basin, pull-out shower assembly, and an electric drainage sump pump.

Multi-zone climate control is provided by two Webasto FCF reverse-cycle air conditioning and heating units installed new in 2024: a 12,000 BTU unit serving the salon and forward stateroom, and a dedicated 5,000 BTU unit conditioning the master stateroom.

Galley

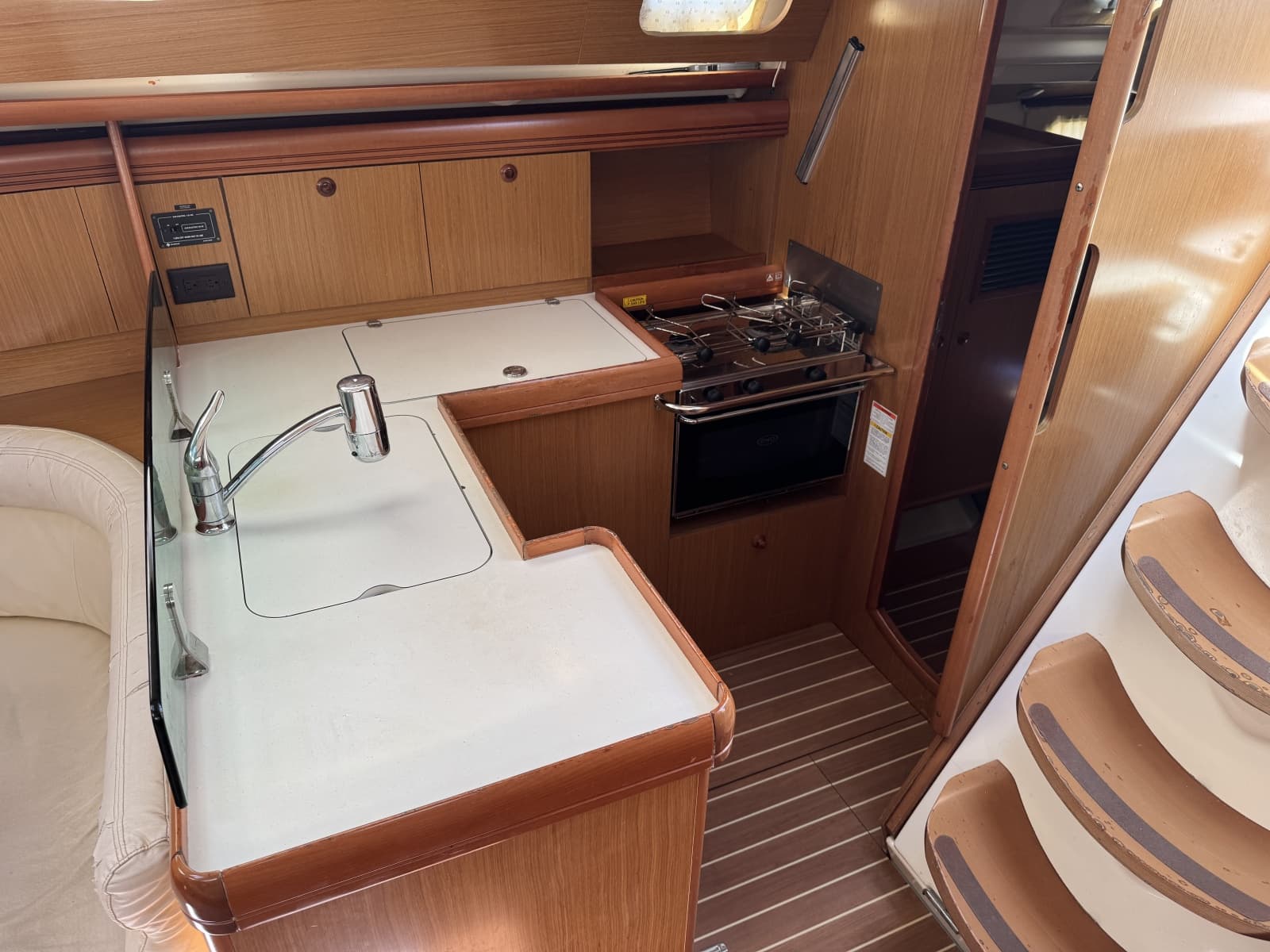

Positioned to starboard at the companionway base, the L-shaped offshore galley provides secure bracing in heavy seas while maintaining continuous interaction with the main salon and cockpit companionway. The workspace features durable, light-toned countertops bordered by deep solid-wood fiddles that serve as handholds underway.

Food storage is anchored by a large dual-access 12V DC marine refrigeration system featuring both top-loading and front-opening access, accompanied by a dedicated deep-freeze compartment. Cooking appliances include an ENO two-burner gimbaled marine propane stove and oven with integrated potholders and a stainless steel crash bar.

A deep double-basin stainless steel sink is recessed into the counter, serviced by a designer mixer faucet installed in 2024.

Pressurized domestic freshwater is distributed by a heavy-duty 12V Shurflo pump operating at 3.4 gallons per minute, tied to an inline accumulator tank that delivers consistent pressure across all galley and head fixtures. Water heating is handled by a 6-gallon marine water heater replaced in 2024, utilizing both an internal 110V AC heating element for dockside use and an engine-assisted heat exchanger loop for hot water while motoring.

Offshore freshwater self-sufficiency is established by a reverse-osmosis desalination watermaker installed new in 2024, eliminating reliance on marina water supplies during extended island crossings and extended coastal passages.

Electronics and Navigation Suite

In February 2024, Schmitten received a complete $13,000 marine electronics overhaul, replacing legacy equipment with a networked Raymarine Axiom+ and Doppler radar suite. All primary navigation, atmospheric, and autopilot systems communicate across an integrated NMEA2000 backbone.

• Primary Multifunction Display: Raymarine Axiom+ 12 RV (12.0" Color MFD) (February 2024) - Chartplotting, Radar Overlay, RealVision Sonar
• Marine Doppler Radar: Raymarine Quantum 2 Q24D Pulse Compression (February 2024) - Doppler Collision Avoidance, Target Tracking, Weather
• Autopilot Control Head: Raymarine p70rs Rotary Pilot Controller (February 2024) - Cockpit Course Setting, Power Steer, Vane Tracking
• Autopilot Attitude Core: Raymarine EV1 Sensor Core (February 2024) - 9-Axis Heading, Pitch, Roll, and Yaw Monitoring
• Autopilot Computer: Raymarine ACU-200 Actuator Control Unit (February 2024) - High-Current Drive to Quadrant Mechanical Steering
• Wind Instrumentation: (2) Raymarine i60 Analog Wind Displays (February 2024) - High-Visibility Apparent and True Wind Angle Indication
• Multi-Data Instruments: (2) Raymarine i70s Color Multifunction Displays (February 2024) - Speed Through Water, Depth, Log, True Wind, Cross-Track
• Fixed VHF Marine Radio: ICOM IC-M510 Transceiver with Integrated AIS Rx (February 2024) - Class-D DSC Communications & Real-Time AIS Target Plotting
• Wireless Interface: ICOM IC-M500 Bluetooth External Module (February 2024) - Smart Tablet/Phone Audio Integration and Remote Station
• Magnetic Binnacle Compasses: Dual Plastimo Horizon Steering Compasses (Factory / Serviced) - Analog Magnetic Heading Reference at Each Pedestal
• Redundant Depth/Speed: Raymarine ST60 Tridata System (Maintained Legacy) - Independent Depth Sounding and Speed Alarm Backup

Electrical Systems

Schmitten is engineered as a self-sustaining cruising vessel, utilizing modern lithium storage and high-output solar generation that removes the fuel burn, maintenance demands, and exhaust noise associated with an auxiliary marine diesel generator.

The direct-current storage network features a 400 Amp-hour Renogy Lithium Iron Phosphate (LiFePO4) house battery bank installed in February 2024 ($4,000 investment) within secured, vented battery enclosures. Compared to standard AGM installations, this lithium chemistry supports deep discharge cycles with minimal voltage drop, easily supporting refrigeration, lighting, navigation instruments, and the watermaker.

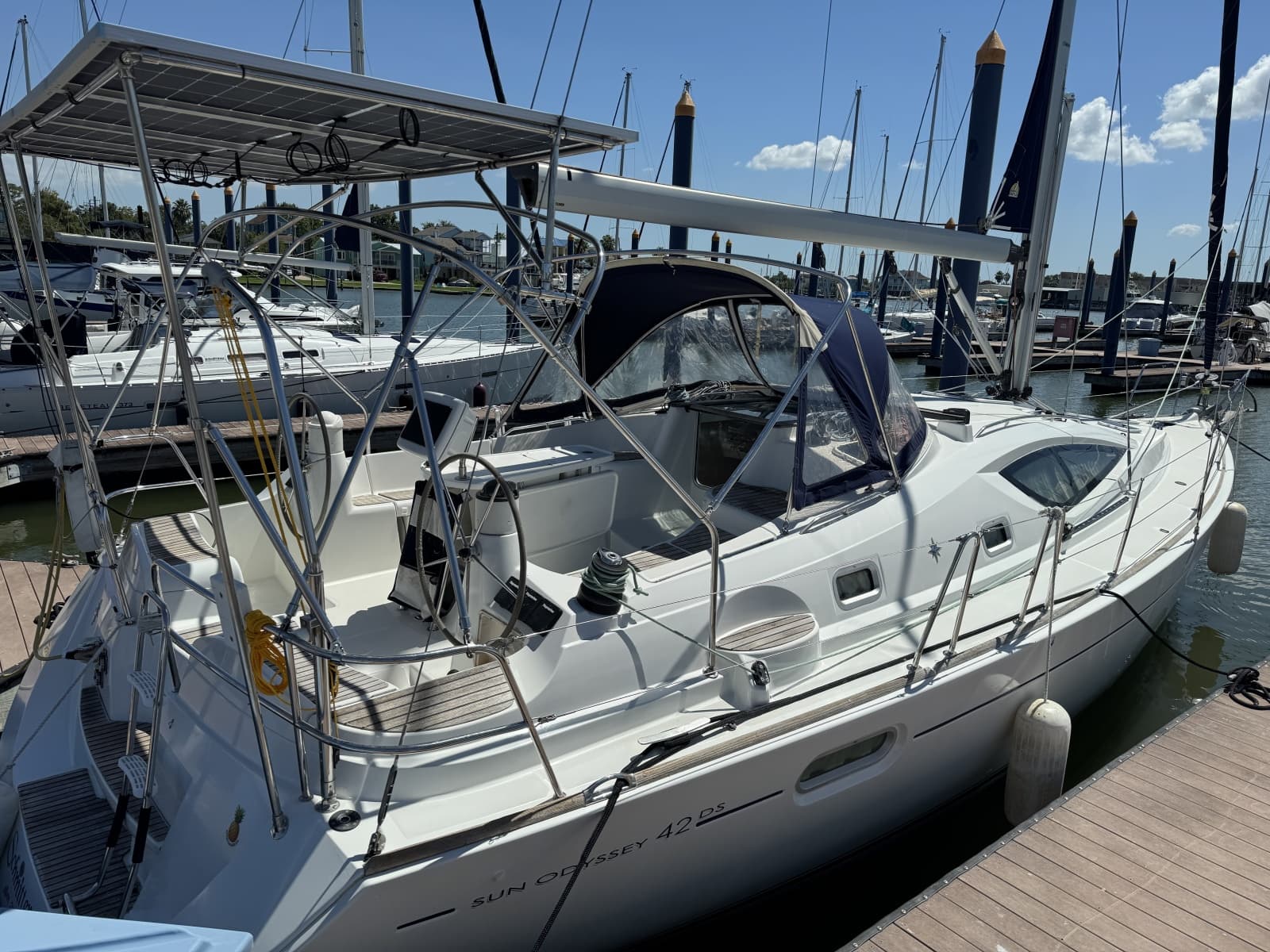

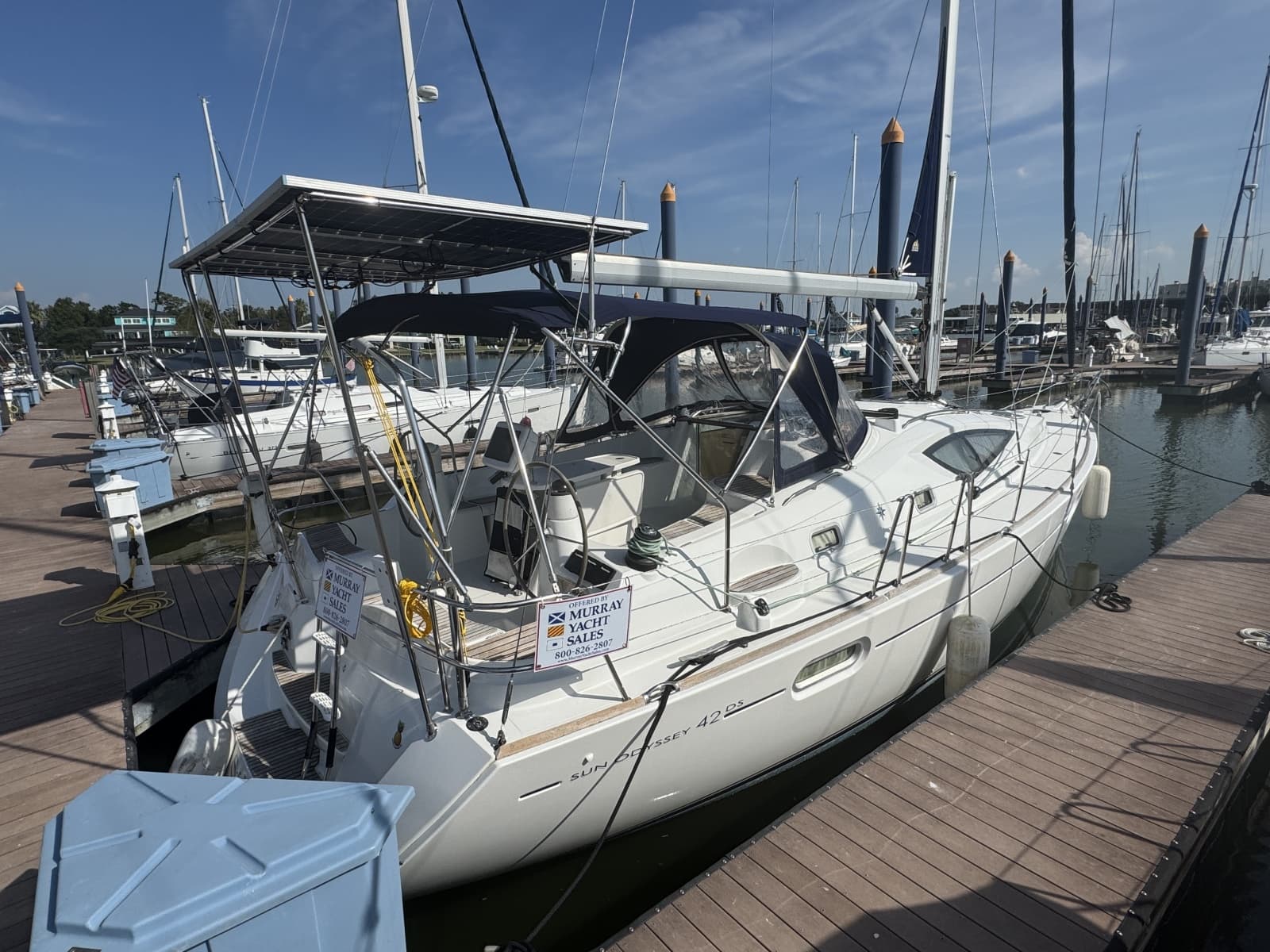

Battery charging at anchor is managed by a 1,000-Watt bifacial solar array mounted on a custom-welded stainless steel transom arch installed in 2025. The bifacial panels capture direct overhead sunlight as well as albedo reflections from the water surface, generating high daily amp-hour yields. Power generation and consumption are monitored through a Bluetooth-enabled Renogy smart shunt that delivers real-time battery status, state of charge, and net amperage data directly to mobile devices.

Alternating current is supplied through a Renogy 1,000-Watt pure sine wave inverter, providing power for personal electronics, entertainment gear, and small galley appliances away from the dock. For marina stays, the vessel incorporates a 110V AC shore power system served by dual 30-Amp shore power connections and an automatic 40-Amp marine battery charger protected by a main breaker distribution panel.

 One 30-Amp is solely for the air conditioners and the remainder of the boat is self sufficient while at dock. Mechanical selector switch is utilized for the solar to shore power switching on the house power.

Engine cranking is isolated to a separate heavy-duty 12V marine starting battery.

Sails, Rigging and Deck Hardware

The vessel utilizes an anodized aluminum double-spreader mast and boom assembly manufactured by Seldén Mast, fitted with an in-mast roller-furling mainsail system that permits all sail deployment and reefing operations from the cockpit.

• In-Mast Furling Mainsail: High-Grade Dacron Vertical-Batten Mainsail (New June 2024) - Excellent Condition; Clean Shape Retention & Easy Furling
• Furling Genoa / Headsail: 135% Cruising Genoa with UV Protective Strip (New 2024; Serviced Aug 2026) - Serviced by Zern Rigging; New Luff Bolt Rope & Panel
• Standing Rigging (Forestay): 1x19 Stainless Steel Wire with Custom 3-Way Swivel (New 2024 by Rick Zern) - Engineered to Prevent Halyard Wrap & Wire Bird-Caging
• Standing Rigging (Shrouds/Stays): 1x19 Stainless Wire to Swaged Terminals (Original / Fully Inspected) - Inspected & Certified Sound by Zern Rigging Aug 2026
• Running Rigging Suite: Low-Stretch Braided Polyester Halyards & Sheets (Replaced 2024 / 2025) - Excellent Condition; Color-Coded Lines Run to Clutches
• Downwind Whisker Pole: Forespar Telescoping Aluminum Whisker Pole (Installed Post-Purchase) - Mounted on Vertical Mast Track for Clean Foredeck Storage
• Primary Sheet Winches: (2) Harken 46.2 Self-Tailing 2-Speed Manual Winches (Serviced / Factory Original) - Smooth Mechanical Operation; Mounted Near Helm Coamings
• Coach roof Halyard Winches: (2) Harken 40.2 Self-Tailing 2-Speed Manual Winches (Serviced / Factory Original) - Flanking Companionway; Controlled by Spinlock Clutches
• Outboard Tender Hoist: Forespar Nova Lift Stainless Transom Crane (Installed Post-Purchase) - Pulleys Rigged for Singlehanded Engine Hoisting
• Board / Water Toy Racks: SUPrax Marine Stand-Up Paddleboard Rail Racks (Installed Post-Purchase) - Mounted to Stainless Stanchions for Clear Side Decks
• Deck Ventilation Hatches: Lewmar Low-Profile Cast Aluminum Deck Hatches (Replaced New 2026) - $2,360 Investment; Optical Clarity with Leak-Free Seals

The standing rigging underwent significant improvements under the supervision of Rick Zern of Zern Rigging. Following a crossing where the original forestay experienced wire deformation (bird-caging), a new forestay was fabricated and installed in 2024 with a specialized three-way swivel assembly to eliminate furling friction and prevent line wrapping.

Comprehensive professional standing rigging surveys were conducted in March 2025 and August 2026, confirming the mast, turnbuckles, spreaders, and swages are in good working order.

Deck, Canvas and Ground Tackle

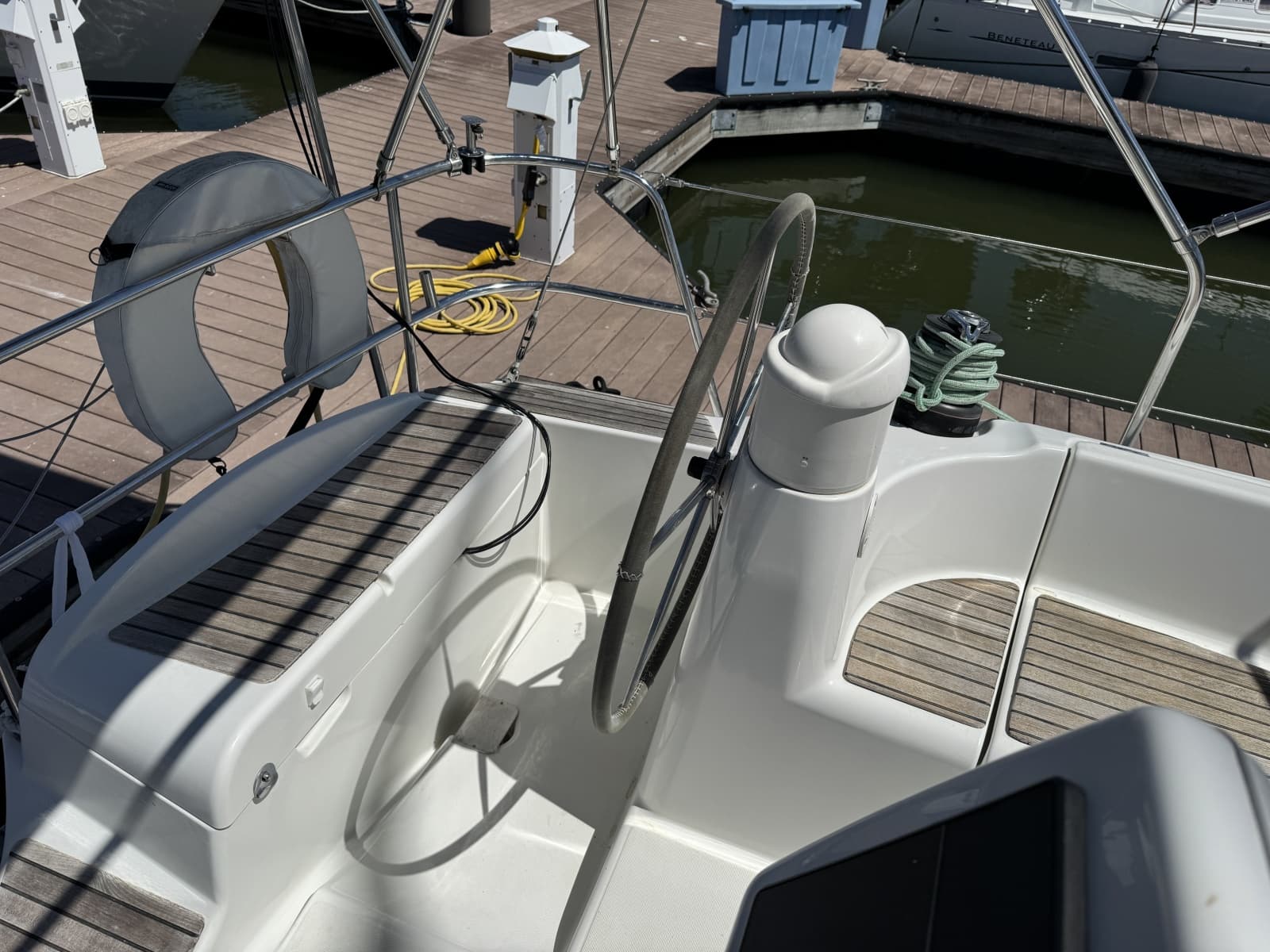

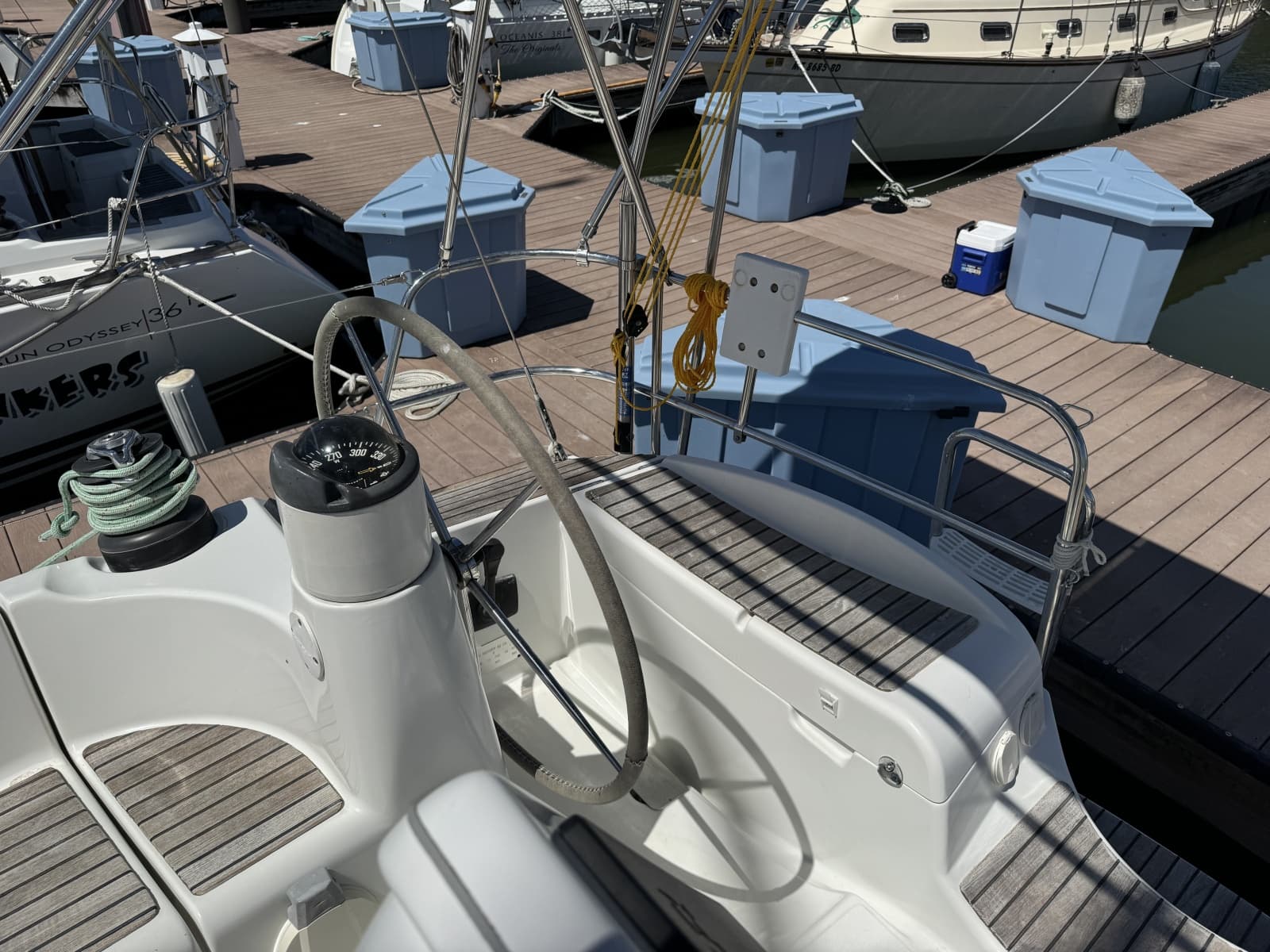

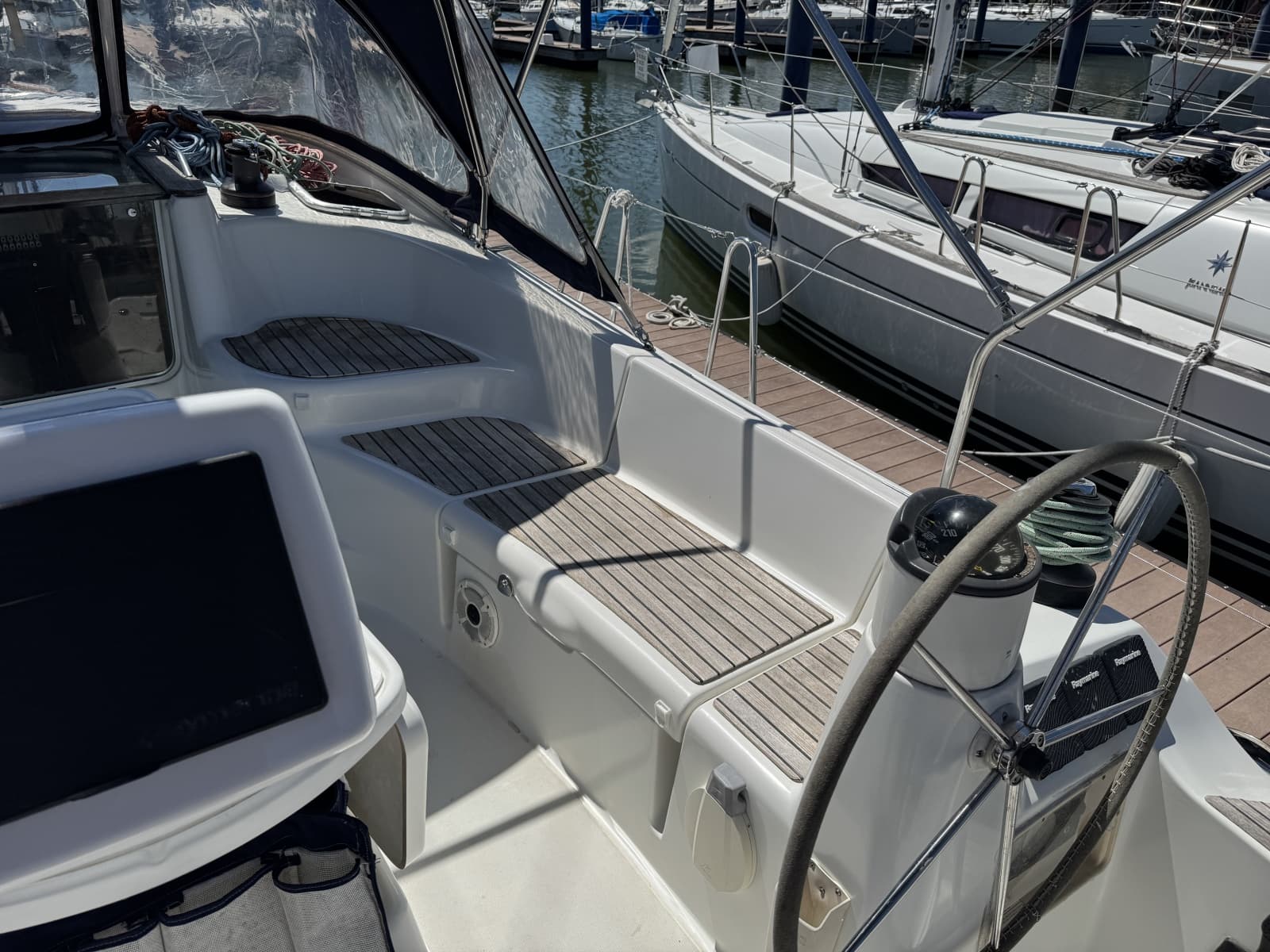

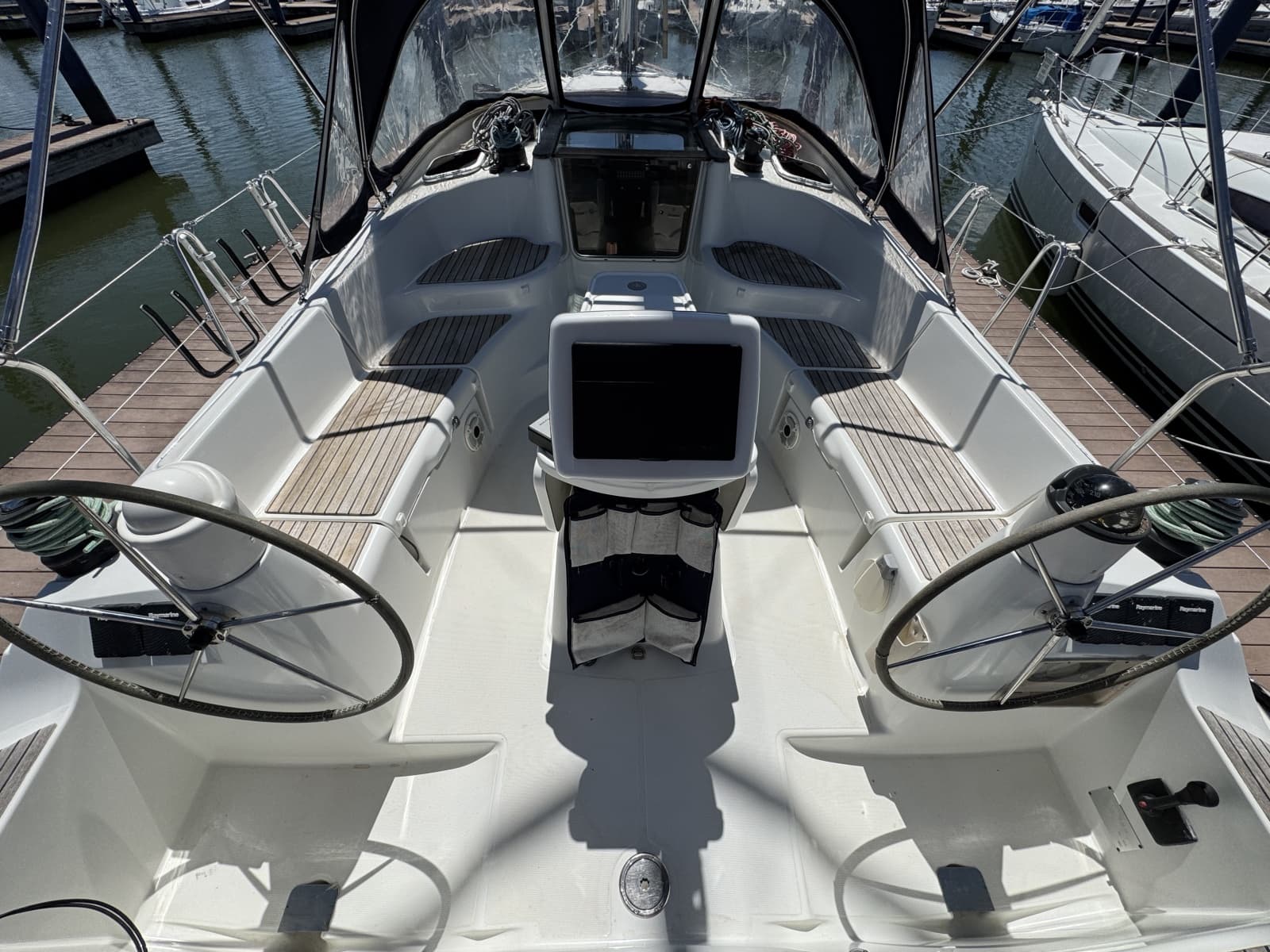

The deck layout balances open cockpit entertaining with secure footing underway. Dual 316 stainless steel steering pedestals open up a central walkway through the cockpit, providing unobstructed movement from the companionway to the stern sugar-scoop swim platform.

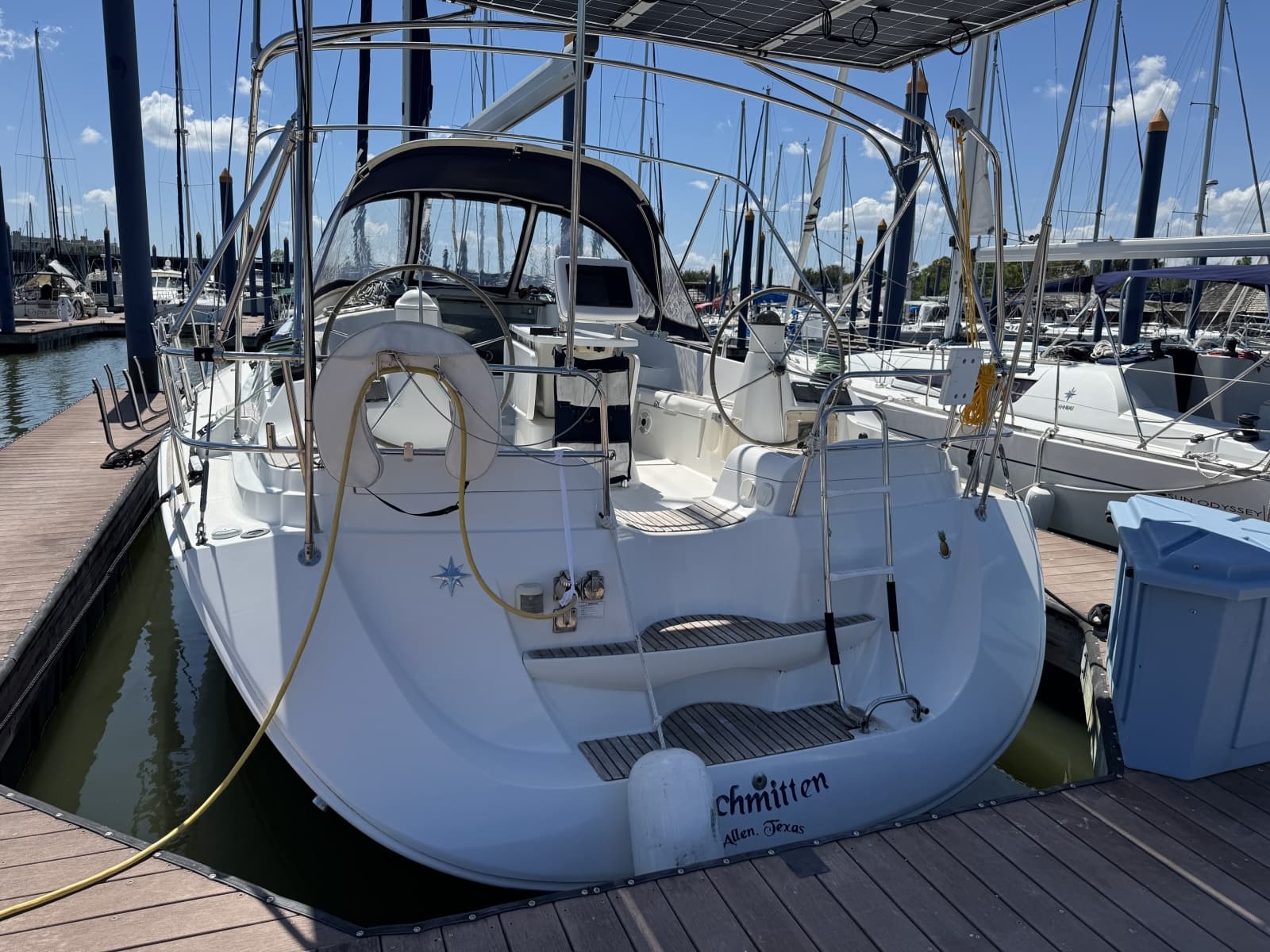

A central cockpit table incorporates folding leaves for outdoor dining, internal drop-in storage. At the stern, the integrated swim transom includes a stainless steel folding ladder and a pressurized hot-and-cold freshwater shower for rinsing off after swimming.

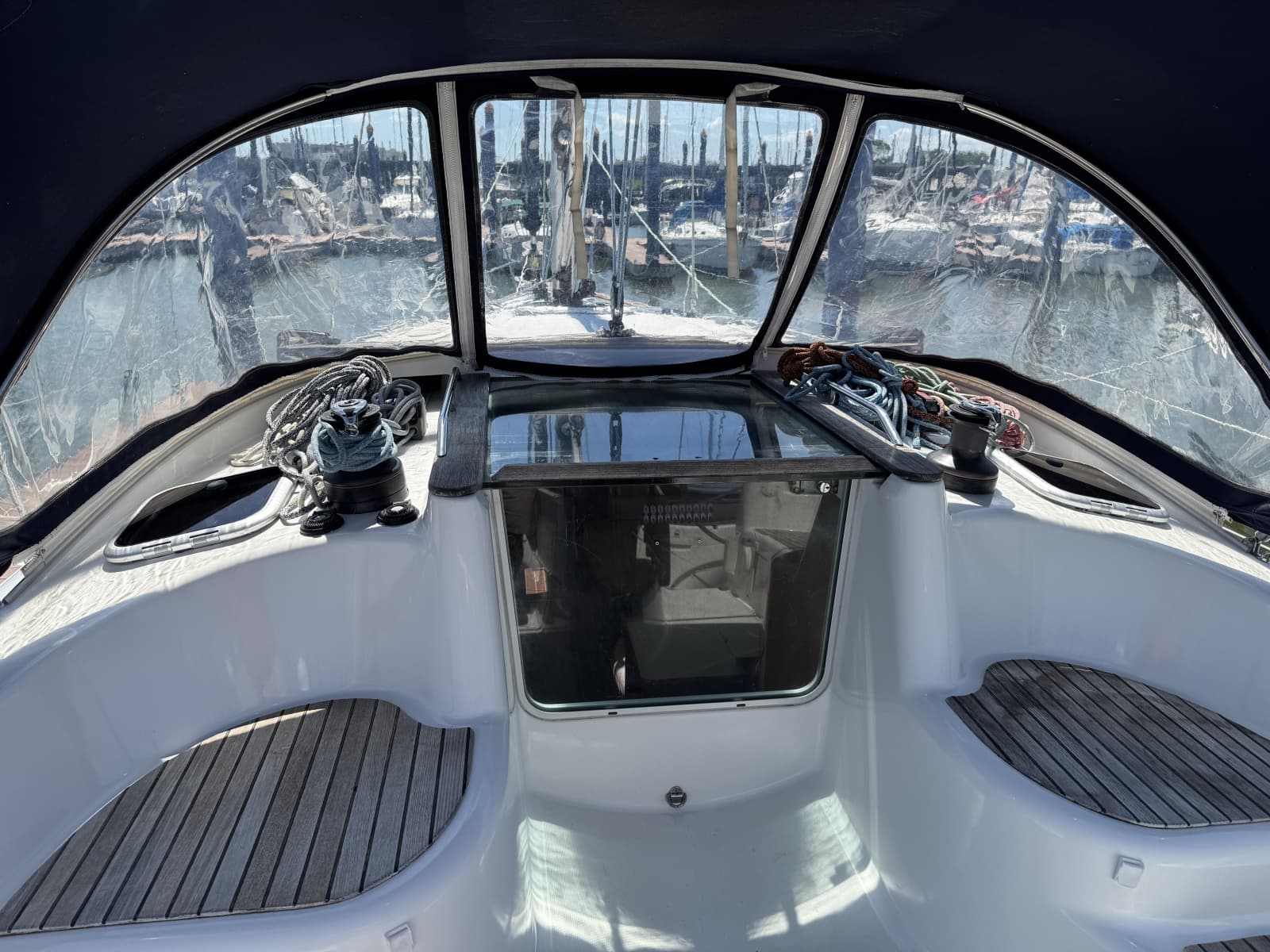

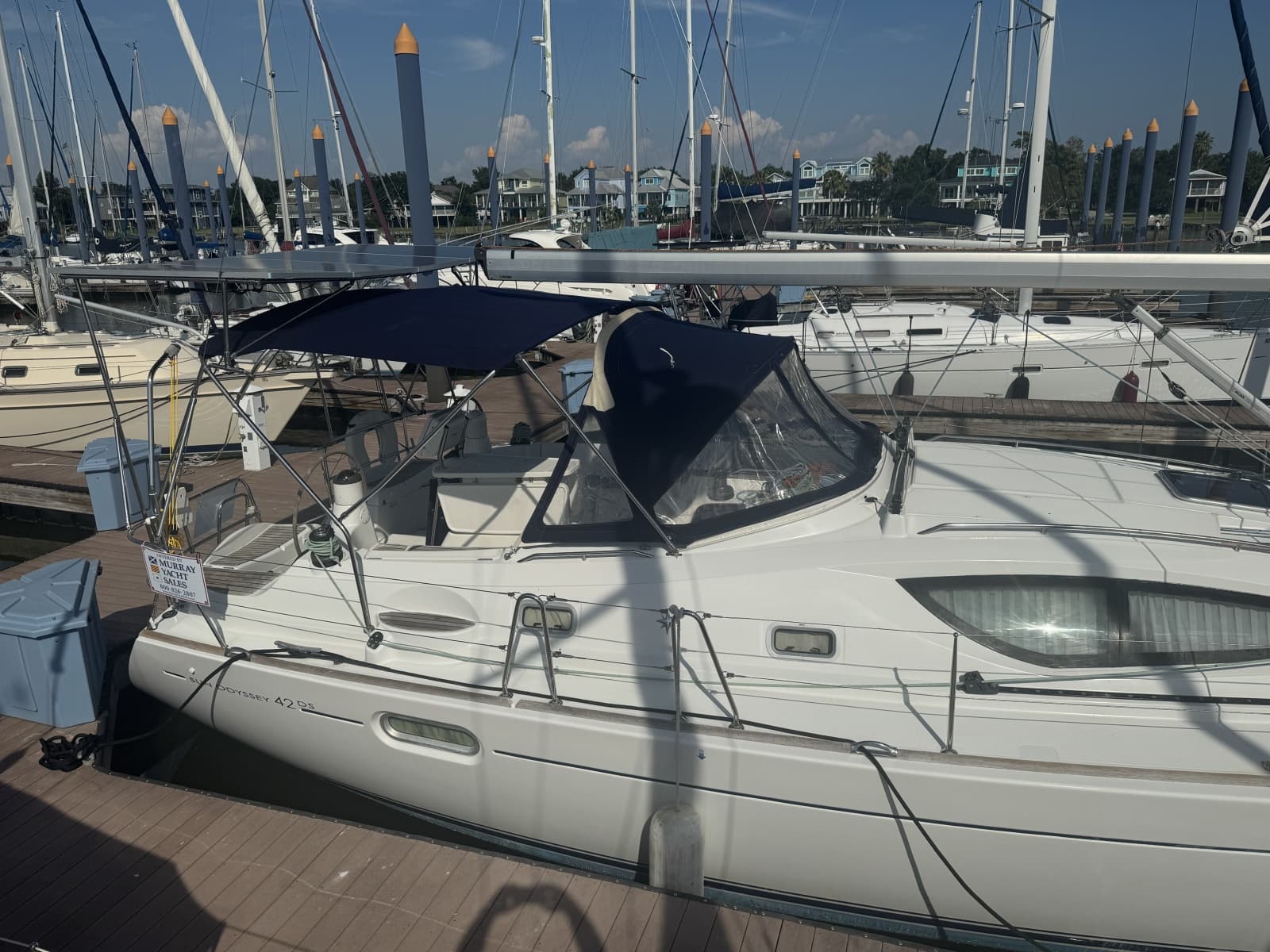

Weather protection is anchored by a Sunbrella dodger fitted with heavy-gauge clear Strataglass forward and side panels, stainless steel support struts, and a roll-up center window for light air ventilation. The Sunbrella cockpit bimini, installed new in 2026, which shields the helm stations and companionway from the sun, is scheduled for brand-new replacement prior to final closing and transfer of title ($1,500 contracted value).

Following an incident where an overhanging tree limb contacted the vessel during a boat yard move, all affected stanchions were replaced, and the lifelines were converted to uncovered 316 stainless steel wire for improved durability.

Ground tackle is suited for offshore anchoring, centered around a 65 lb Mantus primary storm anchor purchased in 2024 ($1,400 investment), connected to 250 feet of 3/8" high-tensile galvanized chain ($1,550 investment) marked for depth reference. A secondary anchoring system comprises a lightweight 45 lb Fortress aluminum fluke anchor fitted with a 50-foot chain lead and 100 feet of nylon rode.

Chain retrieval and deployment are handled by a 12V Quick/Lewmar electric anchor windlass housed inside the deep foredeck locker, operated via foredeck foot switches and helm controls.

Safety Gear and Emergency Equipment

Schmitten carries dedicated safety and emergency gear configured for offshore coastal cruising and open-water passages.

• Dedicated Offshore Life Raft: Multi-person offshore life raft packed in a weather-resistant canister, purchased brand new in February 2025 ($1,500 investment) and held on an inspection-current status.
• Bilge Pumping Infrastructure: Dual 12V automatic electric bilge pumps with independent mechanical float switches and manual helm overrides, accompanied by a high-capacity Whale manual diaphragm bilge pump operable from the cockpit.
• Fire Extinguishing Systems: Three USCG-approved portable dry-chemical fire extinguishers located in the forward cabin, companionway, and galley.
• Emergency Steering Gear: Heavy-duty emergency auxiliary tiller bar designed to lock directly onto the rudder headstock through a flush deck plate in the cockpit sole.
• Signaling and Flotation: USCG-approved Type I and Type II life jackets, an emergency throwable flotation cushion, a handheld horn, and a heavy-duty boat hook.

Hull, Keel and Underwater Running Gear

The hull shares its naval architecture with the Sun Odyssey 42i, featuring an efficient Marc Lombard hull form characterized by a fine forward entry, moderate midship deadrise, and a broad transom that delivers downwind stability and interior volume.

The vessel features the 5' 2" (1.60 m) shoal draft keel, consisting of a cast iron fin with an integrated hydrodynamic bulb. This configuration delivers the stability of a ~6,100 lb ballast package while drawing under five and a half feet, facilitating access to shallow waters across the Bahamas, Florida Keys, and Intracoastal Waterway.

The hull laminate is solid hand-laid fiberglass reinforced with vinylester resin in outer plies for blister defense, backed by a structural grid bonded to the hull to disperse mast step and keel loads. Marine surveys and owner history confirm the yacht has no history of osmotic blistering.

The underwater profile received a complete bottom paint application in January 2026, followed by professional diver hull cleaning every three weeks while stationed in warm waters. Sacrificial zinc anodes on the propeller shaft and hull were replaced in August 2026 to ensure ongoing galvanic corrosion protection.

Propulsion is delivered via a 30mm stainless steel straight shaft passing through a dripless mechanical seal, supported by an external cast bronze P-bracket strut turning a three-blade bronze propeller.

Mechanical and Engine Service Log

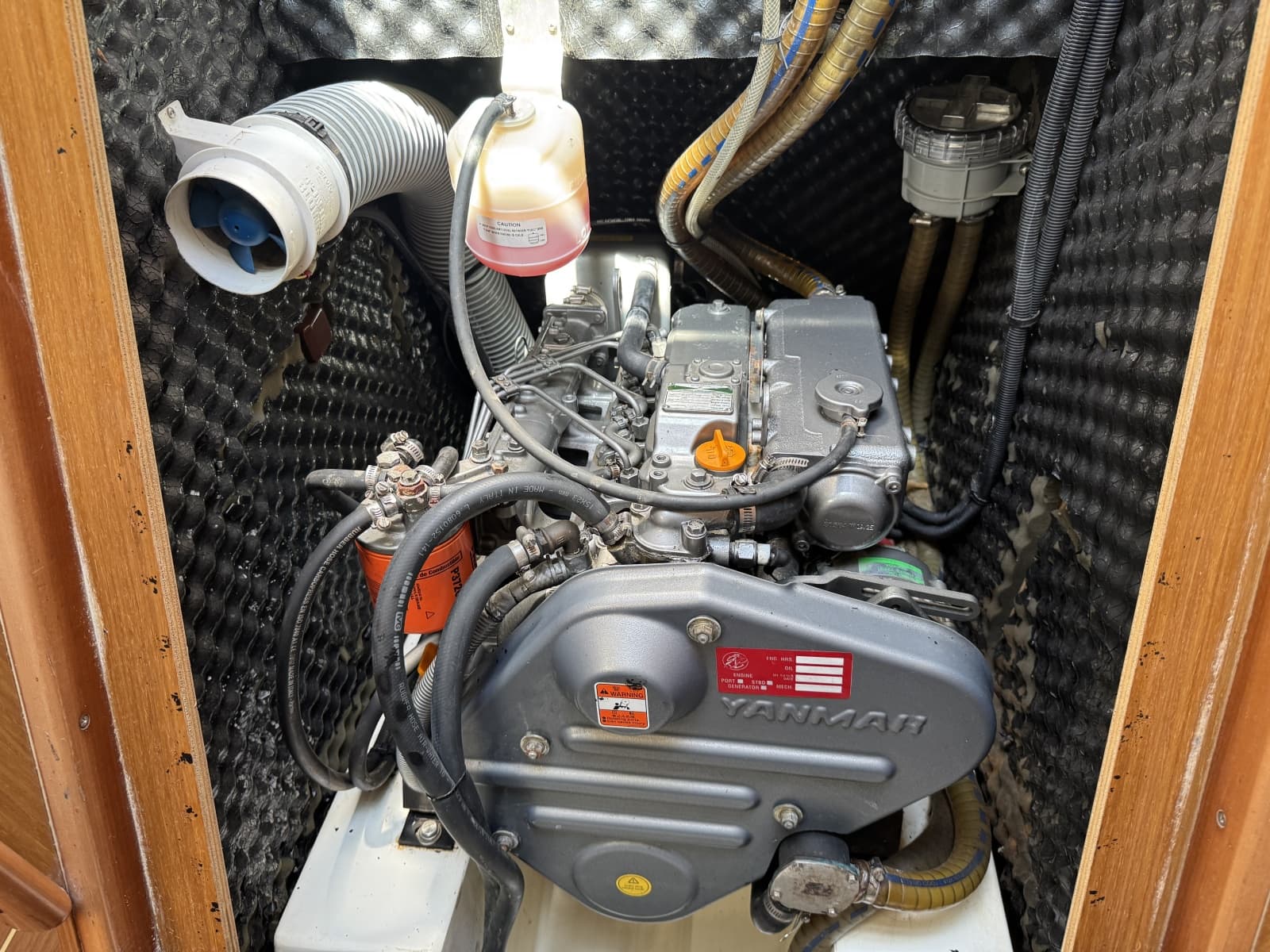

The propulsion system is centered on a Yanmar 4JH4-E naturally aspirated four-cylinder diesel engine rated at 54 horsepower, recognized for fuel efficiency and worldwide parts availability. The engine compartment sits beneath the companionway stairs, with sound-insulated side and aft service panels accessible from the aft stateroom and master head.

• Yanmar Heat Exchanger (August 2026): Complete Heat Exchanger Replaced with Factory Unit Following Minor Seam Leak
• Engine Lubrication Service (August 2026): Crankcase Oil Drained, Premium 15W-40 Added, New Yanmar Oil Filter Fitted
• Cathodic Anode Renewal (August 2026): Shaft and Hull Sacrificial Zinc Anodes Replaced by Diver
• Raw Water Pump Impeller (December 2025): Neoprene Impeller Replaced with New O-Rings and Cover Gasket
• Marine Transmission Flush (January 2024): Kanzaki KM35P Transmission Fluid Drained, Flushed, and Refilled to Spec
• Watermaker Installation (Mid-2024): Reverse Osmosis Desalination System Professionally Plumbed and Wired
• Water Heater Replacement (Mid-2024): New 6-Gallon Dual-Heat (110V/Engine) Hot Water Tank Installed
• Standing Rigging Refit (Mid-2024): Forestay Replaced by Rick Zern; Custom 3-Way Swivel Integrated

Total lifetime engine runtime is documented at under 1,000 hours. When the current owners purchased the vessel in September 2020, the engine logged approximately 150 lifetime hours. Light freshwater sailing on Lake Texoma added roughly 25 operational hours.

Subsequent coastal and offshore passage logs track 7,383 nautical miles sailed, with approximately 40% of transit completed under auxiliary power, adding roughly 500 operating hours. Total runtime calculates to approximately 675 hours, indicating low mechanical wear for a commercial-grade Yanmar diesel. All primary running gear and mechanical controls are verified operational.

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise and major overhauls as well as all other representations noted on the listing brochure.

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
