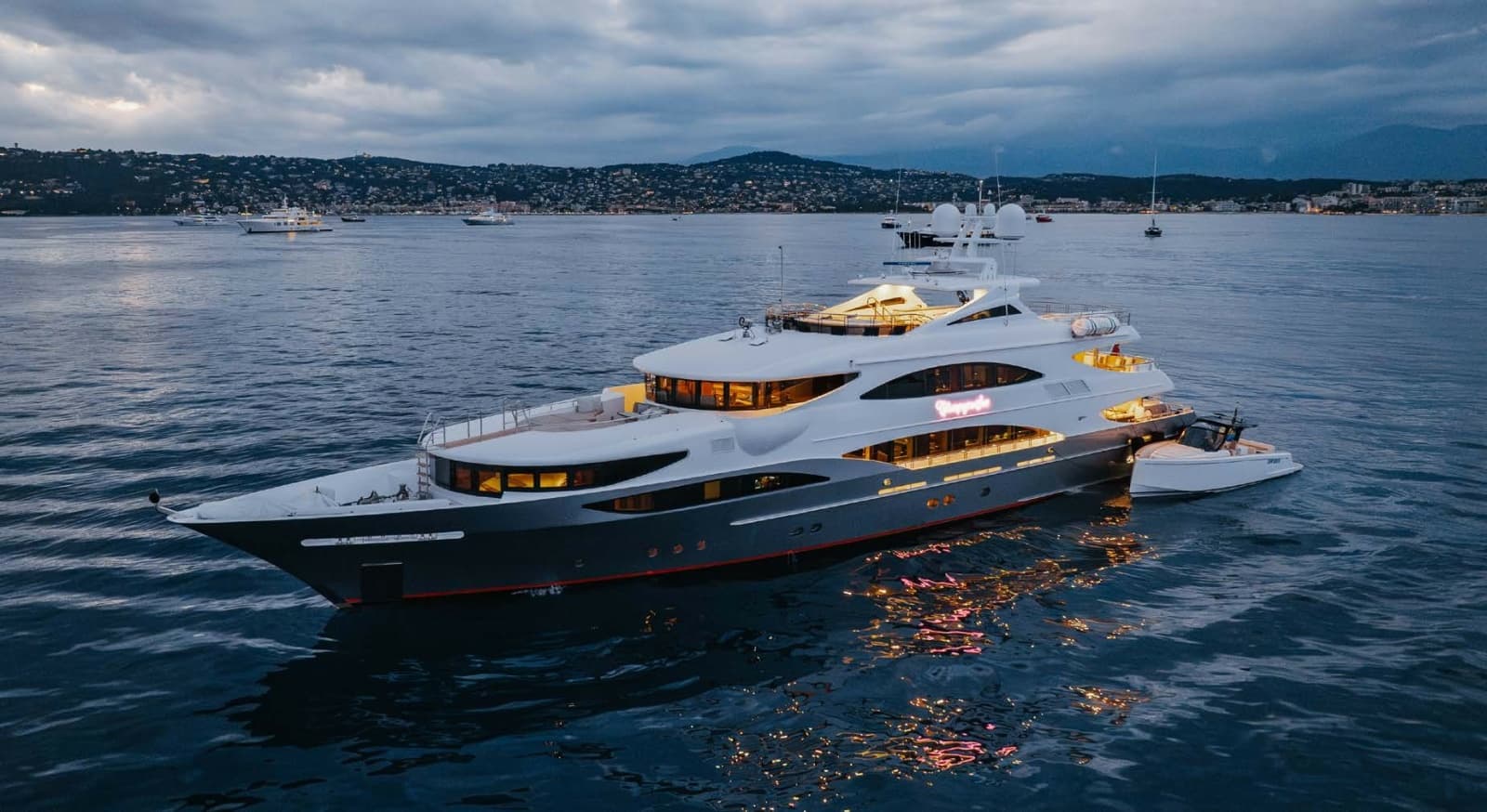

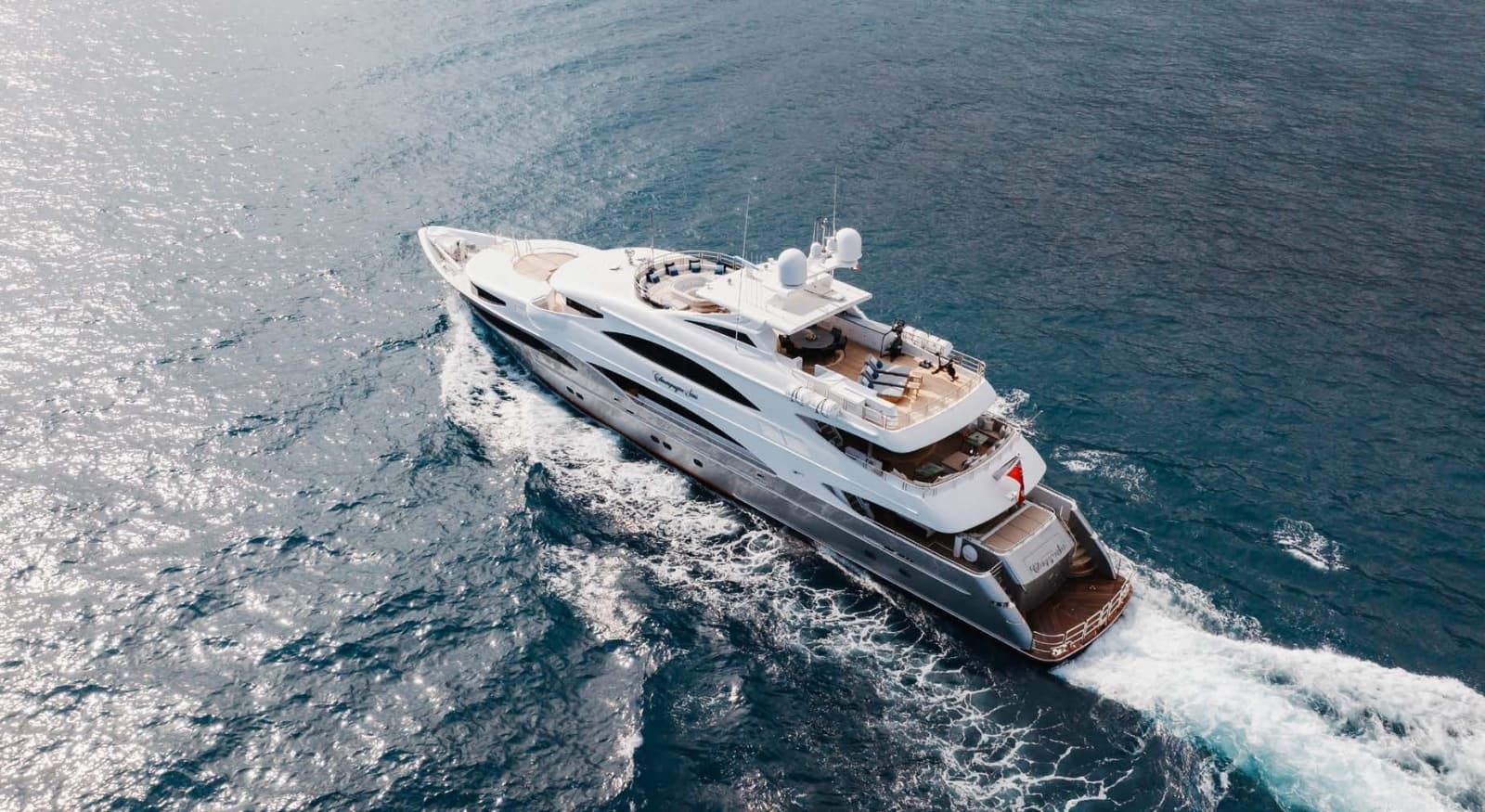

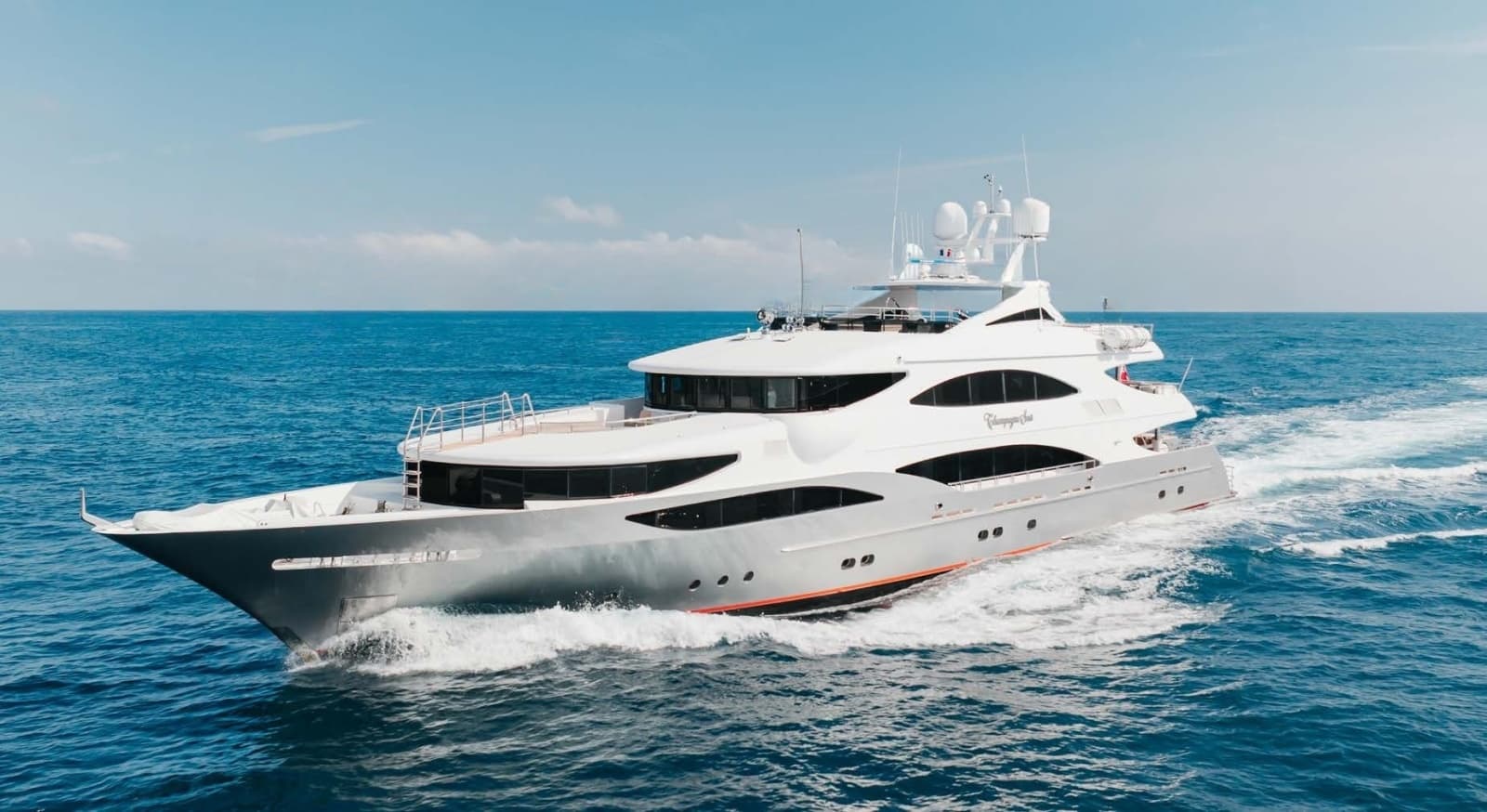

2012 Trinity Yachts Tri-Deck

Additional Specifications for CHAMPAGNE SEAS

HIGHLIGHTS

• Full beam master suite on the main deck with 180 degree vertical windows and owner's study
• Major refits 2022 /2026, including both main engines rebuilt and full Alexseal repaint
• Complete interior refit in Fort Lauderdale, 2024 to 2025
• Major refit at Atlas Shipyards, Greece, October 2025 to February 2026
• New Siemens alarm monitoring and control system and two new chillers
• Annual class survey and Port State Control, August 2026, no deficiencies
• Overhauled Main Engines including Crankshafts

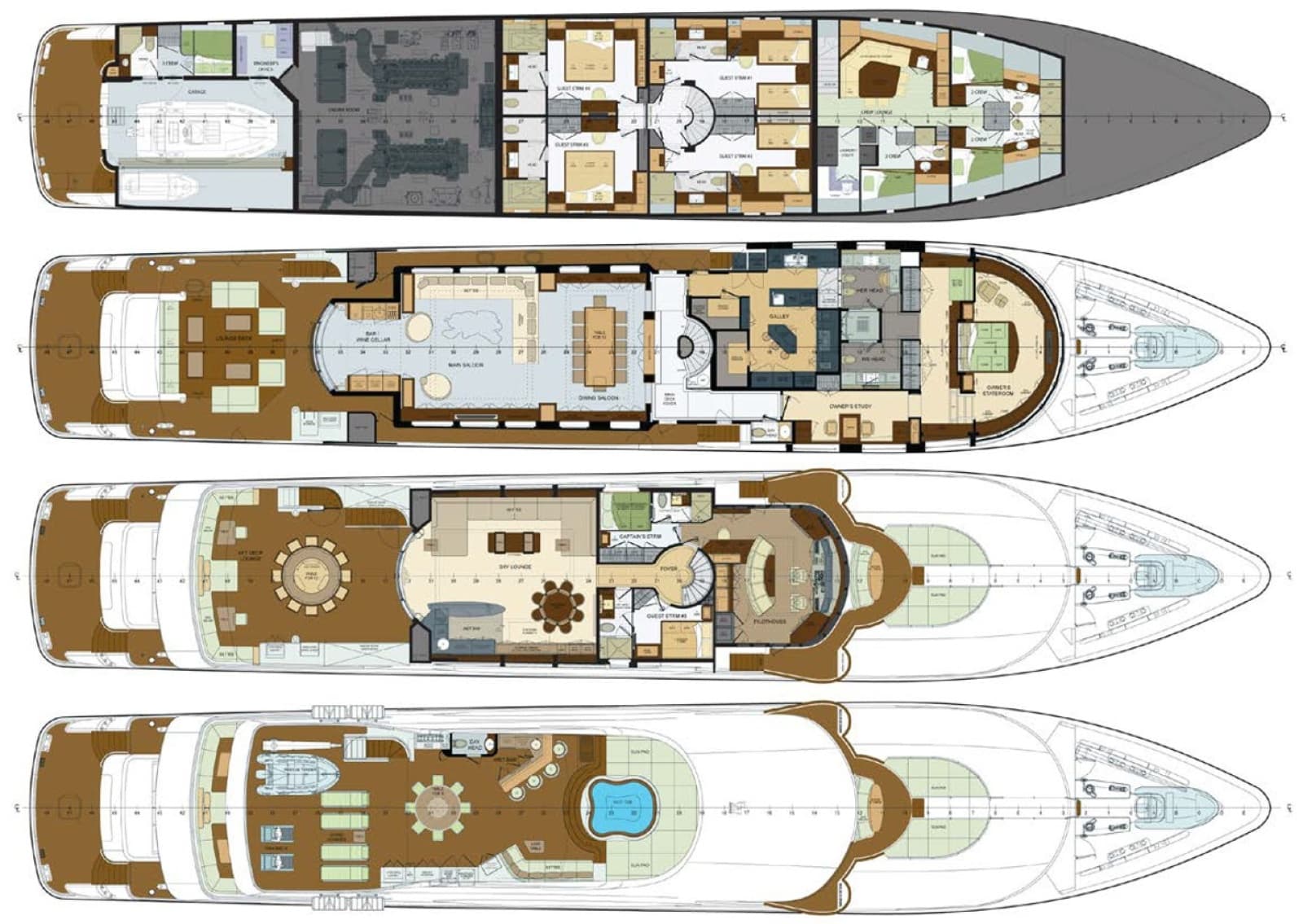

ACCOMMODATION

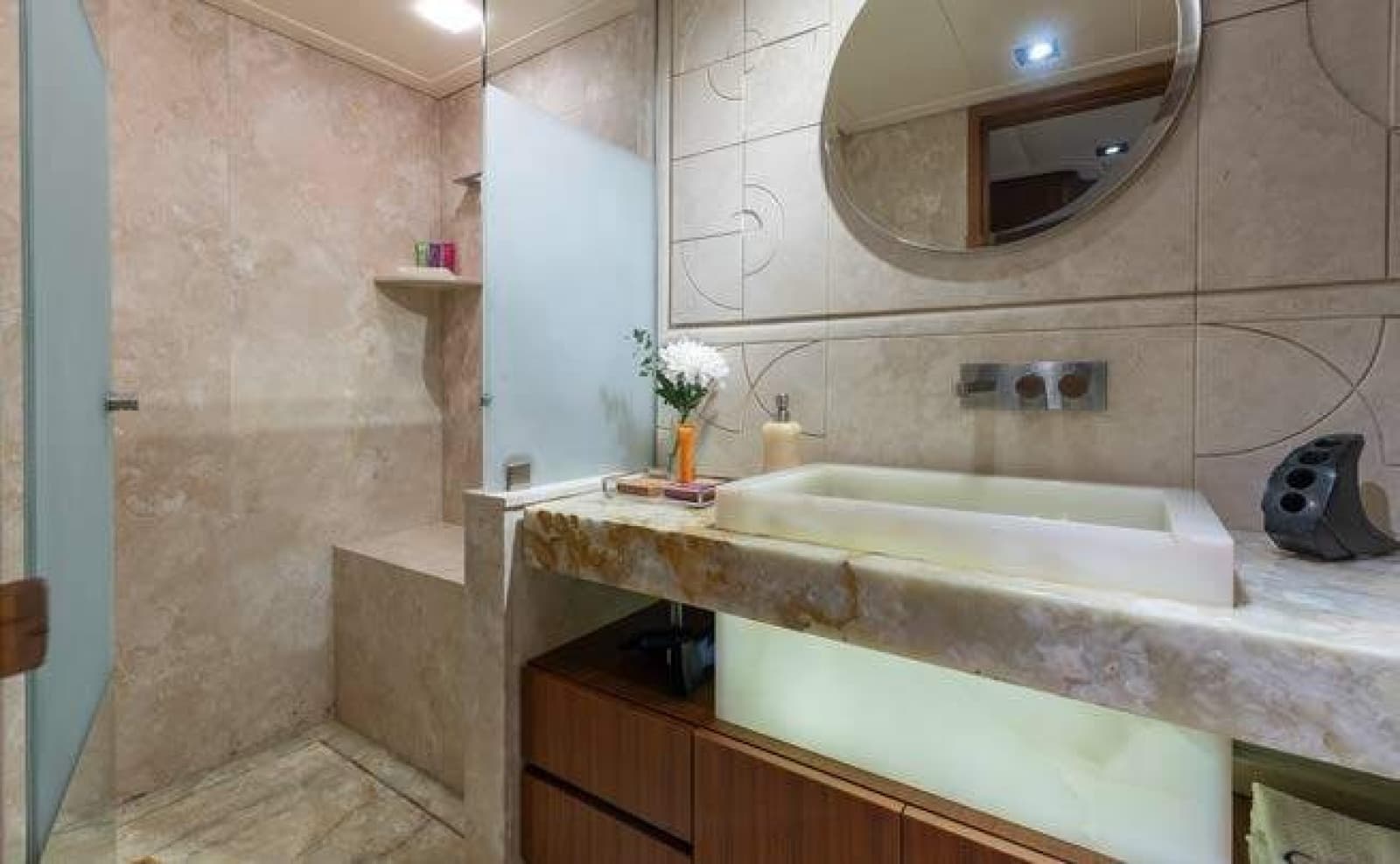

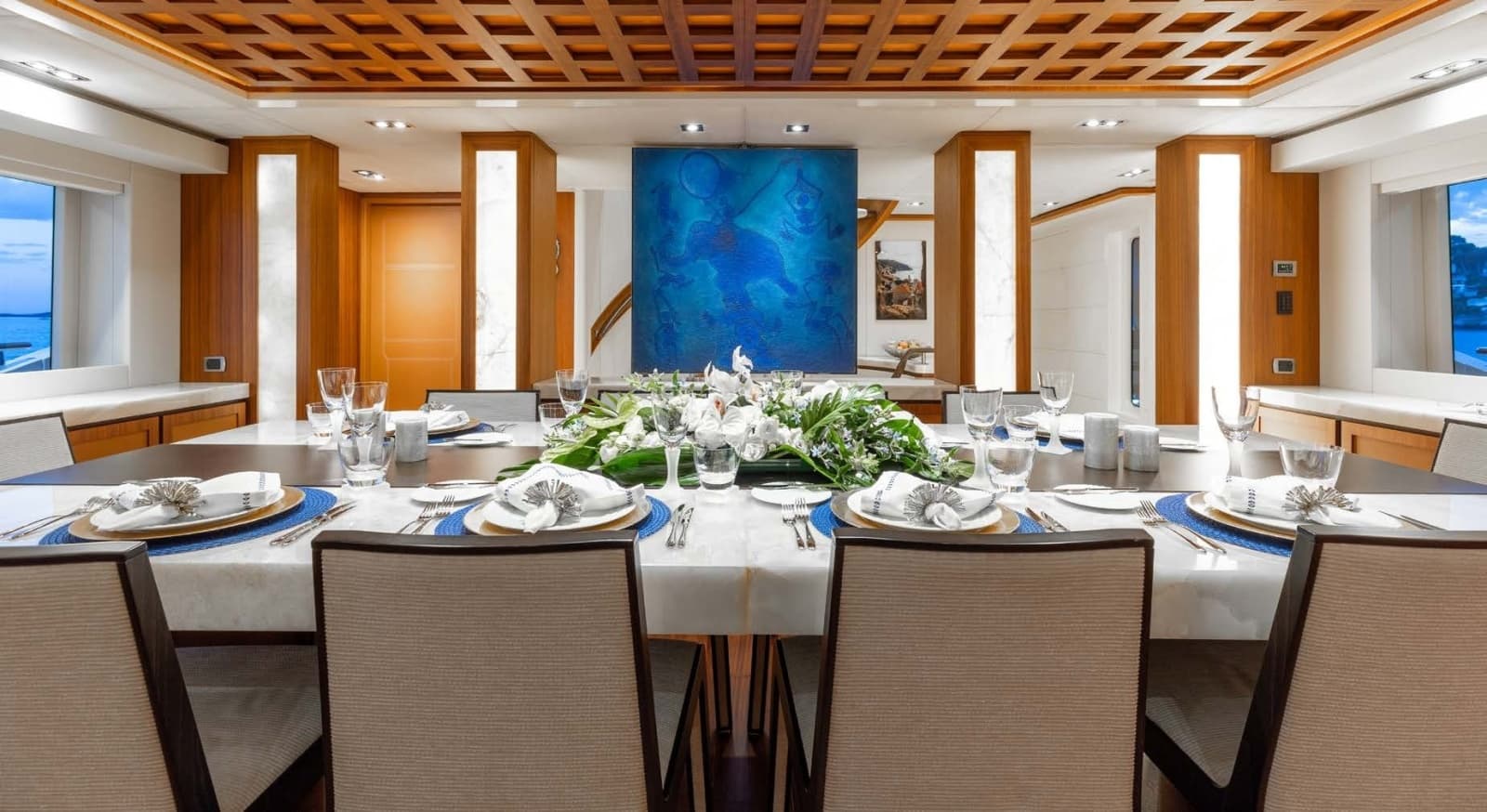

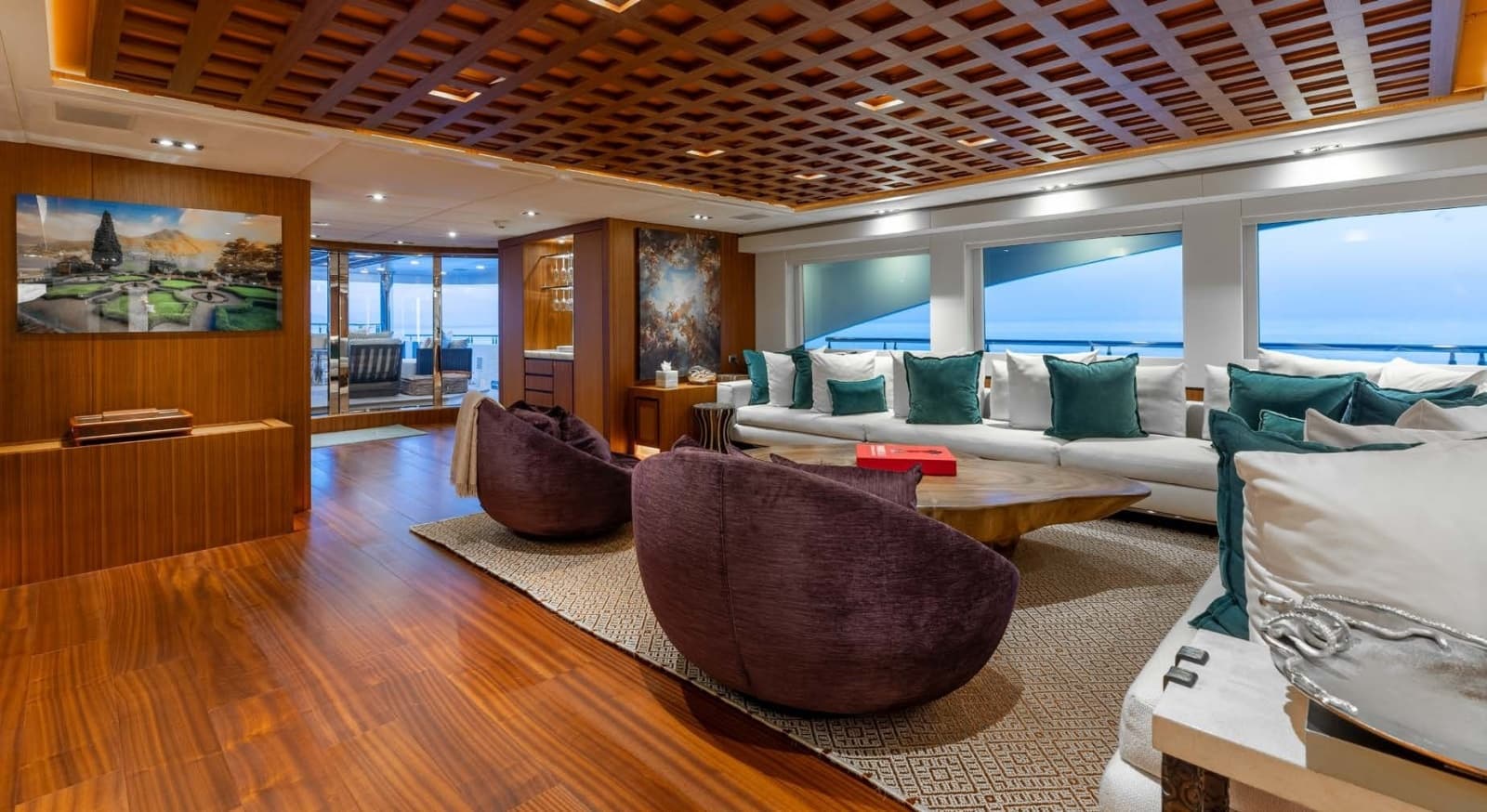

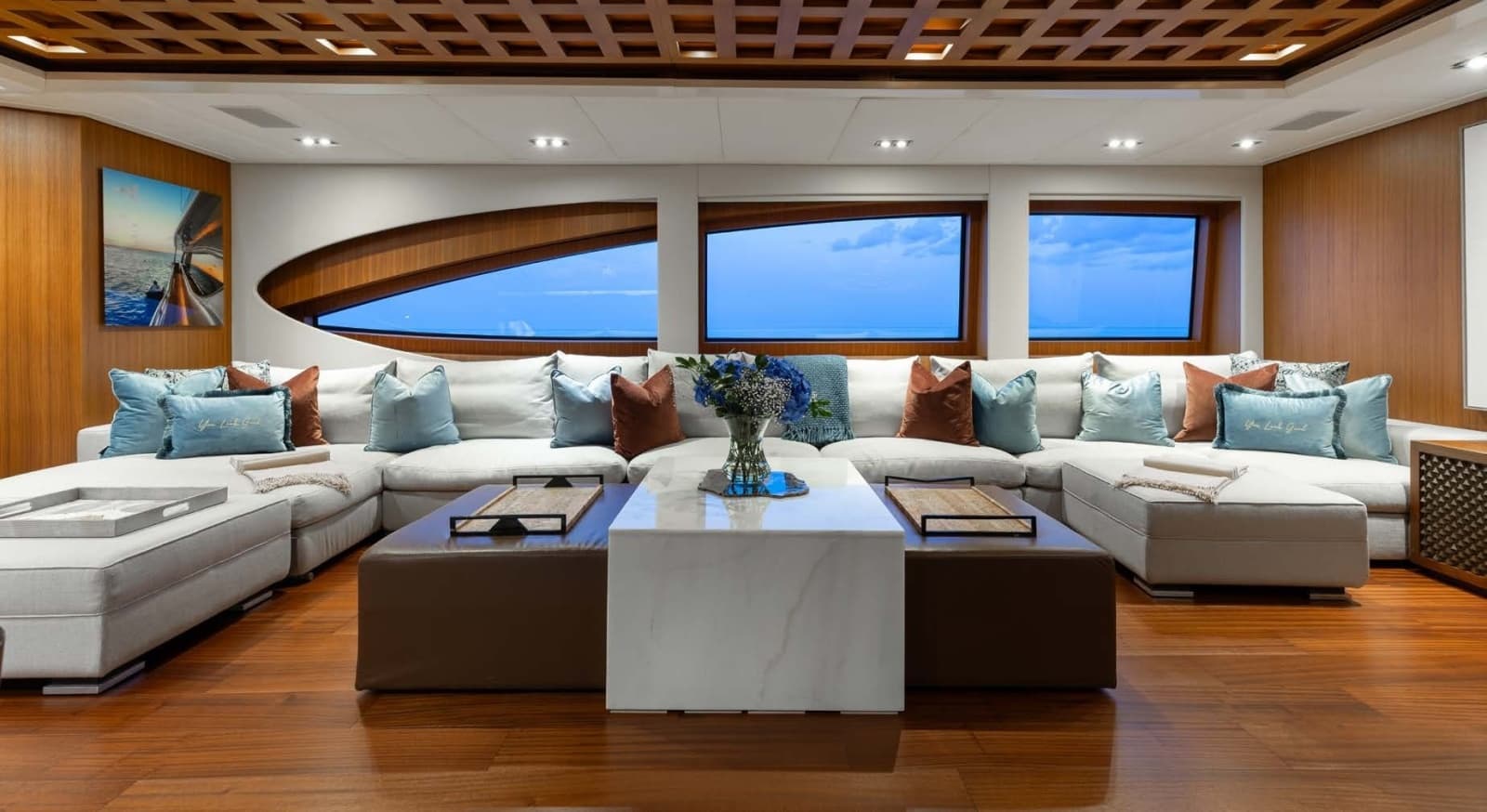

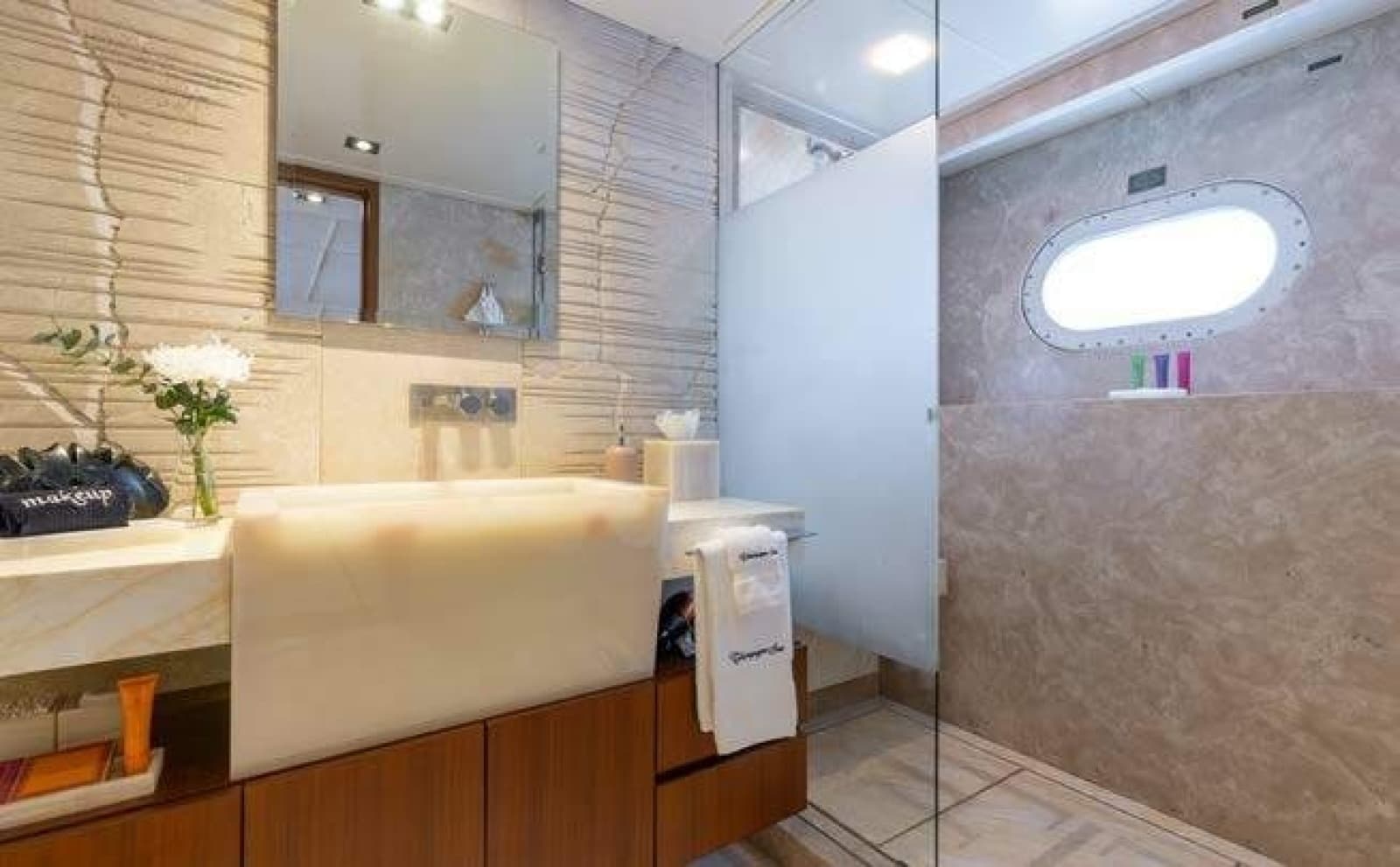

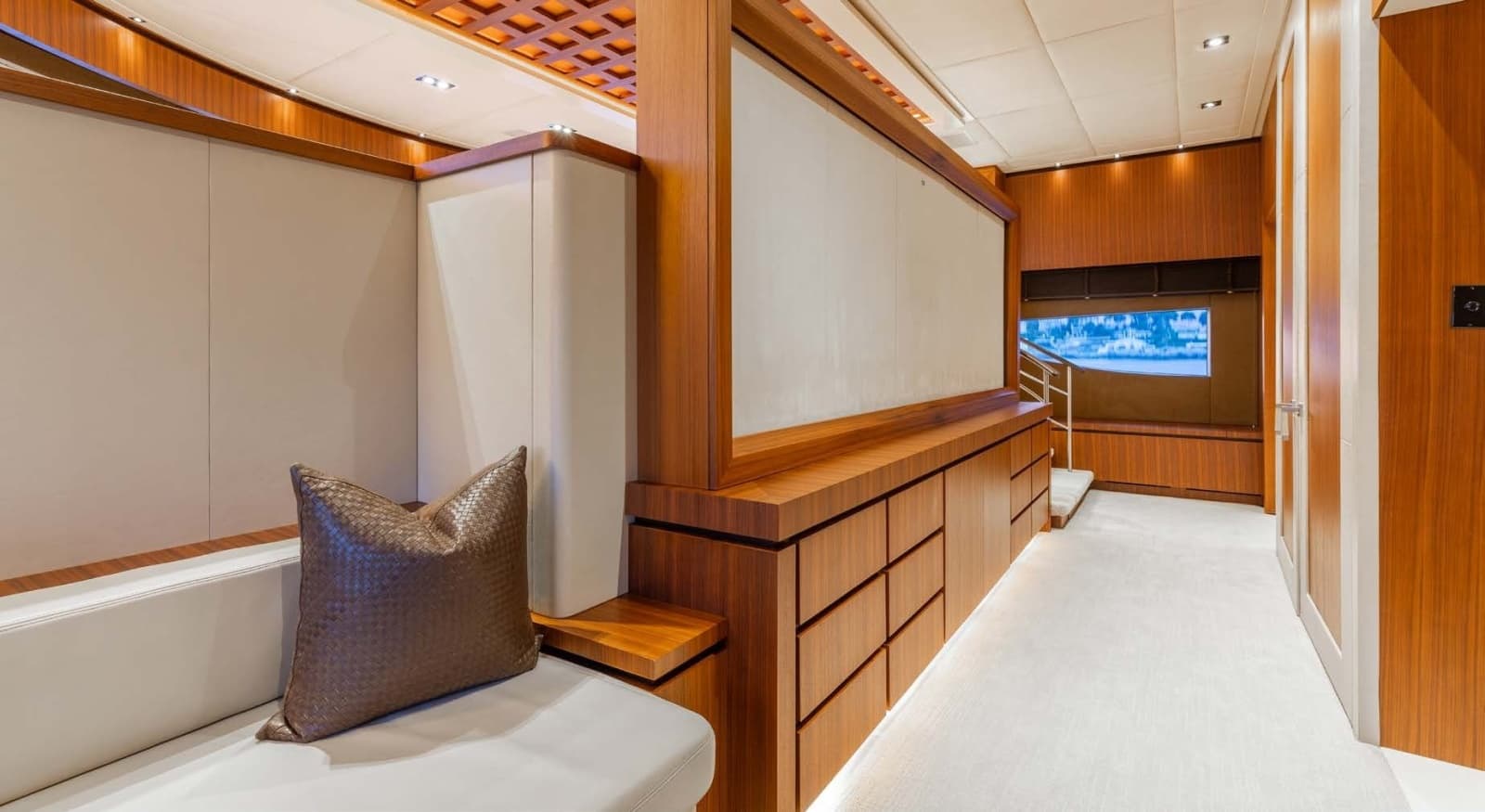

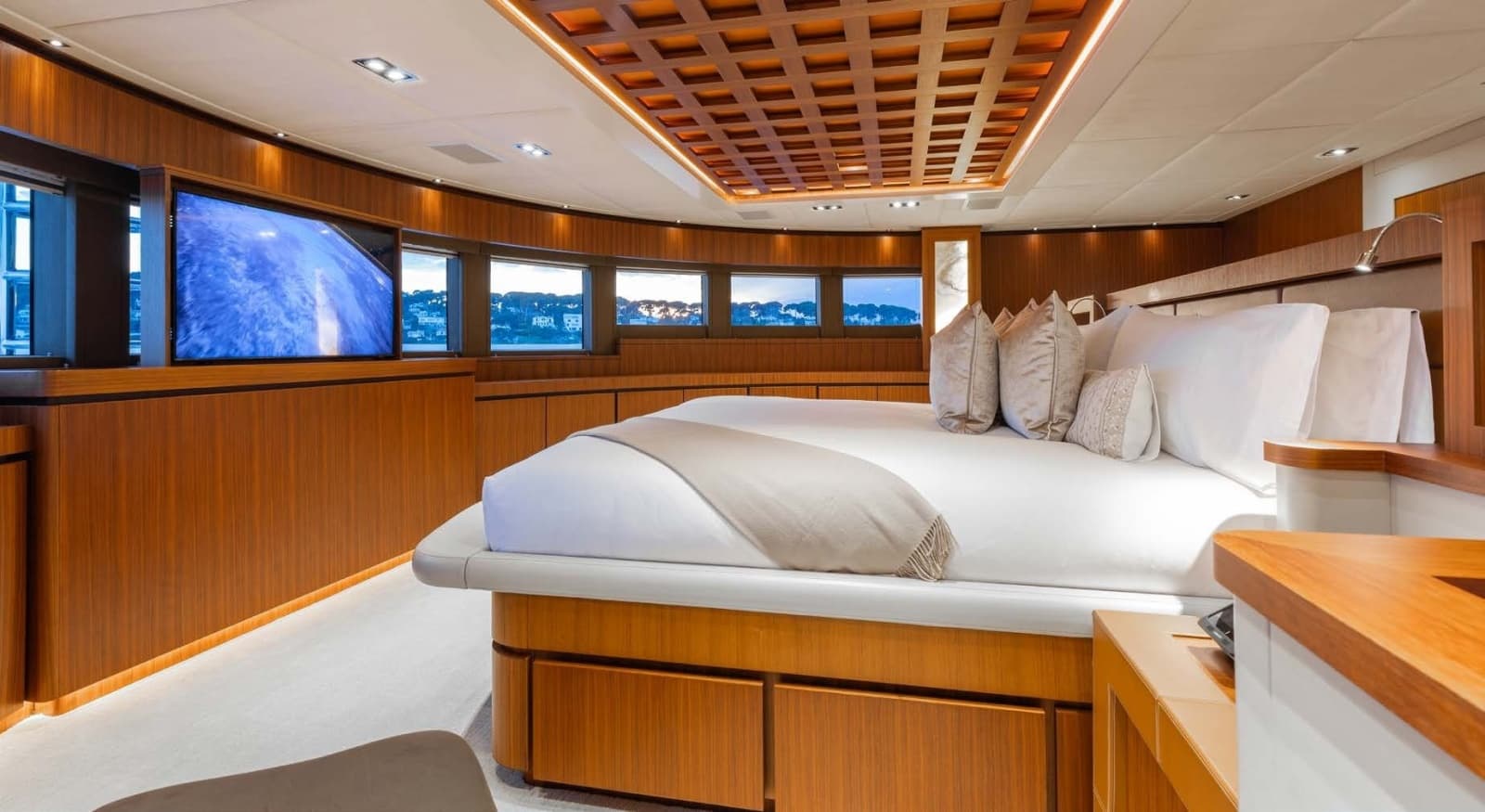

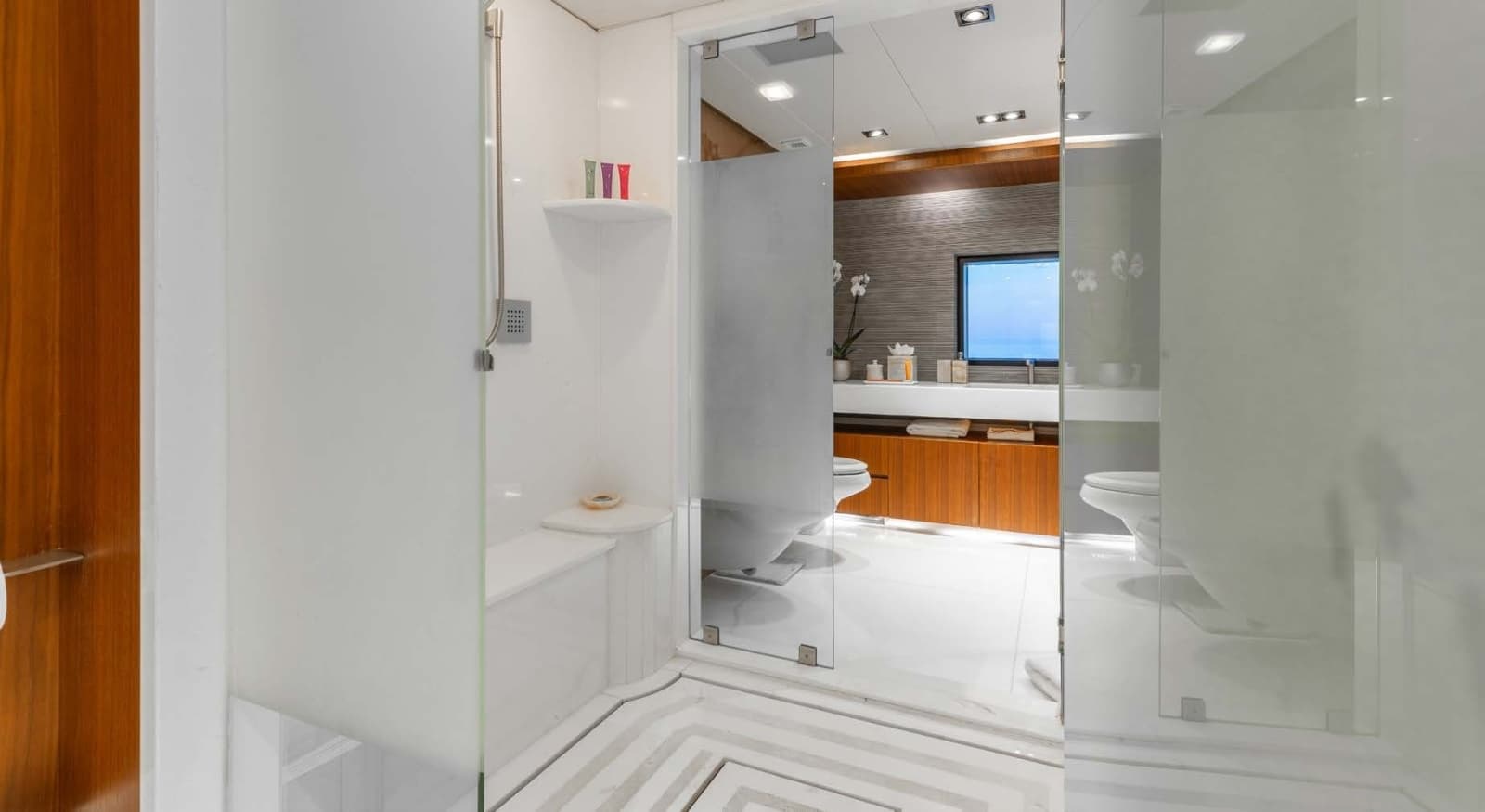

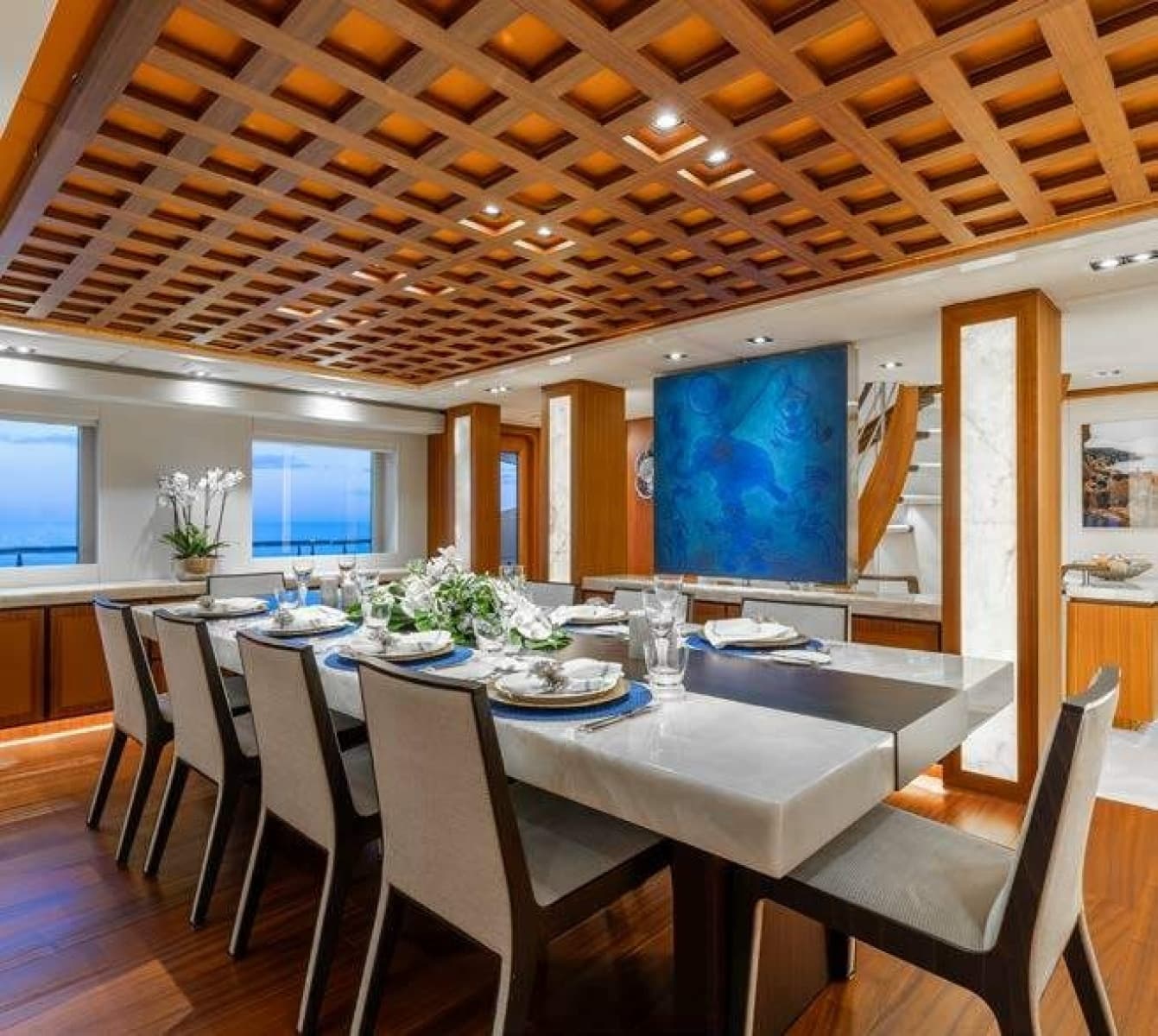

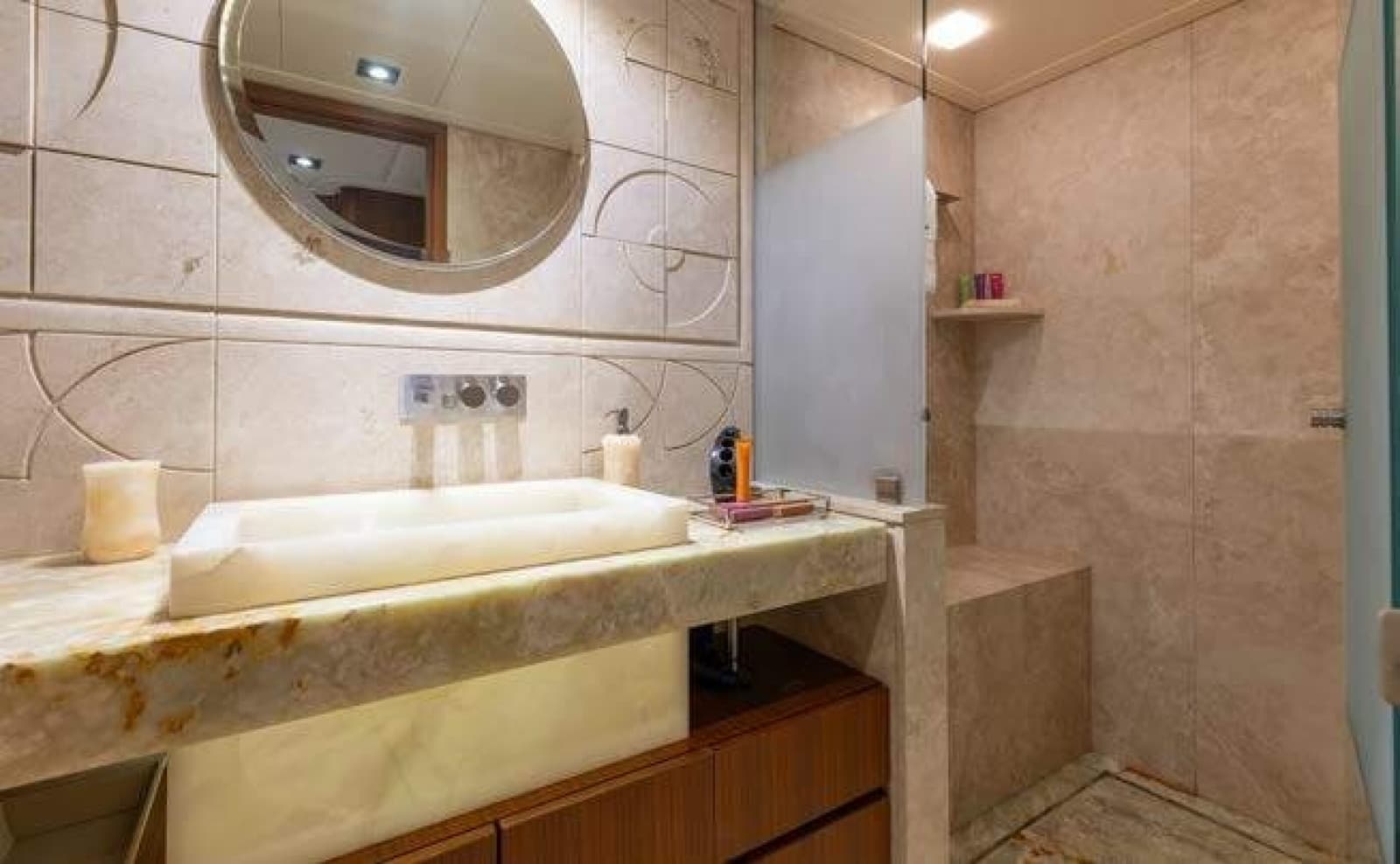

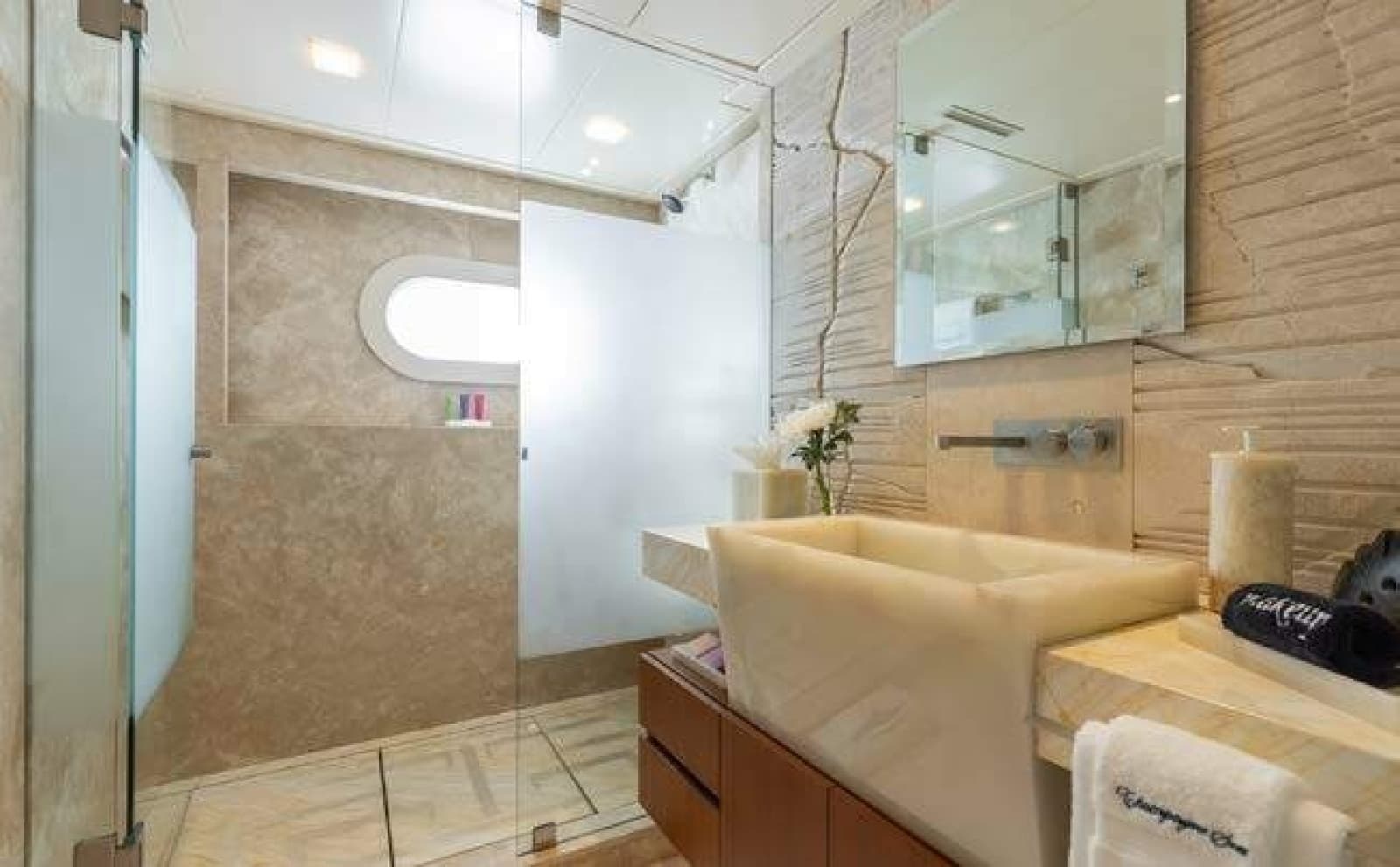

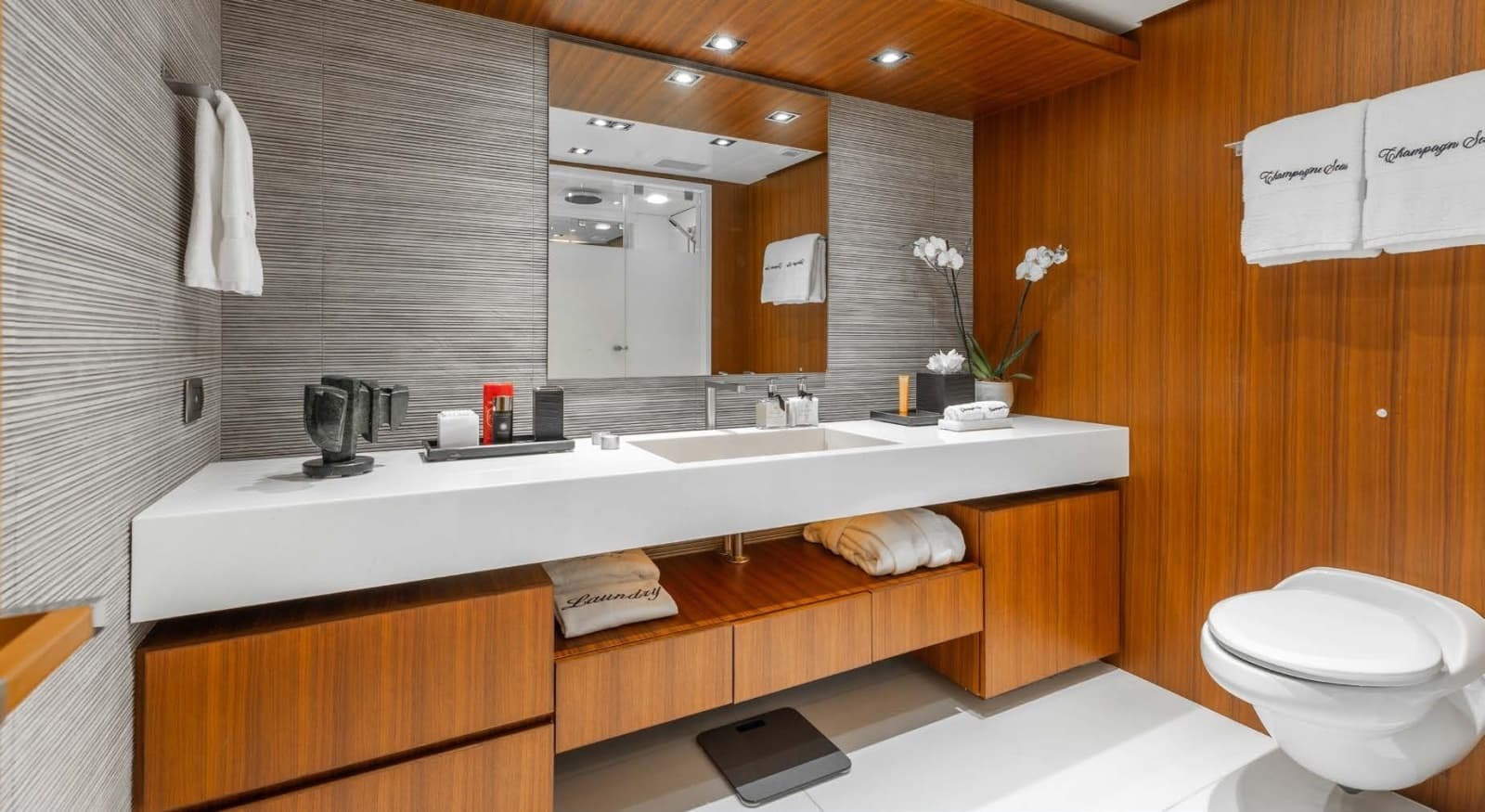

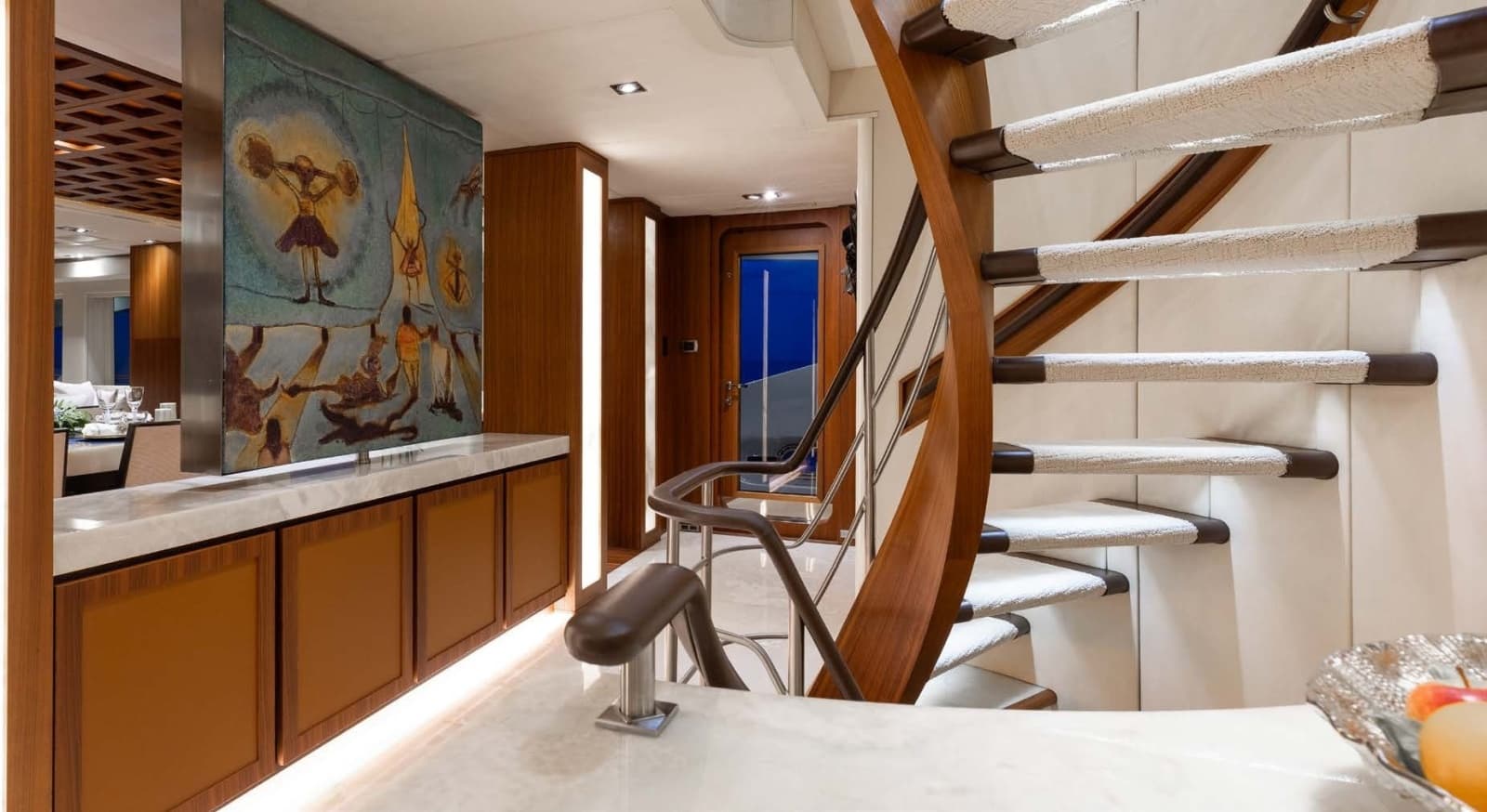

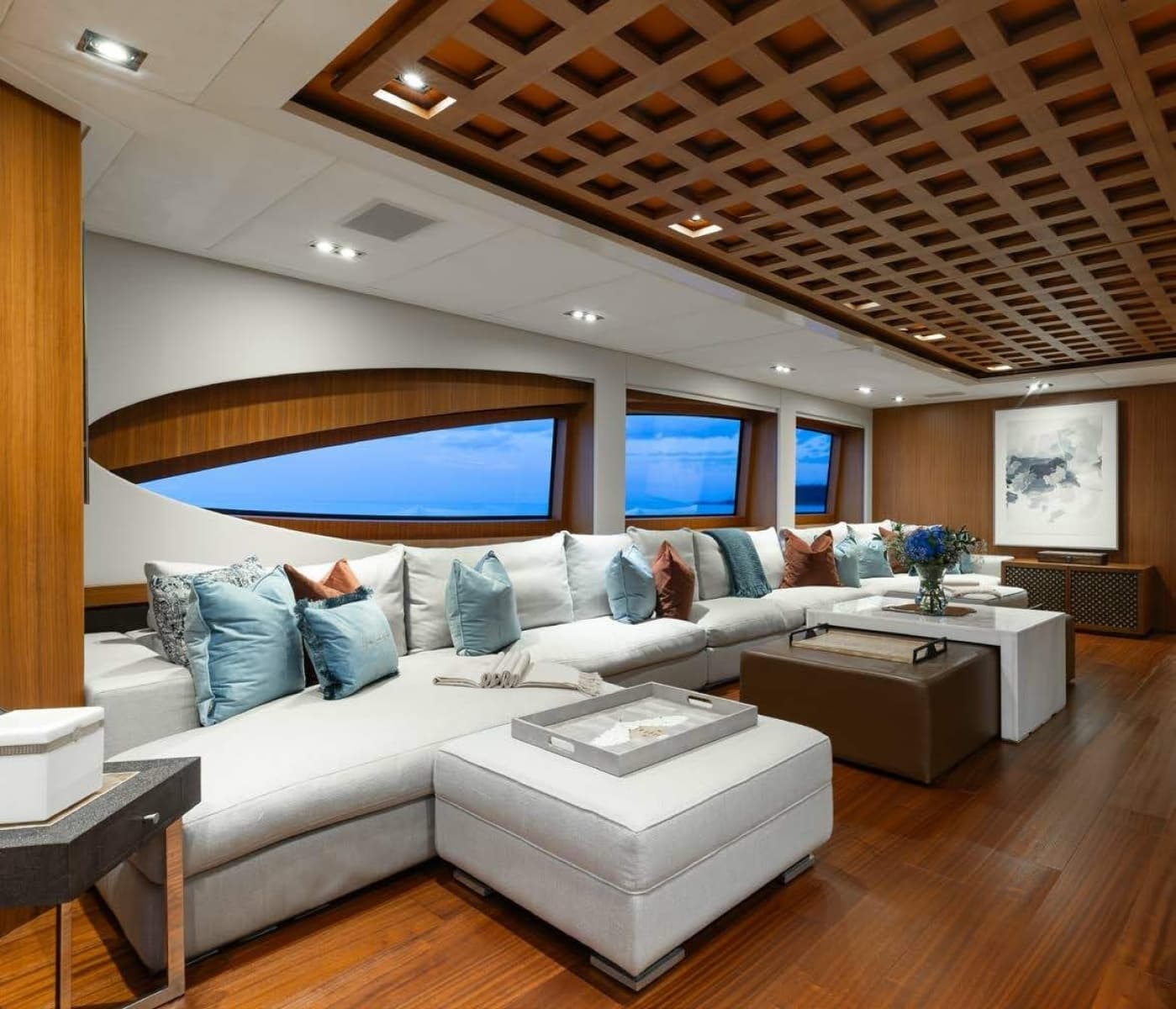

Main Deck Full beam master suite forward with 180 degree vertical windows, elevated mezzanine sleeping level, owner's study, dressing area in leather and onyx, his and hers ensuite. Main saloon and dining saloon. Galley with island bar seating. Aft deck for al fresco dining.

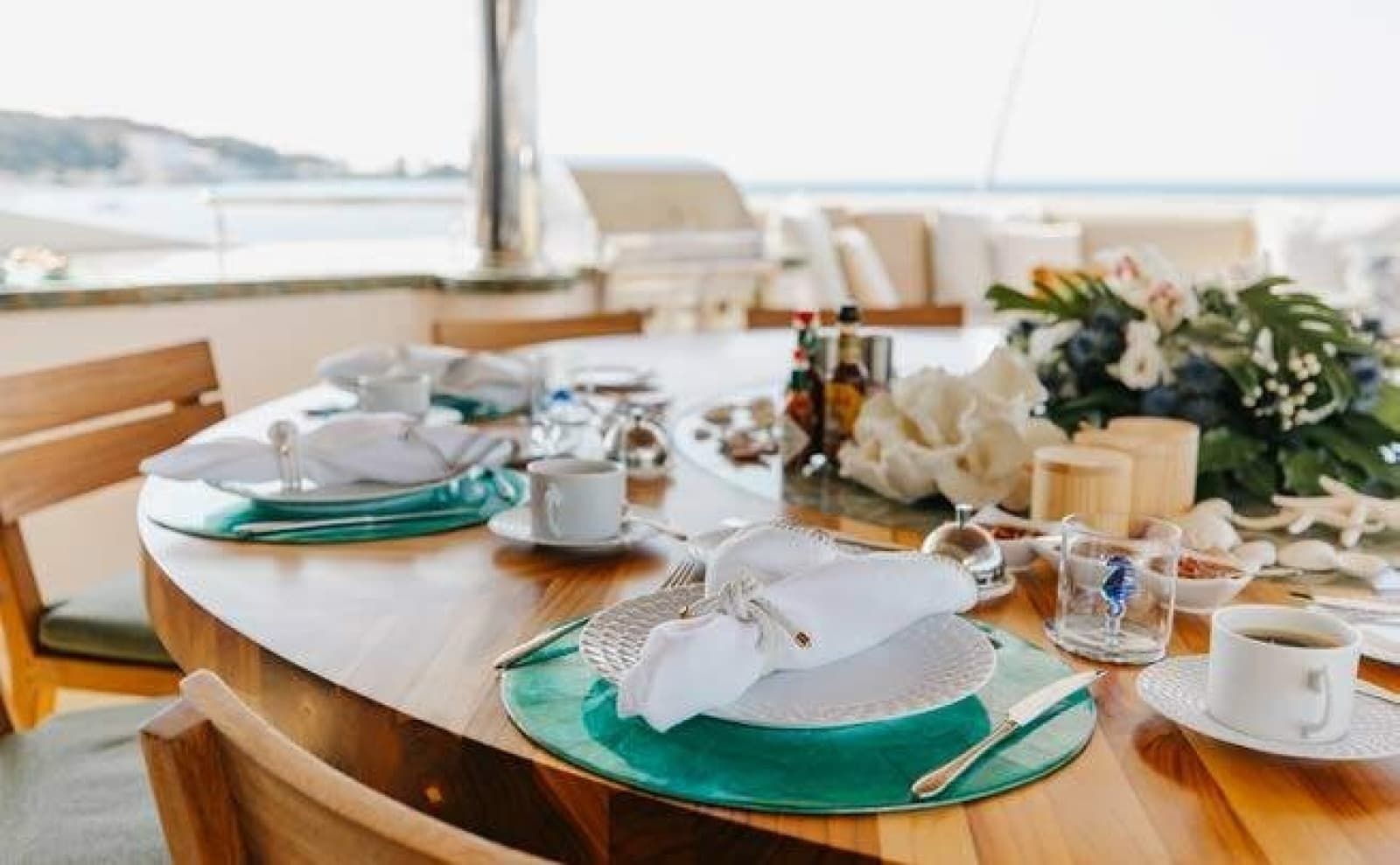

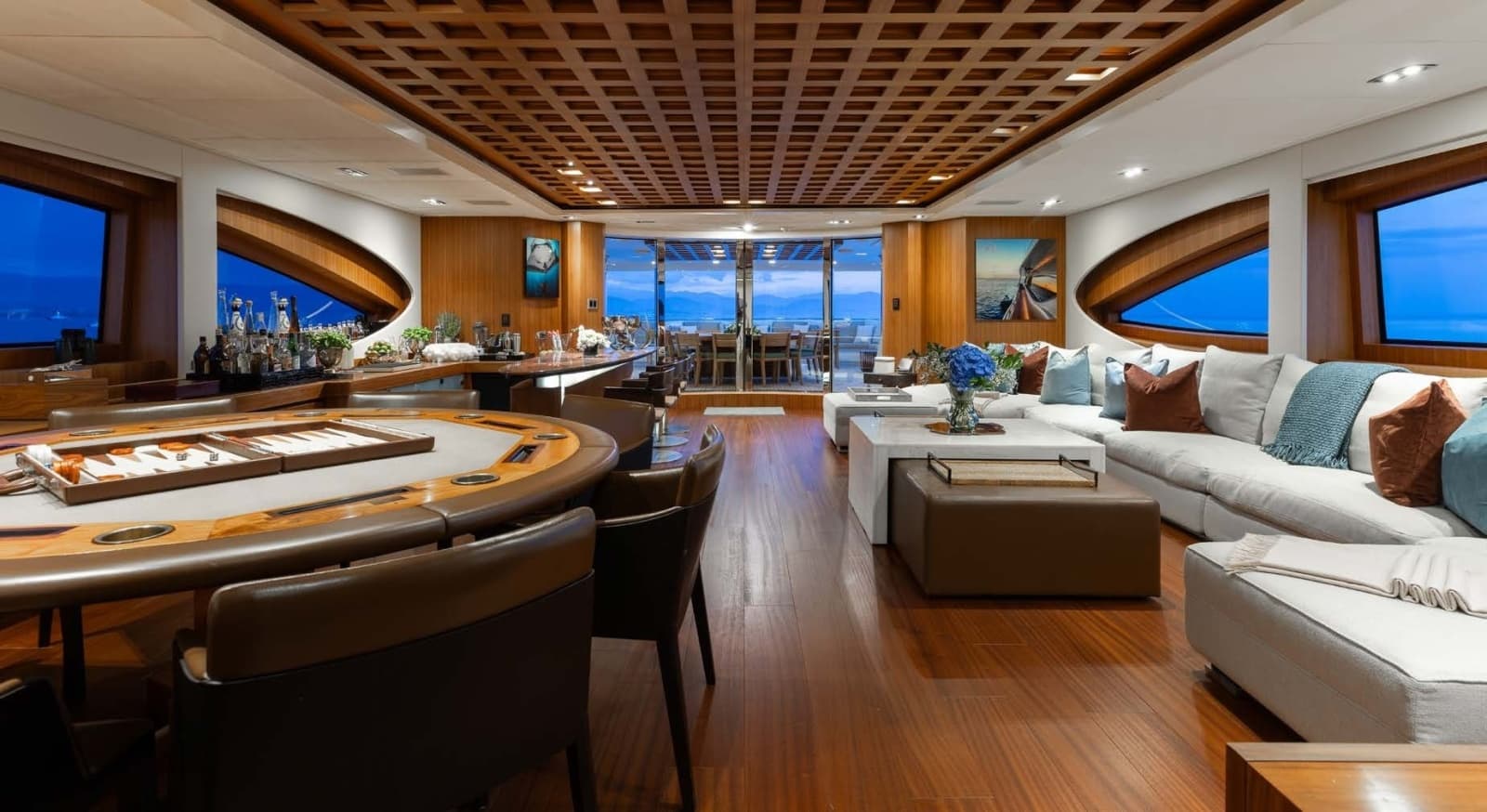

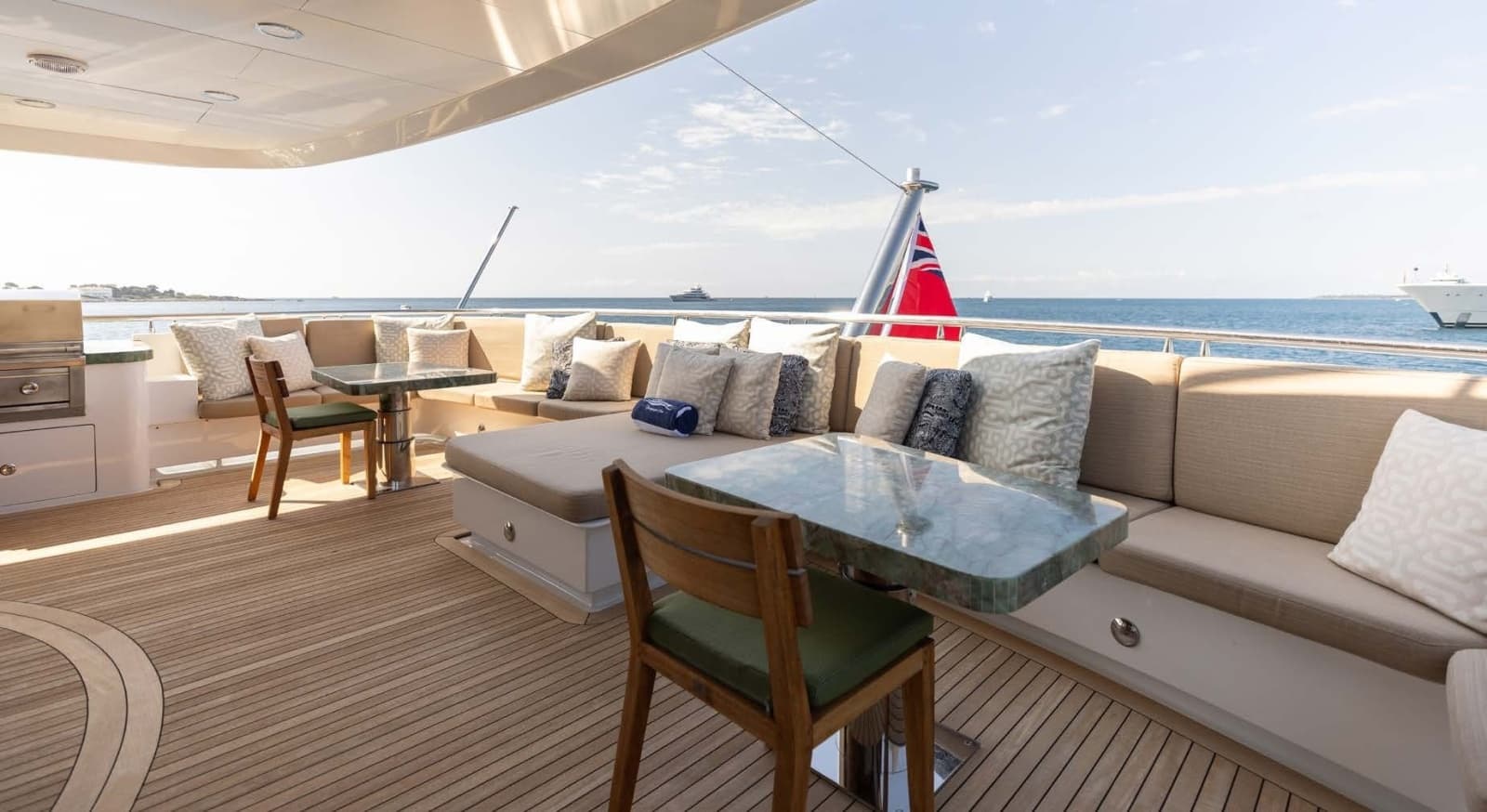

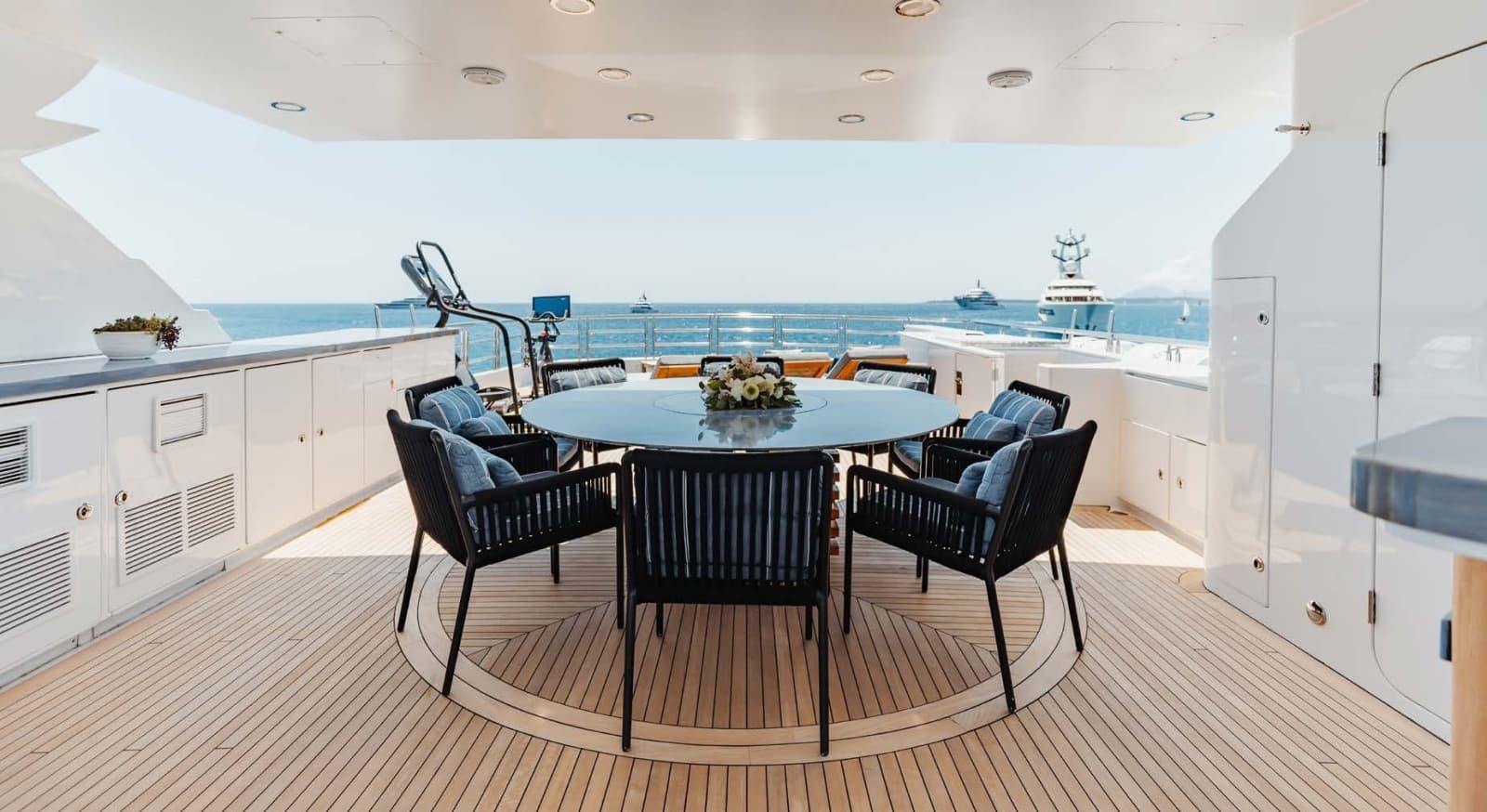

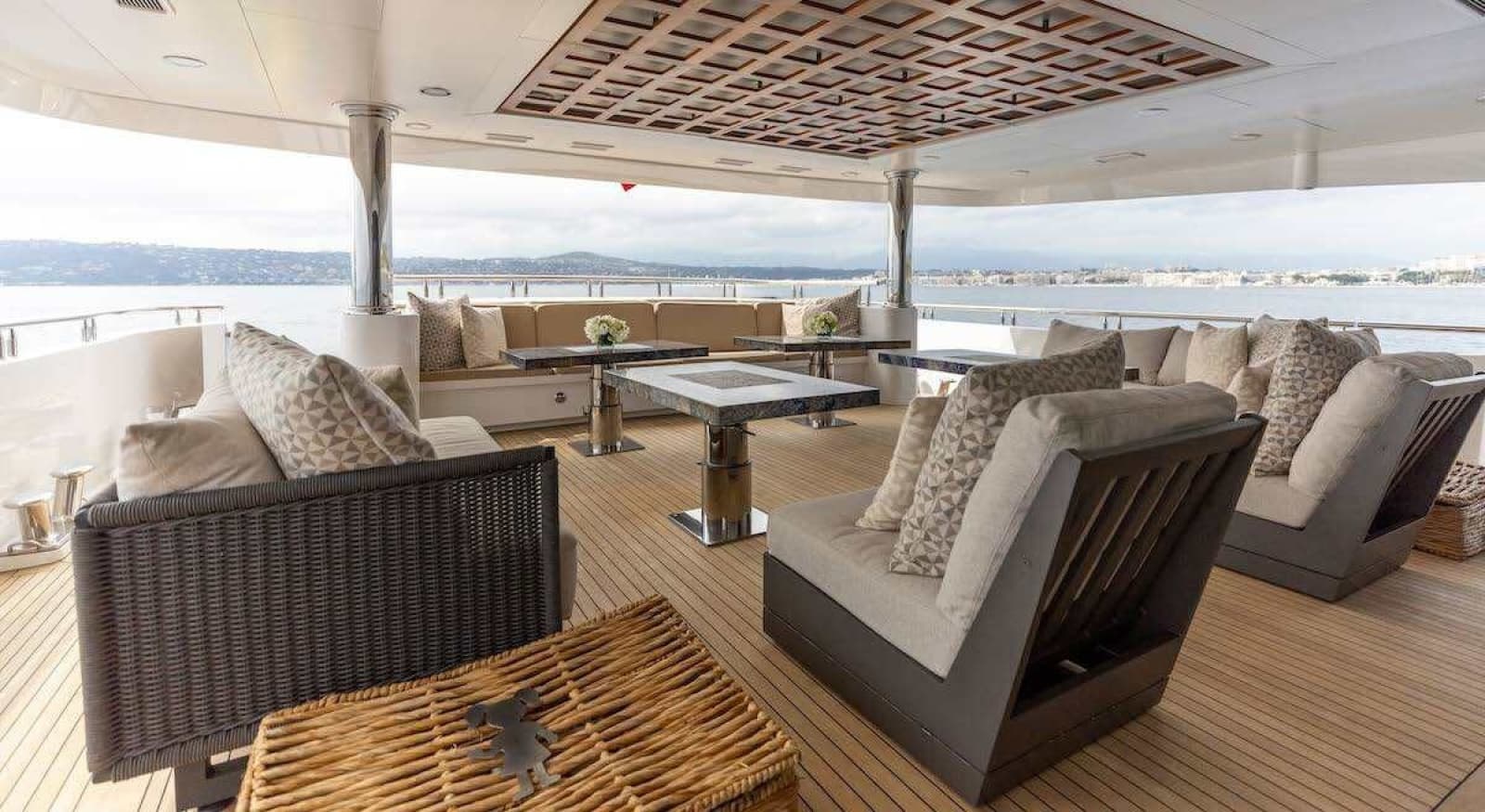

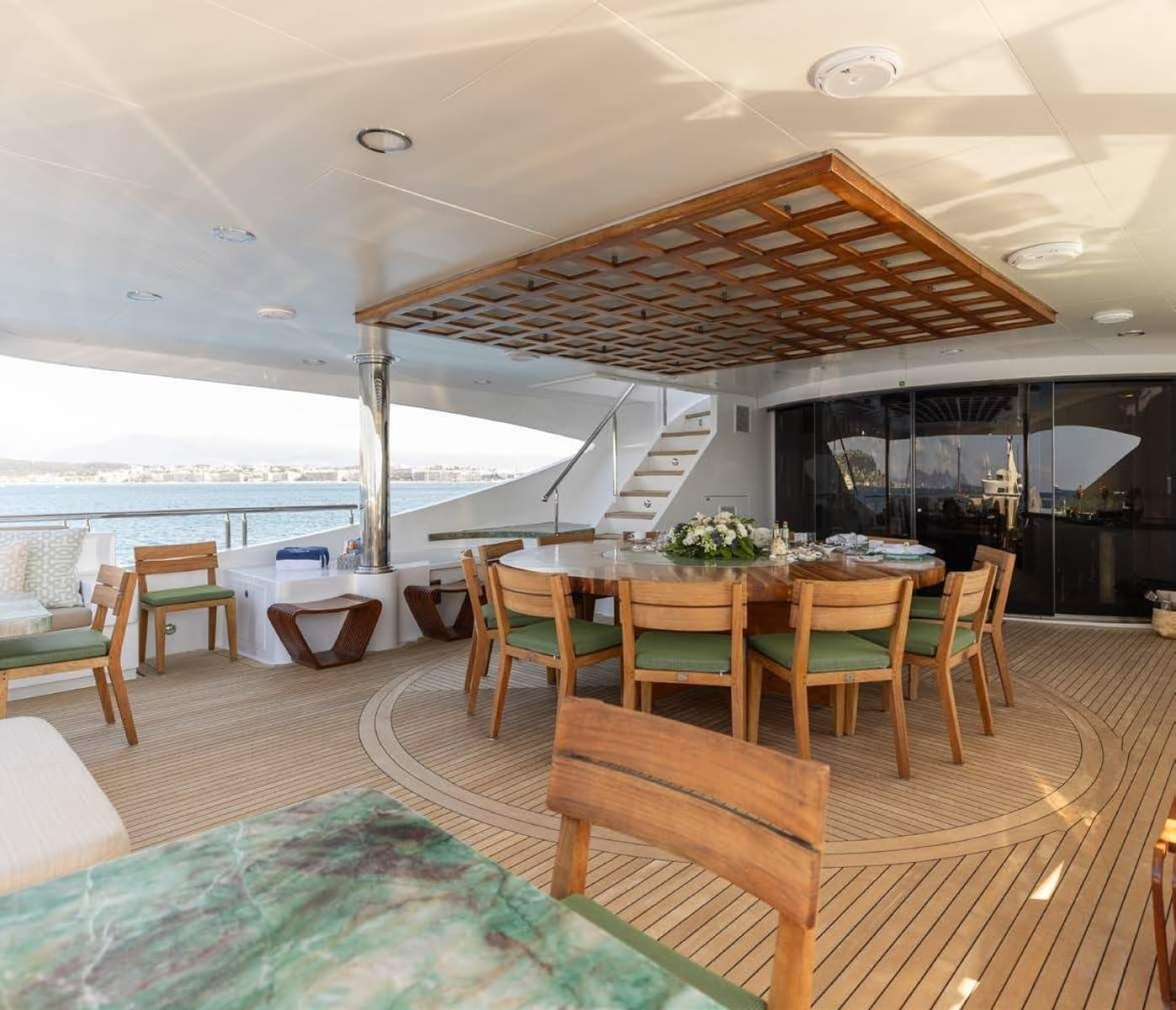

Upper Deck: VIP stateroom. Captain's cabin. Sky lounge with bar, game table and fold down television. Aft deck dining for twelve and two sunpads.

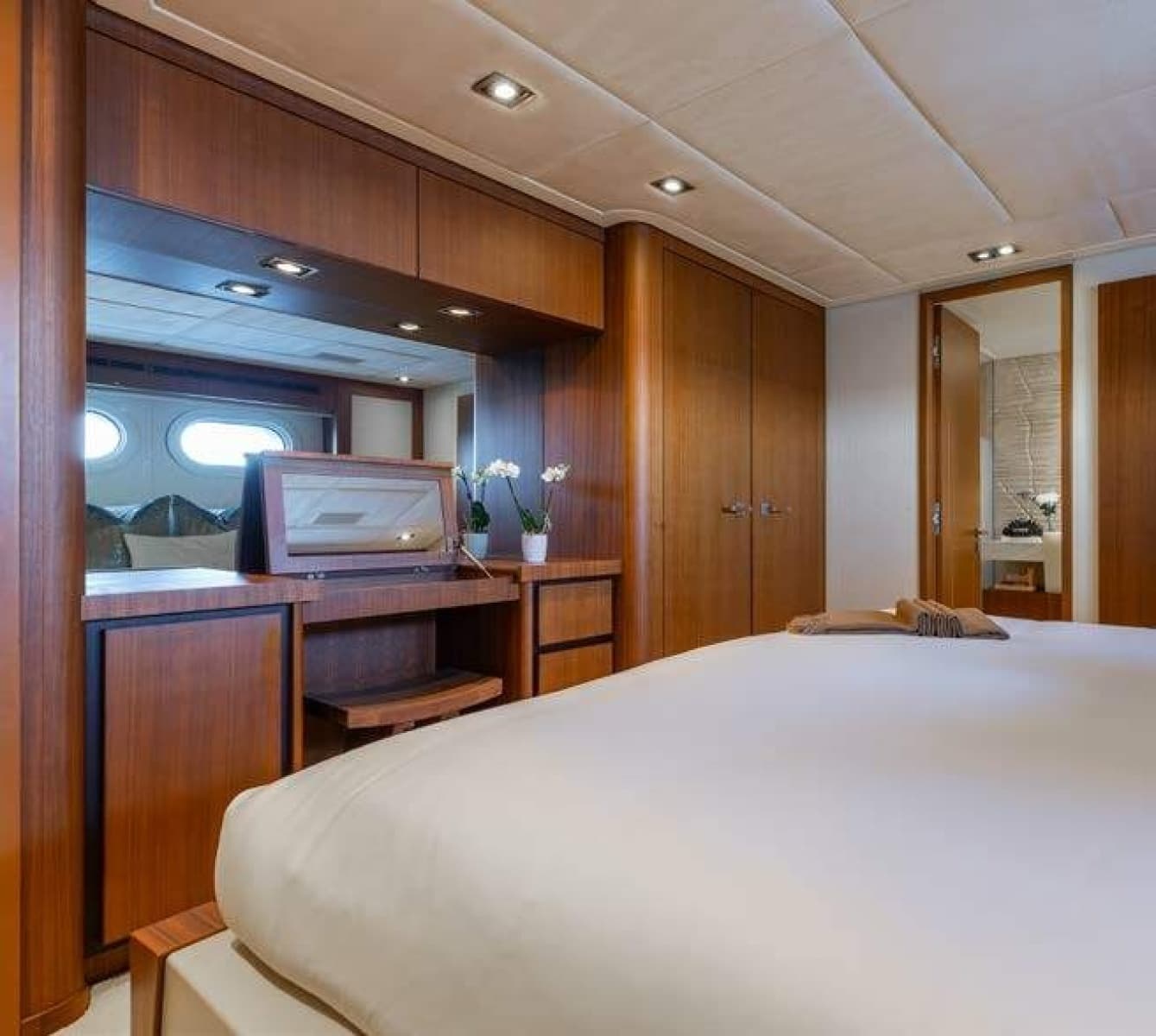

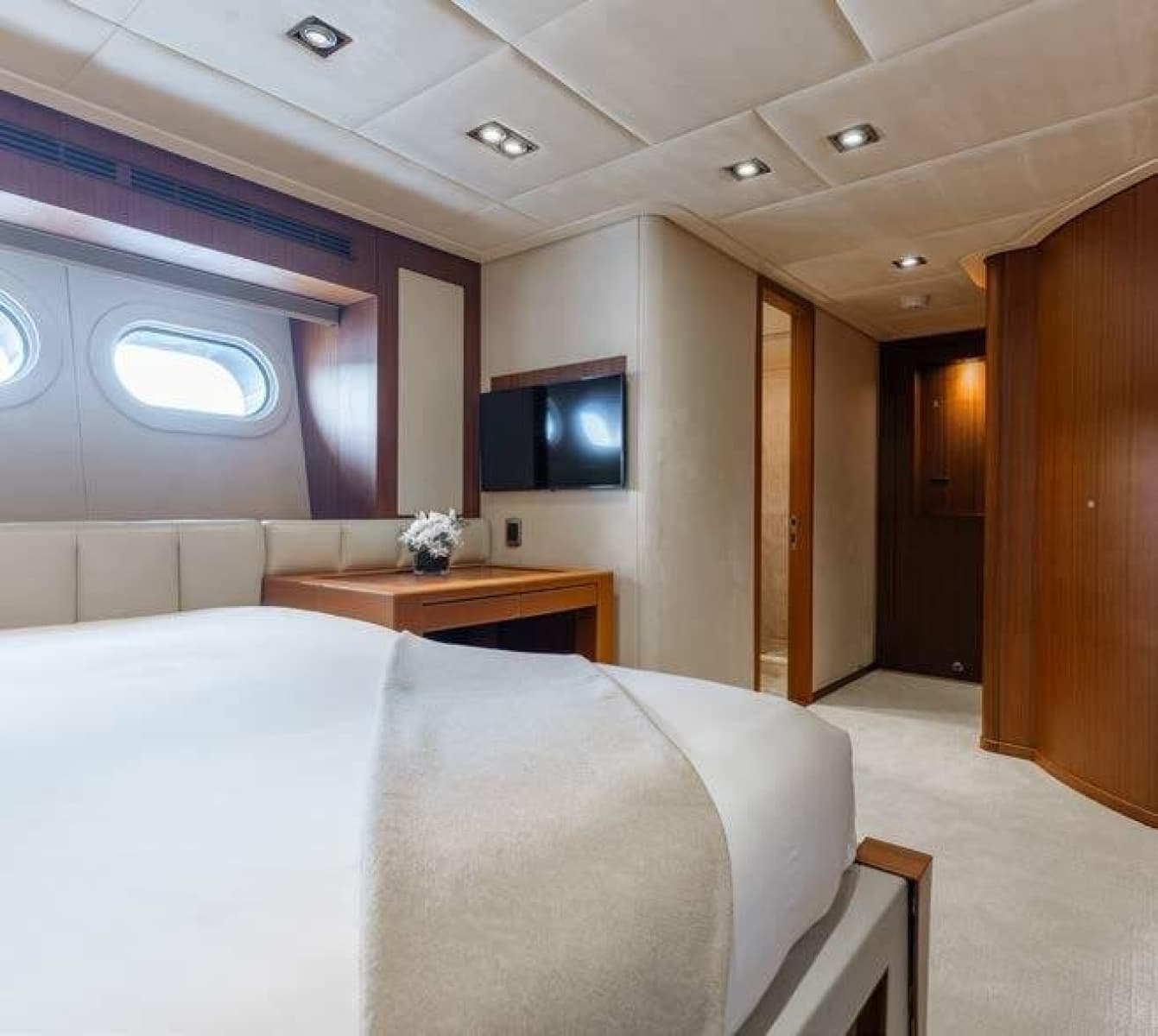

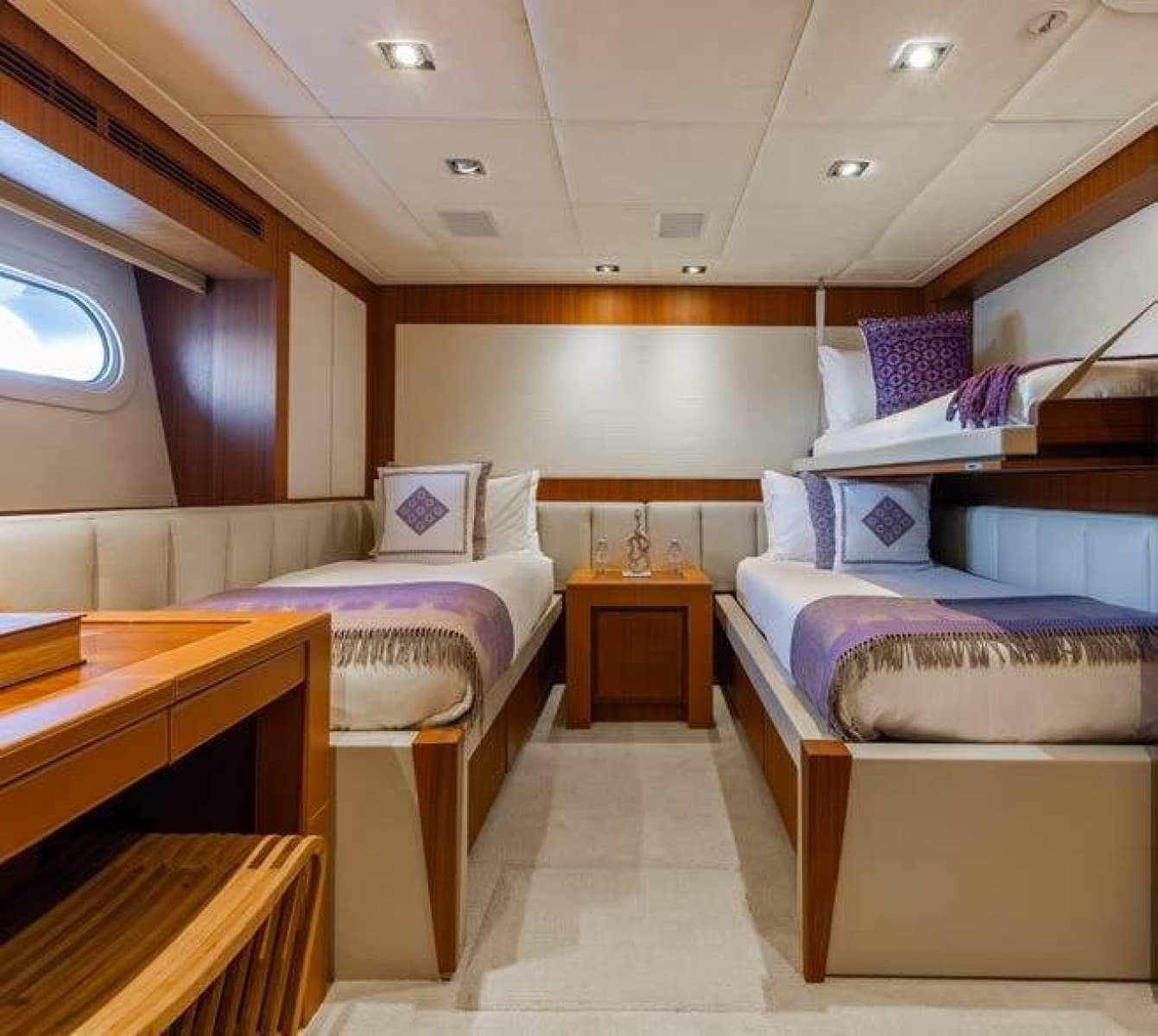

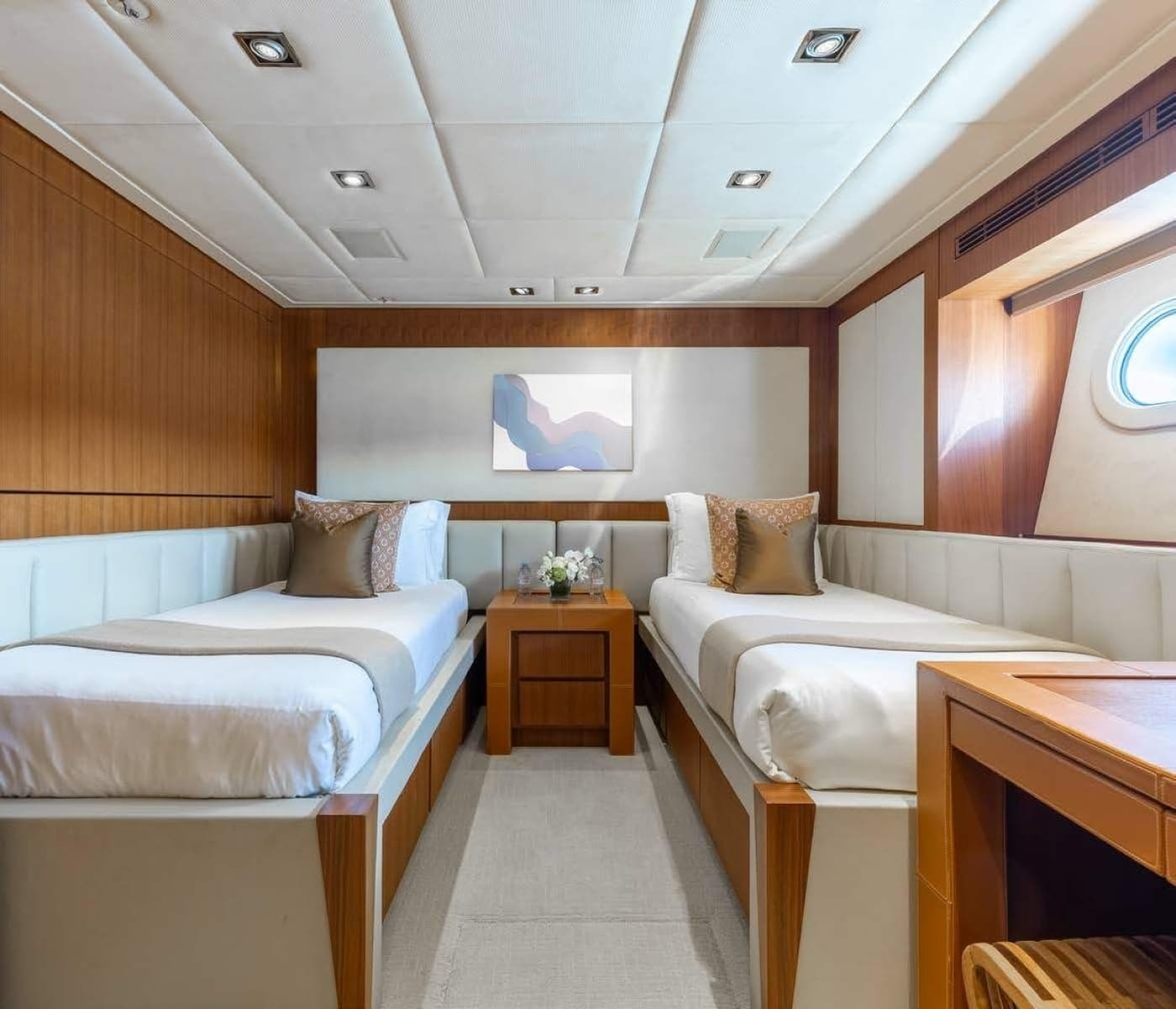

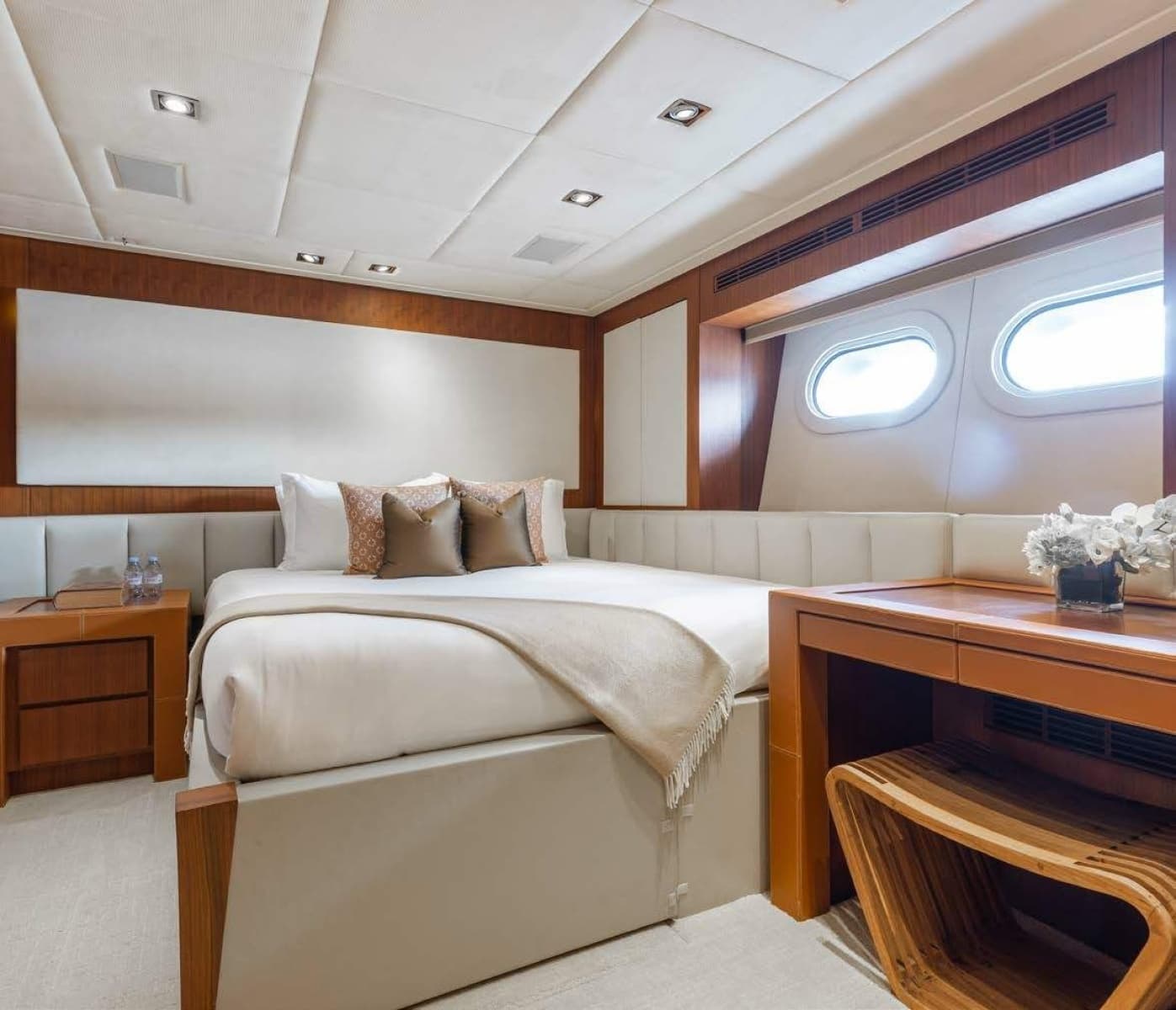

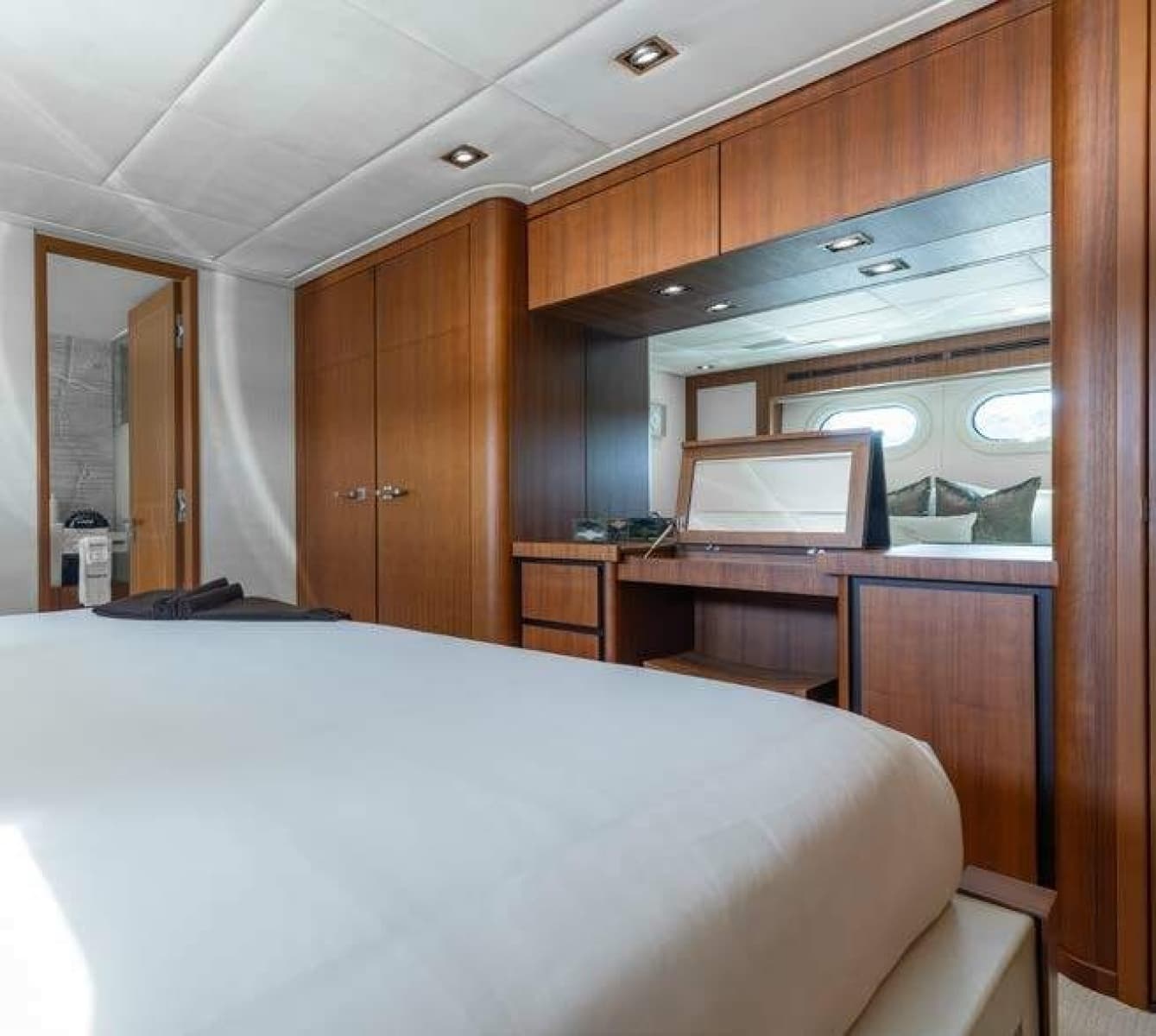

Lower Deck: Four ensuite guest staterooms, two queen and two twin. Crew quarters forward with three cabins and crew mess. Garage for the main tender and water toys.

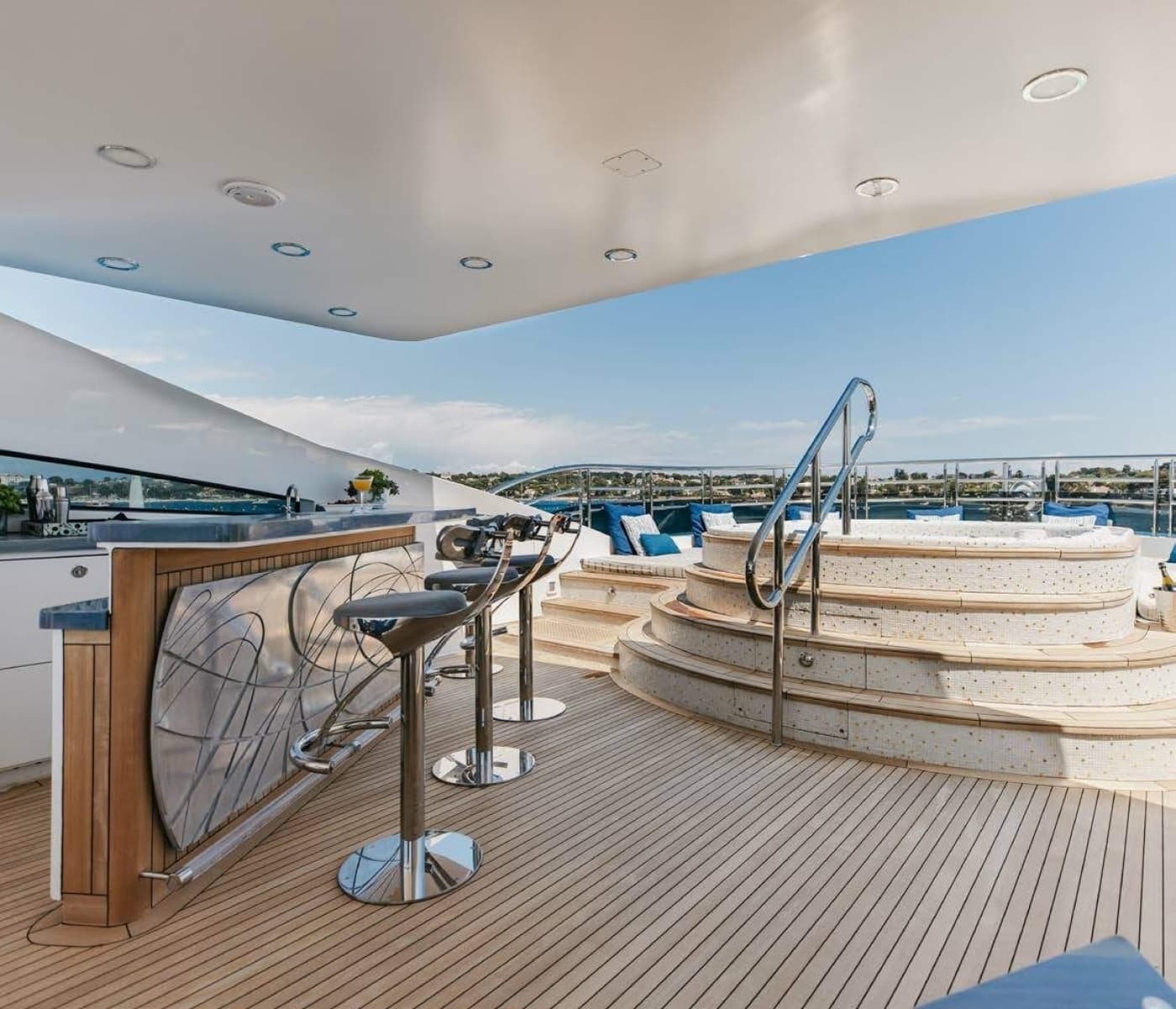

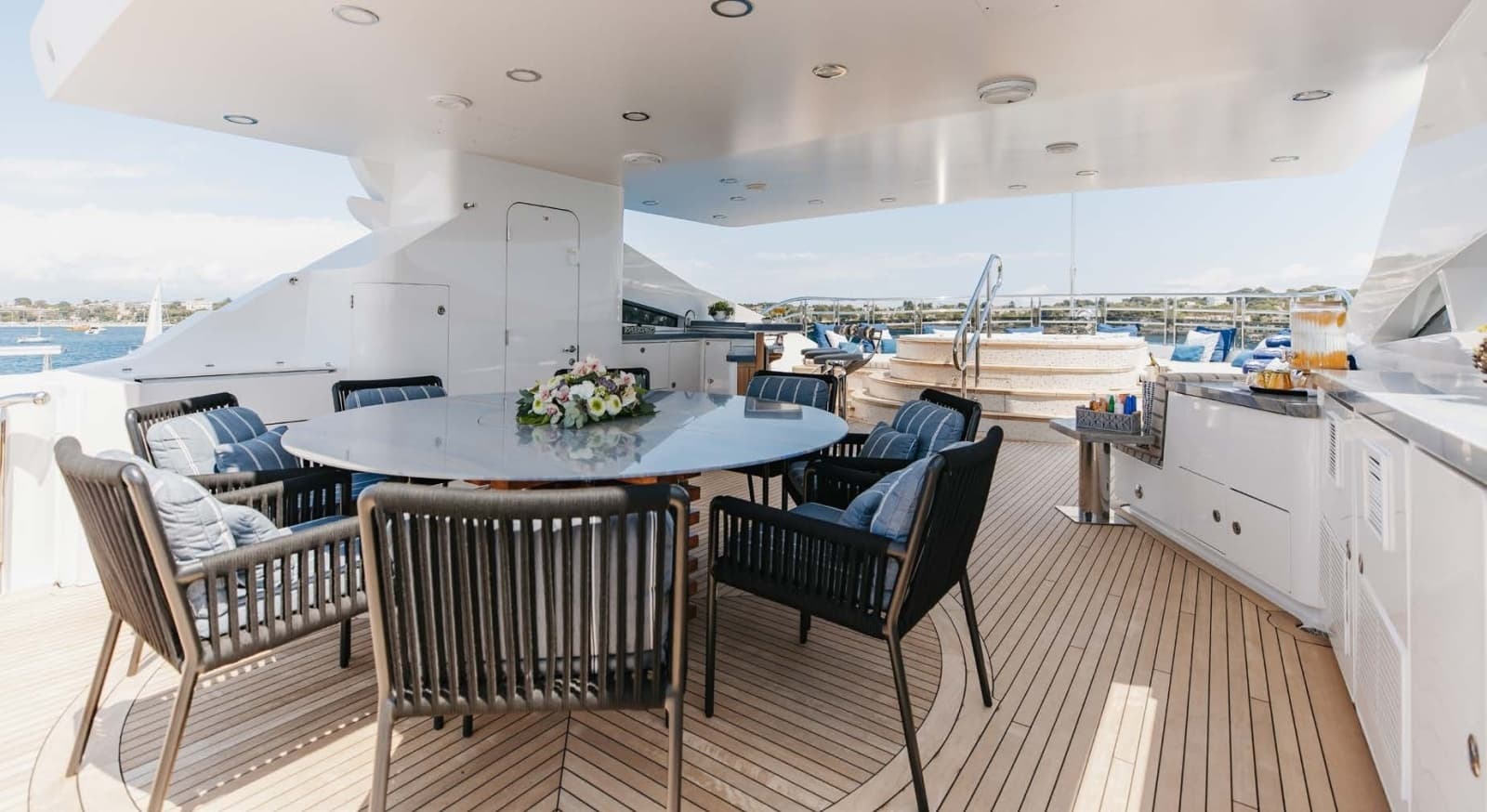

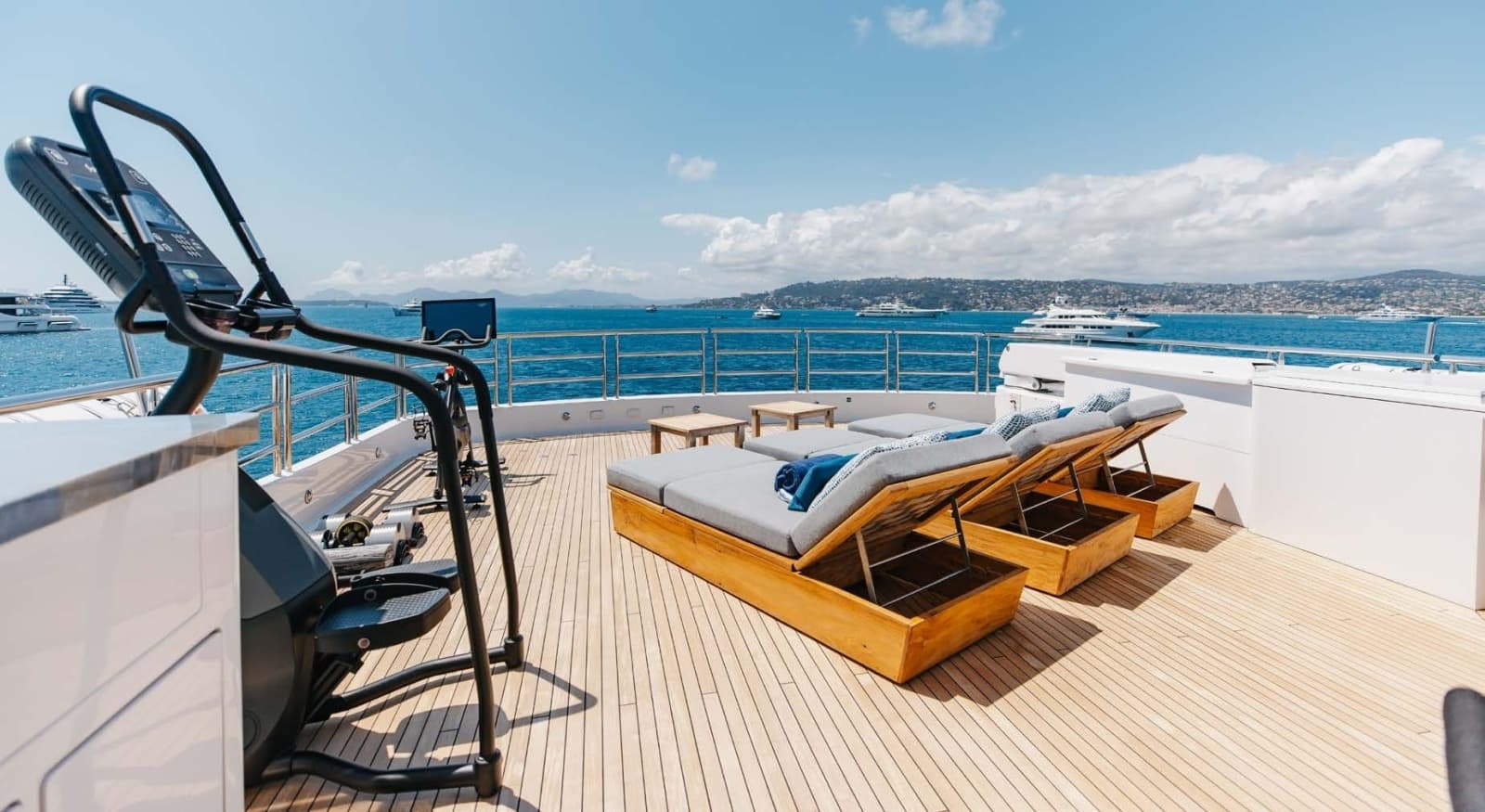

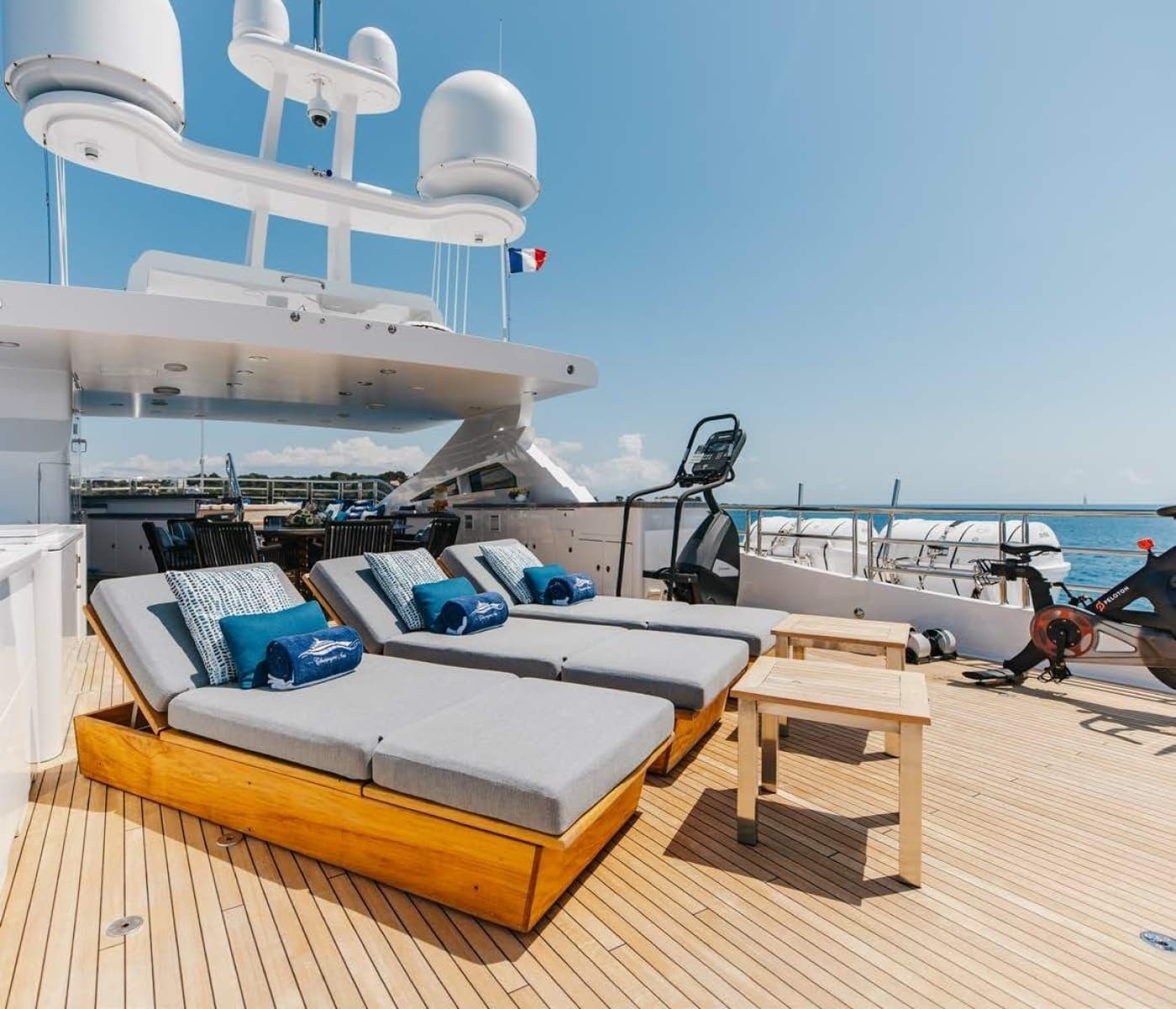

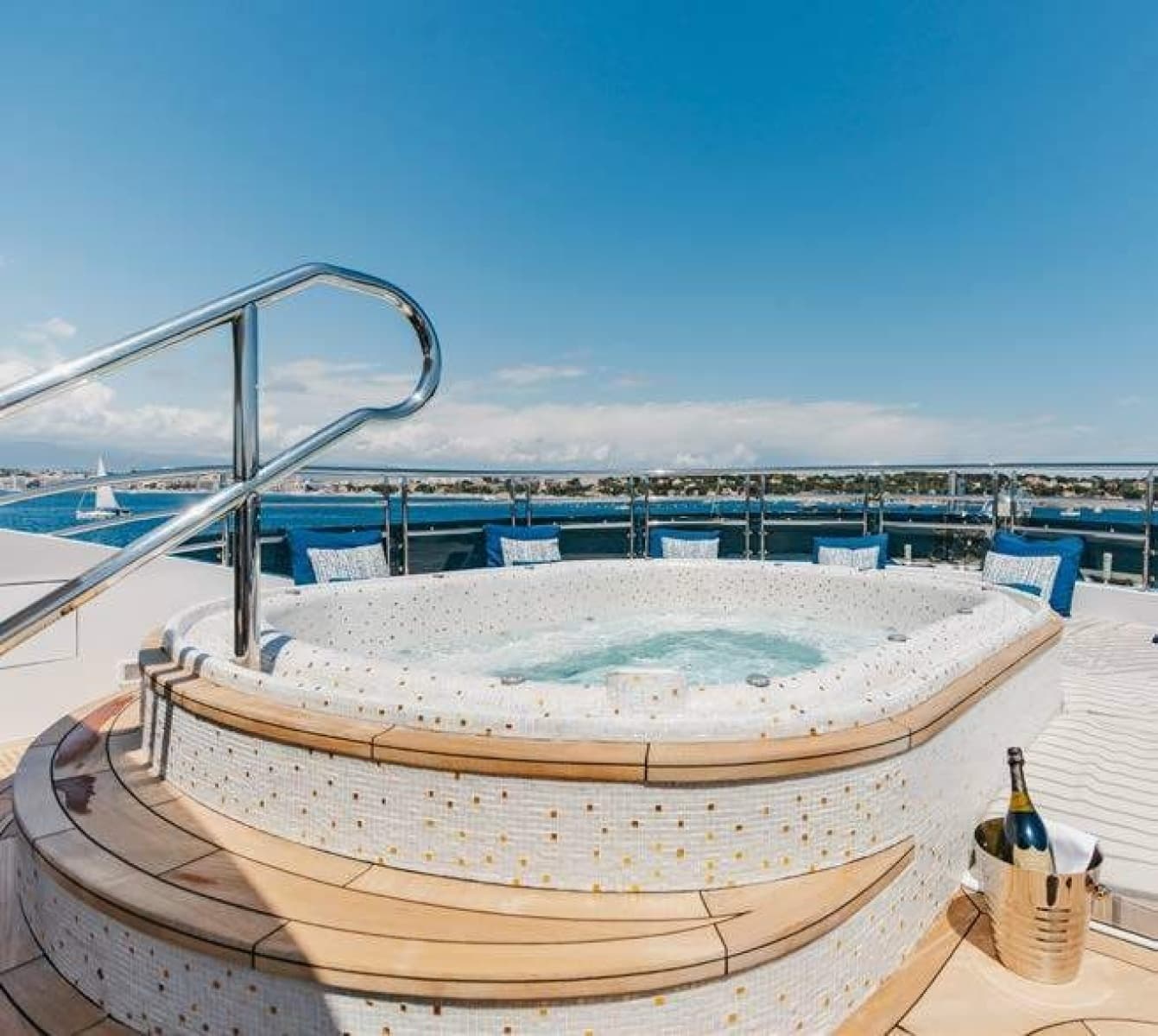

Sun Deck Jacuzzi, al fresco dining for eight, wet bar, exercise equipment and twin sunpads.

MACHINERY AND SYSTEMS:

Main Engines 2 x Caterpillar 3516C, 3,384 HP each, 9,382 / 9,377 hours (August 2026)

Gearboxes Reintjes

Generators: 2 x Northern Lights 130 kW

Stabilisers Quantum zero speed

Bow Thruster: Quantum QT-150, 150 hp

Air Conditioning Chilled water, 50 ton, two new chillers 2026

Monitoring: Siemens S7-1500 alarm monitoring and control system, new 2026

Watermakers: 2 x FCI, 3,100 US gal/day each

Navigation Five monitor glass bridge, Furuno radars, Sperry gyro and autopilot

Communications Starlink, VSAT, Fleet Broadband, GMDSS

Entertainment Crestron control, Apple TV, Kaleidescape, surround sound inside and on all exterior decks

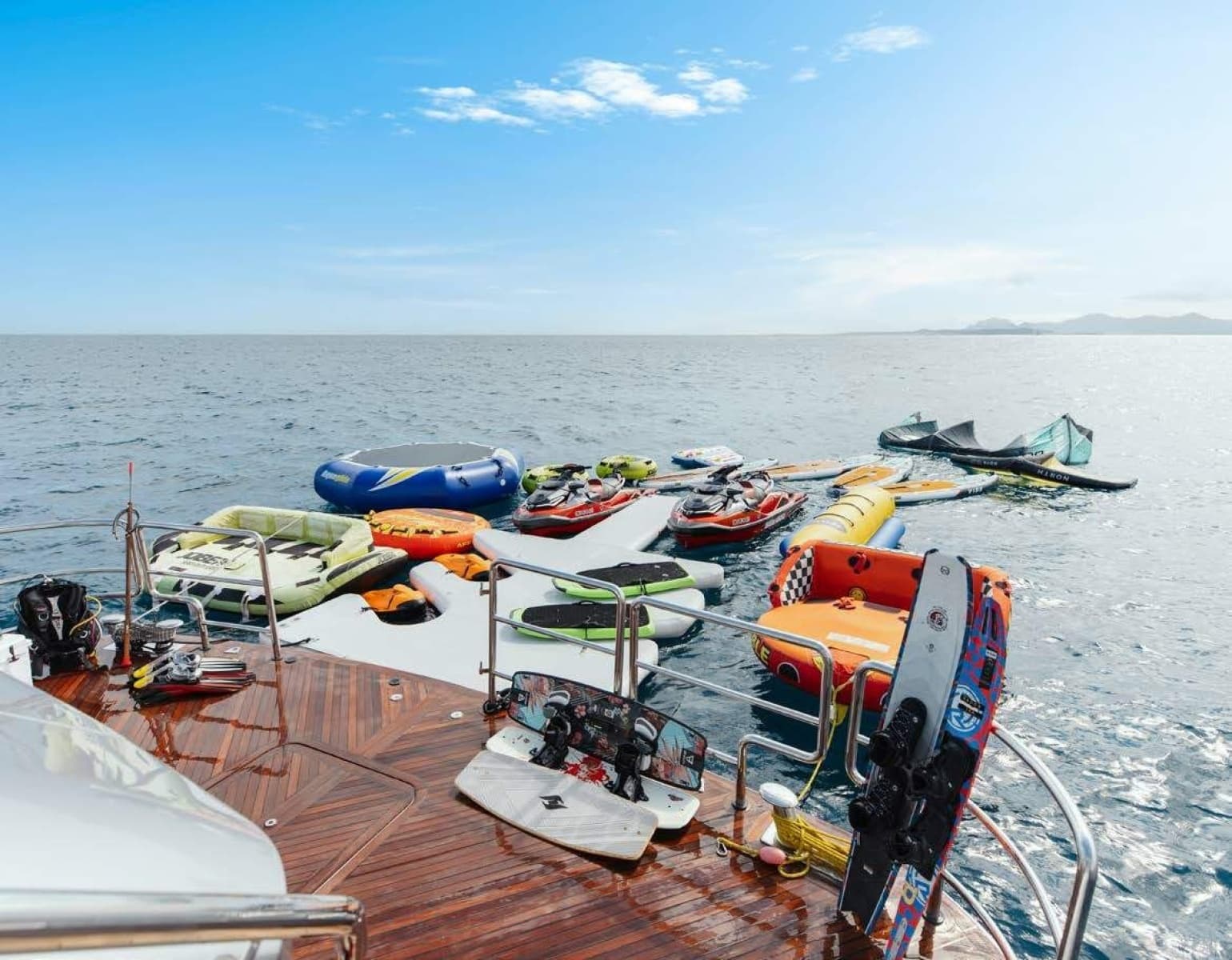

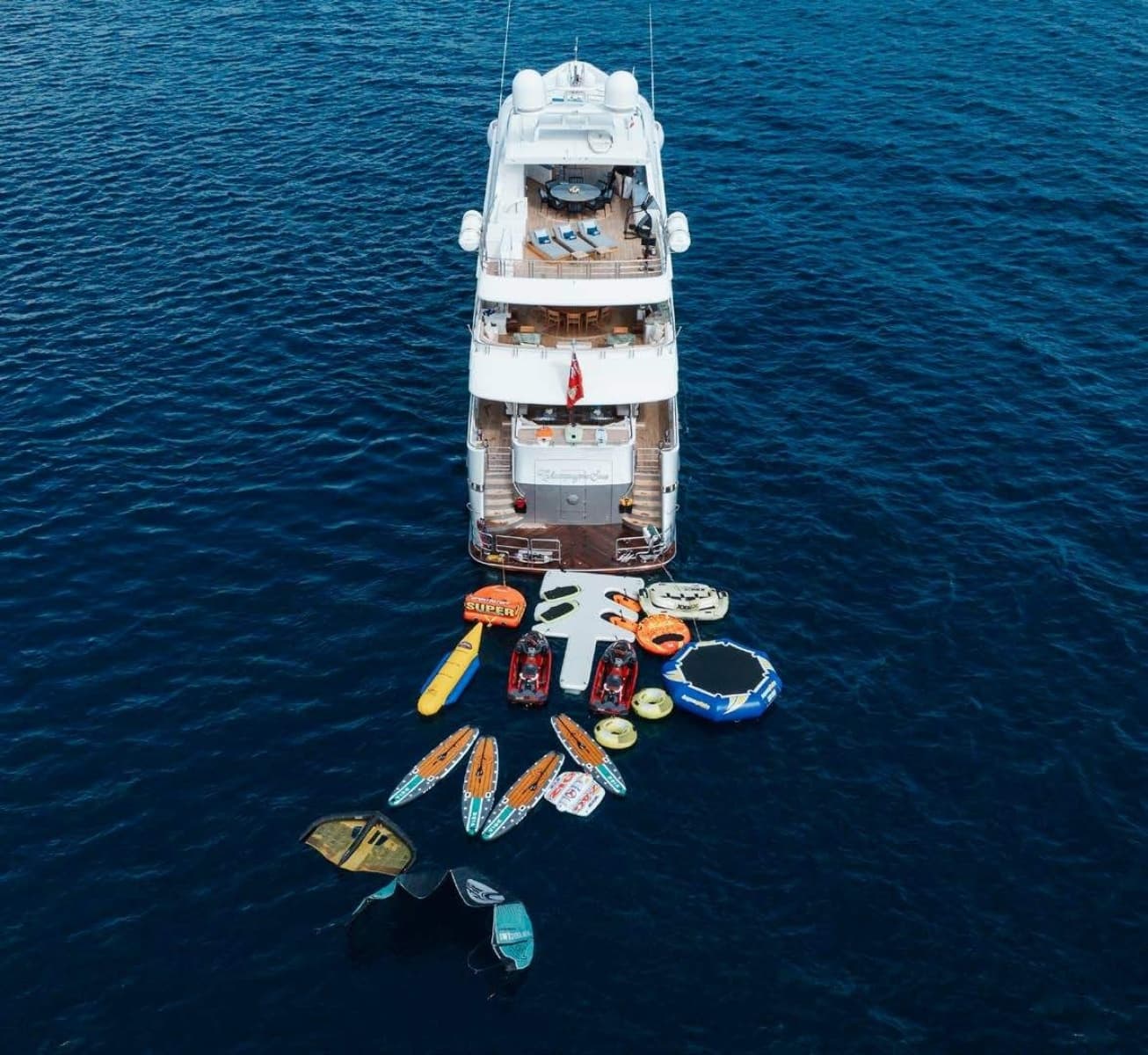

Tenders and Toys: Axopar 37 XC towed tender; Zodiac rescue tender; 2 x Yamaha WaveRunners; eFoils, wing foils, kiteboards, motorised paddleboards, inflatable slide; five dive sets

REFIT AND UPGRADE HISTORY

2025 to 2026 Major Refit, Atlas Shipyards, Perama, Greece (October 2025 to February 2026)

Hull Hauled out 14 October 2025. Below waterline sanded and antifouled, sea chests cleaned, new copper anodes, alloy work to bottom shell and swim platform, non destructive testing, mast painted.

Running Gear Shafts withdrawn and NDT tested, new ORKOT starboard bracket bearing with laser alignment, propellers serviced.

Steering Rams overhauled, new seals and hoses, emergency valves replaced, rudders recalibrated.

Main Engines: Heat exchangers and aftercoolers cleaned and pressure tested, new alternator.

Generators: Full service, new AVR, injector and cooling fans.

Deck Machinery: Both windlasses fully overhauled, bow thruster power pack serviced, new anchor shackles.

Systems Valves and overboard spool pieces renewed, new heaters and circulation pumps, day tank cleaned and certified

Deck New Burmese teak on the swim platform, approx. 23 sq m

Navigation and Safety: Two new magnetrons, Furuno equipment, new Pains, New Furuno Radar, Wessex MOB equipment, navigation lights renewed, TimeZero.

Alarm Monitoring: New Siemens AMCS with workstations at bridge, engine control room, engine room, crew mess, guest lobby and engineer's cabin

Air Conditioning Two new chillers, all fan coil units serviced with new carbon filters

Electrical: All distribution panels serviced, grounding and bonding restored, new battery isolator and fuses, Atlas Systems fully serviced and overhauled

CCTV: Upgraded with additional cameras

2024 to 2025 Interior Refit, Fort Lauderdale

Interior: New engineered wood flooring over sound barrier in saloon, dining and sky lounge; new carpet in master, study and guest staterooms; Majilite wall and overhead panels; window shades serviced; new beach club furniture in grade A teak and wicker

2023:

Generators: One rebuilt (one New 2022)

2022 Major Refit

Paint Complete exterior in Alexseal

Main Engines: Both rebuilt, upper and lower ends; new power take offs

Generators: New starboard generator

Electrical: All four battery banks and chargers renewed; Atlas shore power converters in new fireproof cabinets

Steering and Stabilisers: Complete steering overhaul; stabiliser rams rebuilt with new frequency drives

Air Conditioning Compressors renewed and overhauled; ten new air handlers, all others overhauled (2026)

Systems: New emergency bilge and fire pumps; new copper nickel bilge piping; watermaker overhauled; tanks repainted

Running Gear: New port shaft; both shaft seals renewed

Bridge and Safety: Five monitor glass bridge; new Furuno radar; new fire control panel and sensors; new LED lighting on all decks

Class ABS 10 year survey completed May 2022

2020 Interior Refresh

Interior Woodwork, marble and onyx refinished; lighting, mirrors and dining chairs renewed

CLASS AND SURVEY STATUS

Classification ABS ✠ A1 Commercial Yachting Service ✠ AMS, MCA LY2

Annual Class Survey Concluded 2 August 2026, no deficiencies

Port State Control 1 August 2026, Italy, no deficiencies

CAYMAN ISLANDS COMMERCIAL FLAG

Full specification, survey status and yard documentation available on request.
