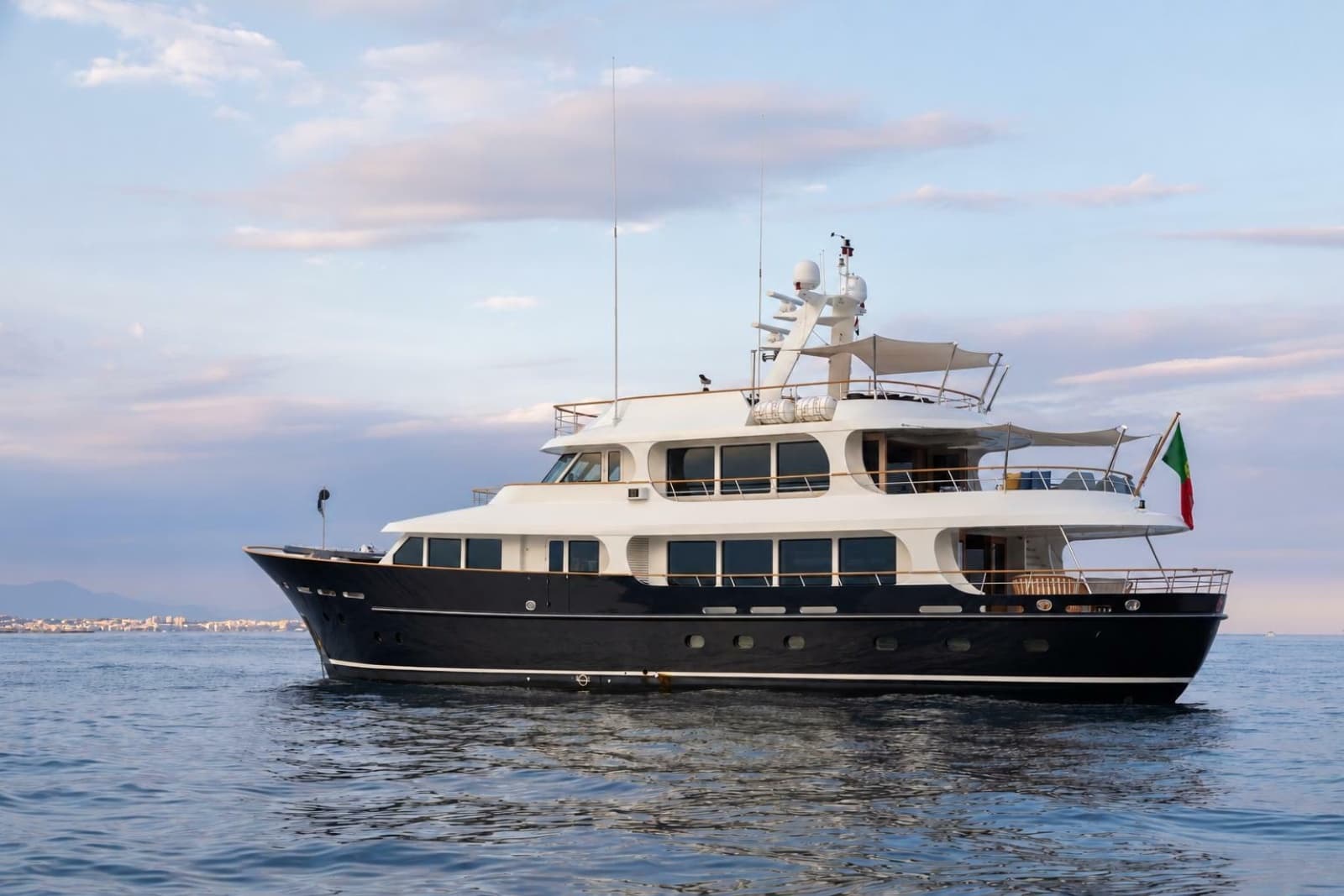

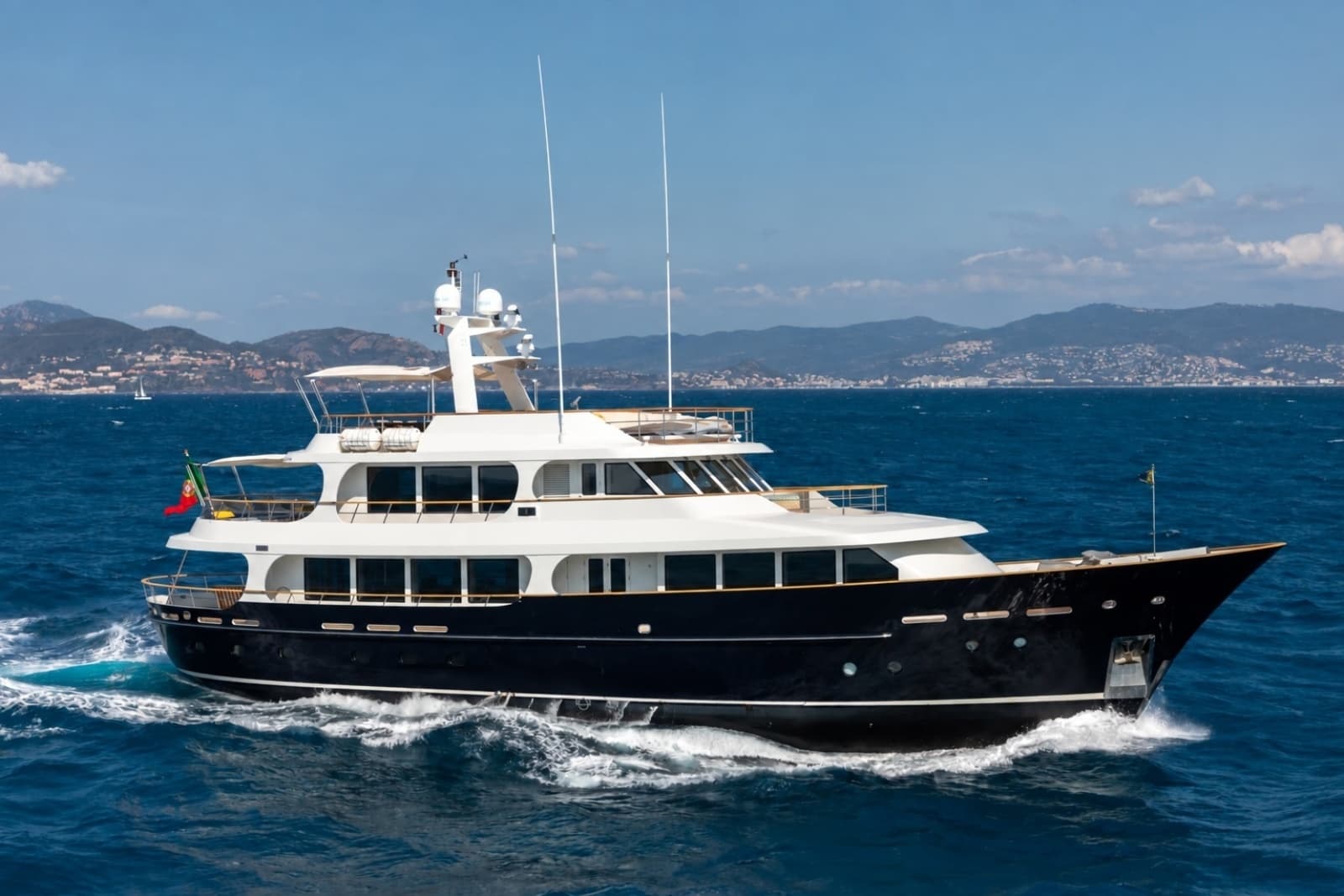

2013 Lynx Canoe stern twin screw

MAIN CHARACTERISTICS

Name: SANCTUARY

Type: Canoe stern twin screw diesel motor yacht

Builder: Lynx Yachts Holland

Year: 2013

Refit Year: 2026

LOA (M/FT): 33.50 M 109’ 11”

LWL (M/FT): 28.90 M 94’ 10”

Beam Overall (M/FT): 8.00 M 26’ 03”

Draft Overall (M/FT): 2.30 M 7’ 07”

Gross Tonnage: 287 GT

Displacement (Fully Loaded): 260 T

Hull Material: Steel

Hull Configuration: Displacement

Superstructure: Aluminium

Decks: 4

Flag: Jamaica

Classification: Bureau Veritas Classification I ✠ HULL • MACH

MCA: MCA LY2

Naval Architect: Diana Yacht Design

Exterior Designer: Diana Yacht Design

Interior Designer: Weber Yacht Design

Main Engines: 2 X Caterpillar C-18 diesel engines, 599 HP each 448 Kw each

Speeds: 12.5 Max

11 Cruising

Range: 3,200 nm @ 11 kn

Guest Accommodation: 12 guests in 5 staterooms

Crew Accommodation: 6 crew in 3 cabins

COMMENTS AND NOTEWORTHY FEATURES AT A GLANCE

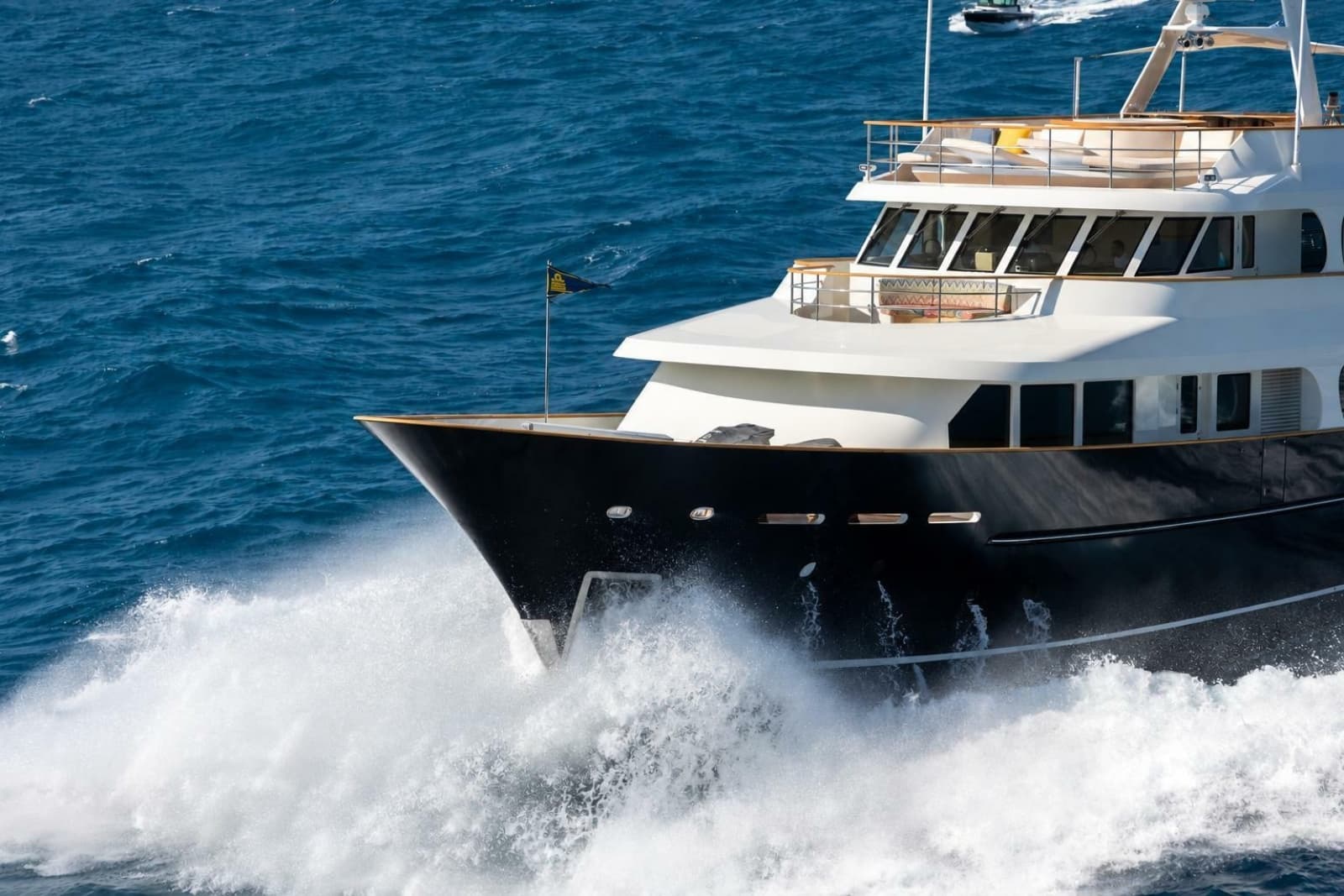

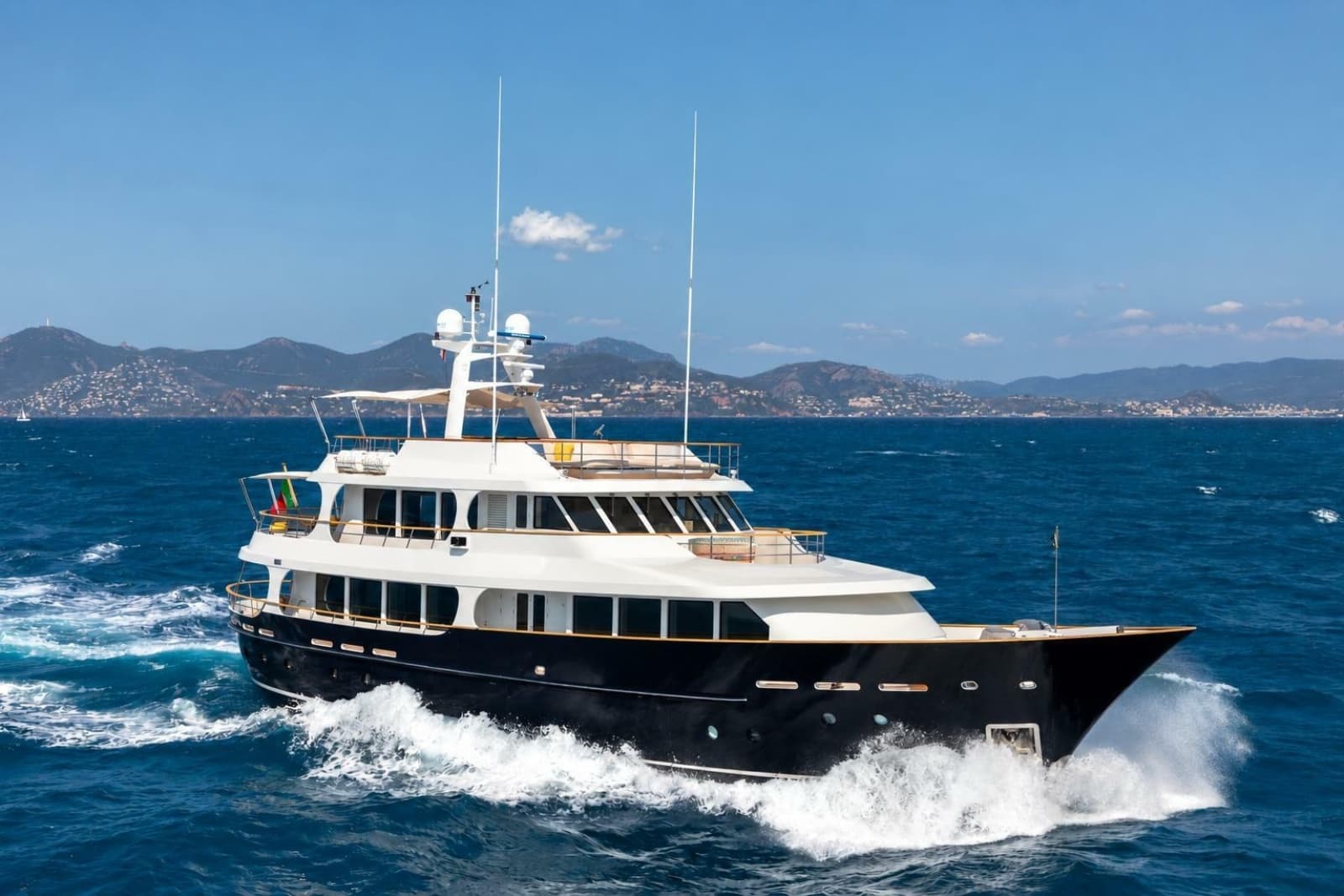

This solid full displacement yacht with a steel hull and aluminium superstructure was built by Lynx shipyard in the Netherlands and delivered in 2013.

Along with her elegant profile with a canoe stern allowing more comfortable and smooth cruising, she surprises with a modern and sophisticated interior, big windows, high ceilings and lots of space.

With a large beam of 8m allowing a facility of a 40m+ yacht, SANCTUARY underwent an extensive refit to offer even more volume including a large sundeck with a new elevated hot tub and a bar with BBQ. The natural modern atmosphere can be enjoyed everywhere onboard. The retractable windows in the saloon and master stateroom allow one to enjoy the sea breeze by opening them entirely.

Her 3 spacious decks offer generous exterior space. Thanks to her intelligent layout, this yacht provides several different areas for entertainment and relaxation, along with separate spaces for privacy. Sidewalks go around all decks, allowing you to enjoy the outside and have access inside from different angles.

• Dutch built, Steel, displacement, long range motor yacht

• Class compliant under BV Classification

• Large volume 5 Stateroom plus 5 crew

• Significant “0” hour rebuild on machinery and systems 2026

• Canoe stern design with side opening platform tender / toy garage

• Huge sun deck with whirlpool and bar

• Larger square meterage interior surface than any other yacht in her size

• 3 decks with a total volume of 287GT

• Solid charter track record

• Dutch build quality with a steel hull and aluminium superstructure

• 10-year class survey works completed in 2023

• Opening windows in the master stateroom and in the salon

• Side garage convertible into a swim platform

• Range 3,200nm at 11knots, consumption 140L/h

CLASSIFICATION

Flag: Jamaica

Port of Registry: Montego Bay

Classification: Member of IACS

IACS Society: Bureau Veritas ✠ HULL • MACH

EU Tax Status: Excluding VAT

Official Registration: Jamaica Documentation No. JMP25041

Vessel Registration: Private

SQUARE METERS

INTERIOR

TOTAL BRIDGE DECK: 52.68 m² 567.04 ft²

TOTAL MAIN DECK: 97.10 m² 1045.17 ft²

TOTAL LOWER DECK: 151.07 m² 1626.10 ft²

TOTAL CREW AREA: 36.57 m² 393.63 ft²

TOTAL ALL DECK: 300.85 m² 3238.32 ft²

EXTERIOR

TOTAL SUNDECK: Over 60 m² Over 645 ft²

TOTAL BRIDGE DECK: 60 m² 645 ft²

TOTAL MAIN DECK: 75 m² 807 ft²

TOTAL ALL DECKS: Over 195 m² Over 2098.96 ft²

TOTAL INTERIOR & EXTERIOR: Approx 500 m² Approx 5381.96 ft²

ACCOMODATIONS

OVERVIEW:

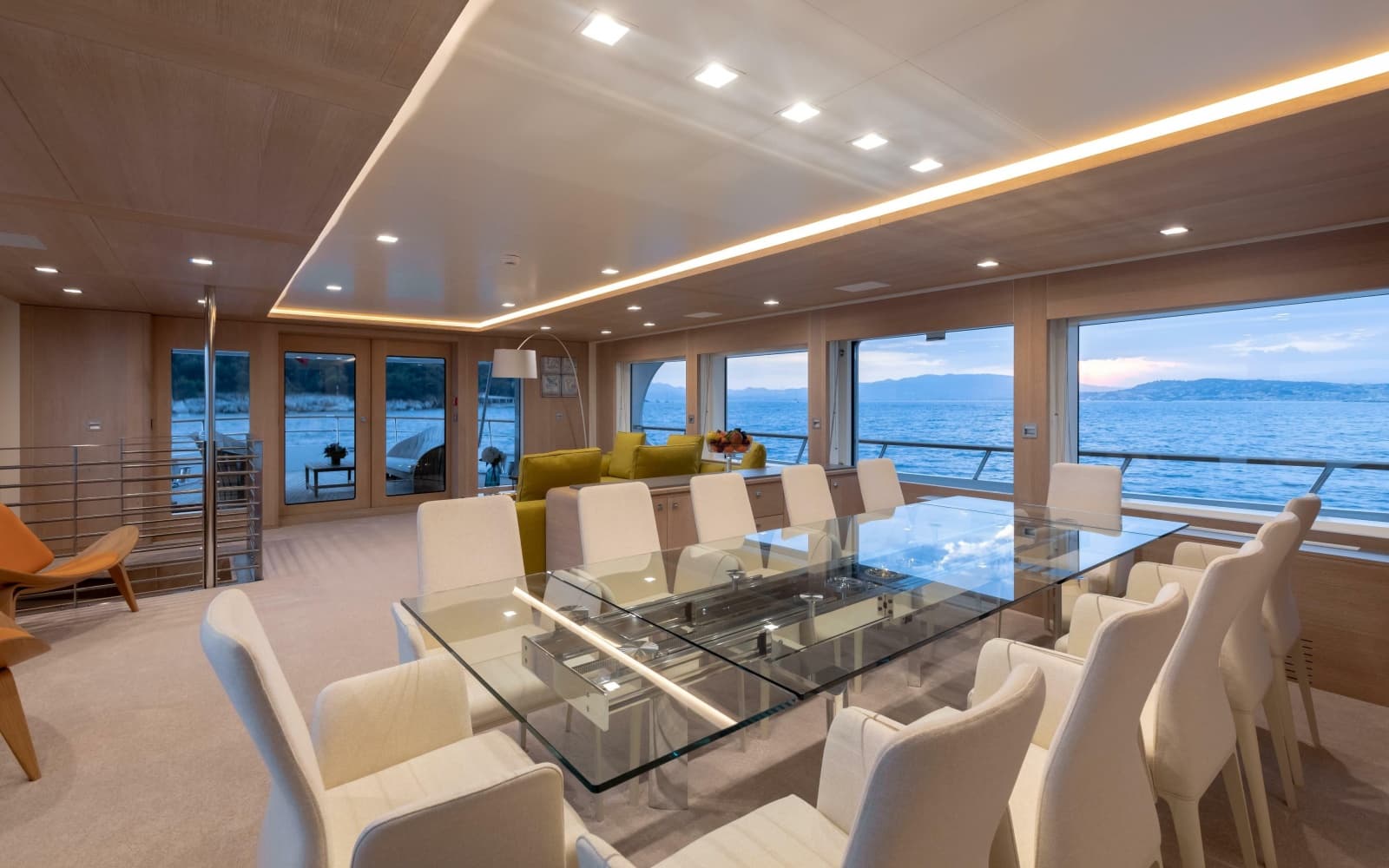

Tri-deck displacement motor with 5 ensuite staterooms, large skylounge and sundeck.

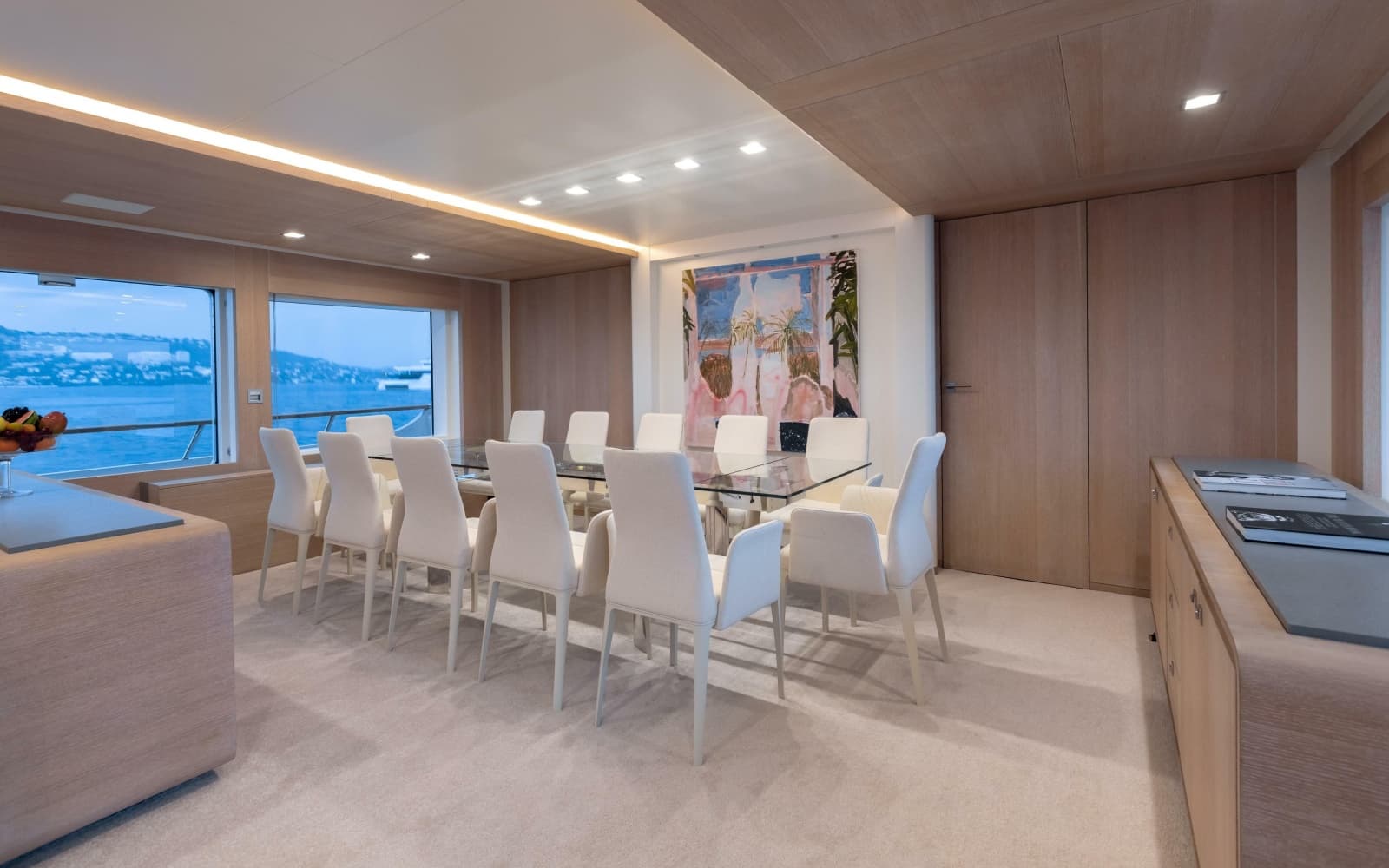

MAIN DECK:

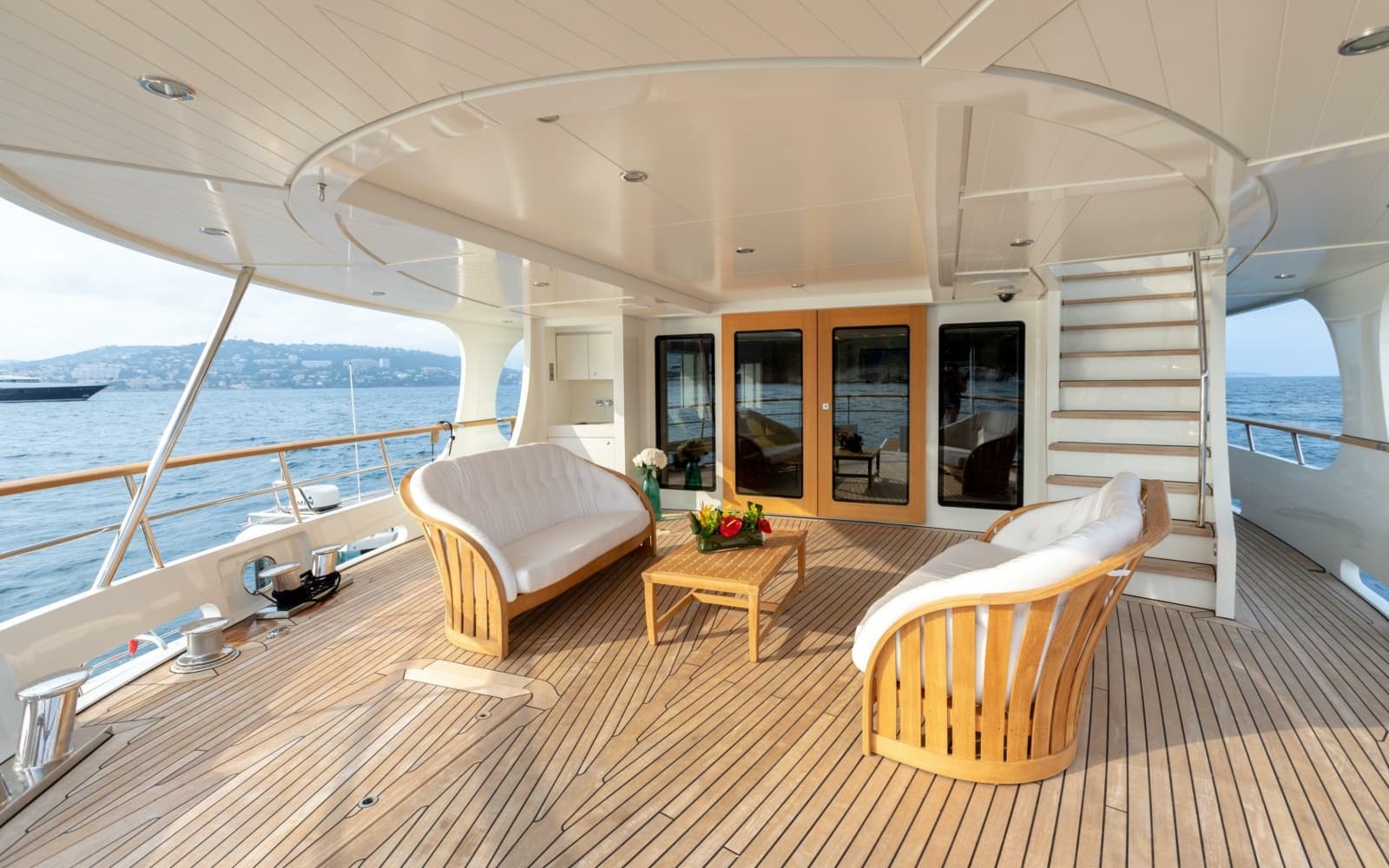

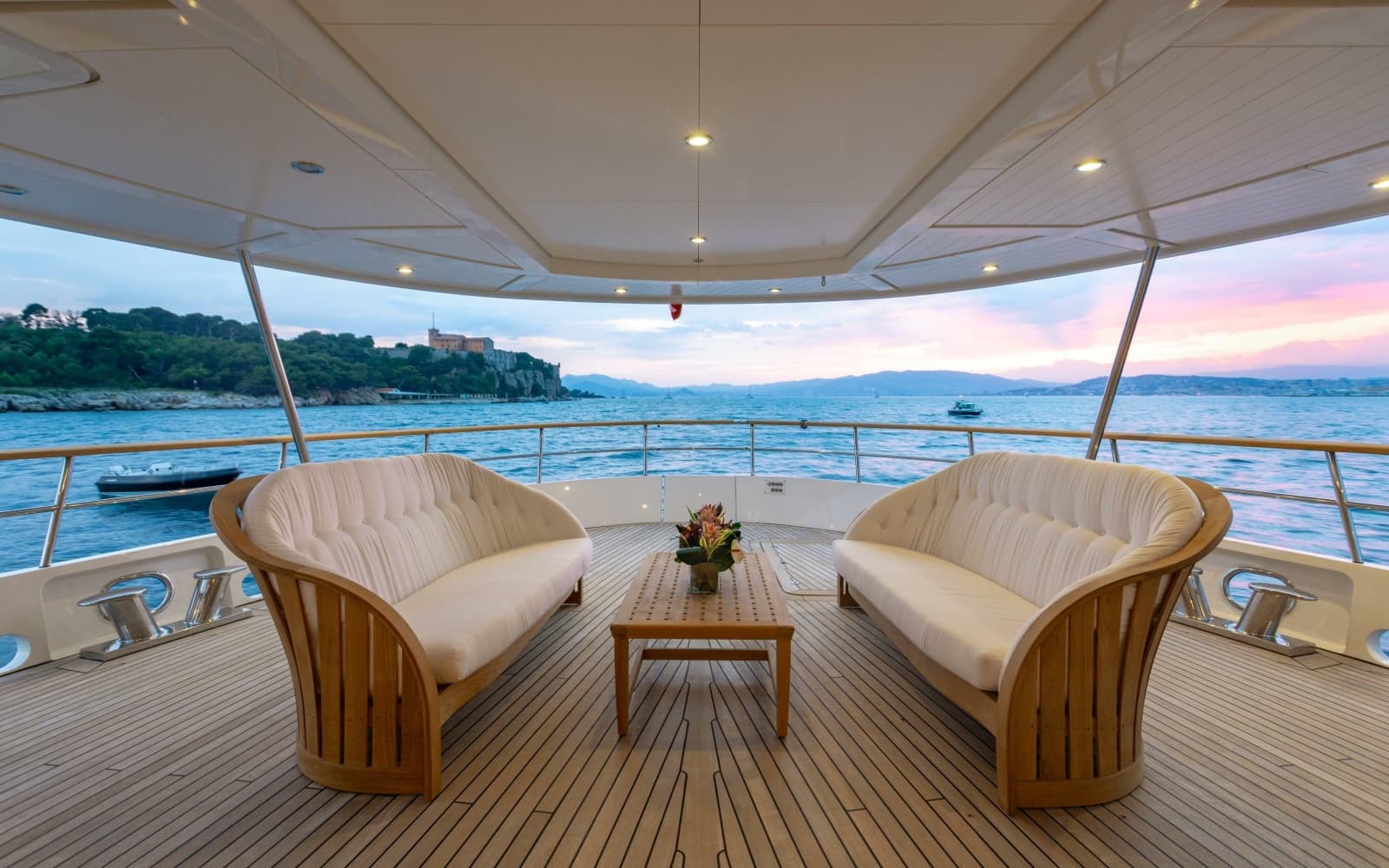

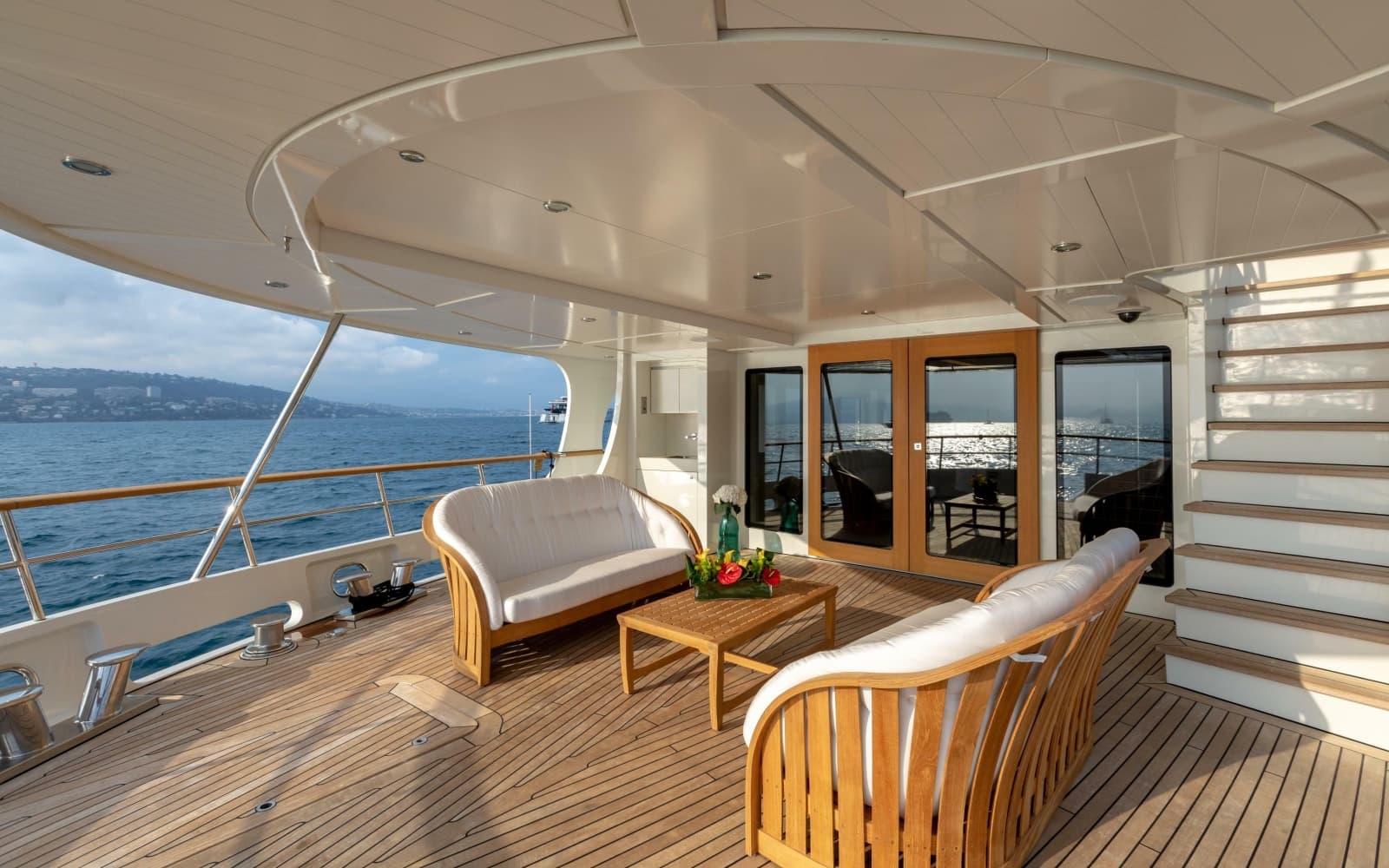

The aft area outside on the main deck has several seats and a large table making it a perfect place for alfresco dining. Inside, the cozy and light salon has a comfortable sofa and a dining table that can easily seat up to ten guests. The Owners suite fore of the yacht is finished with a luxurious and inviting ambiance with a walk-in closet and a generously proportioned bathroom (with shower, toilet and double hand basin).

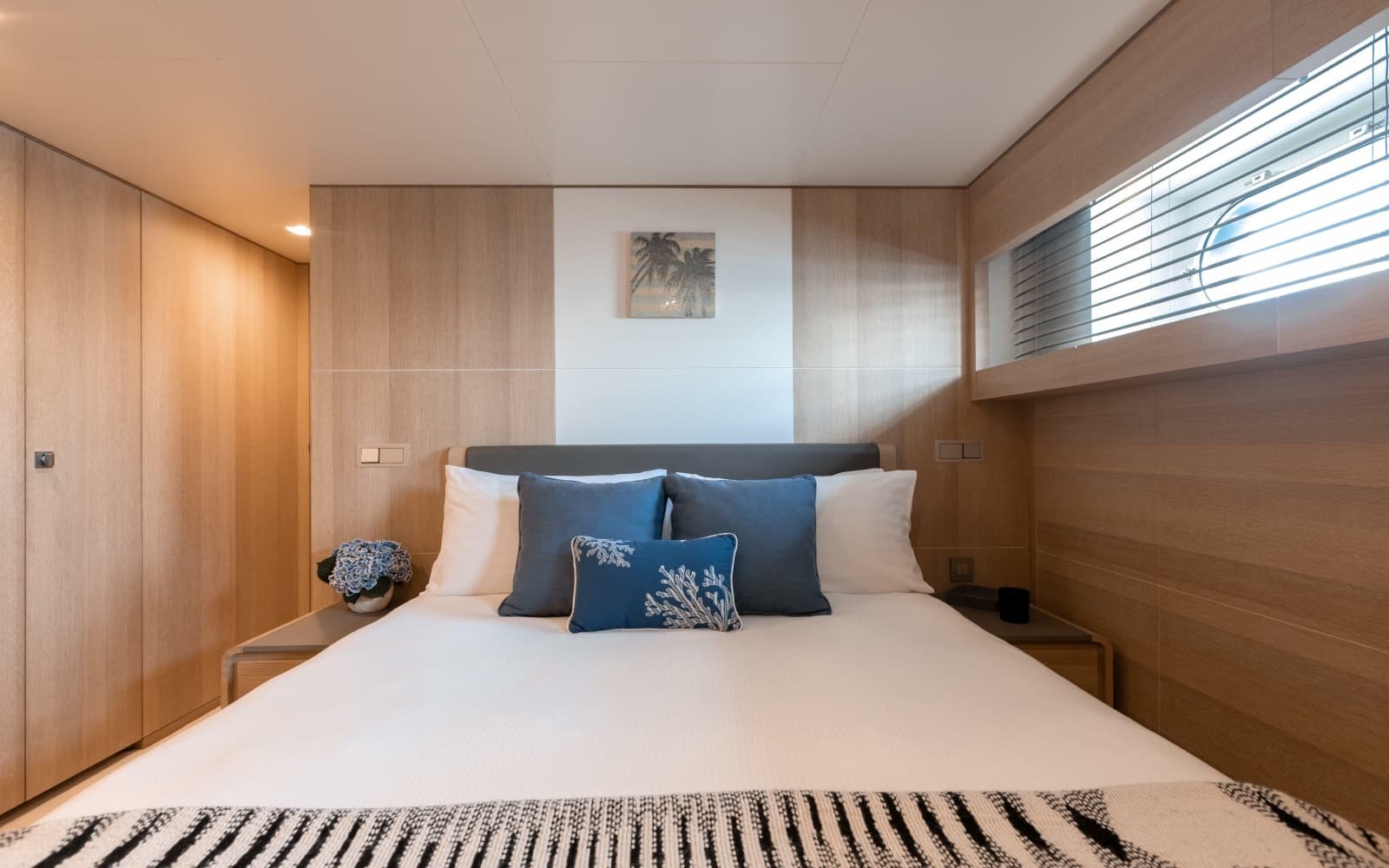

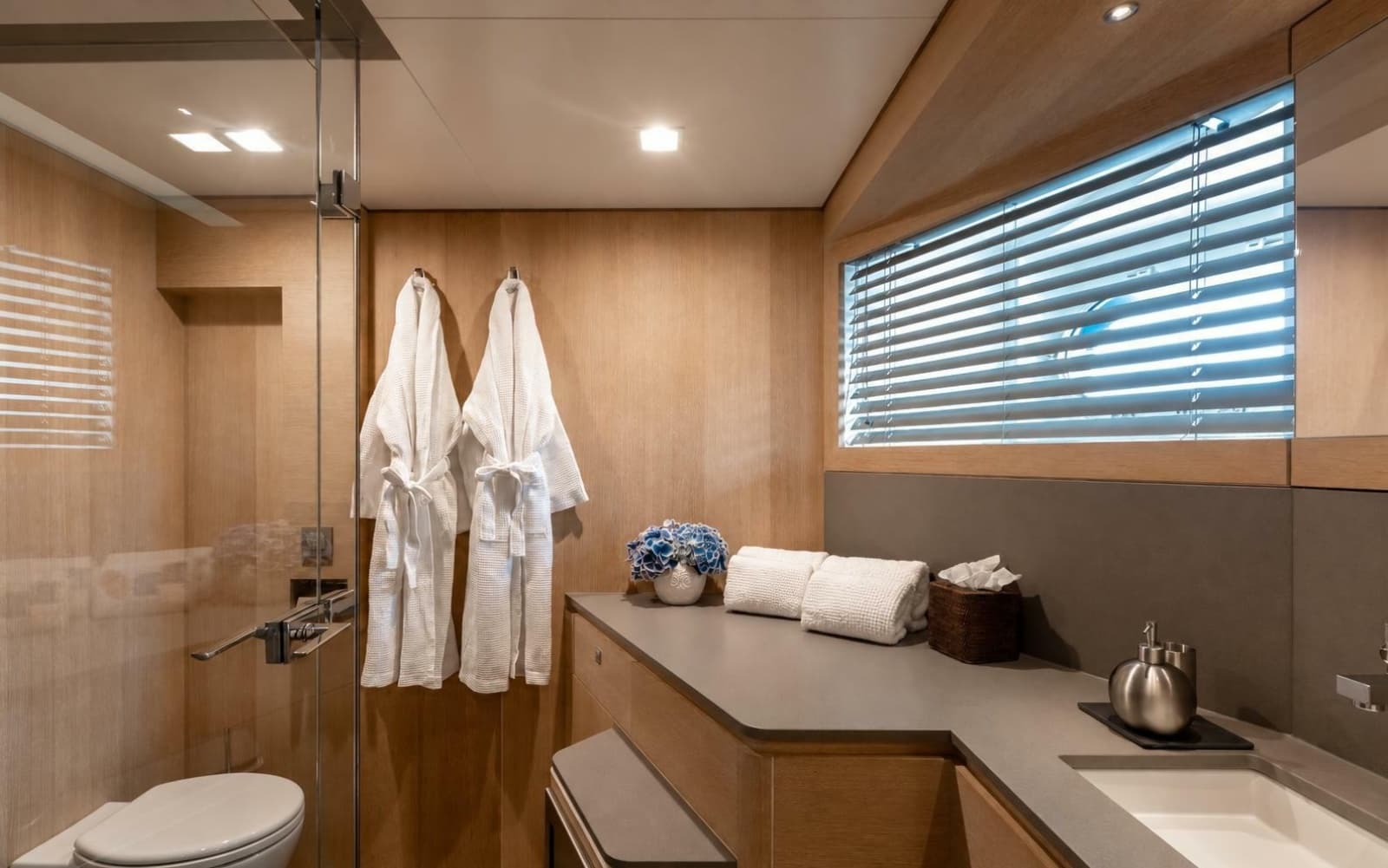

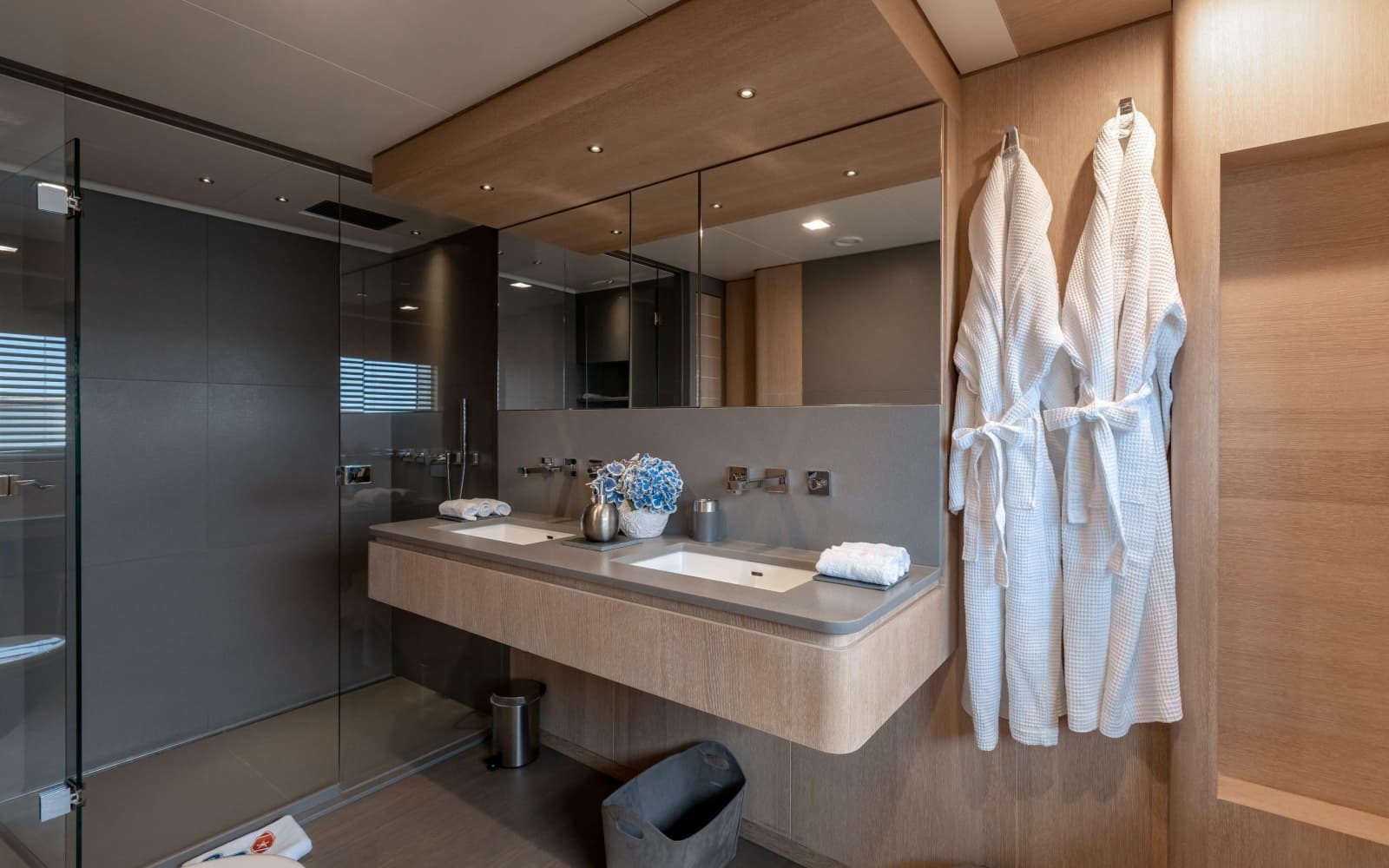

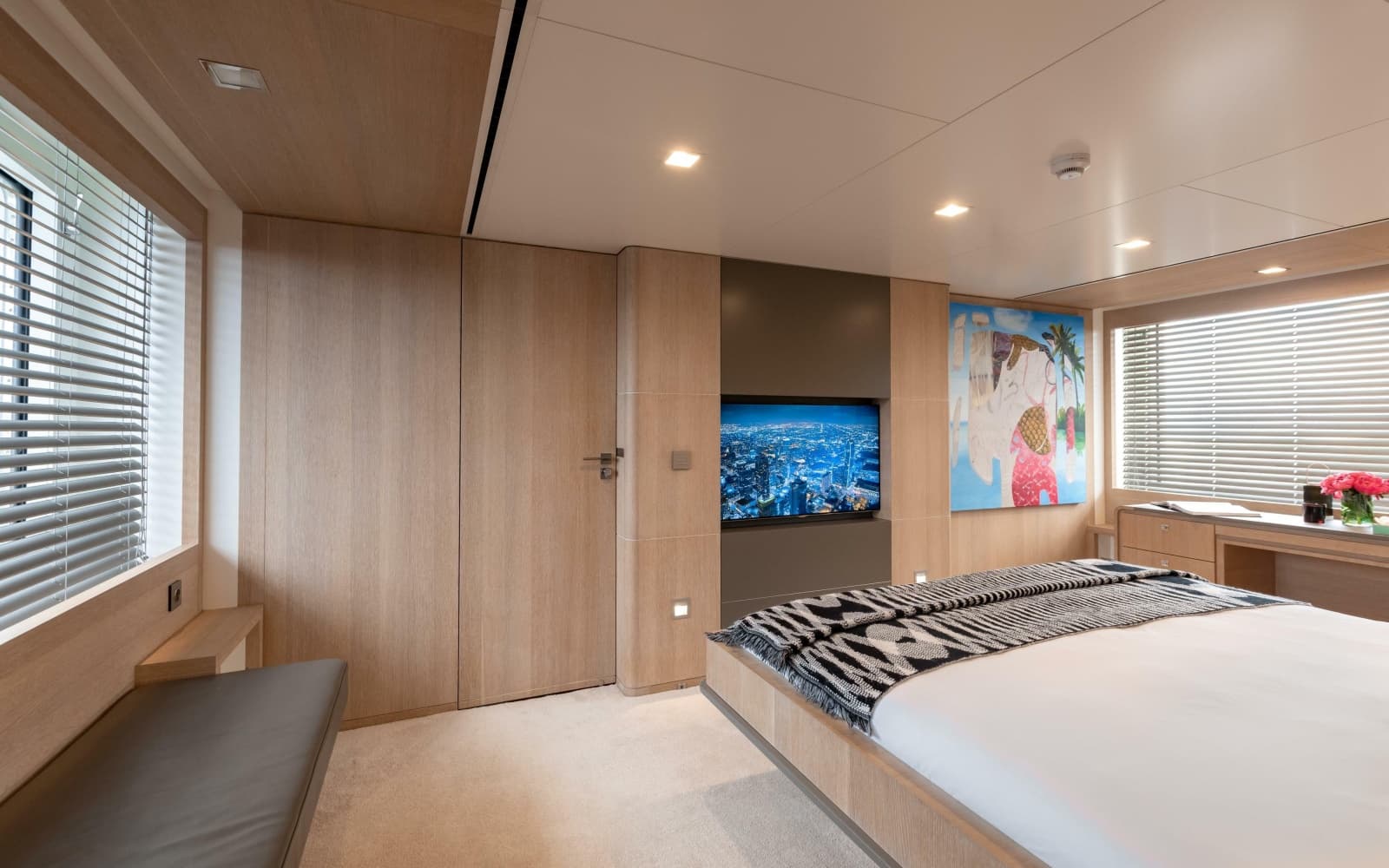

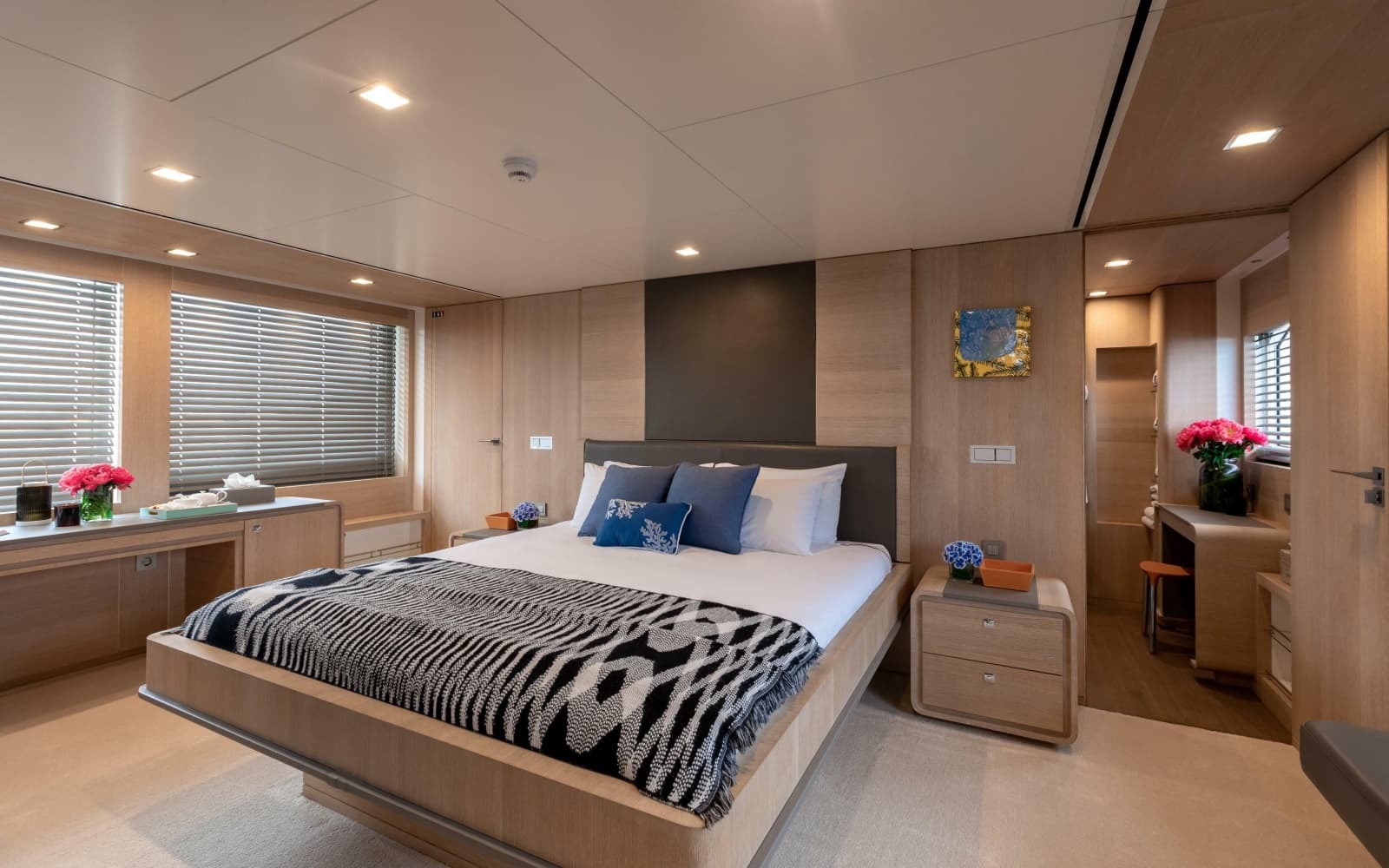

OWNER AND GUEST STATEROOMS:

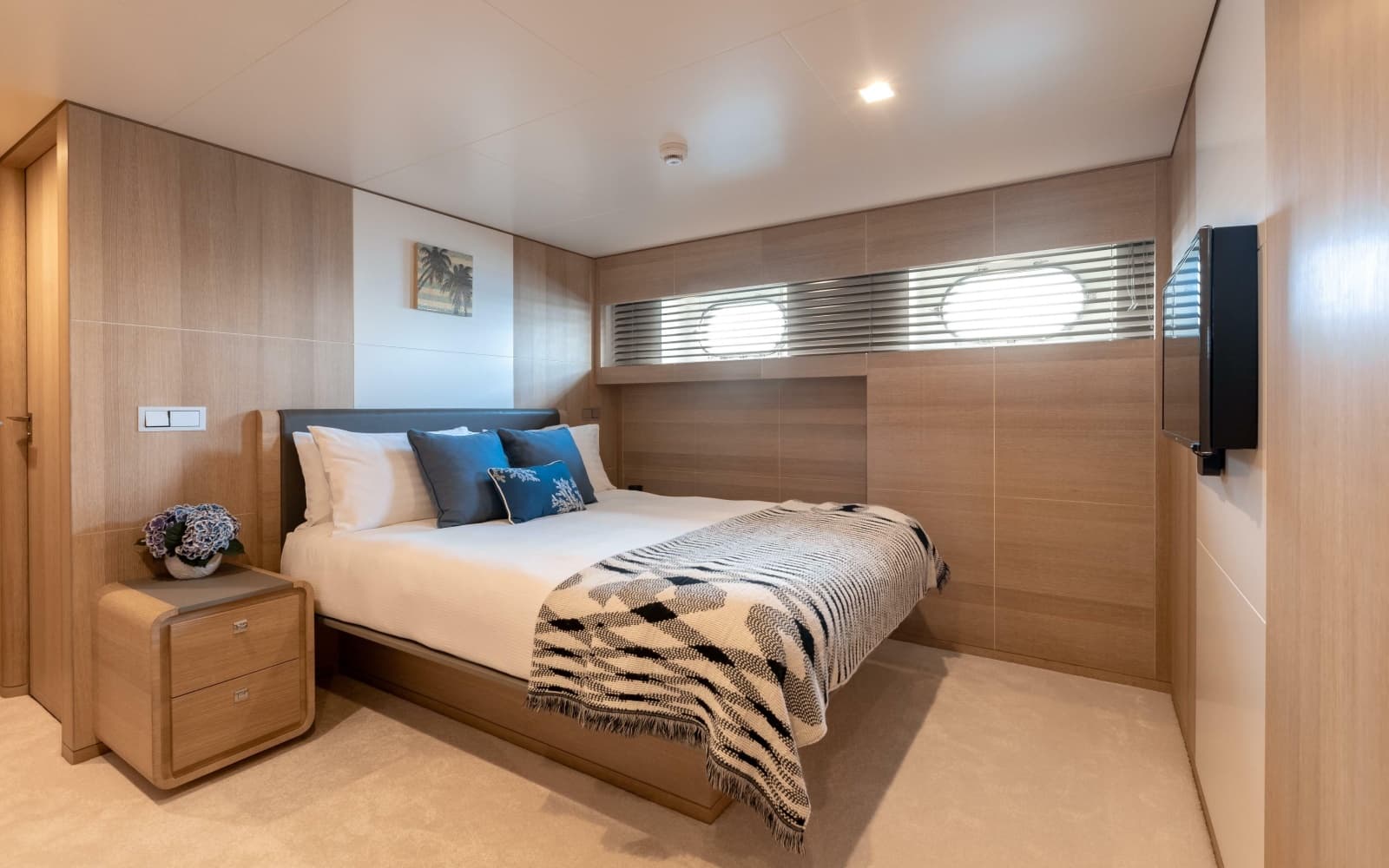

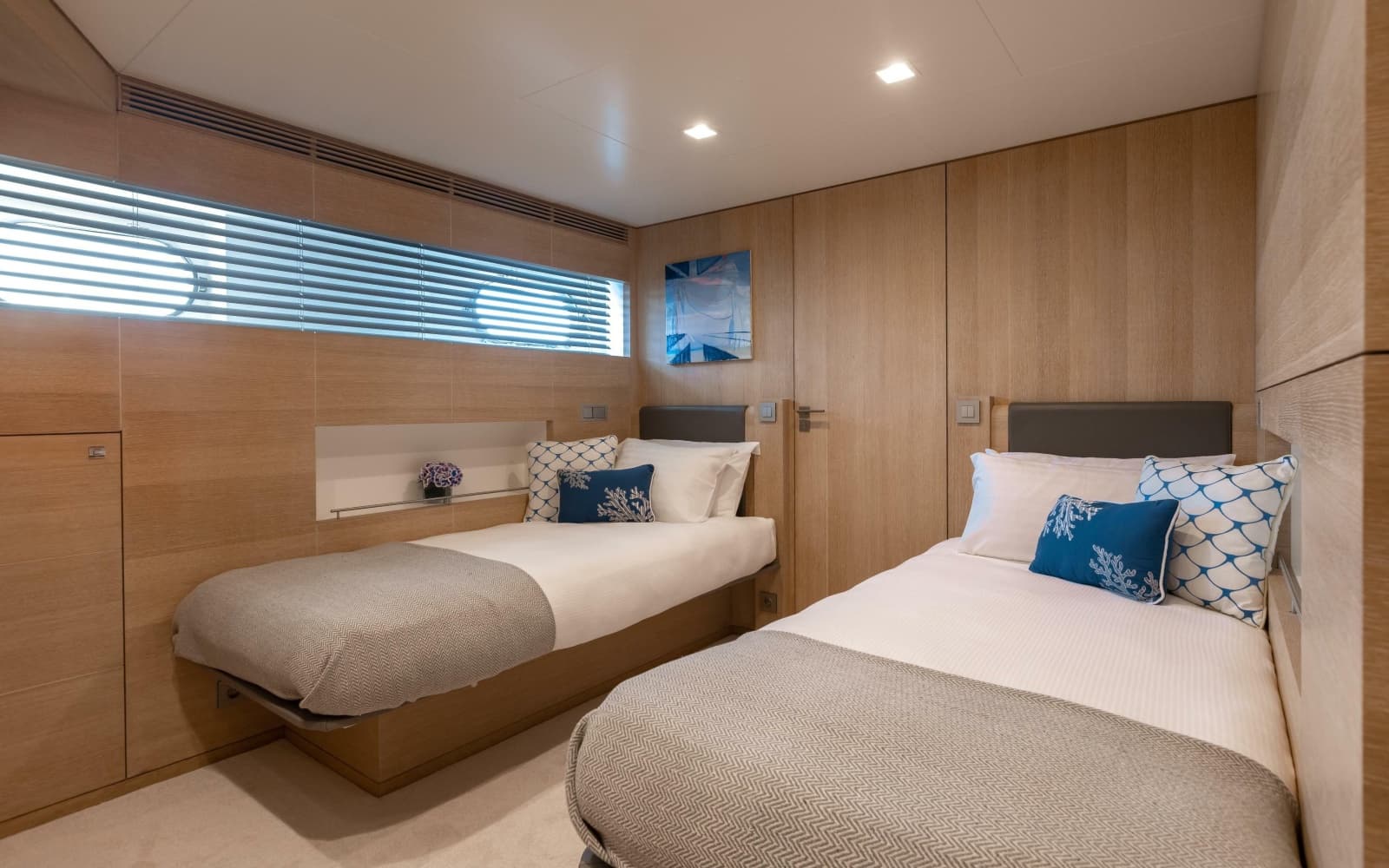

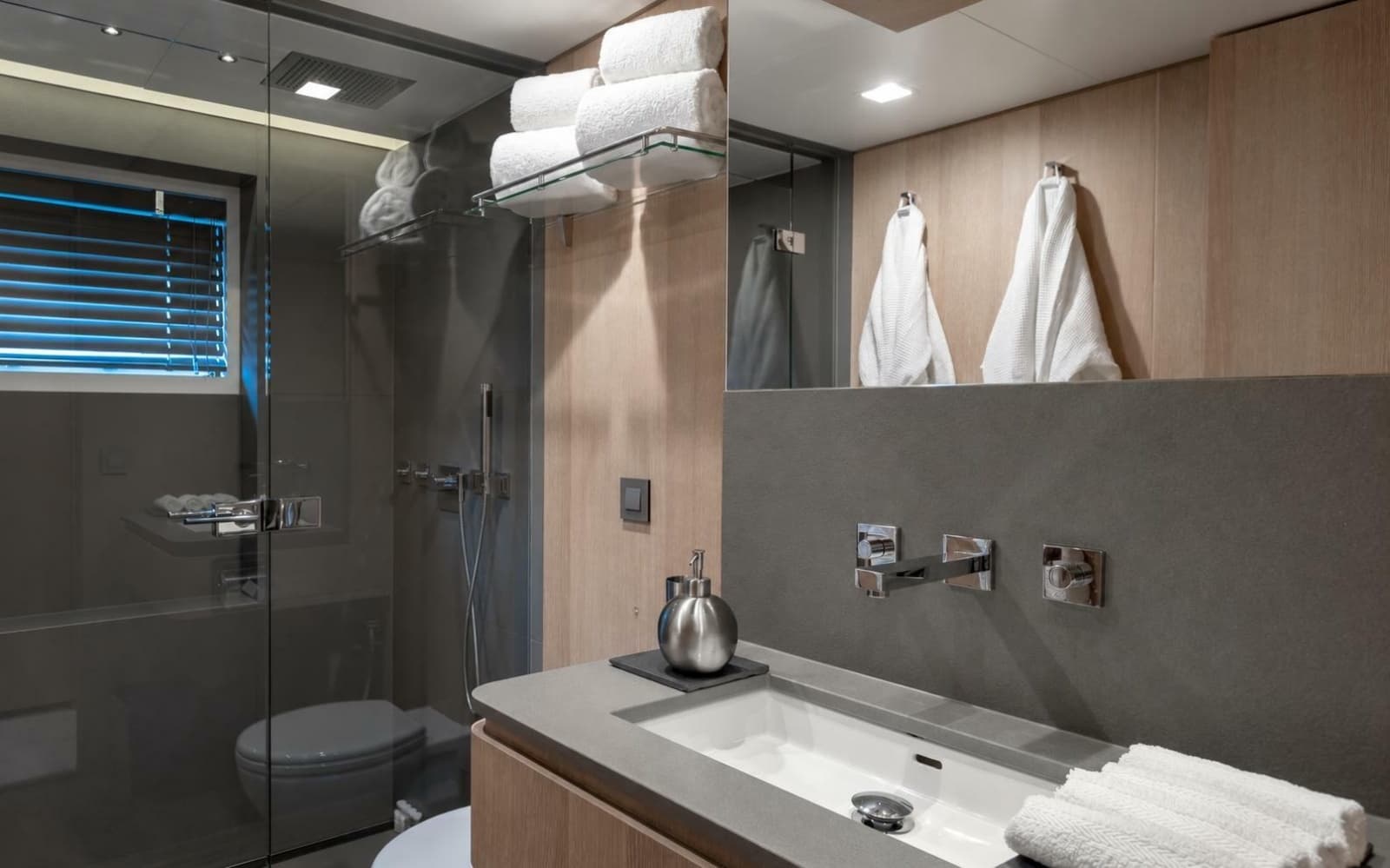

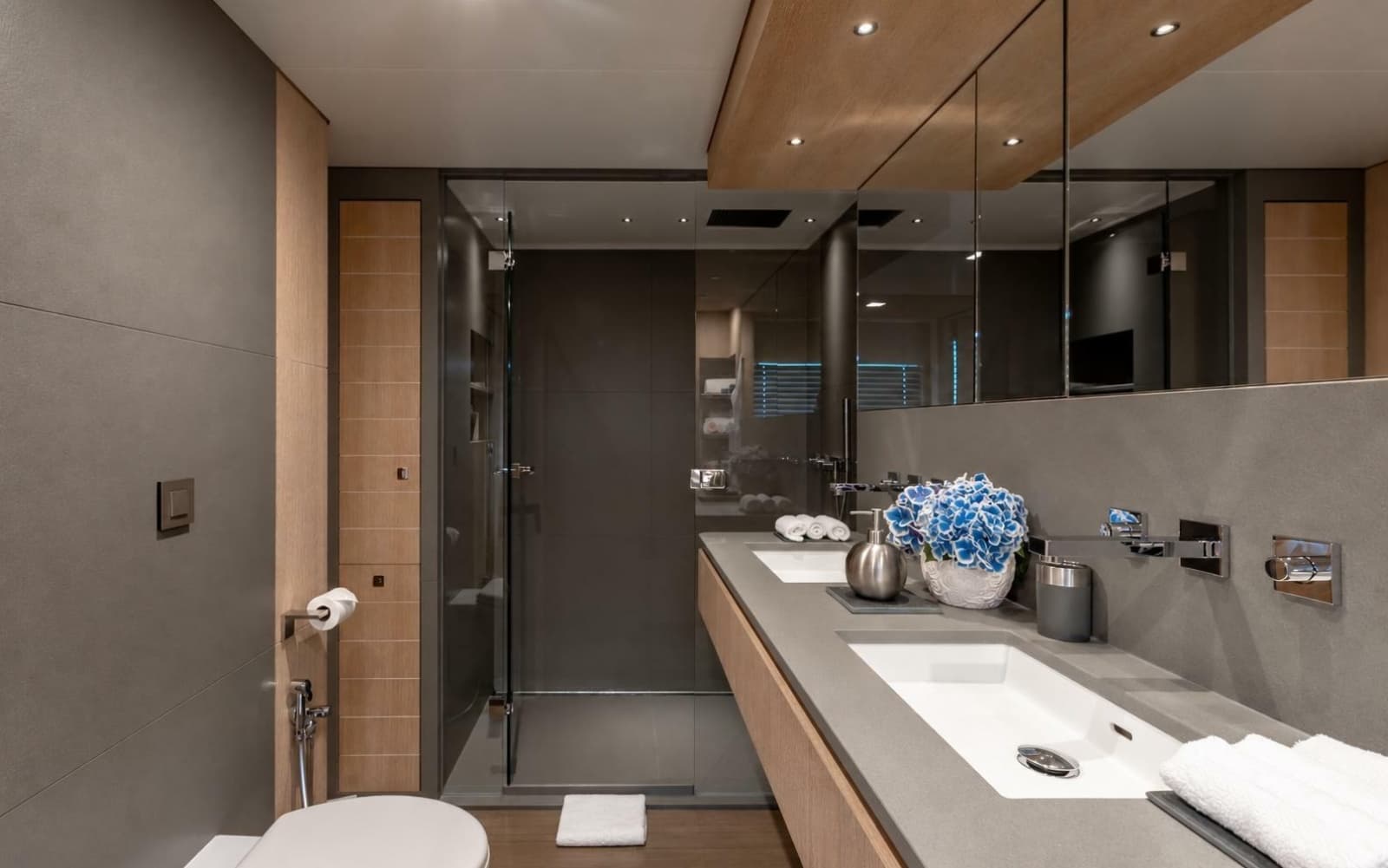

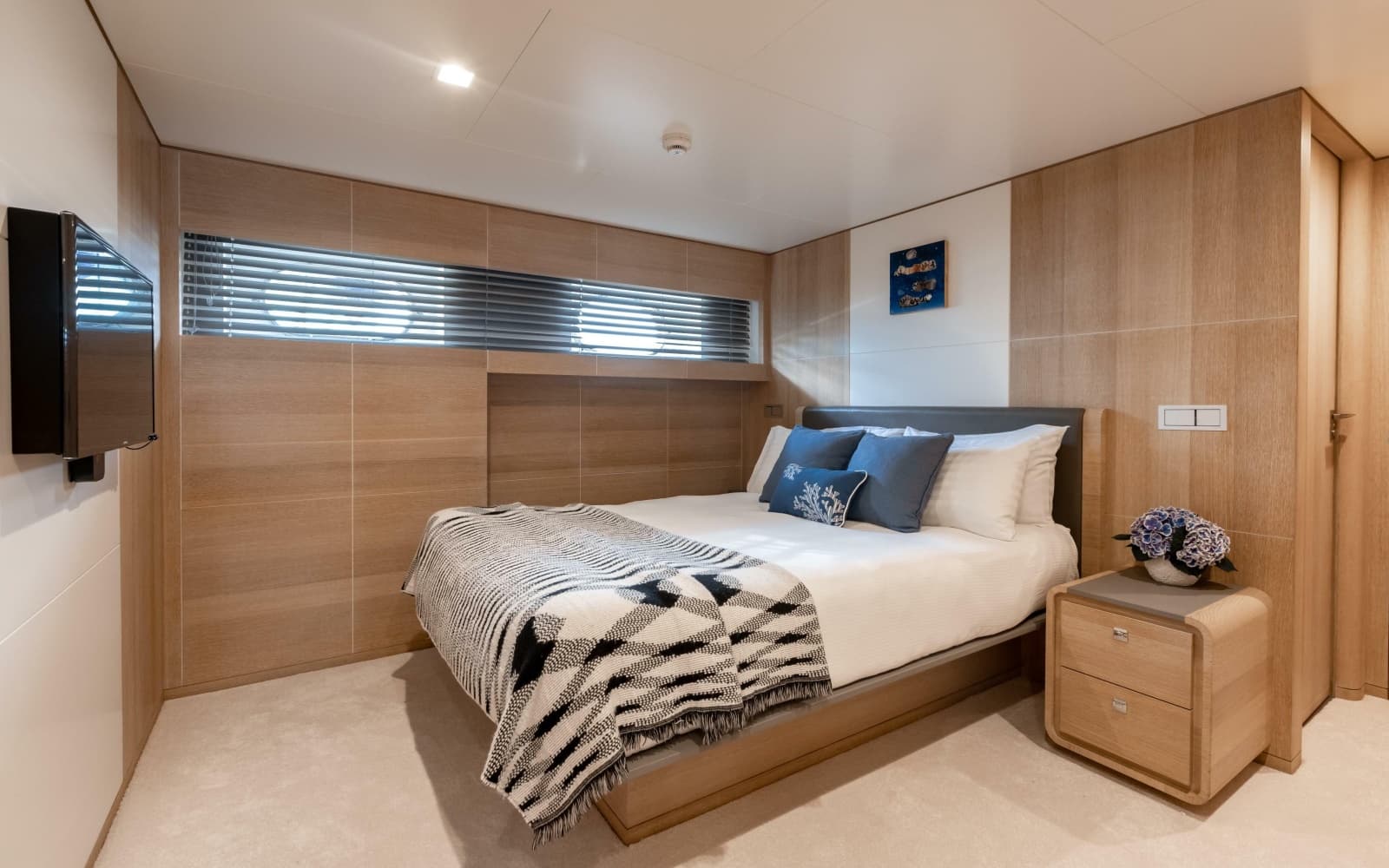

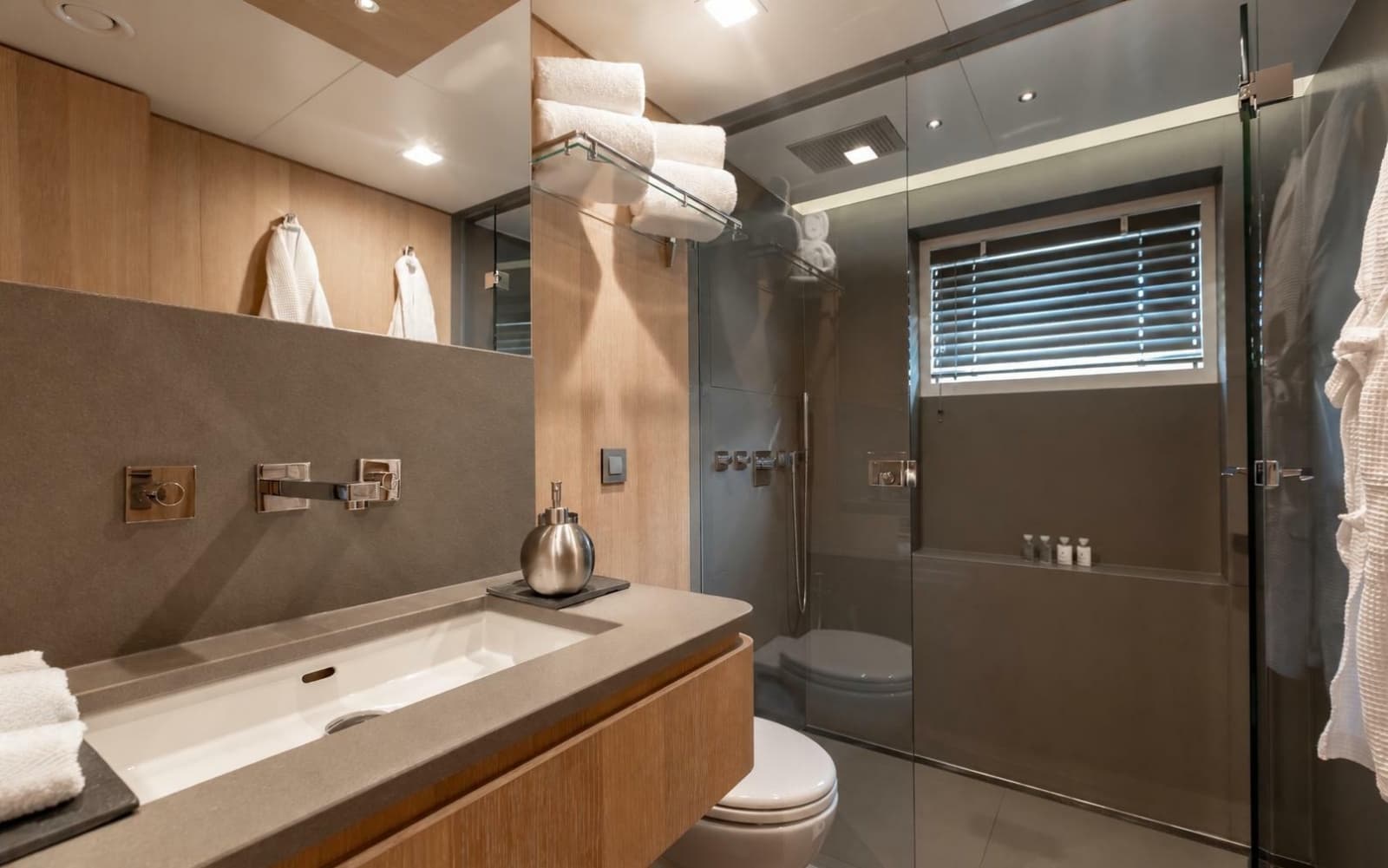

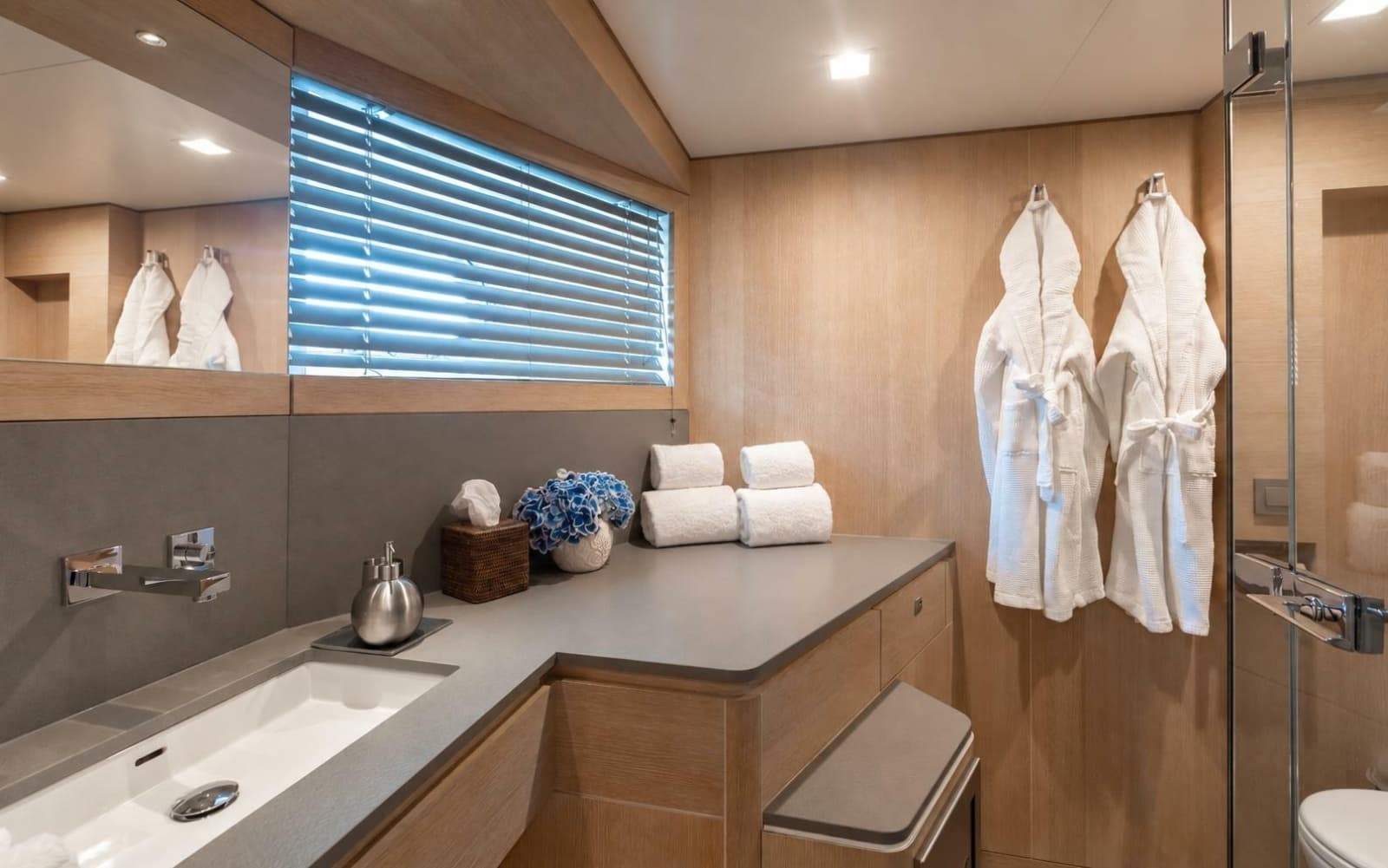

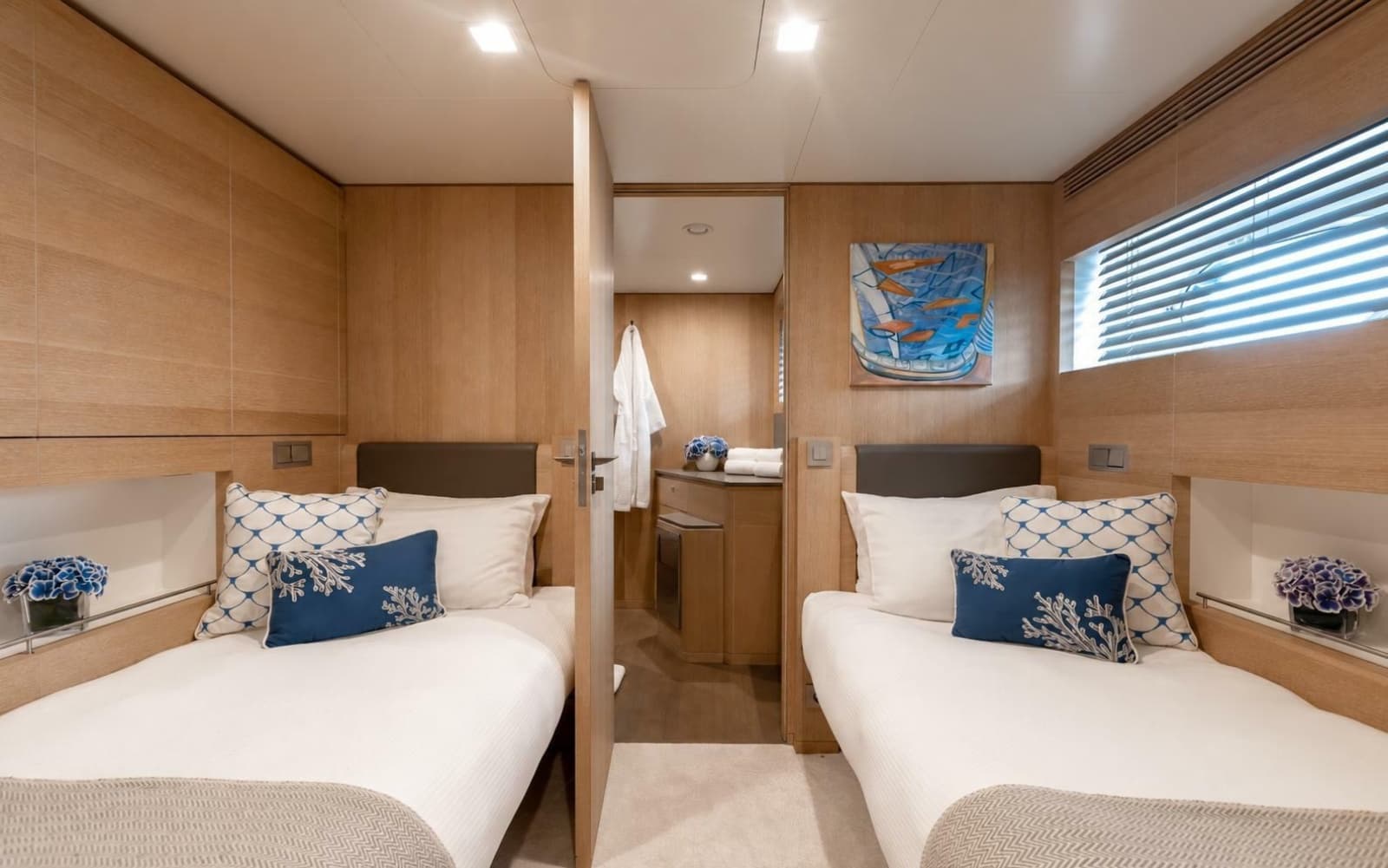

The owner and guest areas are spread across all four decks. Two twin guest staterooms (with a Pullman in each) and two VIP double staterooms are situated aft on the lower deck. All staterooms have their own private ensuite bathroom with shower, toilet and hand basin. In the hallway between the four guest staterooms is a staircase that leads up to the salon on the main deck. The crew area fore of the yacht accommodates 6 crew members in three cabins (2 singles beds in each cabin).

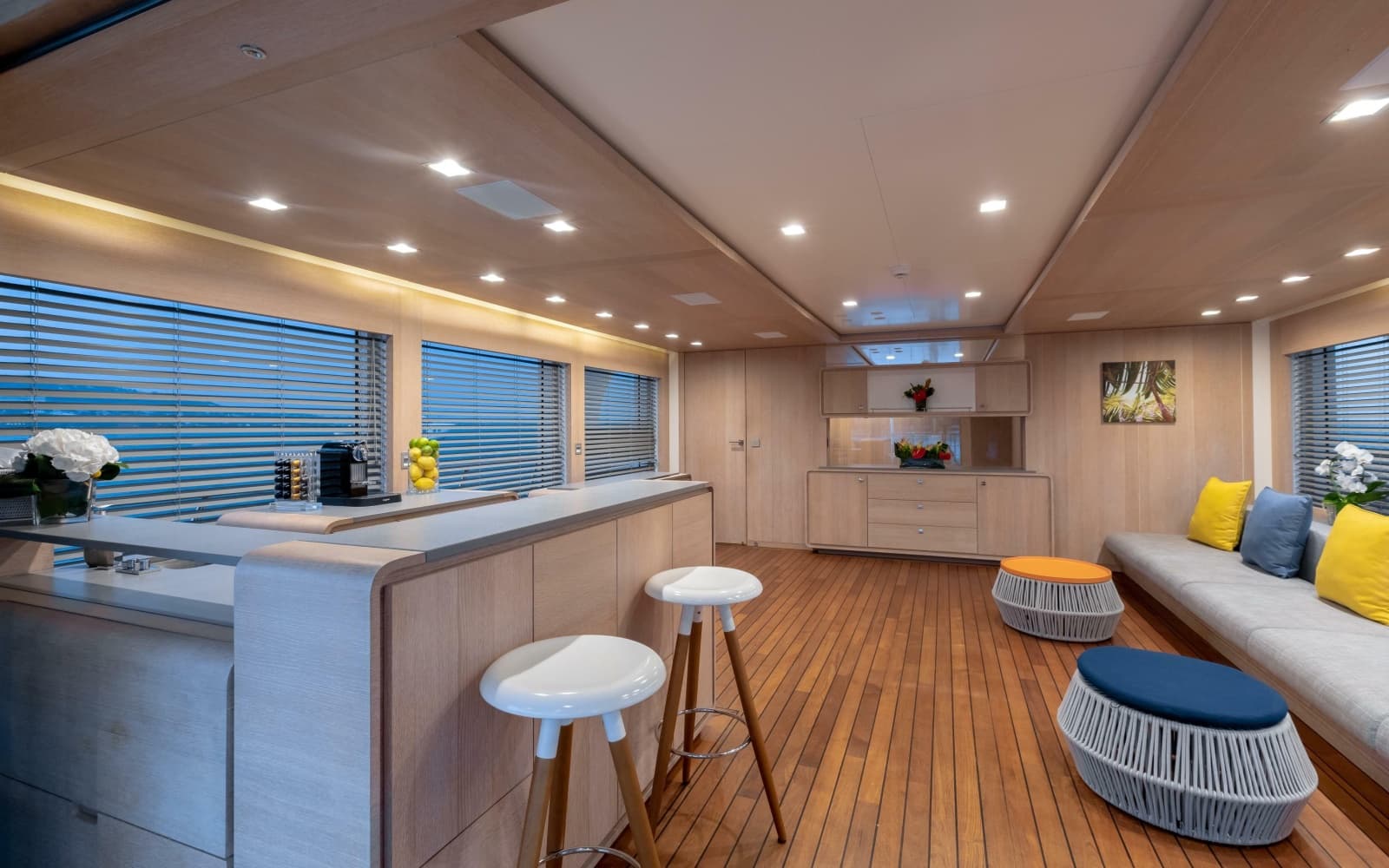

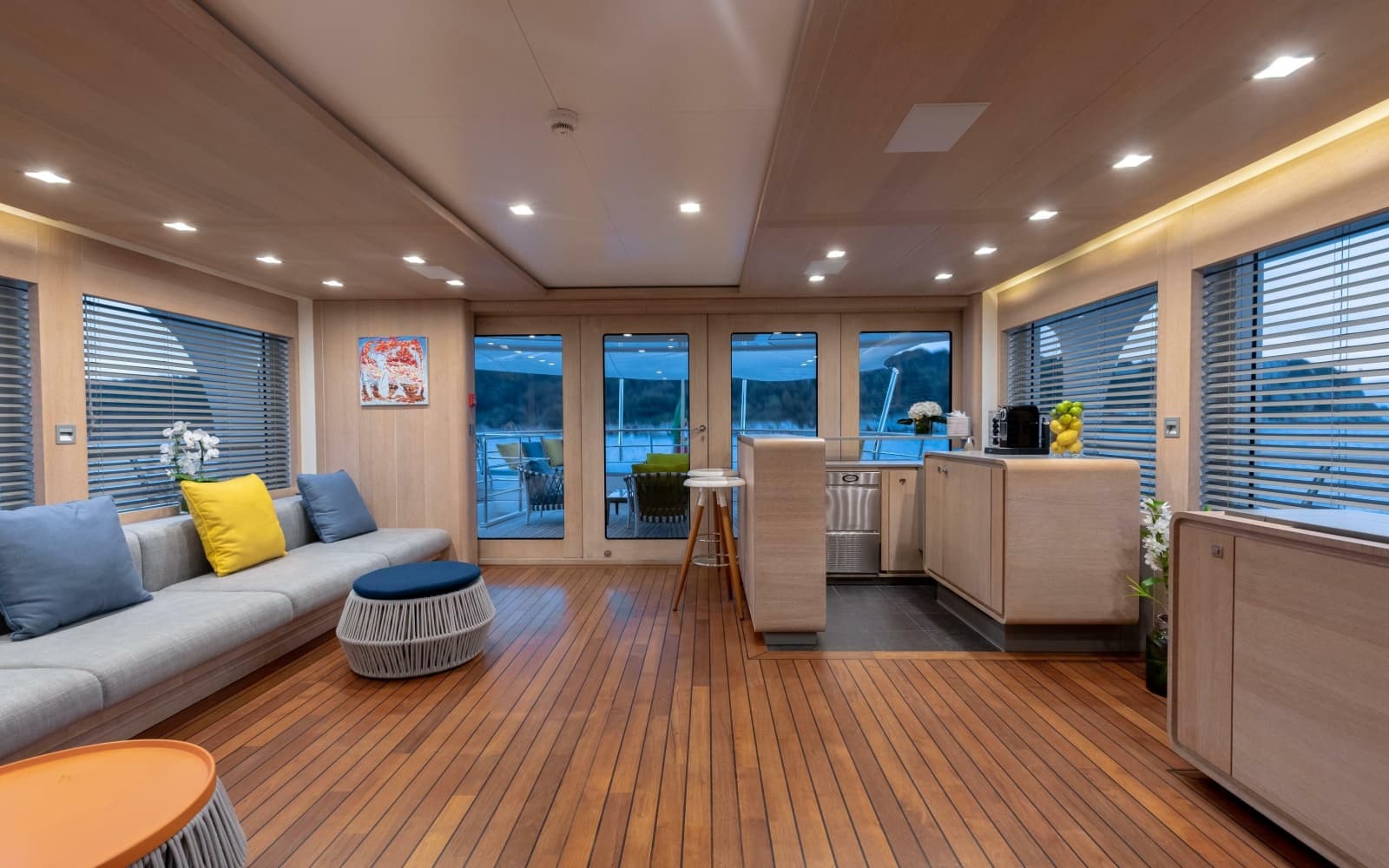

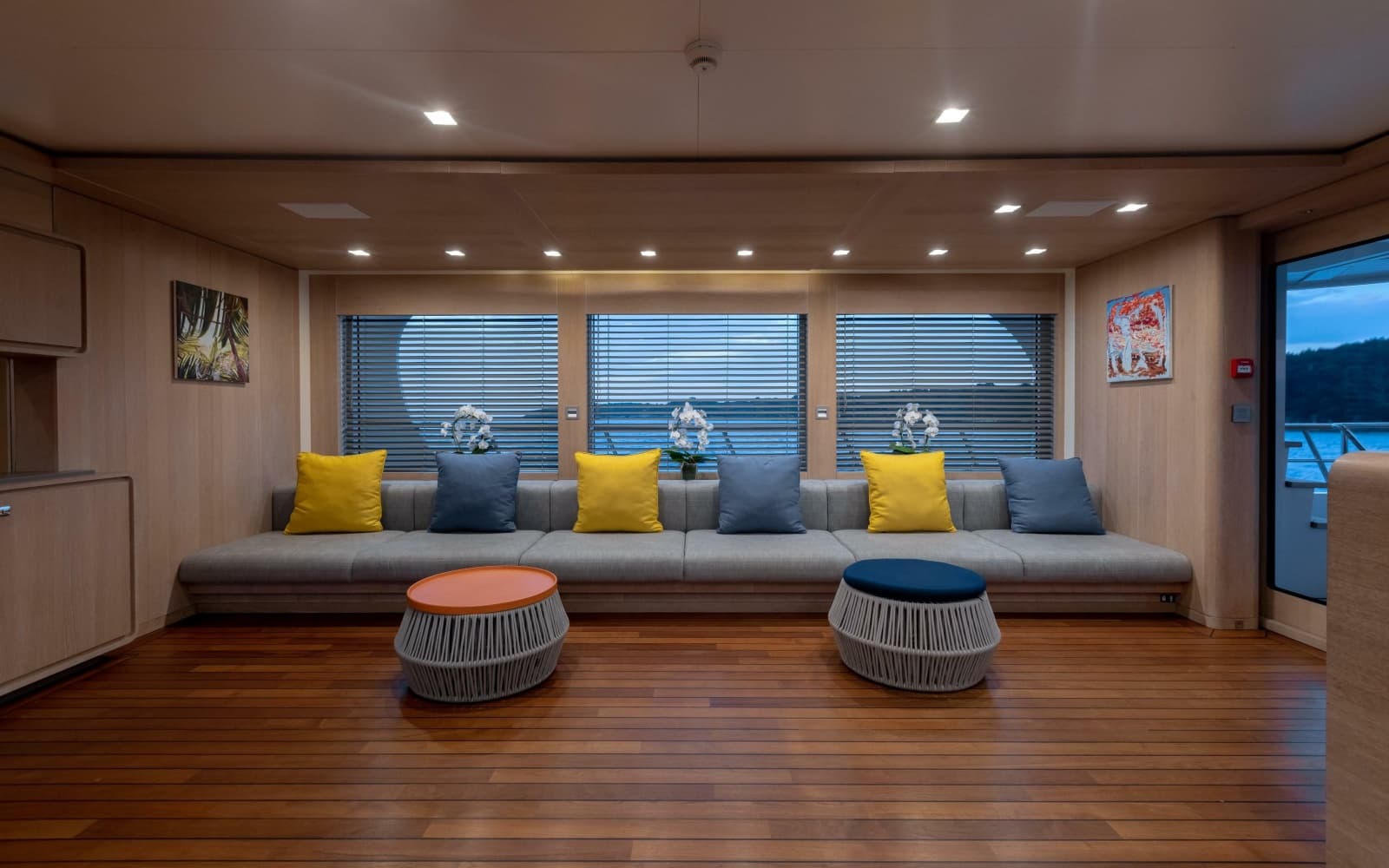

BRIDGE DECK:

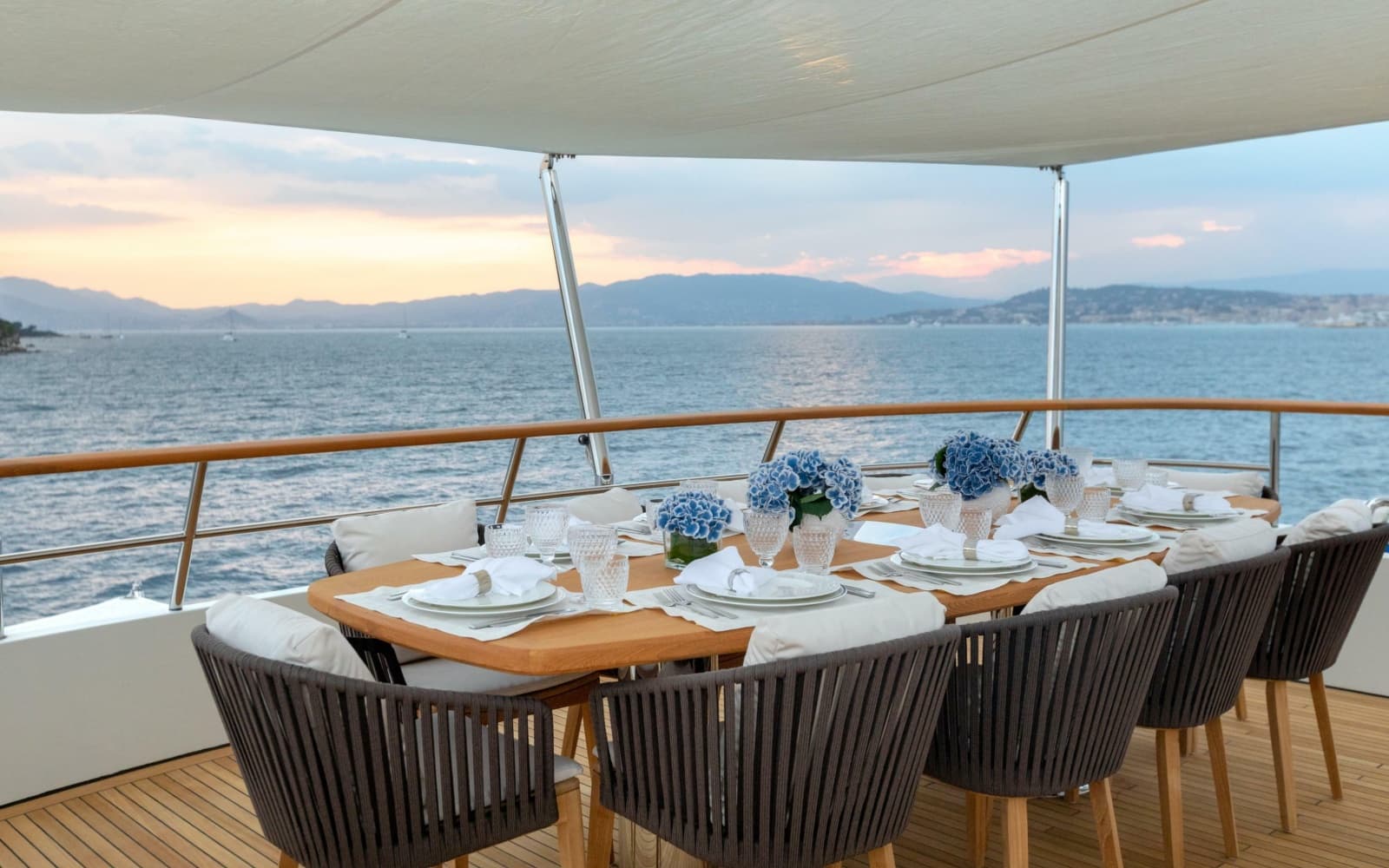

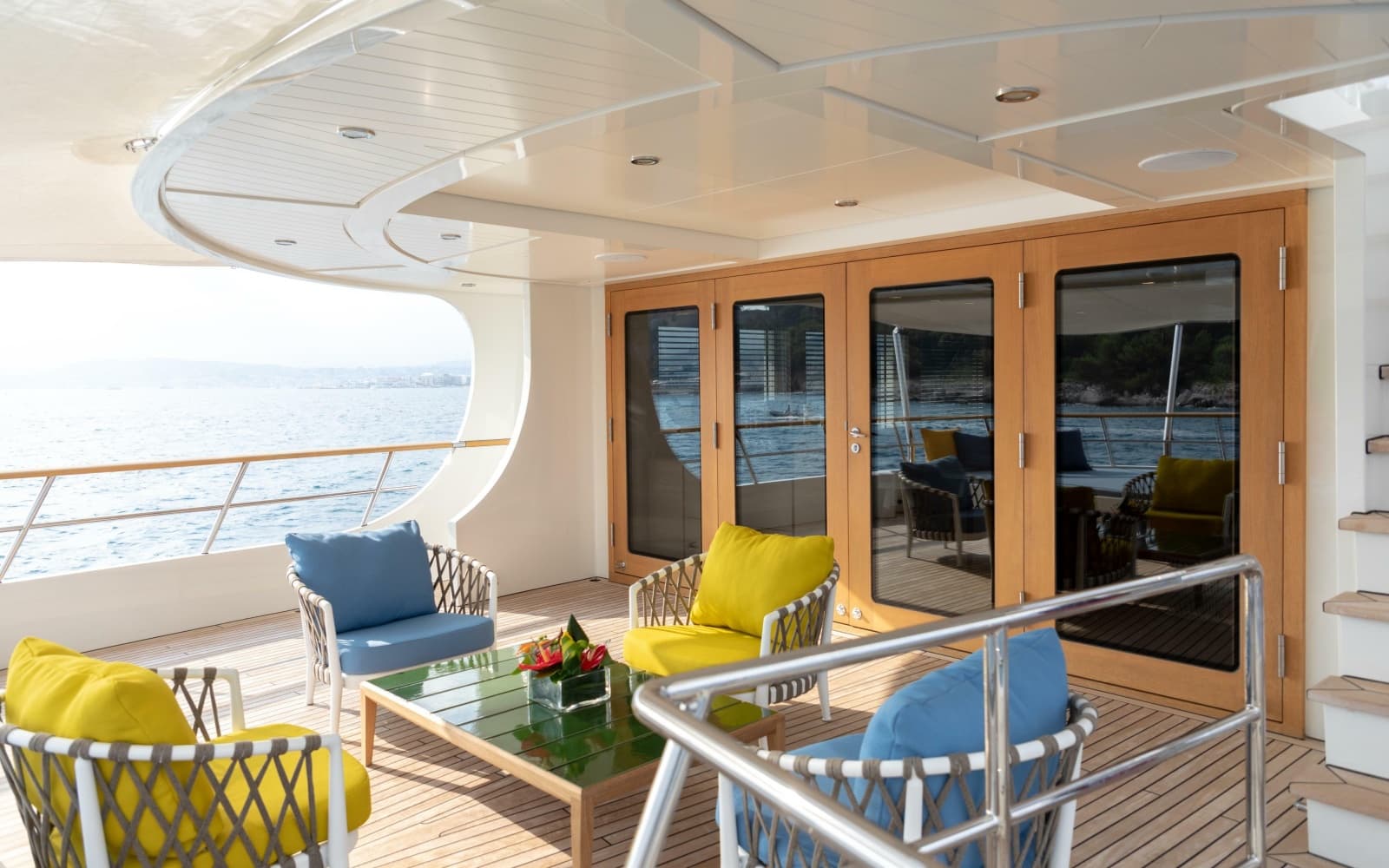

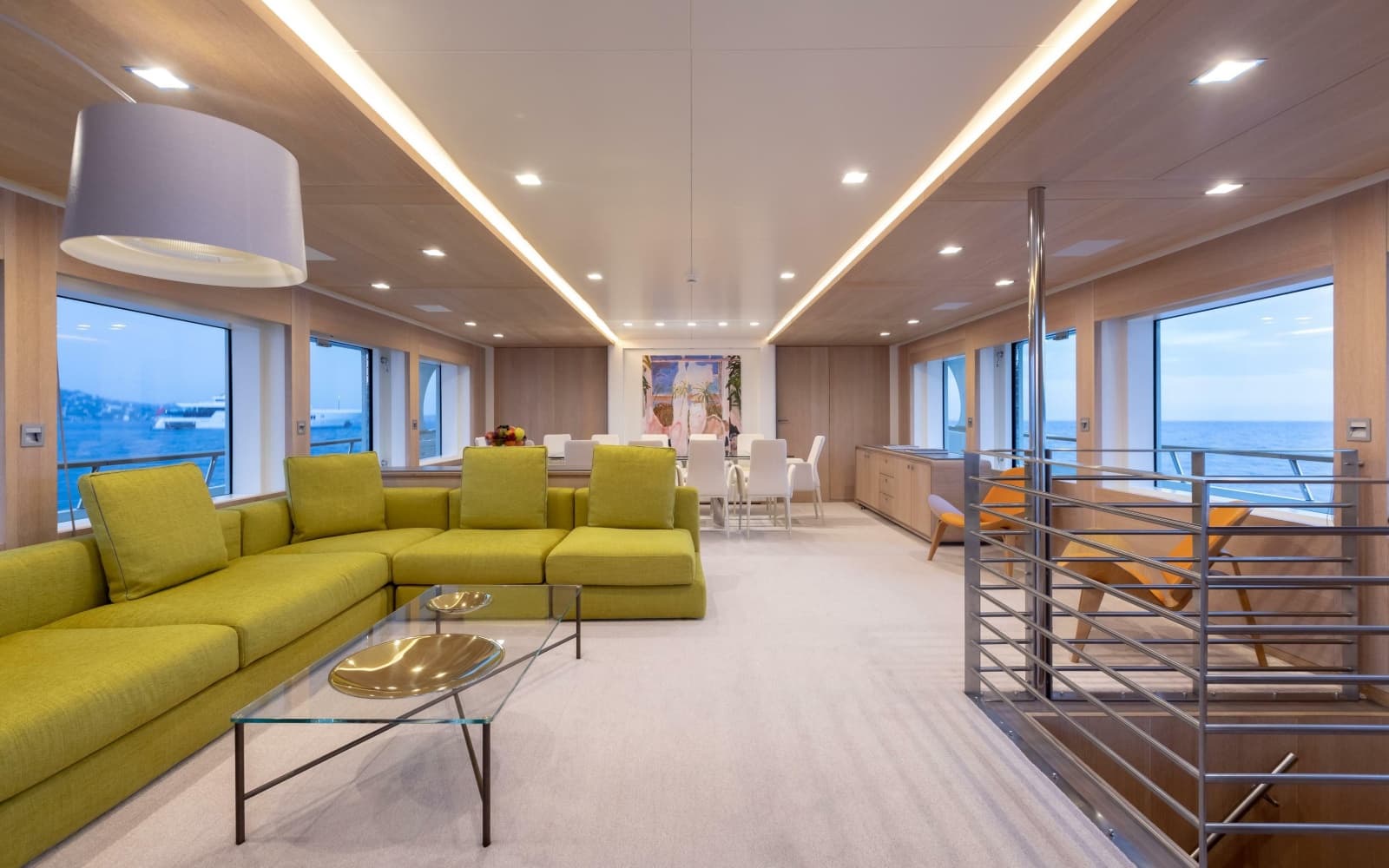

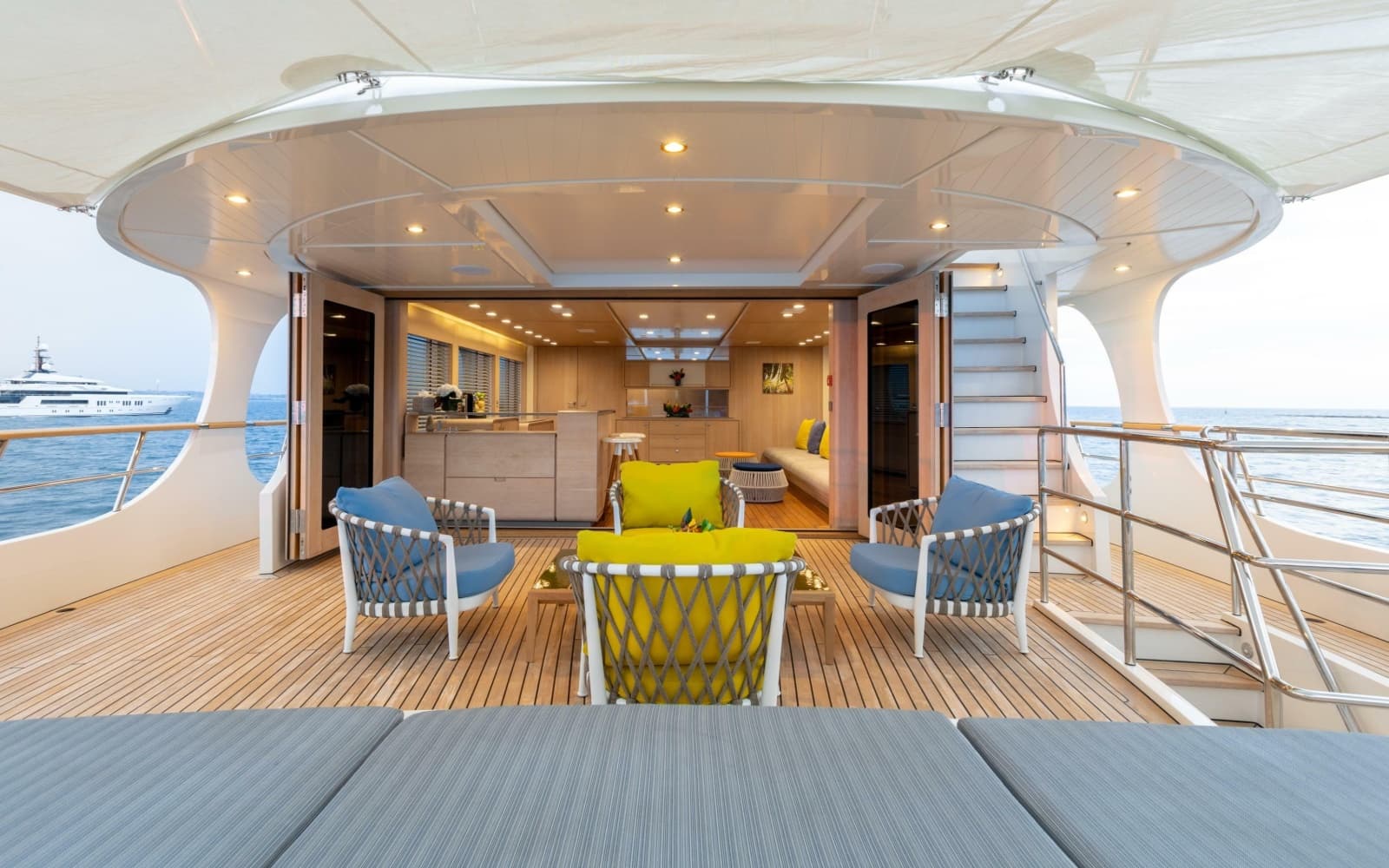

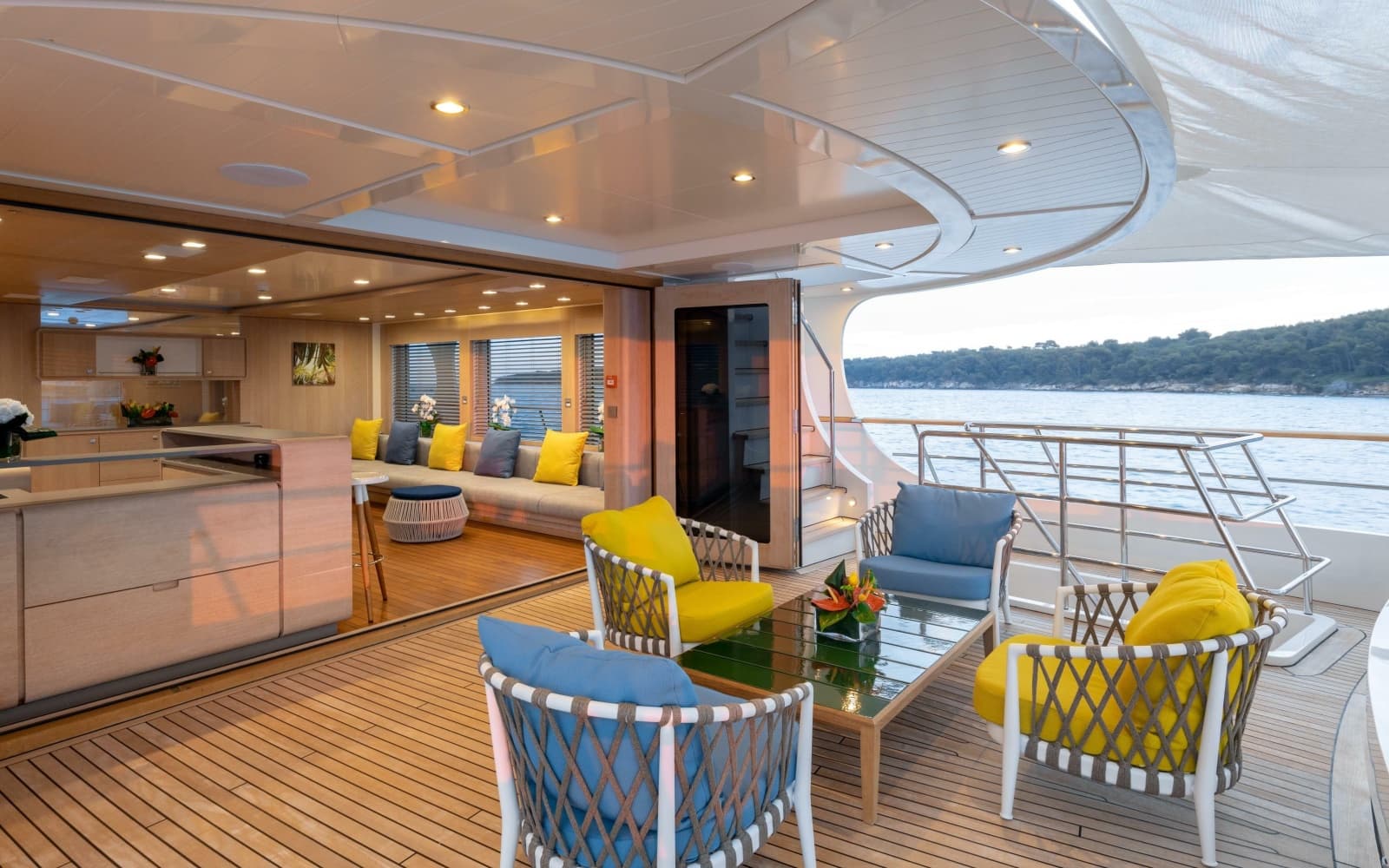

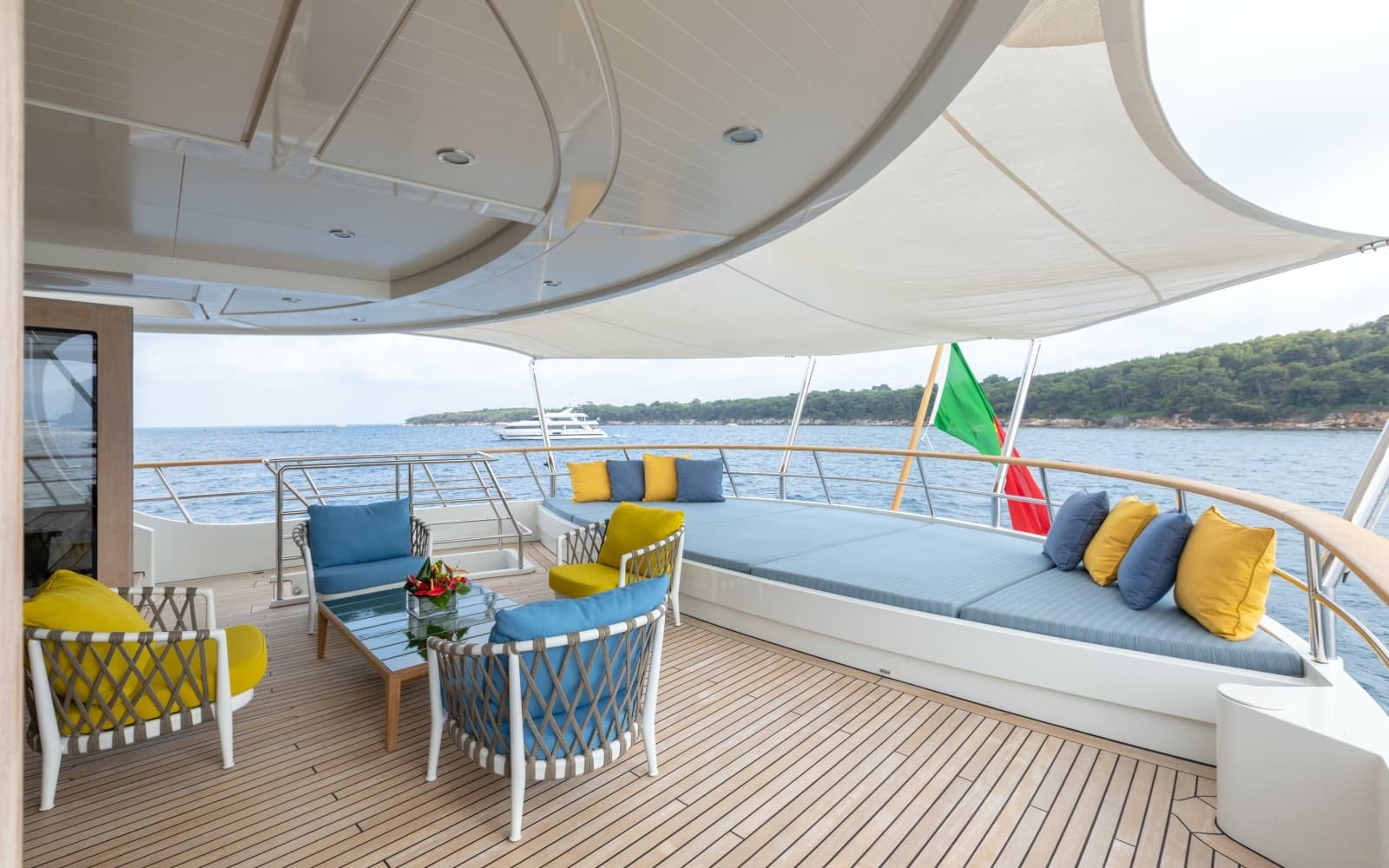

The bridge deck has a large outside area aft, with elegant sofa’s and sun loungers, while inside the Sky lounge is furnished with a bar and another large seating area for guests to relax in. The wheelhouse on the bridge deck is equipped with the latest high-tech equipment guaranteeing safe journeys when underway. Outside fore of the wheelhouse is a cozy seating area and table where one can enjoy perfect panoramic views whether at anchor or underway.

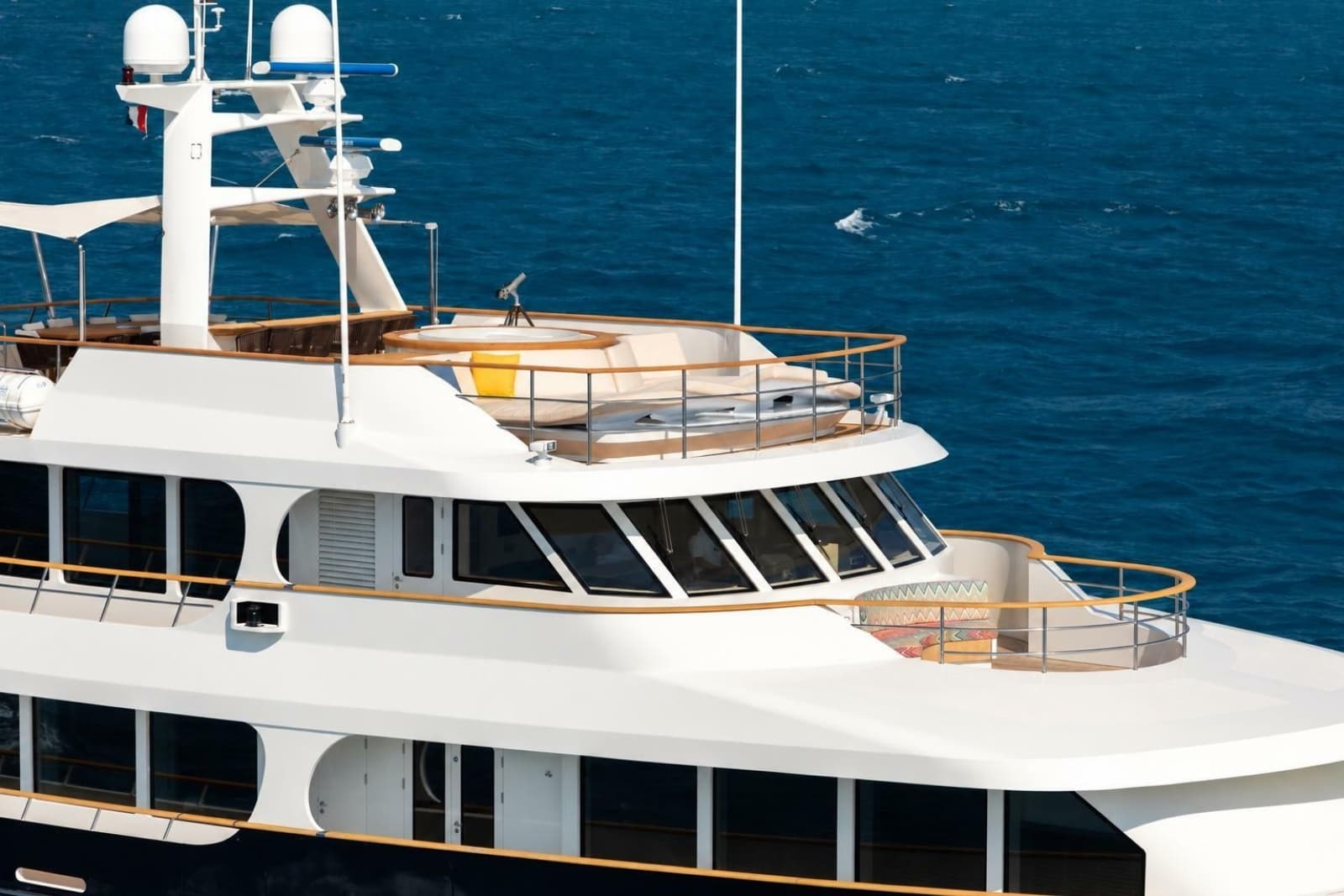

SUN DECK:

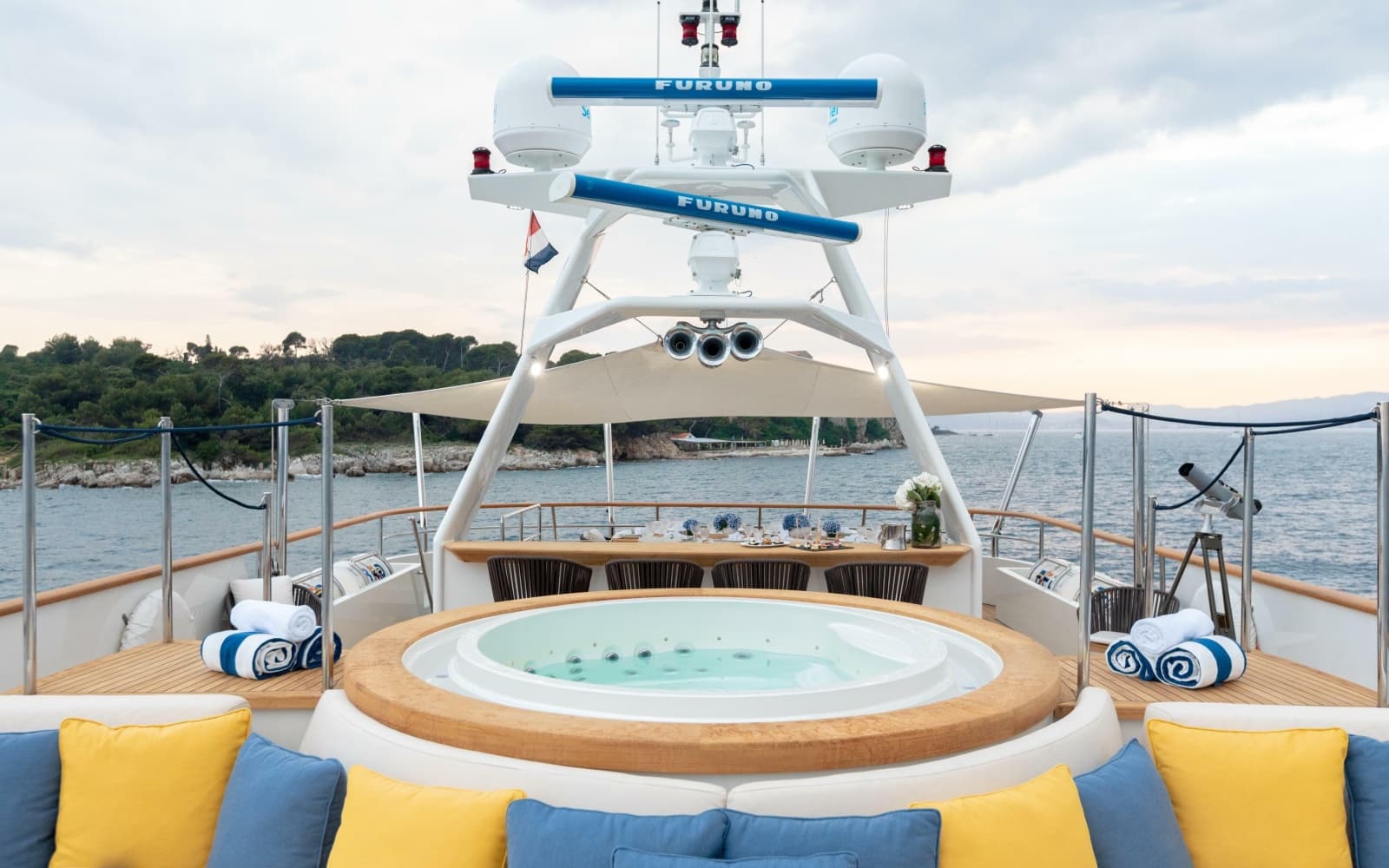

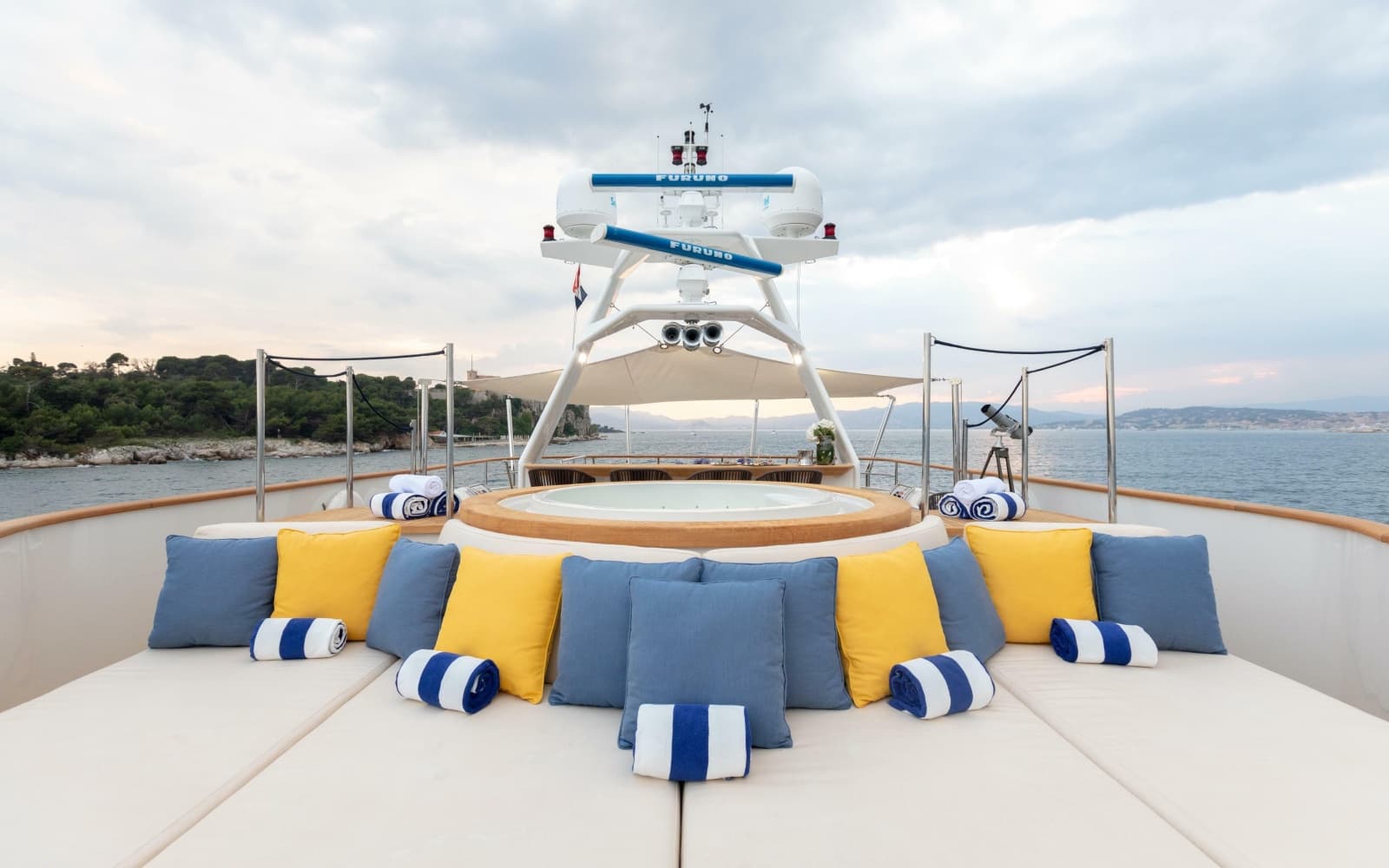

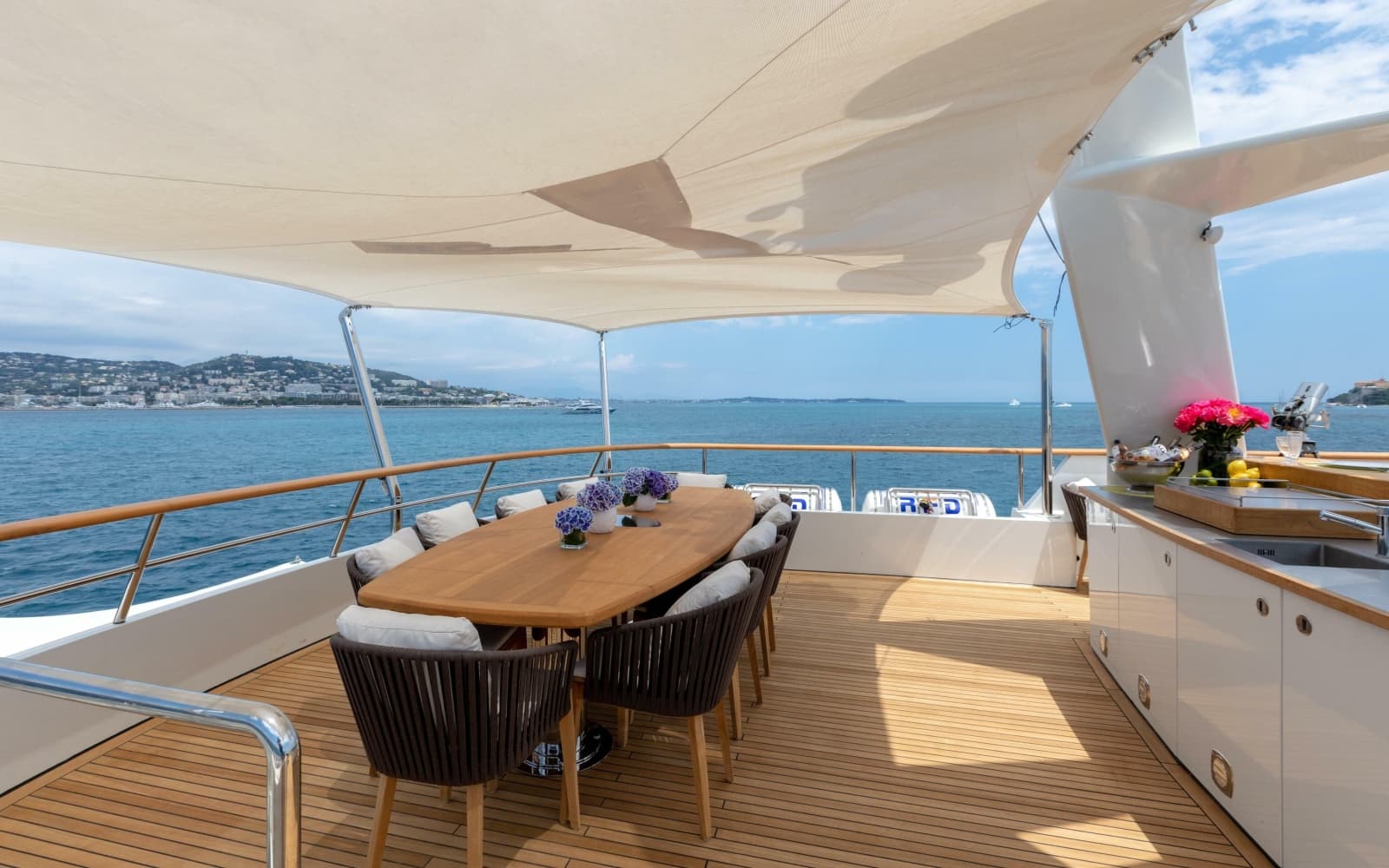

The sun deck is the perfect deck for spending the day in the sun, here there are also several seating areas to choose from. Owners and guests can relax in the sun on one of the sun loungers or look for a cooler place in the shade, there’s something for everyone.

CONSTRUCTION

Hull Material: Steel RINA and RINAVE approved construction

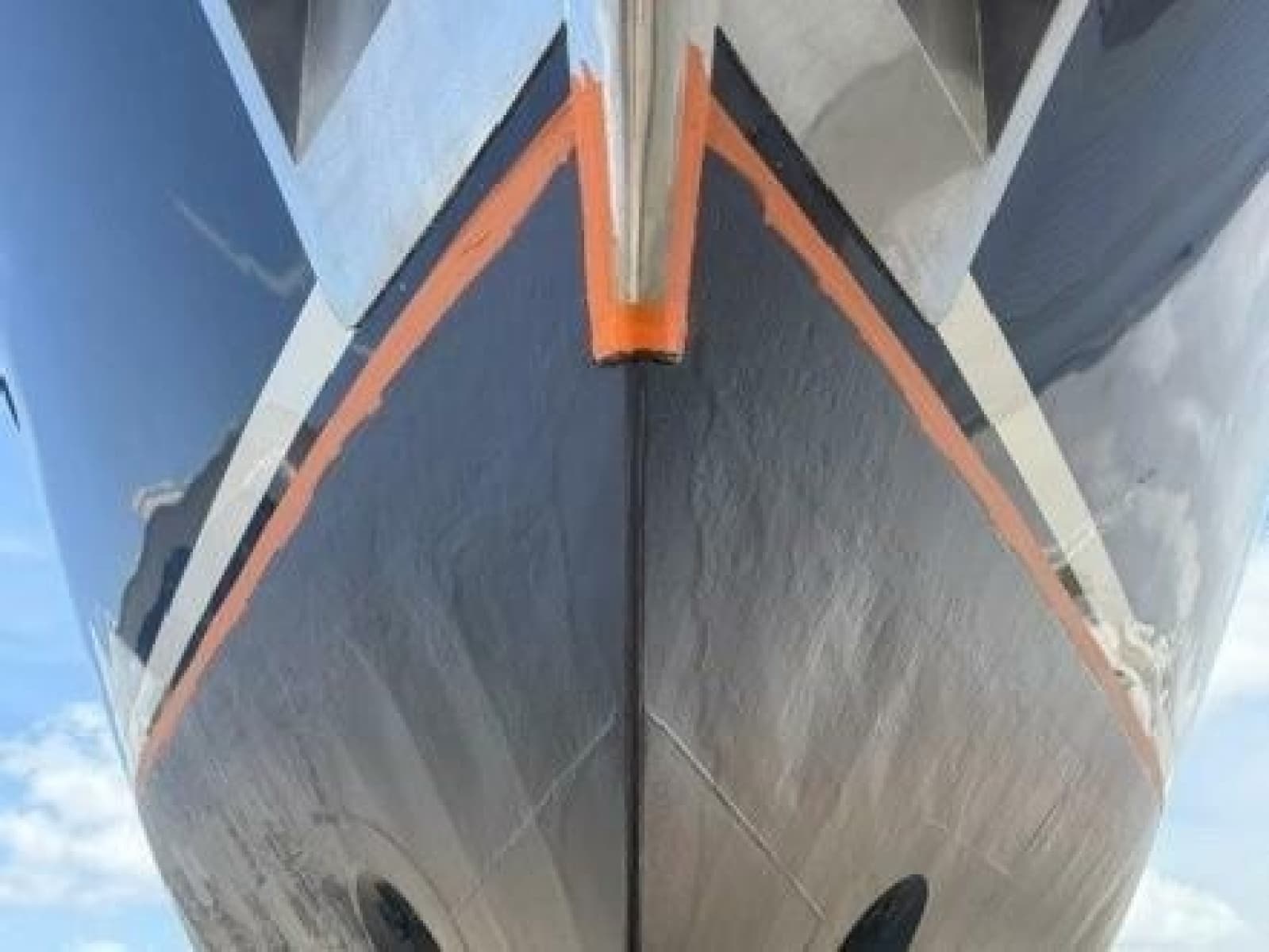

Bulb: Yes

Superstructure Material: Aluminium RINA and RINAVE approved construction

Decks Material: 5MM Steel with Teak overlay

Number of Decks: 4

CAPACITIES

Gross Tonnage: 287 GT

Displacement Tons: 260 T

Fuel Capacity: 30,600 Litres 8,084 Gallons

Fresh Water Capacity: 6,000 Litres 1,585 Gallons

Black Water: 2,600 Litres 687 Gallons

Speed Consumption p/h Range

Maximum: 12.5

Cruising: 11 140 3,200

MAIN MACHINERY

Main Engines: Two Caterpillar C-18 diesel engines, 599 HP / 448 kW each

Engine Hours: Port: 5,465 hours (October 2026)

Starboard: 5,525 hours (October 2026)

Main Engine Rebuilds with less than 100 hrs Running Hours Since Rebuild 2026

Propulsion Type: Inboard

Engine Controls: ZF Electronic

Engines Exhaust System: Stainless riser to muffler, crossover pipe, spray ring, butterfly valve, and steel elbow below waterline

Gear Boxes: Reinjes WAF2642; gearbox ratio 4.5:1

Shafting: Steel pipe

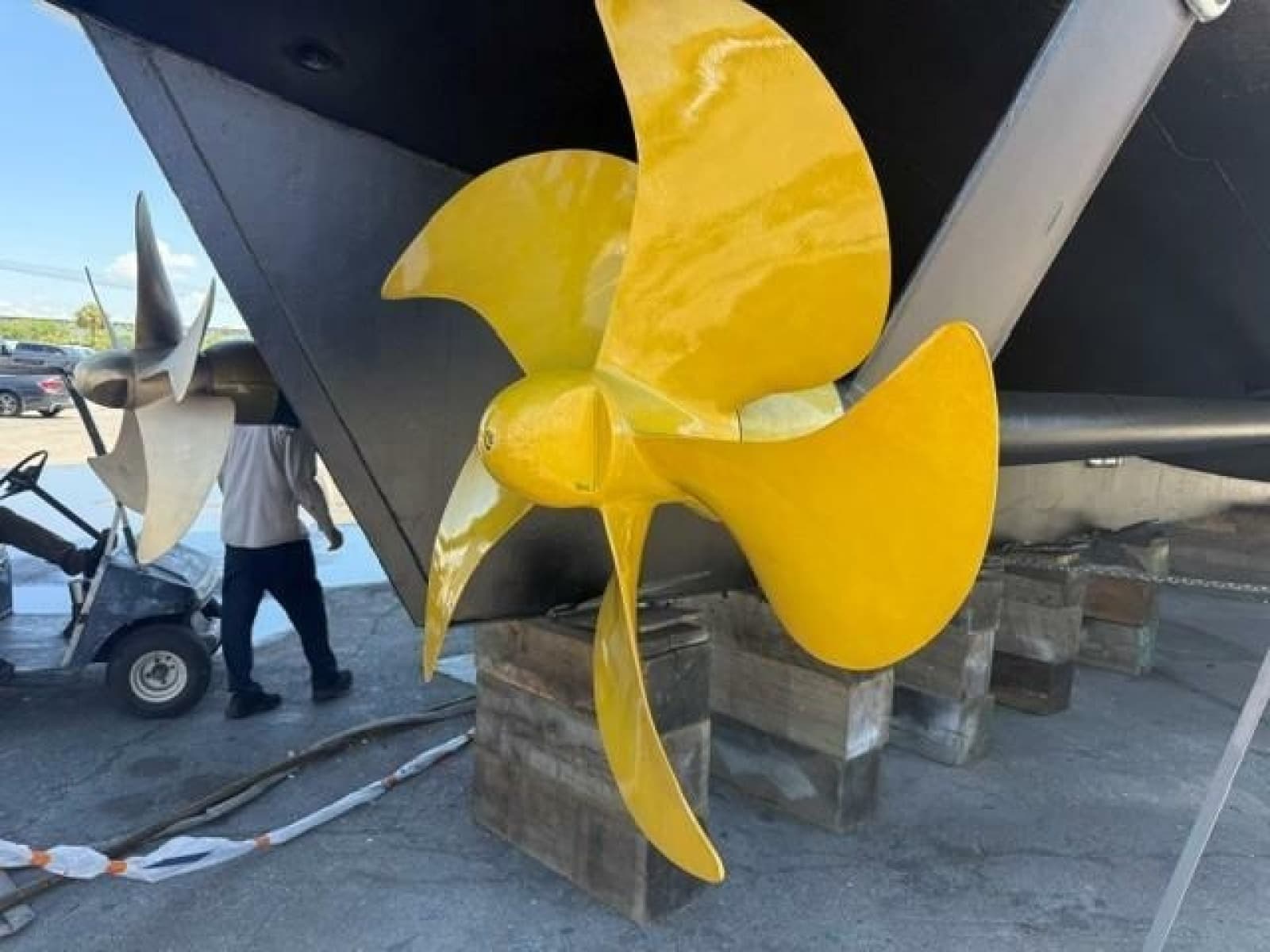

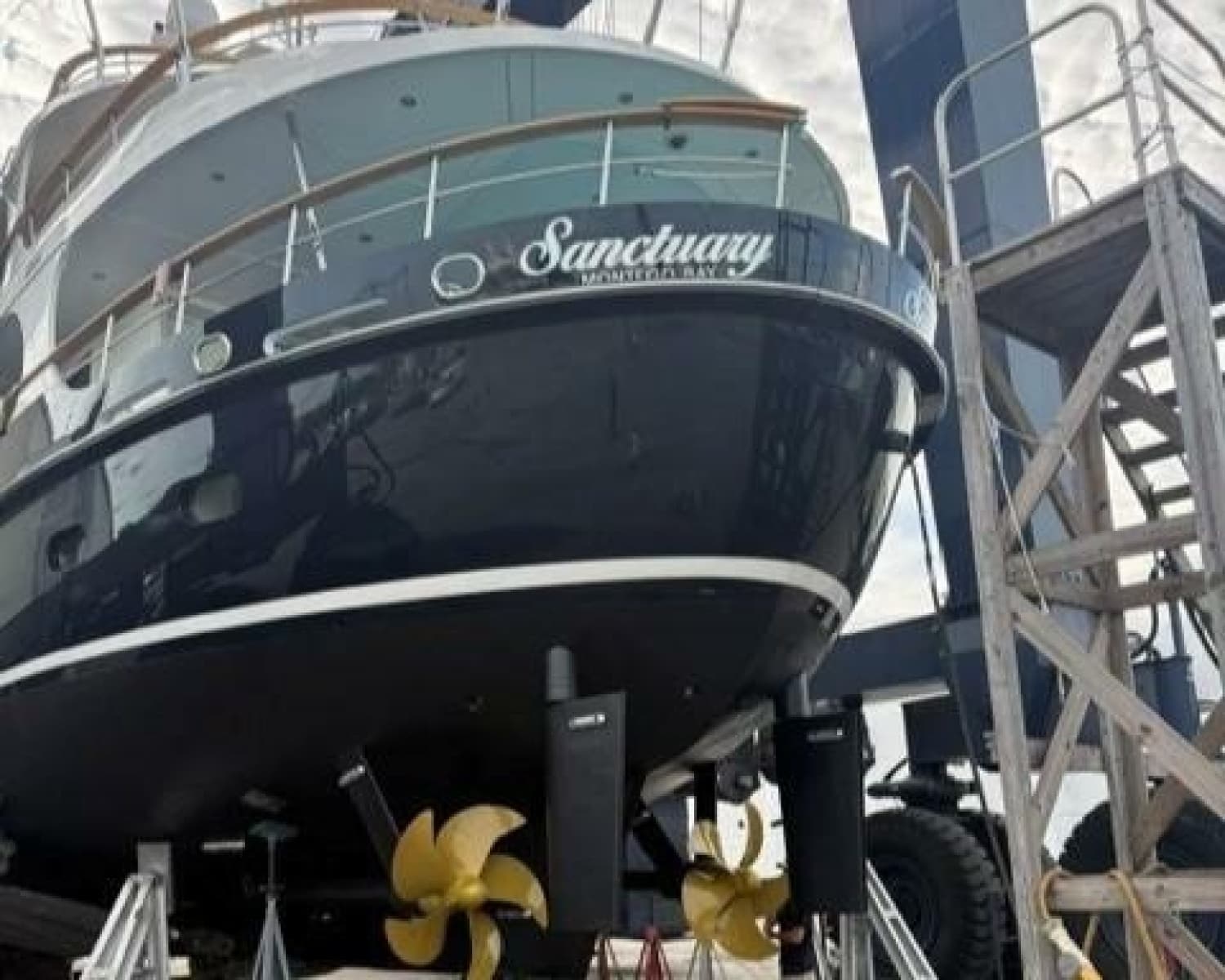

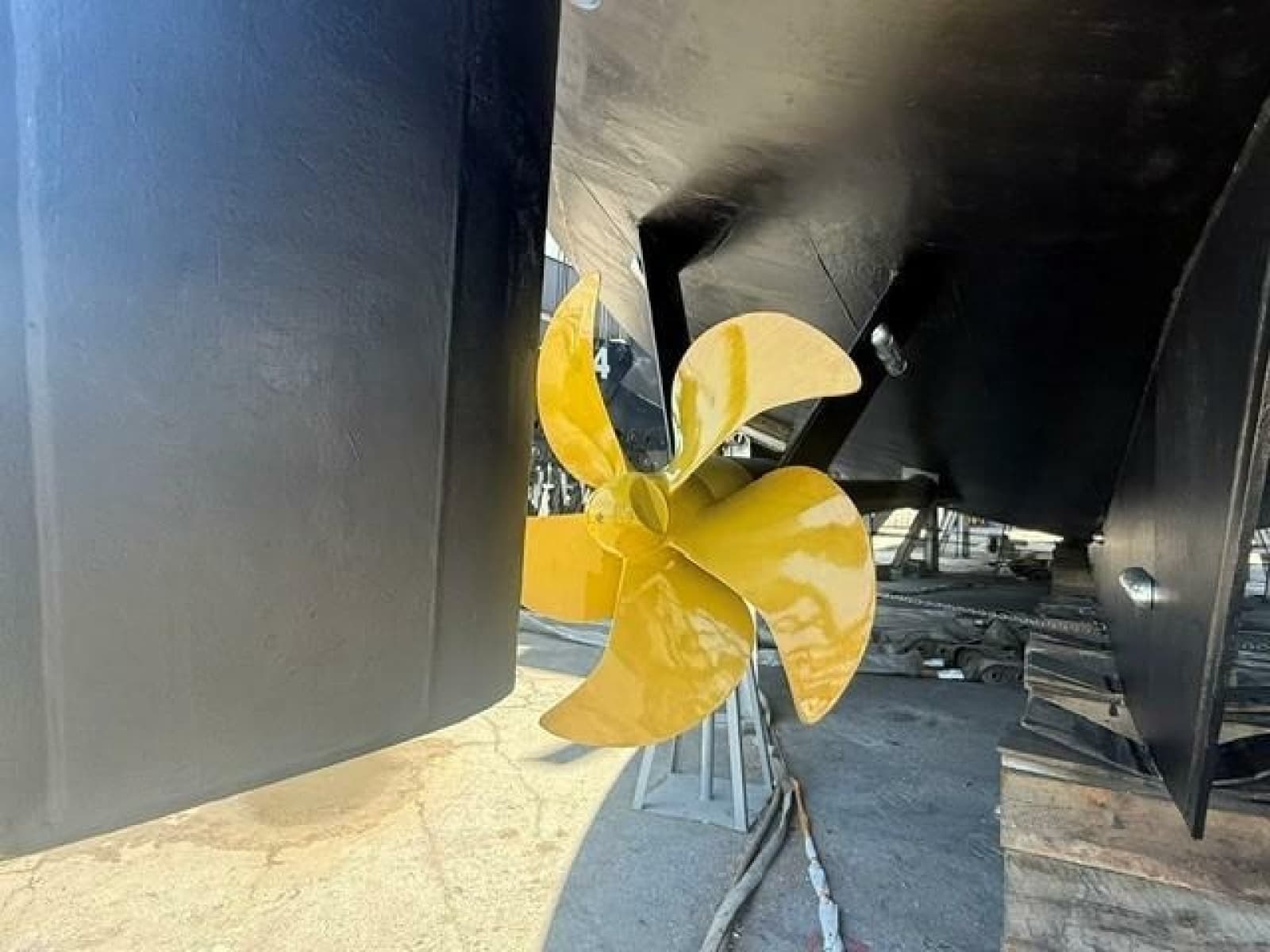

Propellers: 2 x Nibral 1300 x 1448

Engine Ventilation: One 220-volt variable-speed directional blower on port side; engine room and bilge ventilation adequate

GENERATORS & ELECTRICITY

Output/Electricity: 400 volts; 52 kW each

Generators: 2 x Caterpillar 3054C diesel

Generator Hours: Port: 14,866 hours (October 2026)

Starboard: 12,974 hours (October 2026)

Generator Exhaust System: Stainless riser to pipe, wet tail, hose, Aqua Lift-style muffler, hose to hull side

Shore Power Converter: Atlas Shore Power SPA-II

Batteries: Electronics: 4 x 12-volt batteries for 24-volt system

Radio: 2 x 12-volt batteries for 24-volt

Foredeck crane: 2 x 12-volt batteries

Battery Chargers: 2 x Victron 24V/100A

Victron 12V/7A

2 x Victron 24V/50A

AUXILIARY MACHINERY

Steering System: LYNX/Agdrosta N BV Hydraulic

Steering Gear: LYNX/Agdrosta N BV Hydraulic

Emergency Steering: Lecomble & Schmitt

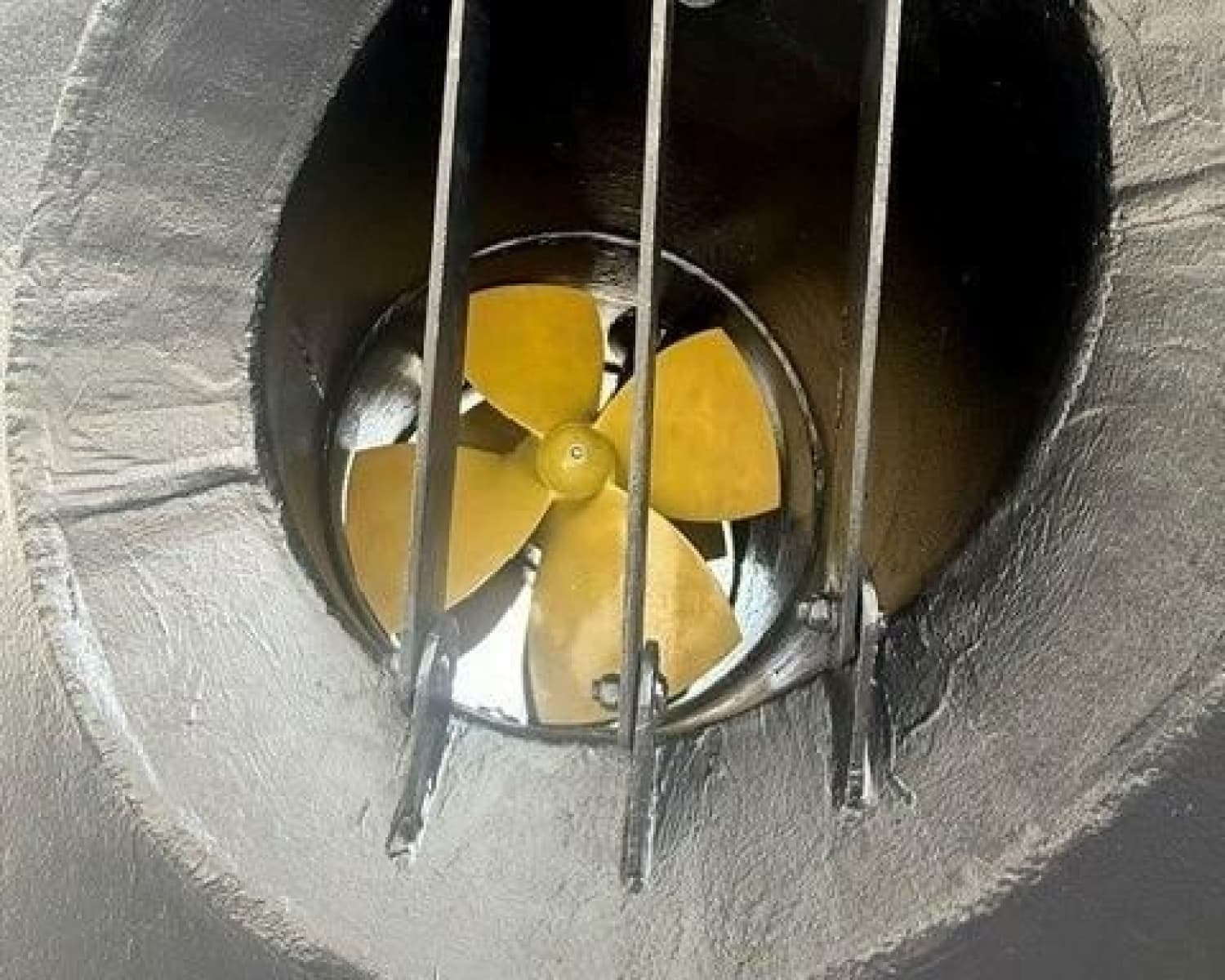

Bow Thruster: Naiad

Stabilizers: Naiad - Zero speed 520 ship roll

Under Water Lights: Eight: four aft and four under starboard platform area

Helm/Wing Station Controls: Portable control panel with tether line for placement at either port or starboard side of bridge deck

ZF Electronics

FUEL & OIL SYSTEM

Fuel Filters: Primary: 2 x Racor

Secondary: Caterpillar

Fuel Pump: Luitec SK 3302 LA 1340

Fuel Oil Separator: Westfalia DTC2-02-137 MDO Separator

Fuel Transfer Pump: 400V pump and manual pump

Oil Cleaner: Westfalia

Dirty Oil Pump: Manual pump - Handpump for Main engines + DG pumps only

Sewage System: Hamann HL-cont Plus 02 Slim

FIREFIGHTING & BILGE SYSTEM

Firefighting & Bilge Pump: Bilge Pump System: 400V - 6 Pickups

Fire Pump System: 400V - 4 Station

FRESH WATER SYSTEM

Fresh Water Makers: Two Aqua Whisper DX units 300 litres per hour each

Fresh Water Filters: Refiner 350

Fresh Water Heater: ACV ETECH 15 Tri + 2x 200l boilers

Fresh Water Pump: Luitec SK 3302 LA 1340

Fresh Water Treatment: AG - Sterilizer

Hot & Cold Circulation Pump: ACV E-Tech continuous circulating system

Hot Water Boilers: ACV E-Tech

AC & VENTILATION SYSTEM

Air Conditioning: Dometic 3 x compressors: 180,000 BTU / 15 tons

Air Compressor: 2 x Casper

Provision Refrigeration: 2 x large side-by-side Liebherr refrigerators

2 x small Liebherr refrigerators

1 x under-counter Liebherr refrigerator

Engine Room AC: 1 x 220-volt variable-speed directional blower on port side

Galley Ventilation & Extraction: Blower over Miele stove

RIGGING

Masts: Aluminum signal mast and/or yardarm

Winches: FEEBE DC25, SWL 600 kg

NAVIGATION & COMMUNICATION SYSTEMS

NAVIGATION SYSTEMS

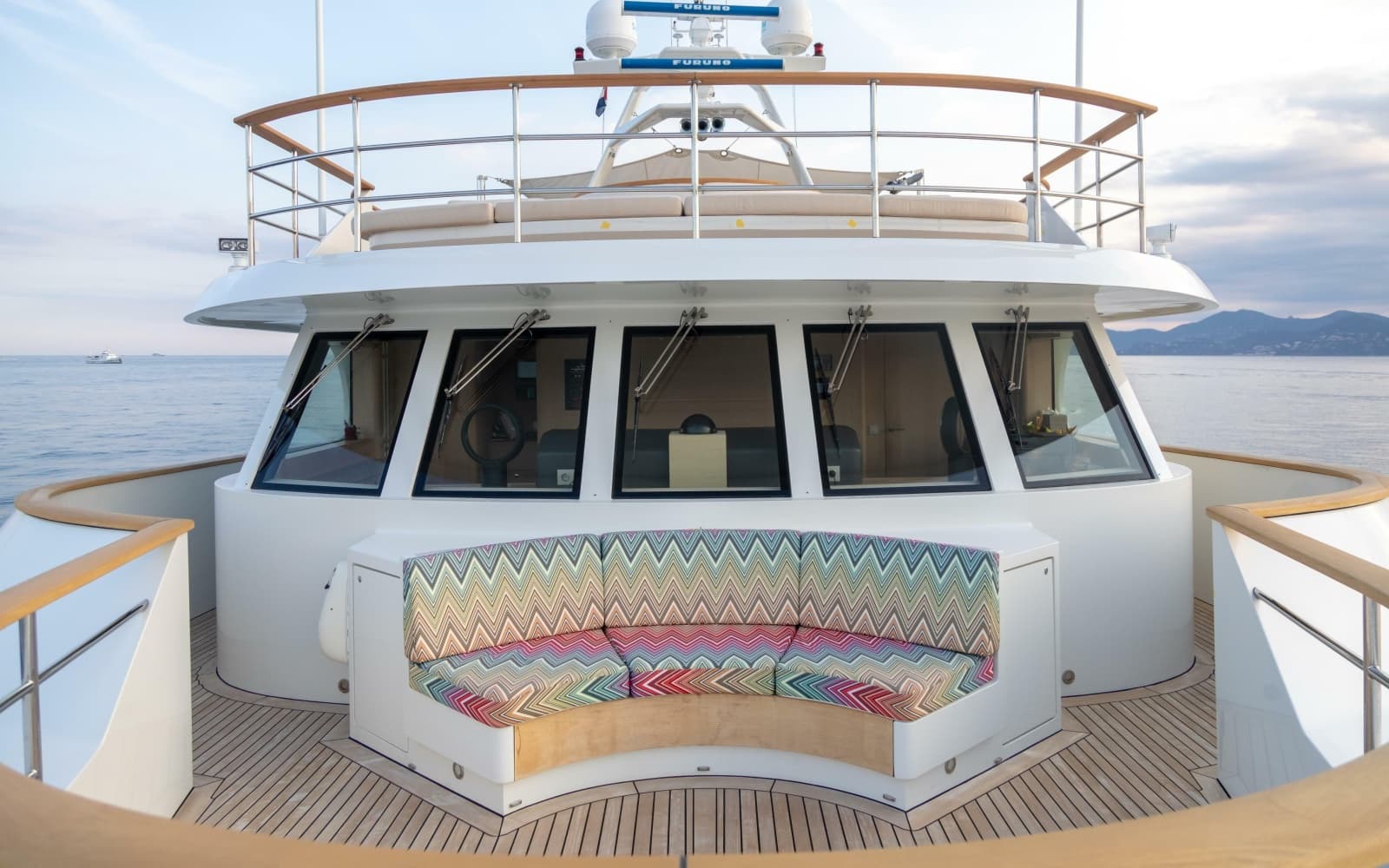

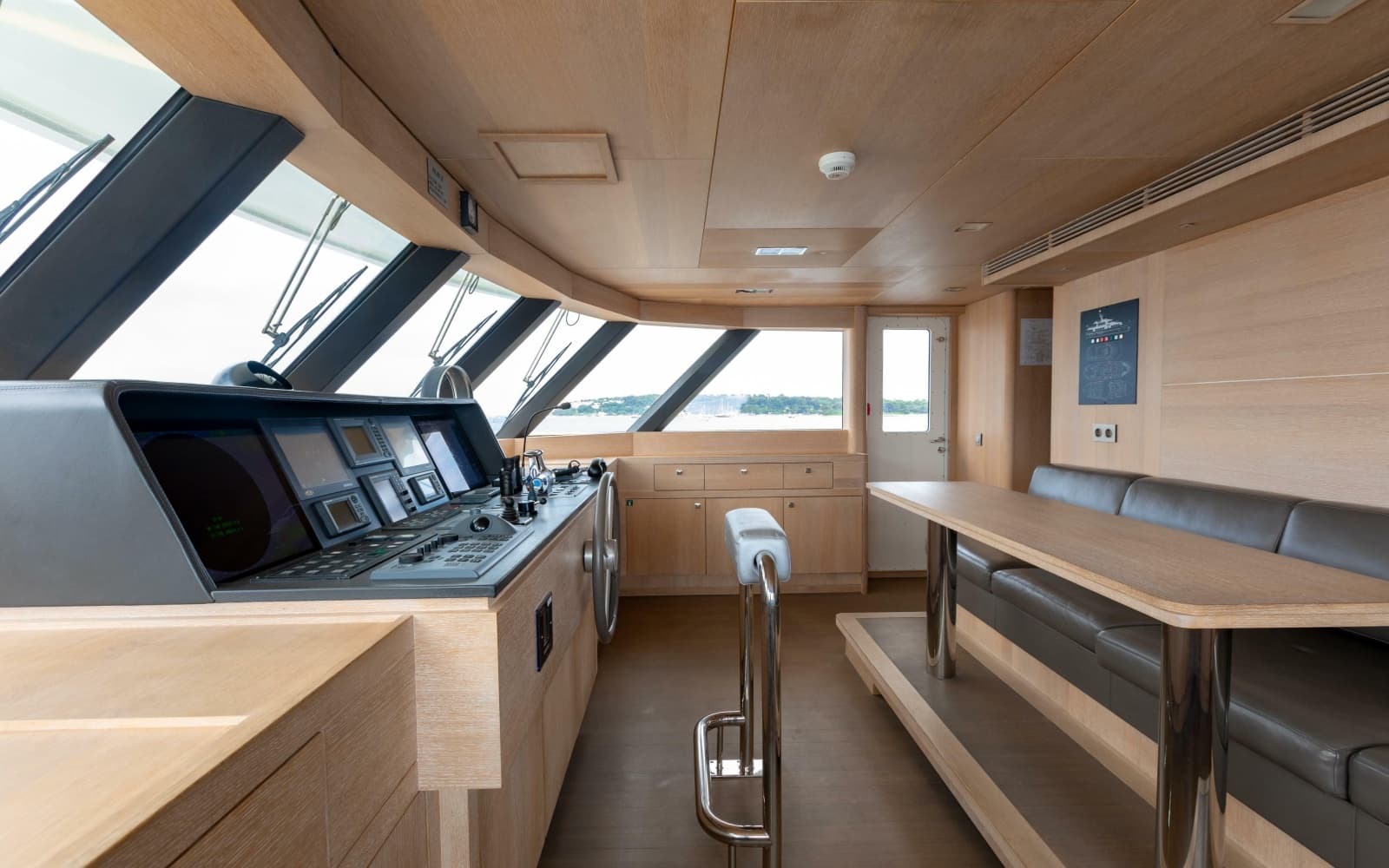

Navigation Bridge: Pilothouse / bridge deck

Monitors: 2 x 19-inch menu monitors

Radar: Furuno, RCU / 014

Multifunctional Workstation: Nobel Tech on 19-inch monitor

Chart Plotter: Time Zero on 19-inch menu monitor (October 2025)

Magnetic Compass: 7-inch Cassen & Plath

Gyrocompass: Simrad GC-80 (March 2026)

Auto Pilot: Simrad AP-70 Mk2 (March 2026)

Rudder Angle Indicator System: Noris Analog

Echo Sounder: Furuno Echo FE-700

Speed Log: Furuno Doppler DS-80

Depth Sounder: Furuno Echo FE-700

Video Sounder: Furuno Echo FE-700

GMDSS: Jotron TR20

DGPS: Furuno GP150

GPS: Furuno GP-150

AIS: Furuno FA-150 Automatic Ship ID System (SIS)

Navtex: Furuno NX-700

Wind Instruments: Furuno FI-50

Horn: Kahlenberg Triple Trumpet

Spotlights: Two Sanshin HR-1012

Bridge Navigation Watch Alarm: Net Logic Watch Keeper

Ships Computer: Nobel Tech on 19-inch monitor

COMMUNICATION SYSTEMS

SAT com: Starlink

VSAT: Starlink

SART: Safe Sea 5100

VHF Radiotelephones: Sailor 6222 VHF

Intercom – Talk Back: Vingtor crew intercom: 10-station system with seven stations

INMARSAT: Sailor 6110

DECK MACHINERY & EQUIPMENT

Anchors: 2 x Pool N HHP 180kg each Navy Style

Anchor Chains: 2x 140 m U2 16mm stud link - All chain rode

Bollards: 4 x Stainless steel on aft deck

4 x Stainless steel on foredeck

Anchor Windlass System: 2 x Muir vertical wildcats and capstans with brake systems

Cranes: Garage overhead launch horizontal crane to starboard hull side

Warping Capstans: 2 x Muir type Q2102-D04 capstans on aft deck

Ground Tackle: Two Navy Style 180 kg anchors with all chain rode

Cleats: Stainless Steel

Davits: 1x Feebe DC 25 SWL 600kg fixed on foredeck

1x Atlas 2000

Gangway: Feebe hydraulic

Passerelle: Yes

Side Boarding Ladder: Seven-step stainless Tide Rider, starboard-side gangway

Stern Boarding Gangway: Passerelle bulwark gate

Swimming Ladder: Vertical four-step stainless

SAFETY, SECURITY, & FIREFIGHTING EQUIPMENT

CCTV: Engine room and main deck aft cameras

Monitors: Personal iPad app

Ship’s Safe: Pilothouse

Fire Suppression: NOVEC system for ER

Fire Pumps: Johnson Fres65-155

Fixed Firefighting System: Engine room: FM200 - 121 kg

Firefighting Equipment: Portable extinguishers: 10 × 2 kg DC powder

2 × 6 kg DC dry powder

1 × 9 kg DC dry powder

3 × 5 kg CO2

1 × 50-liter foam

2 × 9-liter foam

Smoke Detection: Yes

Fire Alarm: Consilium Fire System

Alarms: Ship’s bilge alarm panel: Yes

ship’s fire alarm panel: Consilium Fire System

MOB Boat: Quicksilver 3.4m RIB Yamaha 25hp 4 stroke tiller steer

Life Rafts: 4 x RFD Survival ten-person each with SOLAS “A”- pack

Breathing Apparatus: 2 x masks

6 x bottles

Lifejackets: Adult: 26 Type 1, 1 Type 2; Child: 1 Type 1, 5 Type 2

Immersion Suits: 4 total:

1 x child

3 x adult

Life Rings: 6 x with 50-foot retrieving lines

EPIRB: Ocean Signal 406 & 121.5

Flares and Signals: Handheld and launcher; both dated 1/2029

ENTERTAINMENT, AUDIO/VISUAL AND IT SYSTEMS

Overview: WIFI available throughout the whole yacht (Starlink Satellite Wifi)

There is an additional 55” TV on a lift in the Sky lounge

Apple TV throughout

Docking stations for ipod's throughout the yacht

XBox

Bowers & Wilkins sound system on all decks

Video Equipment: Samsung televisions

Dream Vision projector Model R9201807

TVRO: Four Humax TN7000HD TNT SAT Canal receivers

Main Salon: Samsung 77-inch K77XR80 flat screen (December 2025)

Denon X3400H sound bar

2 x Apple Audio Boxes

1 x Apple TV Box

Master Stateroom: 46-inch Samsung flat screen

Apple Audio Box and Video Box

safe

Guest Staterooms: 4 x 32-inch Samsung flat screens

Apple Video Boxes

safes

Exterior, Aft Deck, Bar: Apple Audio Box at main aft deck seating

Apple Audio Box in pilot house at bridge aft deck seating

Crew Mess: 32-inch Samsung flat screen

Apple Video Box

bridge watch keeper remote monitor panel

intercom panel

IT: Starlink

WIFI: Starlink; marina-based WLAN: NONE

Other Equipment: Epson ET-2850 printer

pull-down projector screen

Dream Vision projector

GALLEY & LAUNDRY EQUIPMENT

MAIN GALLEY EQUIPMENT

Cooking Equipment: Miele six-burner countertop electric stove

Miele combination conventional/convection oven

Neff oven

Sharp R-20MT microwave (December 2025)

Refrigeration/Freezer: 2 x large side-by-side Liebherr refrigerators

2 x small Liebherr refrigerators

1 x under-counter Liebherr refrigerator

1 x under-counter Liebherr freezer

Dishwasher: Adler dishwasher

Other: Aquatecnica water filter

In-Sink-Erator disposal

H & V icemaker located in the tender garage and skylounge

1 x ISE insinkerator

PANTRIES AND OTHERS

Refrigeration/Freezer: Liebherr premium under-counter refrigerator at sun deck

Siemens refrigerator at bridge deck salon bar

Other: Savemah ice maker

Cecotec wine cooler

Nespresso Magimix coffee maker

CREW GALLEY / MESS EQUIPMENT / COOKING EQUIPMENT

Microwave: Siemens combination conventional and microwave

Refrigeration/Freezer: Liebherr under-counter refrigerator

Siemens under-counter freezer

2 x Siemens freezers below stairs to crew cabins

Dishwasher: Miele Jubilee SC

Other: Nespresso coffee maker

Sun Deck: Miele electric grill with two-coil burner

Liebherr premium under-counter refrigerator

stainless-steel sink with carbonated faucet system

Wine Storage: Cecotec wine cooler at bridge deck salon bar

Crew Laundry Equipment: 2 x Miele PW5065 washing machines

2 x Miele PT5135C dryers

Owner/Guest Staterooms: Sharp small drink refrigerator in master cabin closet

OTHER EQUIPMENT

Spa Tub: Yes

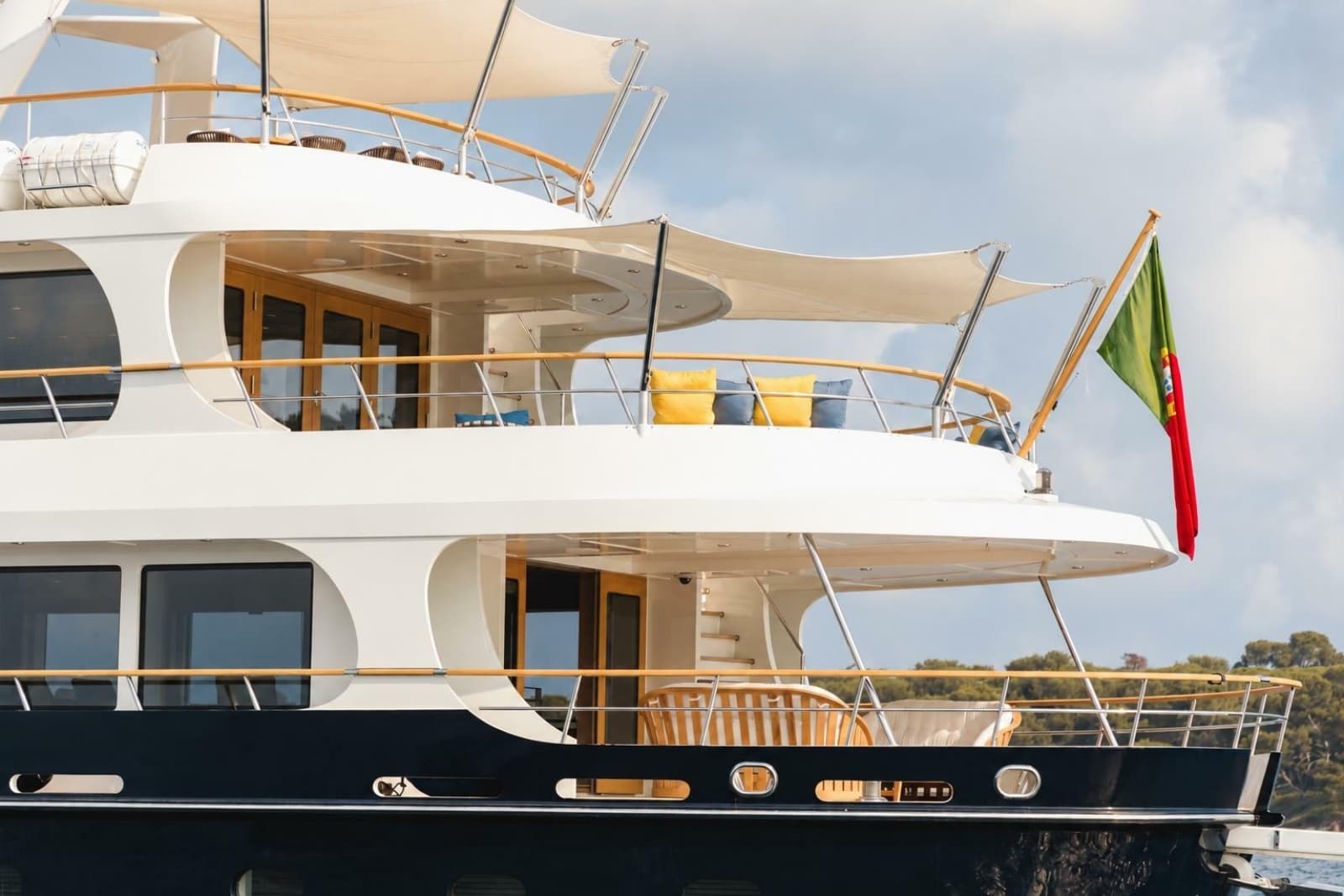

Sun Awnings: Bridge deck and sun deck removable awnings

TENDERS & TOYS

Tenders: Williams RIB Turbo Jet 325 year 2013 (25.3 engine hrs)

Jet Skis: 2018 Yamaha EX Series WaveRunner

2018 Sea-Doo Spark Trixs

Toys: 2 x Seabobs F5S

CAPITAL IMPROVEMENTS

2017/2018:

• New large sun area above the bridge (fly bridge layout)

• Large built in hot tub for 5 people

• New furniture and carpet in most areas

• New sound system in all guest areas

• New WIFI access

2022:

• Hull repaint

2023:

• 10-year class survey works completed in 2023

• Shaft (x2) 10-year survey inspection

• New starboard shaft

• New couplings and bearing boxes for both shafts

• 10-year full main engines service

• Generators rebuilt

• Replacement of exhaust pipes of main engines

• Replacement of all hull valves

• All mechanical equipment serviced

• Fuel tanks cleaned

• Water tank cleaned and painted

• Steering gear pump replacements

• Stabilisers full maintenance

• New Bluewater water maker (250 liter/hour)

• Ventilation and air conditioning system cleaning and disinfection

• Hydraulic systems maintenance and service

• Bow thruster maintenance and service

• Garage door service, new Flexiteak on garage side door

• New propellers

• New Antifouling hull and propellers

2025-2026:

• Frequency Converter Complete Installation

• Main Engine Rebuilds with 40 Running Hours Since Rebuild

• Main engine motor mounts replaced September 2025

• Transmission Removal, Rebuild, PTO, Hydraulic Pumps Rebuild and Reinstall

• Both Generators Wire Harness, Injectors, Raw Water Pumps, and Cooling System

• Headhunter New Sewerage Treatment System

• Recommission Garage Crane System

• Starlink Full Installation with Wiring

• New Main Salon Auto Door Full System Installed

• Navigation New and Upgrade Systems, Autopilot, Gyro Compass, Navigation Computer

• Stabilizer System Upgrades

• Class Society Survey Inspection Certificate

• Interior Custom Fabrication of Stainless Railings

• Audio/Visual Upgrades

• Boarding Equipment

• Props removed scanned reconditioned balanced June 2026

• Zinc Anodes Renewed June 2026

• Bottom Coatings renewed June 2026

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Listing MLS by Yachtr.com
