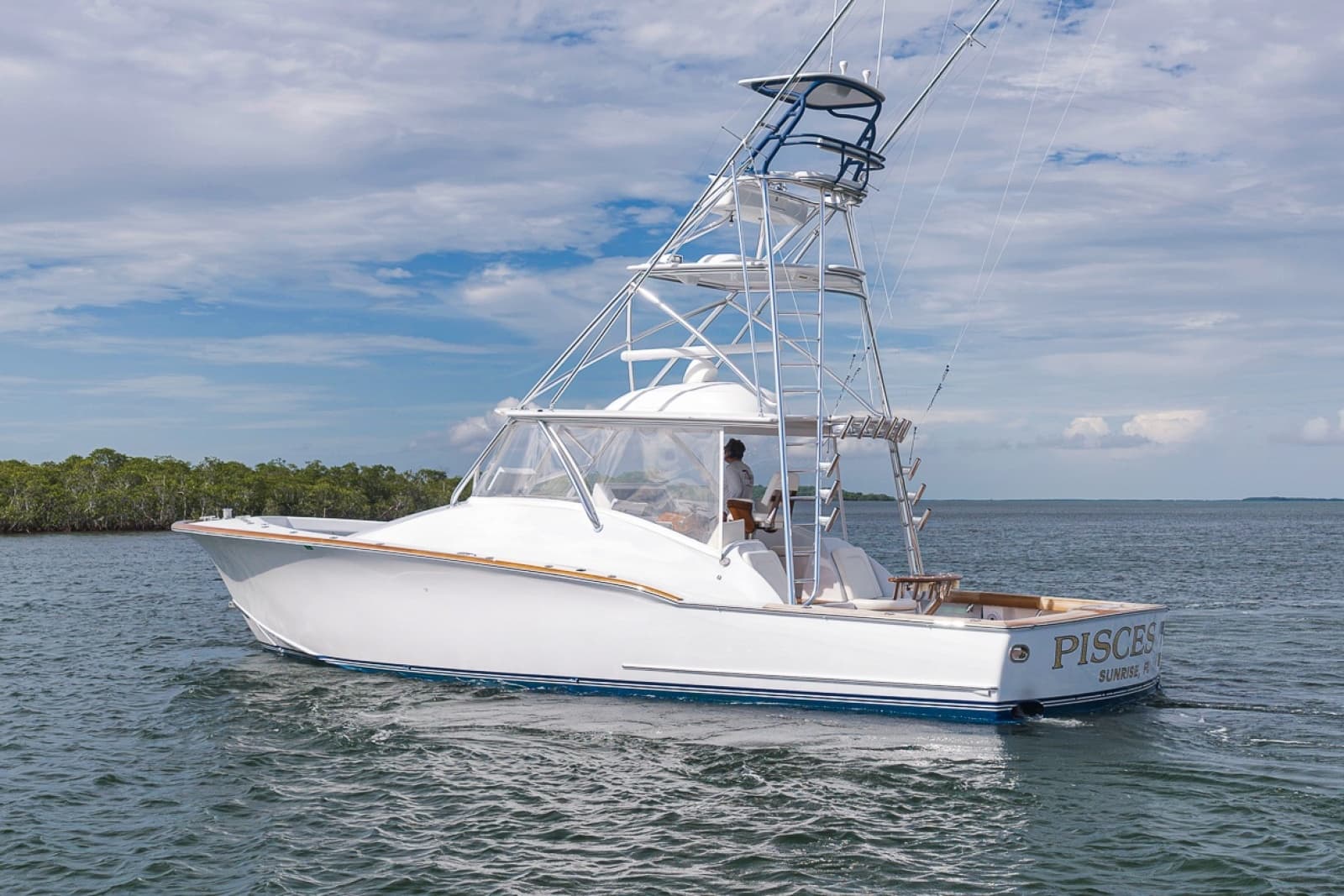

2014 F&S 45 Walkaround

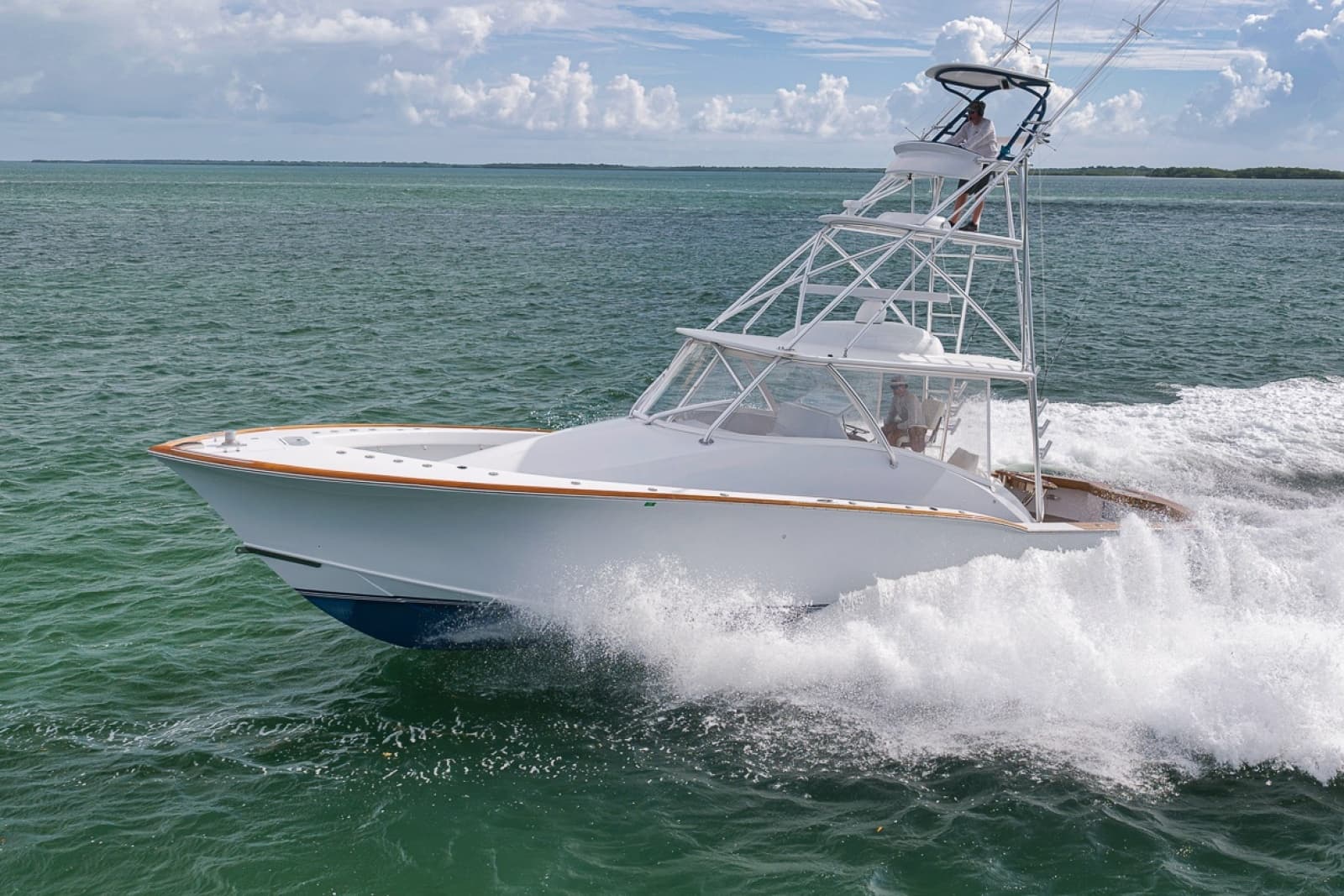

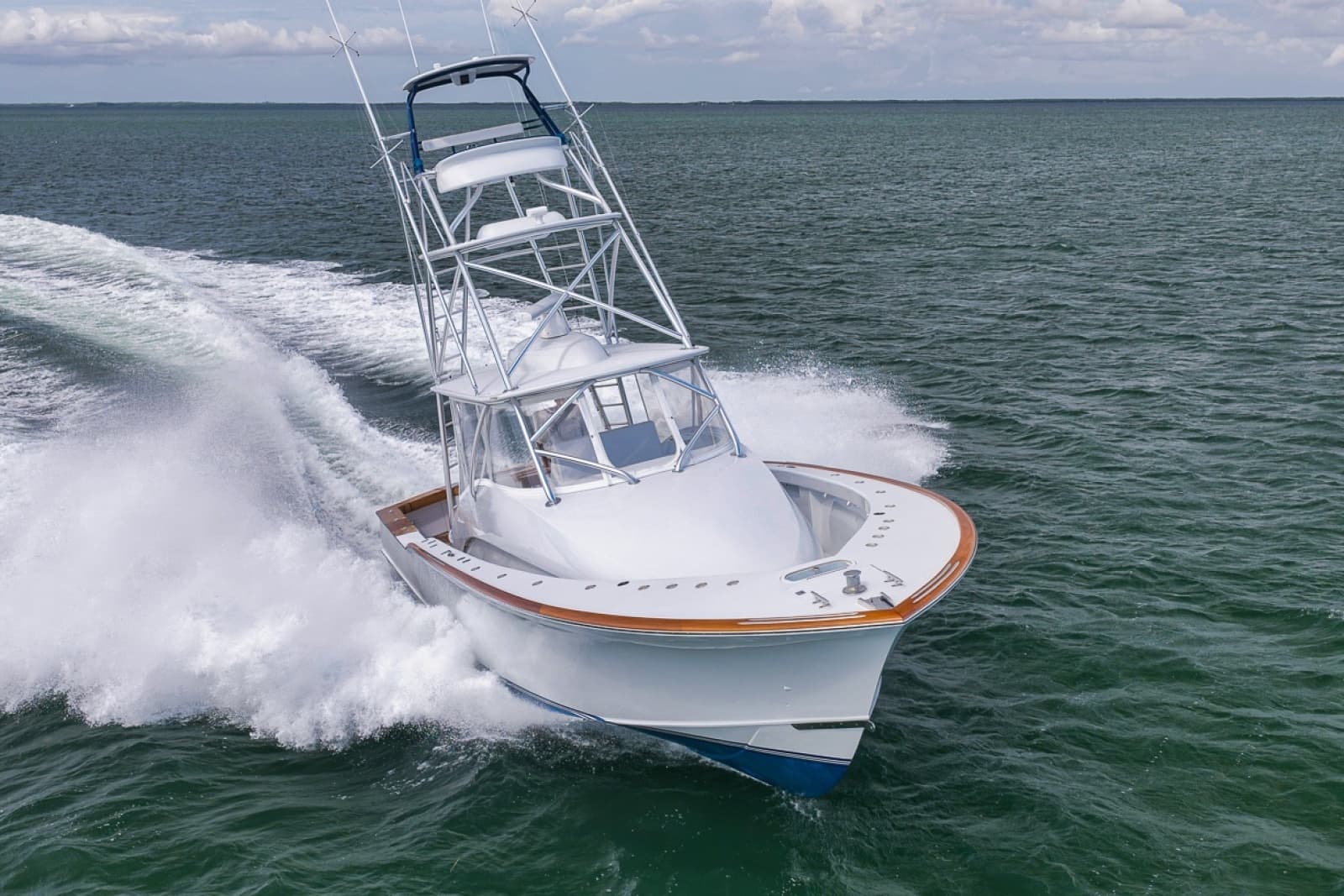

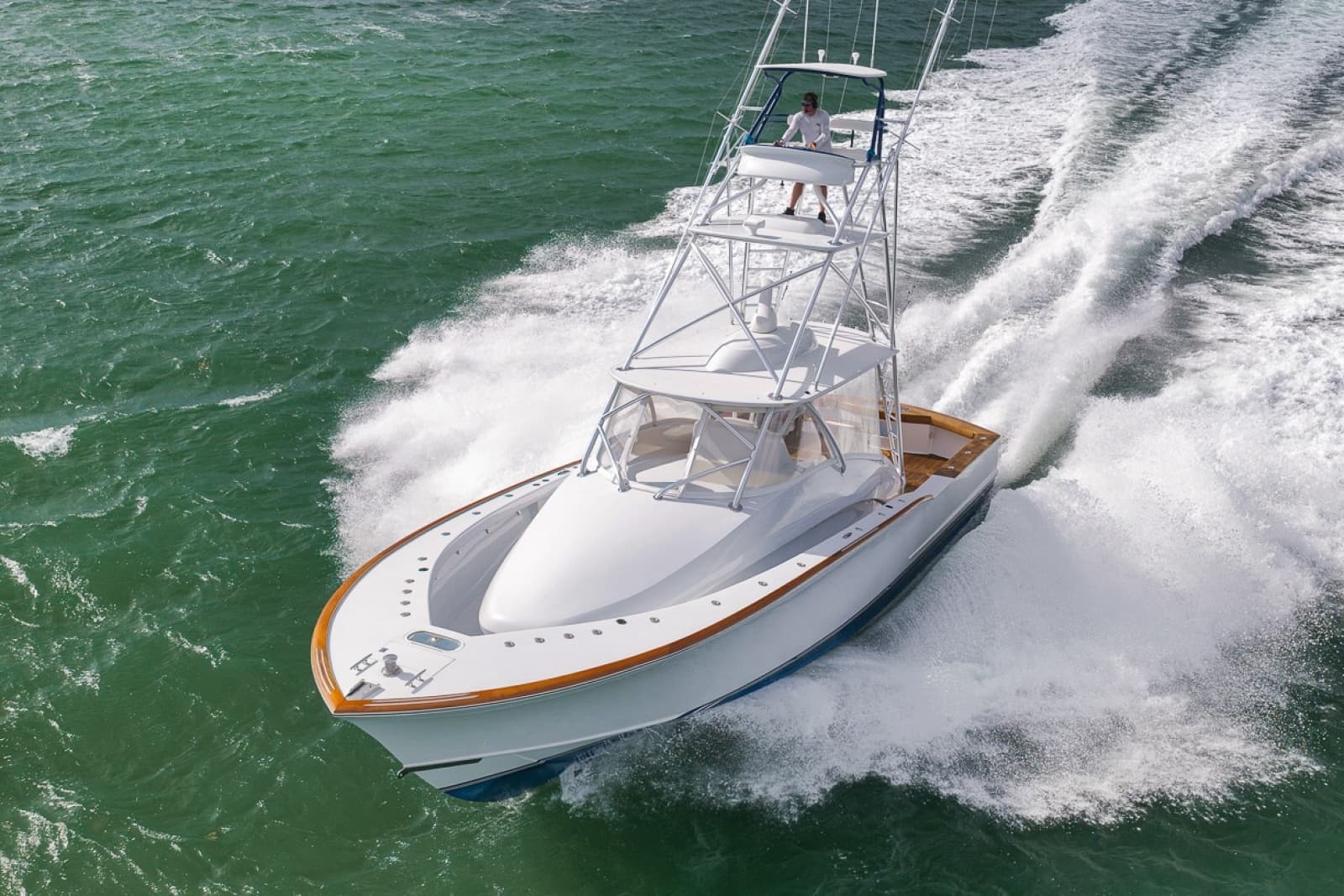

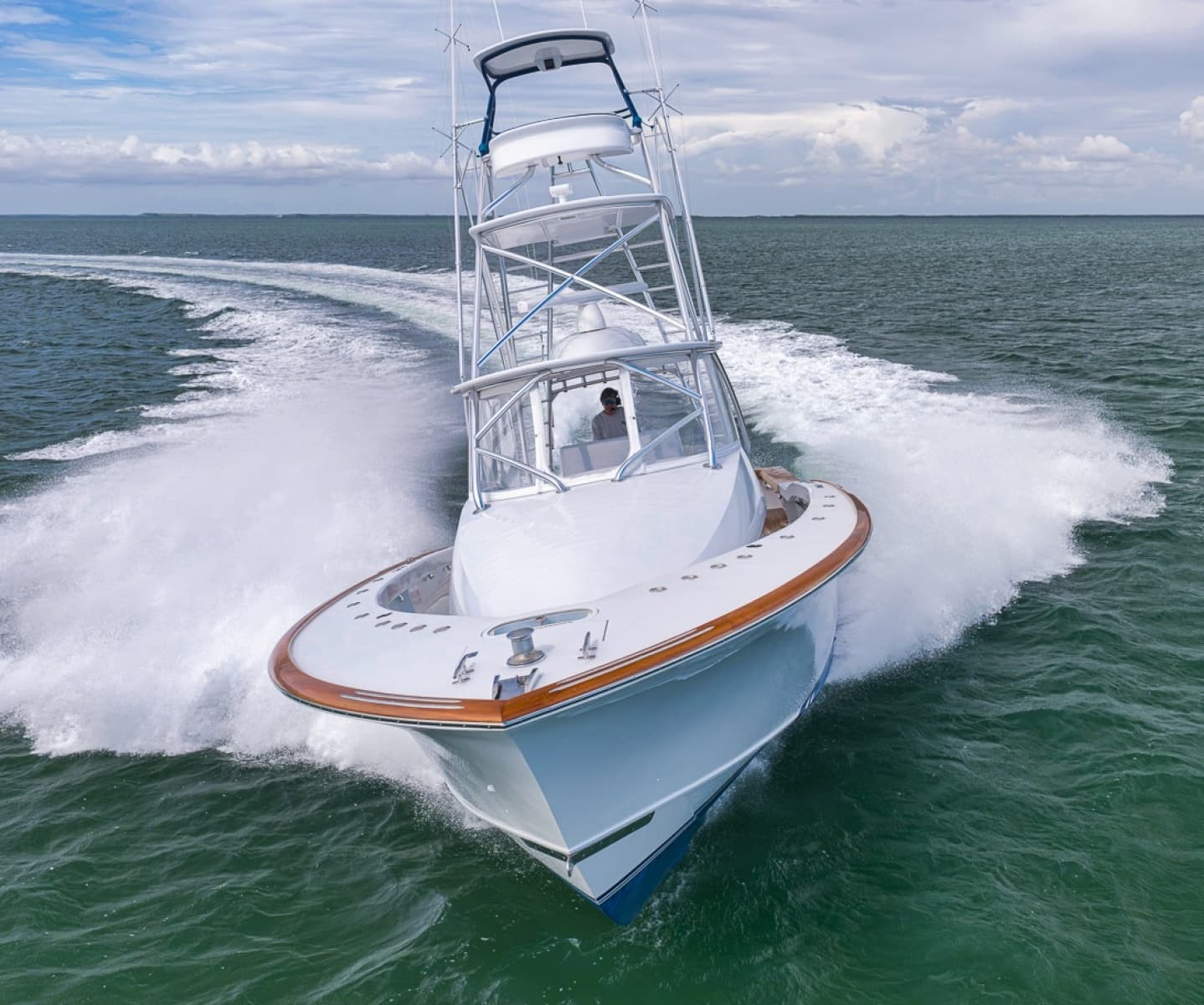

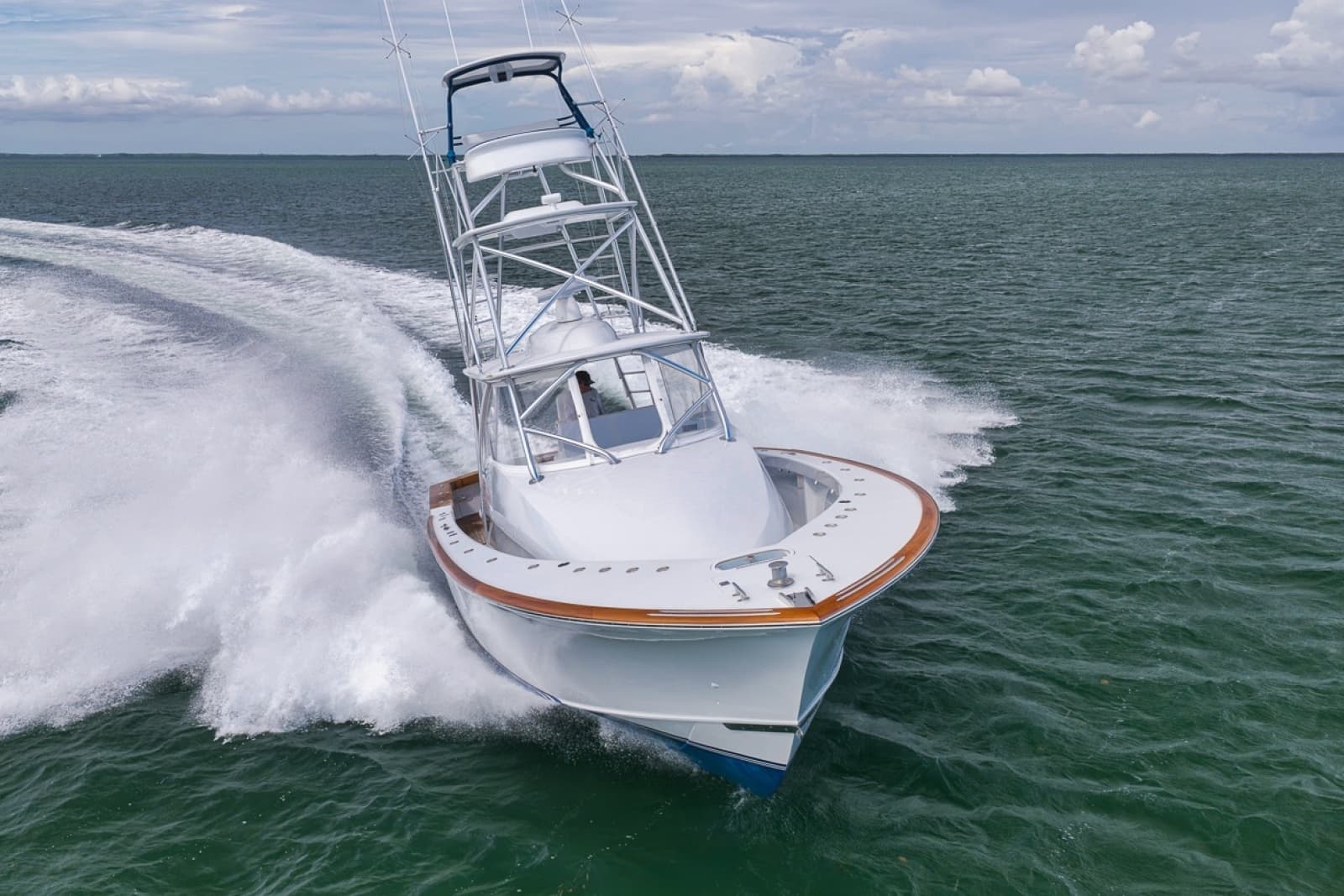

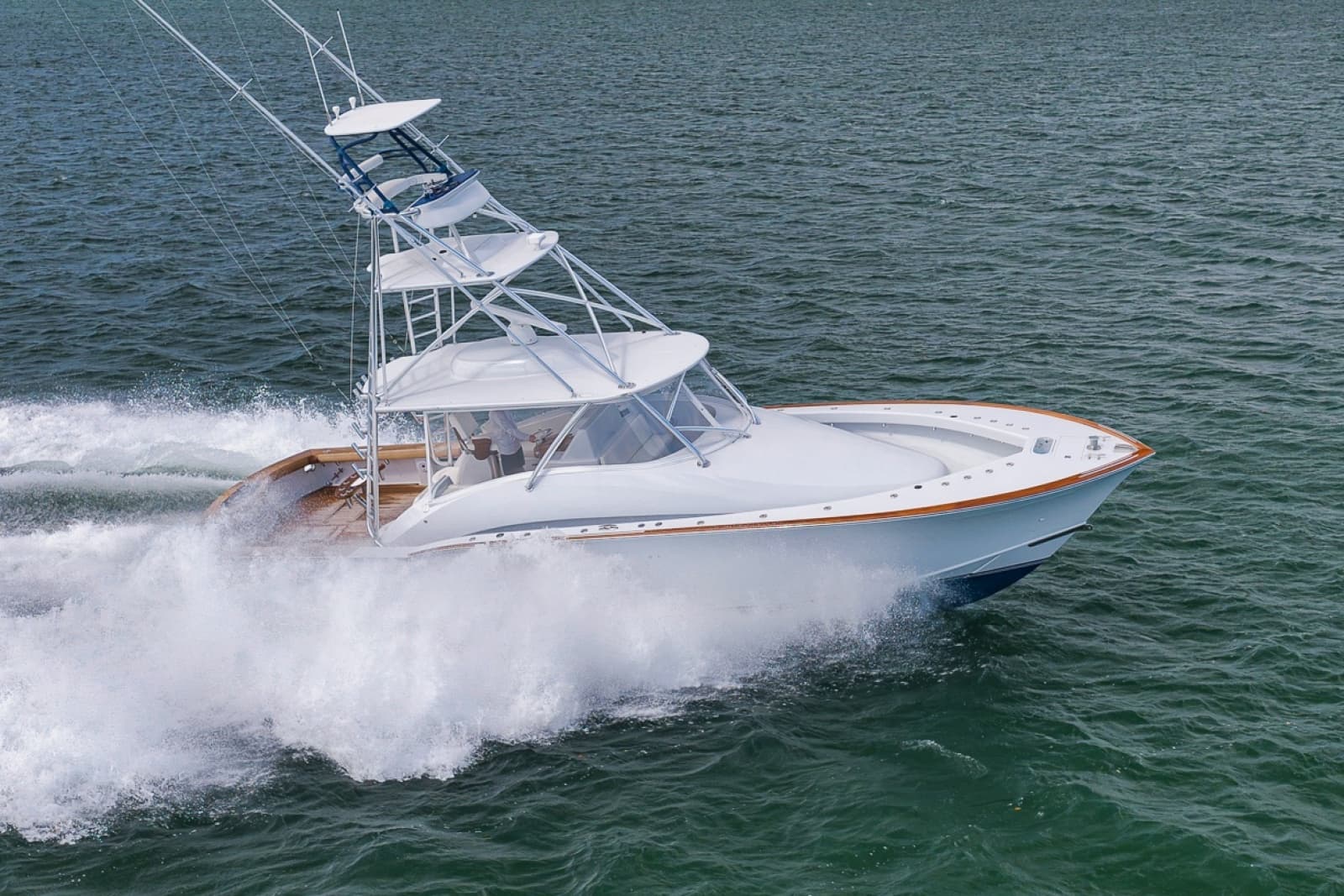

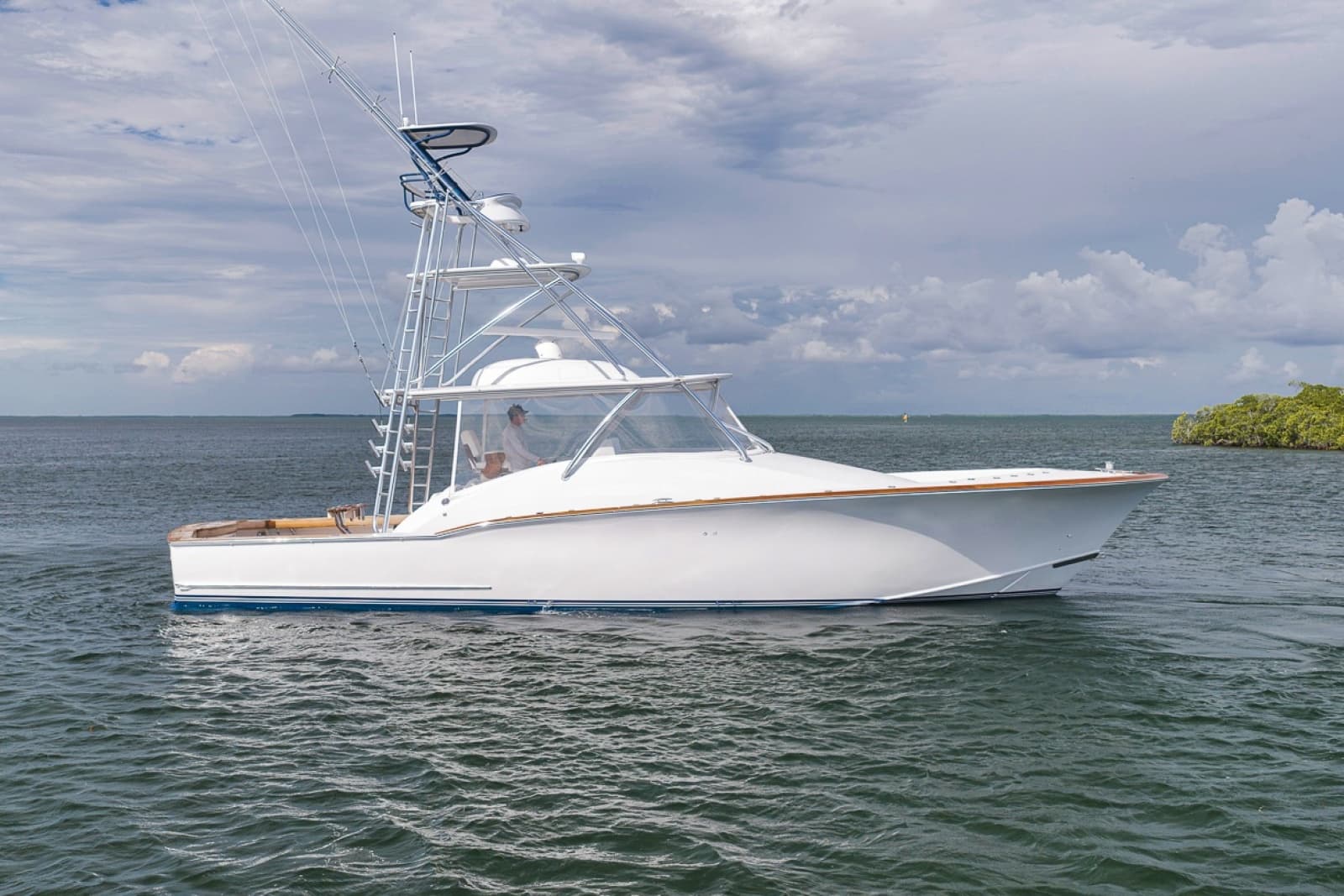

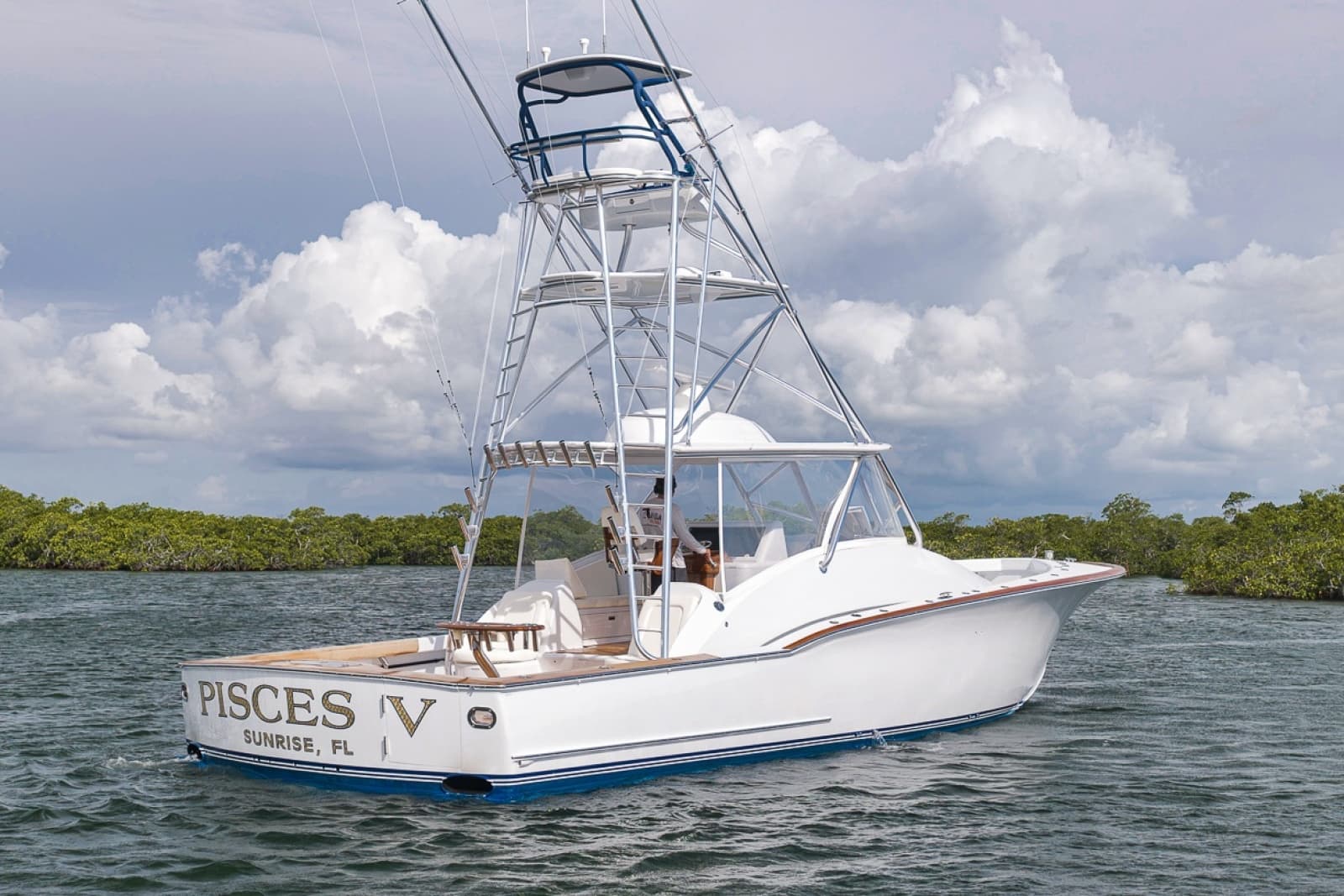

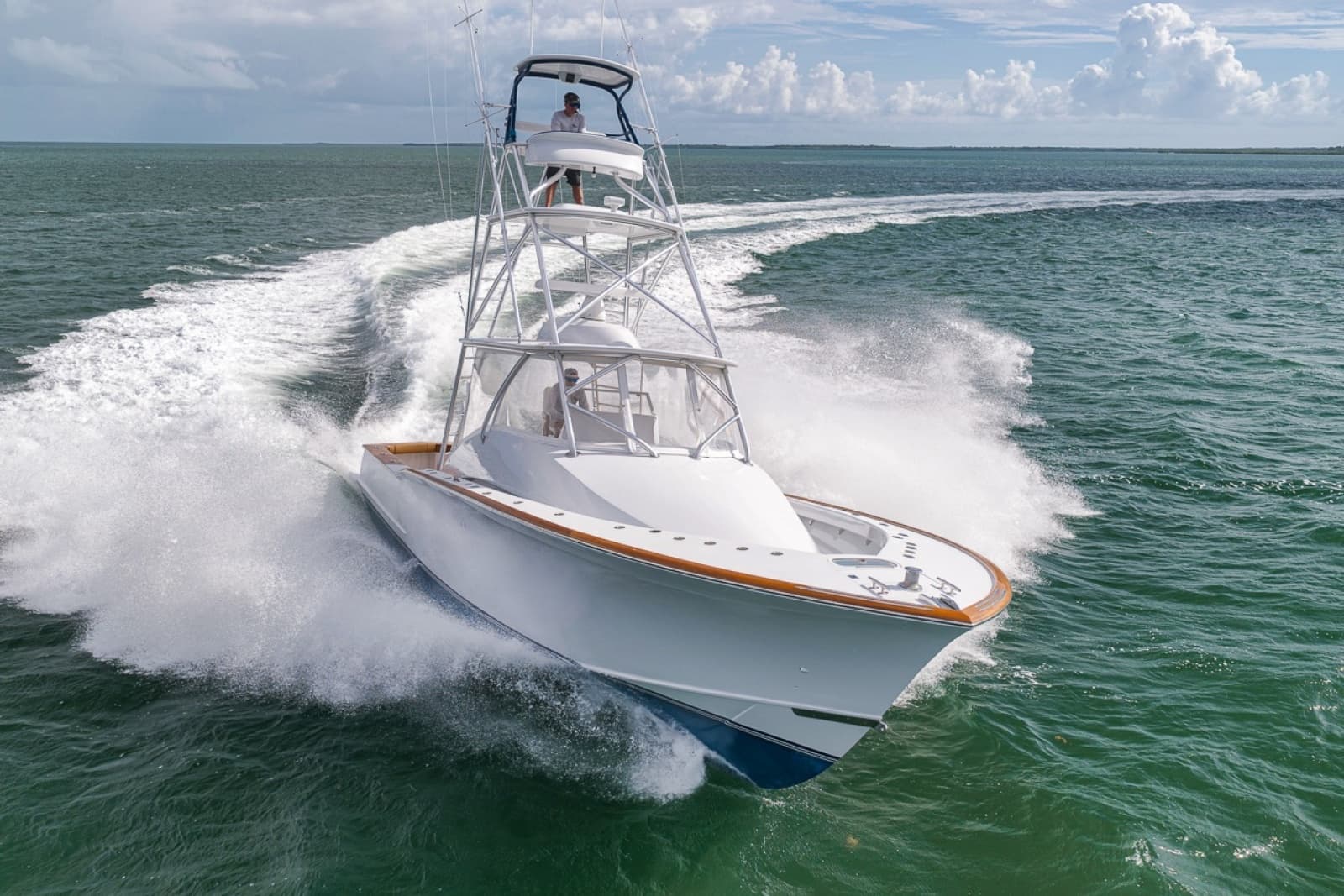

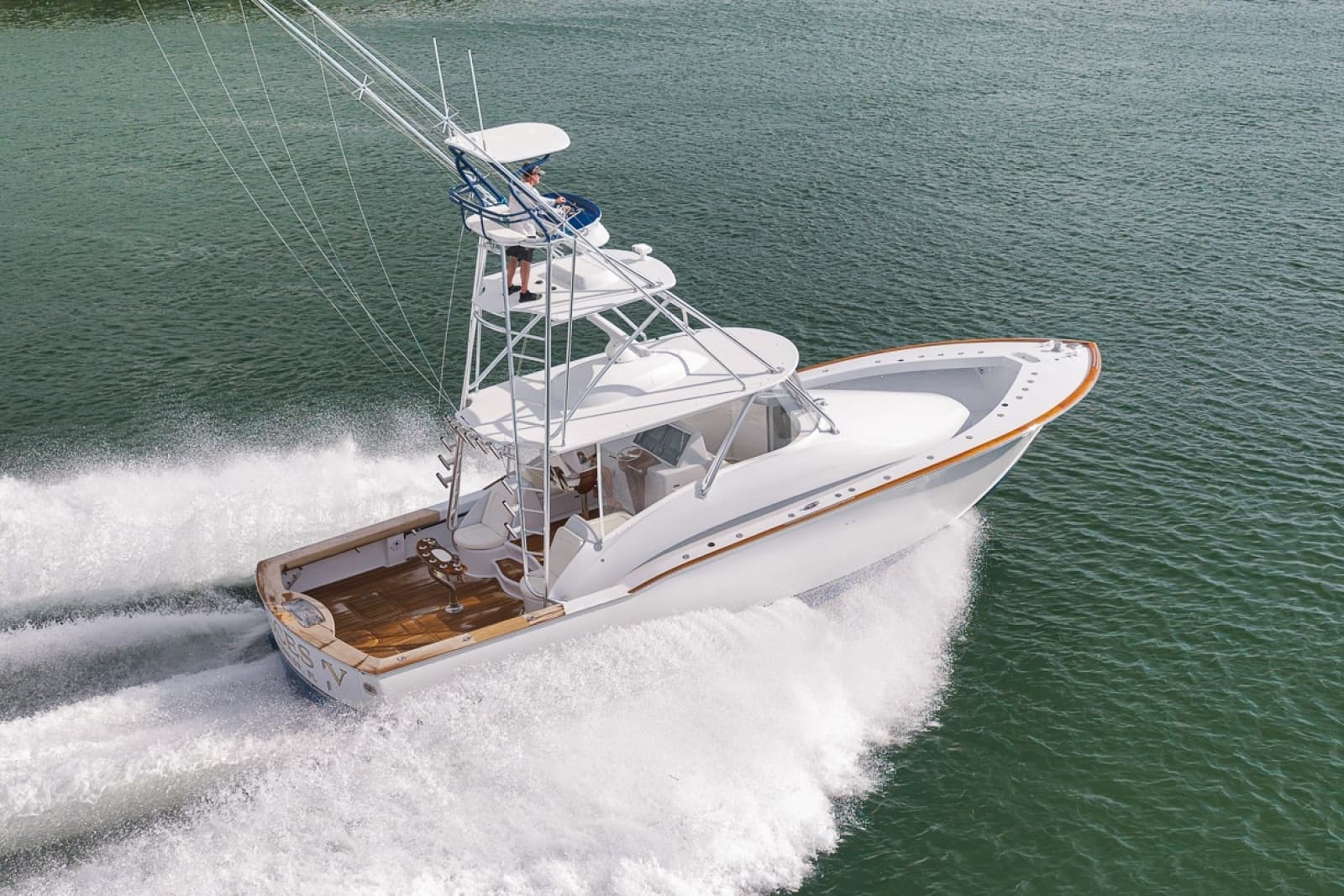

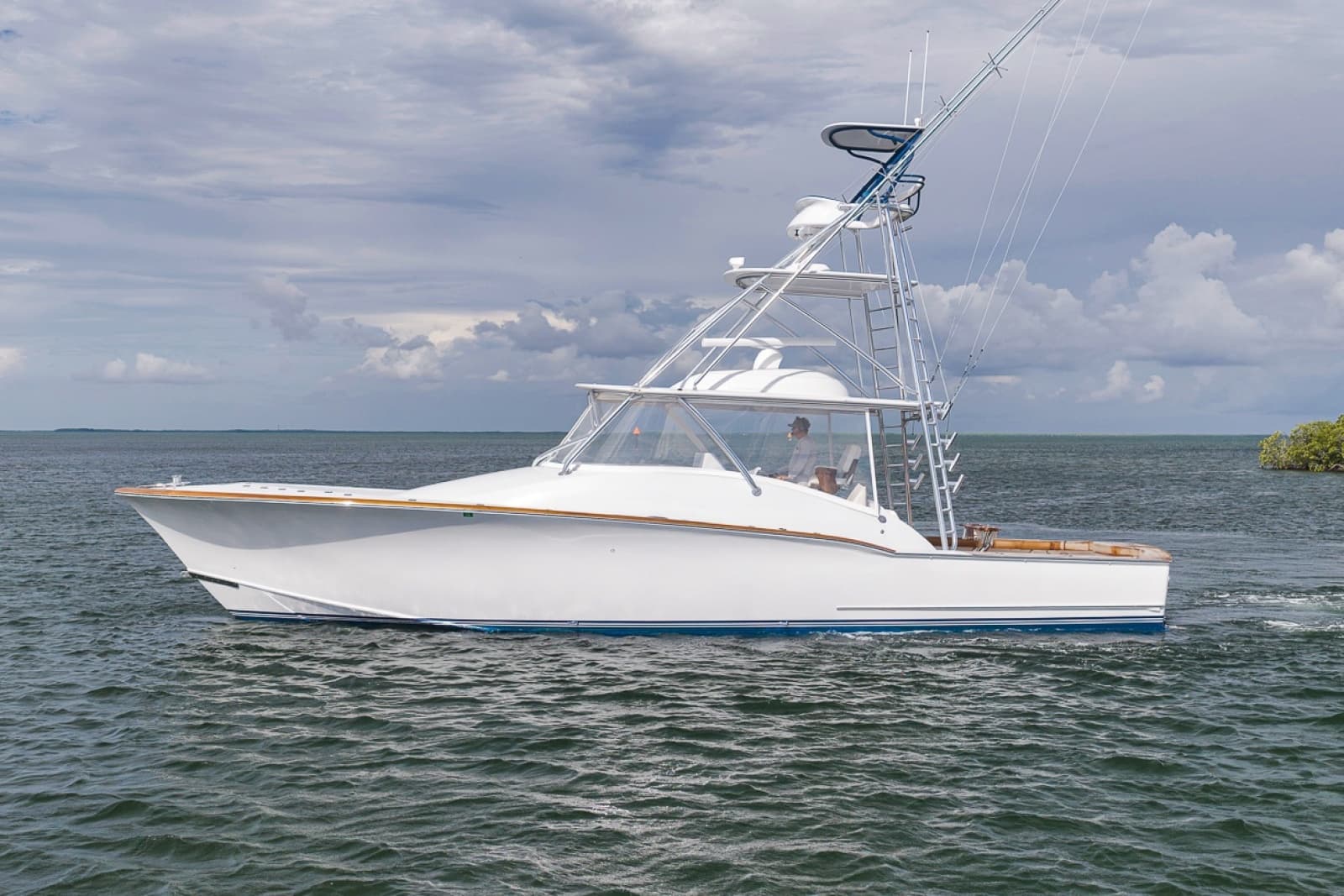

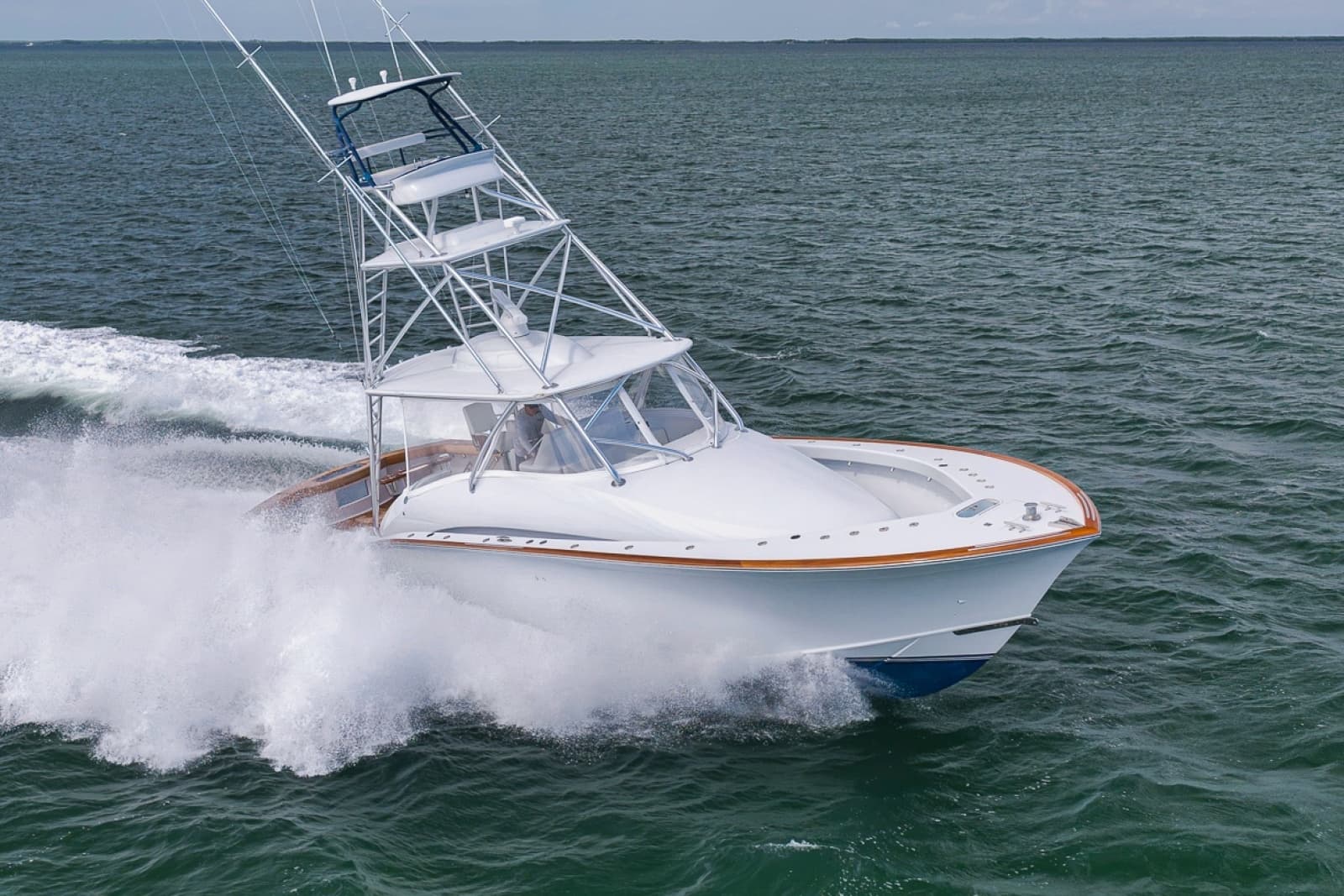

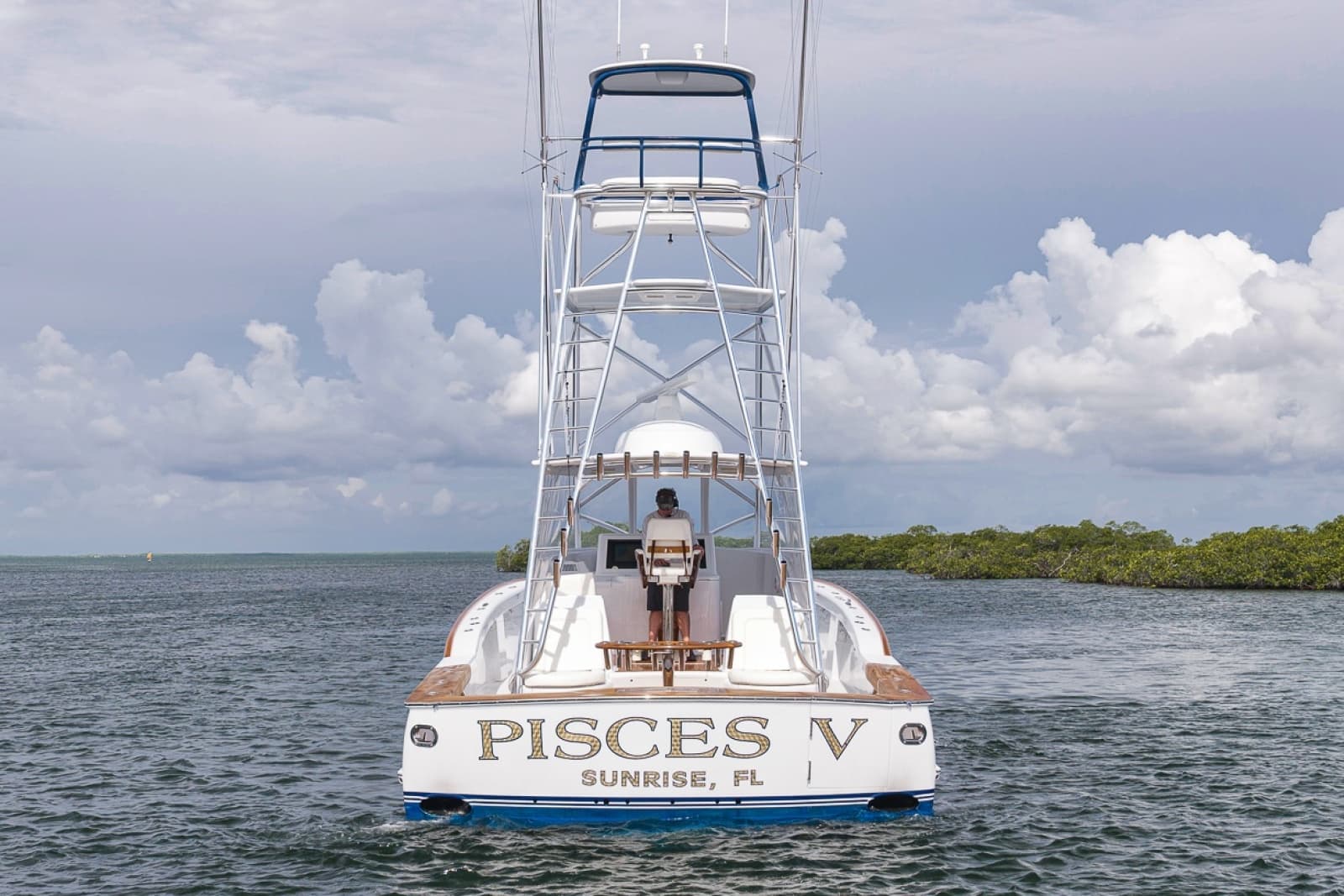

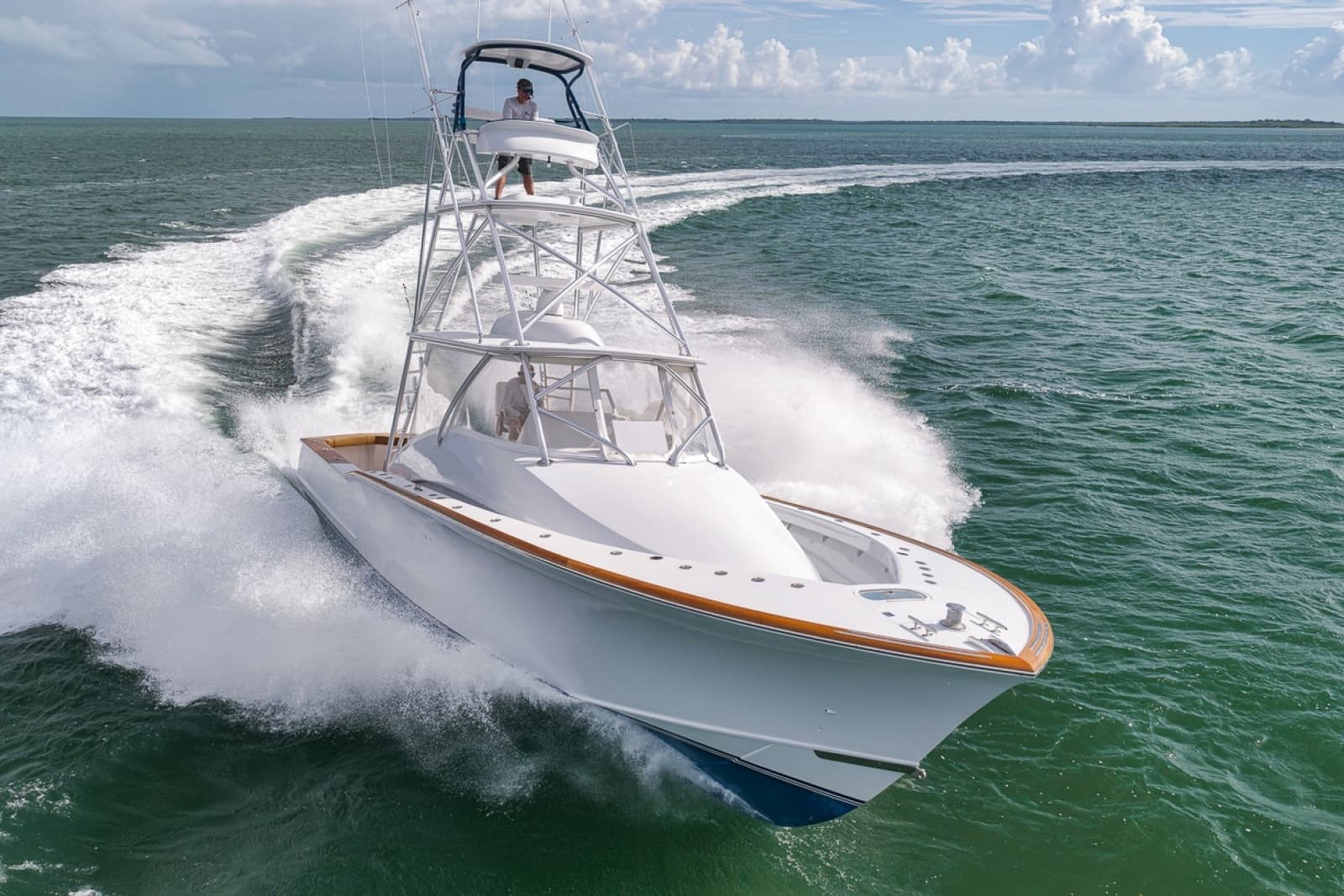

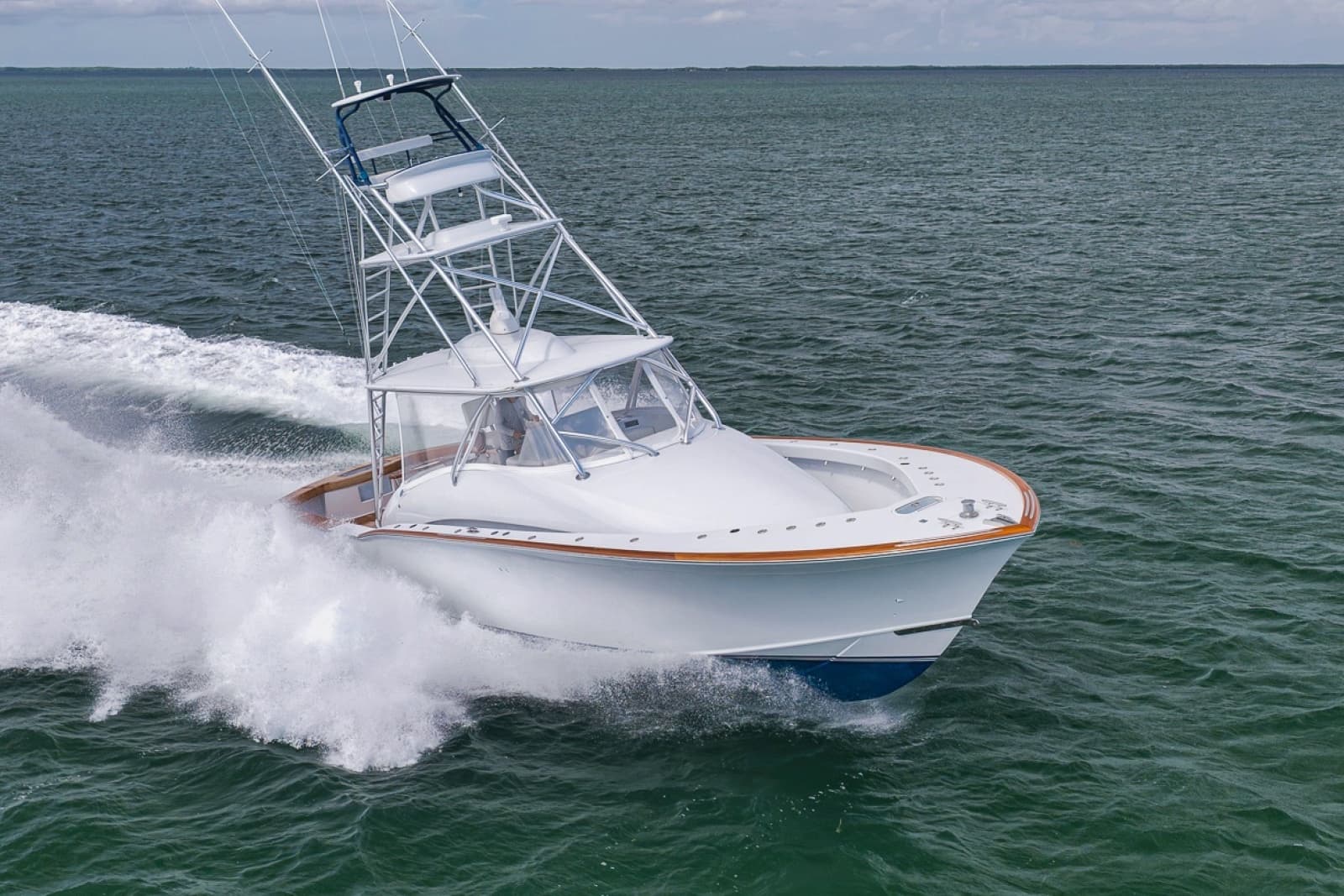

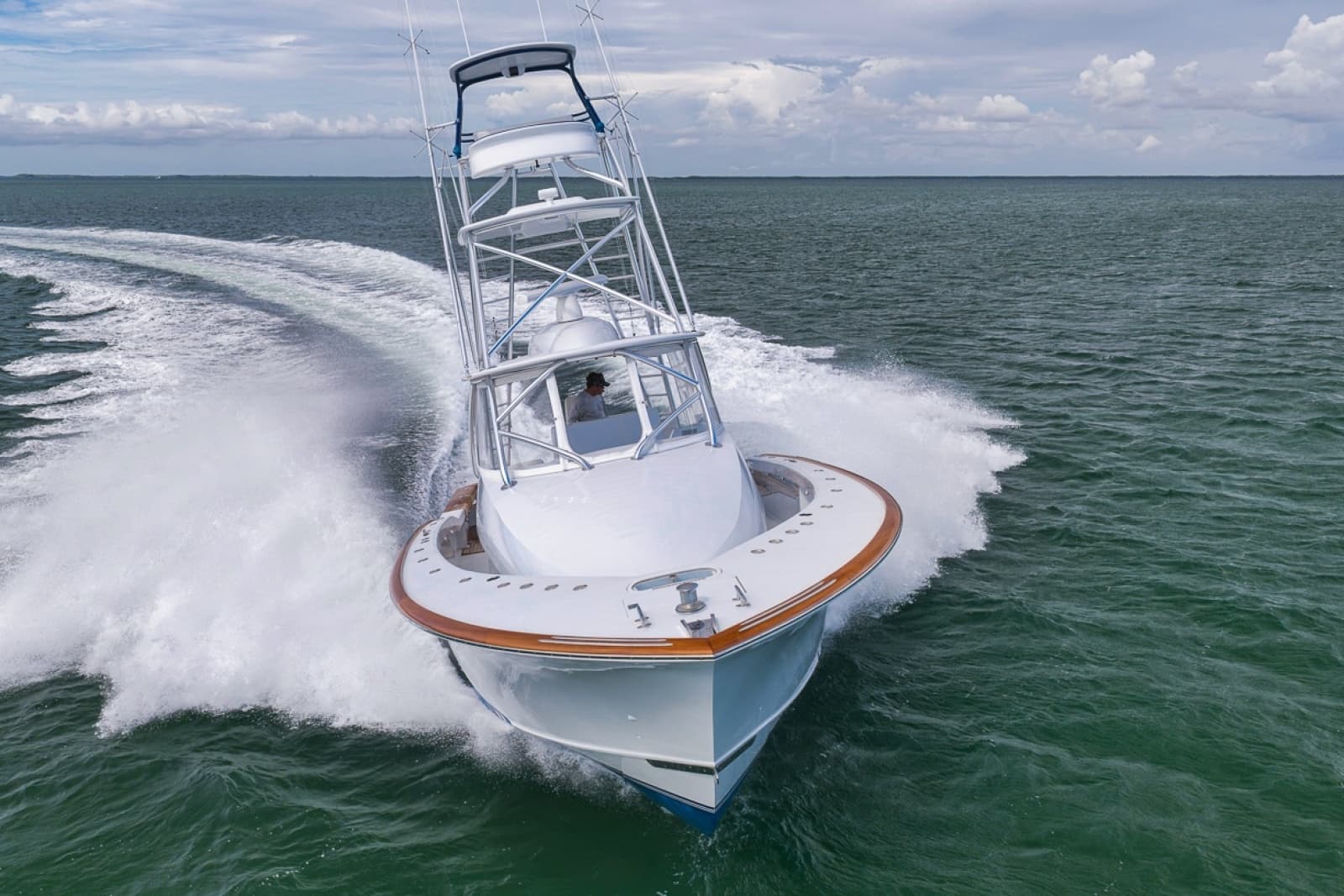

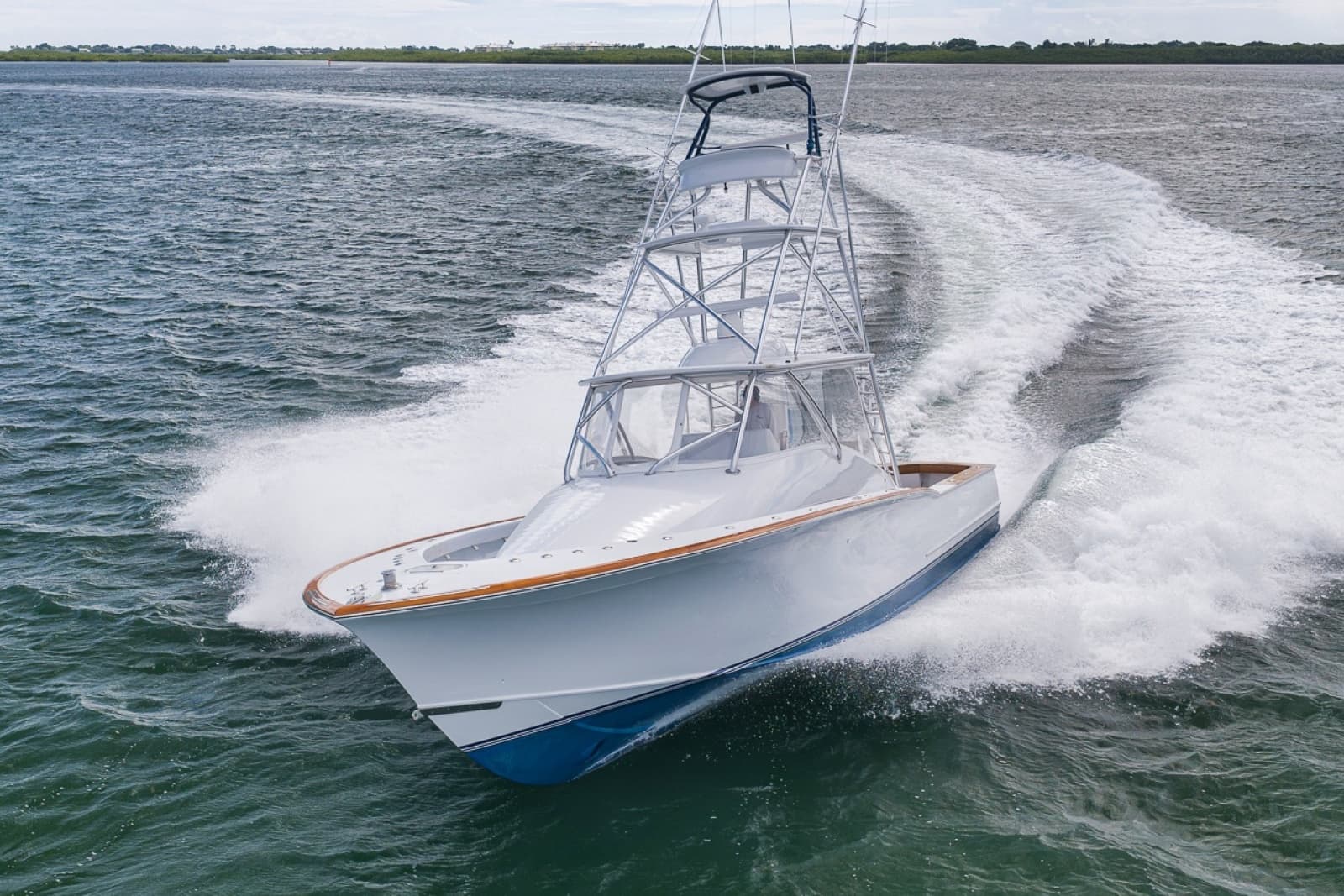

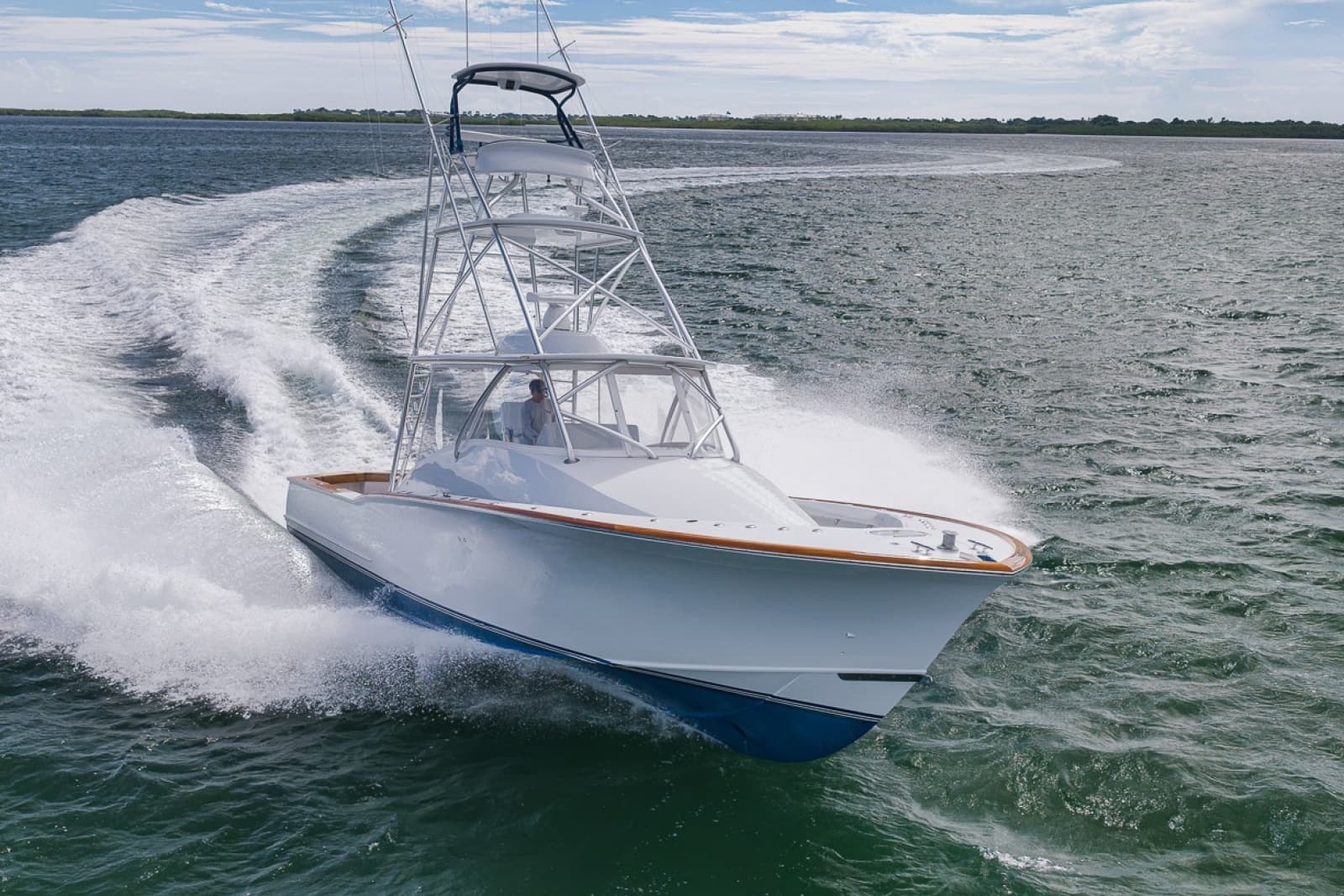

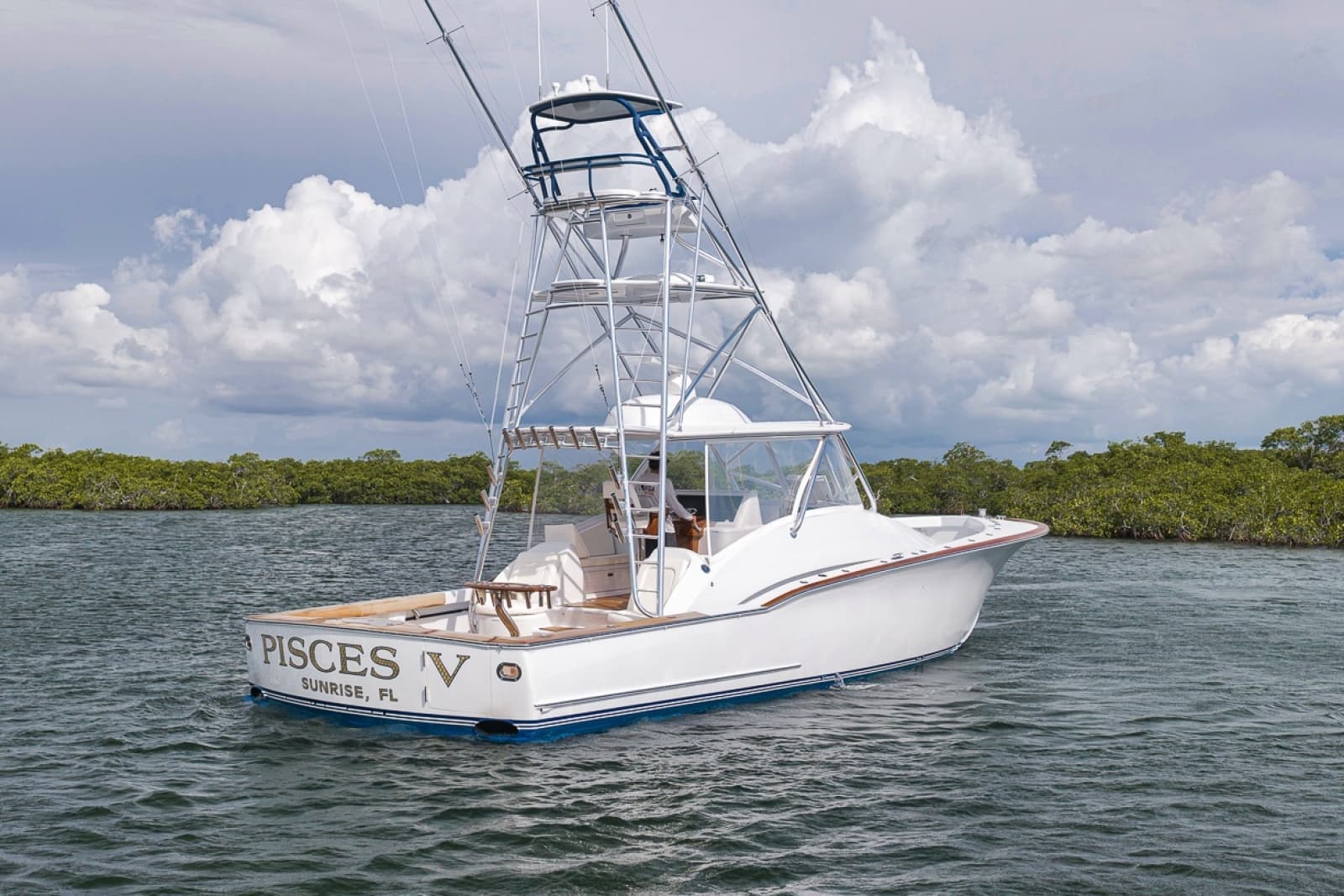

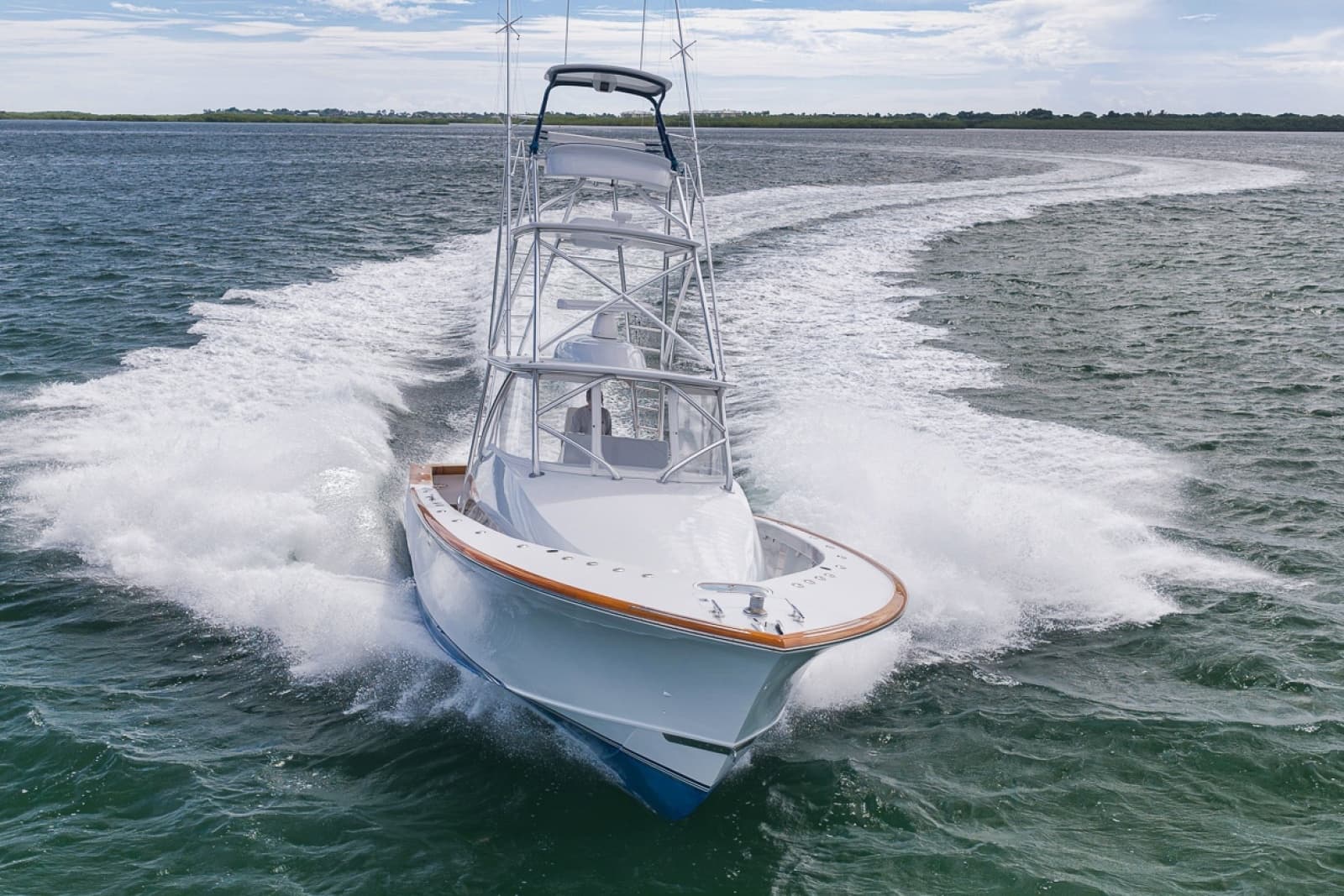

This 2014 F&S 45' Custom Walkaround Express combines distinctive custom craftsmanship with a thoughtfully equipped offshore fishing platform. Powered by twin 800 HP MAN diesels, she features a cold-molded hull with Kevlar reinforcement, a 14'6" beam, and 600 gallons of fuel capacity. Teak decks, a teak toe rail, and a Palm Beach-style teak helm pod complement her classic sportfishing profile.

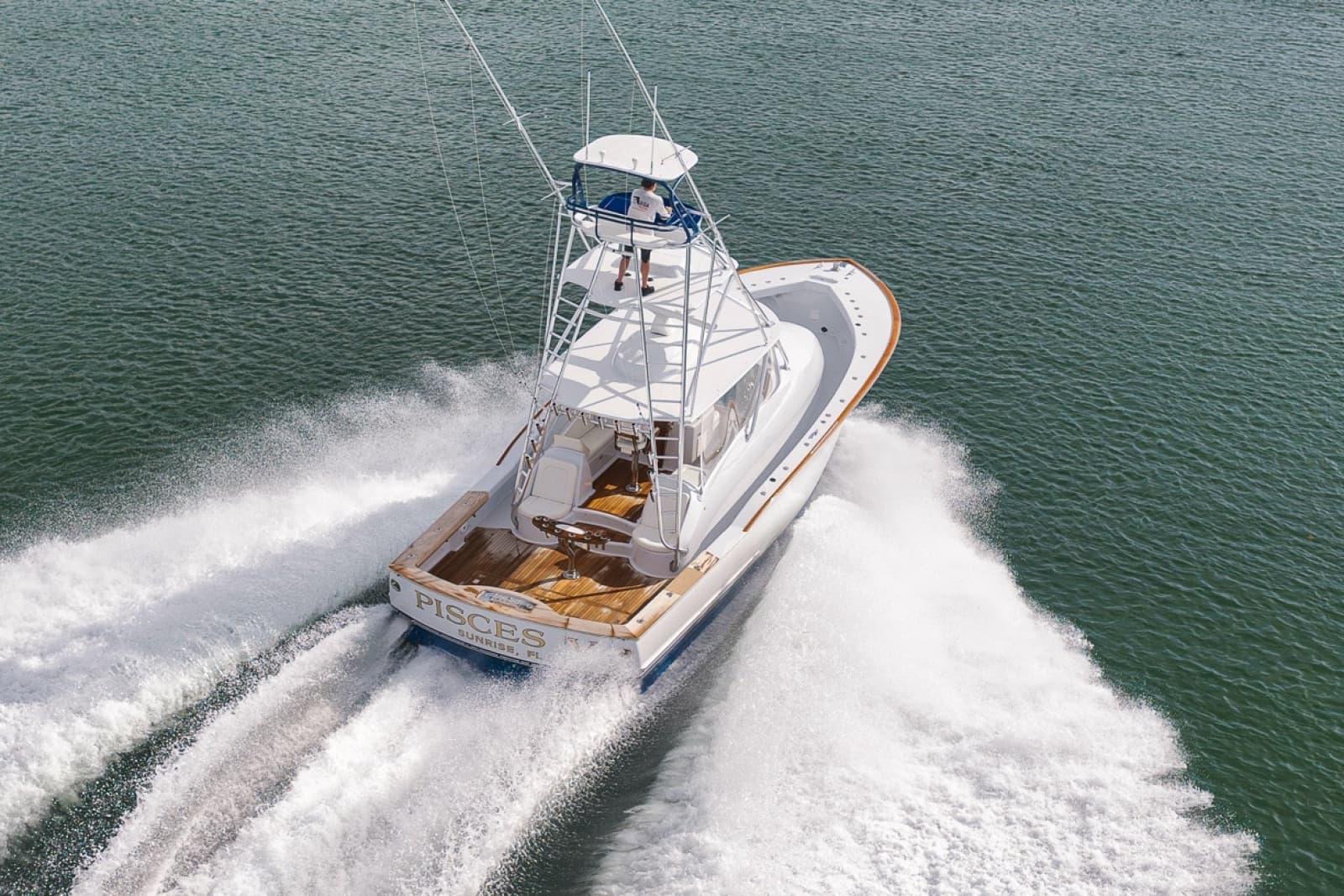

Designed for serious anglers, the cockpit features a teak Bluewater rocket launcher with six rod holders, a transom fishbox and livewell, a refrigerated in-deck fishbox with macerator, and an Eskimo ice maker. Four electric reel outlets—including two forward in the bow—support fishing throughout the walkaround layout, while an additional foredeck livewell keeps bait close at hand. Freshwater and saltwater washdowns and a transom door with a removable dive ladder add practical versatility.

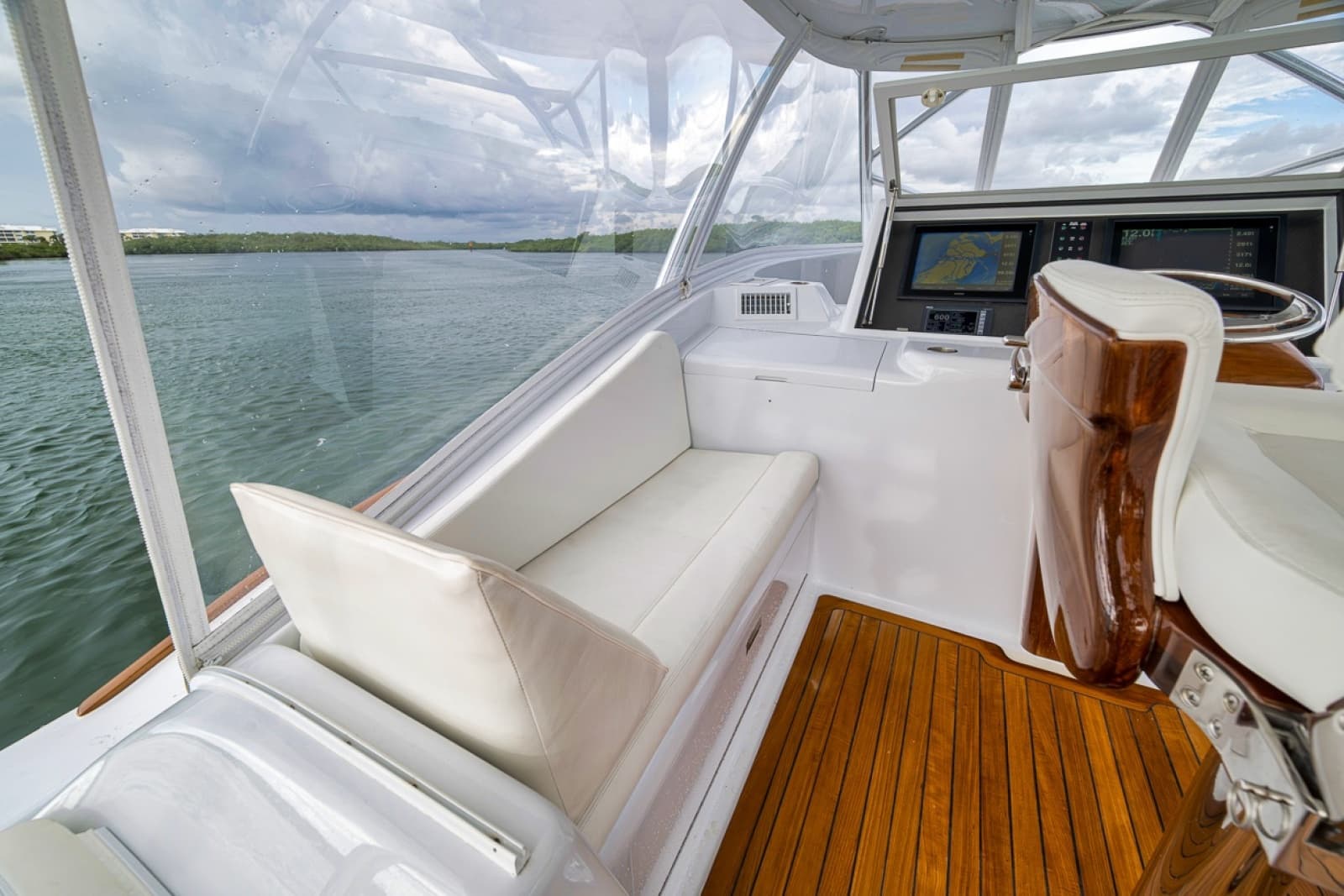

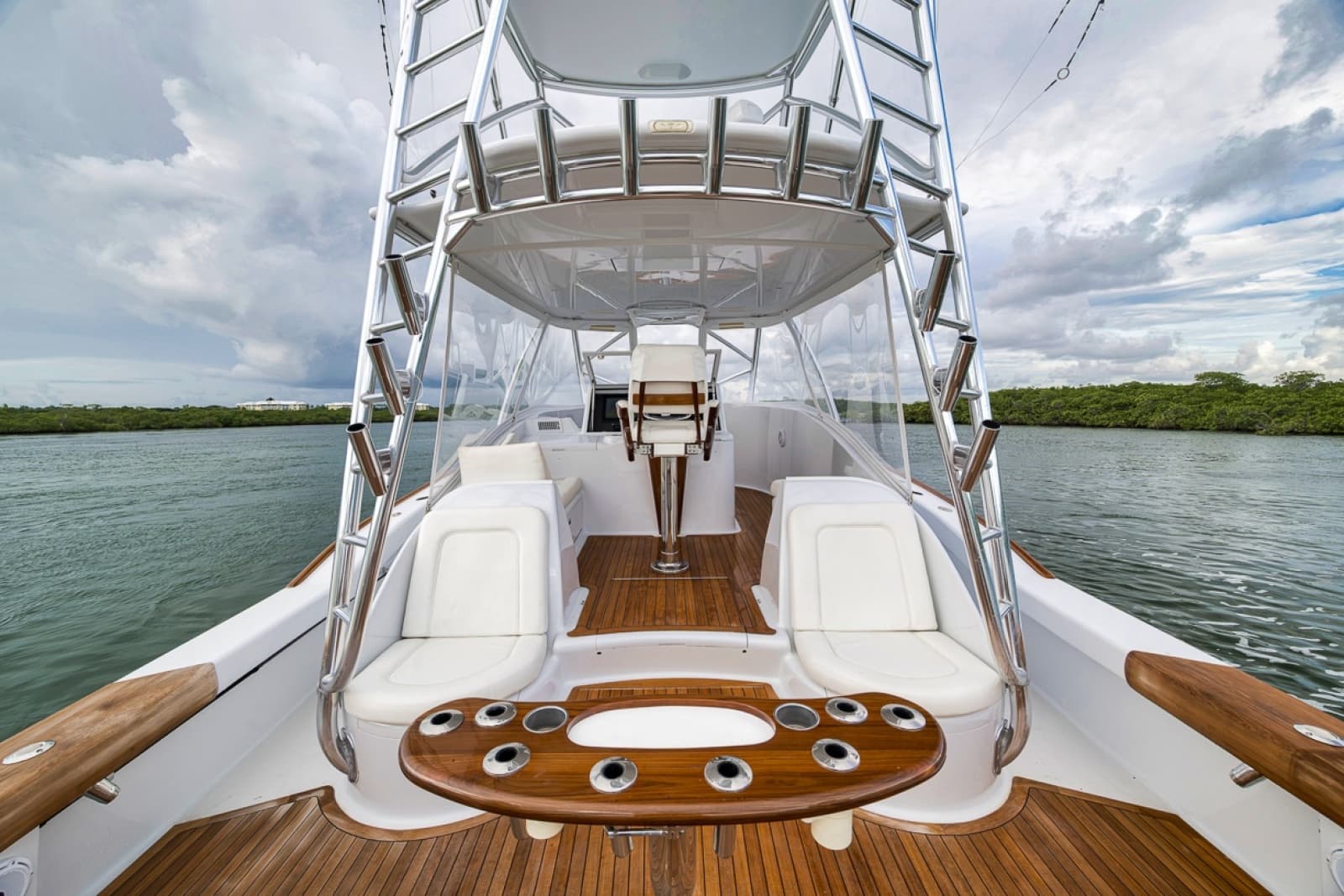

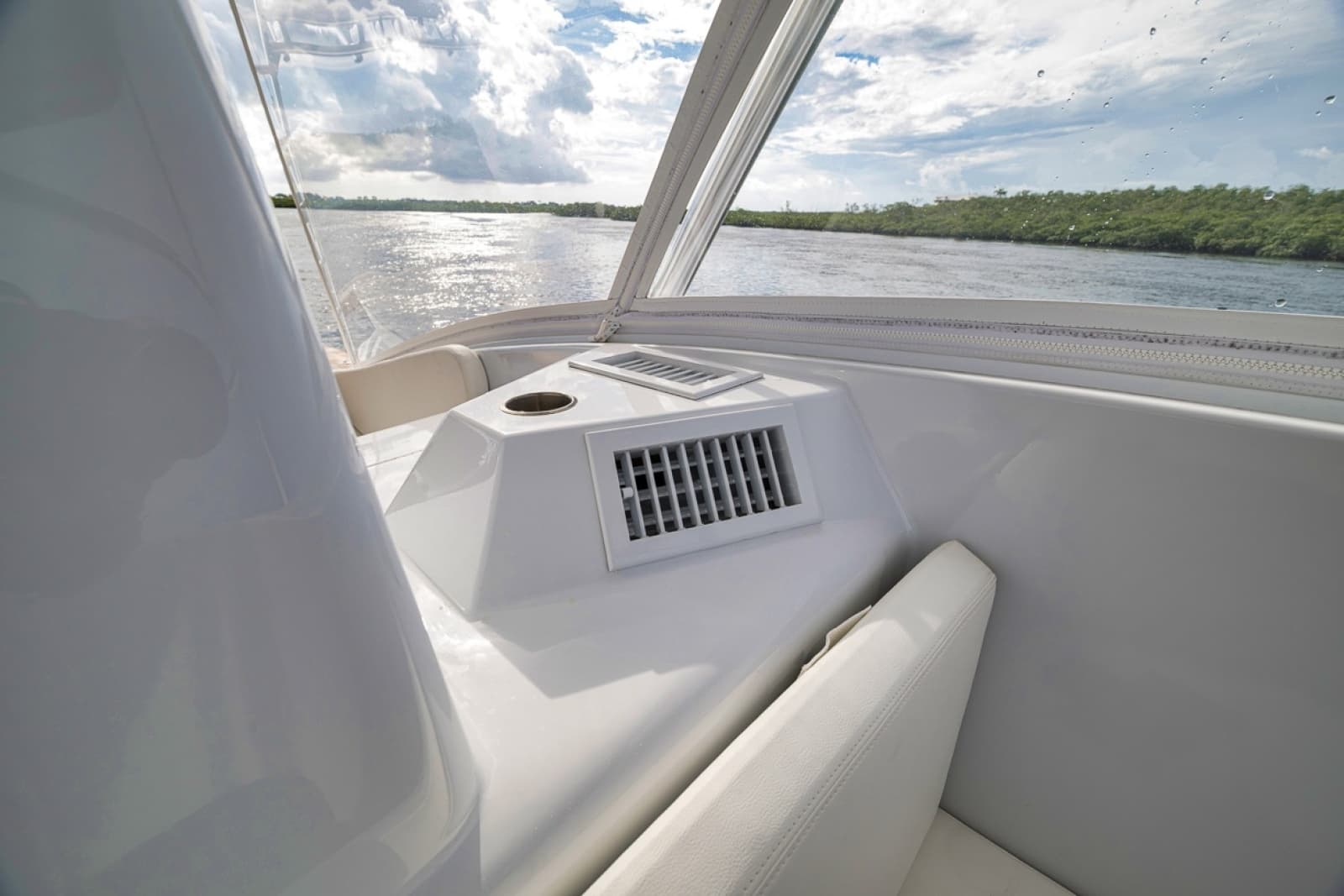

The helm offers a teak Bluewater captain’s chair, Release Marine steering wheel and control handles, teak tackle storage, and a four-sided Costa Clear enclosure. Dedicated helm air conditioning provides added comfort, while a Side-Power bow thruster, power-assisted hydraulic steering, and trolling valves enhance handling and control.

Below deck, book-matched teak cabinetry, granite countertops, recessed LED lighting, and marine-grade Amtico flooring create a refined interior. The galley includes drawer-style refrigeration, a convection/microwave oven, and a stainless steel undermount sink. A forward V-berth with a custom mattress, hanging locker, and under-berth rod storage provides overnight accommodations, complemented by an air-conditioned head with a freshwater electric toilet and granite-topped vanity. A 12.5 kW Phasor Marine generator supports onboard systems away from the dock.

BEAM:     14’6”

ENGINES:   TWO (2) MAN 800 HP

GENSET:   12.5KW PHASOR MARINE

DISP:     24,000 LBS.

FUEL:     600 GALLONS

WATER:   100 GALLONS

SALON – BELOW DECKS

•   BUILT-IN CABINETRY (PER PLAN)

•   BACKLIT ELECTRIC PANEL AND MISCELLANEOUS STORAGE

•   LED RECESSED LIGHTING WITH TWO (2) DIMMERS

•   WALL SURFACES AND HEADLINER TO BE WHISPER WALL

•   ALL HARDWARE POLISHED STAINLESS STEEL OR BRUSHED FINISH

•   ALL CABINETRY & INTERIOR DOORS TO BE FLUSH (CONTEMPORARY STYLE) WITH SELECTED VENEERS

•   COUNTERTOPS THROUGHOUT TO BE GRANITE ON ALUMINUM HONEYCOMB WITH TEAK FIDDLES (WOOD BULLNOSE)

•   INDIRECT LIGHTING

•   AMTICO FLOORING, MARINE GRADE

•   CARPETED FLOORING ON COMPANIONWAY STEPS

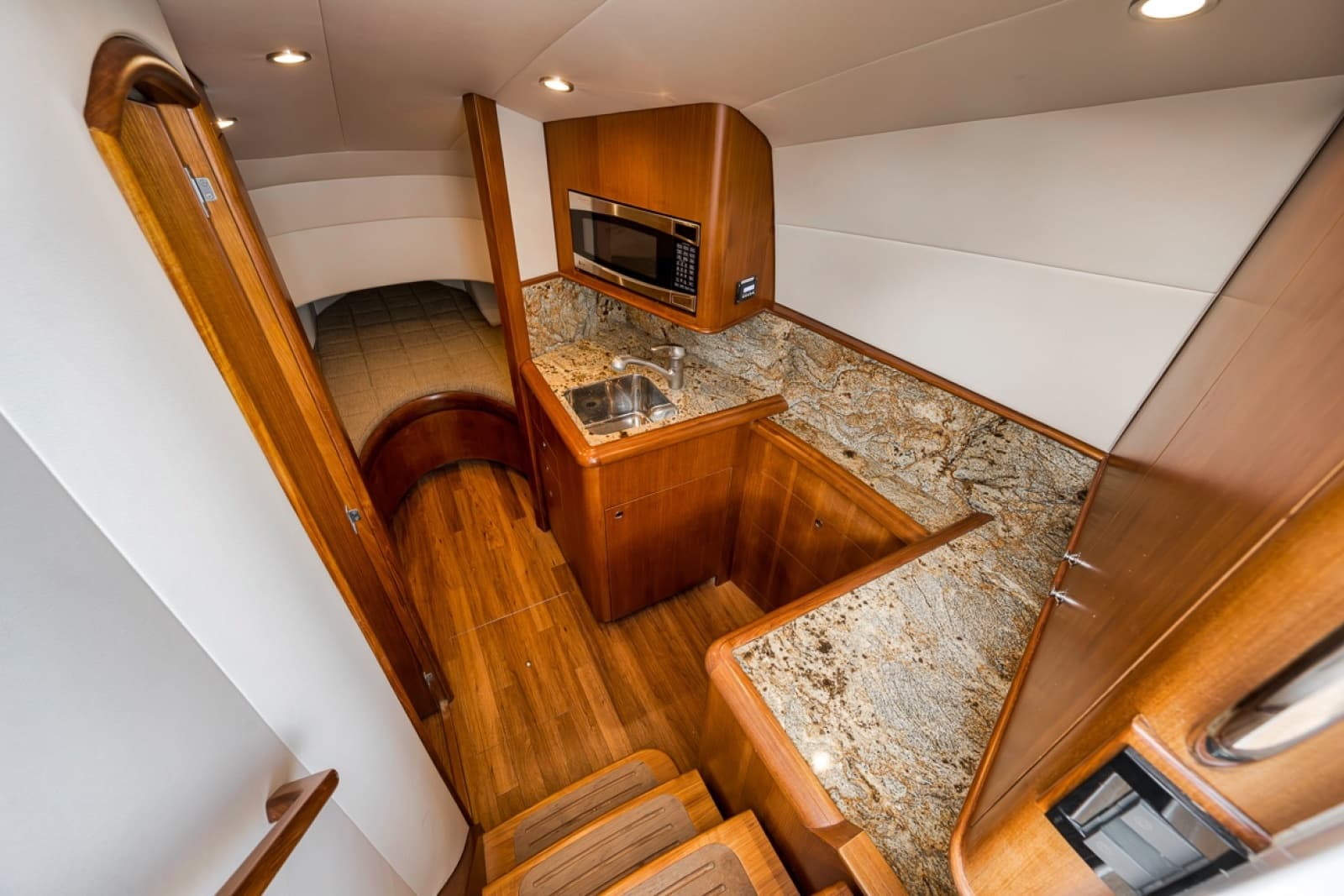

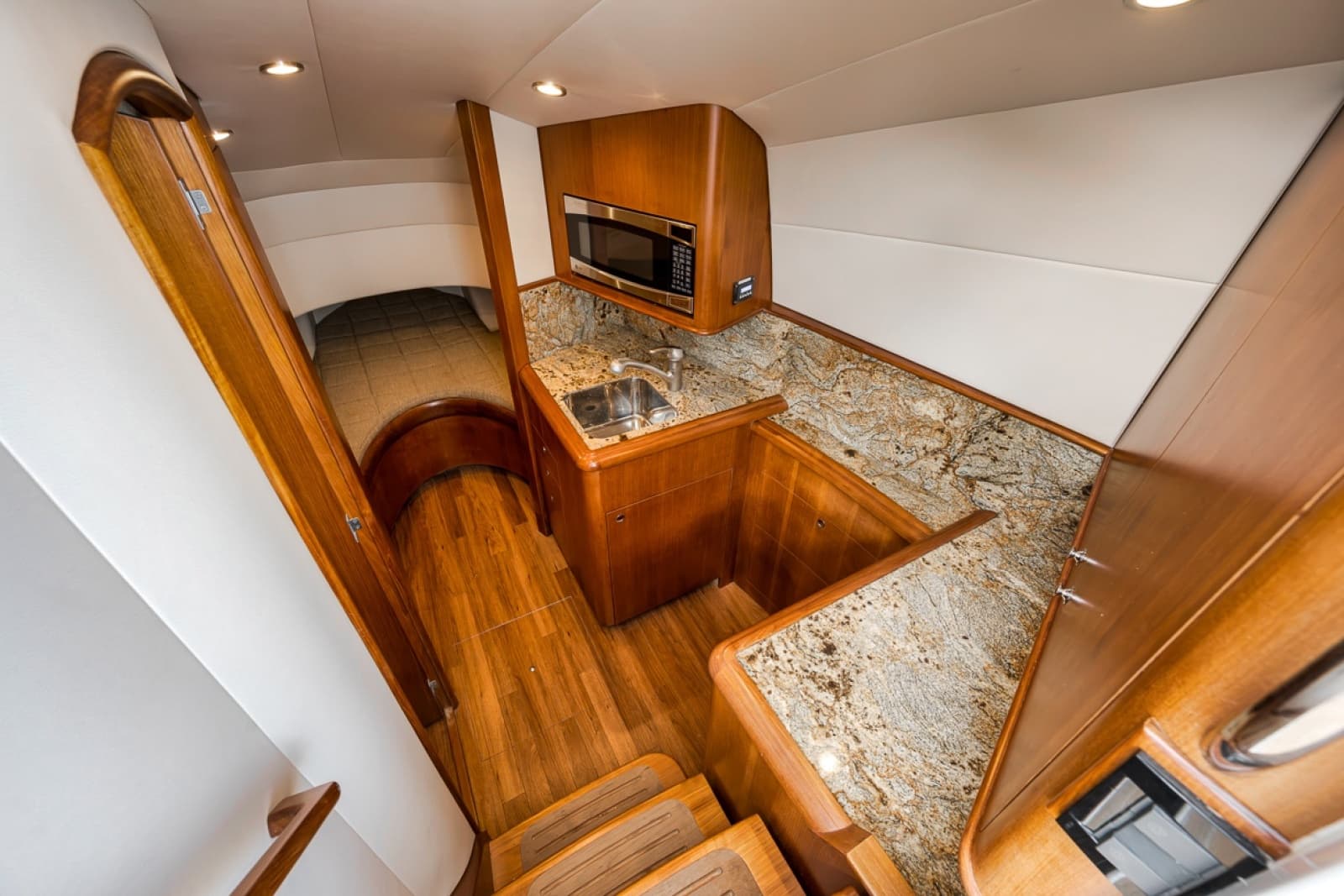

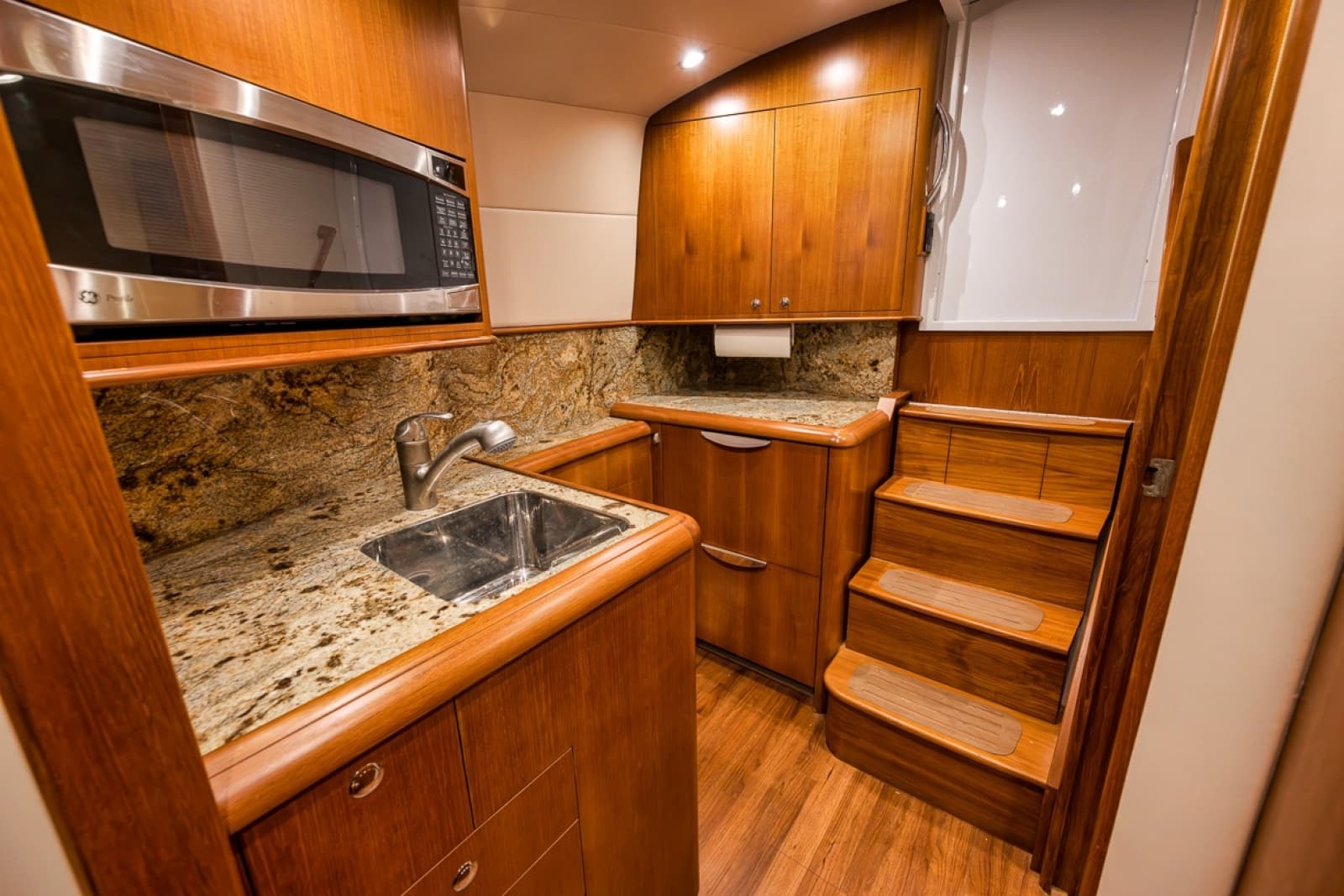

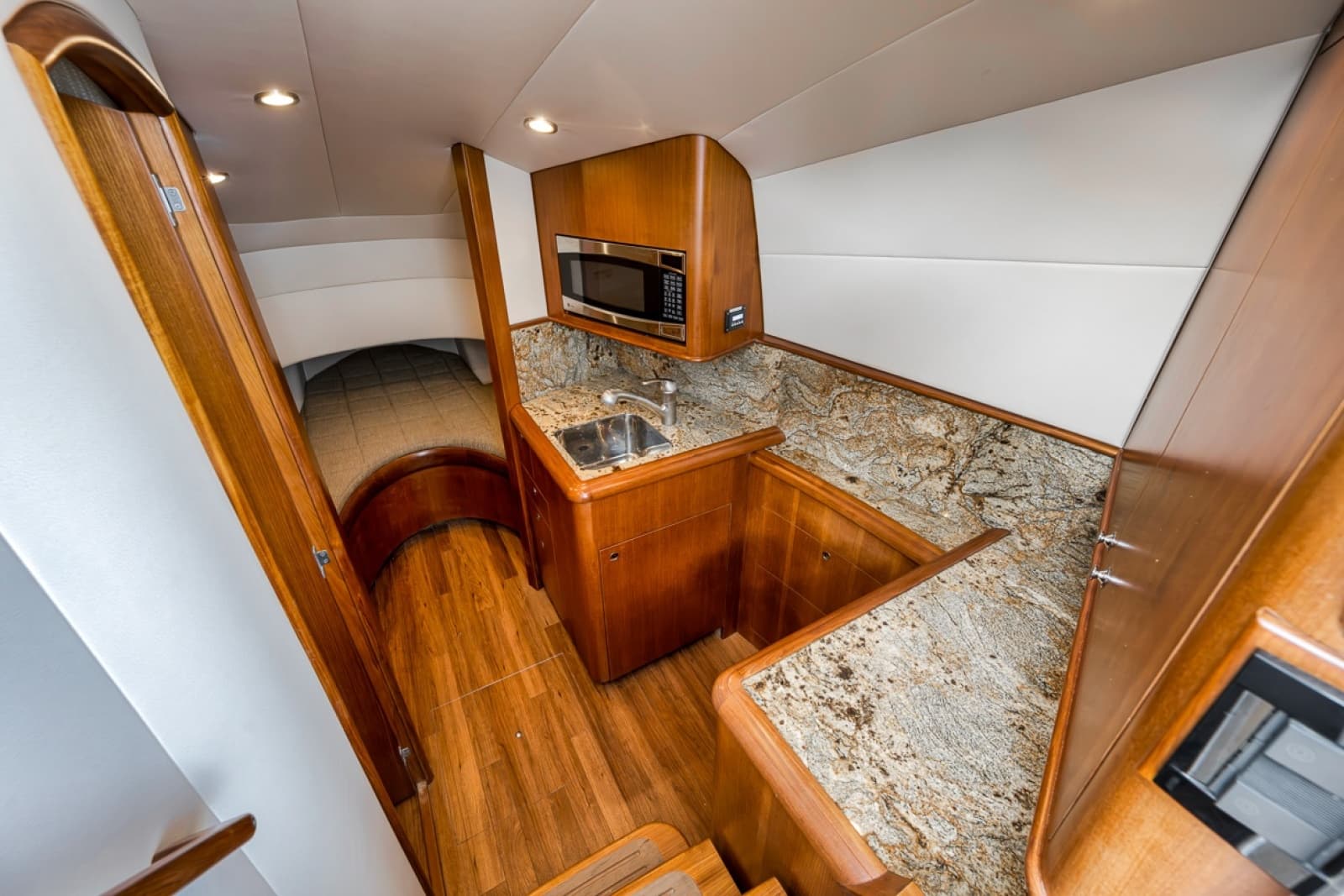

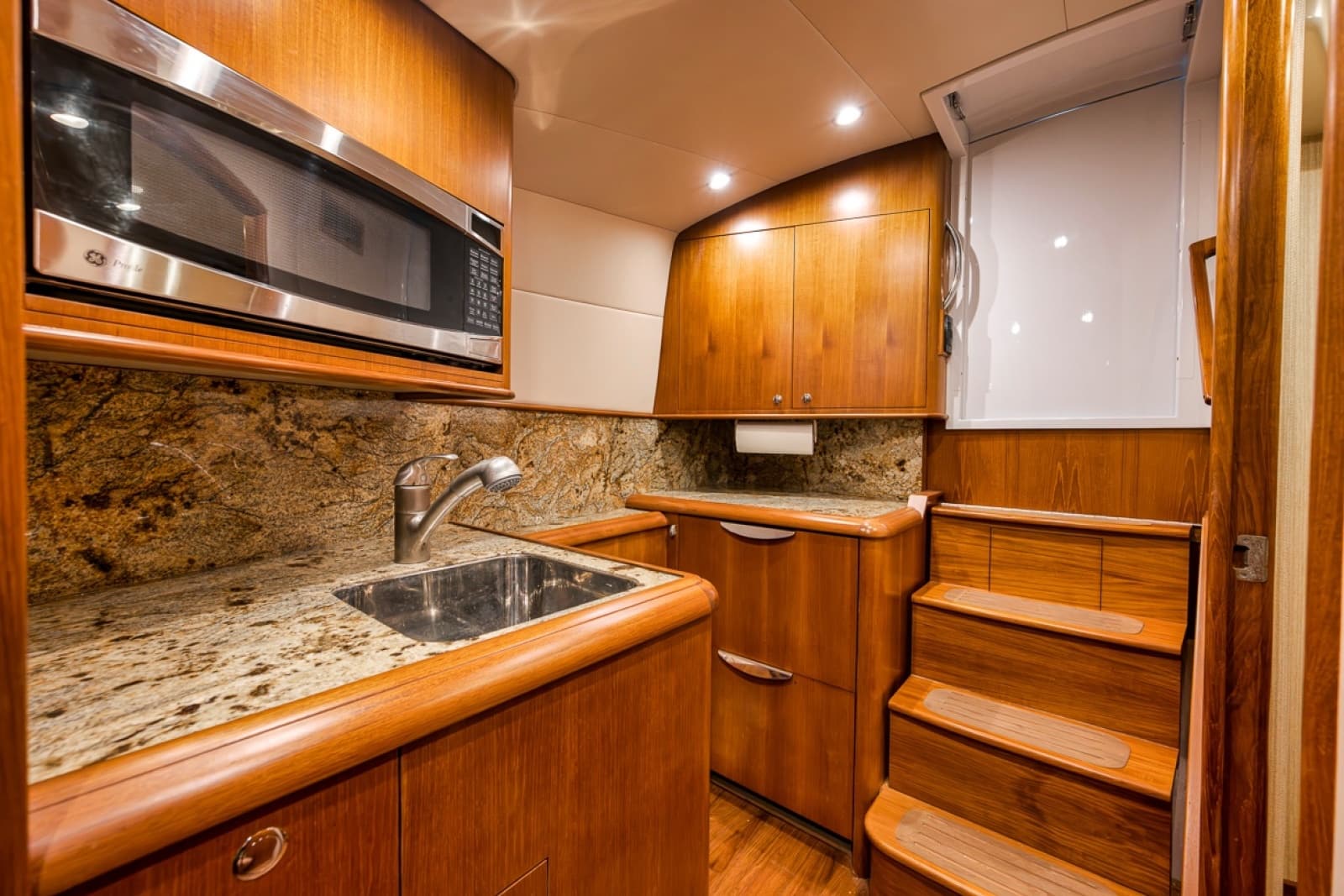

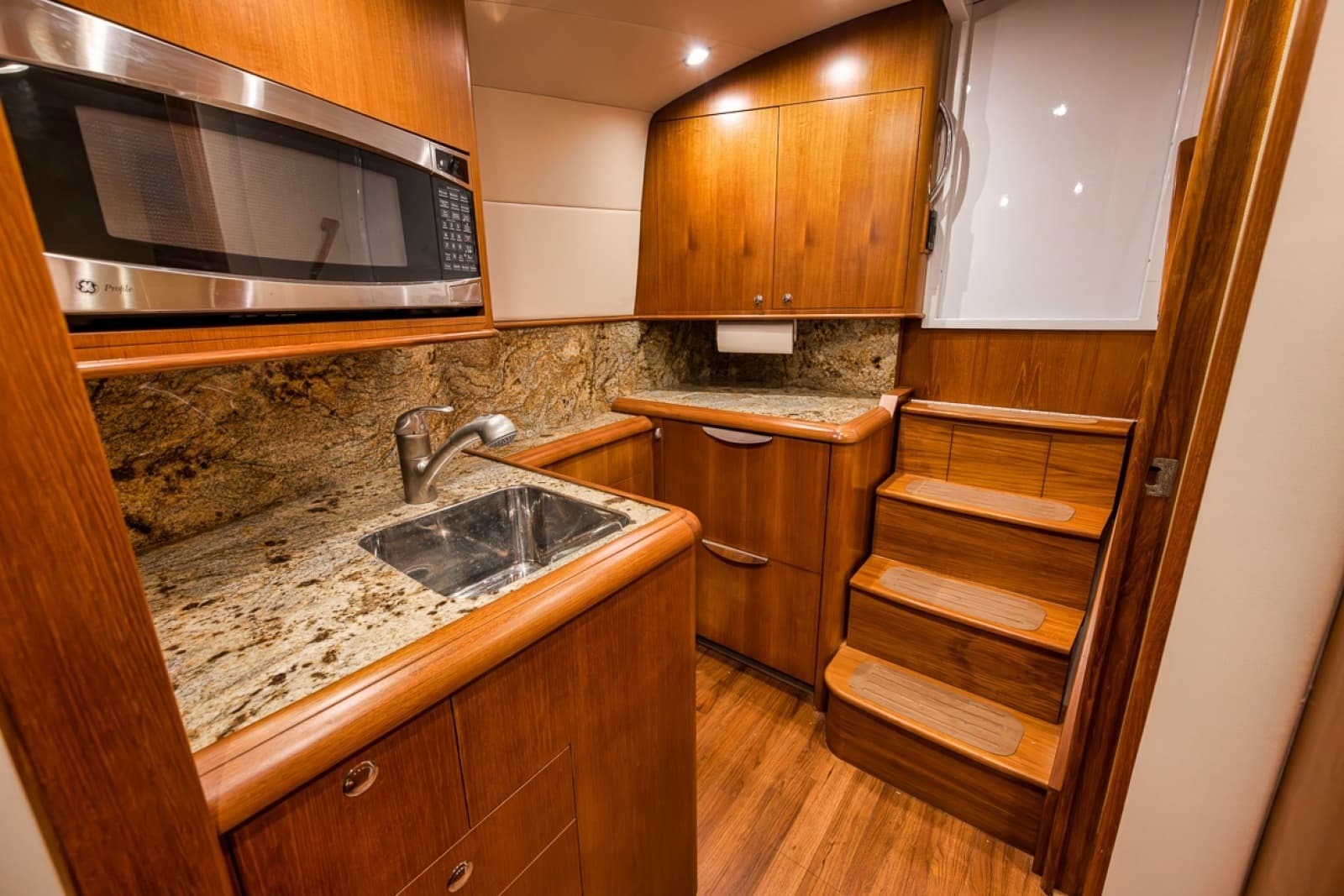

GALLEY

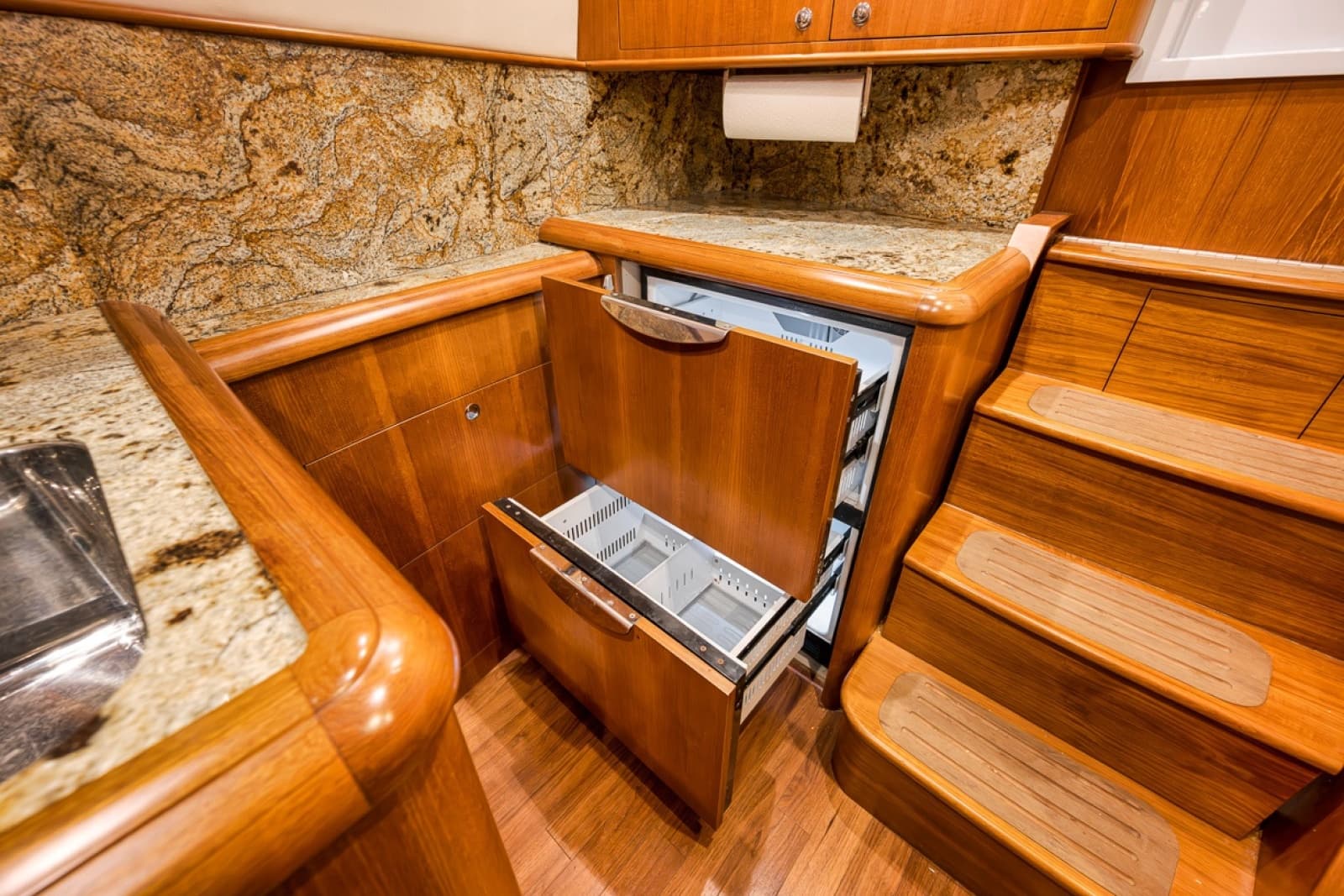

•   UNDER COUNTER KITCHEN-AID OR SUB ZERO REFRIGERATOR (DRAWER STYLE)

•   SINK BASE

•   BULKHEAD CABINETRY TO INCLUDE:

o   BASE STORAGE CABINETS BELOW

o   CABINET ABOVE FOR STORAGE, MICROWAVE

o   UPPER CABINETS TO HAVE ROLL OUT SHELVES

•   LIGHT WEIGHT GRANITE COUNTERTOPS

•   STAINLESS STEEL UNDERMOUNT SINK WITH SINGLE LEVER FAUCET

•   AMTICO FLOORING, MARINE GRADE

•   ALL CABINETRY AND INTERIOR DOORS TO BE FLUSH (CONTEMPORARY STYLE) WITH SELECTED VENEERS

•   ALL HARDWARE POLISHED STAINLESS STEEL OR BRUSHED FINISH

•   CONVECTION/MICROWAVE OVEN

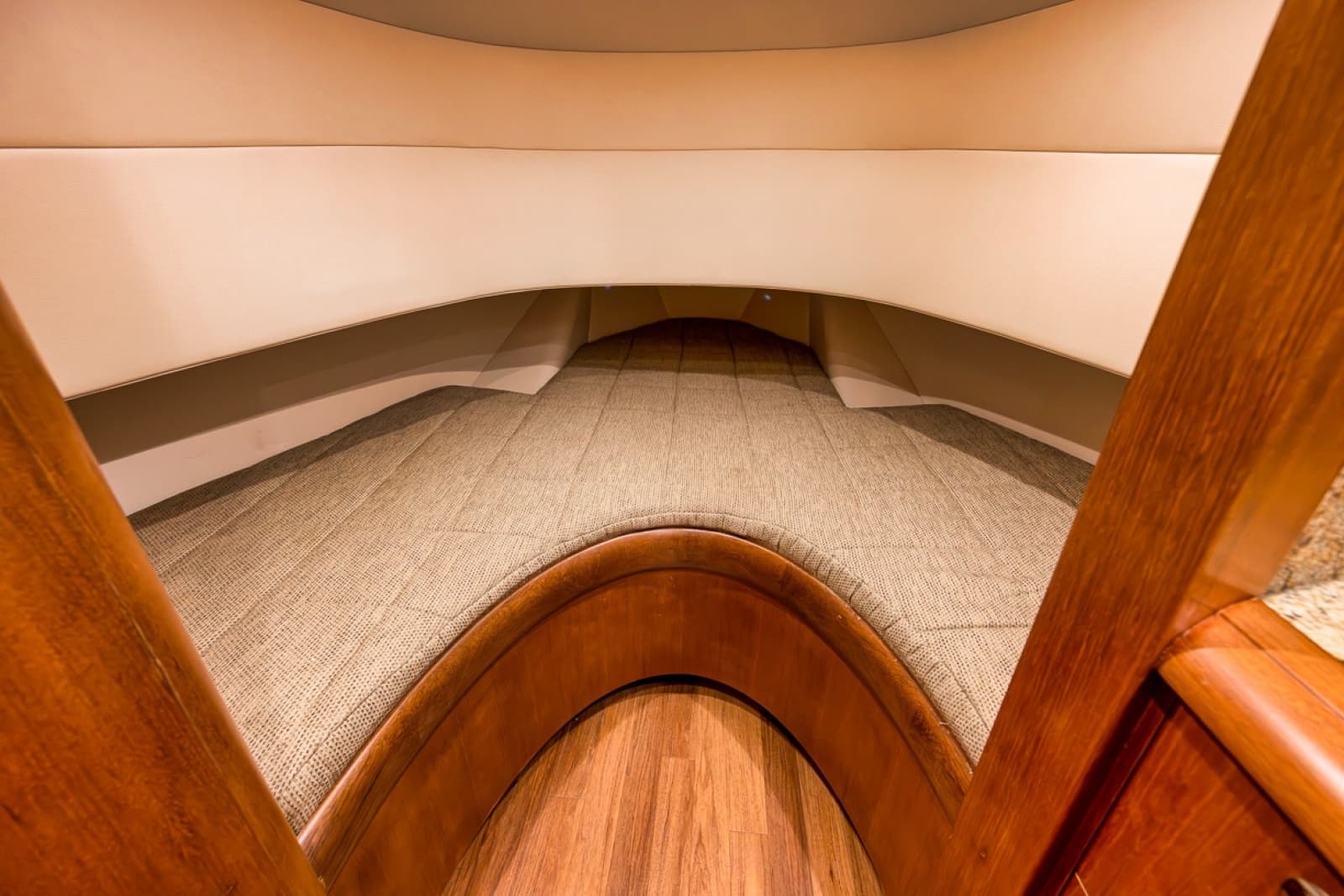

FORWARD BUNK AREA

•   V-BERTH WITH CUSTOM MATTRESS UPHOLSTERED WITH FABRIC

•   VINYL HEADLINER AND WALLS TO BE WHISPER WALL USING OWNER SELECTED MATERIAL

•   ROPE LIGHTING UNDER TOE KICK

•   ALL HARDWARE POLISHED STAINLESS STEEL OR BRUSHED FINISH

•   ALL CABINETRY AND INTERIOR DOORS TO BE FLUSH (CONTEMPORARY STYLE) WITH SELECTED VENEERS

•   HANGING LOCKER WITH STORAGE SHELF

•   ROD STORAGE AREA UNDER V-BERTH

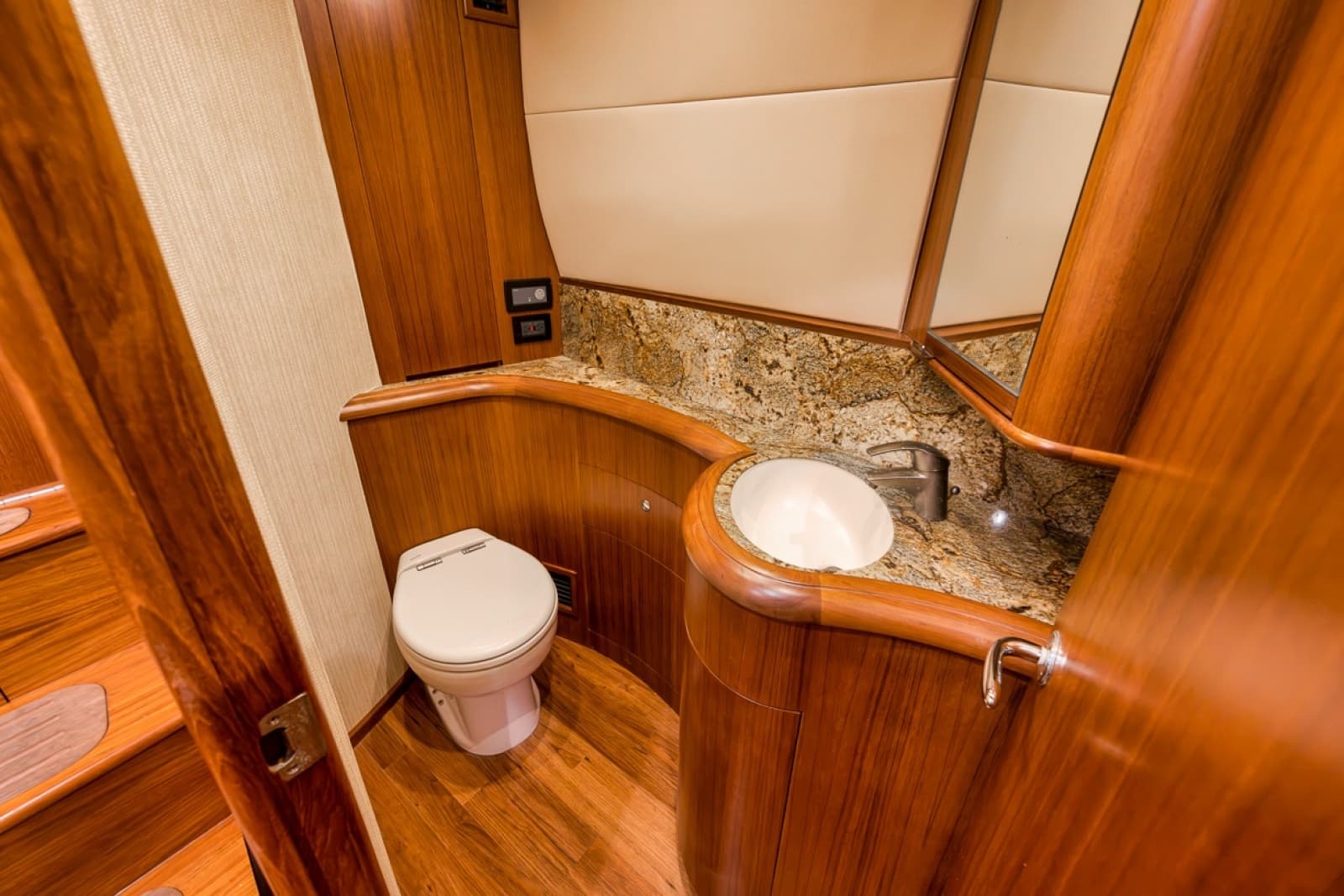

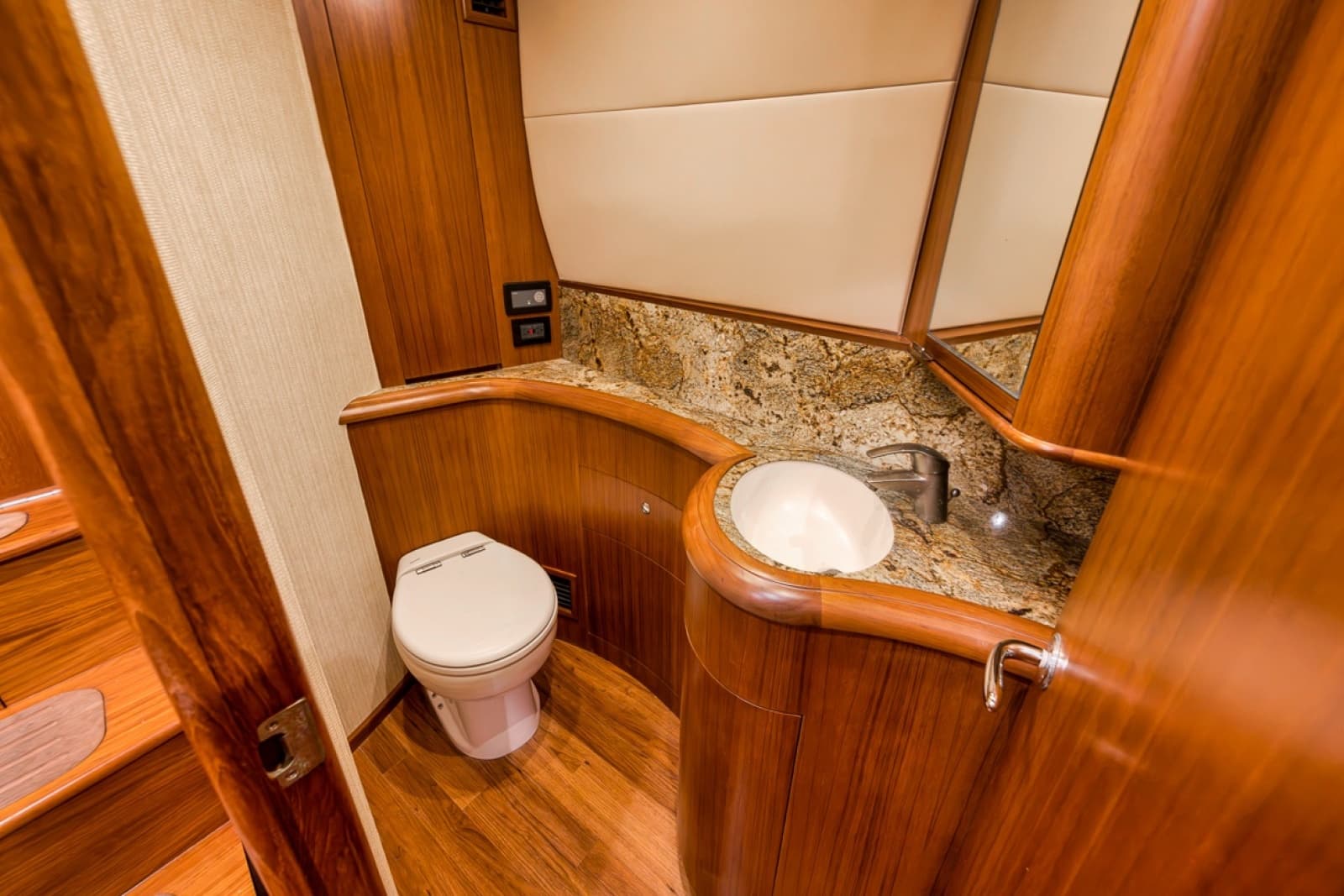

HEAD

•   AMTICO FLOORING, MARINE GRADE

•   EXHAUST FAN

•   TECHMA FRESH WATER ELECTRIC TOILET

•   WOOD VANITY WITH GRANITE COUNTERTOP AND UNDERMOUNT SOLID SURFACE BOWL

•   SINGLE LEVER FAUCET

•   AIR CONDITIONING SUPPLY

•   GFI 110 VOLT OUTLET

•   RECESSED LIGHTING

•   MIRRORED WOOD MEDICINE CABINET

•   ALL WALLS TO BE WALLPAPER

•   ALL HARDWARE POLISHED STAINLESS STEEL OR BRUSHED FINISH

•   STAINLESS STEEEL TOWEL BAR & RING

•   ALL CABINETRY & INTERIOR DOORS TO BE FLUSH (CONTEMPORARY STYLE) WITH SELECTED VENEERS

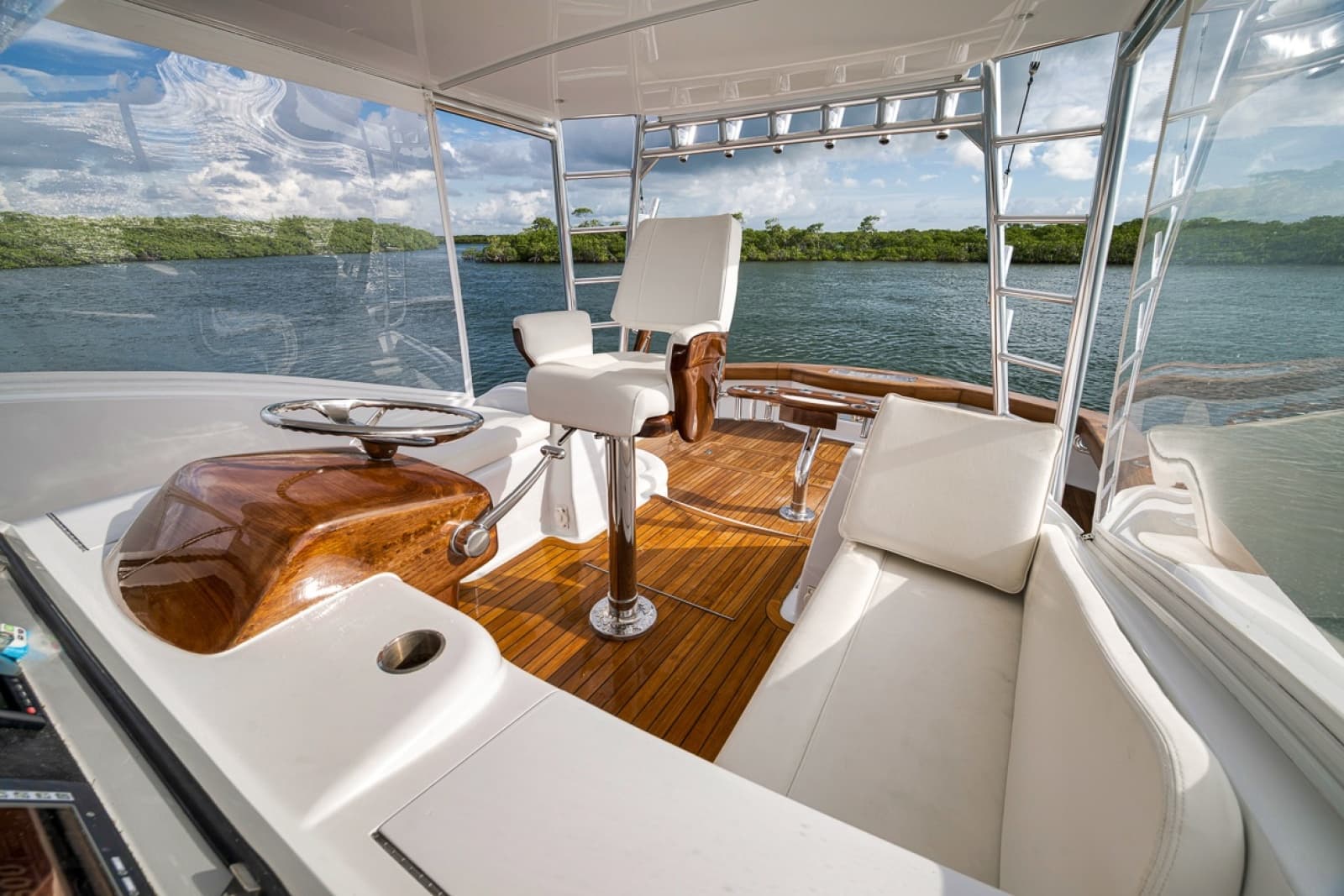

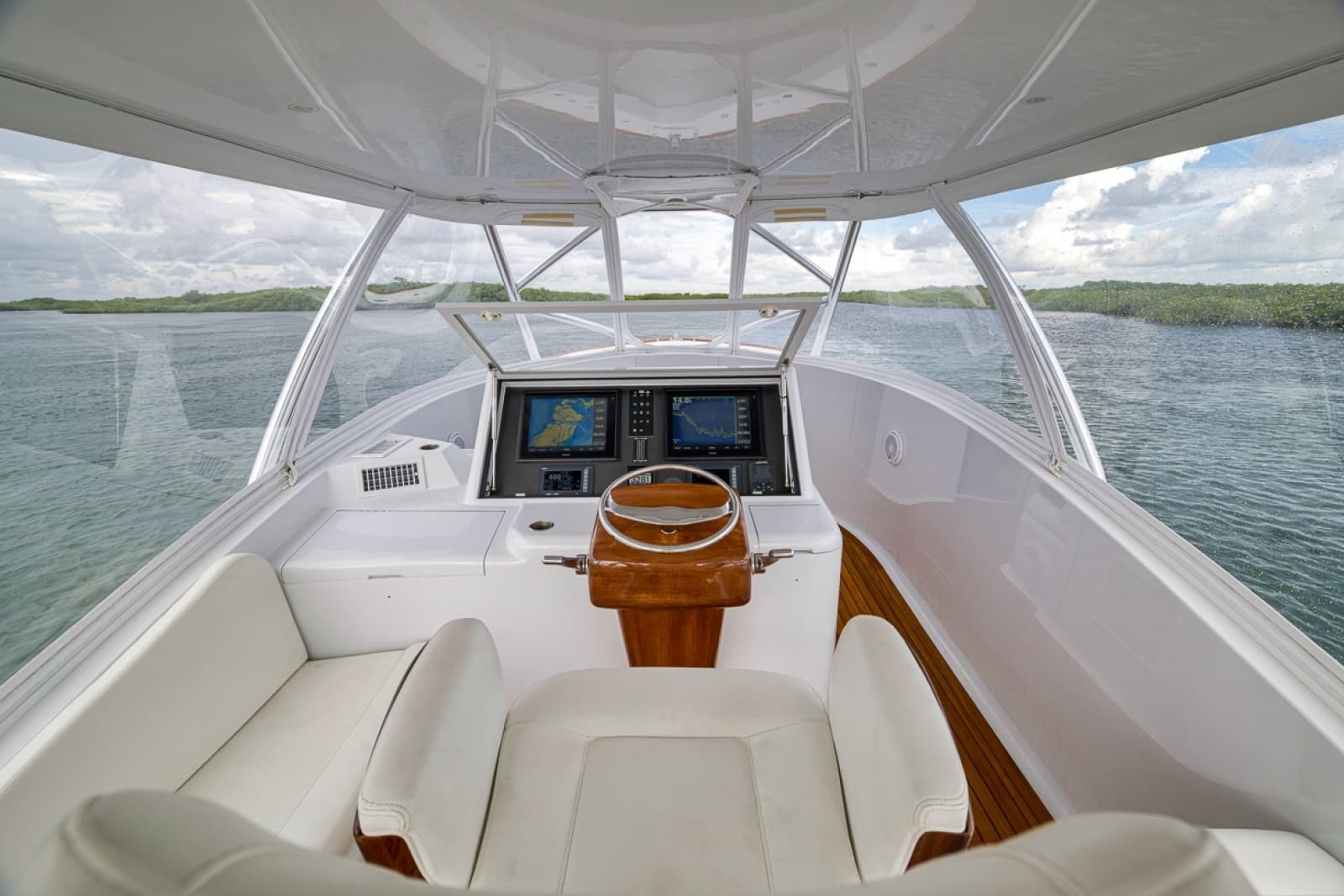

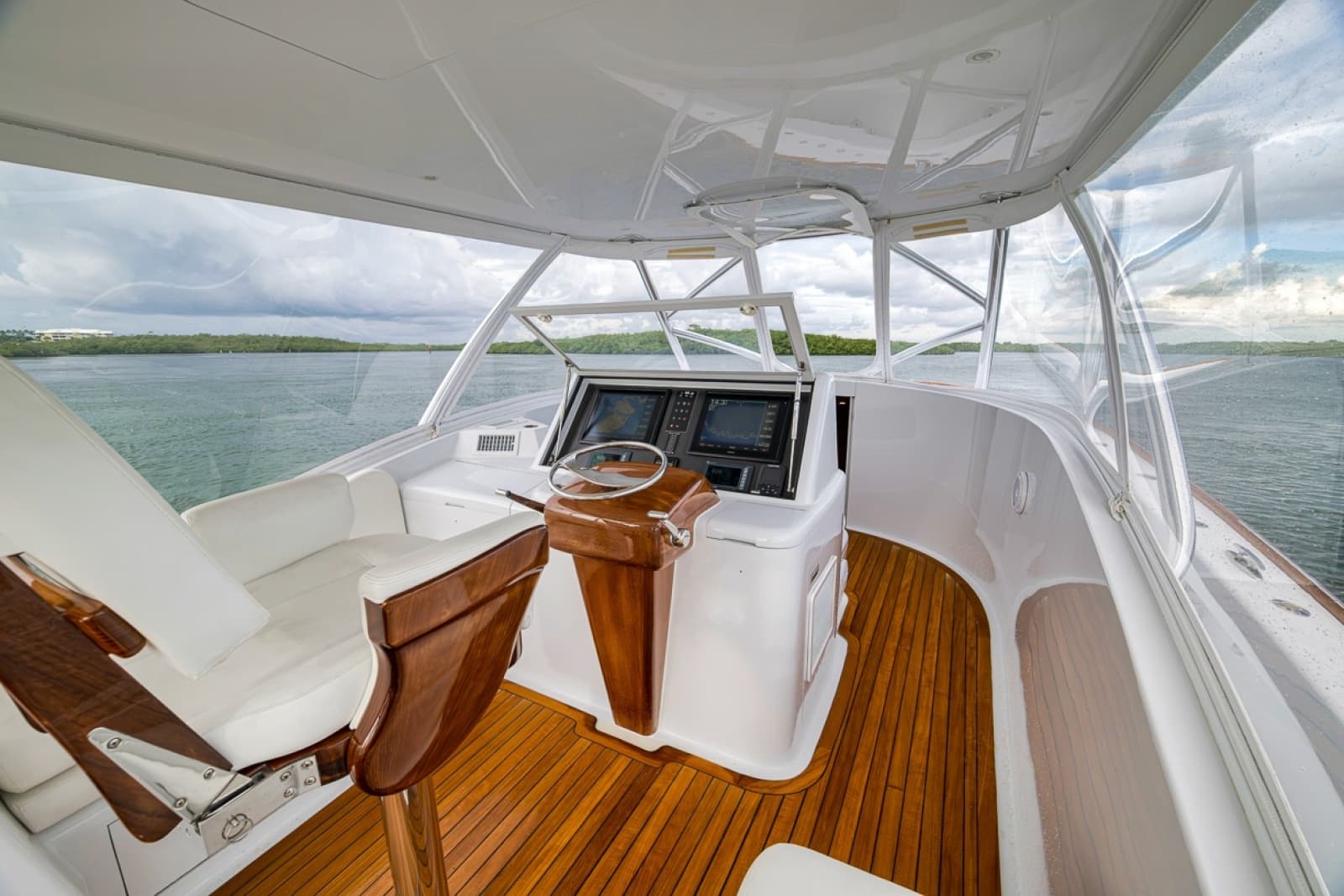

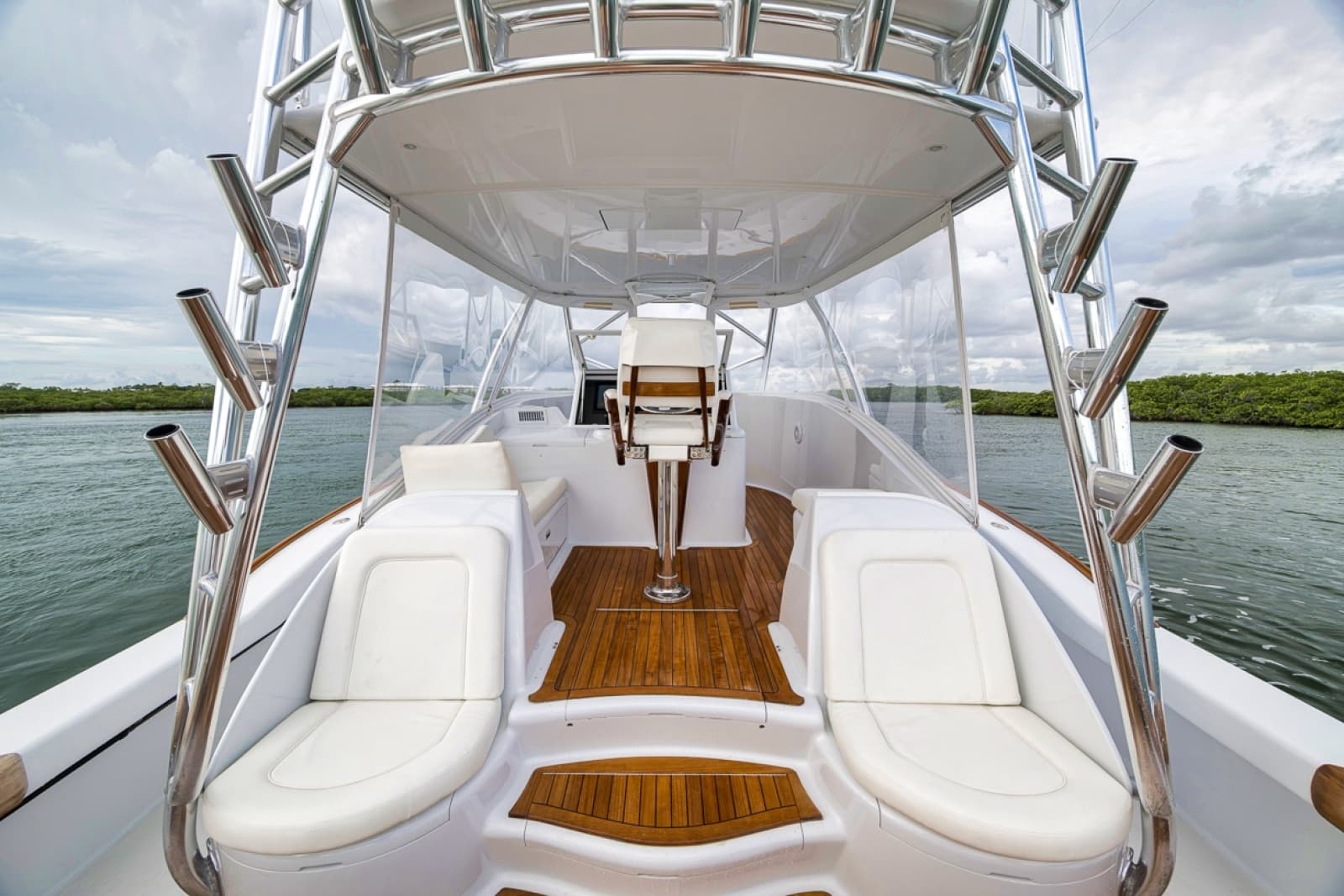

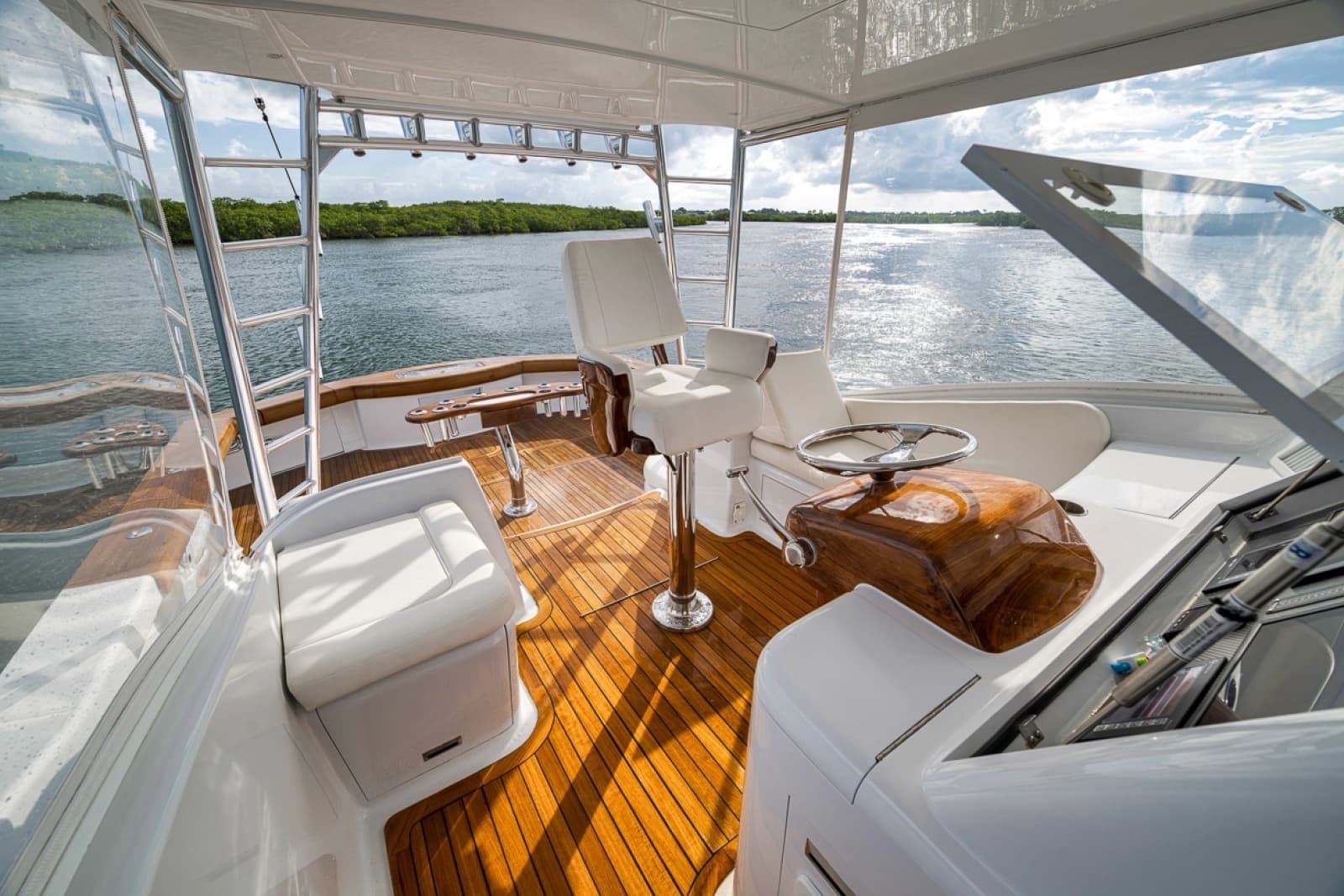

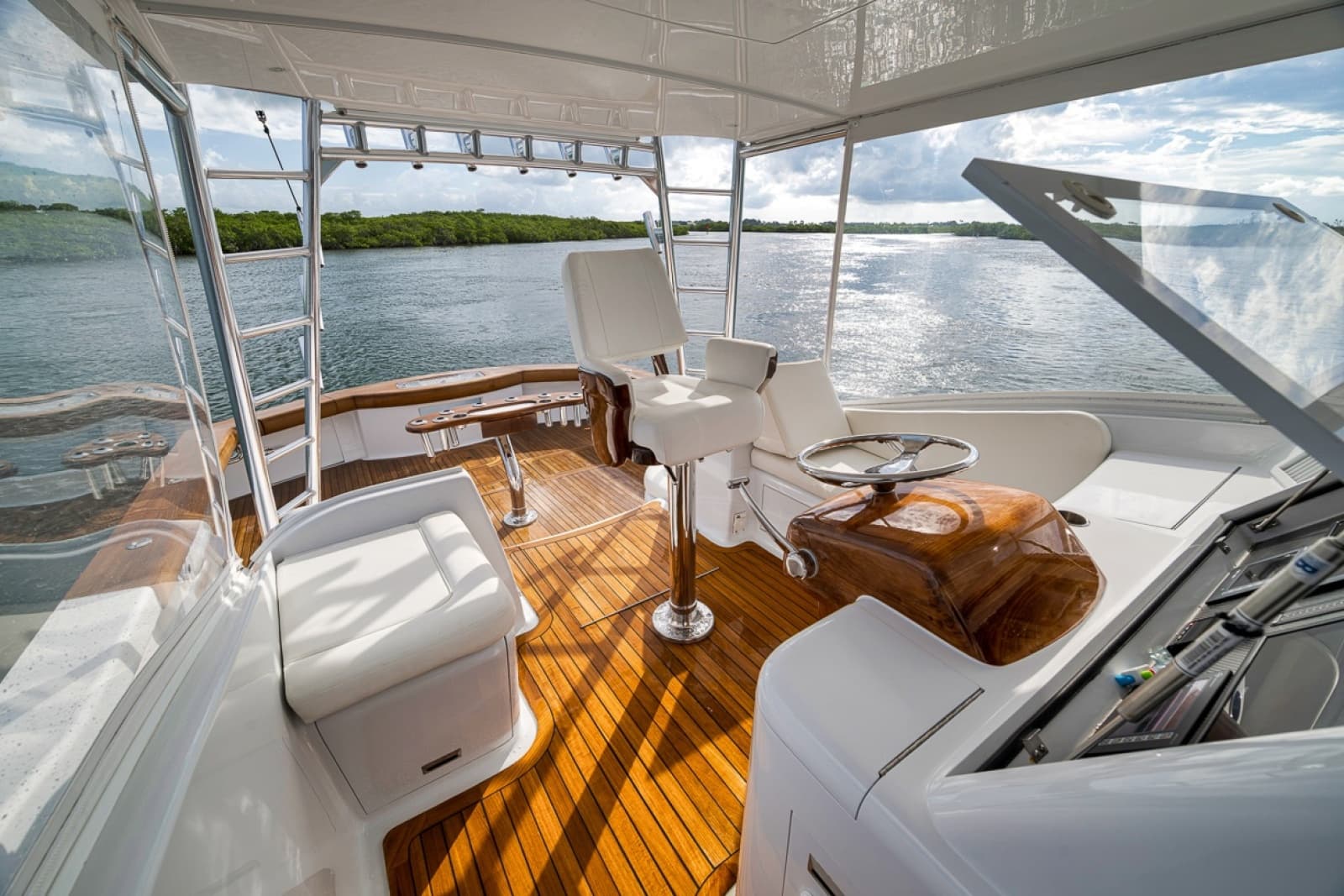

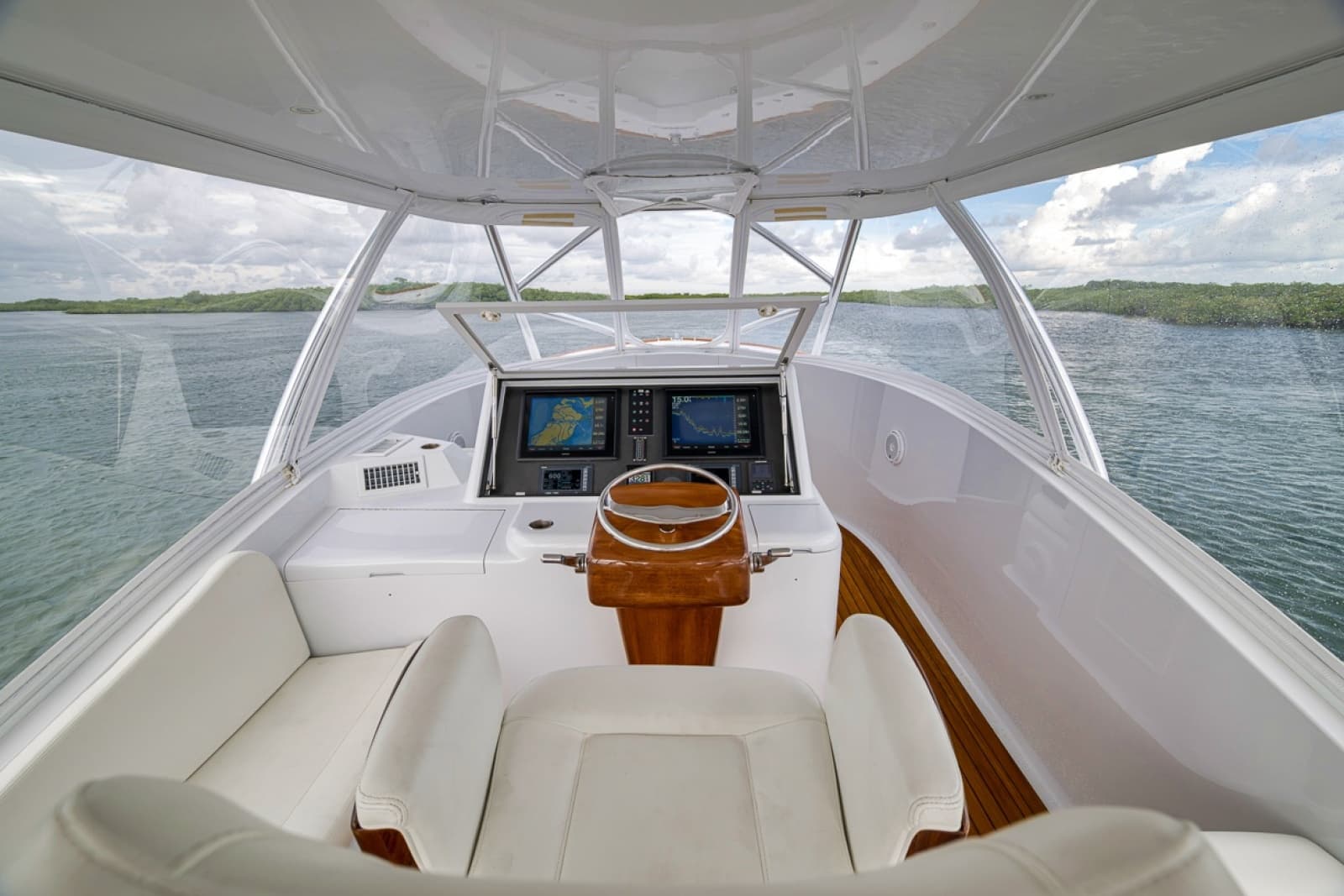

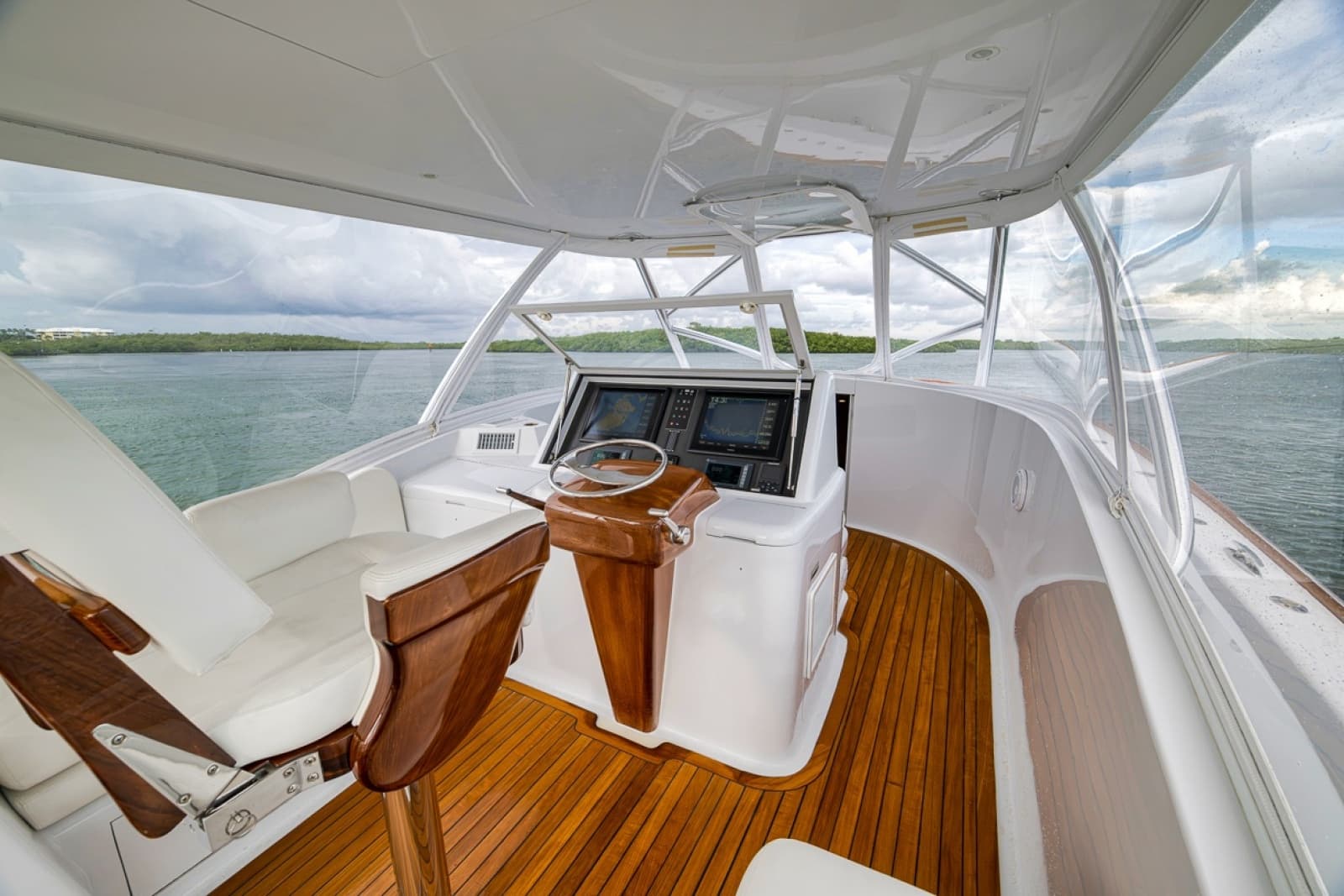

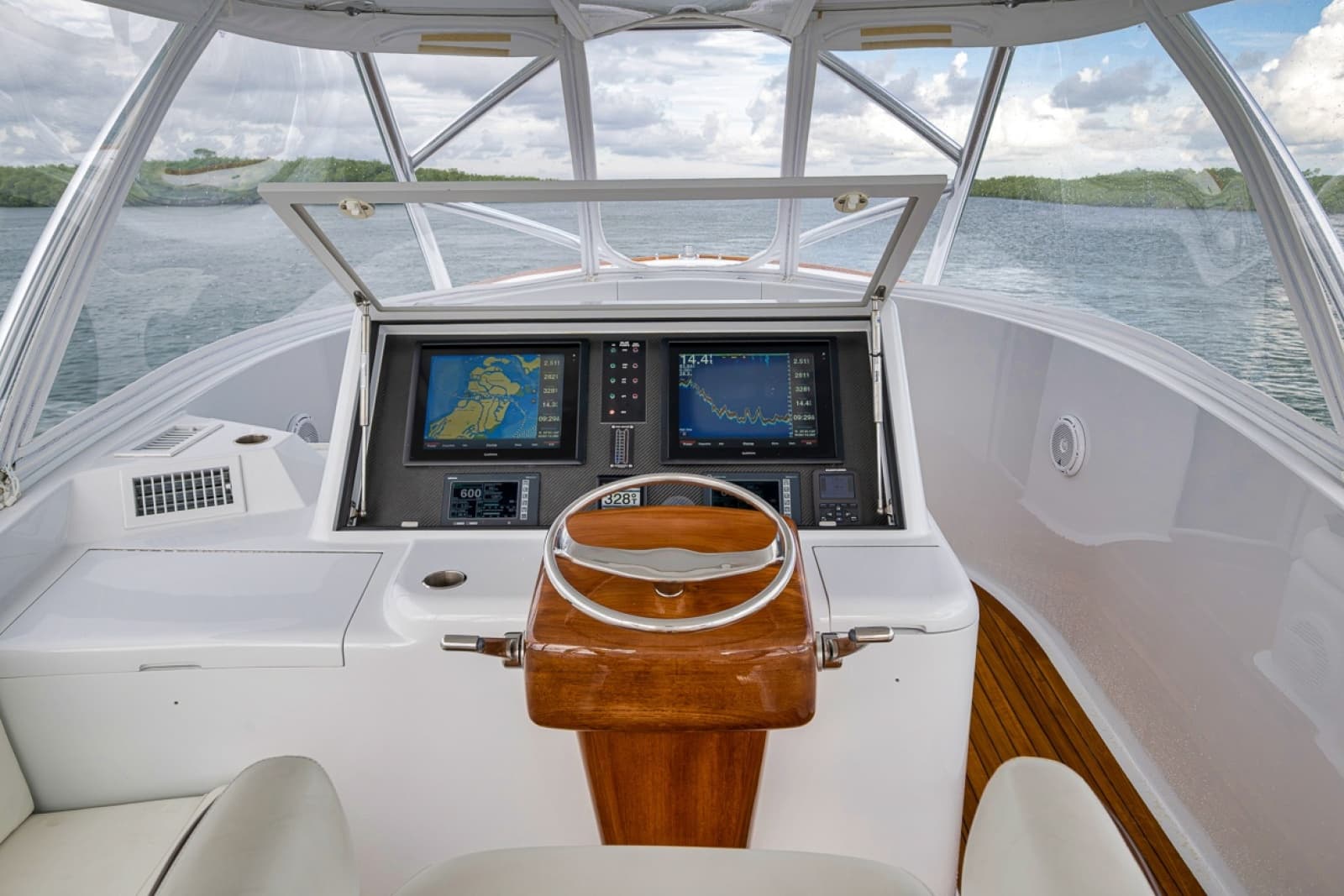

HELM

•   CONSOLE TO BE DESIGNED

•   SEATING WITH STORAGE BELOW, PER PLAN

•   TEAK FLOOR

•   TEAK TACKLE DRAWERS IN PORT SIDE SEAT BEHIND DOOR

•   FOUR-SIDED HELM ENCLOSURE

•   COMPANIONWAY DOOR ON CENTERLINE

•   ELECTRONICS BOX (ELECTRONICS SUPPLIED BY OWNER, INSTALLED BY F & S BOATWORKS, NOT WIRED)

•   RELEASE MARINE STEERING WHEEL

•   RELEASE MARINE CONTROL HANDLES WITH BOW THRUSTER CONTROLS

•   ONE (1) BLUEWATER HELM CHAIR, TEAK

•   GENSET INDICATOR LIGHT

•   110 VOLT GFI OUTLET

•   TEAK HELM BUBBLE (PALM BEACH STYLE)

•   SIDE MOUNT ENGINE CONTROLS

•   VINYL CUSHIONS WITH CLOSED CELL FOAM

•   BRIDGE PANEL WITH 24 VOLT BREAKERS

•   24 VOLT POWER SUPPLY

•   GRAB RAILS, OWNER TO SELECT PLACEMENT

•   FORWARD EMERGENCY HATCH TO ENGINE ROOM IN FLOOR NEXT TO CONSOLE

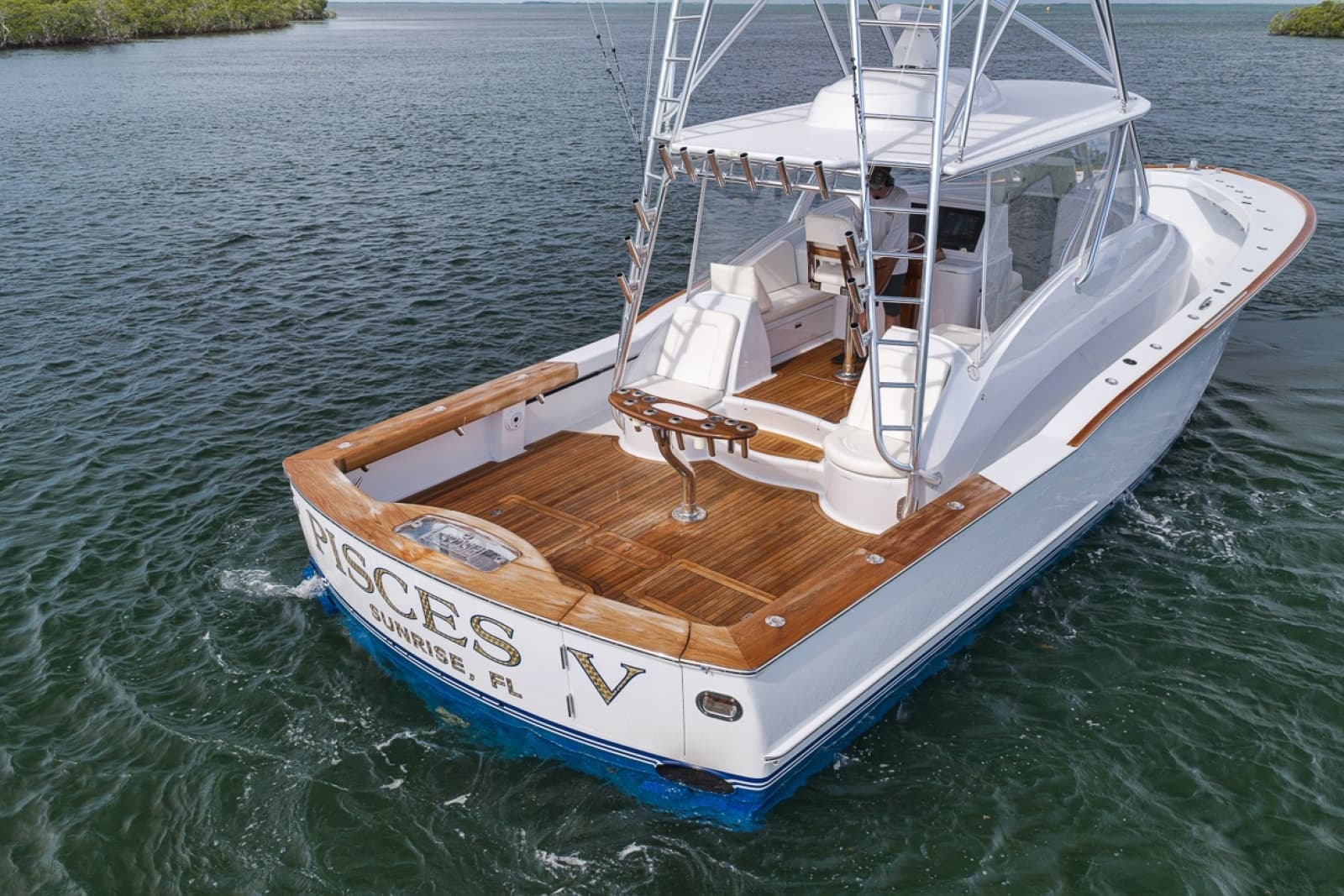

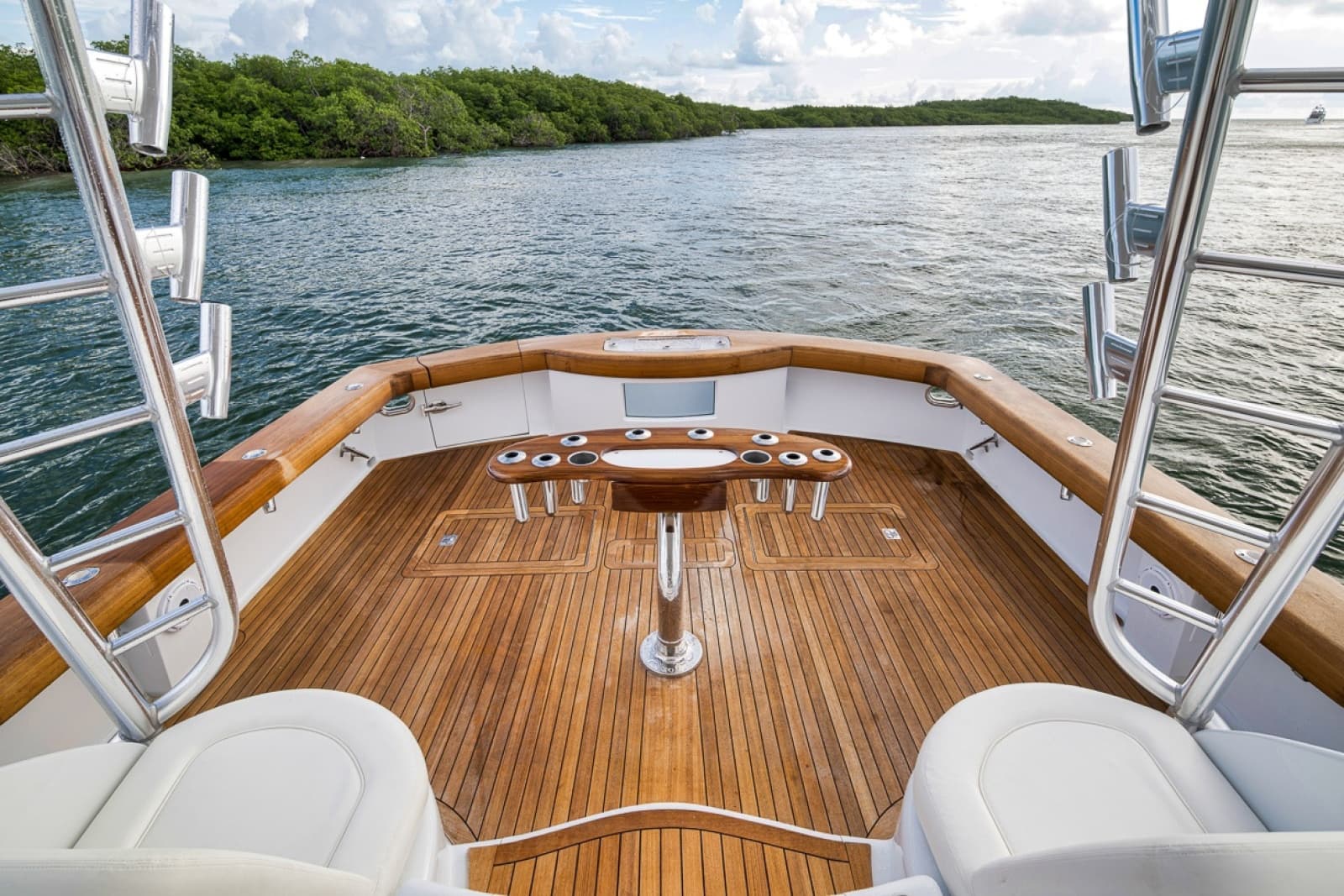

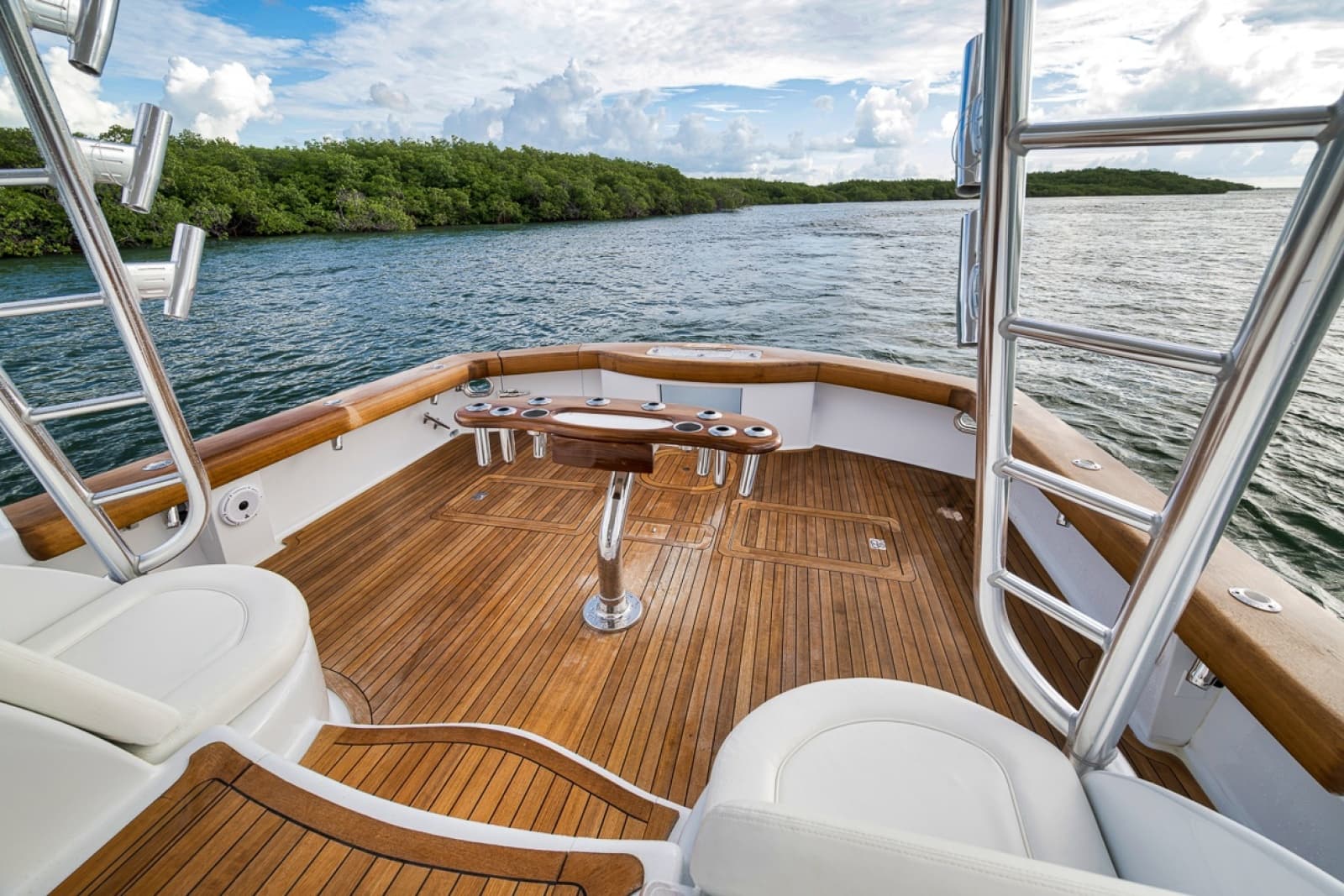

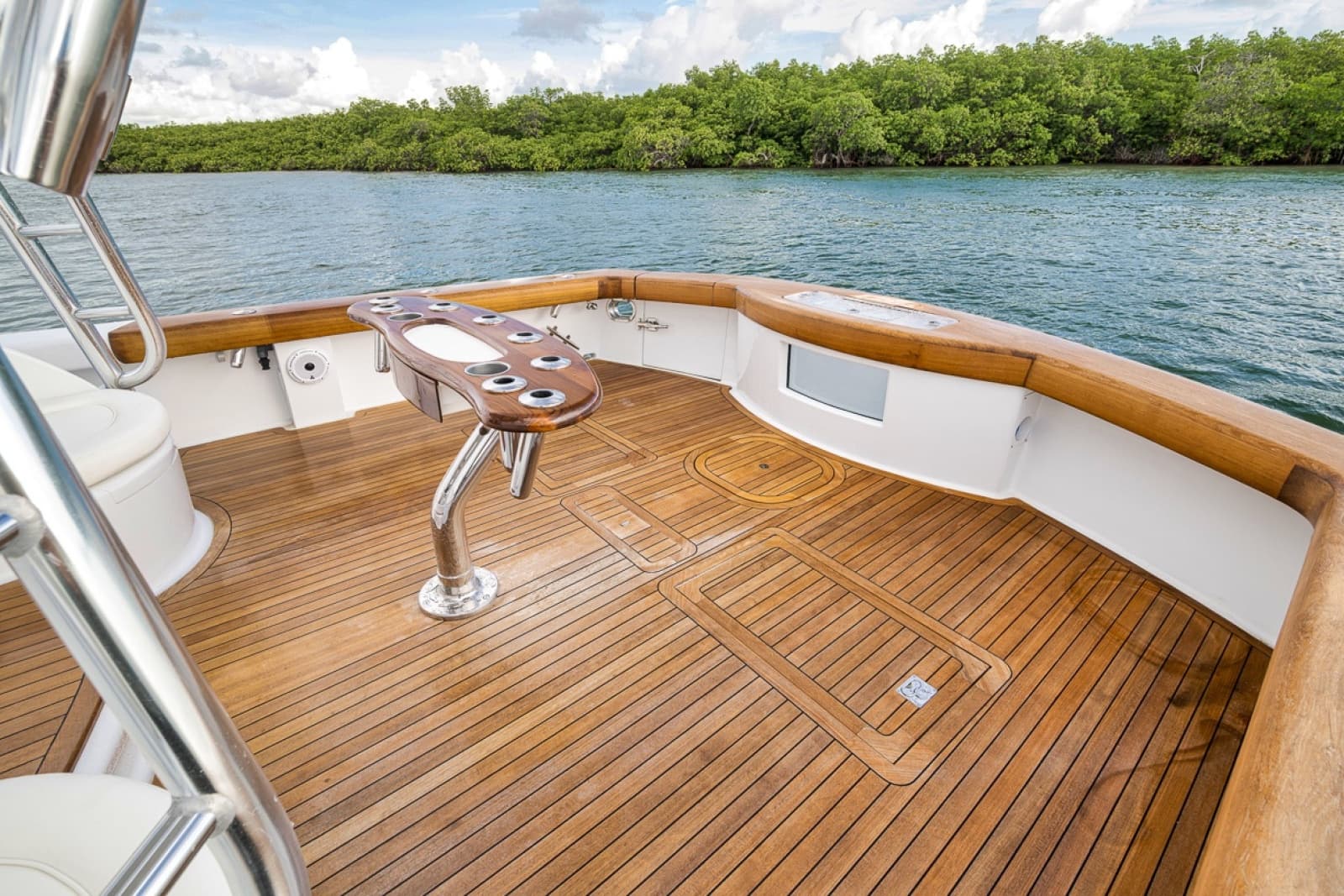

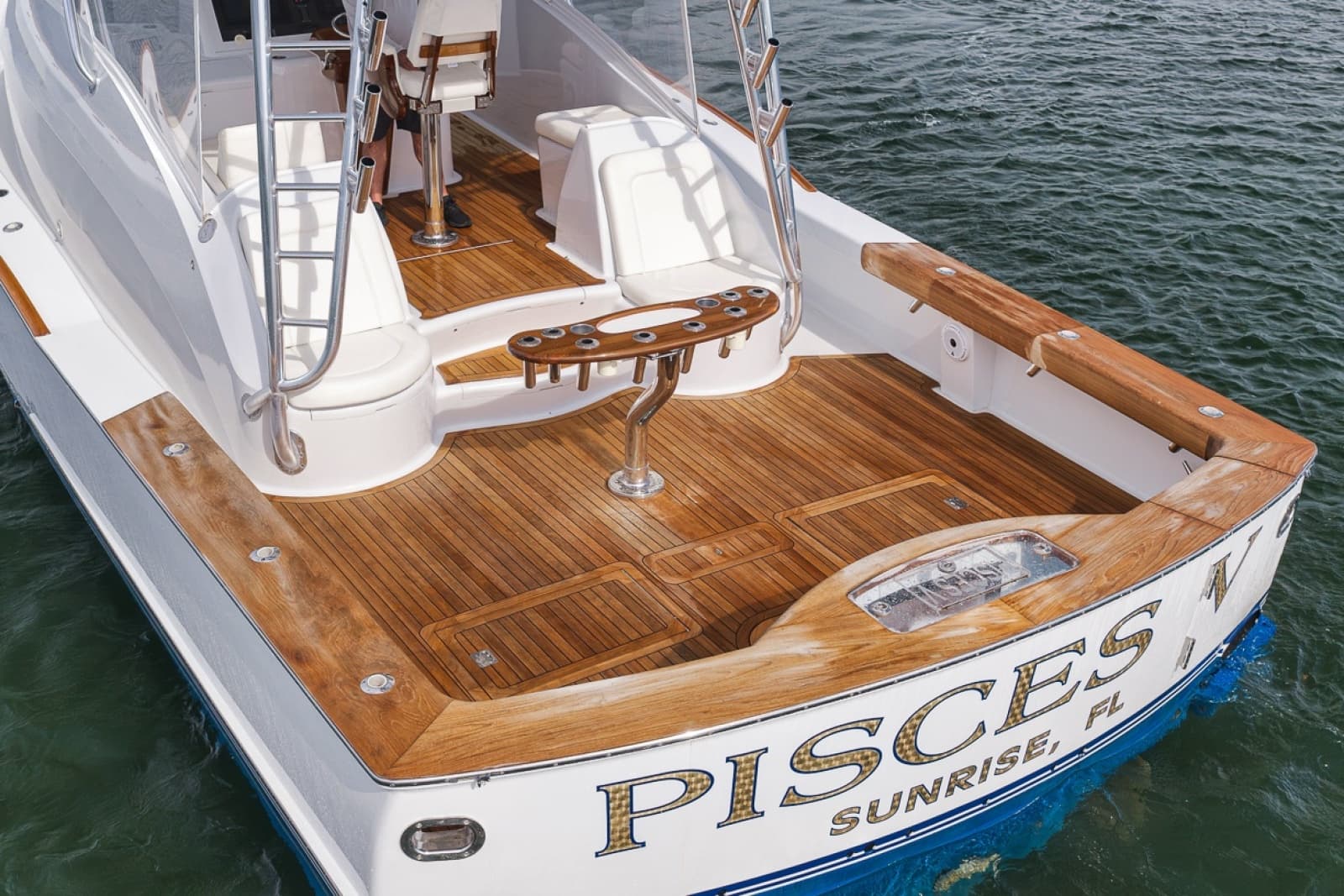

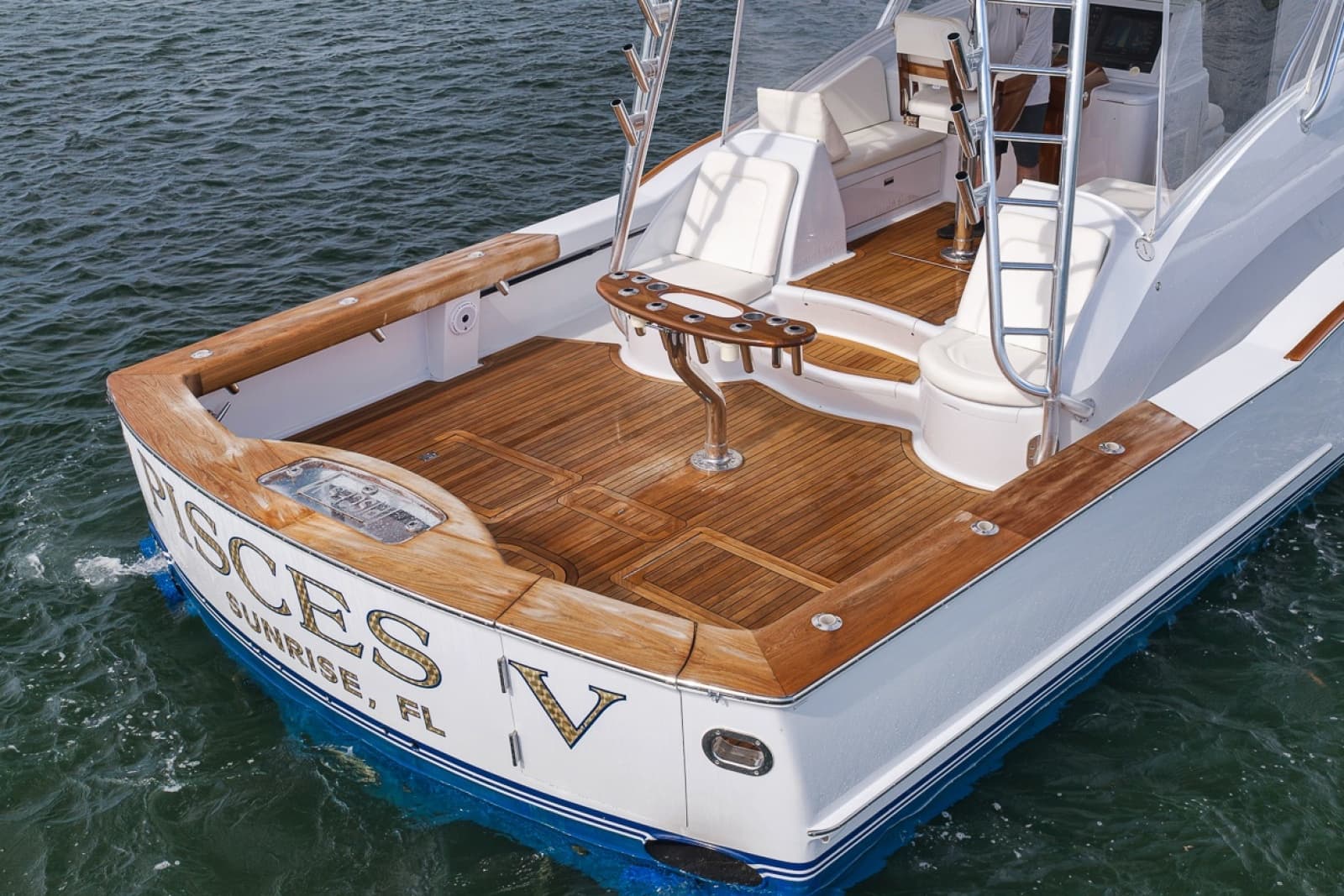

COCKPIT

•   TEAK FLOOR

•   FOUR (4) RELEASE STAINLESS STEEL ROD HOLDERS – OWNER TO DETERMINE POSITION

•   WALK THROUGH TRANSOM DOOR WITH REMOVABLE DIVE LADDER AND MOUNTS

•   TWO STERN CLEATS

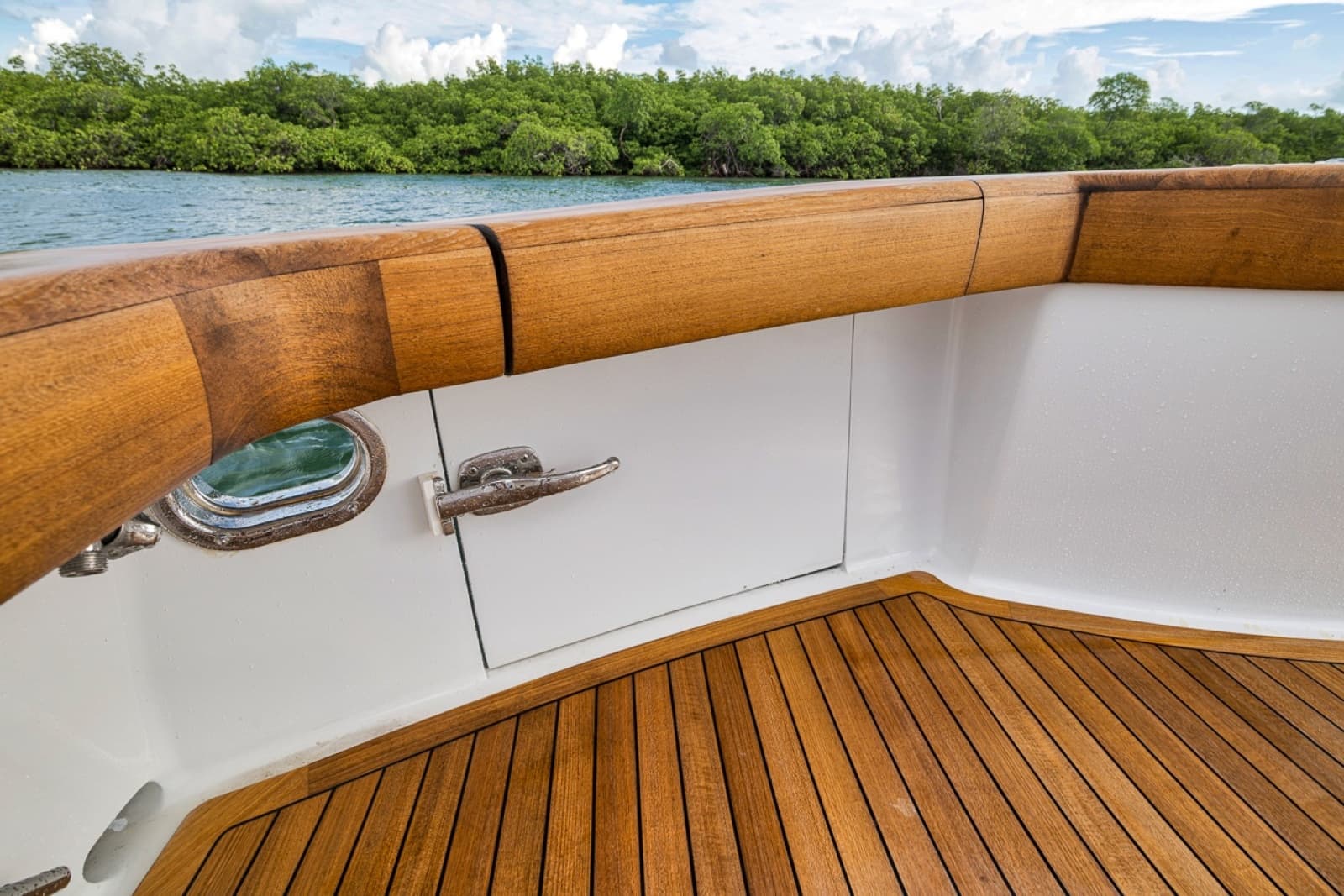

•   CORNER MOUNTED STAINLESS STEEL HAWSE PIPES

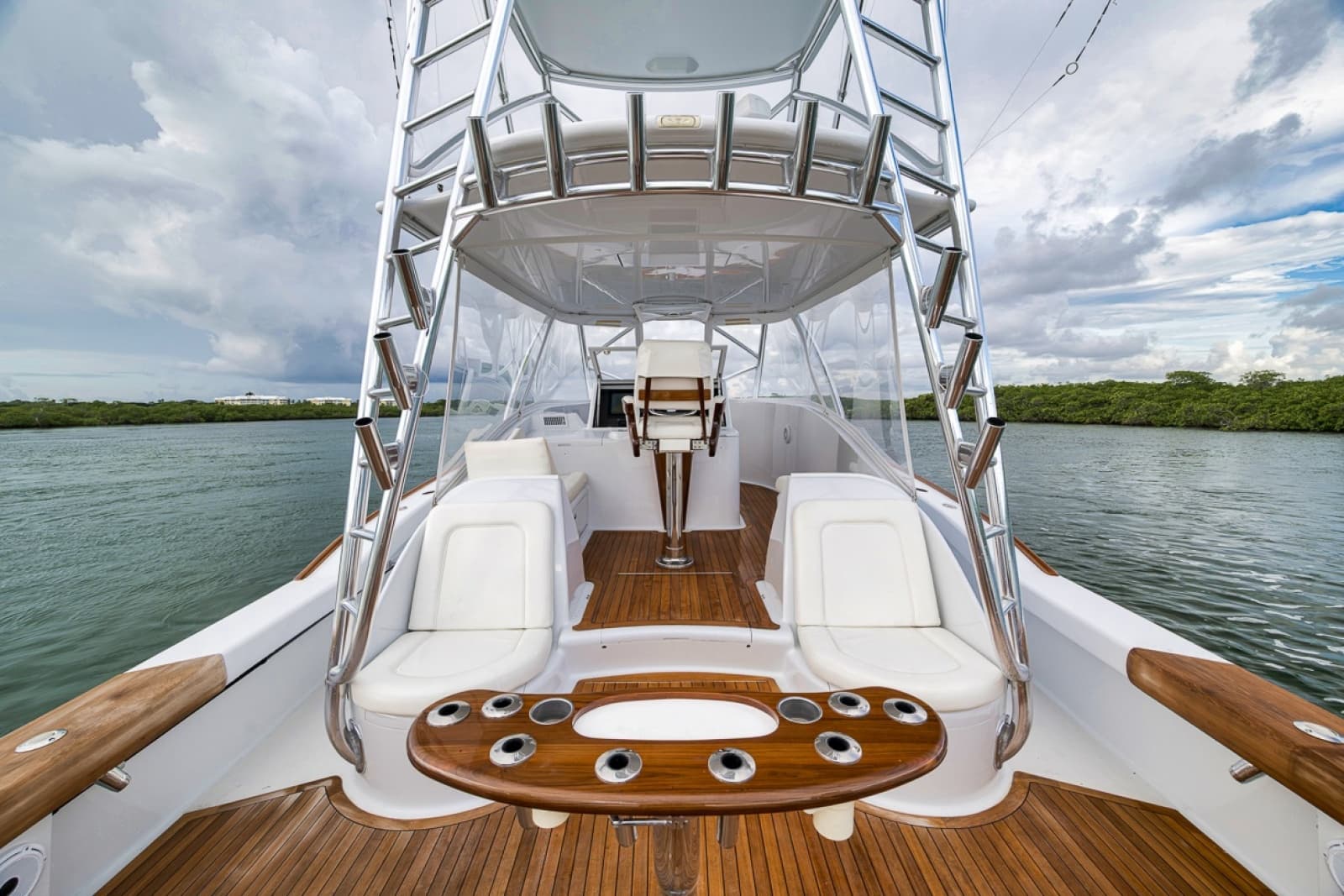

•   BLUEWATER ROCKET LAUNCHER WITH SIX (6) ROD HOLDERS, TEAK

•   FRESH AND SALT WATER WASHDOWN SYSTEMS

•   SHORE WATER CONNECTION

•   ENGINE ROOM ACCESS

•   STORAGE FOR CLEANING SUPPLIES

•   FOUR (4) ELECTRIC REEL OUTLETS (TWO LOCATED FORWARD IN BOW AREA)

•   TRANSOM FISHBOX & LIVEWELL

•   UNDER DECK FISH BOX, ON CENTERLINE, REFRIGERATED WITH MASCERATOR

•   ESKIMO ICE MAKER INSTALLED BENEATH STARBOARD SIDE FORWARD-FACING JUMP SEAT WITH DISCHARGE BENEATH STARBOARD SIDE AFT-FACING JUMP SEAT

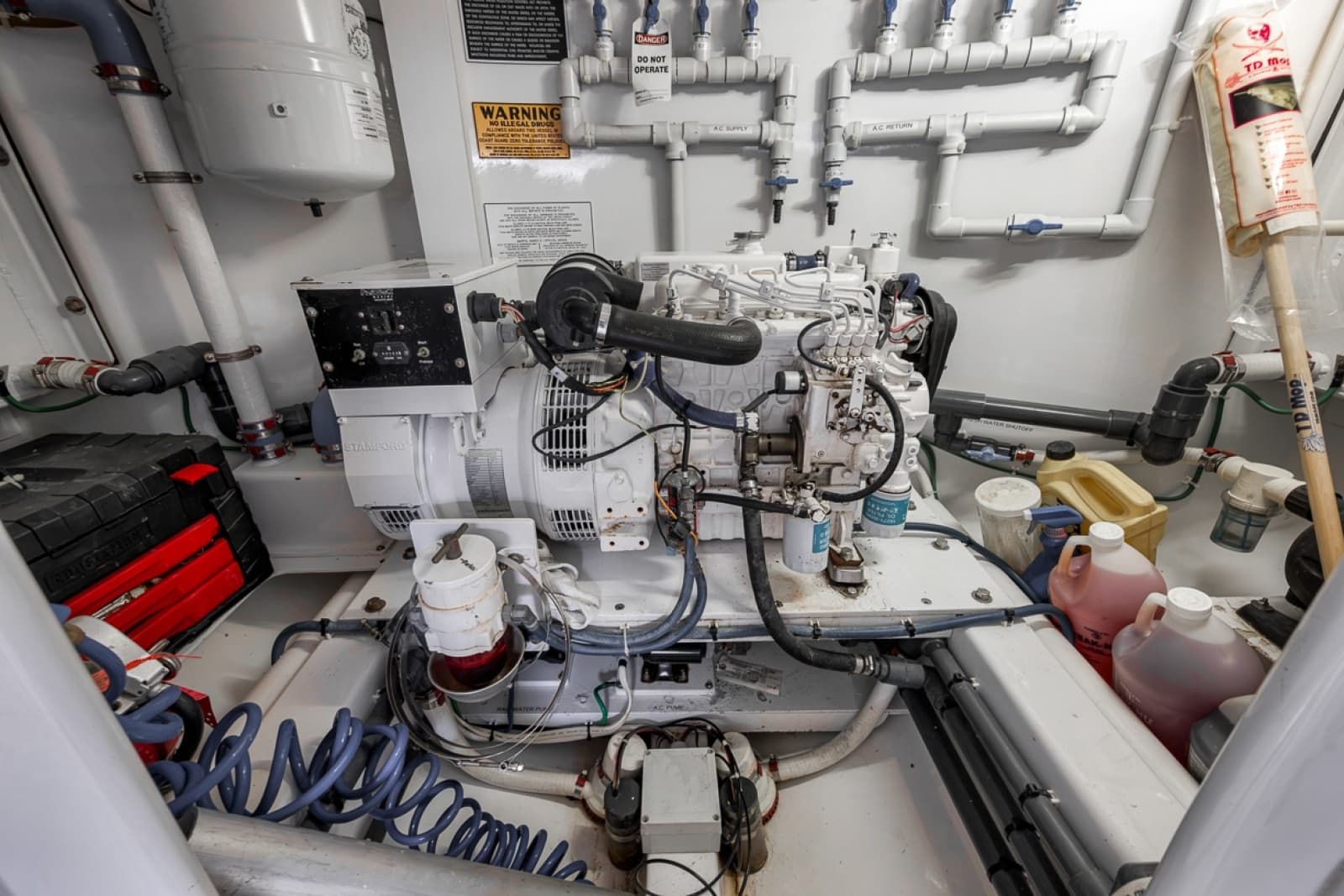

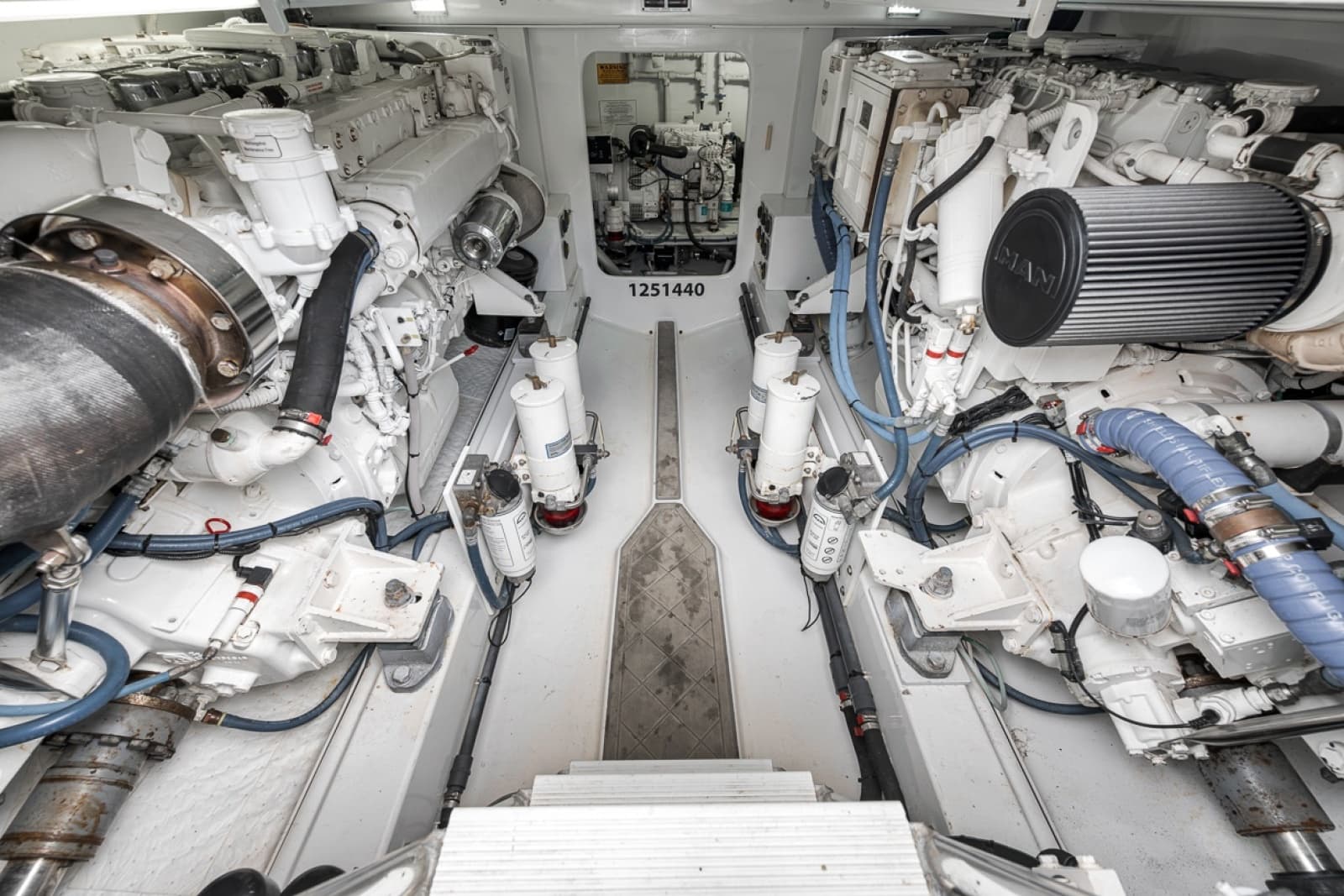

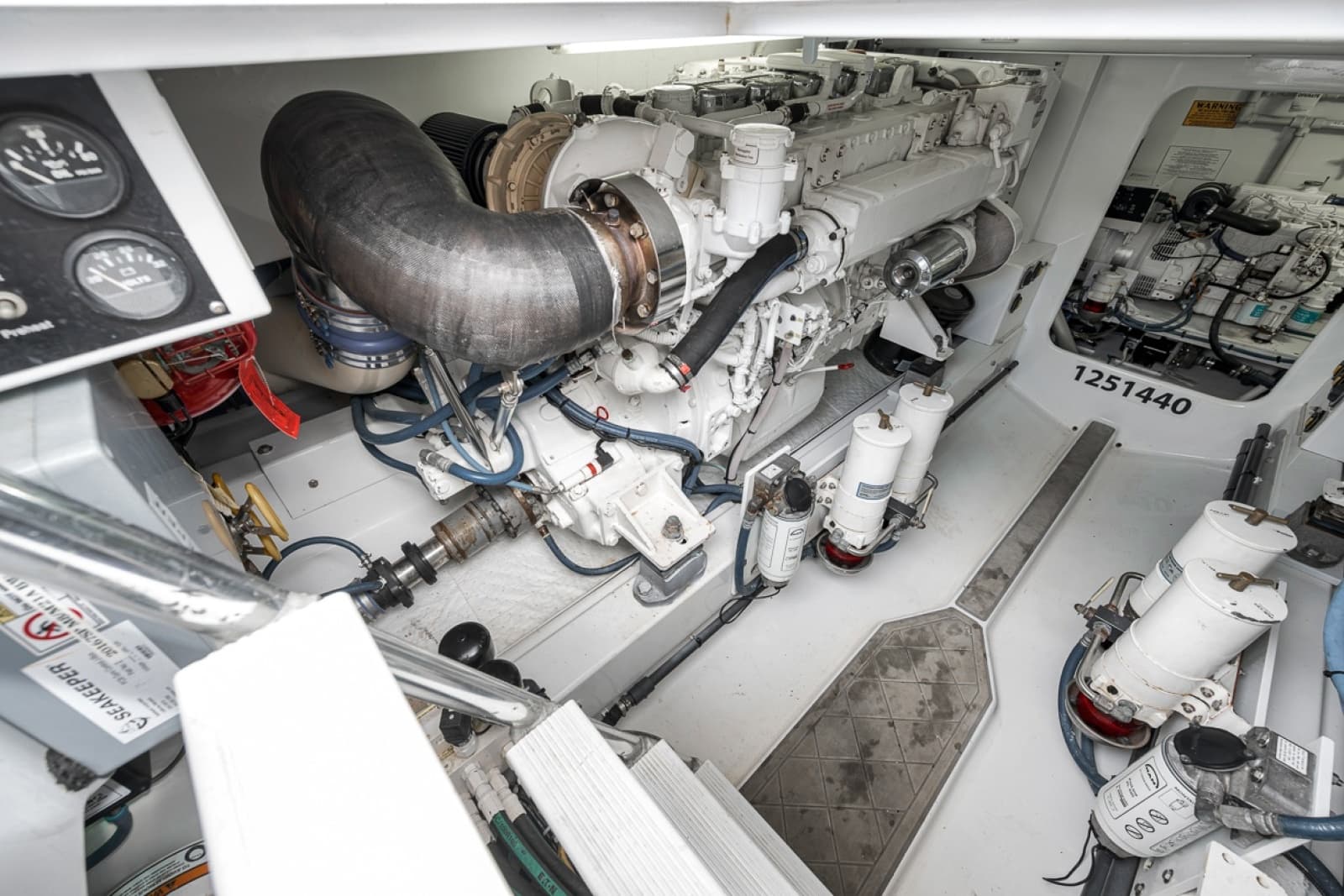

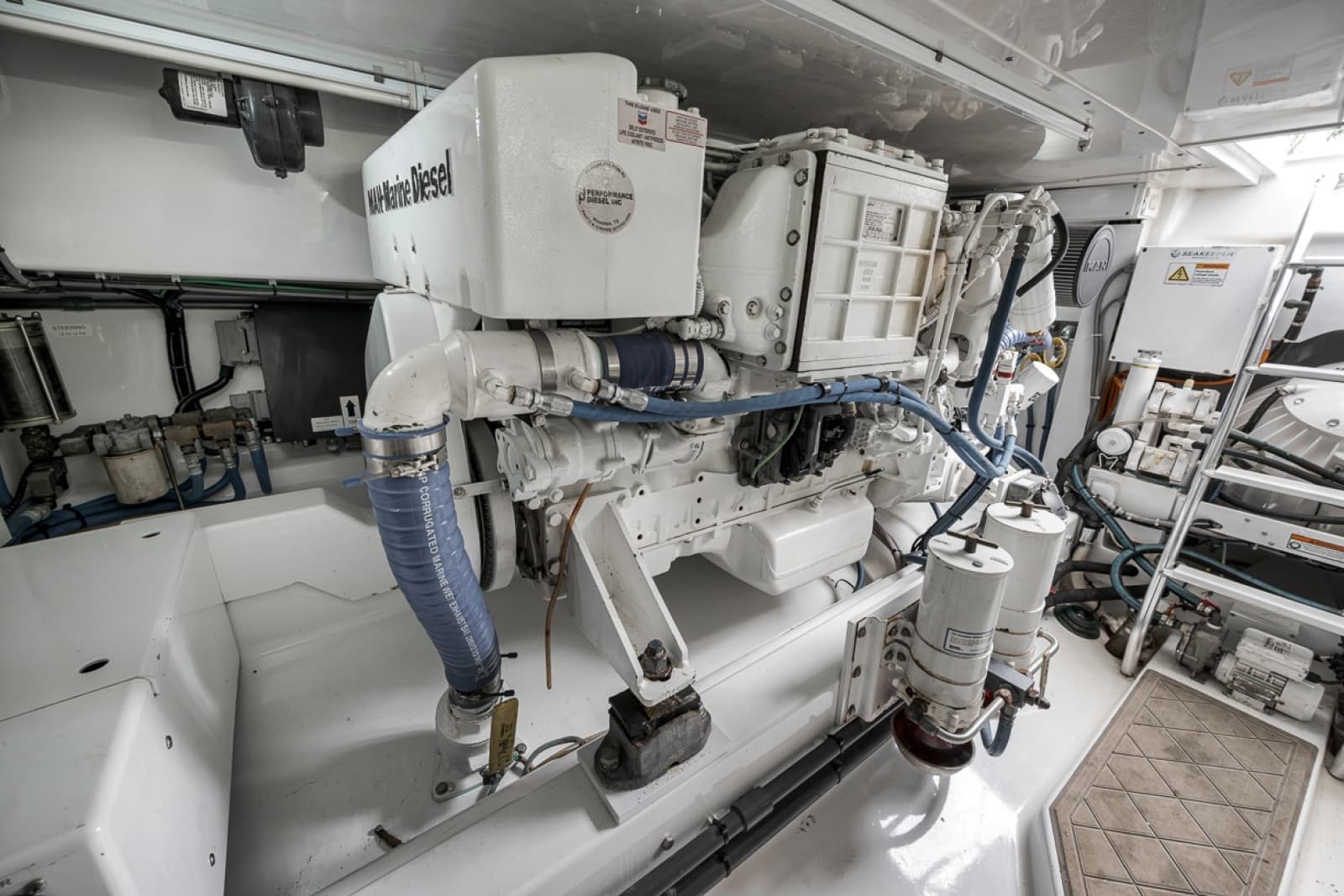

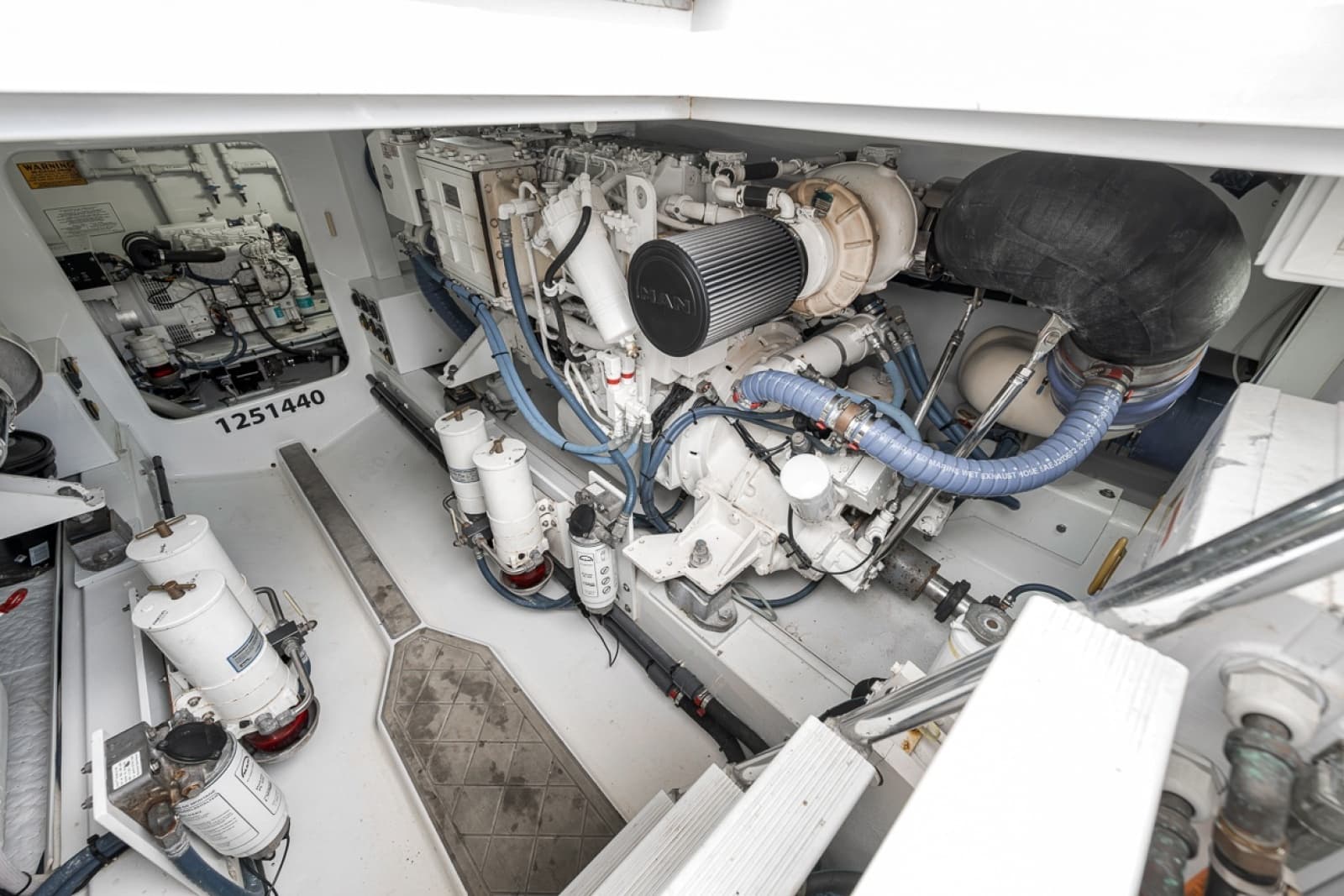

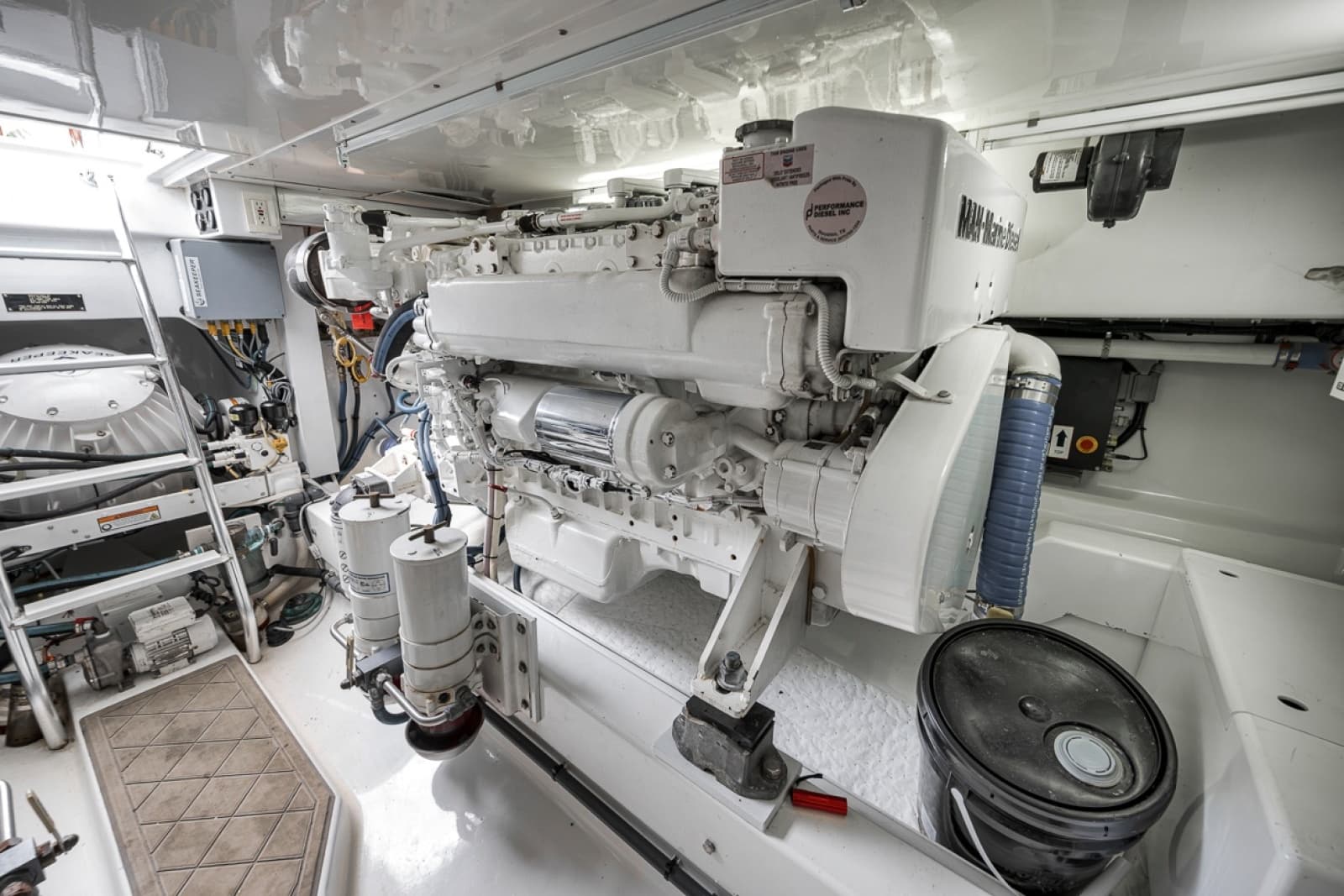

ENGINE ROOM

•   BILGE PUMPS

o   ONE (1) 1500 GPH IN FORWARD BILGE

o   TWO (2) 1500 GPH IN FORWARD ENGINE ROOM

o   TWO (2) 1500 GPH IN AFT ENGINE ROOM

o   TWO (2) 3700 GPH IN LAZARETTE

   ALL PUMPS ARE TO BE CONNECTED TO HIGH WATER ALARM

   PUMP SWITCHES WIRED WITH SAFETY SYSTEMS ULTRA SWITCHS

•   STAINLESS STEEL EXHAUST RISERS BY MARINE EXHAUST

•   LINEAR MUFFLERS BY MARINE EXHAUST WITH TRADITIONAL THROUGH-TRANSOM DISCHARGE

•   RACOR FUEL FILTERS, DUAL, PER ENGINE

•   120 VOLT DUPLEX OUTLETS

•   MASTERVOLT BATTERY CHARGER

•   BATTERY BANK (SHIP SERVICE)

•   FIREBOUY FIRE EXTINGUISHING SYSTEM

•   CUSTOM AIR BOXES WITH LIVOS TECHOLOGIES DEMISTERS

•   110 VOLT FRESH WATER PUMP- HEAD HUNTER WITH SPARE

•   110 VOLT SALTWATER WASH DOWN PUMP - HEADHUNTER

•   ALUMINUM FRESH WATER TANK

•   TWO (2) BATTERY BANKS (1 PER MOTOR)

•   AIR CONDITIONER PUMP WITH CUSTOM MANIFOLD

•   BRONZE THRU HULL FITTINGS – SPECIFICATIONS AGREED UPON BY OWNER & BUILDER

•   ALUMINUM ENGINE BEDDING

•   ENGINE ROOM SOUND BARRIER IN OVERHEAD

•   110 VOLT AND 24 VOLT LIGHTING

•   FUEL SIGHT TUBES (ONE PER TANK) IN ENGINE ROOM WITH SHUT OFF VALVES

•   HEAD HUNTER MECHANICAL FUEL GAUGES

•   HEAD HUNTER MECHANICAL WATER GAUGE

•   REVERSO OIL CHANGE SYSTEM

•   FRESH WATER OUTLET IN ENGINE ROOM

PLUMBING

•   100 GALLON ALUMINUM WATER TANK

•   GALLEY & HEAD FAUCETS TO BE SINGLE LEVER GROHE

•   VACU-FLUSH HOLDING TANK WITH Y-VALVE

•   SUMP PUMP FOR LOWER WASTE WATER

RUNNING GEAR

•   TRANSMISSION GEARS AND TROLLING VALVES (PART OF ENGINE PACKAGE)

•   TWO (2) FLUSH MOUNT STAINLESS STEEL STRUTS

•   TWO (2) AQUAMET 22 SHAFTS RUNNING GEAR

•   TWO (2) 4 BLADE VEEM PROPELLERS, SPORTFISH “C” MODEL WITH INTERCEPTOR

•   STAINLESS STEEL RUDDER WITH DRIPLESS RUDDER PORTS BY TIDES MARINE

•   DRIPLESS SHAFT SEALS BY TIDES MARINE

EXTERIOR FINISHES

•   AWL-CRAFT 2000 PAINT COLOR PER OWNER

•   AWL-GRIP BOOT STRIPE, COLOR OWNERS CHOICE

•   PAINTED COVERING BOARDS

•   TEAK TOE RAIL

•   1” SOLID STAINLESS RUB RAIL

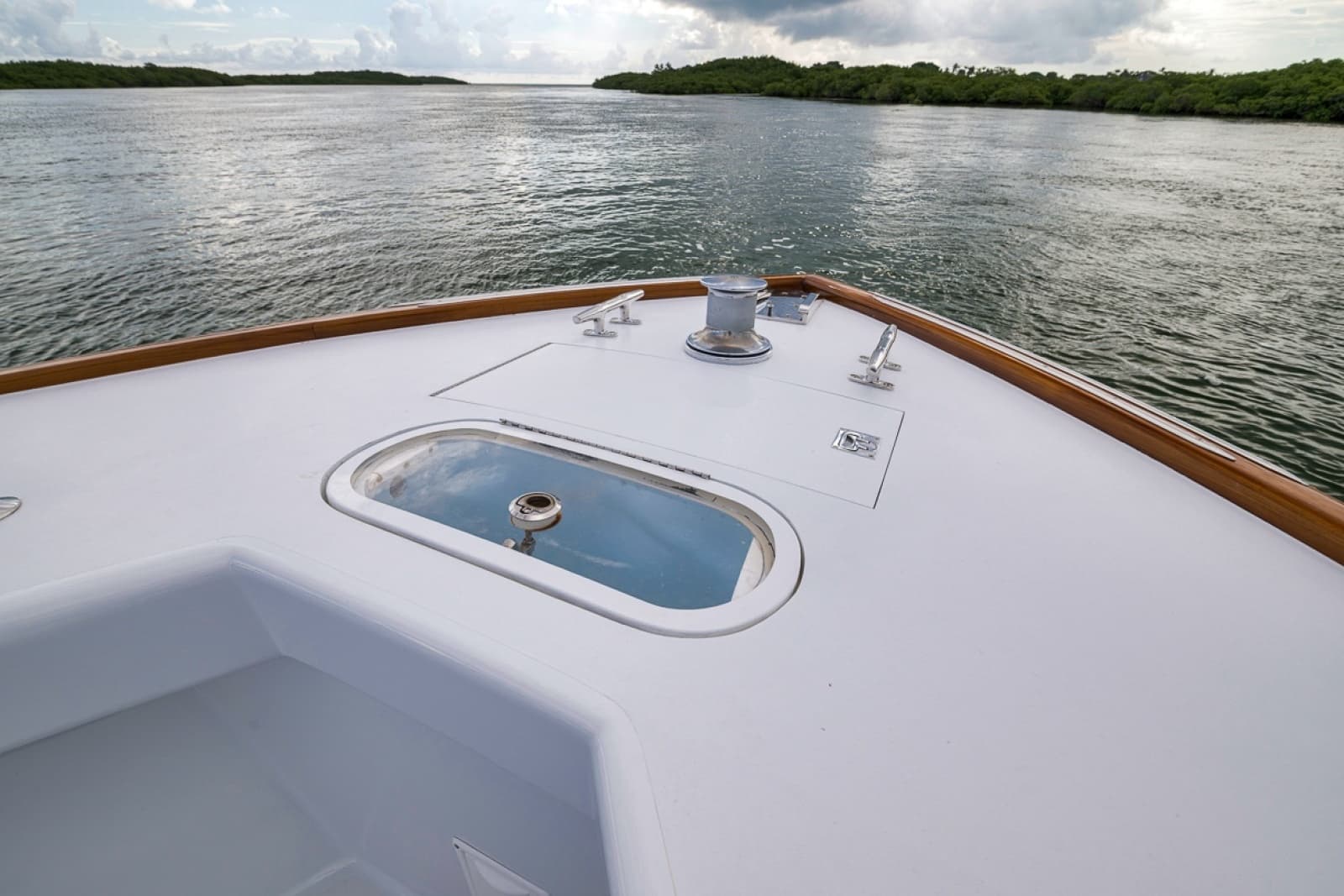

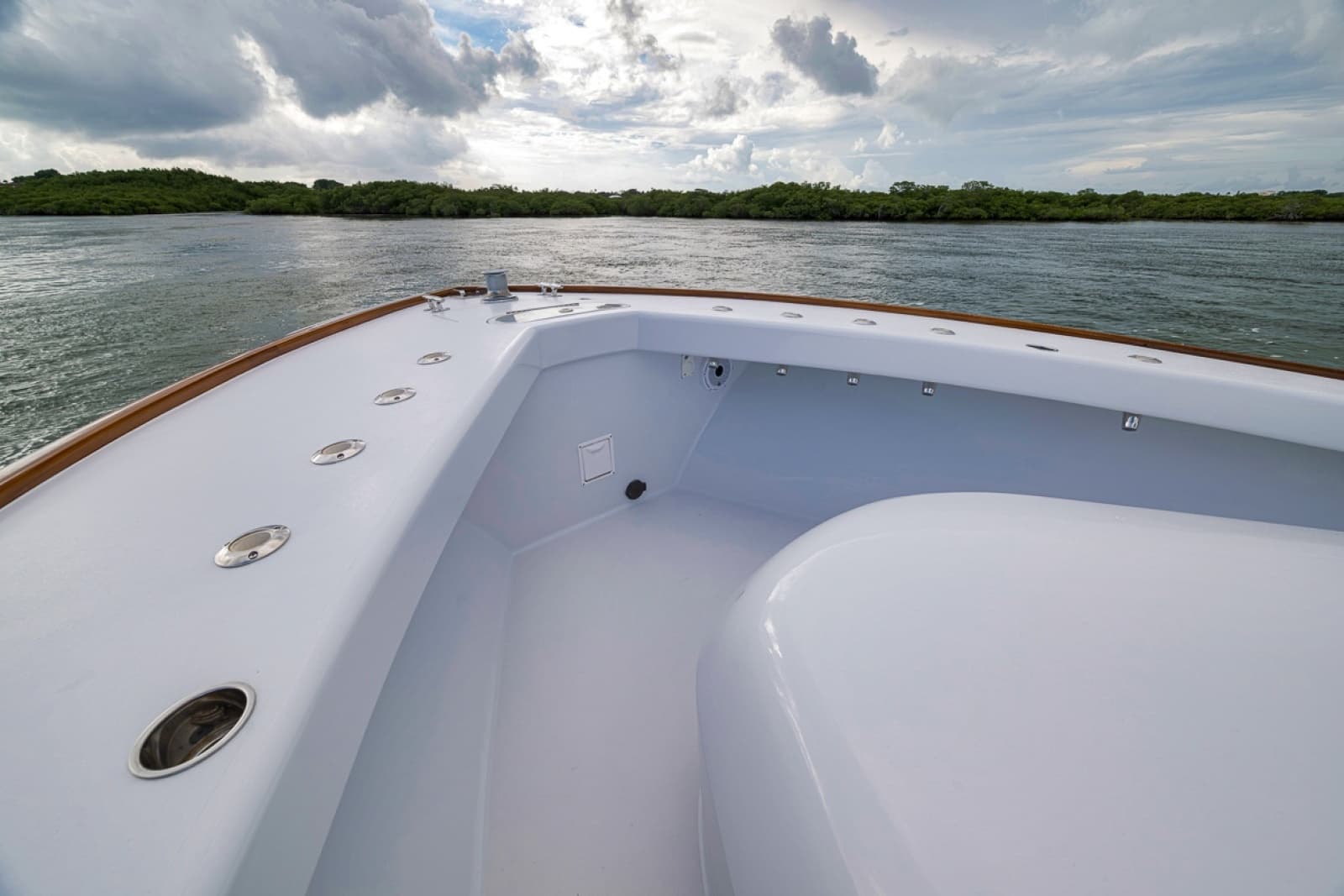

DECK

•   FOREDECK TO BE FINISHED WITH NON-SKID

•   TWO BOW CLEATS AND TWO SPRING CLEATS

•   ANCHOR LOCKER WITH DRAIN AND FRESH WATER OUTLET

•   MUIR WINDLASS WITH CAPSTAN, HELM & DECK MOUNTED CONTROLS

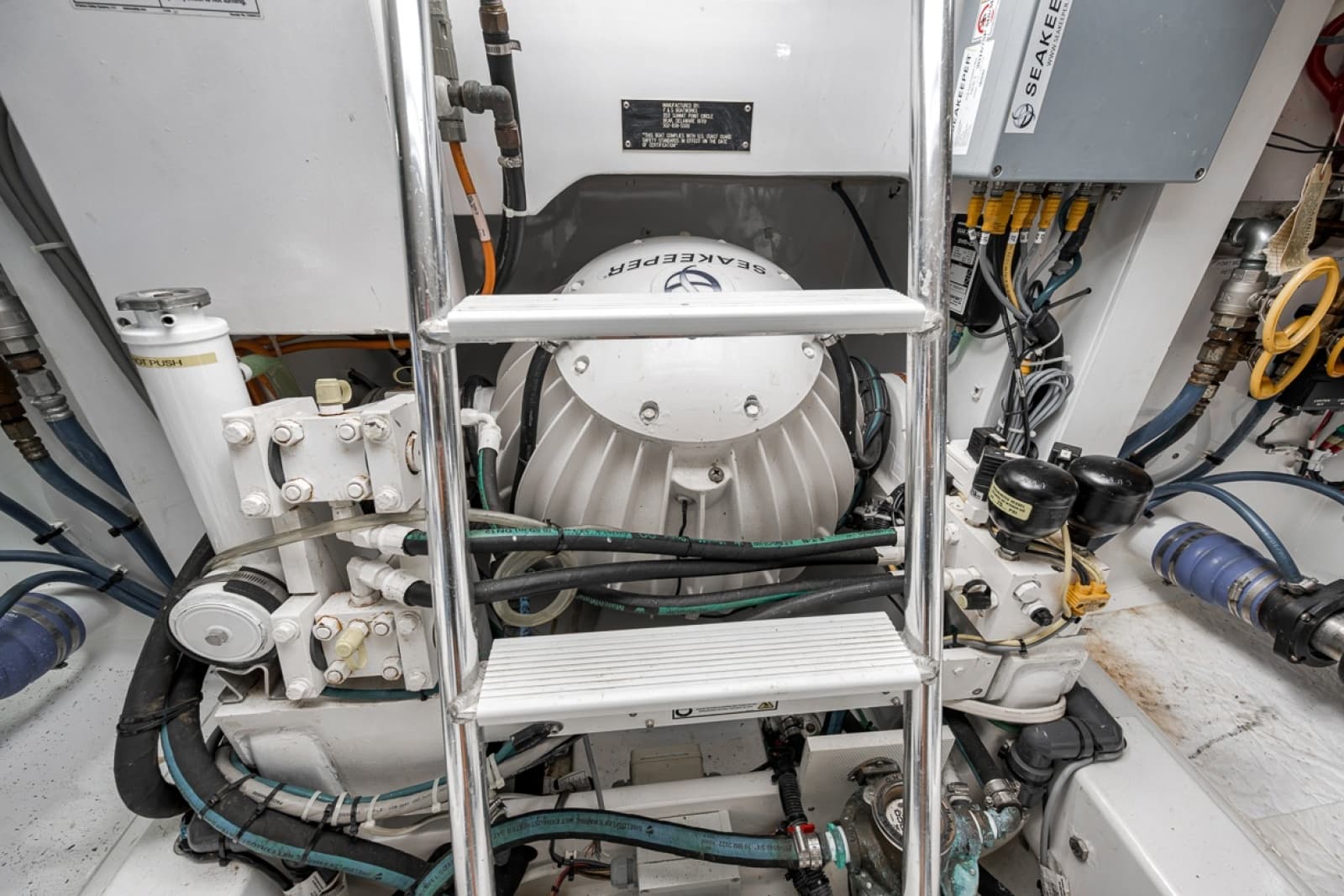

•   BOW TRUSTER: SIDEPOWER SE100/185T-24V

•   REMOVABLE STAINLESS STEEL BOW PULPIT BY CANVAS DESIGNERS

•   CUSTOM STAINLESS STEEL TOWING BIT BY CANVAS DESIGNERS

•   SMALL LIVE WELL IN DECK AFT OF ANCHOR LOCKER

GENERAL SPECIFICATIONS

•   50 AMP SHORE POWER SERVICE WITH AC / DC DISTRIBUTION PANEL

•   RECESSED TRIM TABS WITH DOUBLE CYLINDERS AND COVERS

•   3/16” ALUMINUM FUEL TANKS

•   POWER ASSIST HYDRAULIC STEERING

•   ALL HARDWARE STAINLESS STEEL

•   ZINC PROTECTION

•   BOTTOM 5 COATS INTER PROTECT 2000 / 2 COATS BOTTOM PAINT, COLOR OWNERS CHOICE

•   TRICELL HONEYCOMB INTERIOR WALLS

•   INDIRECT AIR CONDITIONING SYSTEM WITH A TOTAL OF THREE (3) UNITS

o   ONE (1) 12,000 BTU UNIT IN SALON – BELOW DECKS

o   ONE (1) 24,000 BTU UNIT IN BRIDGE AREA

o   ONE (1) 10,000 BTU UNIT IN BRIDGE AREA

•   24 VOLT EMERGENCY LIGHTING IN SALON, BUNK AREA, AND HEAD

UPHOLSTERY

•   HELM CUSHIONS, COCKPIT SEATING CUSHIONS, AND FOUR SIDED HELM ENCLOSURE WITH ZIP VENTS (COSTA CLEAR) ARE INCLUDED IN TOTAL PRICE.

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by SI Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

This F&S 45 Walkaround is located in Key Largo Florida.
