2015 Hargrave Flybridge

Every yacht has a story and this one has a good one!

Coming out of a 100’ Hargrave, the hands-on owner wanted all the features of his 100’ boat in a more compact size. Designed to be owner operated, the owner opted for three large cabins forward with an additional cabin aft that some people will use for crew.

The wide body design feels like a 100’ boat inside. Generous ceiling height, deleting the formal dining (but leaving three other places to dine) and the galley forward flush deck design all contribute to the spacious feeling on the main deck.

Below three large cabins including a Master with a California king with “his and hers” heads offer accommodations like his 100’ Hargrave.

Being a knowledge owner, he kept engine services up to date, updated electronics, exterior cushions, 75” TV in salon, etc. The “QUIET SUN” exterior finish shines like new!

Ten years have passed, the family has grown and the original owner just took delivery of his 110’ Hargrave, leaving this very well-maintained yacht as a very seriously for sale “trade in”!

Boarding QUIET SUN is easy! On to the swim platform from a floating dock or up the Marquipt Tide Ride ladder on either the port or starboard aft deck area.

The Aft Deck has a fixed twin pedestal varnished cherry table with loose and fixed seating for 8 people. The sole of this area is teak. Above in the FRP overhead are ample flush LED light fixtures. Comfortable stairs lead to the boat deck on the starboard side.

An electrically operated sliding door access the salon. Immediately to port is a large L-shaped upholstered couch with twin timber and glass coffee tables lying in front. To starboard is a curved cabinet with a wine cooler, storage cabinet and drawers. Above is a curved barware cabinet.

Further forward are two swivel chairs with a matching table between. Furthest forward is a bank of drawers with glass storage above. Opposite to port is a 75” TV with cabinets and drawers below.

Forward to starboard is a Day Head. Followed by the eat in Galley with stainless steel appliances, a starboard side deck door, stairs to the flybridge and stairs to the staterooms below.

Nine steps lead to the accommodation foyer with a VIP forward, twin cabin to port and the king size Master aft. The master has “his and her” heads with a central shower and three hanging lockers and ample drawer storage.

The Flybridge area has interior stairs as well as steps from the Aft Deck to the Boat Deck. The helm is centerline with a Stidd helm chair and raised passenger seating to port. Twin U-shaped dining areas are aft to port and starboard.  Aft facing cabinetry conceals a grill, an icemaker, refrigerator and ample storage. The tender and crane are furthest aft protected by a remarkable stainless steel railing.

The crew and engine room area are accessed via a centerline swim platform door. Immediately to port upon entering are twin lower bunks with a Pulman forward to accommodate three crew as needed. A sliding 3-panel wall affords privacy when desired. To starboard is a private head with a stall shower. Forward, behind the signature stainless steel hinged door, is the very spacious well executed engine room.

Entered from the air operated sliding door from the aft deck, the salon shows larger then she seems due to her widebody design and an increased headroom.

Immediately to port is a 12’ long L-shaped upholstered sofa to seat 6 or 7 people. Built to have full access below she offers an abundance of storage. Lying in front are two matching burlwood two level coffee tables with glass tops.

Immediately to starboard upon entering is a two level curved bar area with the following features:

• Kohler undermount sink below a marble countertop
• (4) drawers
• (2) cherry storage cabinets
• U-Line wine cooler behind a cherry door
• (4) curved upper glassware cabinets
• Soffit lighting

Next forward are two upholstered swivel barrel chairs with a smaller table between that matches the coffee tables. Outboard of the chairs under the house side windows are eight storage cabinets. The house side windows are covered with Roman Shades with LED strip lighting behind the valance. Matching window treatments are to port over the sofa.

Going forward to starboard but facing aft is a bank of ten drawers with a marble countertop and four storage cabinet drawers for additional stemware above.

Opposite to port is a matching but larger set of four drawers and four cabinet doors. The outboard two conceal the yacht’s stereo gear. Above is a curved marble shelf and a 75” Samsung Smart TV.

The large salon is emphasized by the 6” wide planks of walnut combined with a plush ultra vinyl on the overhead. Also in the salon are eighteen overhead Cantalupi LED light fixtures, digital A/C controls, a 5-channel stereo speaker system, a carpeted sole and full drapes across the aft bulkhead.

Just forward of the salon is the yacht’s day head. The toilet is a full size Headhunter model. The marble countertop has an undermount Kohler sink and two cabinet doors below. Above are three beveled edge mirrors, the inboard one opening as a medicine cabinet.

Outboard is a house side window covered with Roman Shades. The sole is solid teak planks that continues into the galley.

The galley occupies the forward most area on the main deck and as such it has wraparound windows and a starboard side deck door. The sole is solid teak planks. The forward most area is built-in raised U-shaped dining to set six. A high gloss dining table sits upon two wood pedestals.

Features of the galley include:

• Stainless steel GE Monogram refrigerator with (2) freezer drawers below
• GE Monogram stainless steel microwave oven with an exhaust fan and work lights
• GE Profile 5-burner cooktop
• GE Monogram stainless steel wall oven
• Fisher and Paykel 2-drawer stainless steel dishwasher
• (12) cherry cabinets
• (4) drawers (2 hidden)
• Slide out trash cabinet
• Samsung ___” TV
• Granite countertops
• Franke under mount sink
• Center island with 4 drawers, 6 cabinets and a granite top
• (17) overhead LED lights, directional
• (4) under cabinet LED lights, directional
• (2) stereo speakers
• Access panel to area under flybridge helm
• 24V electrical panel
• (2) Headhunter tank sentry LED tank level meters
• Roman Shades on the side windows
• Starboard side pantograph door
• (9) steps with step lights to the flybridge
• Analog water tank gauge
• Digital A/C controls
• GE garbage disposal with sink top switch

From the galley forward on the starboard side are nine carpeted steps with step lights leading below. Two large lockers offer stewardess storage. Going aft the GE washer and dryer are hidden behind walnut twin doors.

The king size VIP suite is forward. Followed by a convertible twin bed suite.

Aft is a large master cabin with a California king size berth, abundant storage and a “his and her” head separated by a shower.

All the way forward is a king size VIP suite with the raised king berth off the forward bulkhead. Six mirrored panels with Makore trim form the headboard. A soffit above has two reading lights. Six drawers are built into the foot of the berth.

Port and starboard hull side cabinetry form the nightstand with two hinged top storage cuddies each side. Above the shelf is a stainless steel deadlight behind Roman Shades with hidden rope lighting in the valance on both port and starboard sides.

Aft to starboard is a single door cedar auto-lit hanging locker and the entrance to the ensuite head.

To port is a double door cedar lined auto-lit hanging locker with a safe within.

On the aft bulkhead facing the berth is a Samsung 32” Smart TV.

A full-size Headhunter toilet faces a large high gloss walnut vanity with eight drawers and two cabinets. The Perlato Sicilia marble top has an undermount Kohler sink. Above are four mirrored medicine cabinet doors with additional mirrored panels above. The sole is solid teak planks.

The 8 sq. foot stall shower has a glass bi-fold door, a handheld or wall mountable fixture and an opening stainless steel porthole. Also in the head is an A/C vent, six LED lights and an exhaust vent.

Entered from the forward end there are two berths on the outboard bulkhead. Each berth has an upholstered headboard with a three-door nightstand between. Each berth has two drawers below. The berths can slide together to form a queen berth as desired. Above the berth is an attractive hull side deadlight behind Roman Shades.  On the inboard bulkhead is a Samsung 32” Smart TV.

Forward is a cedar lined auto-lit hanging locker. One step up is the ensuite head.

The guest head has a high gloss walnut vanity with two cabinets and two drawers below a Perlato Sicilia marble countertop with an undermount Kohler sink above. Two mirrored medicine cabinets are above. The 8.75 sq. foot stall shower has a bi-fold clear glass door, a marble seat and a handheld and a wall mounted fixture. The sole is solid teak planks.

Above in the head are four LED overhead lights, an A/C vent and an exhaust fan.

Entered via twin hinged doors slightly to starboard, the California king berth is centered off the aft bulkhead. Two large drawers are below each side of the berth.

The headboard is of a Capiz Shell inset between Makore partitions which match those on the ceiling above the berth. Each side has a three-door nightstand with reading lights above. Outboard on each side is the entrance to the “his and hers” heads.

NOTE: The heads are identical, so who gets which side of the bed is not an issue.

To starboard outboard is an L-shaped four door cedar lined auto-lit hanging locker with a Denon AV receiver and a Blu-ray player within. Aft is a bank of twelve drawers with a high gloss walnut countertop above. An attractive fixed double deadlight is behind Roman Shades. On the forward bulkhead is a 46” Samsung Smart TV.

To port is a double door cedar lined hanging locker followed by a vanity and stool, flanked by four drawers port and starboard.

Identical in layout and features, each of the heads has a high gloss walnut vanity with ten drawers and two cabinets. Above is a Perlato Sicilia marble countertop with a Kohler undermount sink and a mirror flanked by two medicine cabinets. Outboard is a raised marble top with two cabinets above and two cabinets for linen storage and a drawer below.

The full-size toilet and a frosted glass partition are forward. Outboard behind Roman Shades are the same attractive deadlights found in the master cabin. The central 14 sq. foot shower has clear glass doors and sidelights, a marble seat and a handheld and a wall mountable fixture. Together the heads have twenty-two overhead LED lights, an exhaust fan and A/C vents. The sole is solid teak planks with a satin finish.

• Fiberglass non-skid decking
• Maxwell 3500 windlass
• Stainless steel anchor chute with bow roller
• 150lb. Aritex stainless steel plow anchor with 200’ of chain and chain stripper
• Up and down foot switches for windlass
• Welded stainless steel bow rail
• Stainless steel bow pennant staff
• Bomar deck hatch in to anchor locker
• Oversize cleats with hawse holes
• Fresh water quick disconnect fitting
• Low level lighting
• Fusion stereo control
• (3) port and (3) starboard freeing ports
• (2) built-in FRP deck boxes in trunk cabin
• 3-4 person bow seat with removable cushions
• 2-person sun pad with removable cushions
• Deck hatch into VIP
• (2) JL audio speakers
• Low level deck lighting
• 100 amp shore cord hook-up on bow, port side
• Port and starboard hinged boarding gates with rail breaks
• Black Textilene windshield cover
• Shore water hook-up with pressure regulator – stbd.
• Overhead lighting port and starboard
• Overhead stainless steel rail on side deck catwalks

• Teak decking over FRP sole
• Port and starboard inward swinging boarding doors with rail breaks
• Stainless steel handrails
• Hinged stainless gates at port and starboard steps to swim platform
• Fold down 40” Samsung TV with electrically operated fold down system
• 84” varnished cherry table
• (5) teak deck chairs with cushions and covers
• 98” bench seat aft with removable cushions, storage below and cover
• (2) stainless steel boat deck support poles
• Oversized cleats with corner hawse holes port and starboard
• Port side FRP cabinet with a U-Line drink fridge and a Hoshizaki icemaker – both behind FRP doors
• Quick connect fresh water washdown fitting
• (9) teak tread steps with step lights to boat deck, starboard side
• Large storage locker under flybridge steps
• Emergency engine room hatch in deck
• (14) overhead LED lights in FRP panels
• (2) JL audio speakers
• (2) rear facing docking lights
• (1) CCTV camera
• Auto sliding stainless steel trimmed door to salon
• 8-step Marquipt boarding ladder
• Signature Hargrave starboard side Marquipt storage cabinet

• (5) teak tread steps port and starboard to swim platform each with a step light
• Non-skid FRP swim platform
• (4) removable stainless hoop rails with one pair of storage sockets
• Dogable Bomar hatch to rudder area
• Locker for hot and cold shower wand
• Emergency rudder deck fitting
• Stainless steel swim ladder socket
• 4-step stainless steel swim ladder with teak treads
• Stainless steel handrails at steps
• Hinged access to 100 amp Glendinning cord set – starboard side
• 3-step Marquipt hull side teak boarding ladder

Accessible by inside stairs from the galley or stairs from the aft deck the Flybridge is considered very spacious even by larger yacht standards.

The helm is centerline.  A two-piece hatch door leads up from the galley on the starboard side.

To port is a raised 2-person helm seat with a cover and removable cushions. Below is a portable freezer, two cabinet doors on the inboard side and a beefy stainless steel footrest.

Going aft is a 5-person U-shaped dining settee with removable cushions, a cover and hinged storage below each seat. Lying in from is a varnished table set on two stainless steel pedestals. Across to starboard is an exactly matching 6-person dining settee.

Flybridge features include:

• Fiberglass non-skid sole
• Full hardtop over the helm/dining area
• FRP radar arch
• Stainless steel handrail with 3/8” Lexan windscreen
• (4) JL stereo speakers
• (22) overhead LED lights
• (2) aft facing built-in quartz lights
• Slide mechanism to slide in/out both teak dining tables

• Furuno 4’ open array radar scanner
• Kahlenberg air horns
• Hargrave style FRP mast
• KVH TracVision system
• Newmar hailer horn

• Stidd helm chair with footrest
• Console cover
• (2) CAT LED engine monitors
• Glendinning electronic engine controls
• (2) Furuno TZT14 14” multi-function displays
• 64 nautical mile radar
• Furuno WS-200WX weather station
• (2) Furuno RD 33 data instruments
• Standard Horizon Quantum GX5500X VHF
• Naiad MultiSea II Stabilizer Control
• Furuno NavPilot 700 autopilot with 4.6” screen
• Furuno DFF1 black box sounder module
• Furuno 50/200 kHz 600W transducer
• Naiad bow thruster joy stick
• Yacht controller JCS screen with joy stick
• Windlass control
• Trim tab controls
• (2) fuel tank gauges
• Engine start/stop controls
• Seafire system override panel
• Fusion MS IP700i stereo control
• ACR spot light control
• (6) bilge pump switches
• GFCI outlets
• 24” stainless steel helm wheel
• 5” magnetic compass

• Fiberglass non-skid sole
• Sliding glass cover over aft deck steps
• Stainless steel rail around steps
• Stainless steel safety rail around boat deck
• (2) stainless steel sunshade poles aft
• Removable shade cloth sunshade
• Aft facing FRP cabinet with a stainless steel sink
• Stbd side – (4) drawers, a refrigerator behind a FRP door and a storage cabinet for liquor bottles
• Matching port side FRP cabinet with a stainless steel Perlick ‘wet ice’ icemaker, two storage cabinets and a Fire Magic gas grill under a hinged FRP cover with a stainless steel hood stored in a forward bridge cabinet
• Quick disconnect fresh water wash down

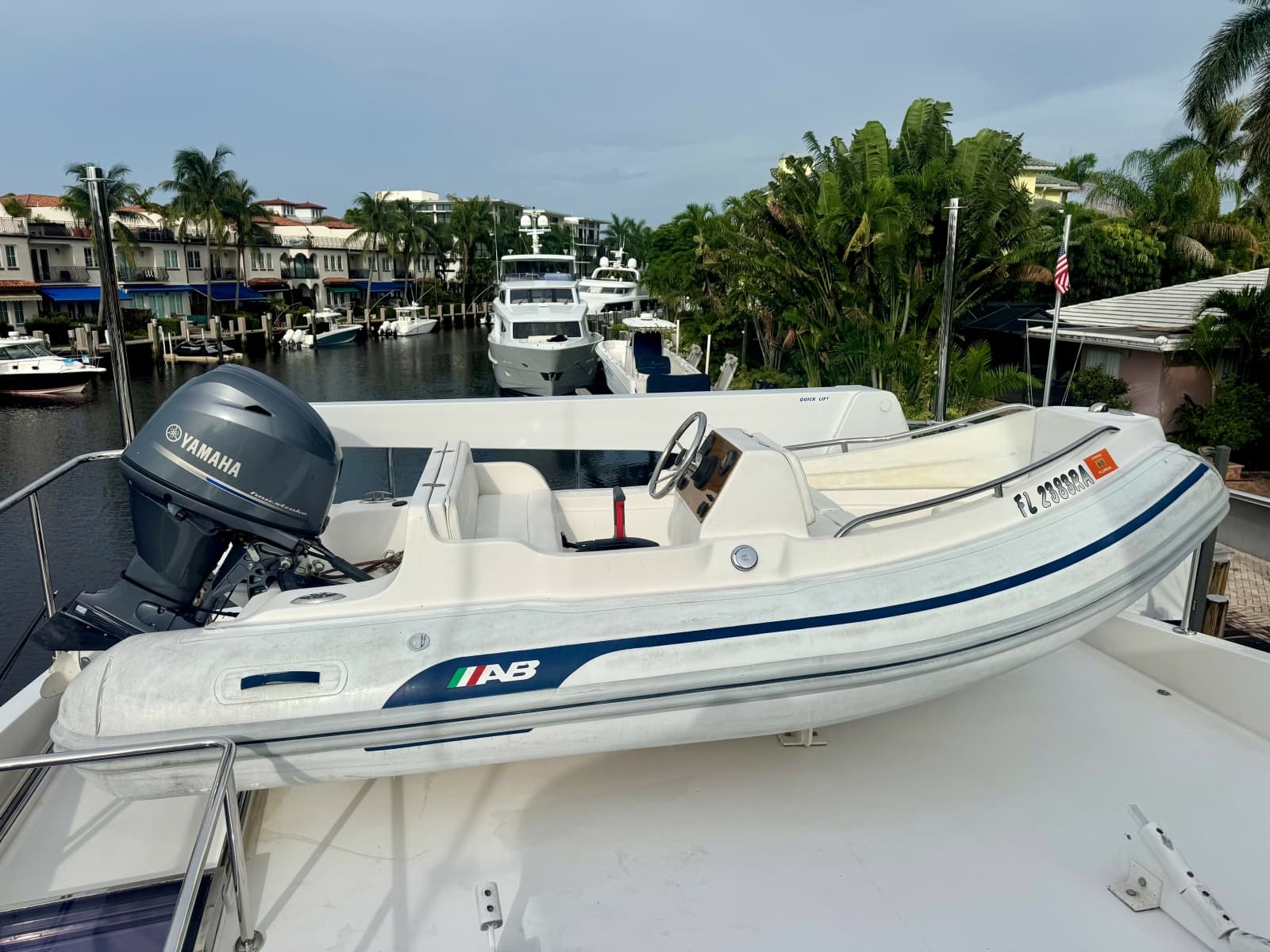

• One set of jet ski chocks
• Quick lift 1600 lb. Davit on a pyramid base with hydraulic rotation
• Stern flag socket
• Tender chocks
• Removable folding 8-step ladder to hardtop
• Glendinning wired remote engine controls

Access is via a pantograph centerline FRP door on the transom. Two removable steps lead to the open crew area.

Twin lower berths with two drawers below are separated by a 3-drawer nightstand. Above the forward berth is a fold away Pullman berth if three crew are desired. Above the aft berth are four cabinets and an RCA 18” TV. The sole of this area is wood planked vinyl. Open at most times, these panels slide forward to offer privacy. Across the centerline companionway are two full size cedar lined hanging lockers

The private head has a full-size Headhunter toilet, a 2-door vanity with a marble countertop and an undermount sink above with a 2-door mirrored medicine cabinet above. The stall shower has a clear glass bi-fold door, a seat and a handheld or wall mounted shower fixture.

Also in the crew area are port and starboard portholes, digital A/C controls and 18 overhead LED mini spots with two serving as reading lights.

• (2) CAT C-18 Acert engines 1150 hp
• ZF transmission ratio model 2000A with 2.92 to 1 reduction
• Twin PTO off transmissions
• Twin Racor 1000 fuel filters with vacuum gauges
• Delta-T engine room ventilation with 4 fans
• (2) 20-gallon Torrid hot water heaters
• SeaStar hydraulic steering with filter
• Sea Chest for all incoming sea water
• Sight gauges on outboard fuel tanks
• Twin tank California air tools compressor
• 216 lbs. Seafire fire suppression system
• (2) CAT coolant recovery tanks
• Engine room fresh water hose
• (2) Dometic 48,000 chilled water compressors
• (4) overhead fluorescent lights
• (8) Overhead LED lights
• Reverso 8-point oil change system
• Fuel manifold system
• Overhead emergency engine room hatch with fold down ladder
• Blue Water Express 600 GPD water maker
• (2) Racor 500 genset fuel filters
• White painted diamond plate decking
• 3.5” Aquamet 22HS shafts
• Dripless shaft seals
• Main props 43.5” x 42.5” 5 blade
• (2) Headhunter Mach5 1100 fresh water pumps
• (1) Headhunter 24V back-up fresh water pump
• (1) Headhunter accumulation tank
• (1) Headhunter 110V waste system pump
• (1) Headhunter 24V waster system pump
• Y-valve for dockside pump out of waste tank
• Underwater exhaust with idle bypass
• Double layer of sound insulation in engine room bulkhead forward and aft
• Stainless steel safety rails around each engine
• Naiad HPS-10HT 25hp hydraulic bow thruster
• Naiad model 254 stabilizer with 9 sq. ft. fins
• (3) 14 gallon shower sump tanks
• Underwater lights

• 12/24 Volt DC electrical system
• 120/240 Volt A/C electrical system
• Stern - Glendinning shore cord reel 100 amp
• Bow - 100 amp shore cord hook-up
• 24V 30amp Mastervolt engine battery charger
• 24V 80amp Mastervolt service battery charger
• 12V 35amp Mastervolt generator battery charger
• Starboard – 30kW Phasor generator in sound box with 2273 hours
• Port – 30kW Phasor generator in sound box with 2992 hours
• Iso-Boost transformer
• (4) 8D 200 amp hour batteries for engine starting 24V circuit
• (4) 8D 200 amp hour batteries for house system 24V circuit
• (2) 8D 200 amp hour batteries for windlass 24V circuit
• (2) 4D 100 amp hour batteries for generators 12V circuit
• Batteries are in enclosed acid proof FRP boxes with cover
• Galvanic Isolator

Galley Electrical Panel

• 12/24 Volt electrical panel with 24V digital volt and amp meters
• 37 breaker protected 24V circuits
• 9 breaker protected 12V circuits
• (3) auto/manual shower sump controls
• 12V digital volt and amp meters

 Engine room electrical panel

• (25) 240 volt breaker protected circuits
• (3) 120 volt breaker protected circuits
• (2) 14 position rotary switches shore1/shore2/gen1/gen2
• (6) battery shut off switches
• Domestic lights can be battery powered or by a Mastervolt 80 amp power supply
• (2) Kraus & Naimer C-80 booster switches on isolated transformer

Low hours on CAT C-18’s, updated electronics and perhaps the most spacious 76’ yacht on the market make “QUIET SUN” stand out among her sisterships. Her gel coat shines like new, her interior shows beautifully and she is seriously for sale as a “trade-in” from a larger Hargrave.

Actual Length 76' 6"

LWL 65'

Listing MLS by Yachtr.com
