2023 Horizon FD90
“RIO”
Description
Delivered in 2023 as a 2024 model by Horizon Yachts, RIO represents an opportunity to acquire a virtually new FD90 in turnkey condition. With accommodations for up to 11 guests across five suites, plus four crew, this custom FD90 is purpose-built for coastal and island cruising across the Caribbean, Bahamas, and U.S. East Coast. Offering exceptional interior volume and onboard luxury, her shallow draft of 6 feet enables access to secluded destinations such as Compass Cay, Devil's Passage, and other hidden anchorages throughout the Bahamas and Florida Keys.
She is in excellent condition, having been privately owned by a tech entrepreneur since delivery and professionally maintained by an electronic engineer captain. RIO has been thoughtfully equipped for security, comfort, and extended cruising and is fitted with a FLIR infrared camera for enhanced visibility during night docking and reduced-visibility navigation, while dual redundant watermakers produce approximately 350 liters (92 gallons) of fresh water per hour. Extended freshwater tanks with a capacity of 1,500 liters (400 gallons) increase cruising autonomy, and custom gauges installed on the air-conditioning intakes simplify system monitoring and help minimize maintenance requirements.
A Sonos audio system powers eight independently controlled entertainment zones throughout the yacht, while redundant internet connectivity is provided through both Starlink and Intellian systems. Stabilizers enhance comfort both underway and at anchor, and a heated bow Jacuzzi is complemented by a spacious upper-deck lounge. An extended galley, together with four ice makers, five refrigerators, and three freezers, is well equipped to support extended cruising and entertaining.
RIO’s GRP hull ensures superior seakeeping, fuel economy, and ride comfort, with a range of up to approximately 2,500 miles without refueling. She is equipped with twin MTU 16V engines (approximately 2,700 hours each) with warranty through 4,500 hours. RIO achieves a comfortable cruising speed of 11 knots and top speeds between 17 and 19 knots. Fuel burn is efficient, with consumption of approximately 32 gallons per hour at 9 knots, 40 gallons per hour at 10.5 knots, and 100 gallons per hour at 15.5 knots.
The interior is designed around light, flow, and functionality. The main salon features expansive panoramic windows, an open lounge area, and a forward dining space, all finished in a contemporary palette of natural woods and neutral tones. The enclosed galley layout offers a more refined and private service experience, distinguishing this build from open-plan alternatives. On the upper deck, a skylounge with a fold-out bed leads to an aft bridge deck equipped with a dining table and lounge area, shaded by custom sun sails for all-day usability.
Guest accommodations are generous and flexible. Five en-suite cabins support up to 11 guests, complemented by quarters for four crew. The full-beam master suite on the main deck includes a king-size bed, dressing area, and a spacious en-suite bath. Below, two queen cabins, a VIP that converts from a king to twins, and a midship cabin that converts from twins to three single beds provide adaptable sleeping arrangements suitable for a variety of family configurations.
Exterior spaces are optimized for outdoor living. The aft deck supports alfresco dining with direct access to a swim platform that forms a lounge at water level. Forward, a Jacuzzi and bow lounge offer private open-air relaxation. The flybridge features sunpads and shaded entertaining zones.
RIO is available for viewings between Fort Lauderdale and Nassau from July through December 2026. Please contact us for additional information or to arrange a private inspection.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Northrop and Johnson. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Highlights
- Likely to be the best well-kept Horizon in the fleet – managed and maintained by an electronic engineer degreed captain
- Delivered in 2023 as 2024 model
- 11 guests capacity including a full-beam master suite and four additional high-quality guest cabins for a 90’ yacht – rare for this size
- Top notch security and comfort geared (FLIR infrared camera, Starlink Internet, double redundant water maker (92gl) 350L per hour)
- Excellent outdoor lifestyle zones featuring a large swim platform, on-deck hot water Jacuzzi, and generous sun and lounge areas
Notable Upgrades: Powerful at anchor and underway, stabilizer
Key Specifications
Weight & Measurements
Equipment & Features
Tankage
Registration & Documentation
Engines
Full Details
OVERVIEW
Delivered in December 2023 as a 2024 model by Horizon Yachts, RIO presents an exceptional opportunity to acquire a highly customized FD90 in turnkey condition.
Designed for private ownership and extended cruising, she offers accommodations for up to 11 guests in five en-suite staterooms, plus quarters for four crew.
Purpose-built for cruising throughout the Bahamas, Caribbean, and U.S. East Coast, RIO combines the impressive interior volume of Horizon's acclaimed FD Series with a shallow 6-foot (1.83m) draft, allowing access to destinations such as Compass Cay, Devil's Passage, and numerous secluded anchorages that are inaccessible to many yachts in her size range.
Privately owned since new by a single owner, RIO has been professionally maintained and managed to an exceptional standard.
Notable Features
- FLIR infrared night vision camera for enhanced navigation and docking
- Twin redundant watermakers producing approximately 350 L/hr (92 GPH)
- Extended freshwater capacity of approximately 1,500 L (400 gal)
- Custom air conditioning intake filtration system designed to reduce maintenance
- Sonos audio system with 8 independent entertainment zones
- Dual internet systems with Starlink and Intellian satellite connectivity
- Zero-speed stabilizers for exceptional comfort both underway and at anchor
- Forward Jacuzzi with hot water and expansive bridge deck lounge
- Four ice makers, extended galley, five refrigerators, and three freezers for extended cruising
Construction & Performance

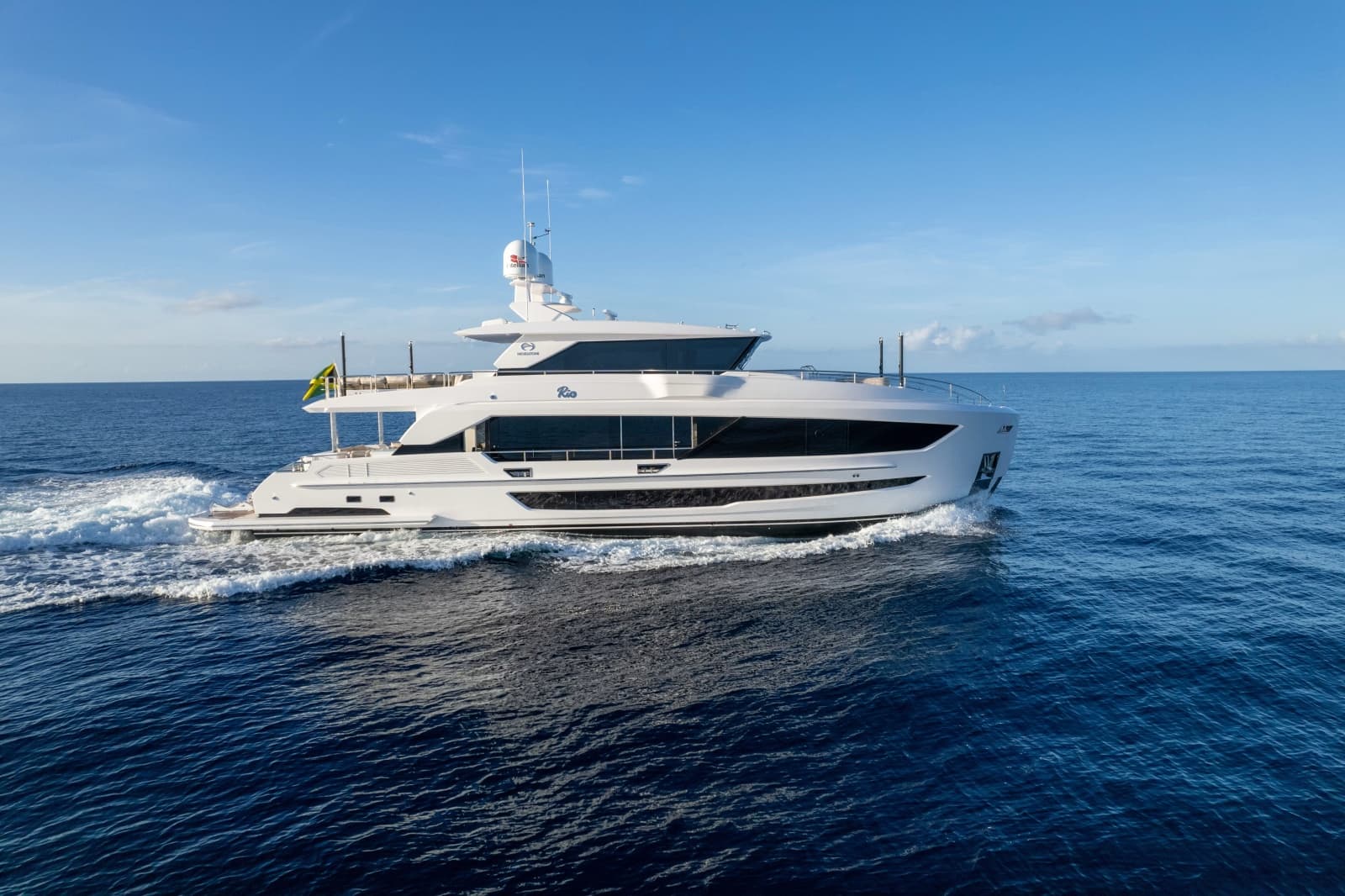

At 90' (27.45m) with a 23'4" (7.11m) beam, RIO offers remarkable interior volume while maintaining a shallow draft ideal for cruising the Bahamas and Florida Keys.
Her GRP hull delivers excellent seakeeping characteristics, fuel efficiency, and long-range capability with an approximate cruising range of 2,500 nautical miles, depending on operating conditions.
Power is provided by twin MTU 16V diesel engines (approximately 2,700 hours), covered by MTU warranty through 4,500 hours. She cruises comfortably at 11 knots and reaches a top speed of approximately 17 to 19 knots.
Approximate fuel consumption:
- 32 GPH at 9 knots
- 40 GPH at 10.5 knots
- 100 GPH at 15.5 knots
Interior
RIO's interior emphasizes natural light, comfort, and functionality. Expansive panoramic windows fill the main salon with daylight, while the contemporary interior features warm natural wood finishes and neutral furnishings.
The enclosed galley provides enhanced privacy and service efficiency compared to open-plan layouts. Above, the skylounge features a fold-out sofa bed and opens directly onto the aft bridge deck, complete with dining and lounge areas shaded by custom sun sails.
Accommodations
RIO accommodates 11 guests in five en-suite staterooms.

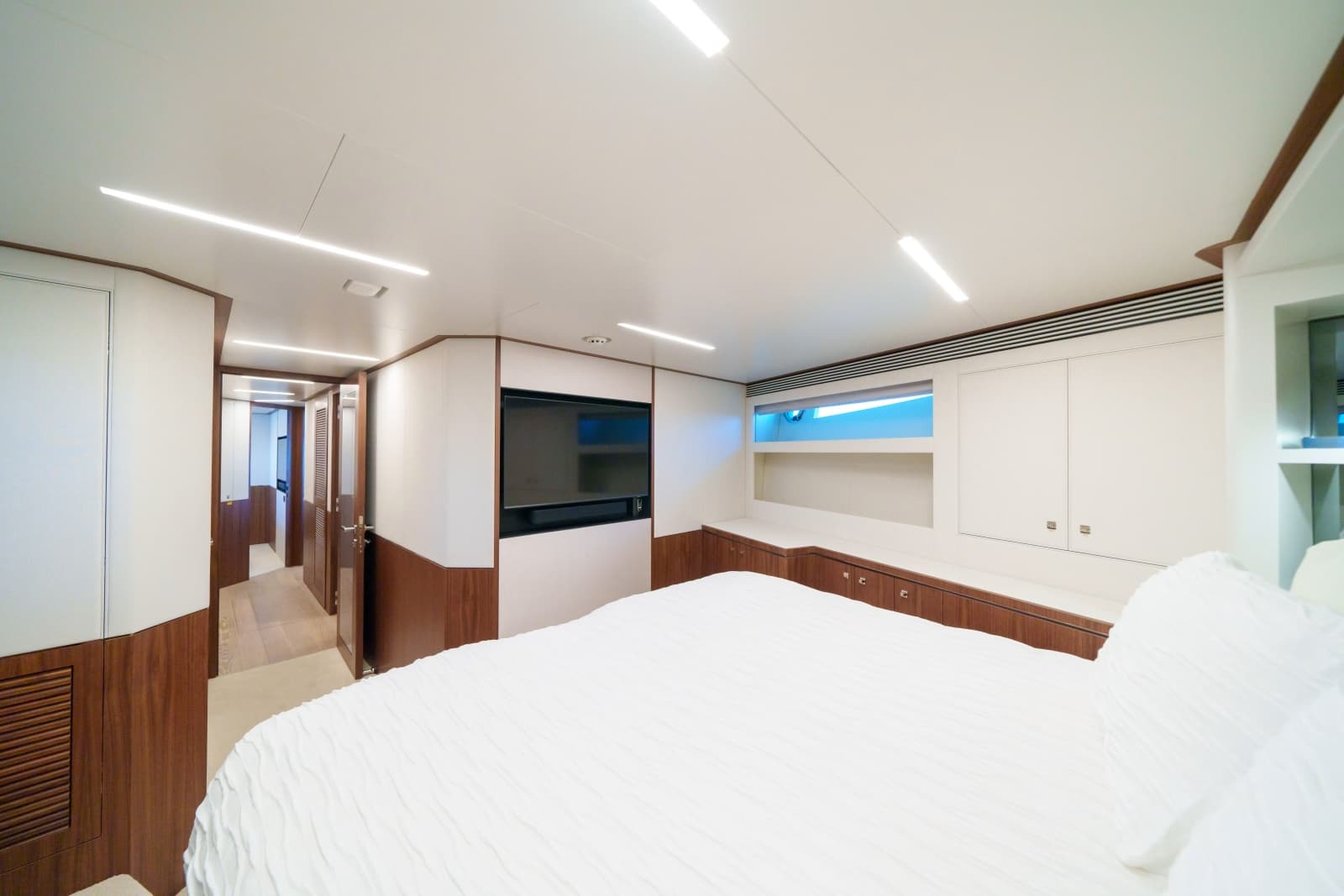

The full-beam, on-deck master suite features a king berth, dressing area, and spacious en suite bathroom.
The lower deck includes:
- Two queen guest staterooms
- One VIP stateroom convertible between a king berth and twin berths
- One guest cabin convertible from twin berths to three single berths, offering exceptional flexibility for families and charter-style use
Separate crew accommodations comfortably sleep four.
Exterior
The exterior living spaces are designed for entertaining and enjoying life on the water.
The aft deck features alfresco dining with direct access to the swim platform, while the foredeck offers a Jacuzzi and comfortable lounge seating. The flybridge provides additional dining, sunbathing, and shaded relaxation areas.
SUMMARY
The Horizon FD90 stands out for:
- Her enormous volume and 23’ beam
- On-deck full-beam master
- Enclosed galley layout
- Skylounge option
- Exceptional engineering, stability, and quiet performance
- A layout designed for both private use and successful charter
DIMENSIONS
- L.O.A.: 90’-0” (27.45 m)
- L.W.L.: 81’-4” (24.79 m)
- Hull Beam: 23’ 4” (7.11 m)
- Max Beam (with bump out): 23’ 7” (7.19 m)
- Draft (half load): 6’-0” (1.83 m)
- Height (W.L. to hardtop): 22’ 10” (6.66 m)
- Displacement (half load): 229,280 lbs (104 tons)
- Fuel: 3,480 US gal (13,170 L)
- Fresh Water: 400 US gal (1,500 L)
WALKTHROUGH
The Horizon FD90 is one of the most spacious and innovative yachts in the 90-foot class, offering a true superyacht experience in a highly manageable size. With a 23’4” beam, a Fast Displacement Hull Form (FDHF), and Horizon’s signature High-Performance Piercing Bow (HPPB), she provides exceptional comfort, stability, and efficiency at every speed.
Below is a complete deck-by-deck walkthrough of this remarkable yacht.
MAIN DECK

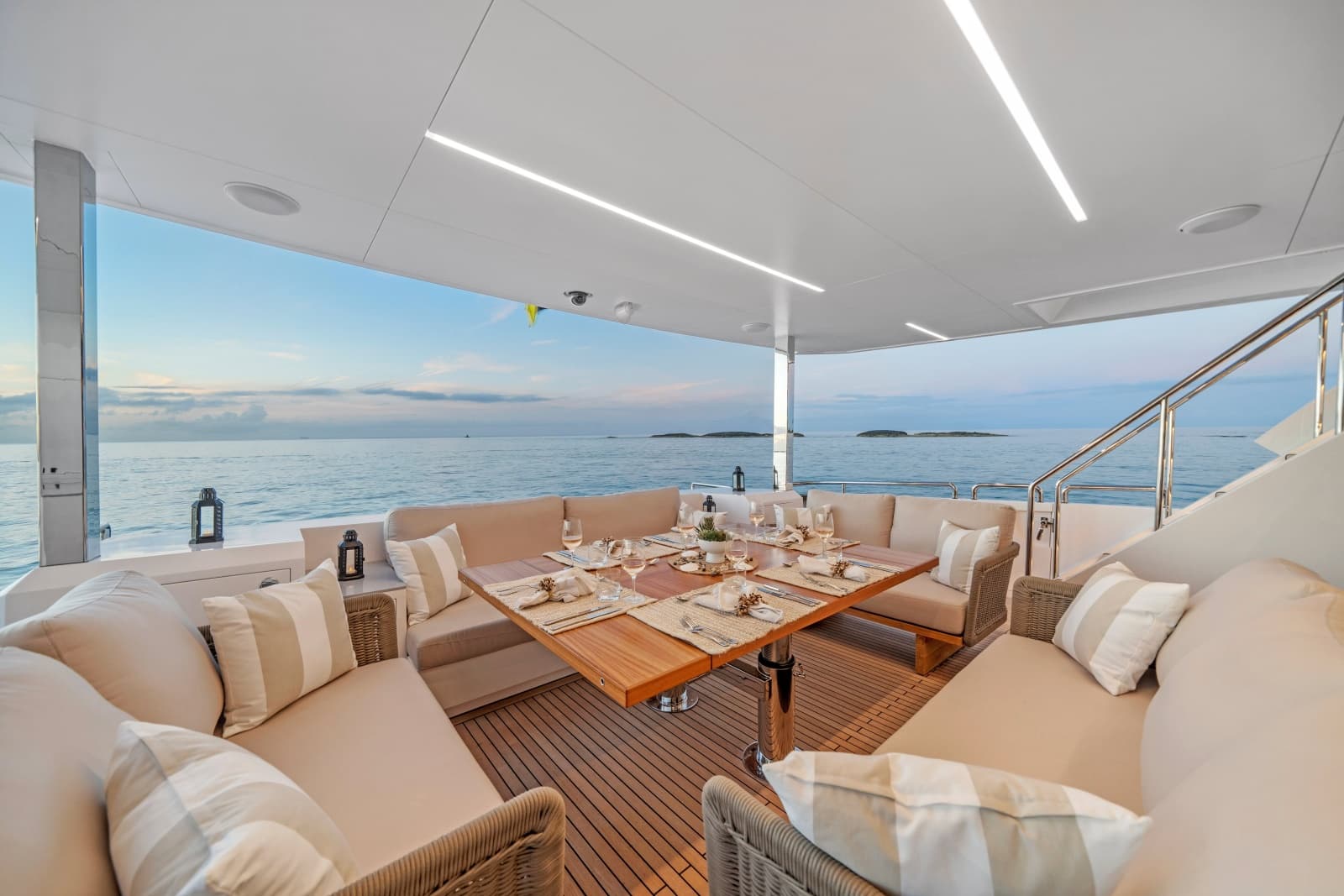

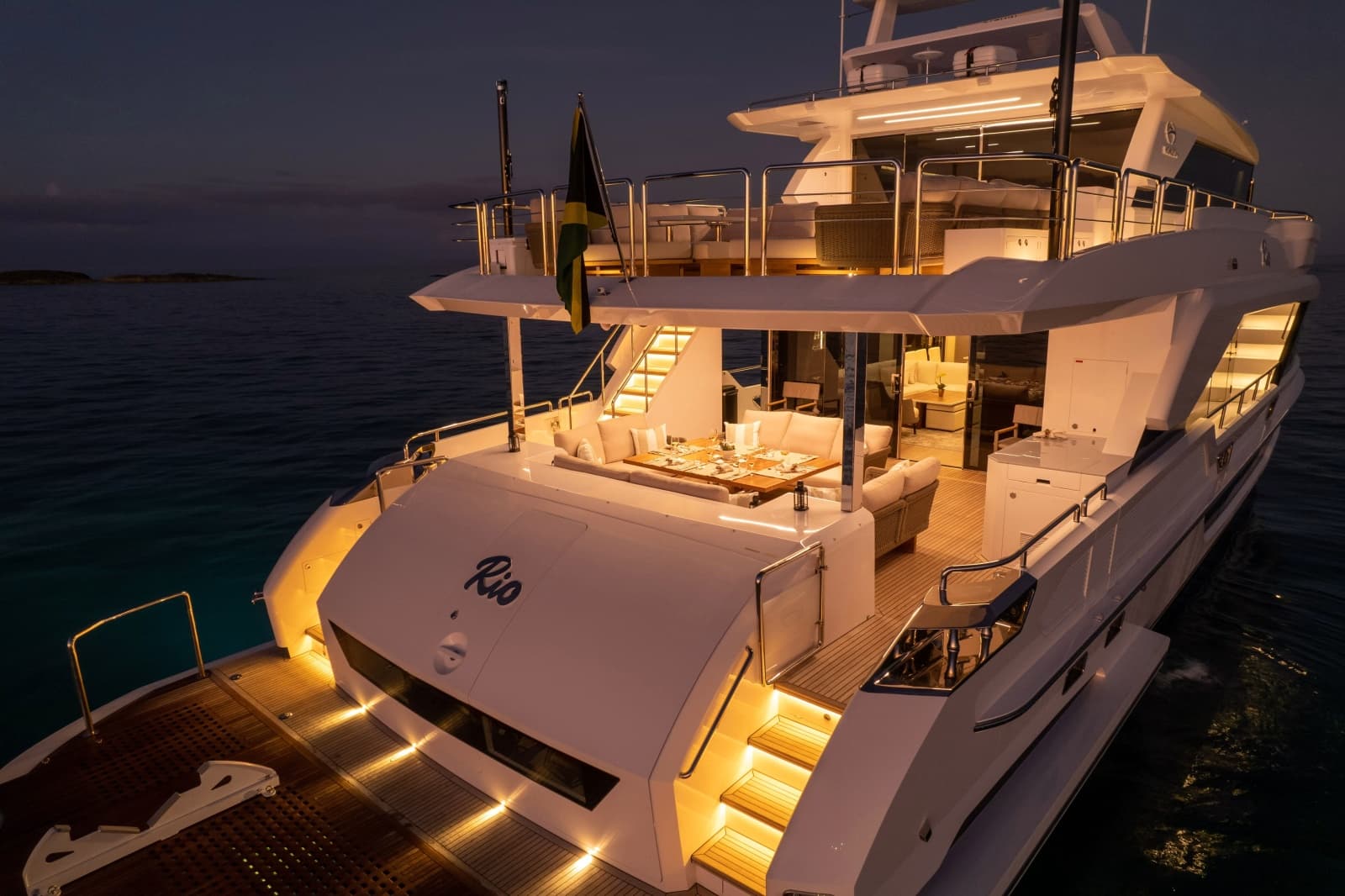

Aft Deck
- Guests are welcomed onto a wide, teak-finished aft deck featuring:
- A large 10-person dining table
- Wet bar/serving area
- Ample built-in seating
- Easy access to side decks and the beach club
- The space flows seamlessly into the salon through oversized sliding glass doors.

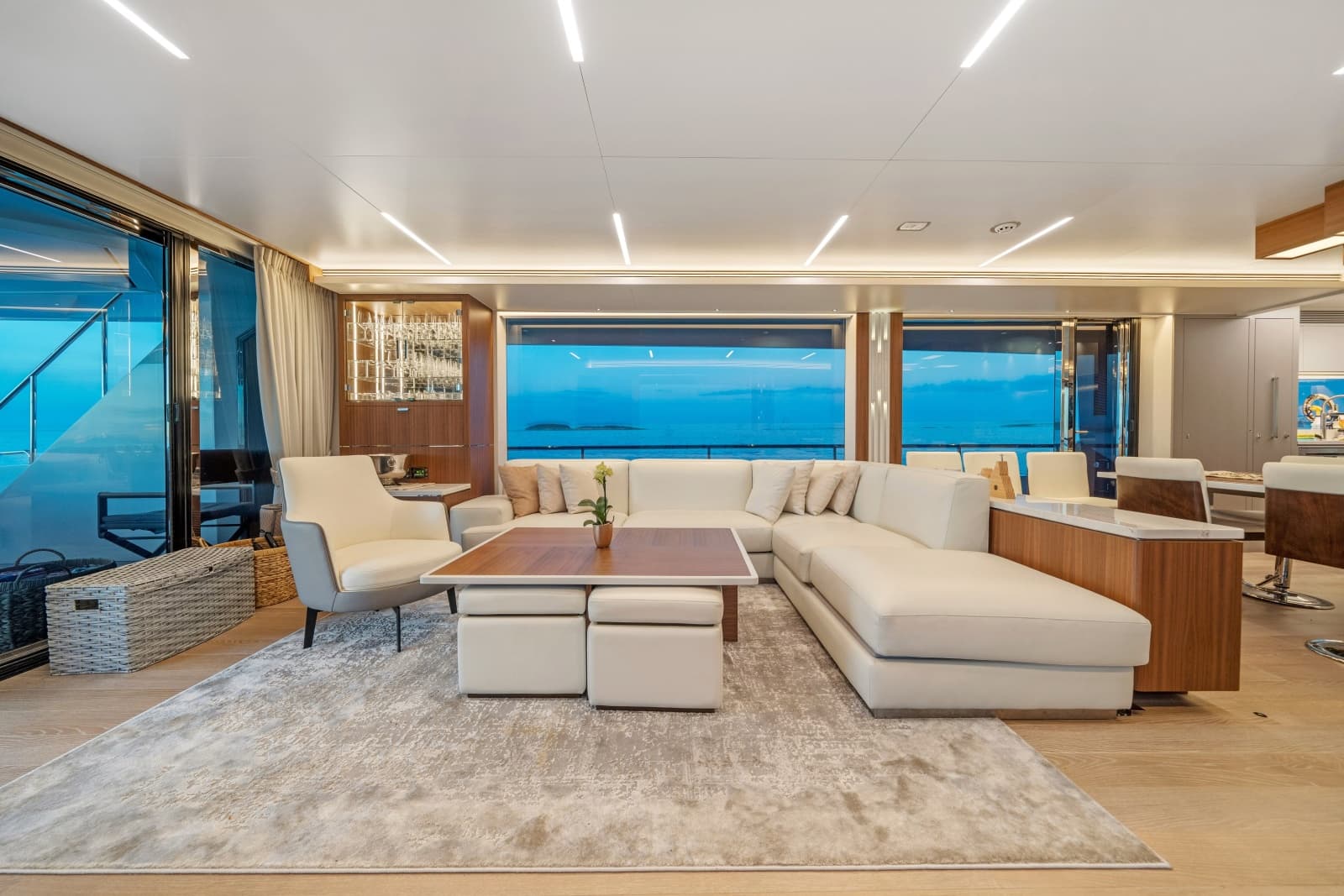

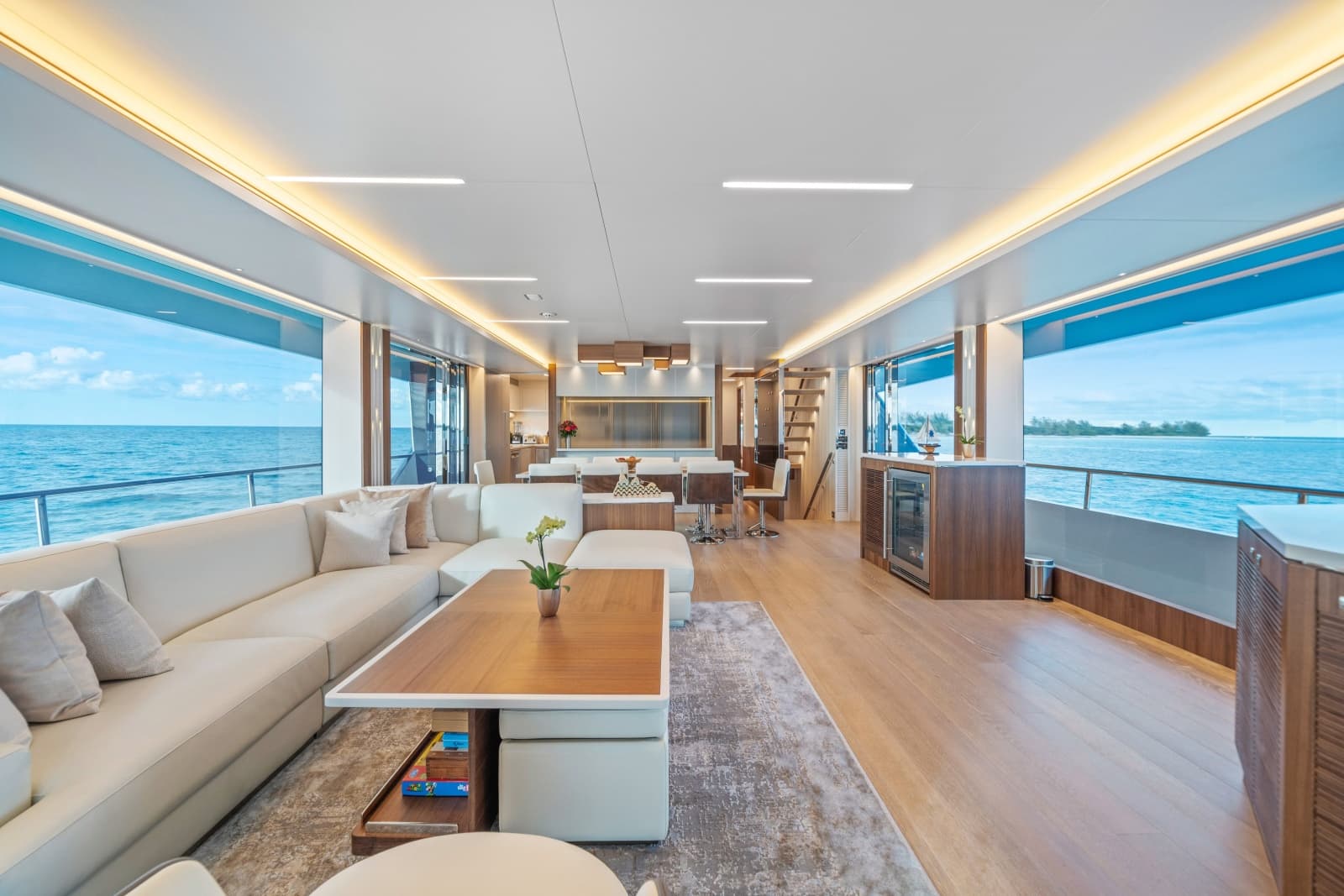

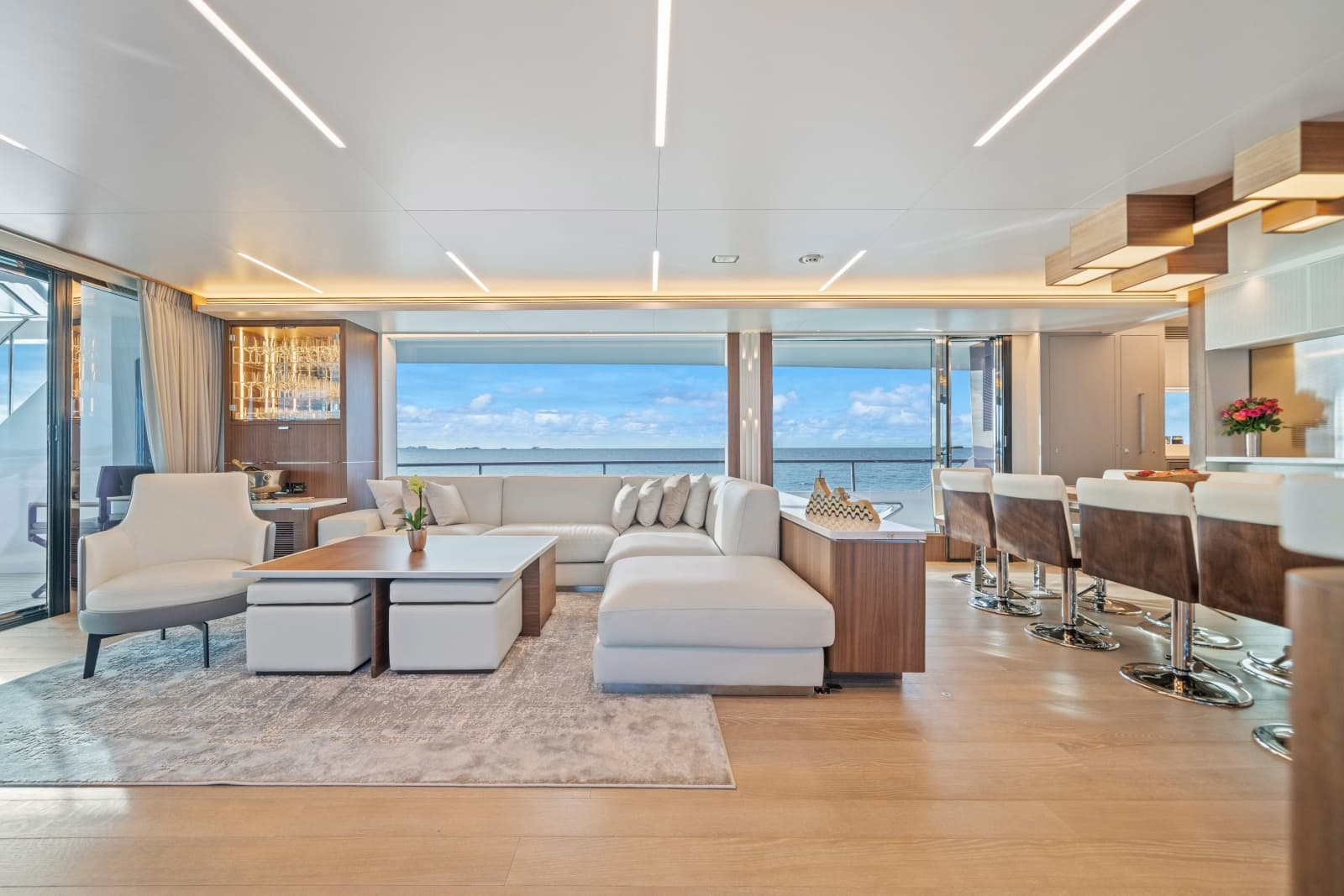

Salon
- The salon takes full advantage of the FD90’s massive beam, offering:
- Floor-to-ceiling windows
- Opposing sofa arrangements with lounge seating
- A large pop-up TV
- Custom cabinetry and refined woodwork
- Bright, open volume comparable to yachts well over 100 feet
- This is one of the most spacious salons in its class.
Enclosed Galley (Unique to this FD90)
- This vessel features the highly desirable enclosed galley configuration, offering complete privacy between guest areas and the working galley
- Professional-grade Miele/Sub-Zero appliances
- Side-door crew access for discreet service
- Full-height refrigeration and excellent storage
- Compared to the open galley layout, this format reduces noise, enhances service flow, and gives the main deck a more formal, elegant feel.

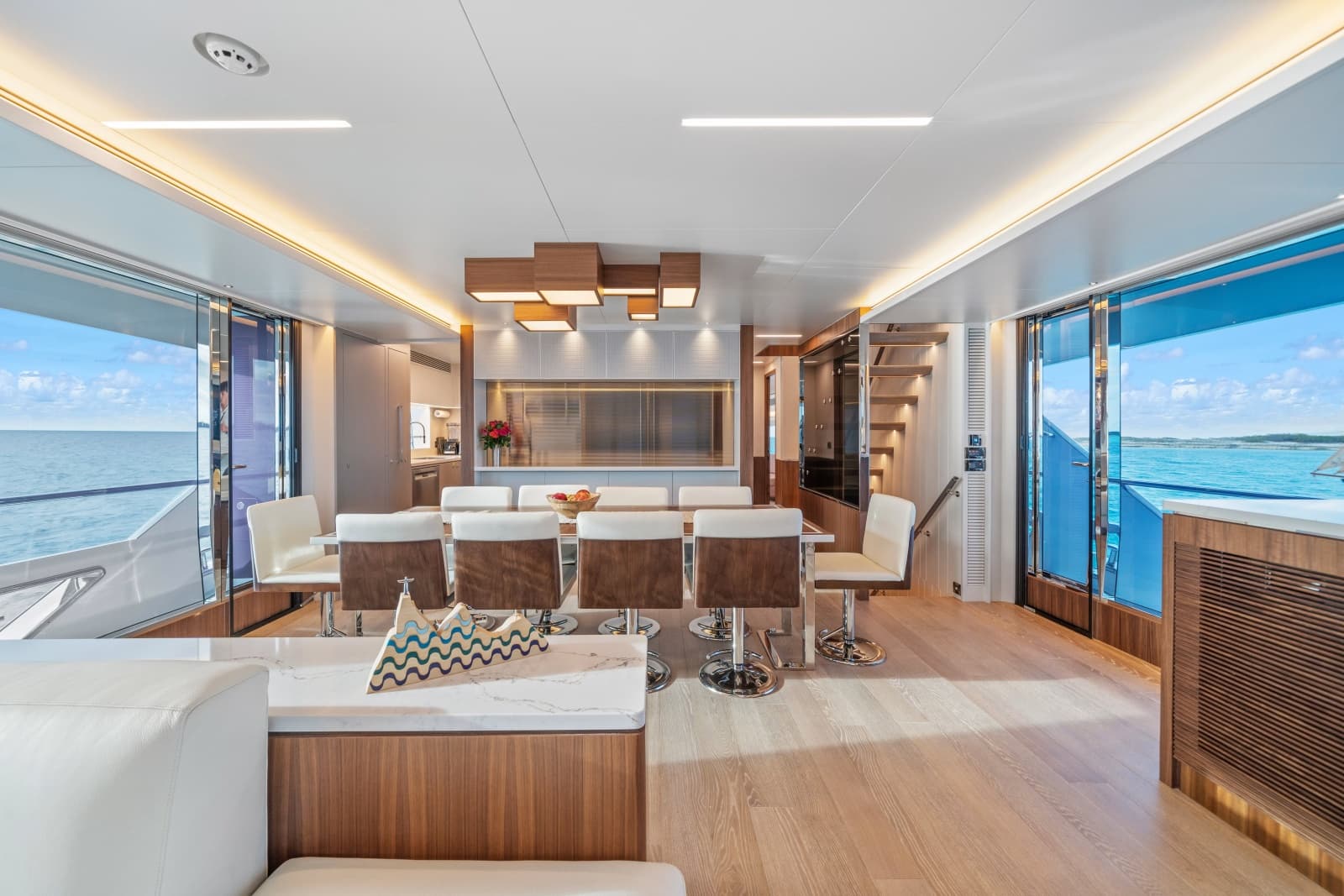

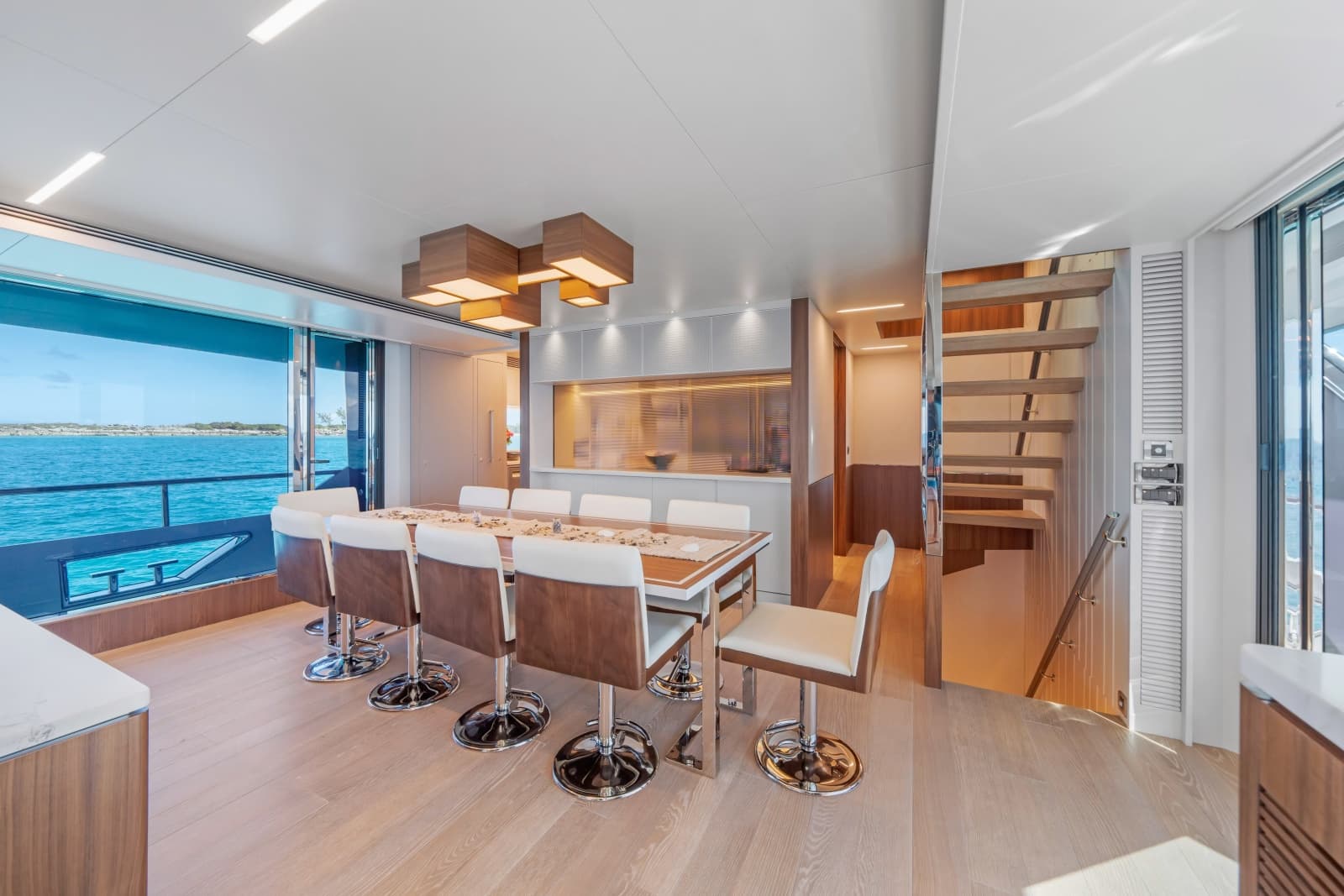

Formal Dining Area
- Positioned forward of the salon with:
- Seating for eight
- Excellent natural light
- Easy service from the enclosed galley

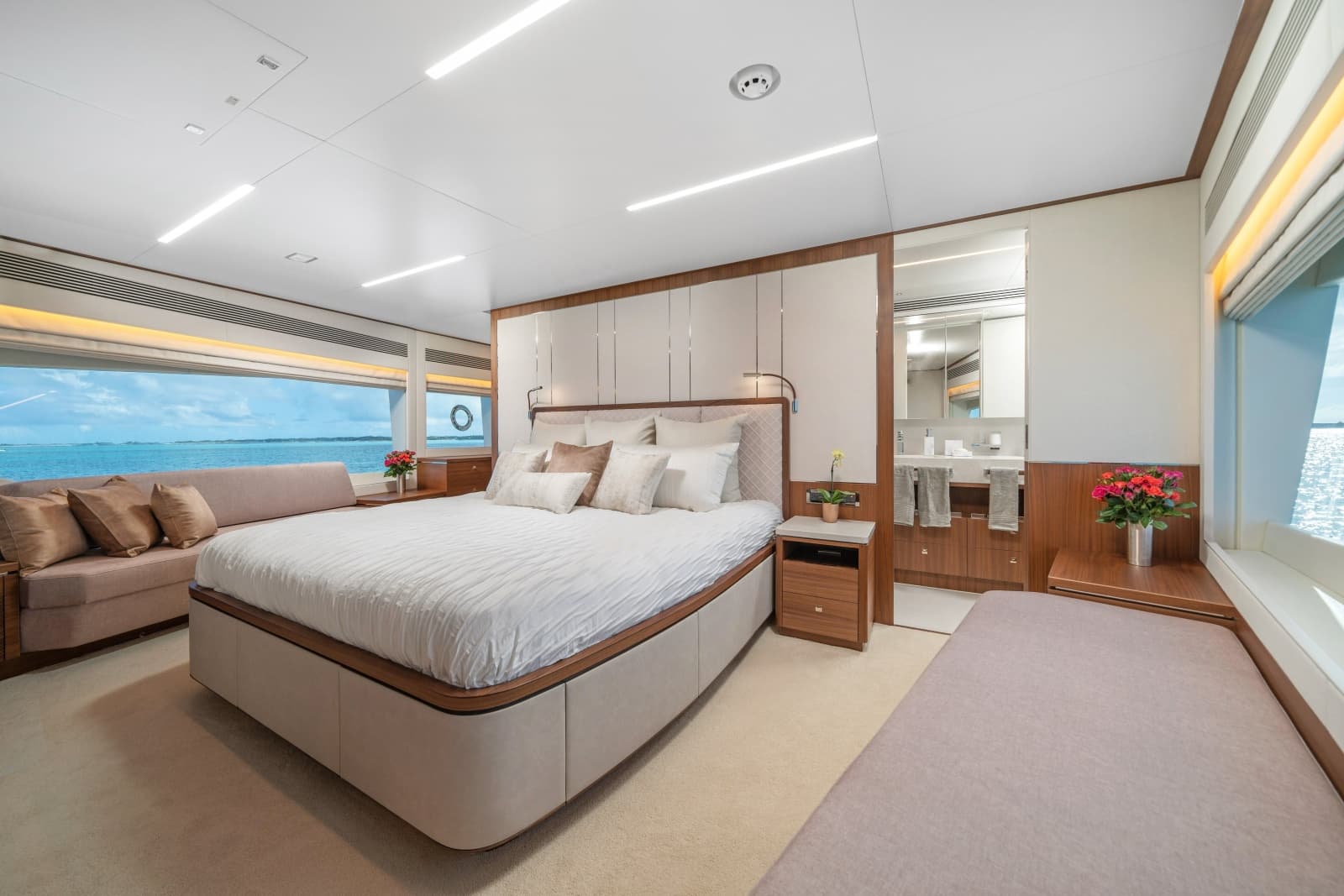

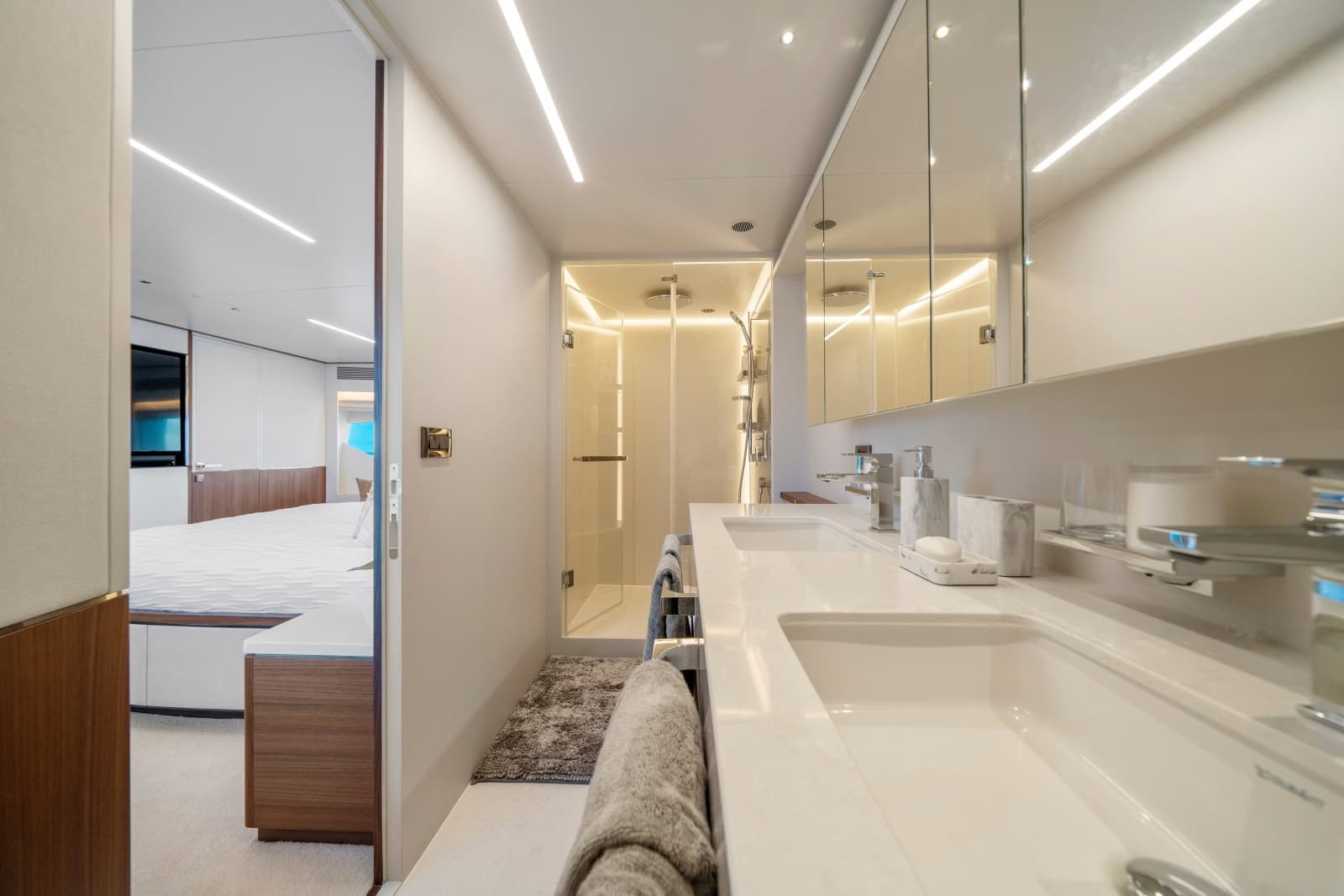

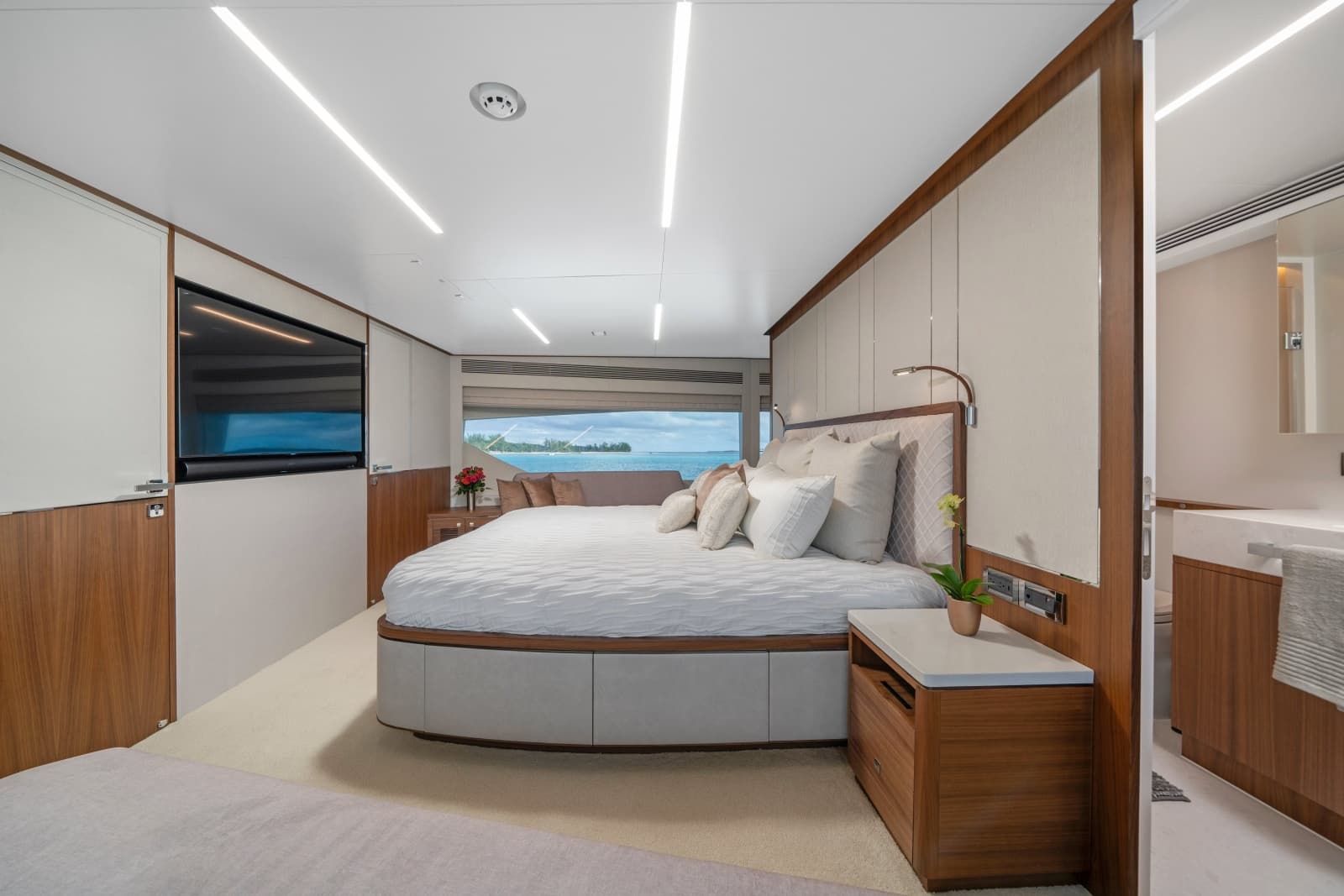

On-Deck Master Stateroom
- A true standout feature of the FD90:Full-beam owner’s suite on the main deck
- Panoramic windows to each side
- King bed
- Couches, both port and starboard side
- Walk-in wardrobe
- Beautifully appointed en-suite with double sinks and large shower
- This arrangement elevates the FD90 into superyacht territory.
LOWER DECK

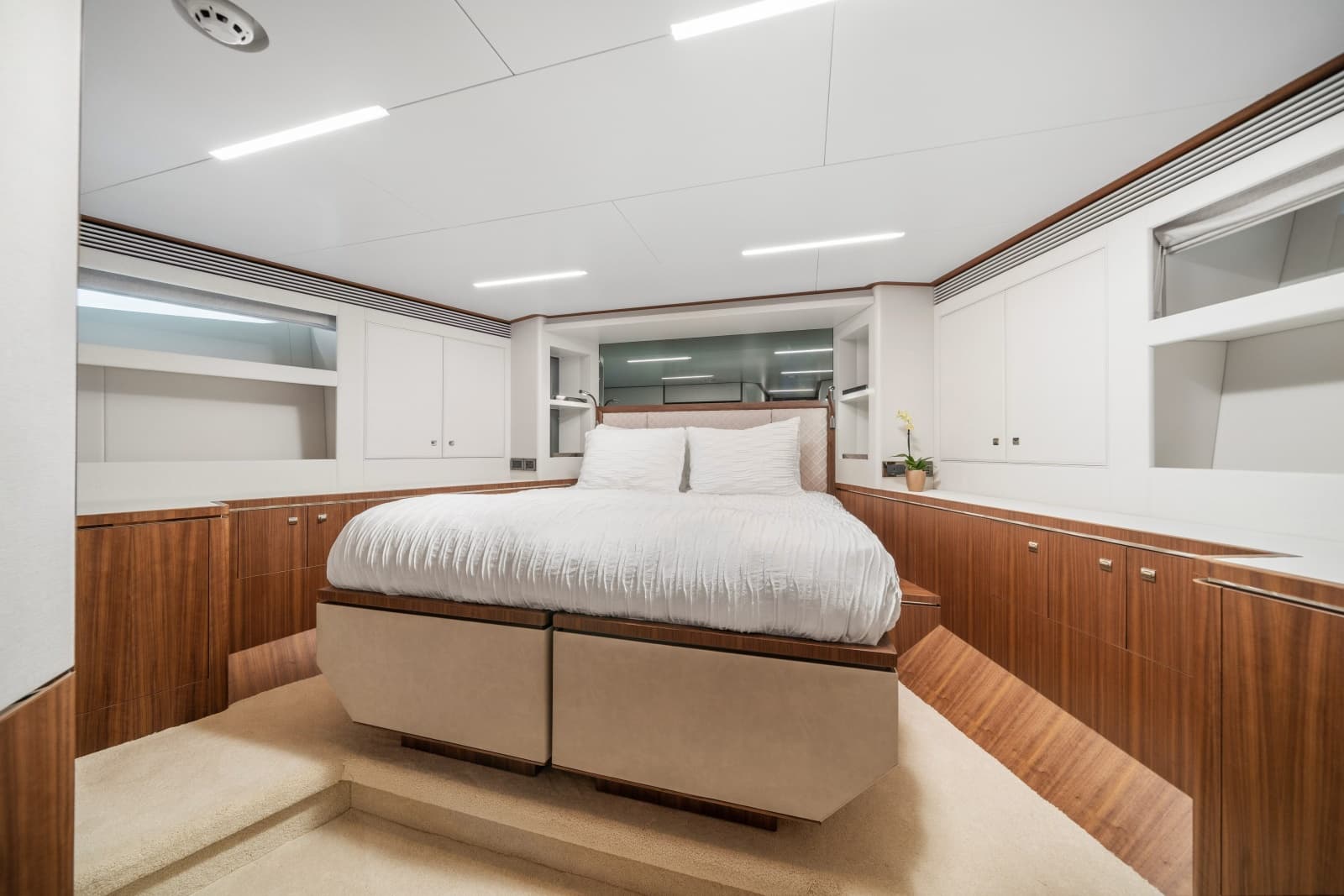

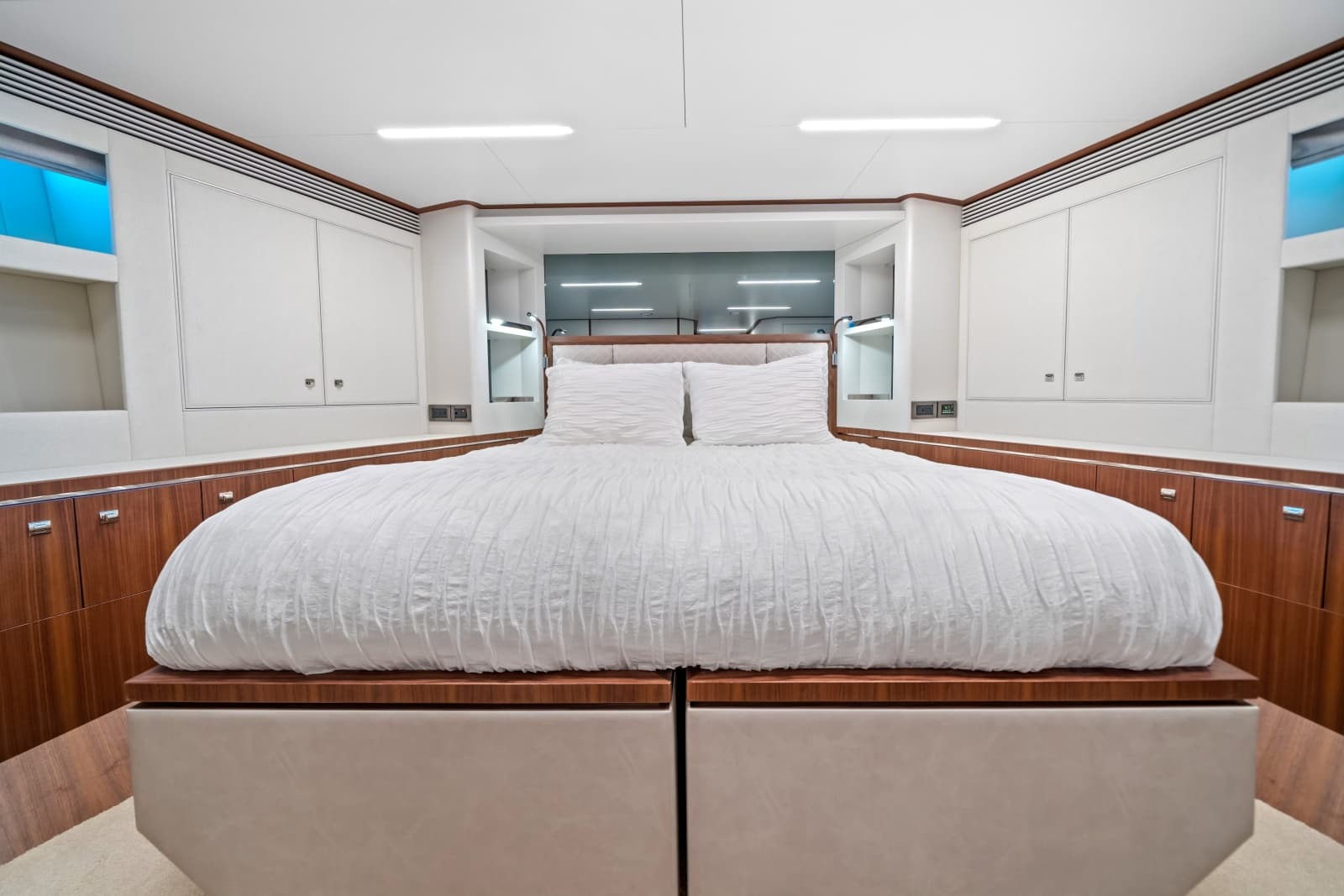

VIP Stateroom (Forward)
- Exceptional volume
- Convertible twins to king bed
- Walk-in closet
- En-suite bathroom with both a shower and a tub, unusually luxurious for this size
- yacht

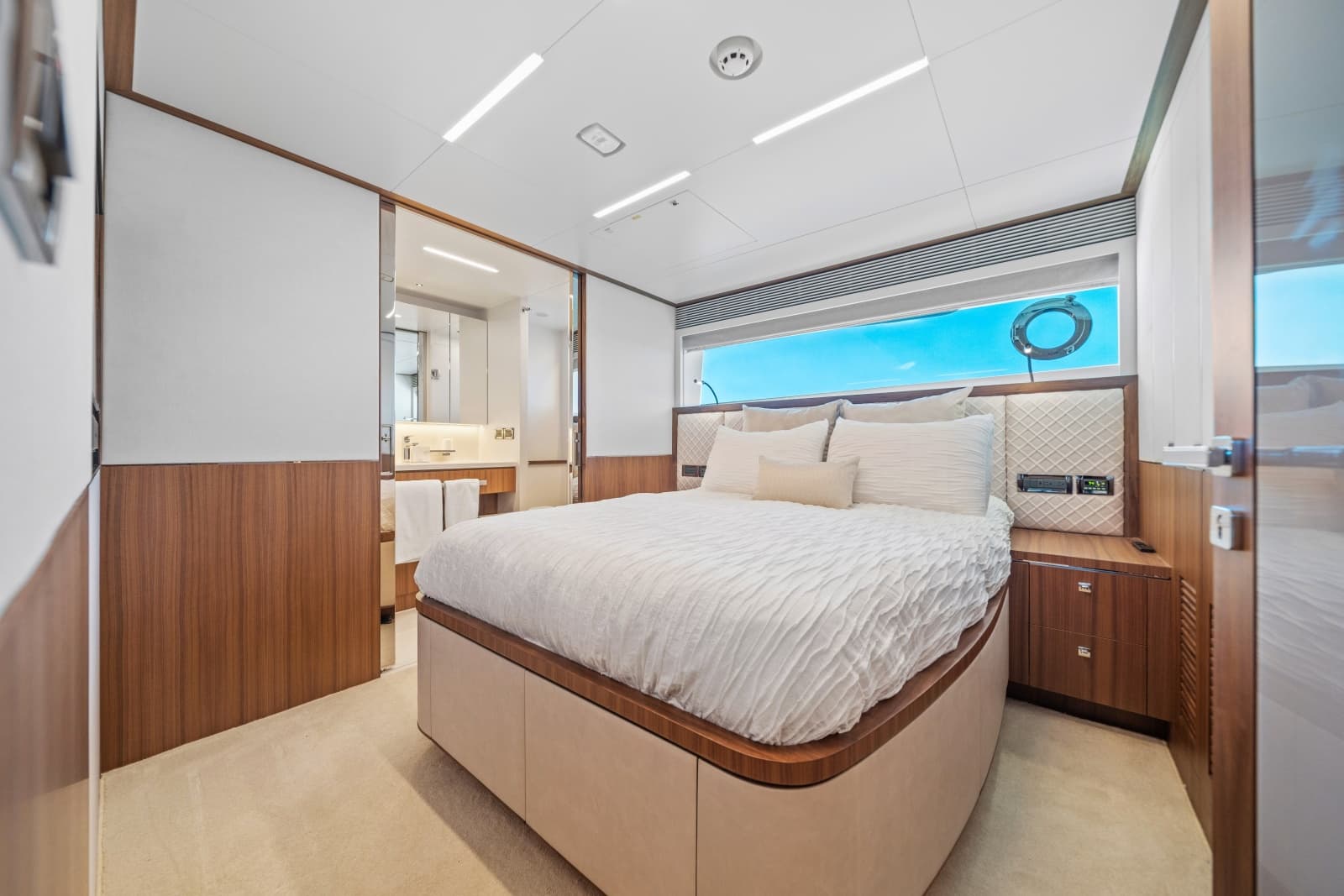

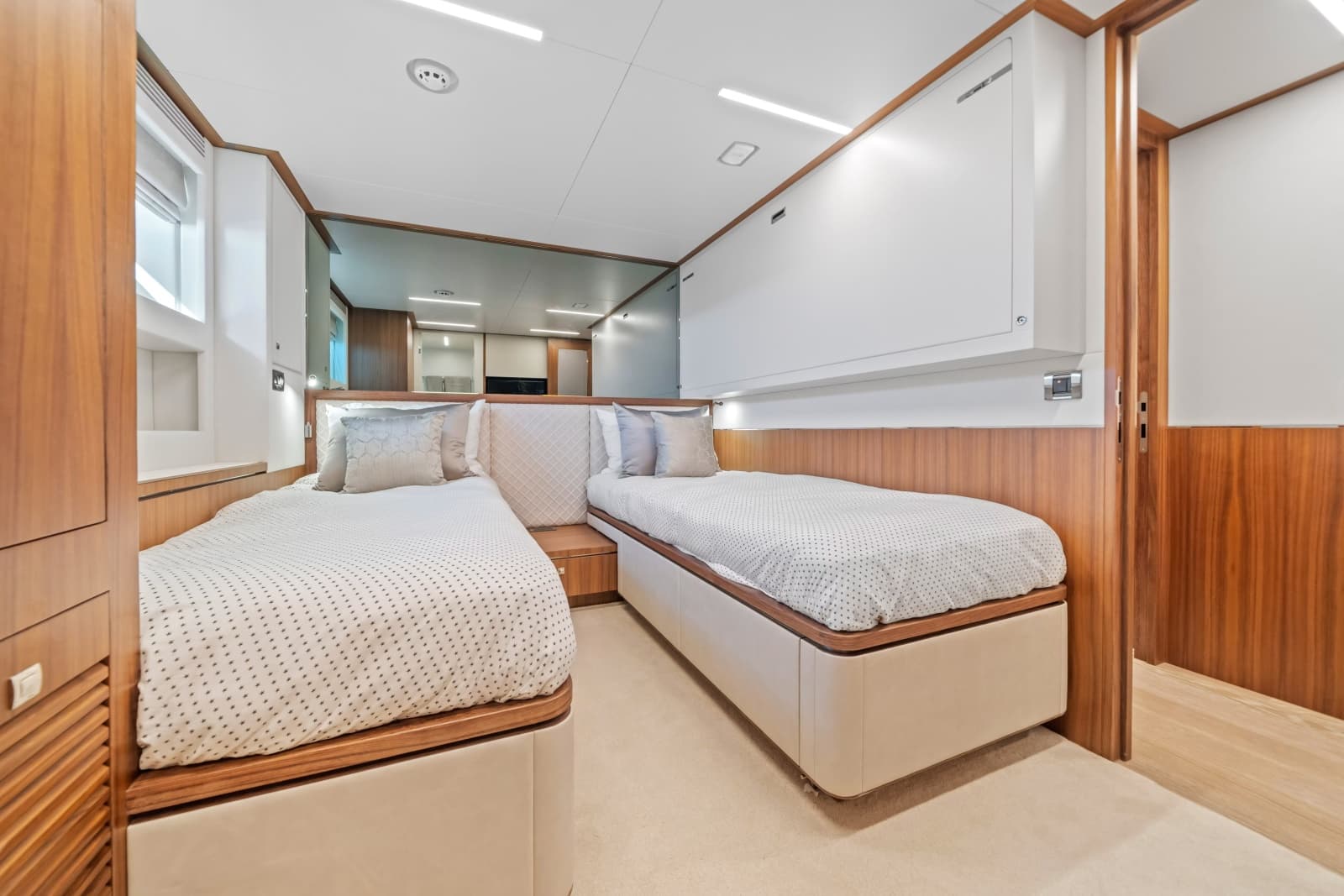

Guest Cabins
- Three well-proportioned guest staterooms
- 2x Aft queen cabins
- 1x Convertible twins to queen cabin
- Each with private en-suite bathrooms
- The lower deck is bright, quiet, and well-insulated thanks to Horizon’s engineering.
Crew Quarters
- Located aft and isolated for privacy: Accommodations for 3–4 crew
- Crew mess and small galley
- Private stair access
- Direct access to engine room

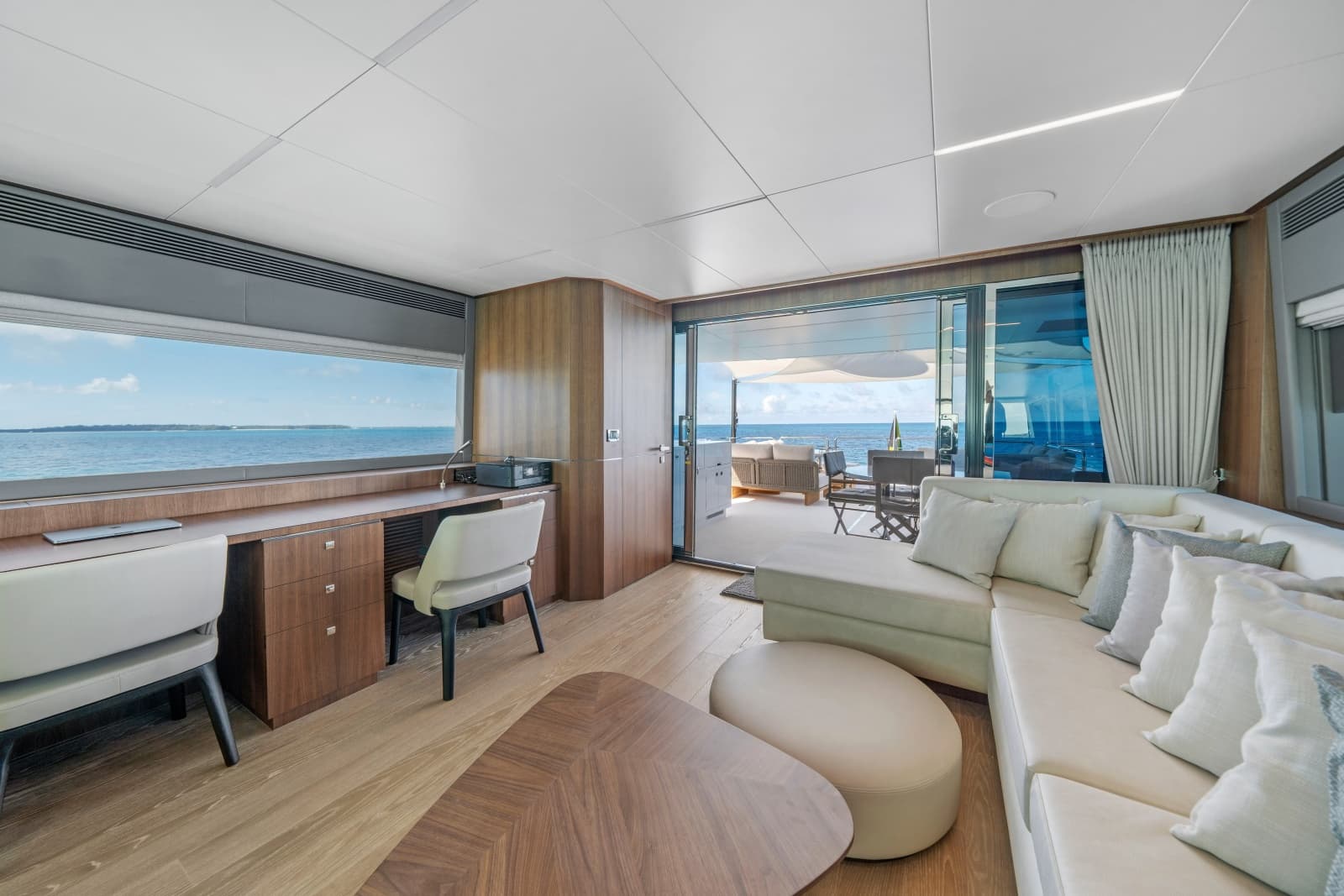

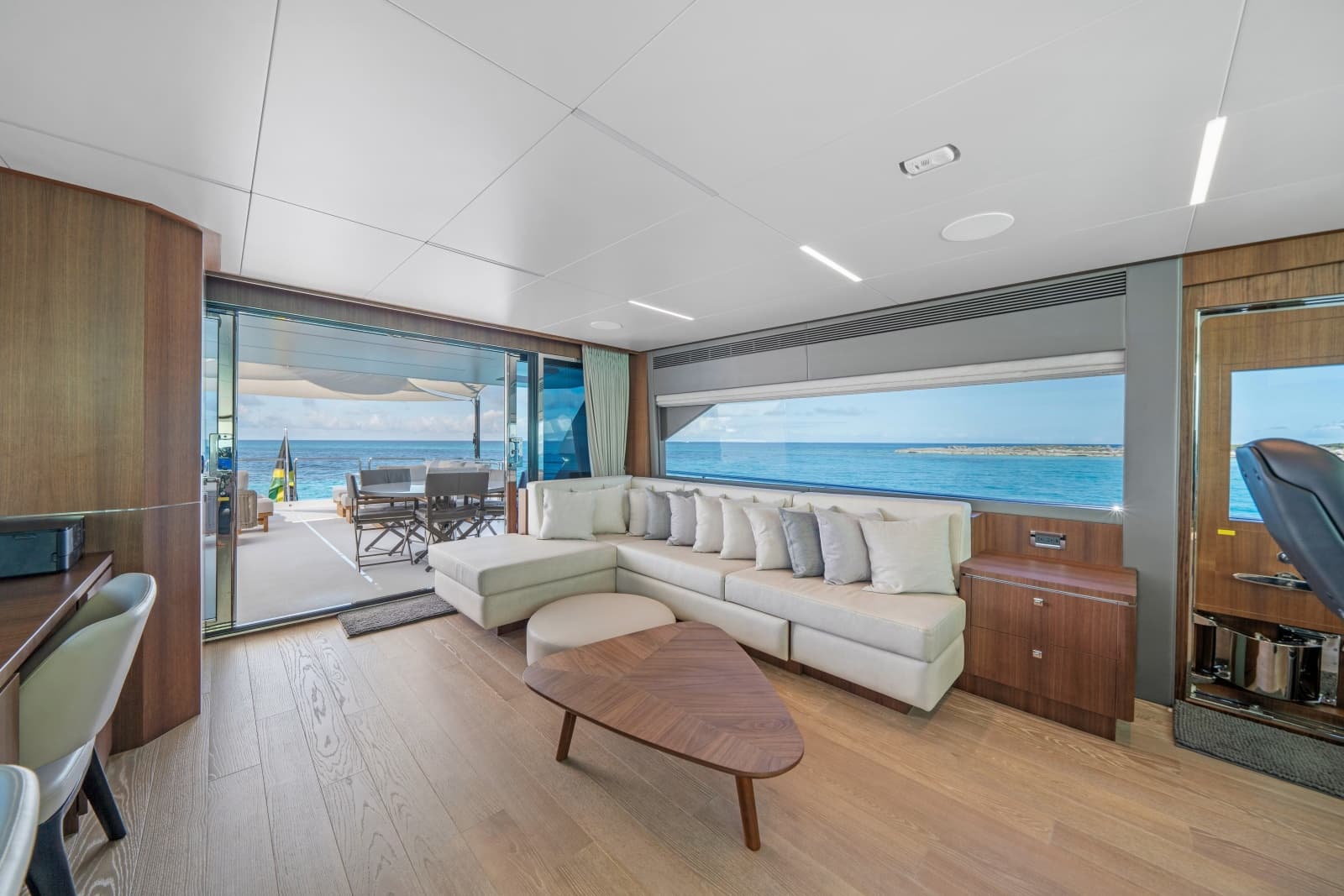

SKYLOUNGE (ENCLOSED BRIDGE)
The enclosed skylounge creates a second indoor salon, featuring:
- Full helm with dual Stidd chairs
- Lounge with sofas that fold out into a bed
- Starboard side, two beautiful desks
- Entertainment system
- Excellent visibility for all-weather cruising

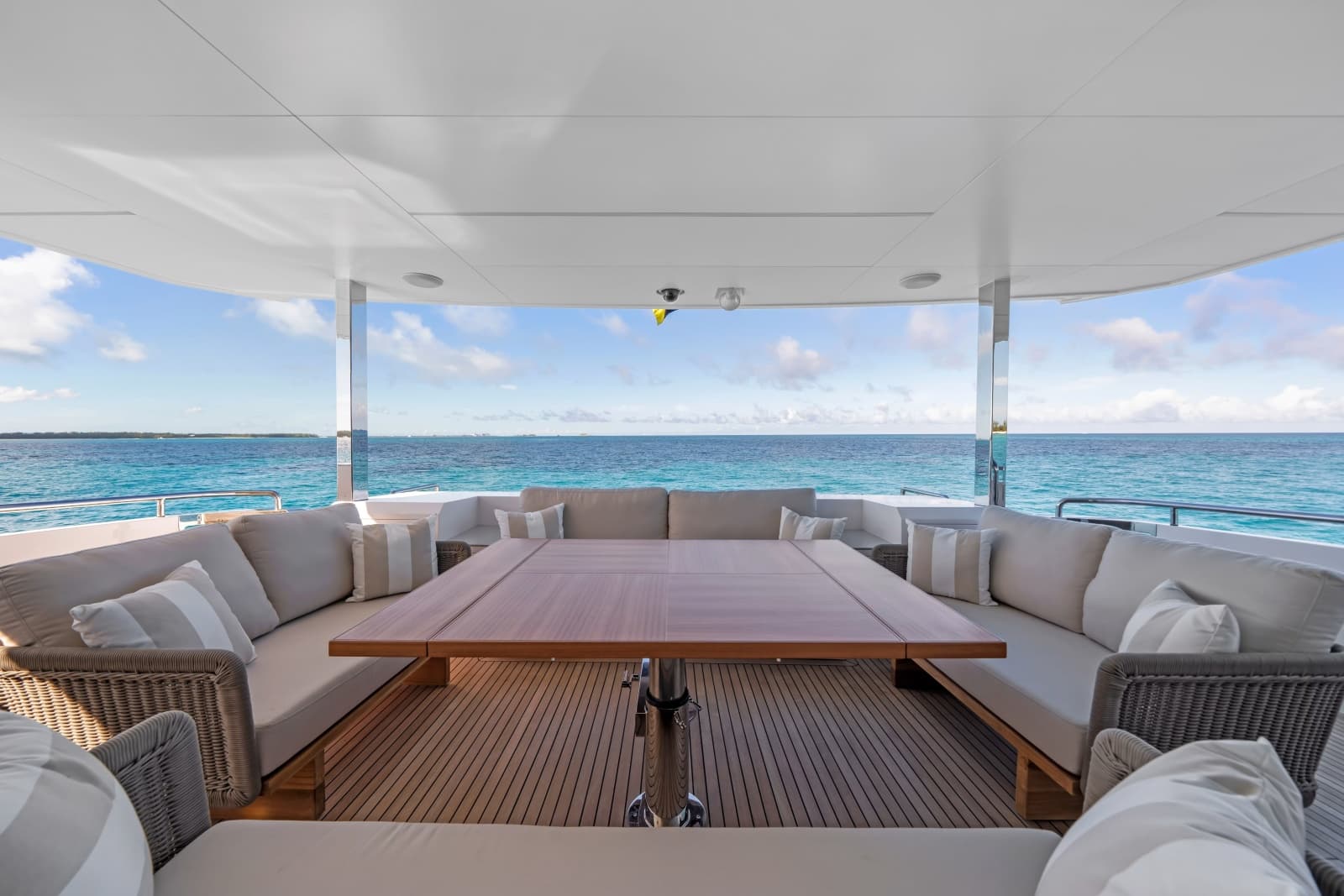

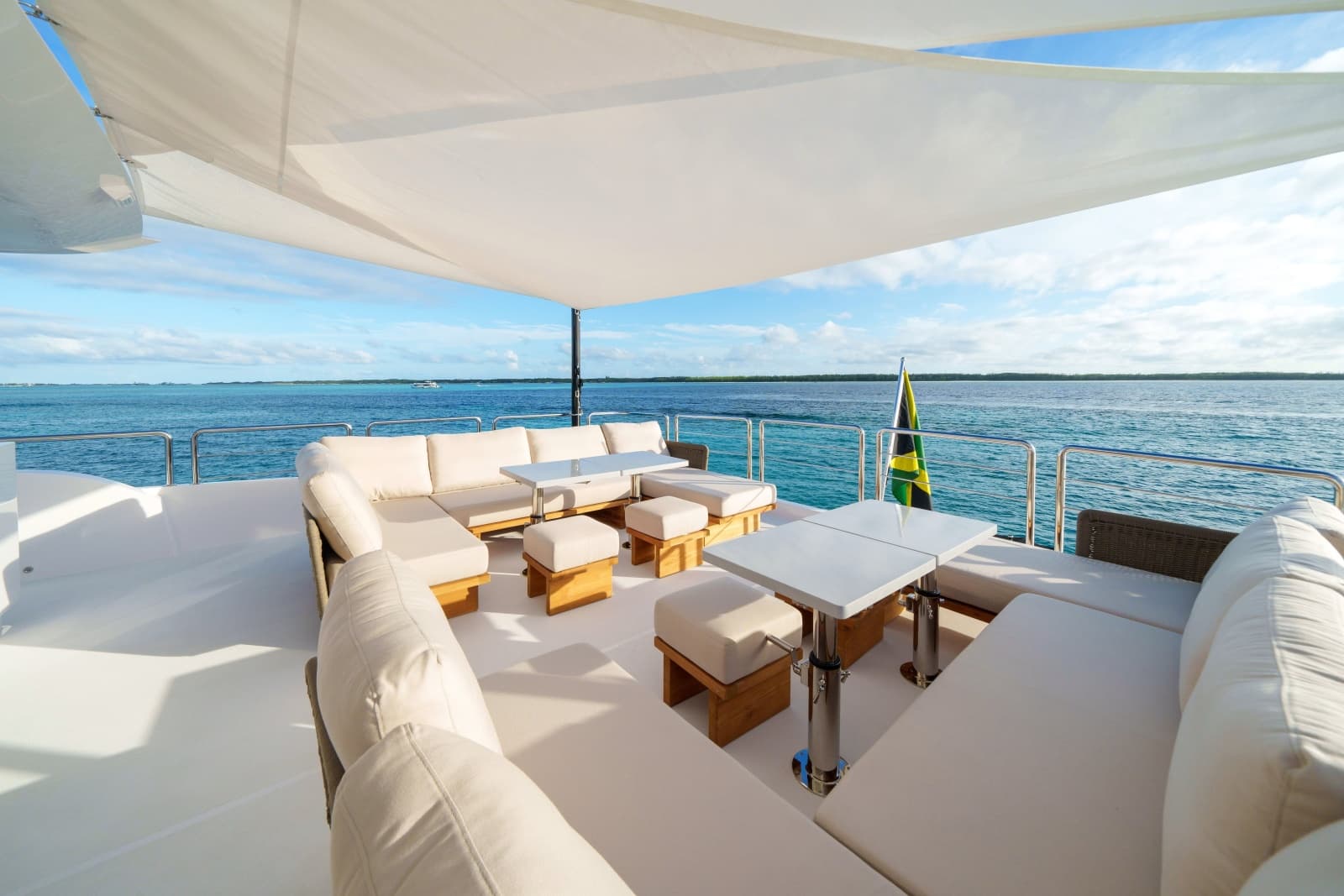

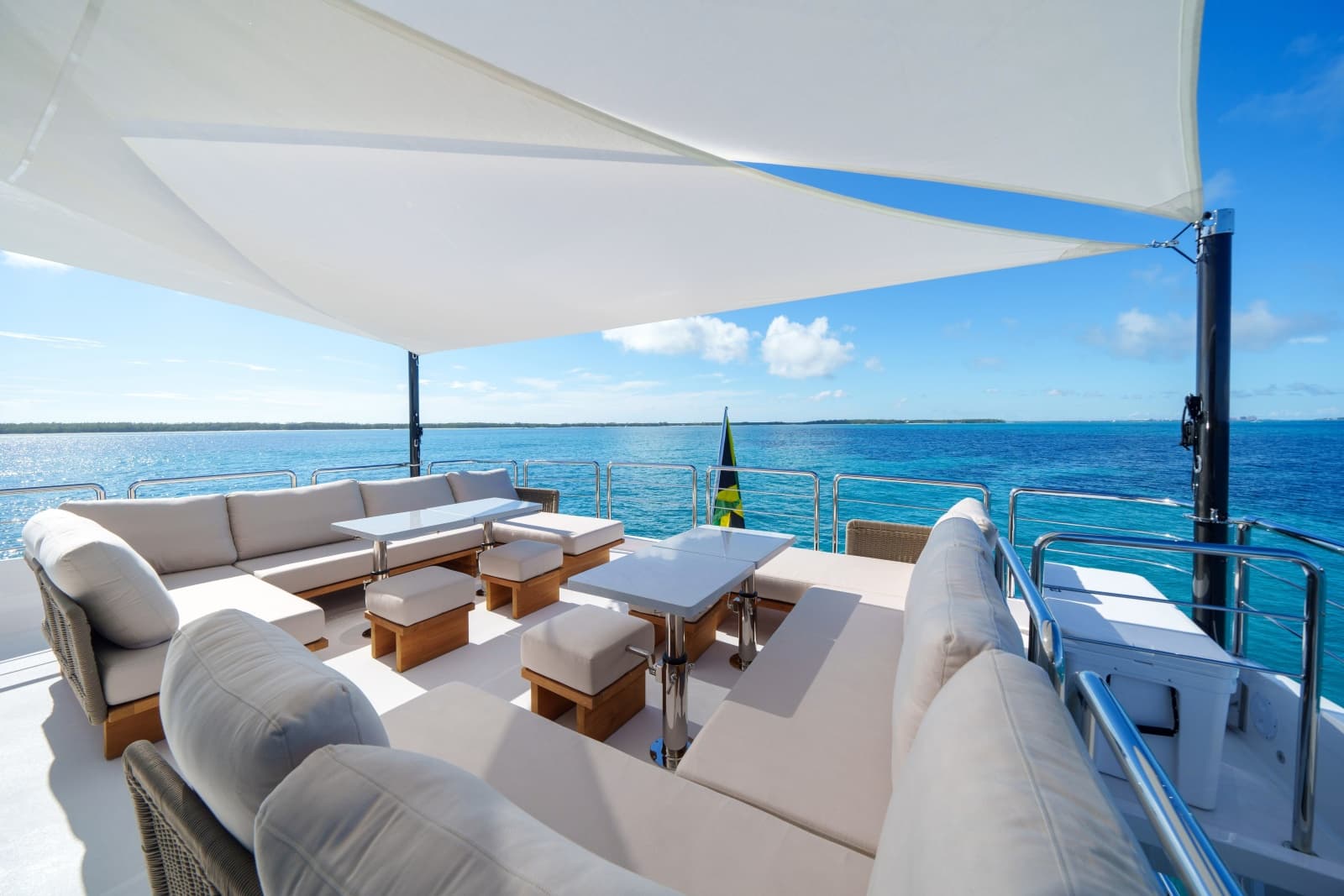

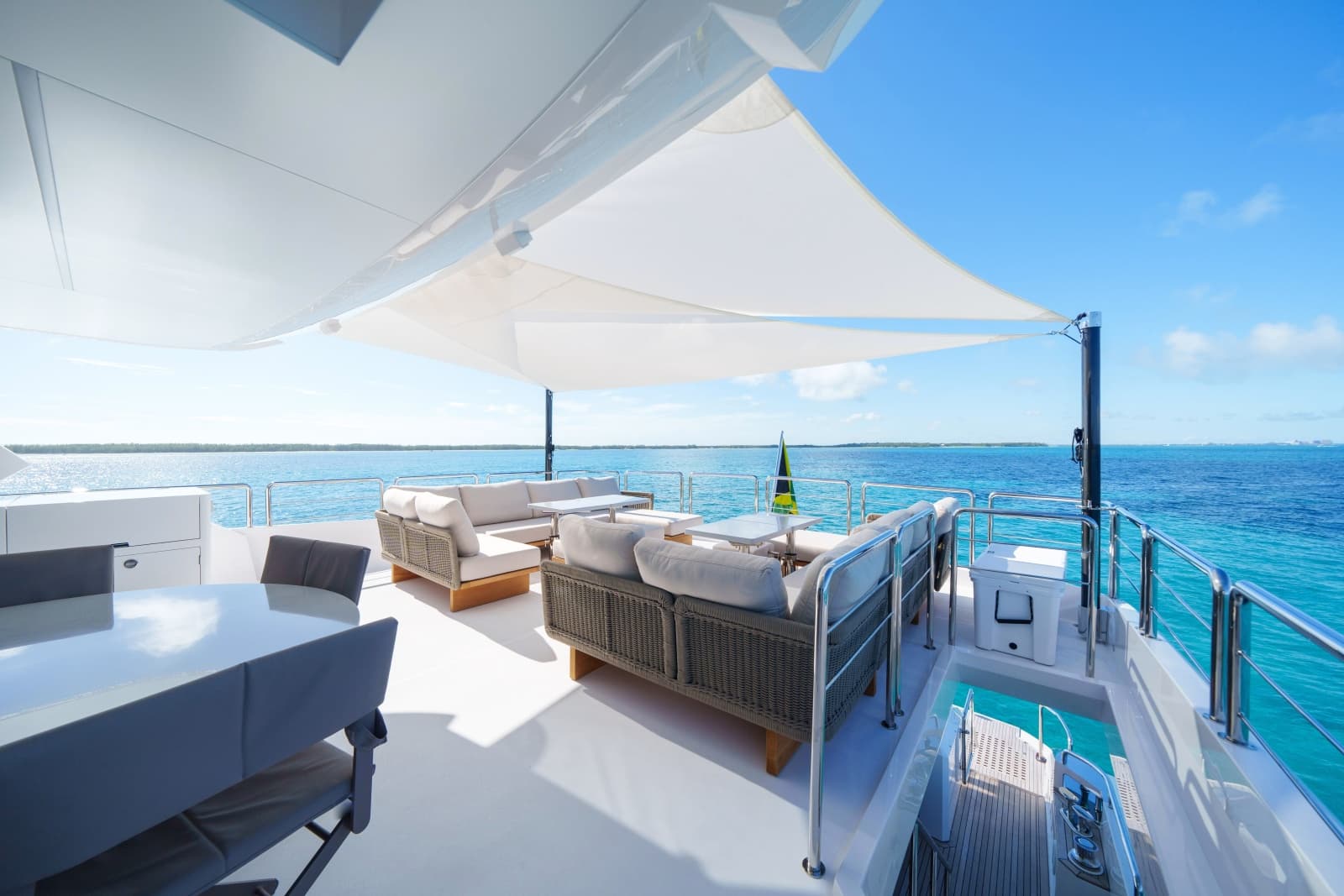

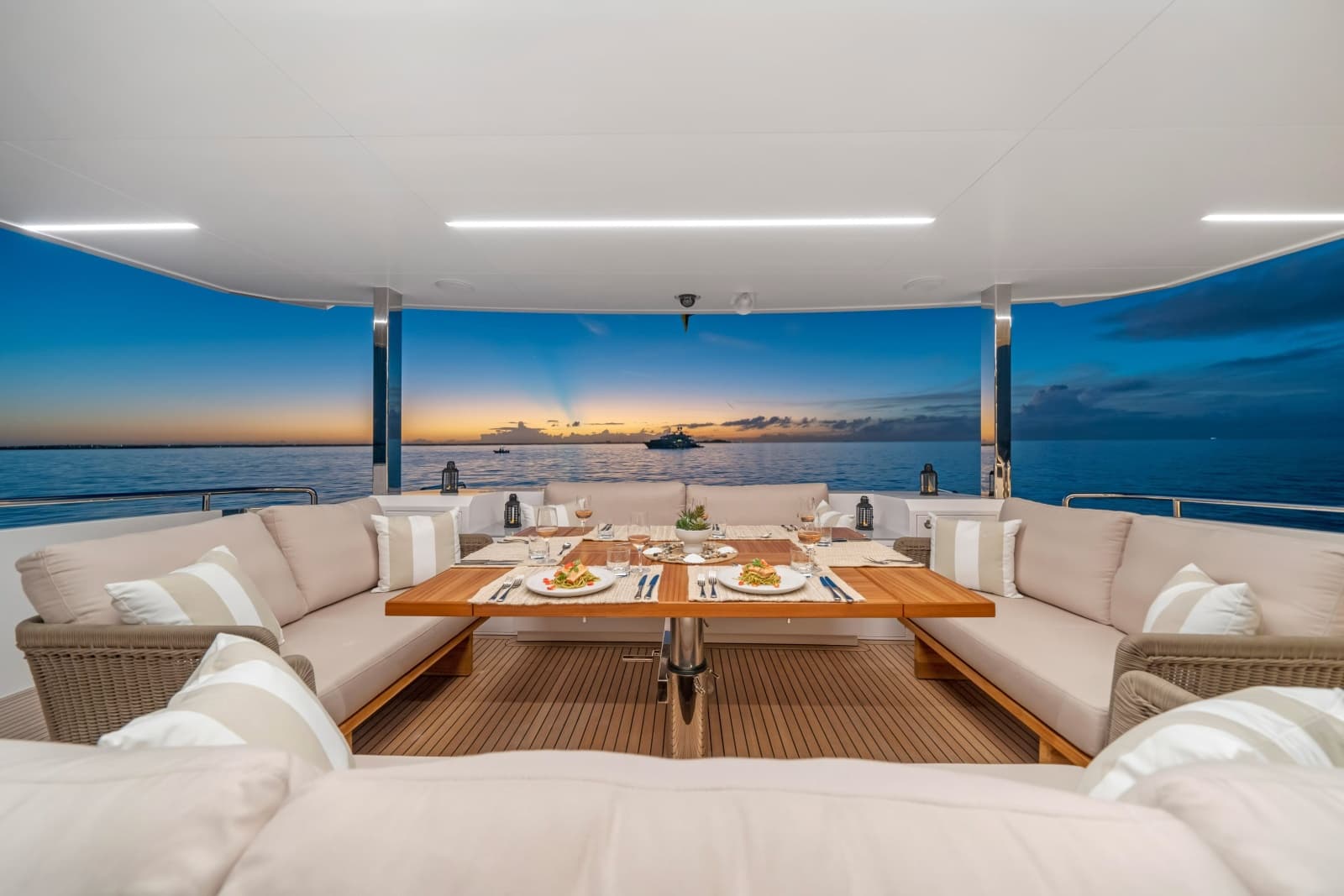

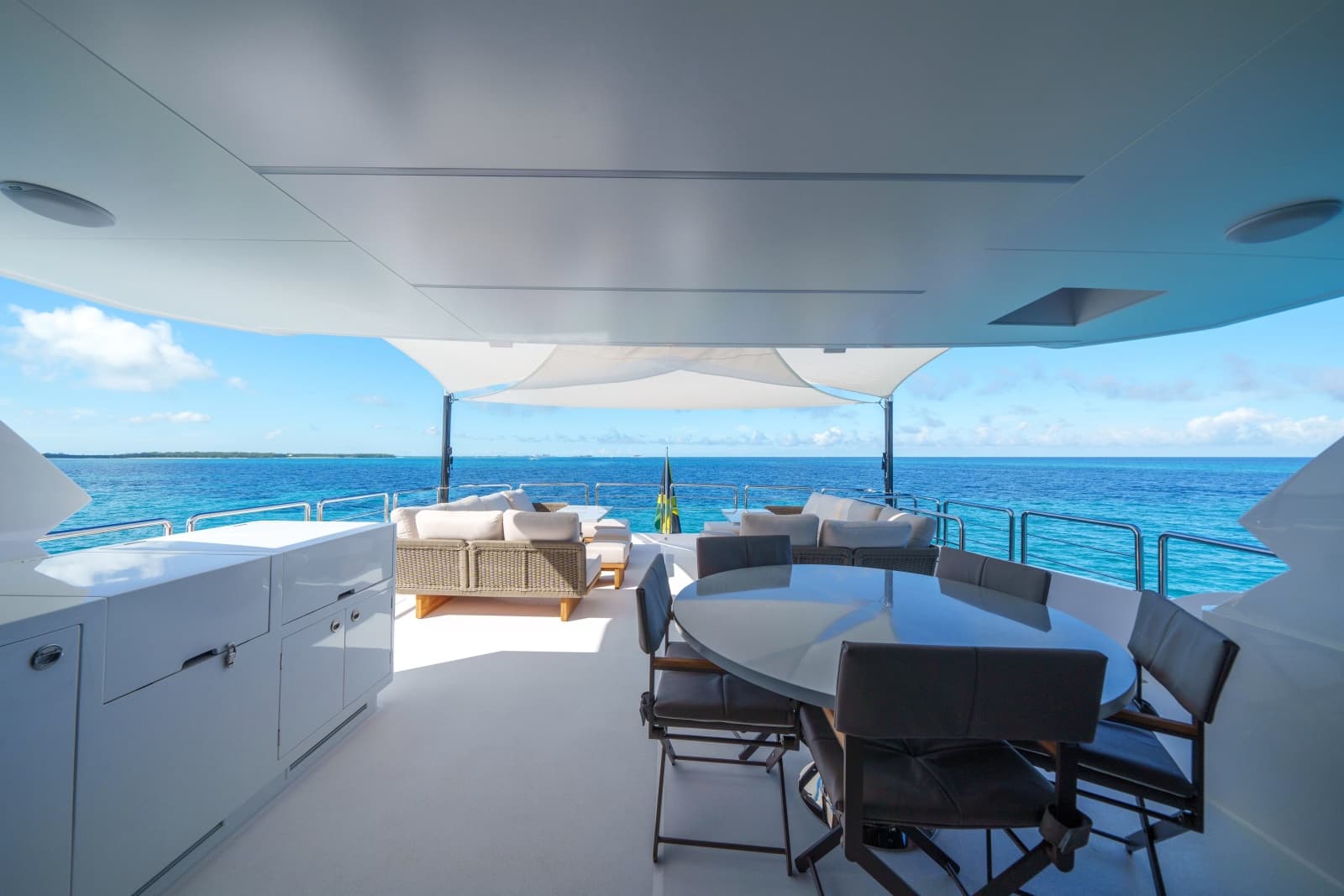

AFT BOAT DECK
- Exterior dining table
- Lounge area aft with high low tables
- Loose furniture aft, for clear deck layout, flexible use
- Barbecue grill starboard side
- Sail shade with carbon fiber poles

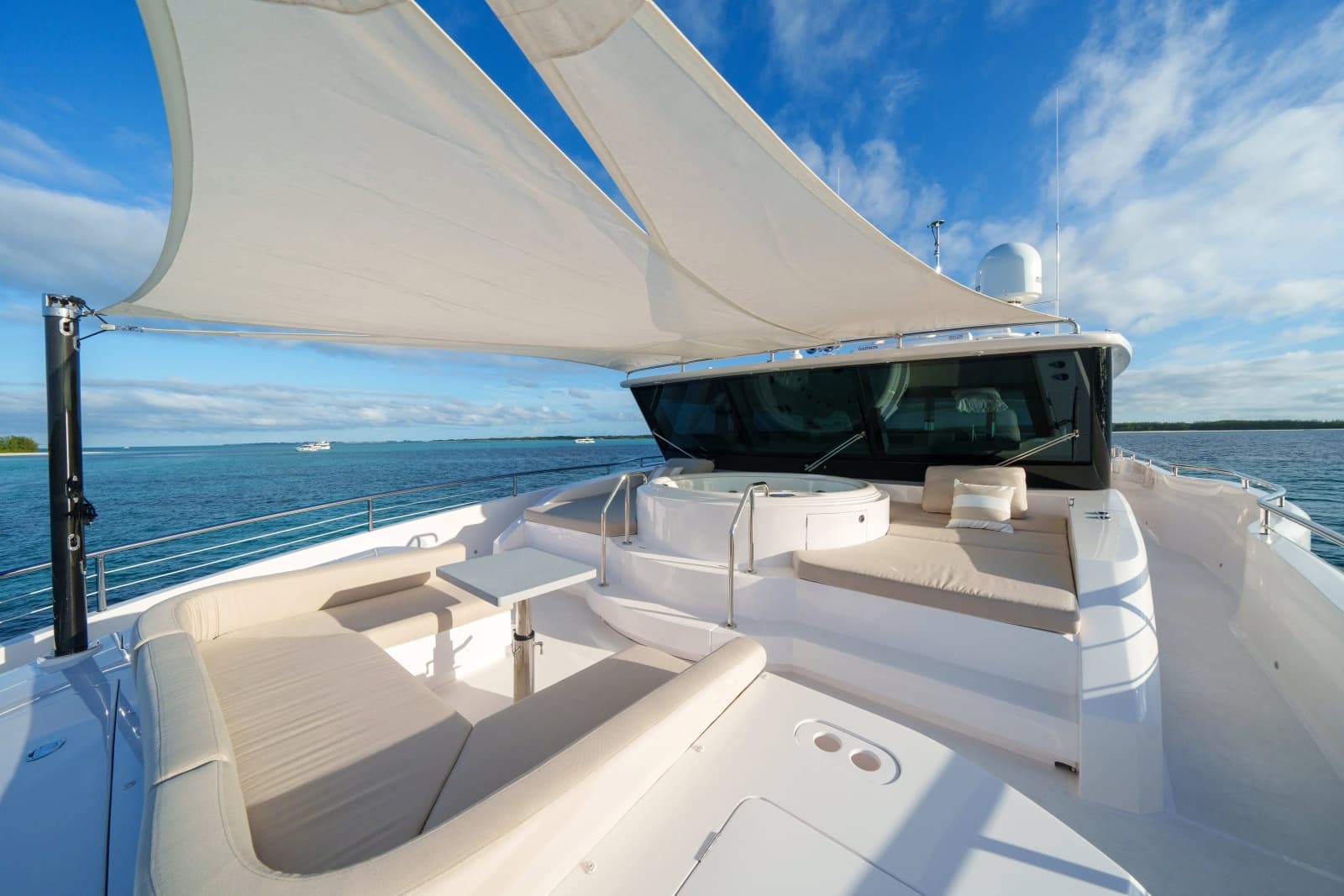

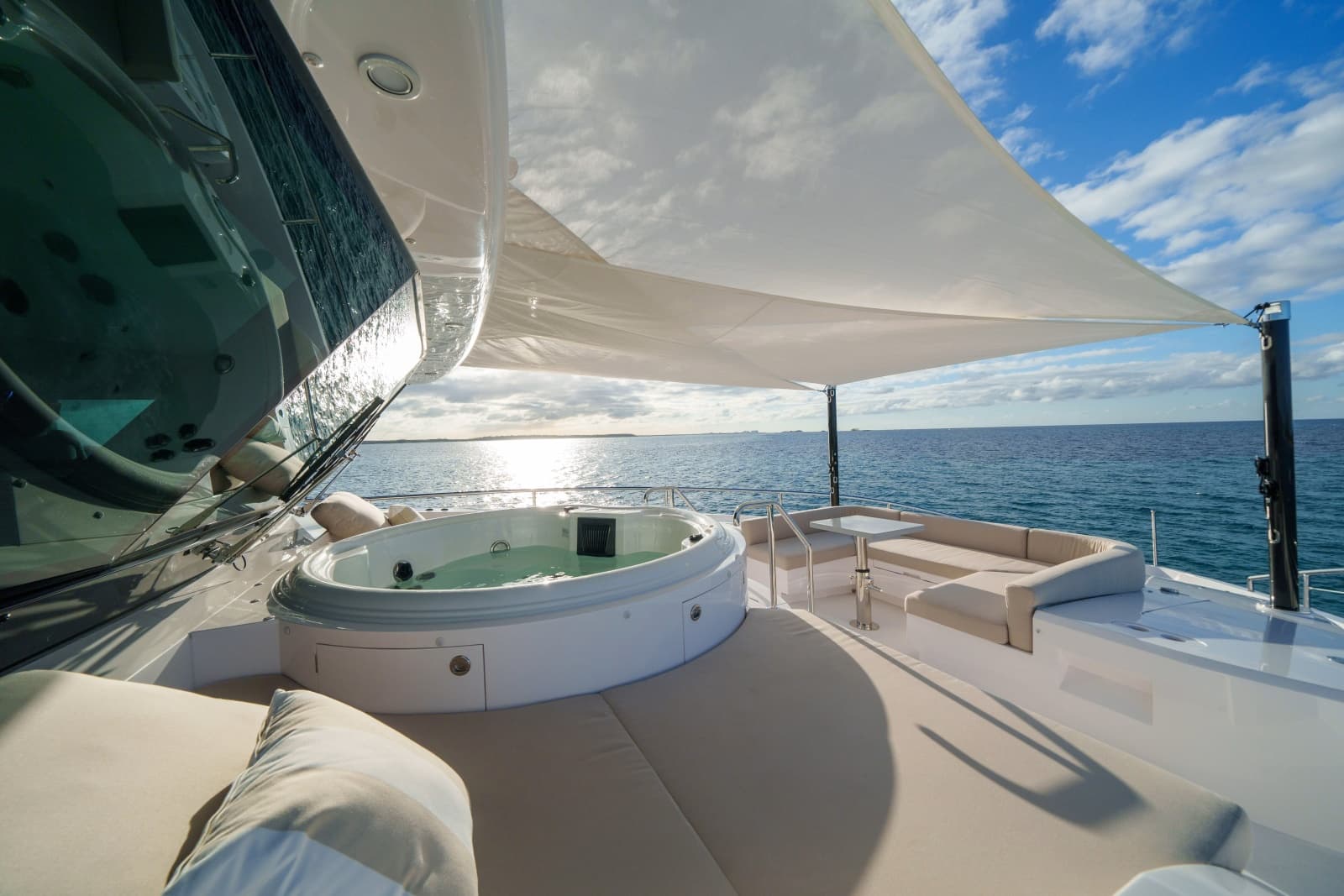

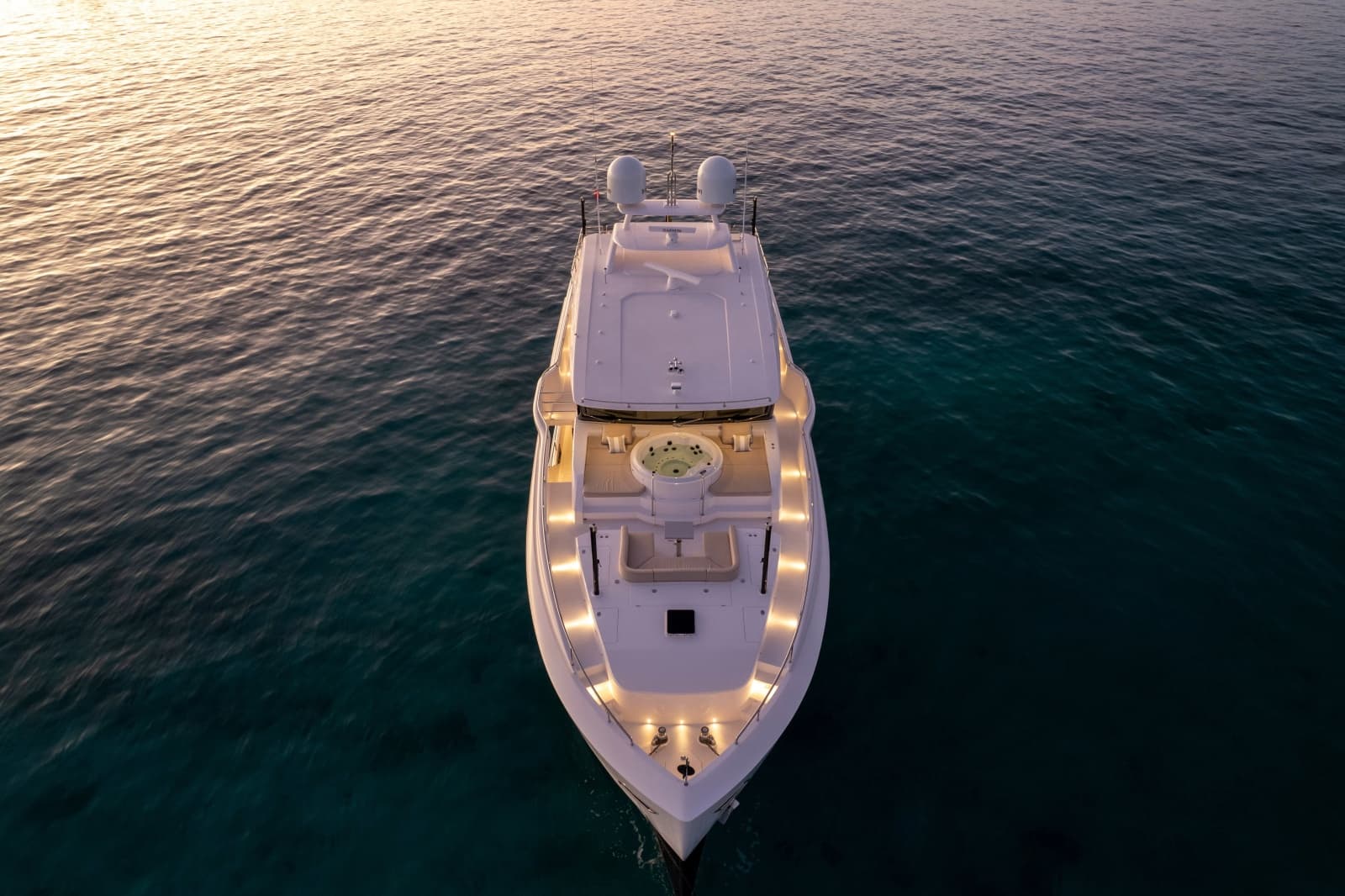

SUN DECK FORWARD
- Beautiful forward-looking views
- A large jacuzzi with sunpads
- Outdoor wet bar with refrigeration
- Dining or cocktail table high/low
- Perfect for charter-style entertaining.

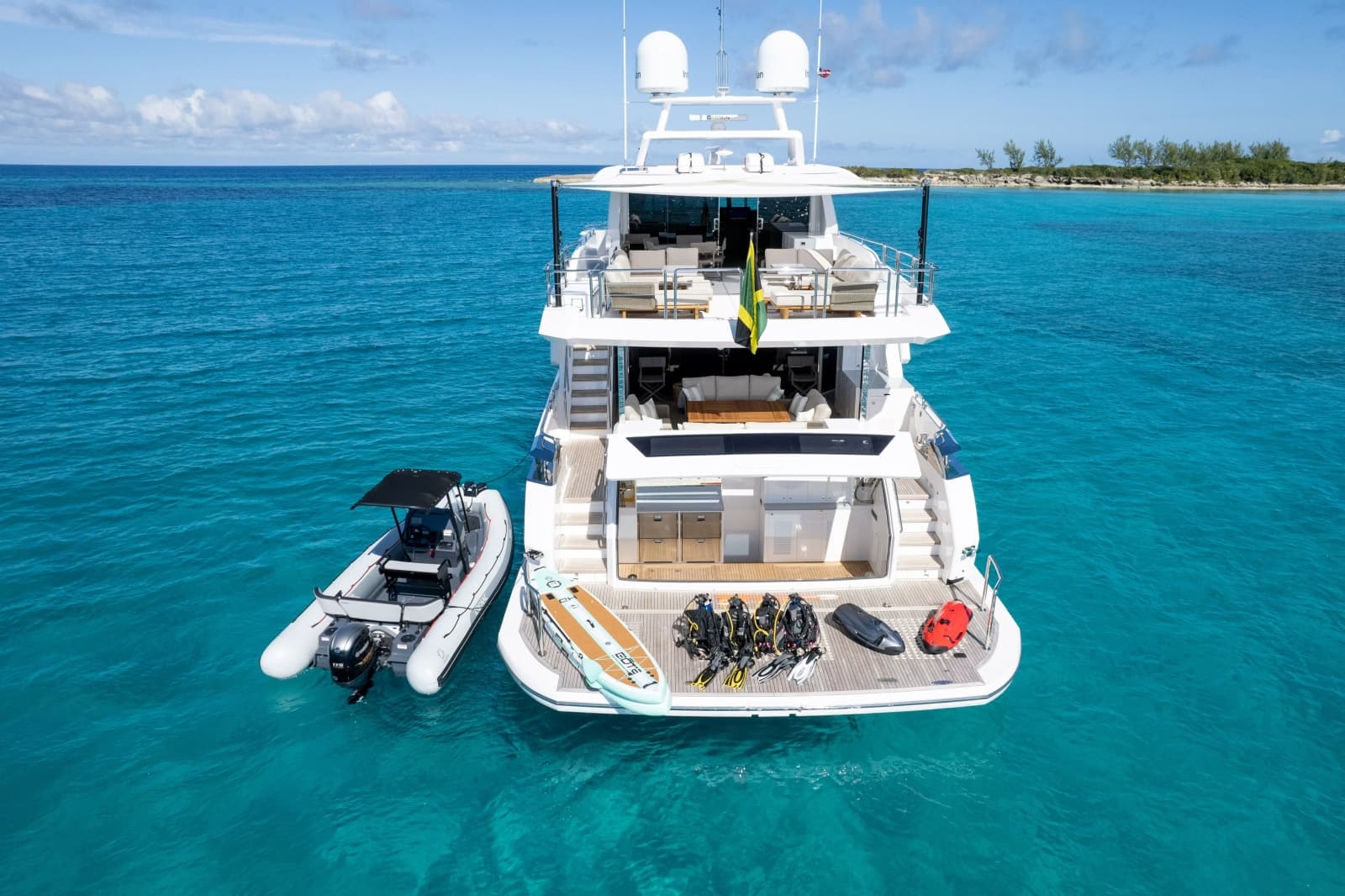

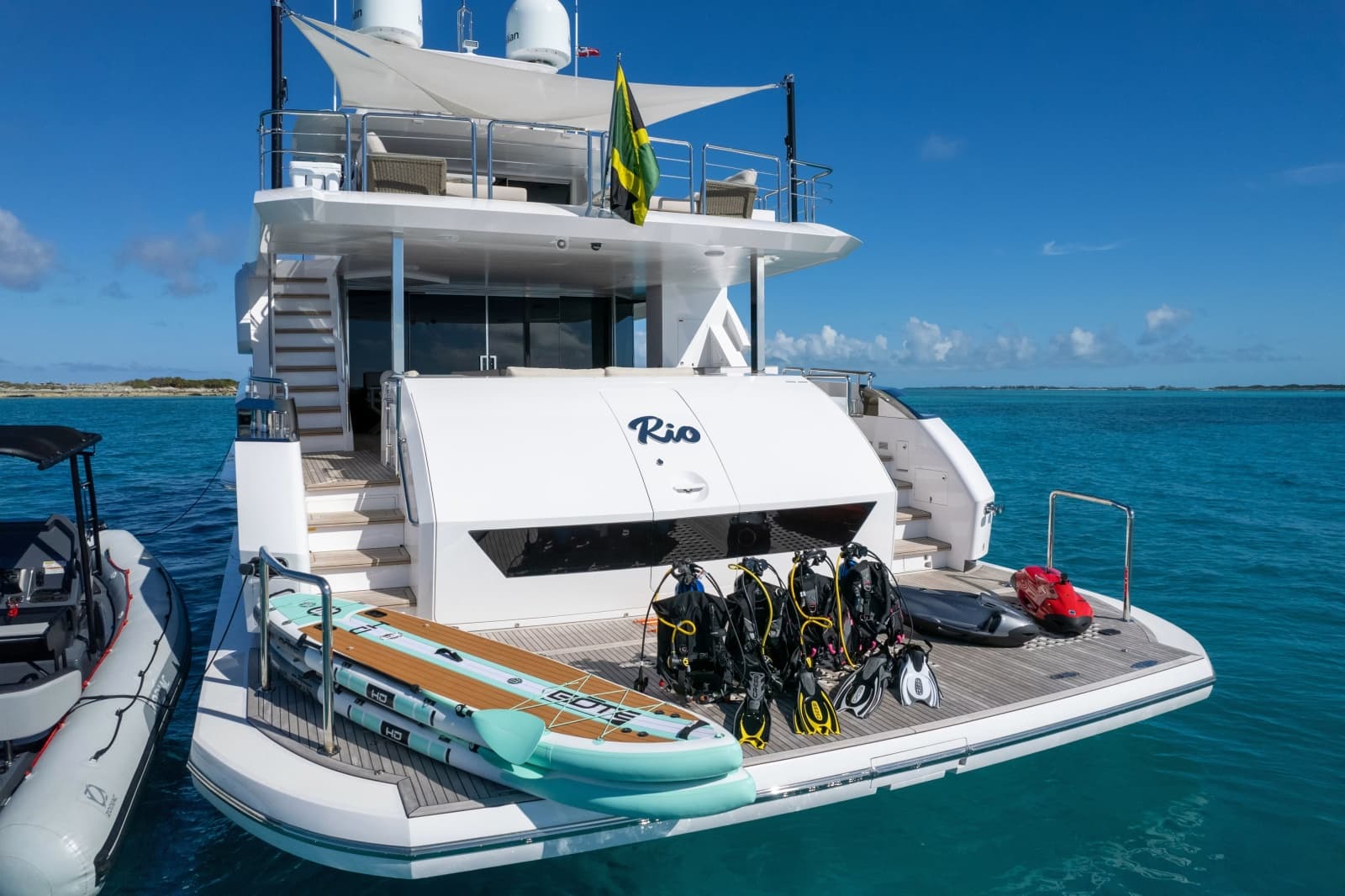

SWIM PLATFORM & TOYS
One of the FD90’s signature features:
- Hydraulic swim platform (tender launch + water access)
- Shower, storage, and toy access
- 2022 Zodiac OPEN 5.5 with T-top
- 2 x Seabobs
- 1 x Fliteboard
- 2 x Standup Paddle boards
- Snorkeling gear Scuba diving gear
- Dive compressor,
- Tiwal inflatable sailboat
- Assorted table games
- Volleyball set
- Towable Tube
- Fishing gear
- Beach set up
- (Tenders & Toys are subject to change. A full list of those included in the sale will be provided upon a fully executed Purchase Agreement)
- This area becomes a focal point for water activities at anchor
HULL & MAIN STRUCTURE
- ABS/DNV approved composite construction
- SCRIMP one‑piece hull
- High‑density foam coring
- Collision bulkhead
- Anti‑fouling
- PropSpeed
- High-Performance Piercing Bow (HPPB)
- Full structural bonding
EXTERIOR DECK & EQUIPMENT
- Teak aft deck and swim platform
- 2x Hydraulic windlass
- 406.8 ft chains PORT and 196.8 ft chains STBD
- 2x 100kg S/S anchors
- Bulwark doors
- Washdowns
- Stainless Steel rails
- Tinted windows
- Hydraulic Hi/Lo swim platform
SKYLOUNGE & BOAT DECK
- Helm station
- L‑shaped seating with fold out bed
- Jacuzzi or loungers
- LED logo lighting
- Sunbrella exterior cushions
PILOTHOUSE & NAVIGATION
- Stidd pilot chairs
- Integrated helm panel
- Stainless Steel wiper
- Navigation lights
- Engine monitoring
- FLIR thermal vision camera
- Garmin full nav suite
PROPULSION, STEERING & THRUSTERS
- 2x MTU 16 V10
- Two blade NiAlBronze props with two 3.5” aquamet 22HS stainless steel shaft
- The packing gland of the stuffing box for the propeller shaft is a non-drip type by Sea Torque
- Side‑Power bow thruster SH550
- Stern thruster SH420
- Side‑Power SPS93/VF1650 stabilizers with At‑Anchor function
ENGINE ROOM
- Insulated engine room
- Delta‑T demisters
- LED lighting
- Ventilation blowers
- Flex‑mounted engines
- Workbench
- Alarm systems
ELECTRICAL SYSTEM
- Color‑coded wiring
- AC/DC distribution
- OctoPlex control

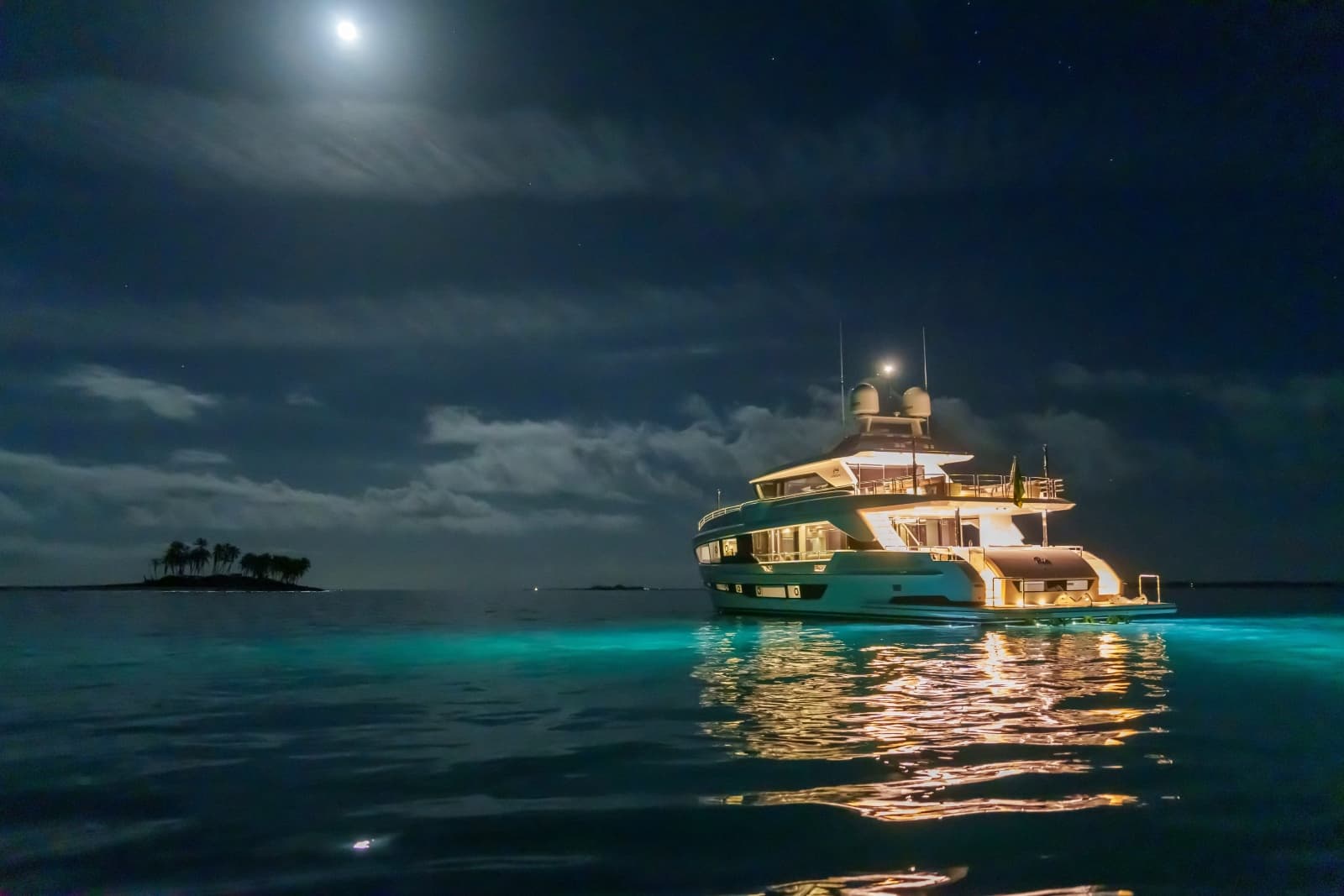

- 8x underwater lights
- AGM battery banks
- 2X 100‑Amp shore power with ISO boost transformers
MECHANICAL SYSTEMS
- Dual Racor fuel filtration
- Reverso fuel polishing
- 900GPD
- 2X watermakers
- Headhunter/Tecma toilets
- Chilled‑water A/C
- Hot water recirculation
INTERIOR DESIGN & EQUIPMENT
- 4 ensuite staterooms + 2 crew cabins
- Premium wood finishes
- LED lighting
- King‑bed master
- Stone countertops
- Day head
- Escape hatch
- USB chargers
APPLIANCES
- Miele/Sub‑Zero refrigeration
- Induction cooktop
- Microwave/oven
- Wine cooler
- Stacked washer/dryers
- Ice makers
- Trash compactor
ENTERTAINMNET & COMMUNICATIONS
- 46” salon TV with Bose system
- 40” master TV
- 32” VIP TV
- 22” guest TV
- Fusion Marine audio zones
- 4G router
- PBX phone system
Disclaimer
The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
