Description

Her mechanical systems have received significant attention, including complete M1, M2, M3, and M4 MAN engine service, generator service with a new exhaust elbow, new generator batteries, a new hot water tank, new Aquamet 22 shafts, new rudder shaft seals, and a PHIBER fresh-water shaft flush system. The propellers have been checked and balanced to S-Class specifications, while the davit has been fully serviced with all-new hydraulic lines. The swim platform wings have also received new stainless-steel locking pins and seals.

The exterior presents beautifully following a professional four-step Starke buff, polish, and wax of the hull and topsides, along with fresh bottom paint and Prop Speed. New Sunbrella exterior cushions and covers further enhance the yacht’s outdoor living spaces. Teak has been professionally sanded and caulking repairs completed, while the anchors and anchor pockets have been machined and polished.

Comfort and usability have also been upgraded throughout. A new crew AC unit has been installed, with upgraded BTU capacity for the crew-room AC units, and all carpets have been professionally cleaned. PPF has been applied to the interior countertops and exterior coffee table to help protect these high-use surfaces.

Modern equipment and cosmetic enhancements include a FLIR M364C thermal imaging camera, RGB lighting for the yacht lettering and nameboards, and new custom tender whips for both port and starboard. The Headhunter HMX system was also serviced.

With extensive recent mechanical work, upgraded systems, refreshed exterior finishes, and numerous thoughtful improvements throughout, this yacht has clearly benefited from attentive ownership and substantial investment. She is exceptionally well equipped, beautifully presented, and ready to cruise.

Recent Upgrades & Maintenance

Bottom Paint & Prop Speed — 10/26
New Sunbrella Exterior Cushions & Covers — 10/26
M1, M2, M3 & M4 MAN Engine Service — 10/26
4-Step Starke Hull & Topsides Buff, Polish & Wax — 10/26
PPF Protection installed on interior countertops and exterior coffee table

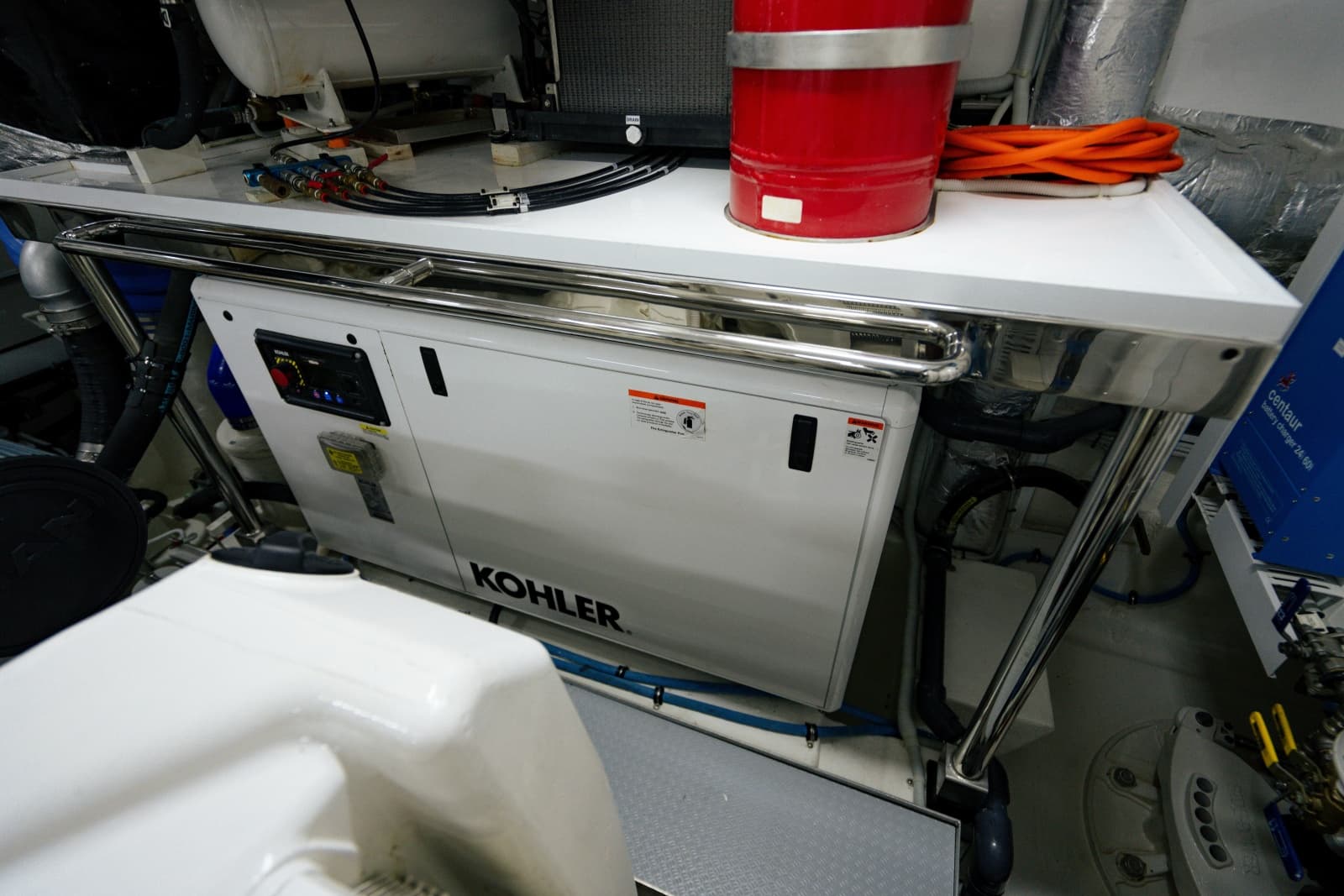

Generator Service, including new exhaust elbow — 10/26
New Aquamet 22 Propeller Shafts — 10/26

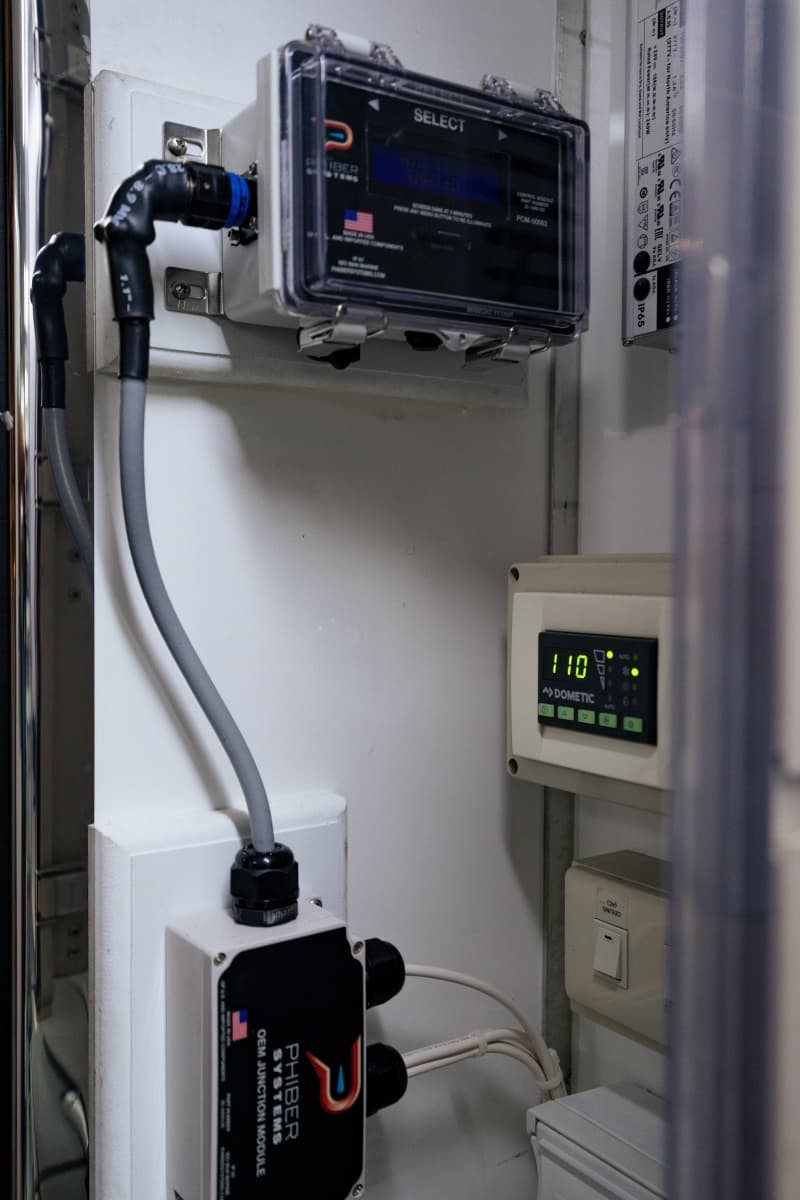

PHIBER Fresh Water Shaft Flush System installed — 10/26
Propellers Checked & Balanced to S-Class Specification — 10/26
New Hot Water Tank — 10/26
Davit Serviced with all-new hydraulic lines — 10/26
New Stainless-Steel Locking Pins & Seals for swim platform wings — 10/26
Teak Sanded & Caulking Repairs Completed — 5/26
All Carpets Professionally Cleaned
New Generator Batteries — 10/26
New Crew AC Unit and upgraded BTU capacity for crew-room AC units
New Rudder Shaft Seals — 10/26
Anchors & Anchor Pockets Machined and Polished
FLIR M364C Thermal Imaging Camera
RGB Lighting Upgrade for yacht lettering/nameboards
New Custom Tender Whips for port and starboard
Headhunter HMX Service — 5/26

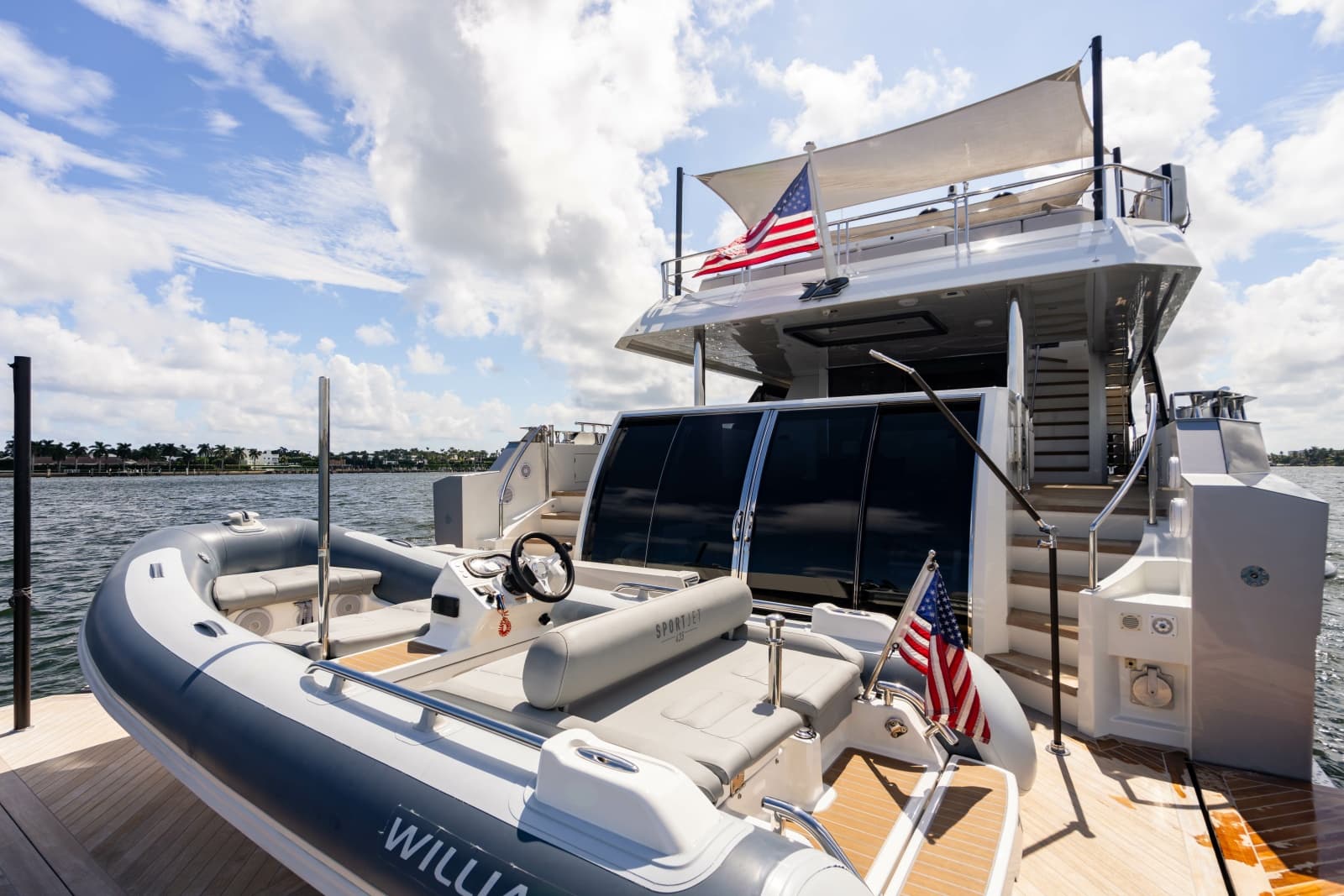

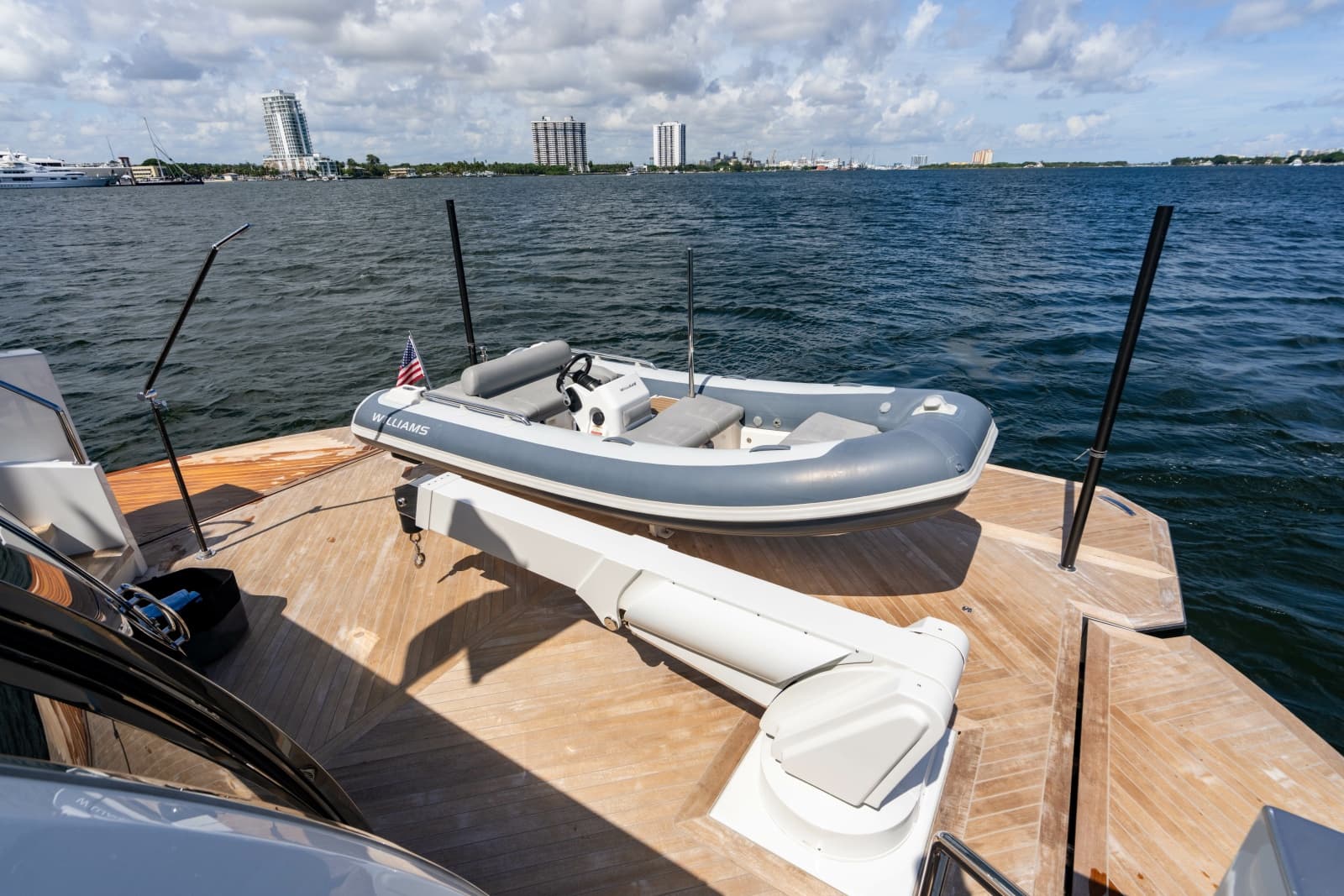

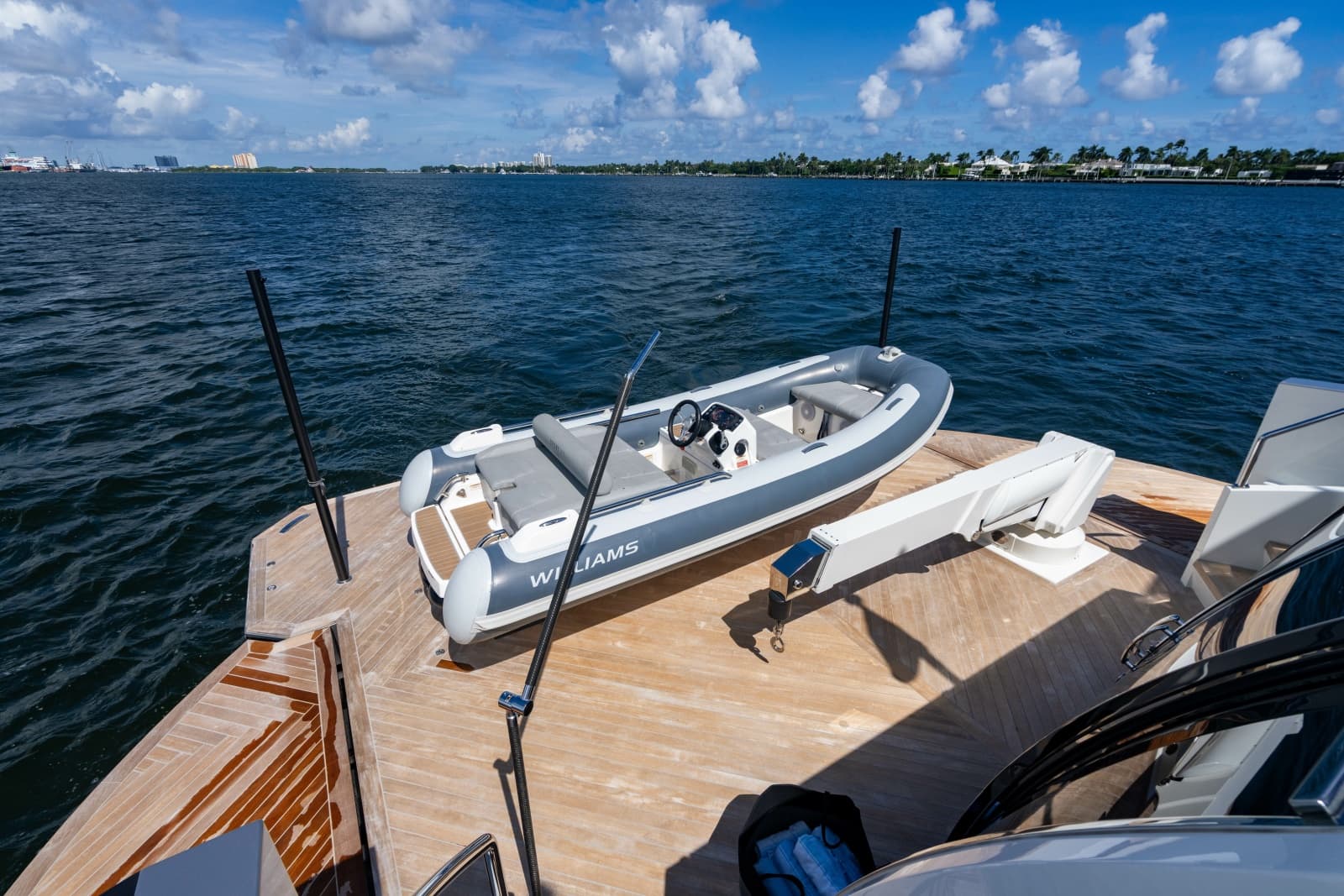

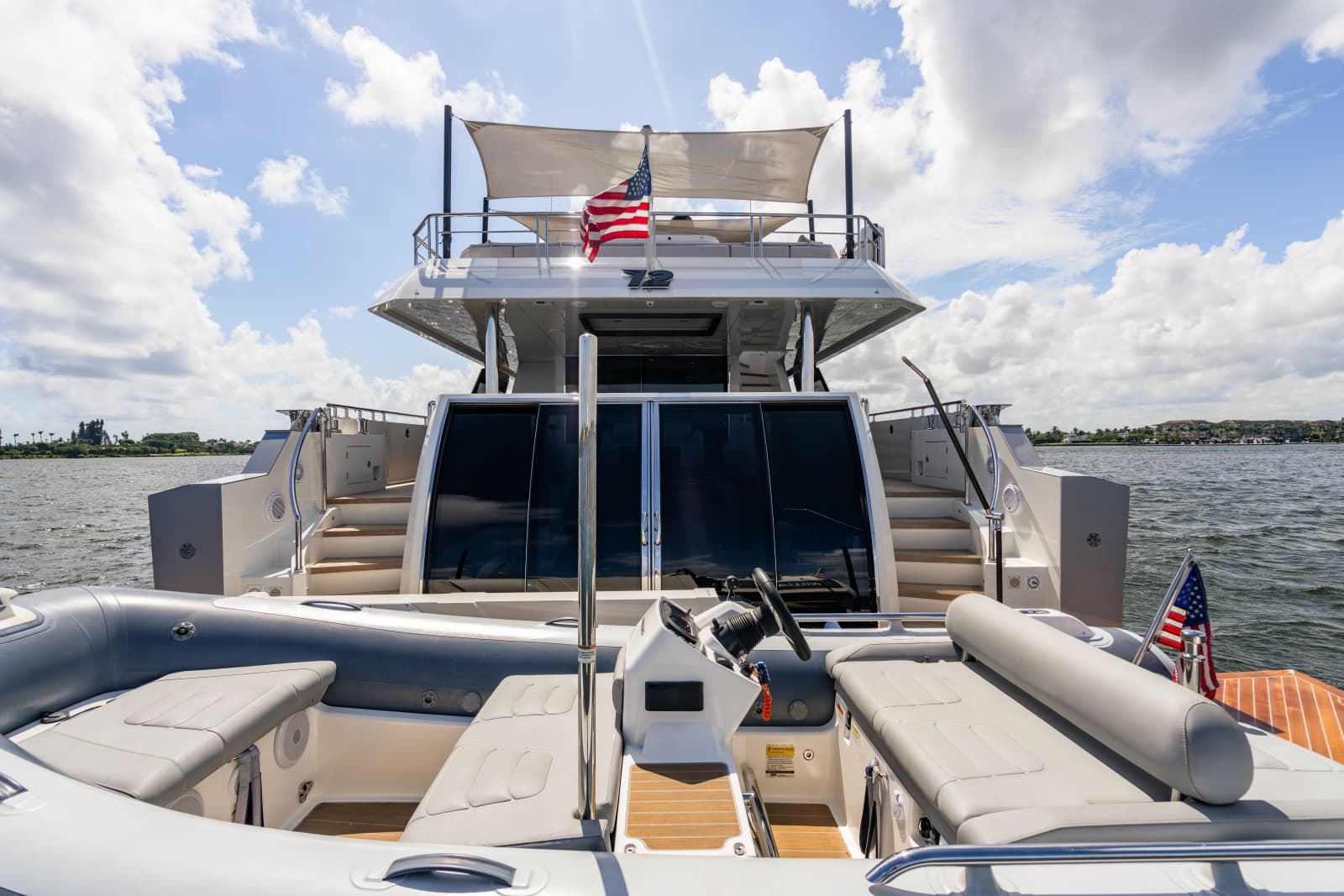

2024 Williams 435 Tender - Serviced 10/26

Construction

The Yacht is constructed in high-density closed-cell structural foam. High density foam allows for high temperature and advantages in thermal and acoustic insulation.
Longitudinal and lateral fiberglass foam-core stringers.
Cross-knit carbon fiber in high stress areas to increase structural integrity and torsinal strength.
Water-tight bulkheads with sound proofing for engine room.
Ocean Alexander employs various techniques to reduce sound and vibration. Some of these techniques include multiple insulation barriers including reflective materials, absorptive materials, dampening materials, air pockets and flexible isolation mounts for controlling sound and noise tramsmission.
Painted exterior surfaces with professional grade epoxy-based primers and Alexseal ployurethane paint.
All exterior hardware to be 316 stainless steel or per manufacturer requirements.
Engine foundation: Main engine stringer constructed from stainless-steel plates custom formed to encapsulate over engine structural stringers which allows for industry leading support and isolation.
Frameless windows.

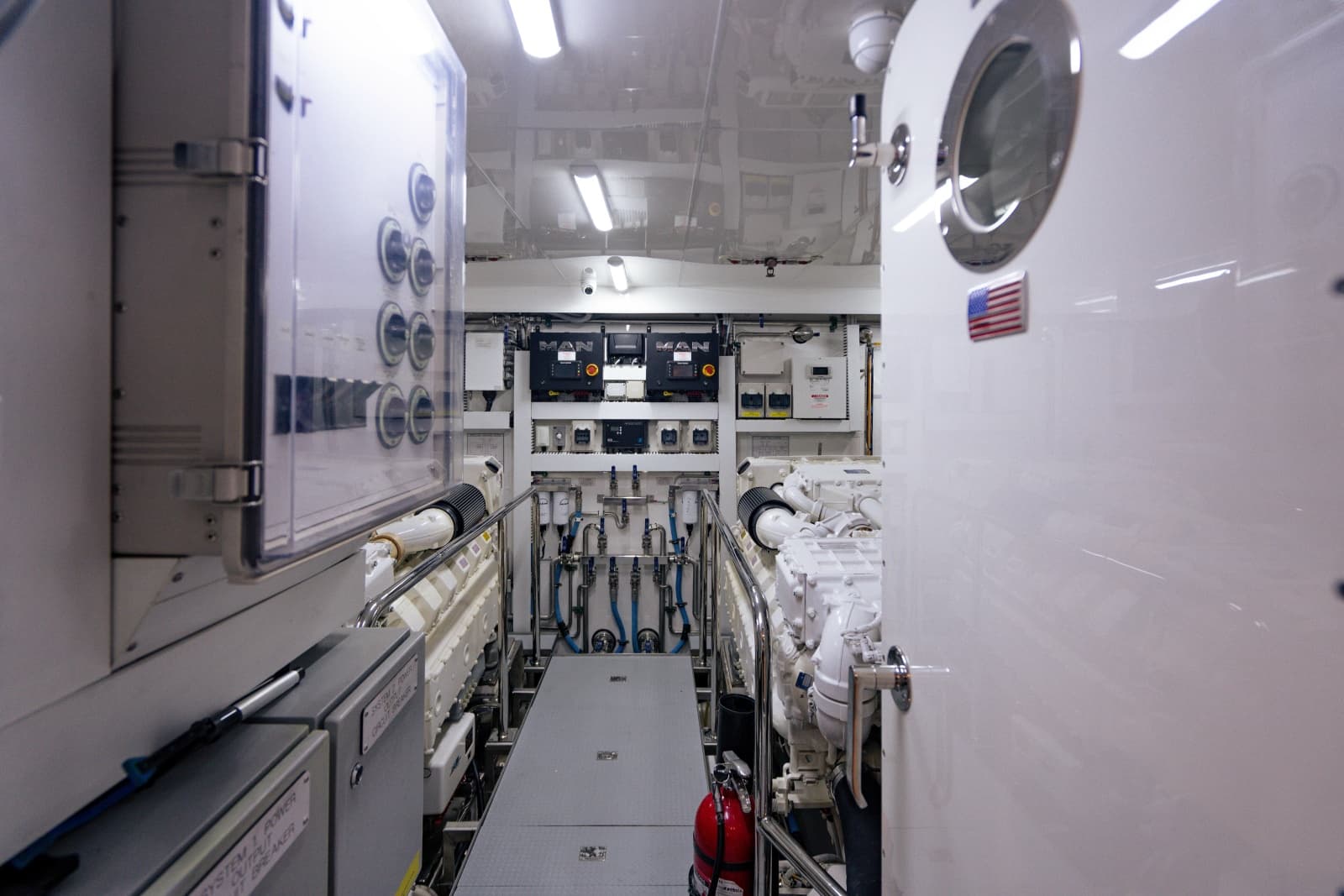

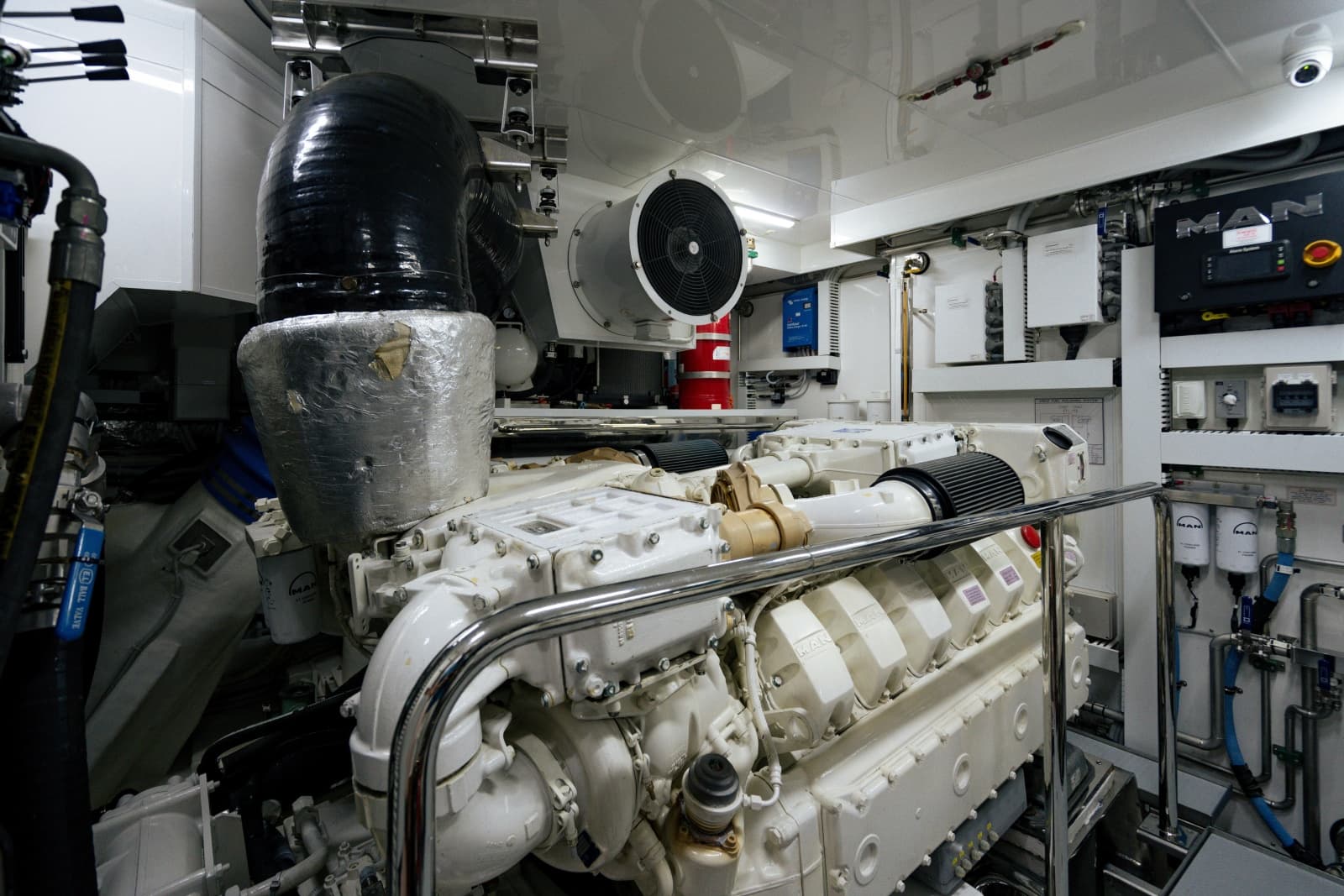

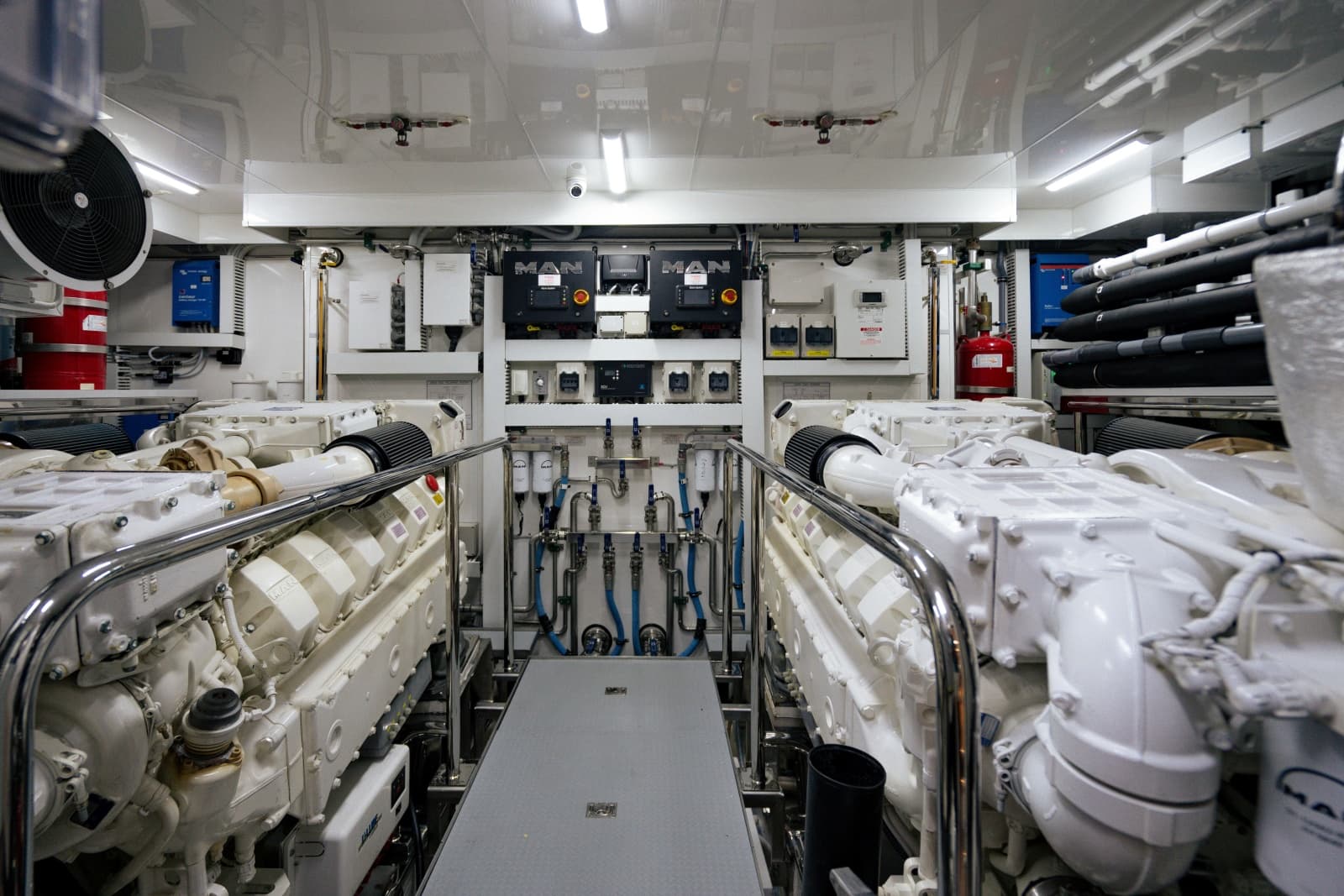

Main Engines

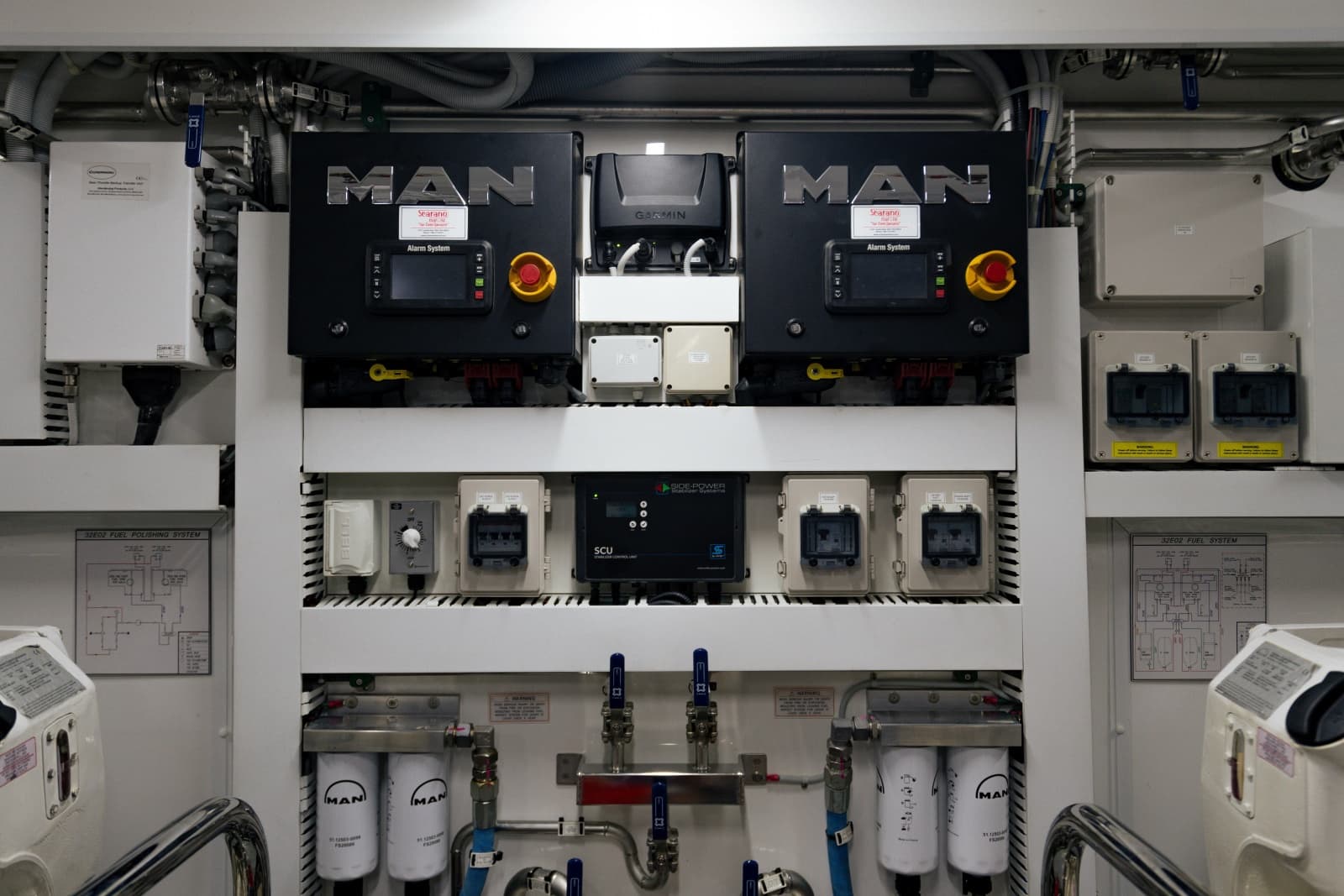

MAN V12 1900HP engines.
Stainless-steel engine beds and stainless-steel removable rails on side of engines.
Delta T intake/exhaust fans with variable frequency drives mounted to facilitate the intake and/or exhaustion of air through the machinery spaces and providing a high air exchange rate. Air intake & exhaust ducts have fire dampers installed with manual and automatic triggering tied into the machinery shut down circuits.
Delta T moisture eliminators installed at front of intake and exhaust ducts.
Delta T fans for engine exhaust located on superstructure versus hull side. Maximizes water protection and reduced salt spray intrusion into engine space, extending life of engine room components.
Hard coating with AI6XN alloys on exhaust, provides higher corrosion resistance, especially in the forms of pitting, crevice, and stress cracking.

Stabilizers & Thrusters Package

Sidepower Vector Fin (DAME 2013 aware winner) 15 ft2 hydraulic stabilizer find the zero speed stabilization.
Sidepower's patented "curved" fin design not on provides lift underway it is also unique in the industry with active "predictive" inertia control. Up to 50% more efficient than flat fins at anchor. Up to 30% more efficient than flat fins underway.
53.5HP bow and 42.6HP stern thrusters.

Running Gear

High performance computer designed and machined Nibral propellers.
Twin Disc hydraulic steering system.
Stainless-steel rudders w/ integrated zinc plates.
Add plug-in engine wired remote at aft deck and skylounge.

Windlass/Mooring

Dual (2) hydraulic vertical anchor windlass with food switches.
Dual (2) 240 lbs. anchor with 250' anchor chain each side, attached to the anchors with stainless steel high-tensile swivels.
Hands-free anchor chain wash system for freshwater cleaning of chain during anchor operation.
Two 1500W, 24VDC motor capstans on aft deck, with foot switches.

Air Conditioning

Dometic system throughout, rated for "Extreme Tropical Climates" (with reverse cycle for operation down to 40 degrees F water temp.)
Refrigerant type is accepted worldwide under the Montreal Protocols.
Dedicated engine room air conditioning.
Ocean Alexander Clean Air System incorporates Nano-mesh UV sterilization technology to remove up to 99.9% of bacteria, fungi, mold, virus, fumes, and odors. System has no moving parts, is completely silent and ozone free. Ensures fresher, cleaner, and healthier air onboard.
Upgraded AC compressors throughout the crew quarters.

Custom Extended Cruise Package

Install on yacht as back-up, 2nd freshwater pump and hot water pump.
Custom S/S potholder for cook-top for securing pots.

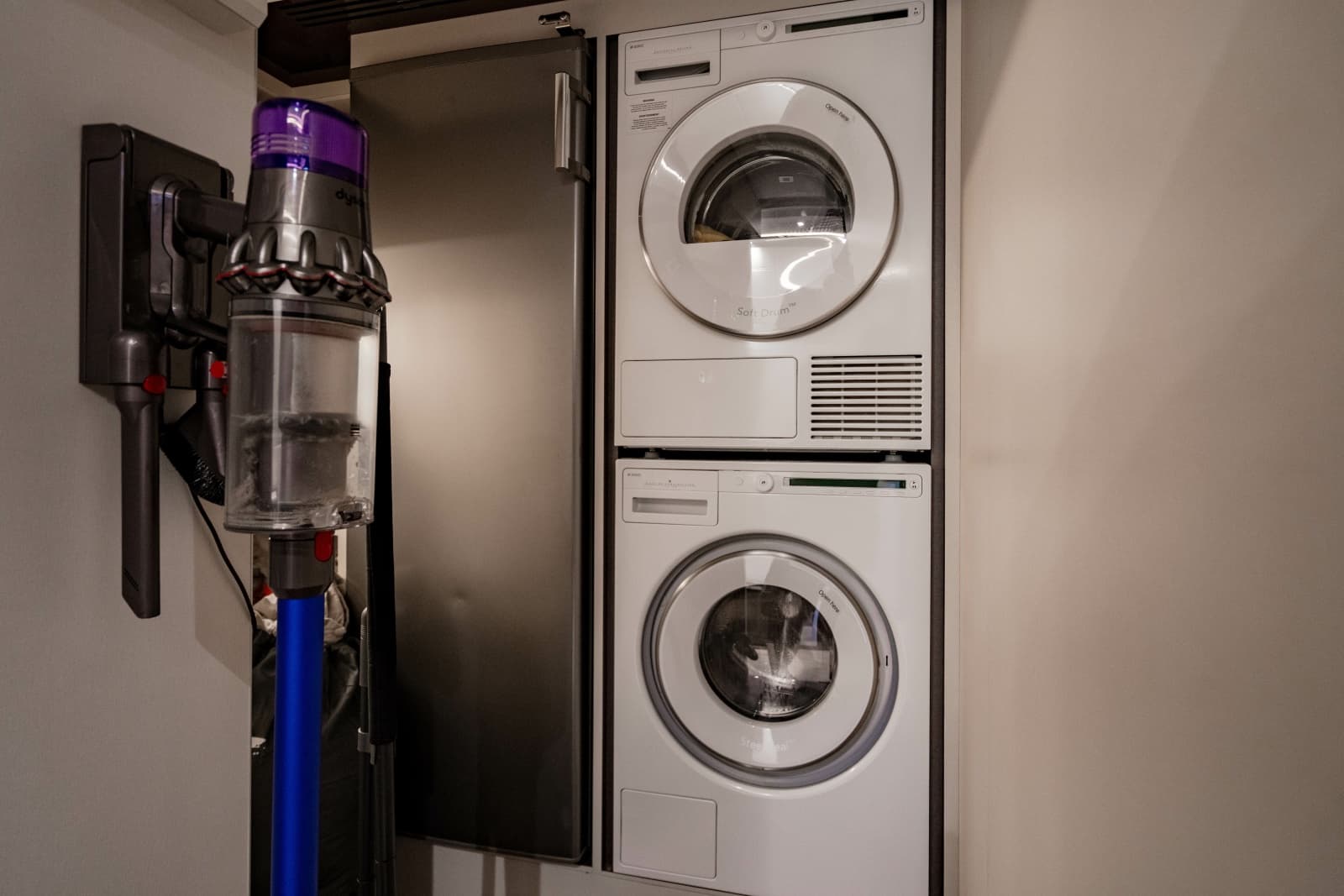

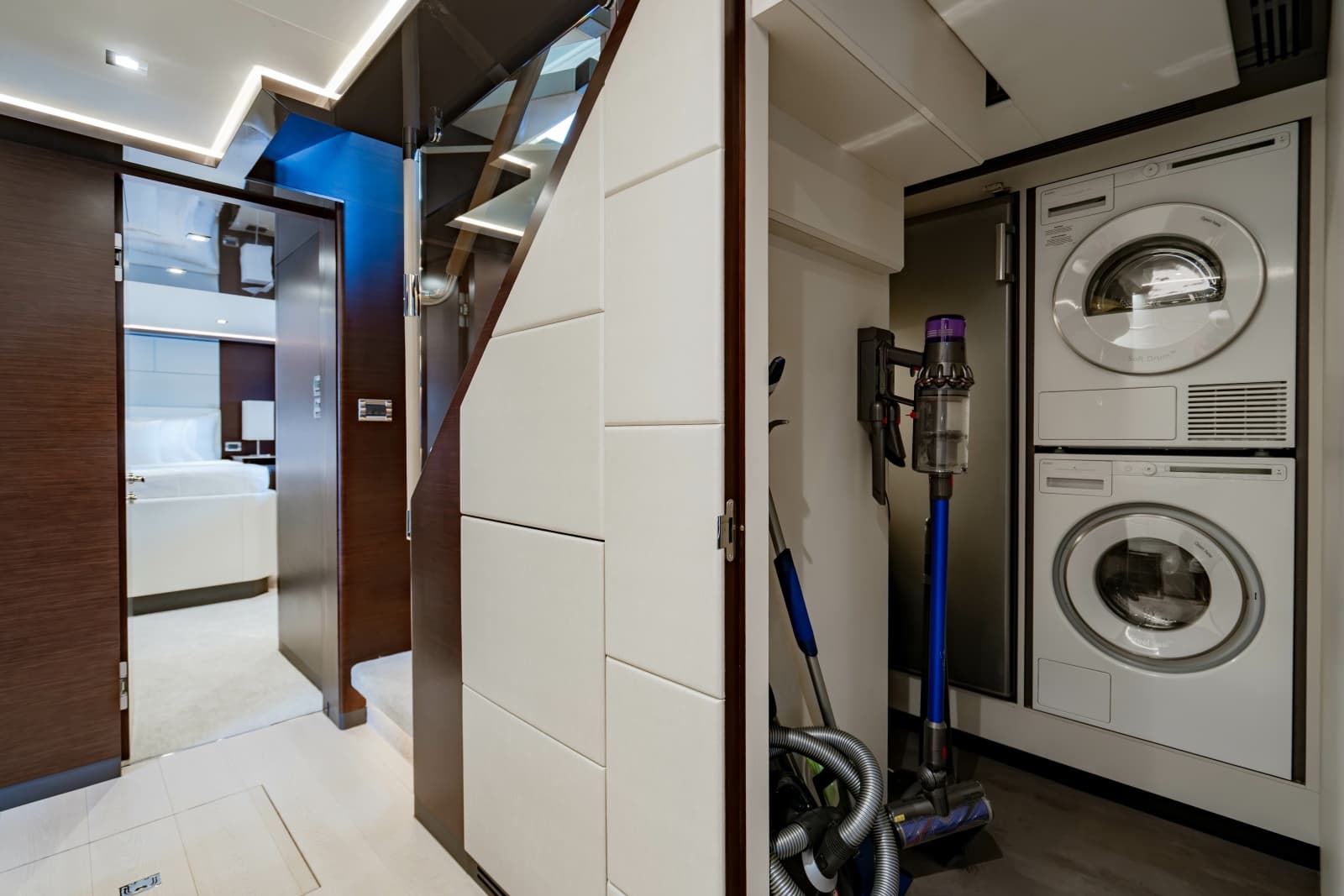

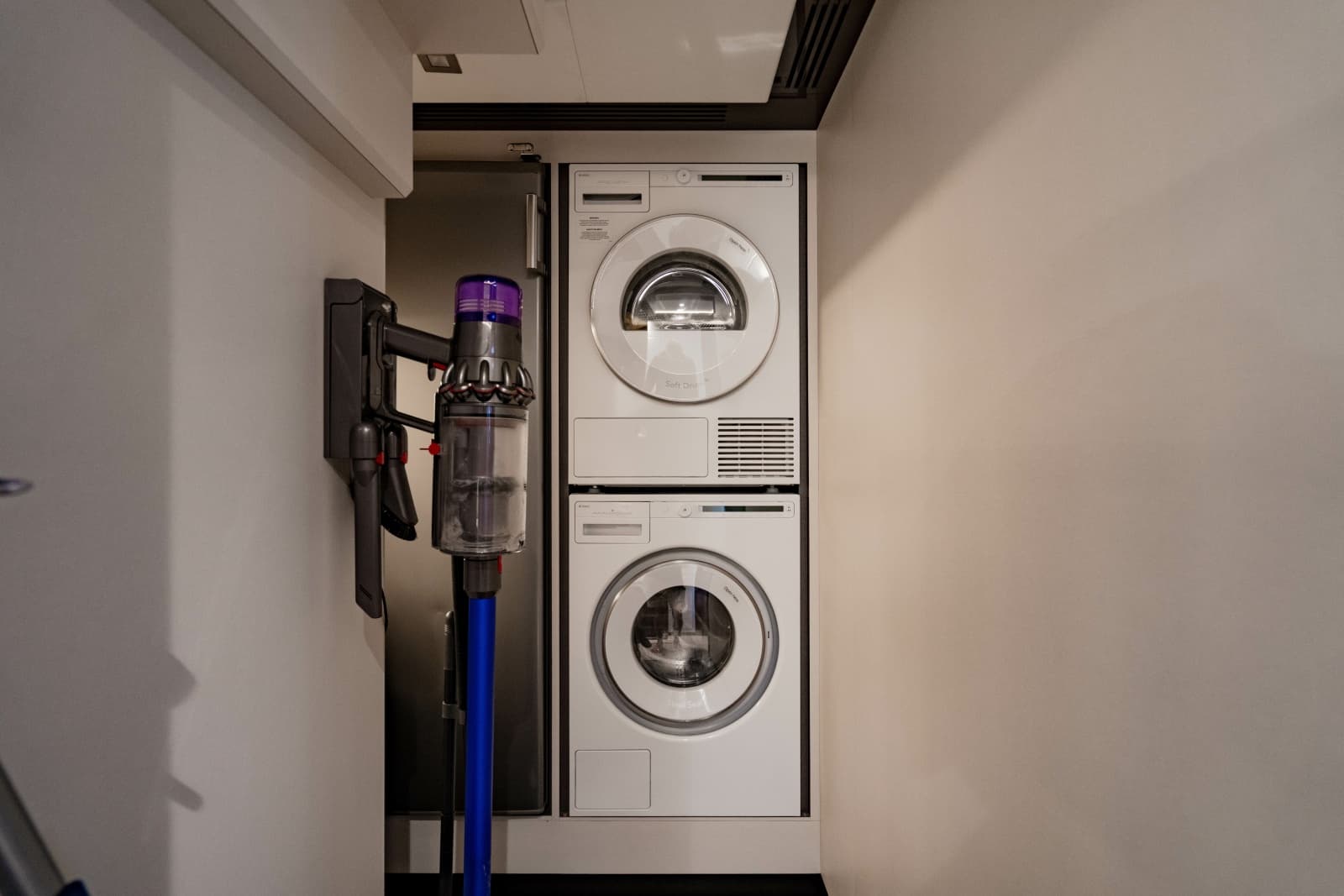

Additional washer, dryer, in utility room and refrigerator in lower foyer.
Additional full-height wine cooler opposite galley.

Mechanical/Electrical Convenience Package

Lube oil change system for engines and generators.
Gulfcoast Fuel polishing system. (based on US Military Abrahams-M1 Tank design)
Compressed air in engine room and aft deck.
Military grade searchlight and spreader lights for swim step and boat deck.
Dimmer package for interior and exterior main ceiling lights.
Onboard intranet, driven cy commercial-grade 4G SIM card capable Wi-Fi router. Allows outside monitoring, and other onboard video/audio apps.
Sea water and compressed air supplying with 110V outlet at boat deck for Funair or other water toys.
Starlink.

Other Notable Features

Heavy-duty commercial grade pantograph windshield wiper & washer with intermittent function.
Fireboy (or equivalent) engine room fire extinguisher system with engine-shutdown feature.
Ocean Alexander proprietary "dry bilge ventilation system" with dedicate bilge exhaust to outside. This provides constant airflow to keep the bilges dry and mildew free.
Headhunter sewage treatment system. (600Gal/day)
Dehumidier custom built Lazzarrette to prevent moisture.

Fresh Water System

316 Stainless-steel water tank with sight gauge tested to RINA Pleasure Yachts 2021_Pt. B Ch. 1 Sec. 1_5. 14.1
Headhunter fresh-water system.
Freshwater wash down at bow, stern and upper deck.
Two dockside water inlet connections.
Two (2) 38 gallon hot water with high density insulation and dual high efficiency heating element that speeds heating by 50%.
Dometic 1200G/Day water maker w/auto fresh water flush operation and commercial pre-filter.
Dometic Spot Zero.

AC/DC System

OctoPlex NEMA 2000 electrical safety/security control system. Based on aerospace technology for remote activation, control, and status reporting of all AC and DC breakers. Monitors all power for sources (AC and DC) for voltage, frequency and amperage abnormalities and provide visual and audio alerts. Includes enhanced circuit breaker functionality with no-load indication. Brown-out capabilities provides sensors for main doors, tank level, bilge and battery monitoring of current, voltage and temperature.
This security/safety automatic monitoring and alert capabilities include using Apple iPad or Android for remote access to operate, view, and alarm Octoplex data and with remote notification accessibility.
Shore power connections: Two CM-8 100Amps cable master with 100' cables, atlas wired for 3 Phase power.
Lightning protection.

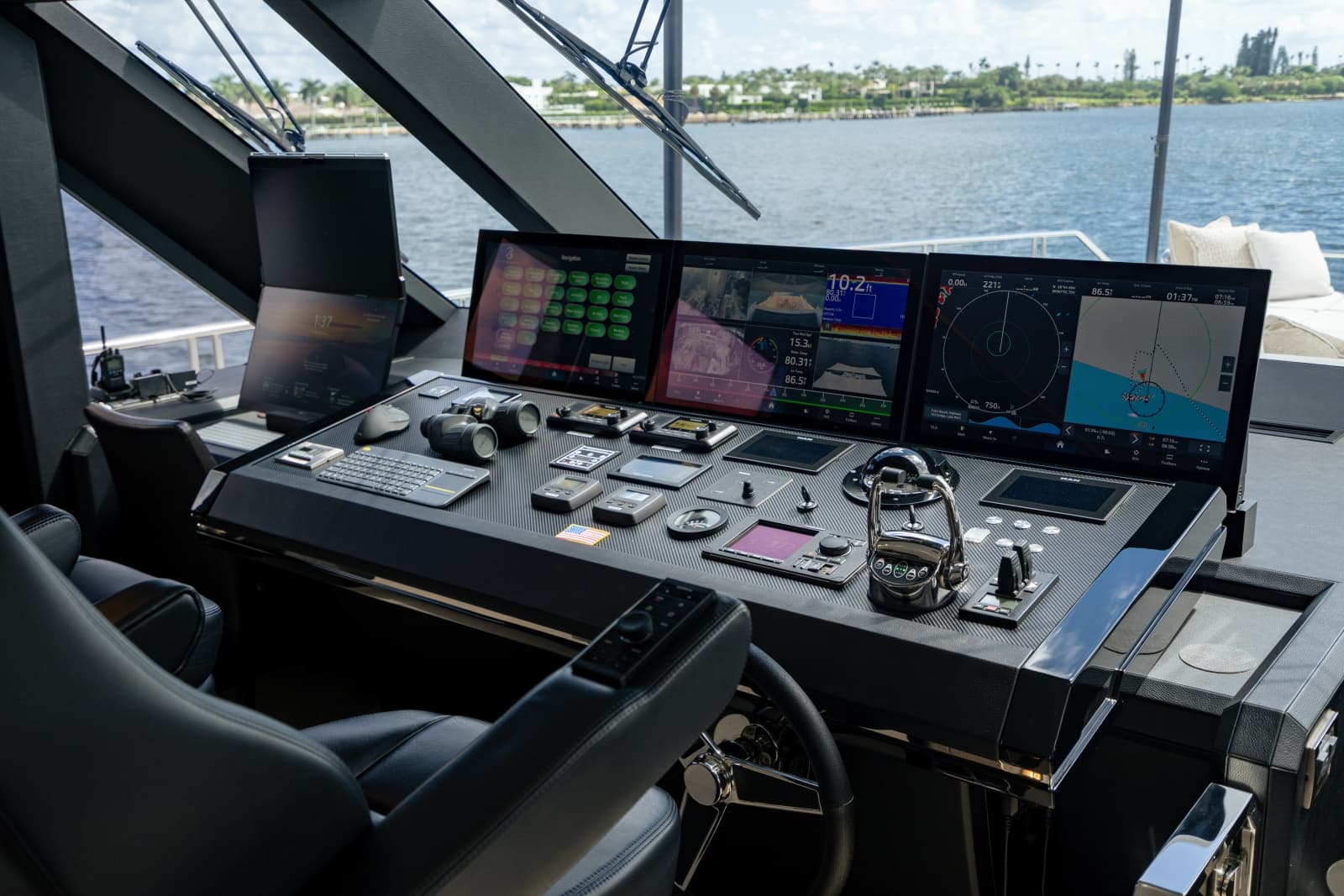

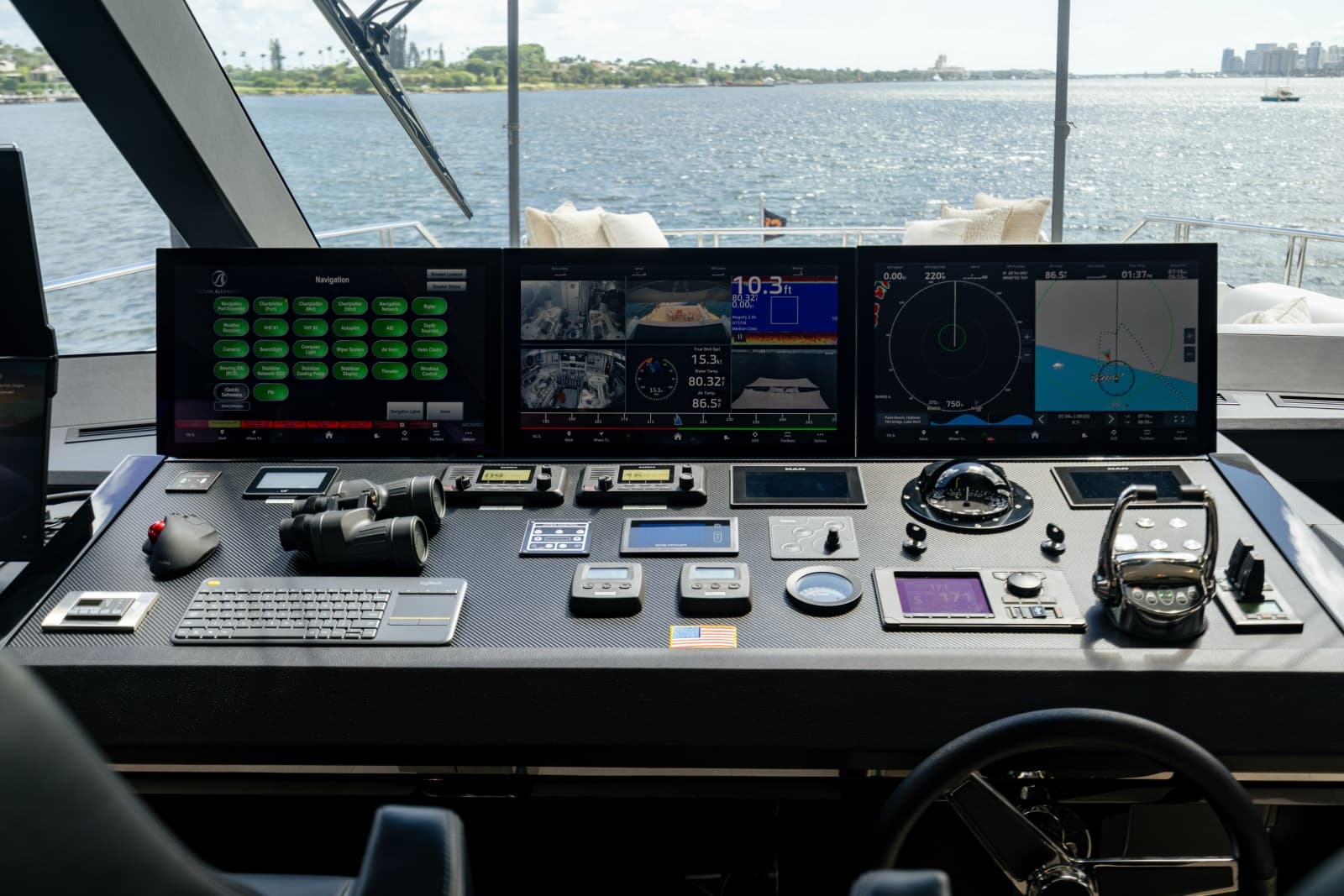

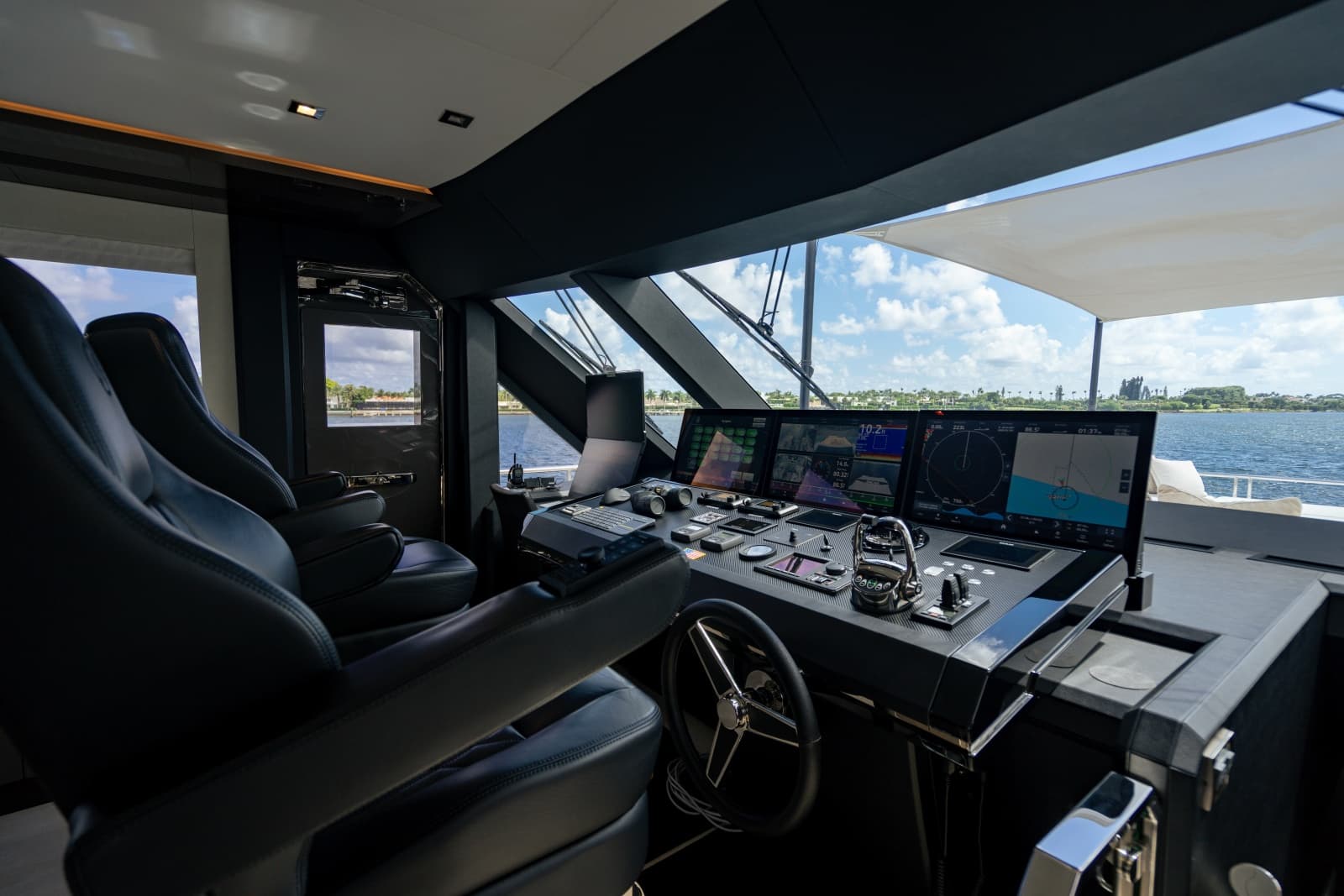

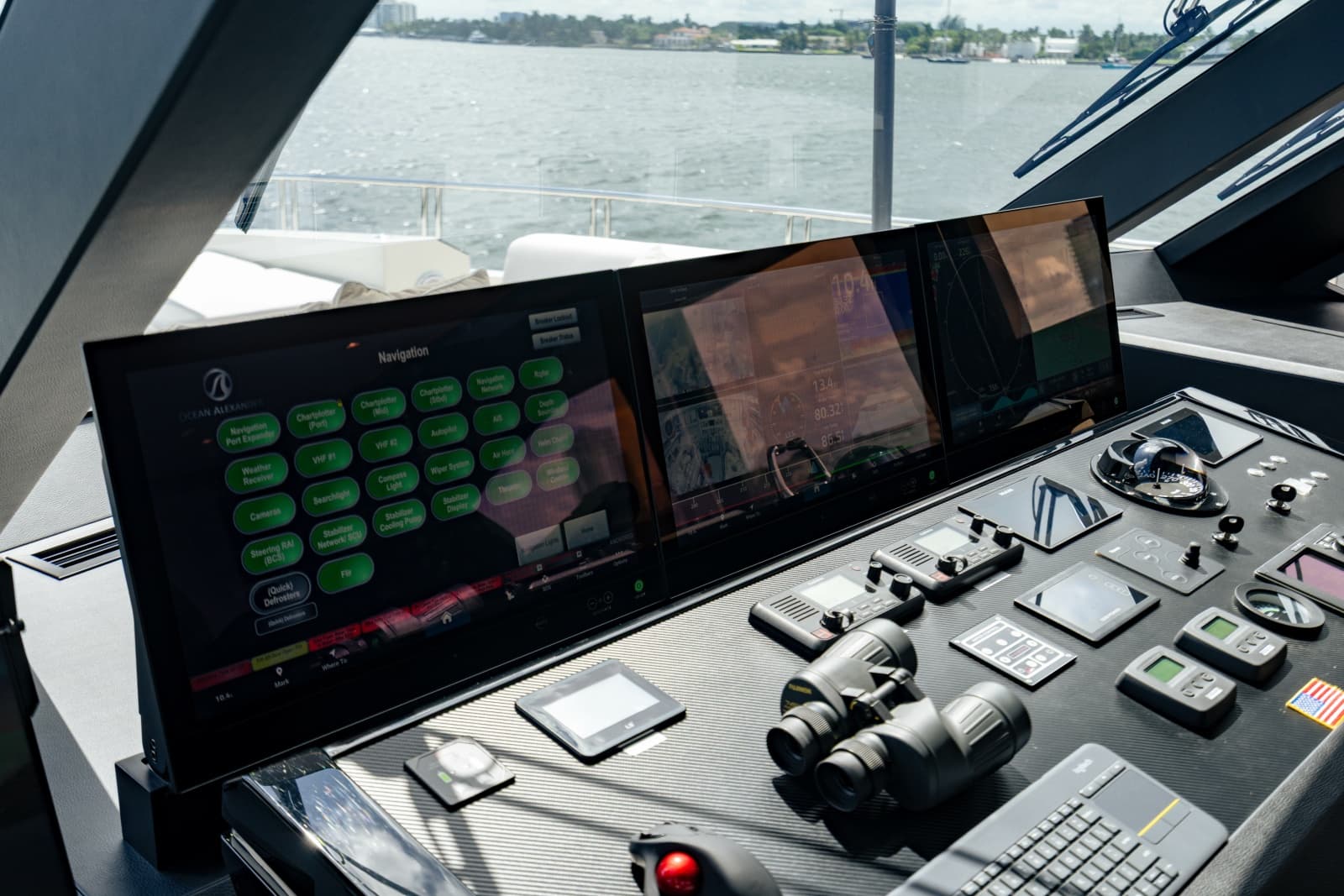

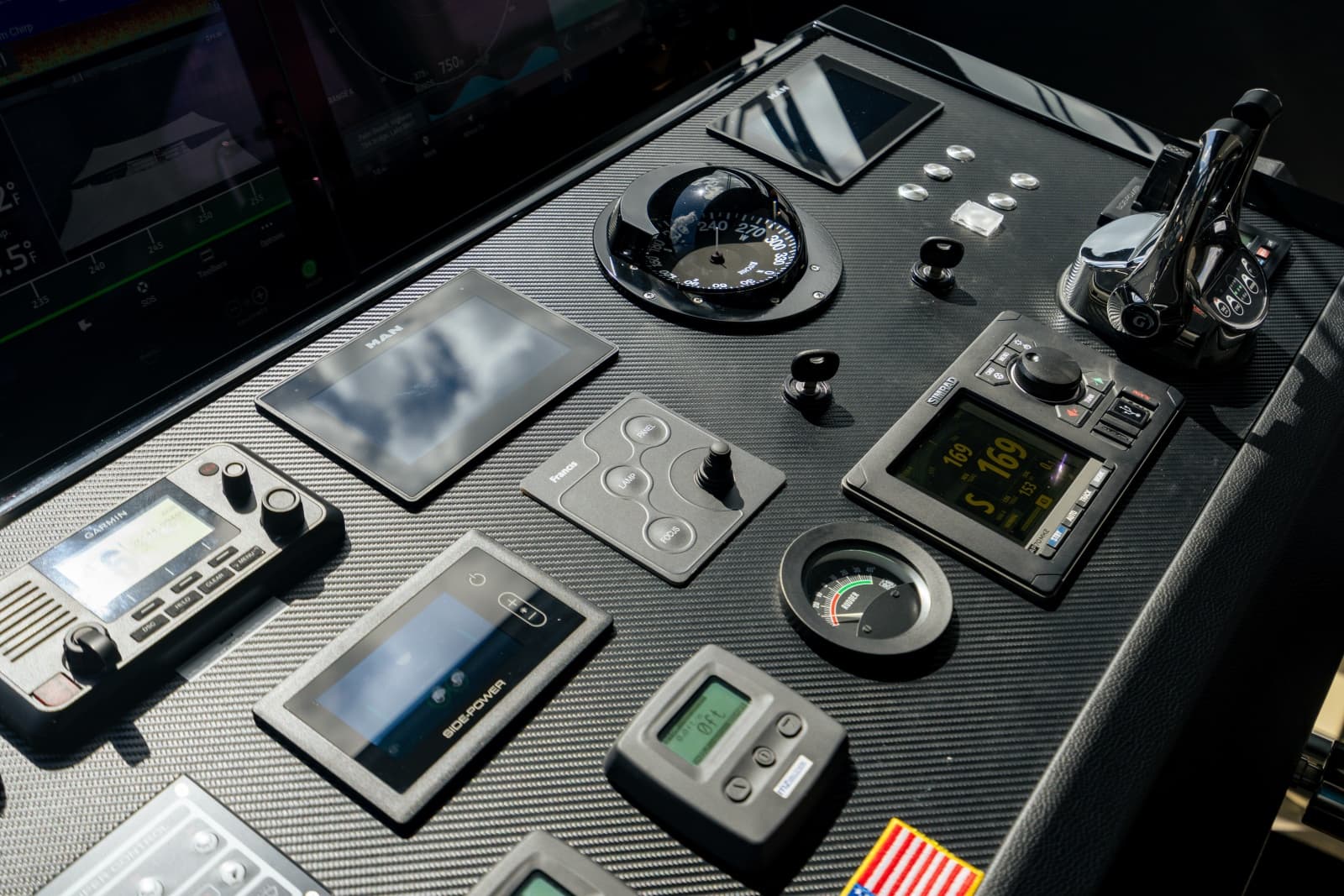

Navigation Package

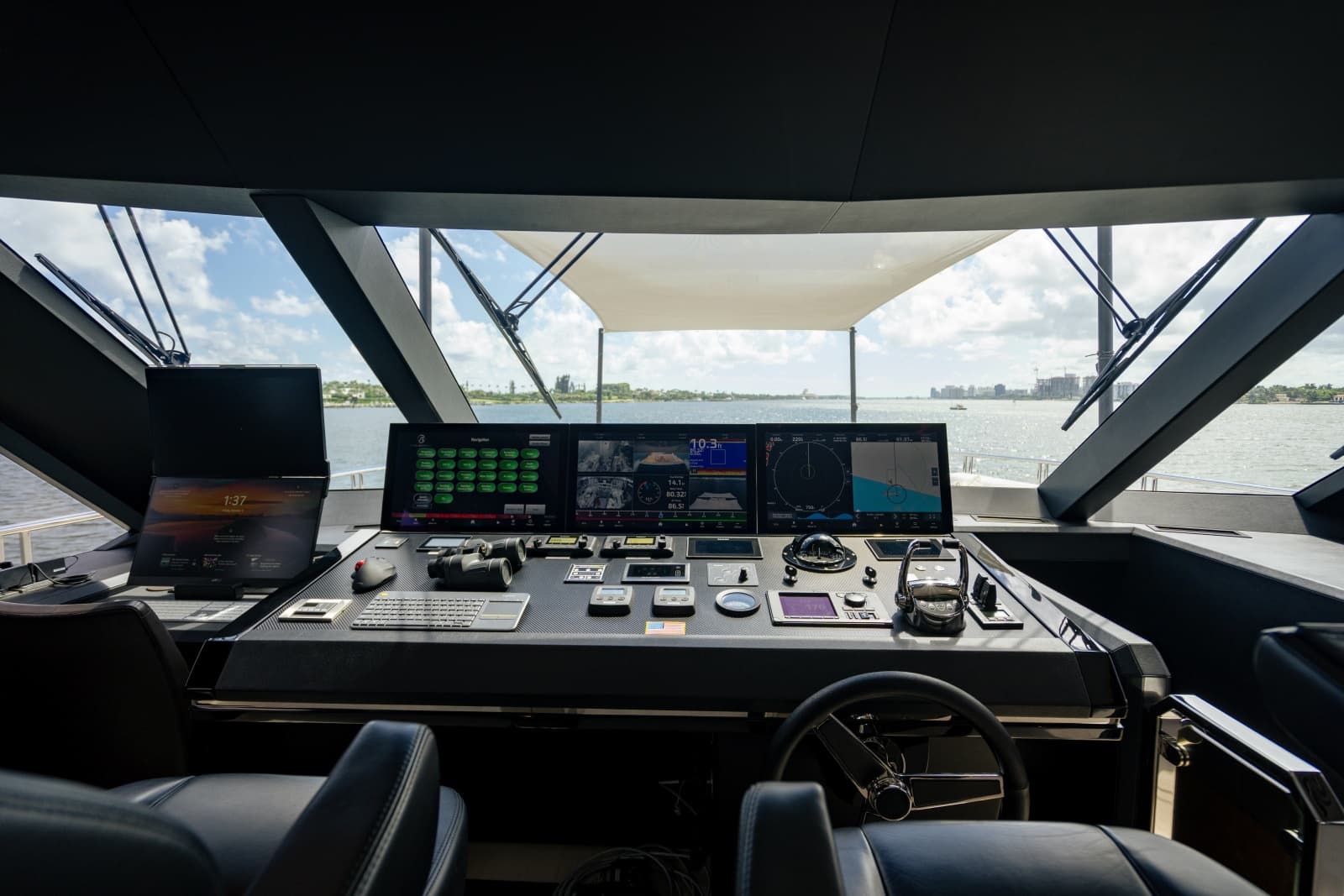

Garmin 8700 Seris Black Box with (3) 24" touch screens.
Garmin GRID remote input device installed on helm chair.
Garmin 25KW Open Array Radar.
Simrad Autopilot.
Garmin Card Reader.
Garmin Blackbox sounder.
Garmin AIS with NMEA GPS.
Garmin Marine Cameras (2 in engine room and 1 aft deck).
Garmin VHF
KVH TracVision UHD7 satellite TV antenna.
Ritchie Compass 5"

Global Cruising Package

50/60 Hz Power Converter.
Electrical converter allows for automatic marina connection irrespective of 110V/60Hz (USA) or 220-240V/50Hz (European) standards.
Swappable wall plugs convert between 110V/220V and 50/60 Hz.
True global yachting and global resale capability.

Entertainment System

Includes the following equipment installed at factory:

Salon: LED 55" TV with A/V System with subwoofer
MSR: LED 50" TV with A/V System
Skylounge: LED 50" TV with A/V System with subwoofer
VIP Staterooms: LED 43" TV with Satellite Receiver
Guest Stateroom: LED 24" TV with Satellite Receiver
Crew: LED 32" TV with Satellite Receiver
Beach Club: LED 43" TV with Satellite Receiver
Bridge deck flip down 43" TV with speakers
Aft deck flip down 43" TV with speakers
Pre-wire for future installation of custom A/V system throughout using CAT6 wire runs for future use
Control 4 System for Audio/TV and shades.

Interior/Exterior Details

Yacht quality Italian door hardward.
Windows with dramatic architectural details allowing for greater visibility and incoming natural light.
Hardtop with dedicated custom removable 316 stainless-steel ladder to navigational electronics.

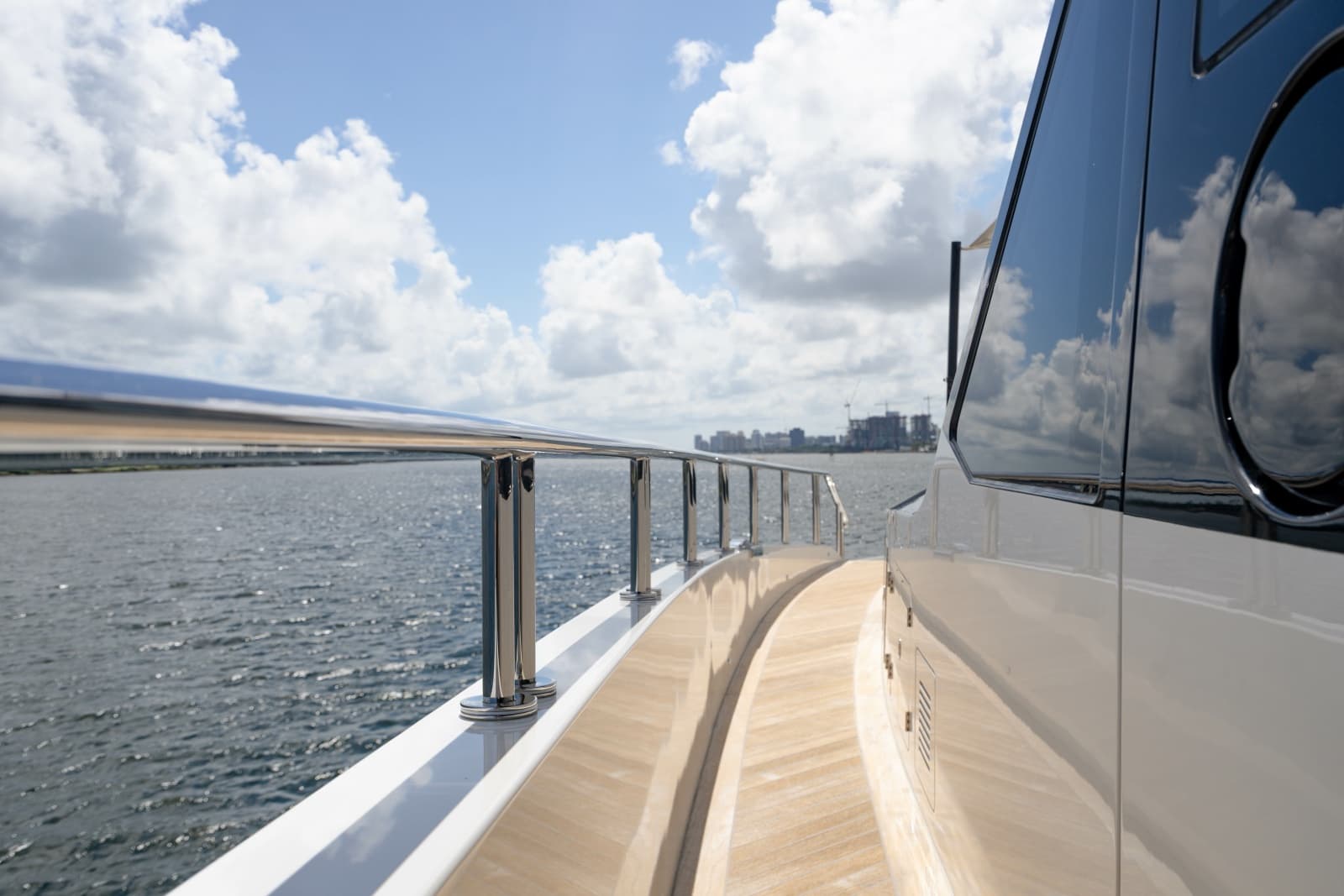

Elliptical 316 stainless-steel handrails & stanchions.
White non-skid decks.
316 stainless-steel cleats.
One flag pole at stern.
Side boarding gates in cockpit.
Flushmounted deck lights.

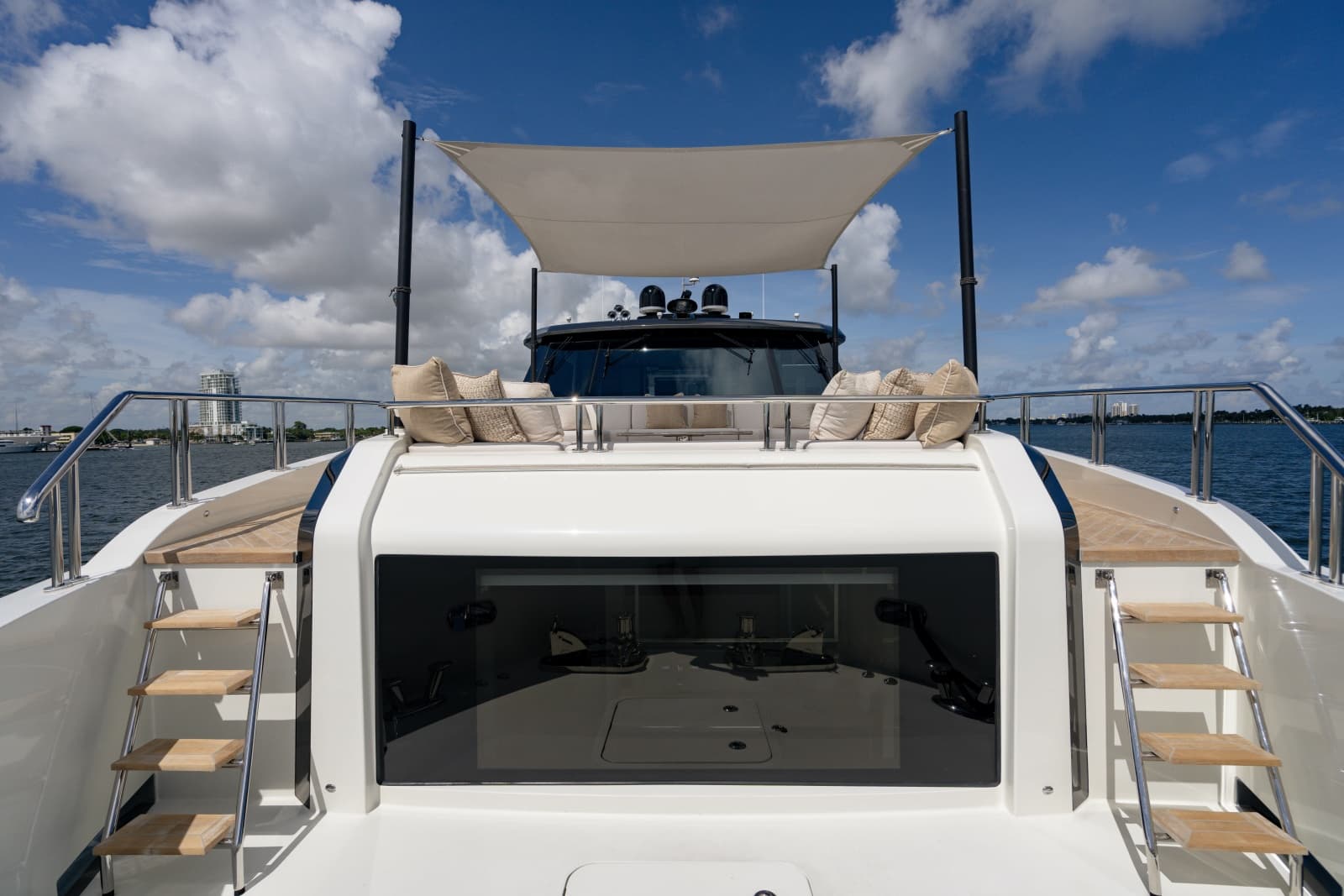

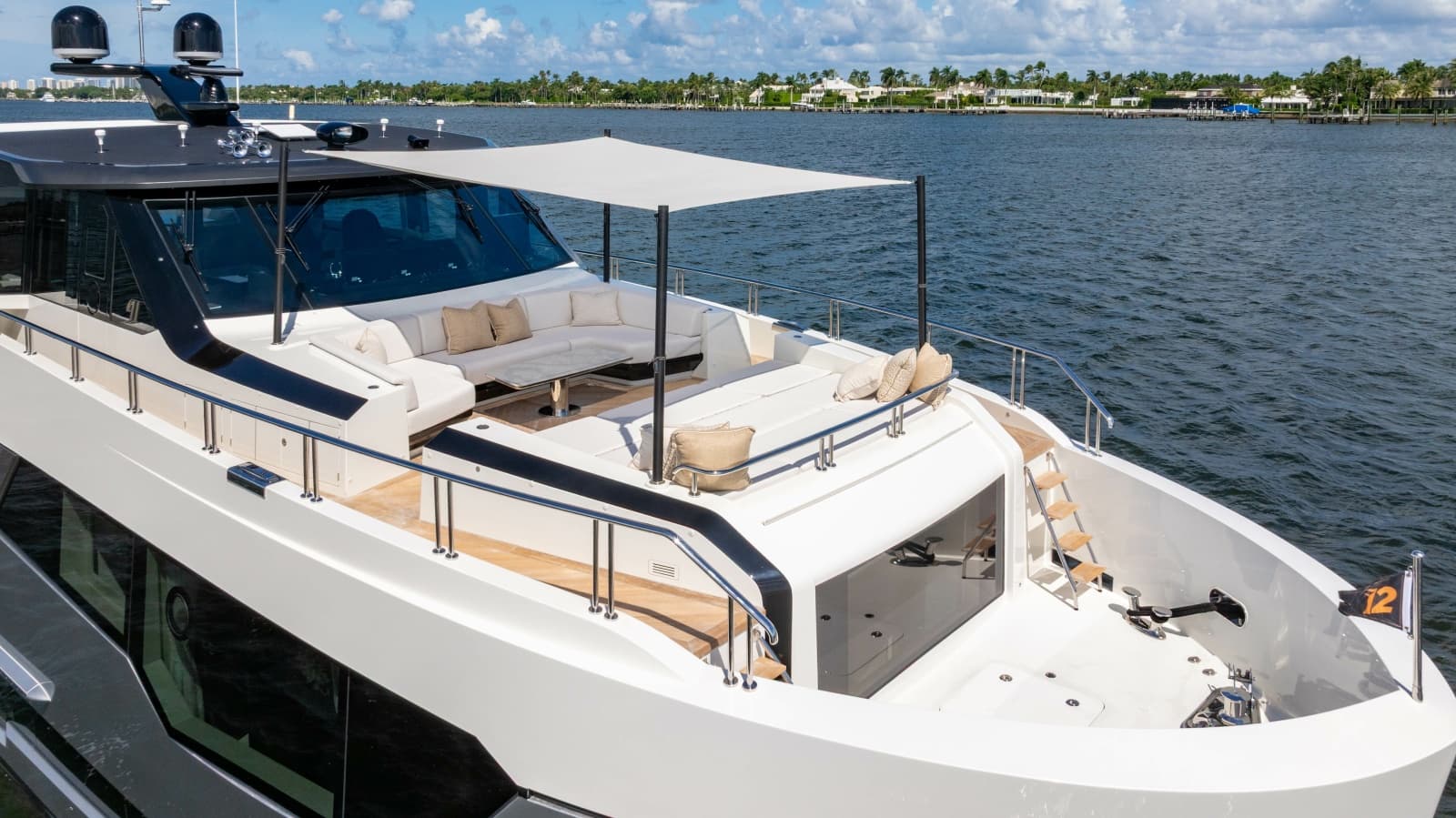

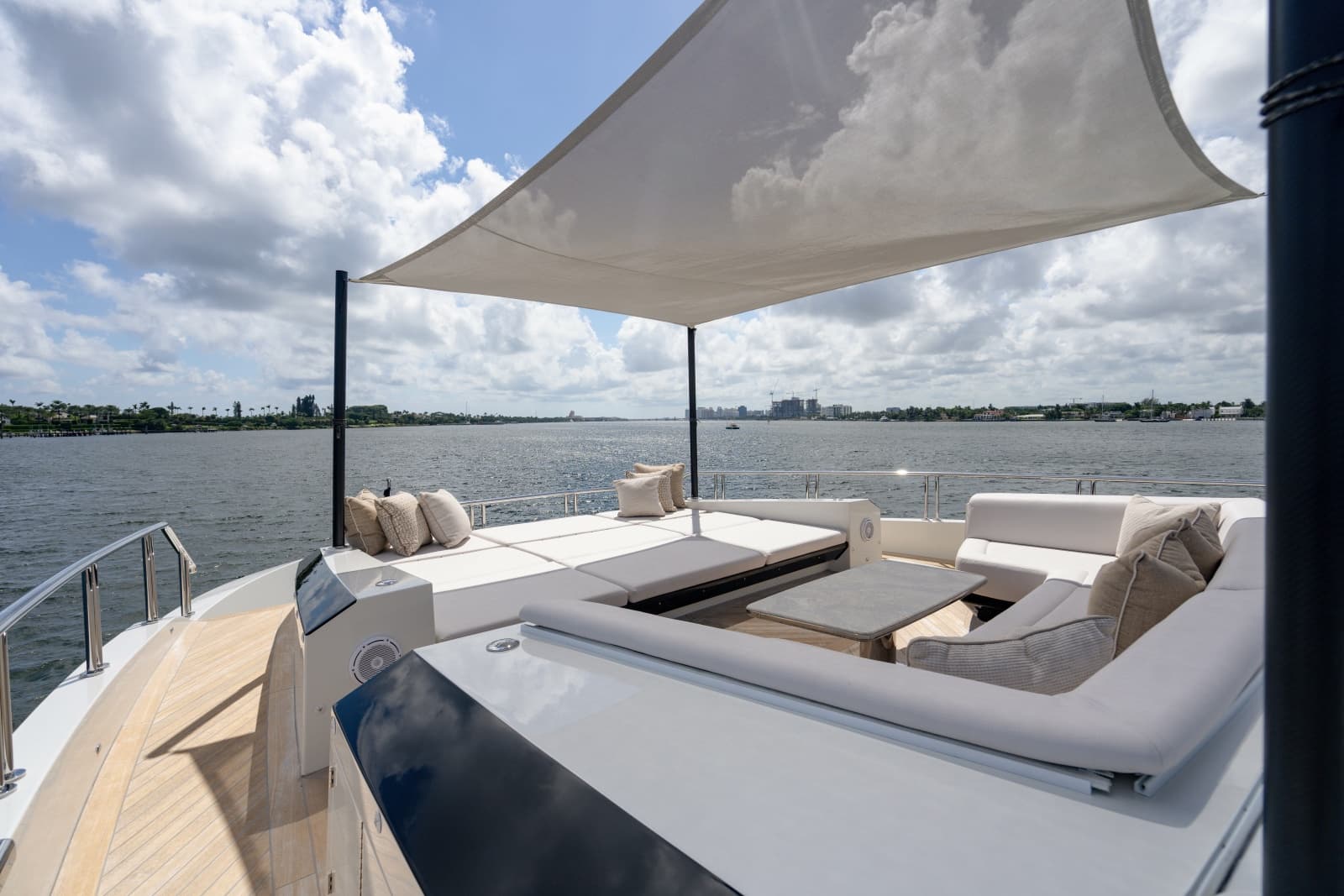

Sun pads at bow.
Elka shower rod with flush connection at swim step.
Fold out bulwarks on both port and stbd side for extra extended spaces.
2500 lbs. crane on multi-function platform.
Hydraulic 1,000 lbs capacity Hi-Low swim platform.
Passerelle boarding ladder at stern.
Electric helm seat (2x) at steering station.
In-glass portlight for Master Stateroom (2x) and guest staterooms (2x).
Metallic painted hull.

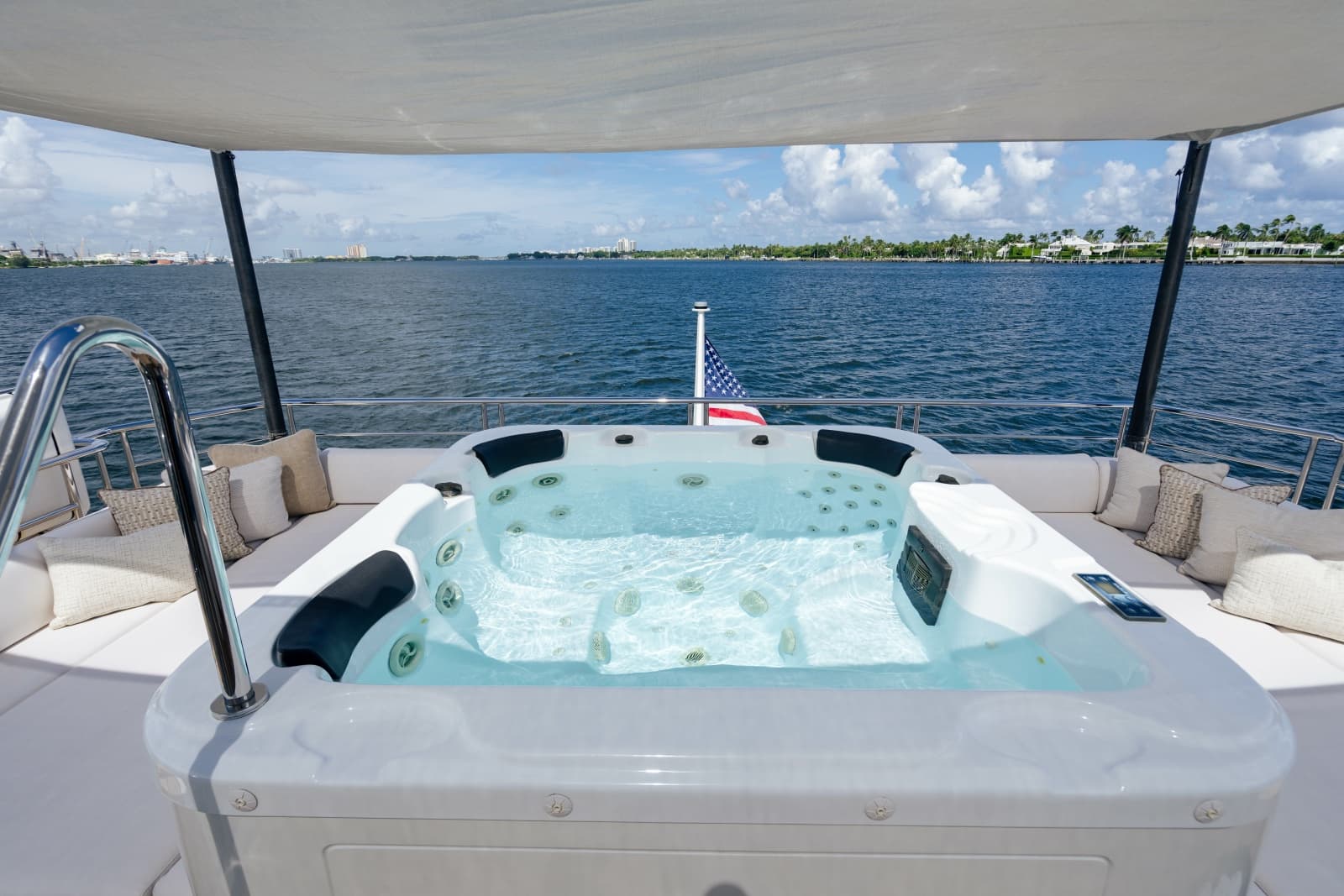

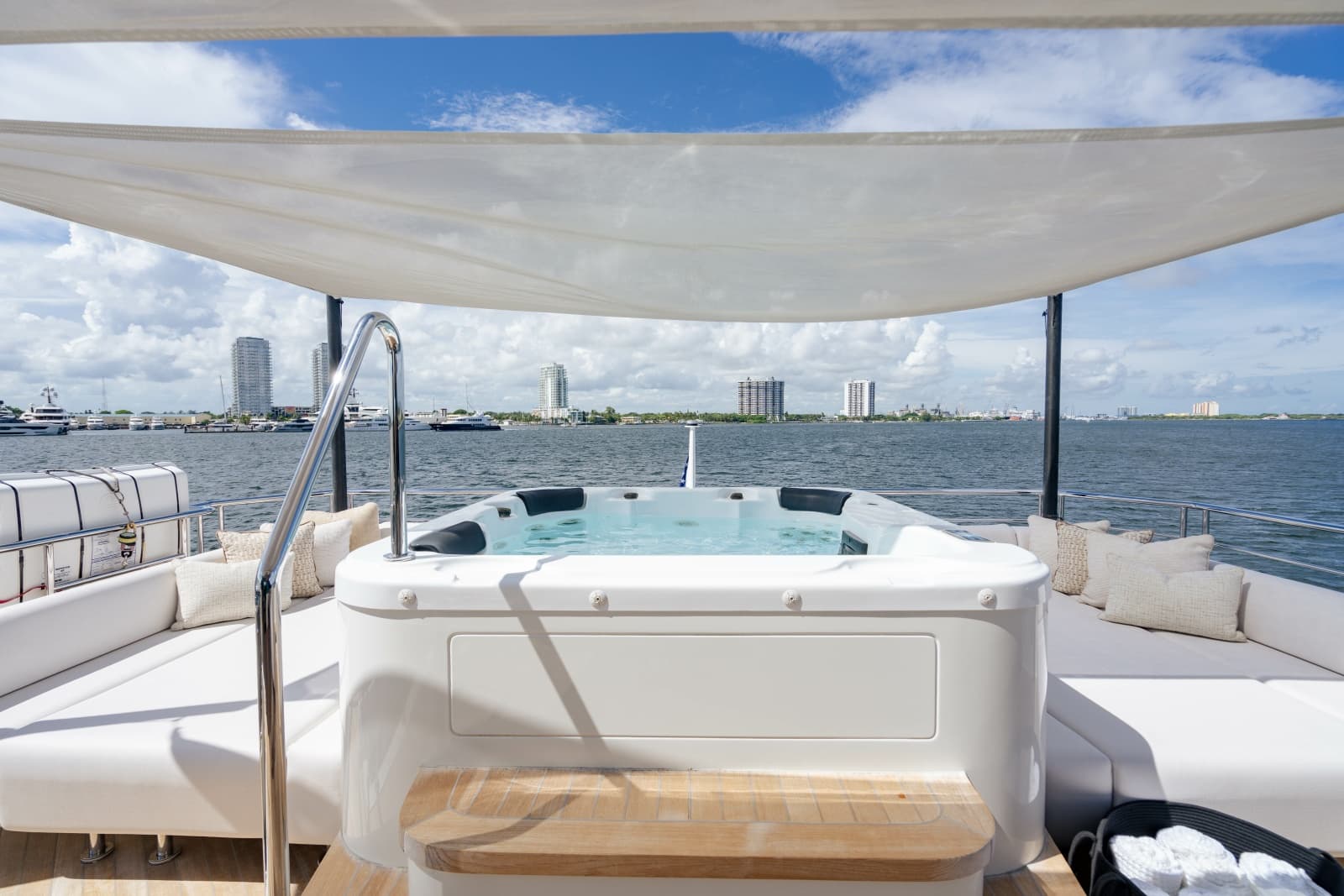

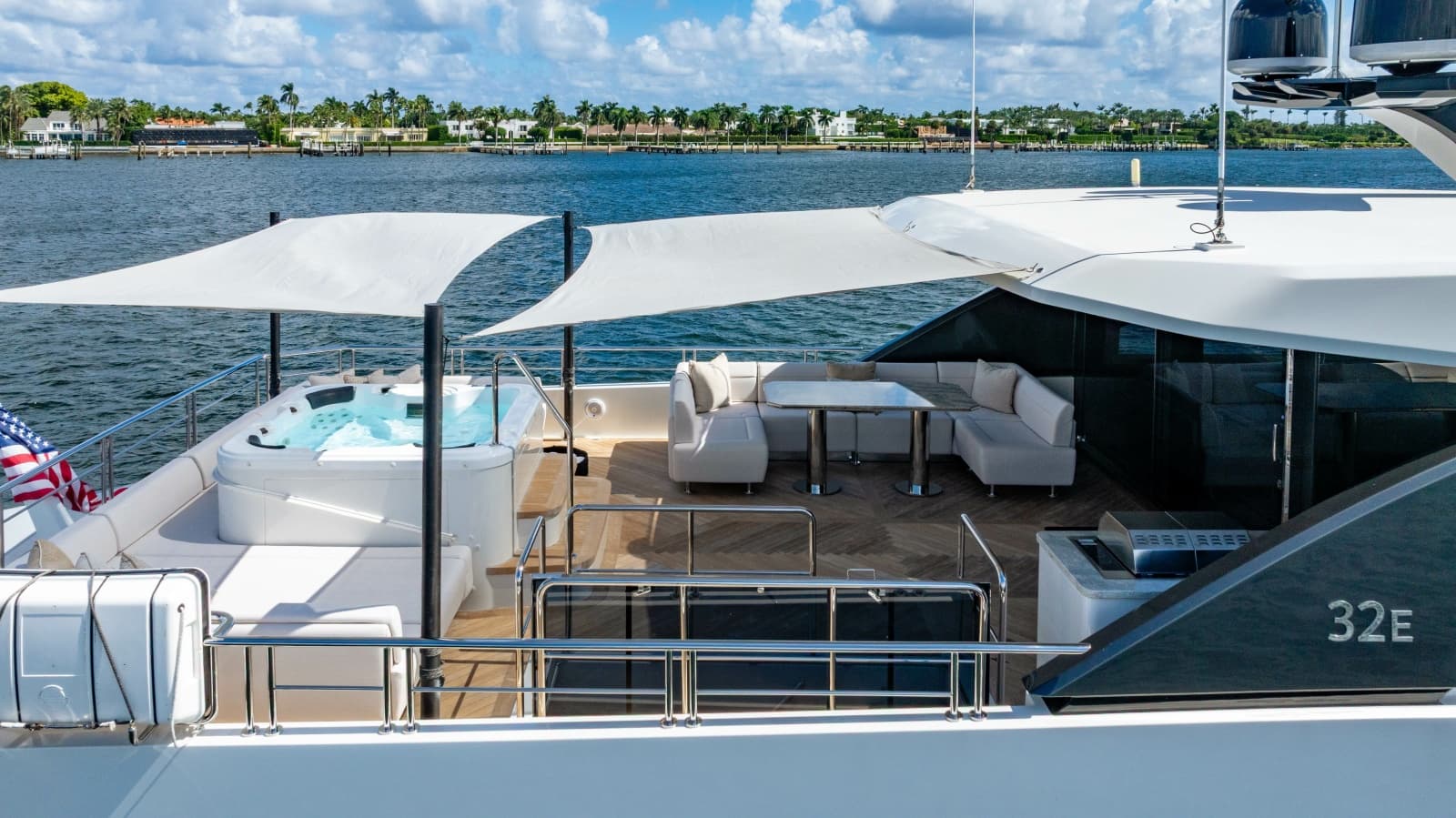

4-person lighted Jacuzzi w/ custom fiberglass enclosure and custom sunpads on each side) include 18 KW water heater).
Teak Decking Package.

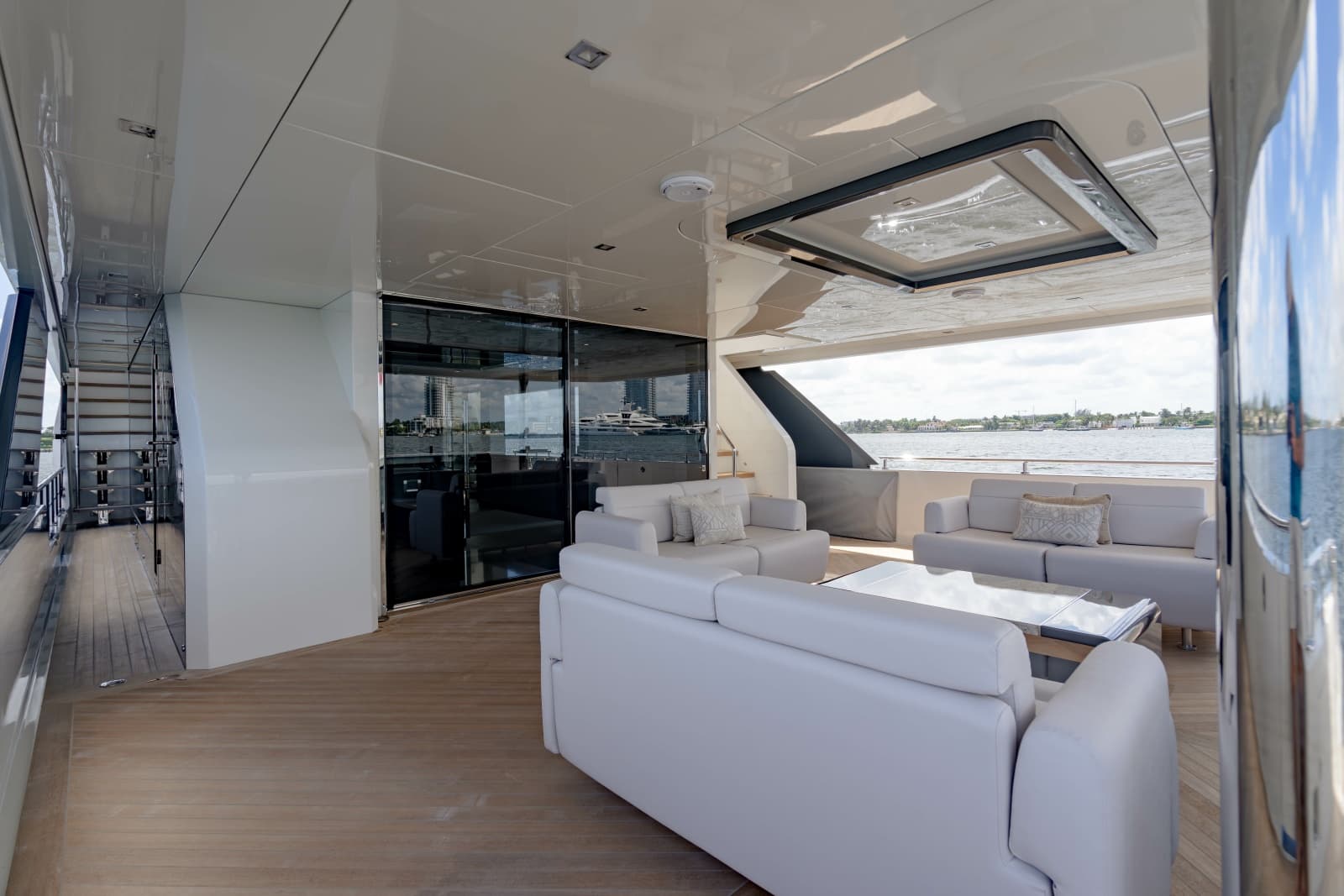

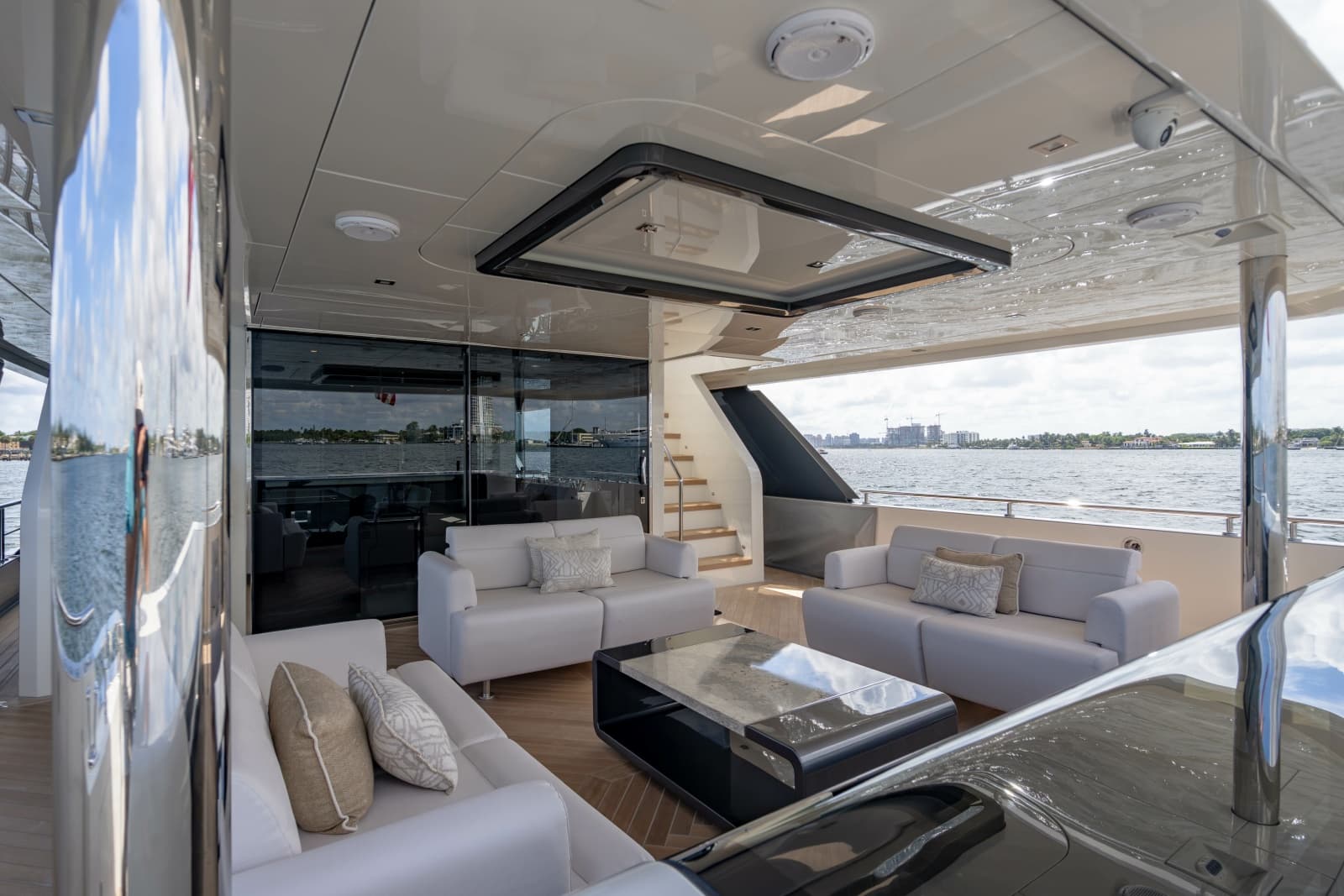

Aft-Deck Custom Ceiling Feature with indirect lighting.
Exterior Convenience Package -

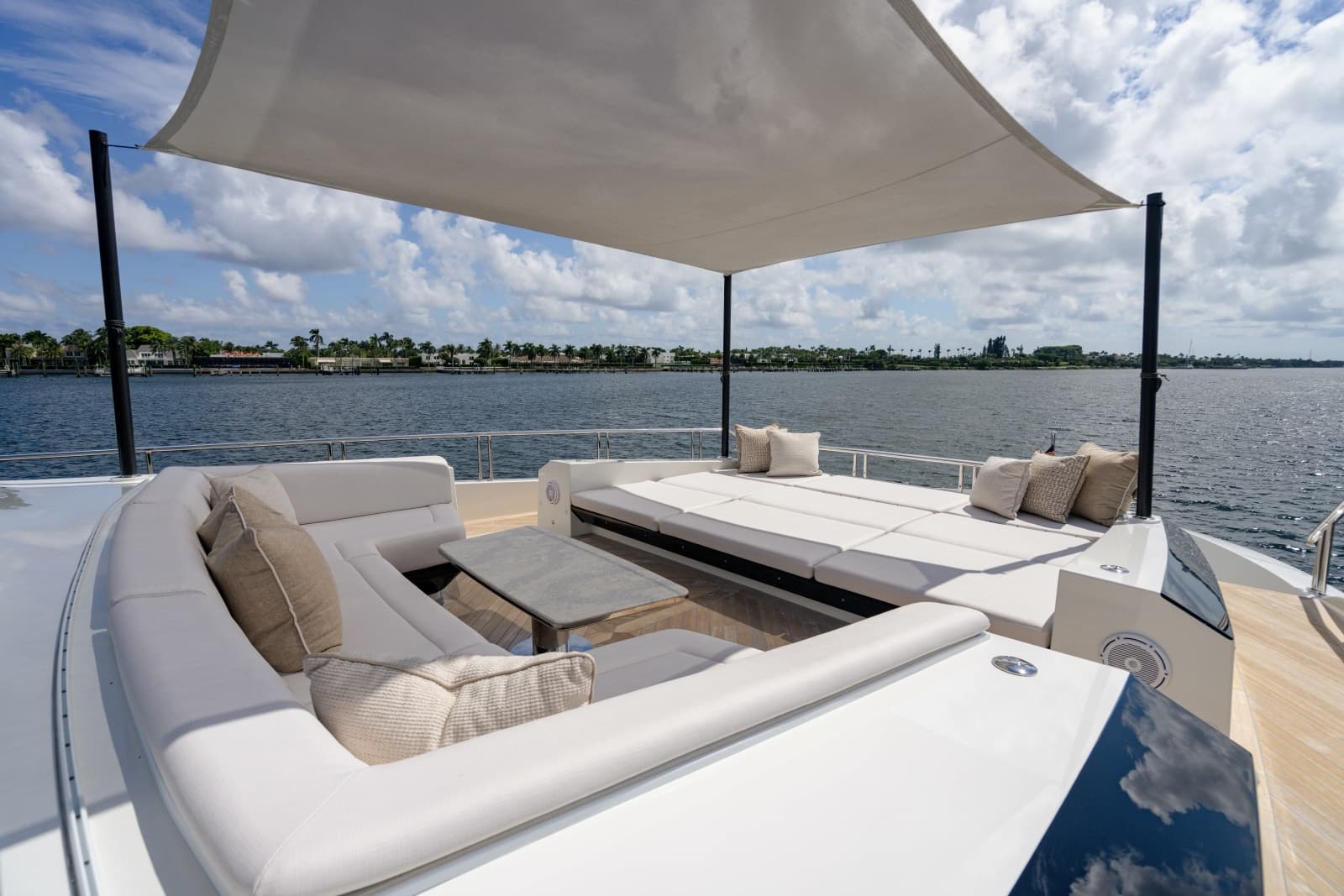

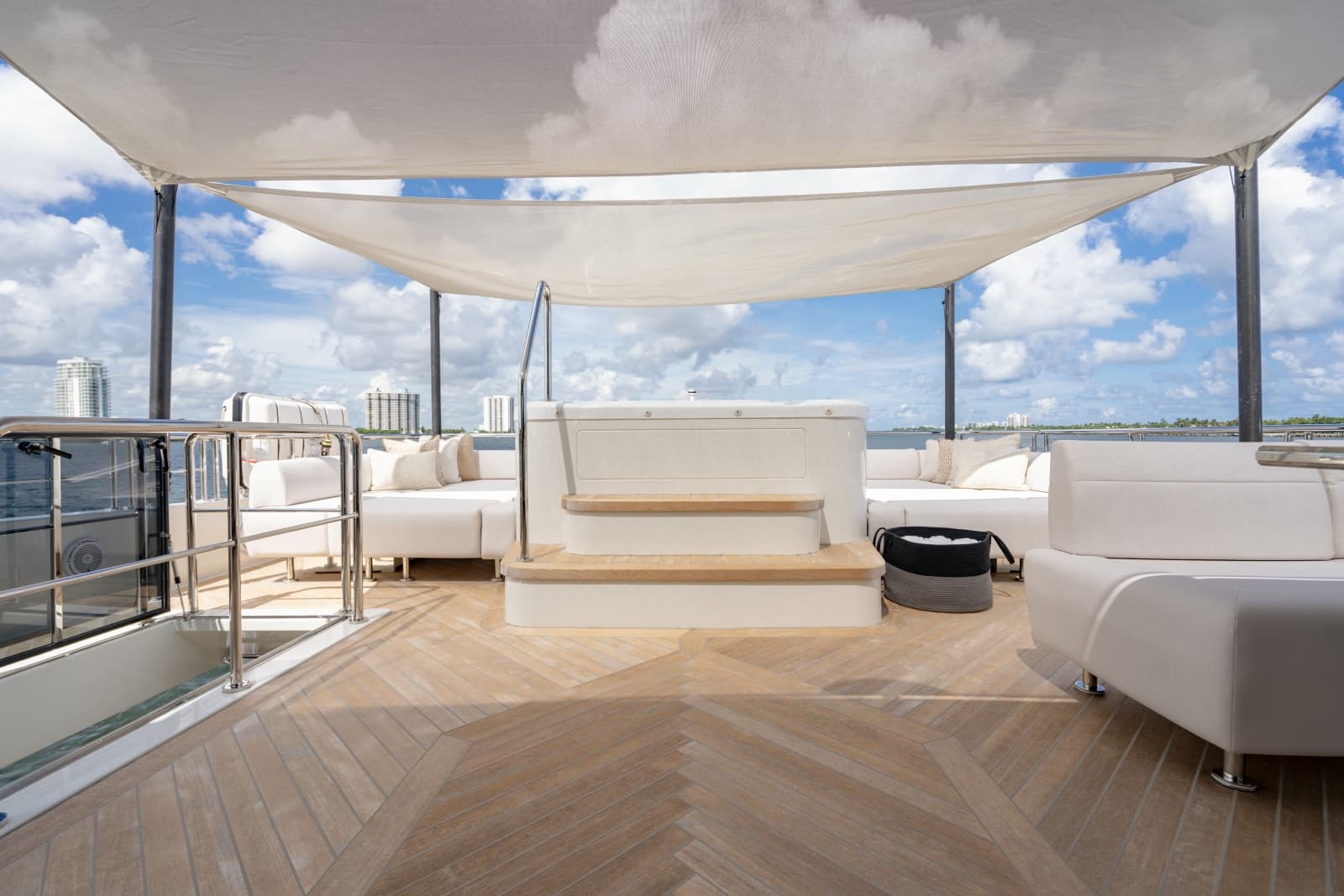

Sun Awning for boat deck, bow deck and swim deck with custom-made fiberglass poles and marine-grade exterior mesh fabric. Includes custom designed built-in storage for poles.
Custom-designed exterior loose furniture package with coffee table at boat deck and bow.
Boarding ladder installed at recessed starboard gunnel with teak steps.
Custom exterior protection canvas for exterior cabinetry and windshield mesh cover.
316 Stainless-steel transom gates for pet/child protection.
Boat deck hatch.
Bow concealed "pop-up" lights (4x).

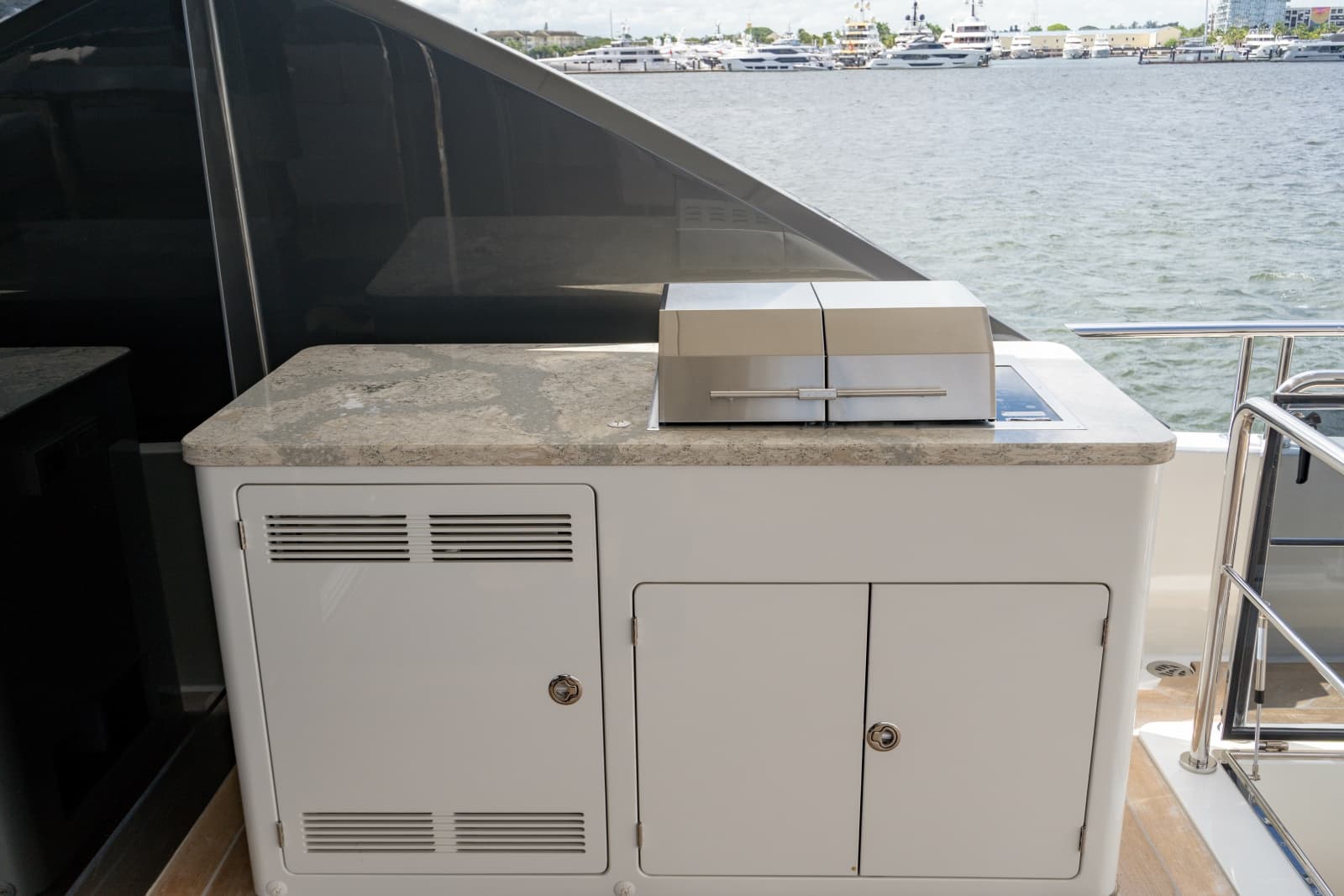

30" Kenyon electric barbeque at Bridge Deck.
High output LED underwater lights 8x (four at stern, two on each side of port and starboard side).

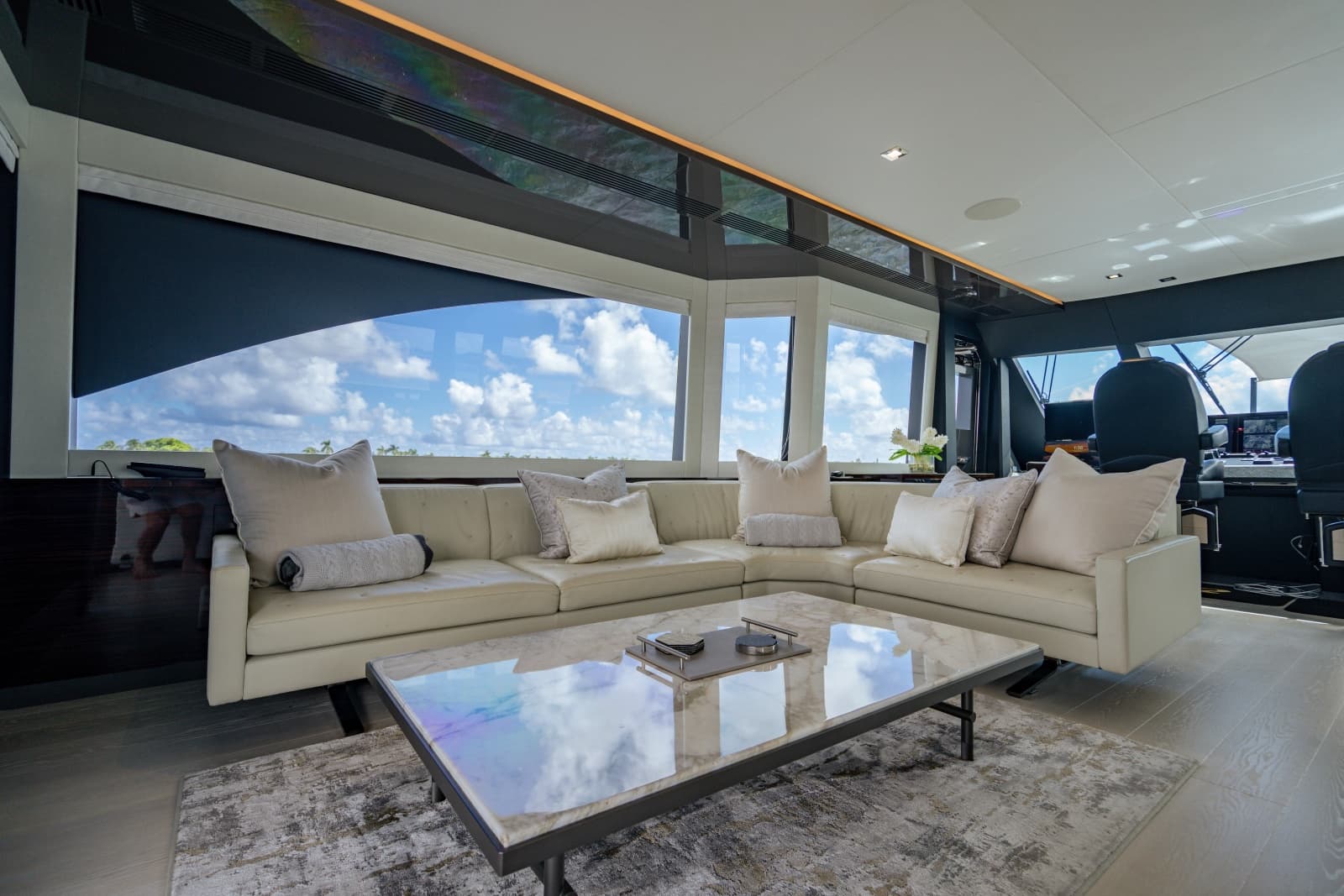

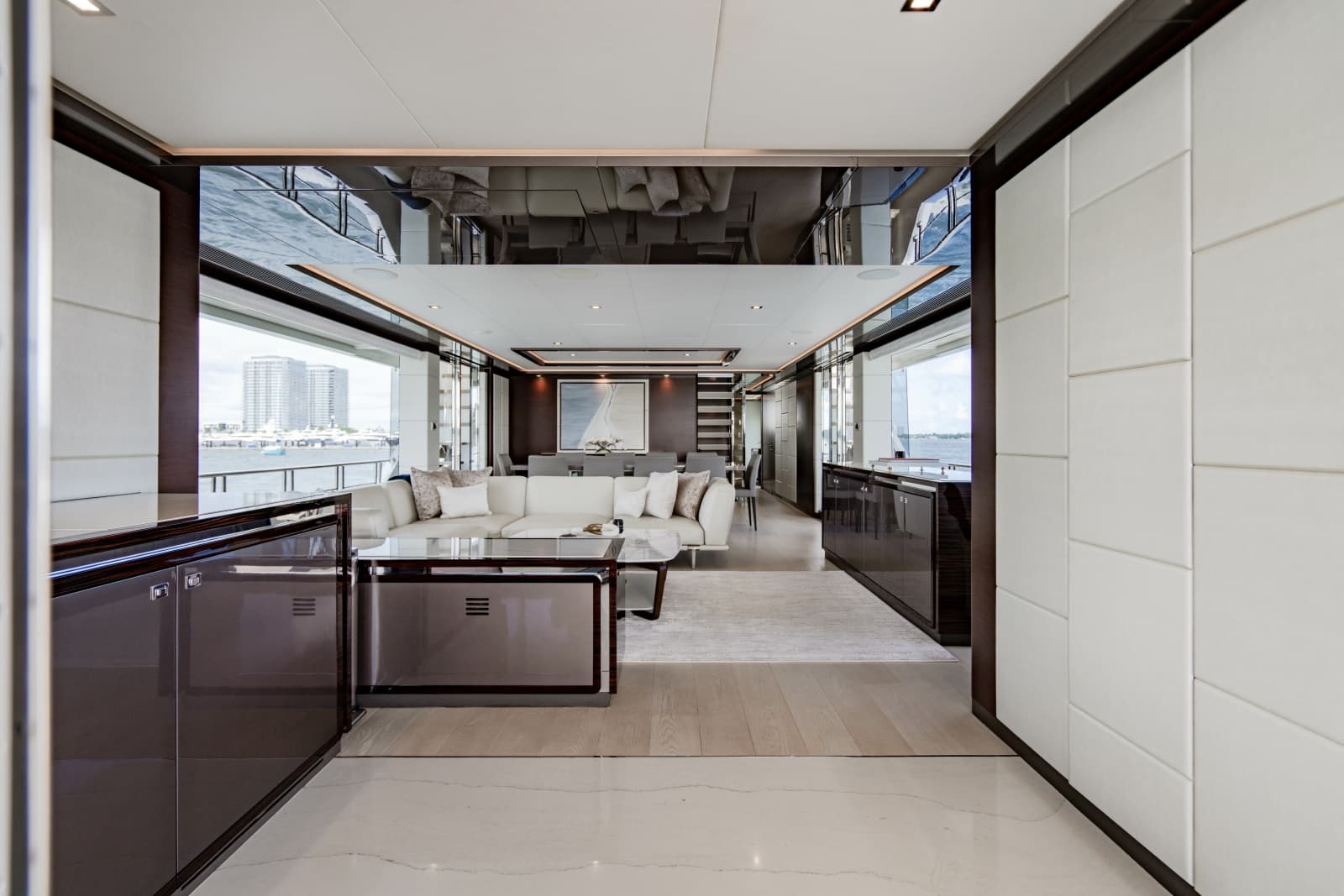

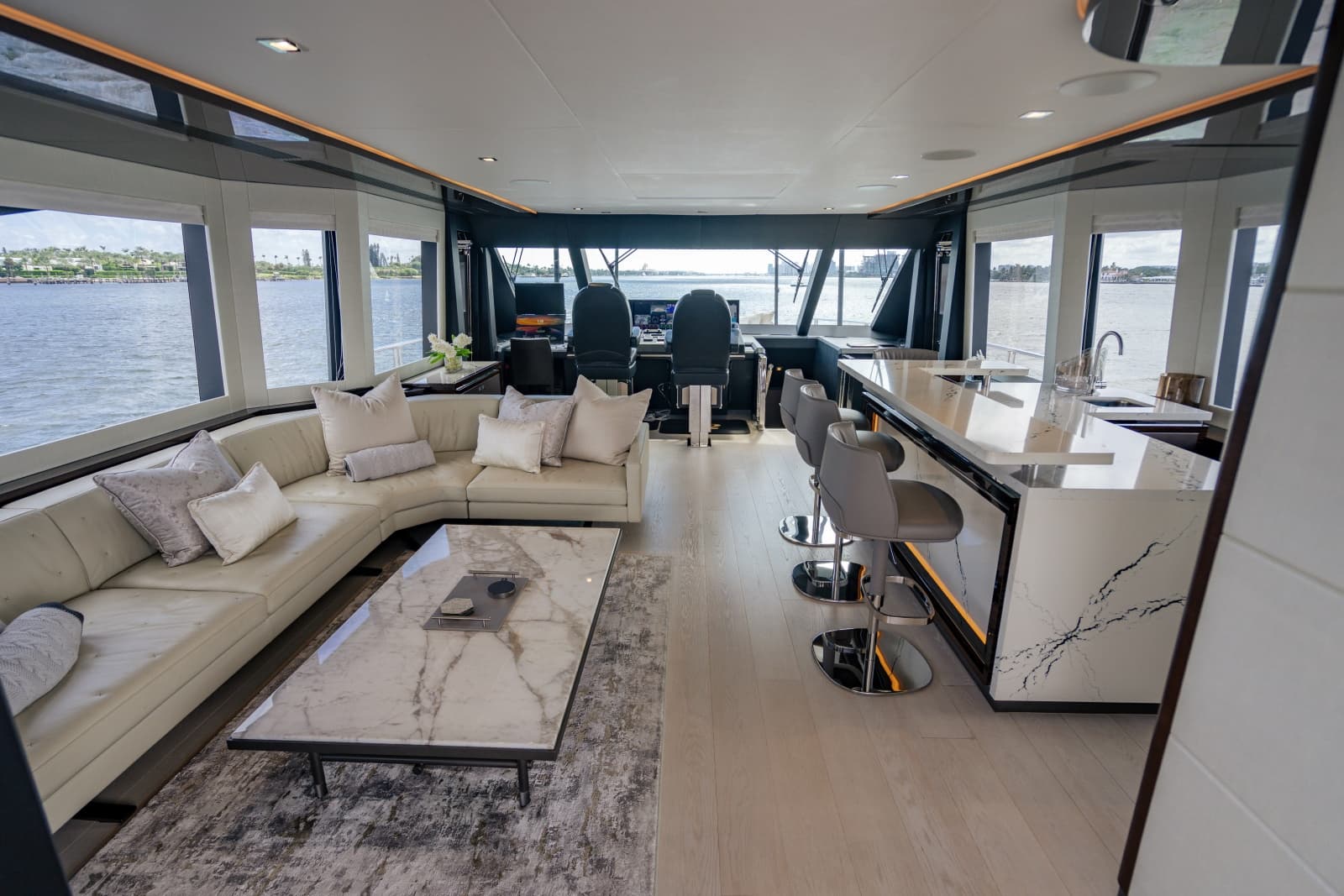

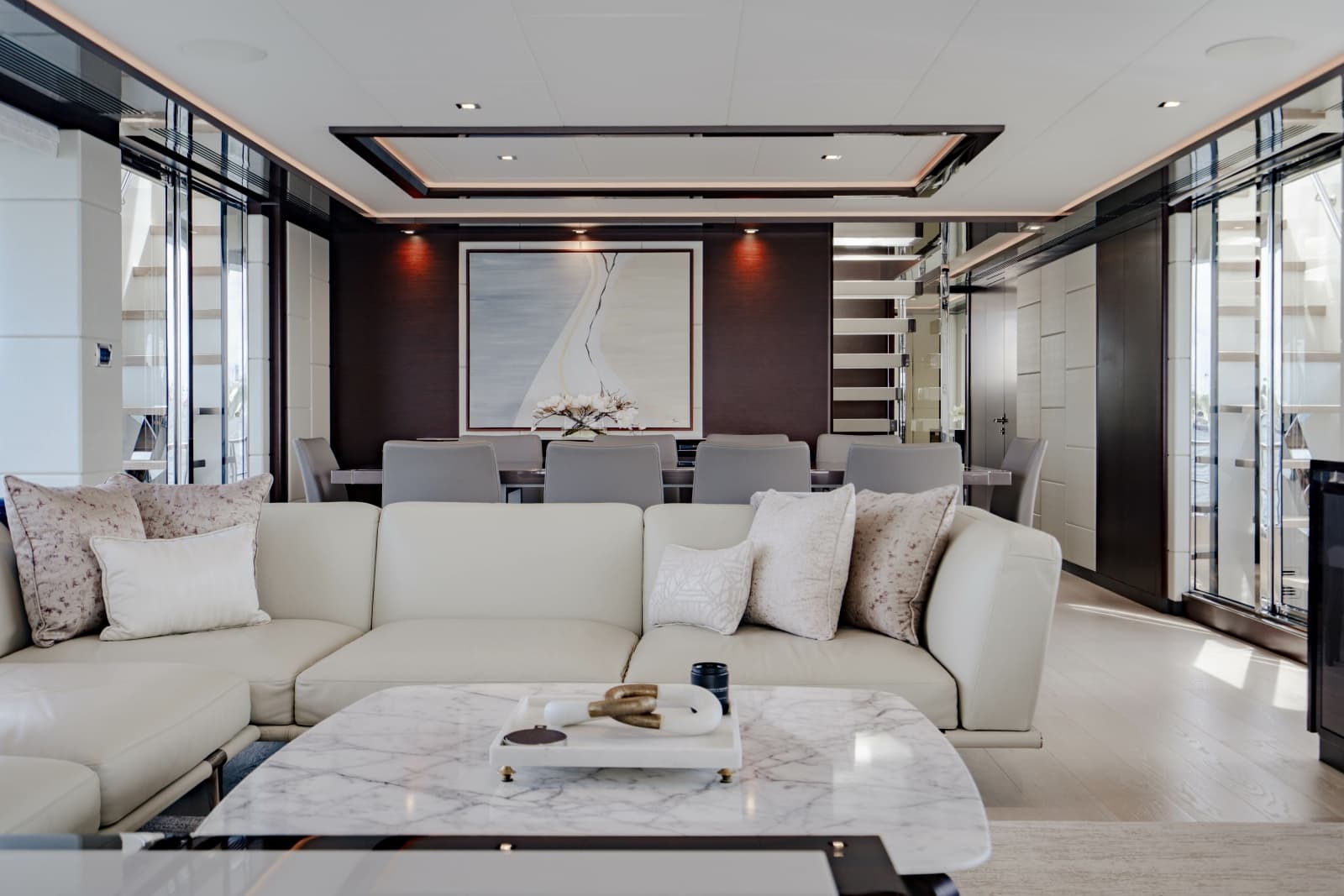

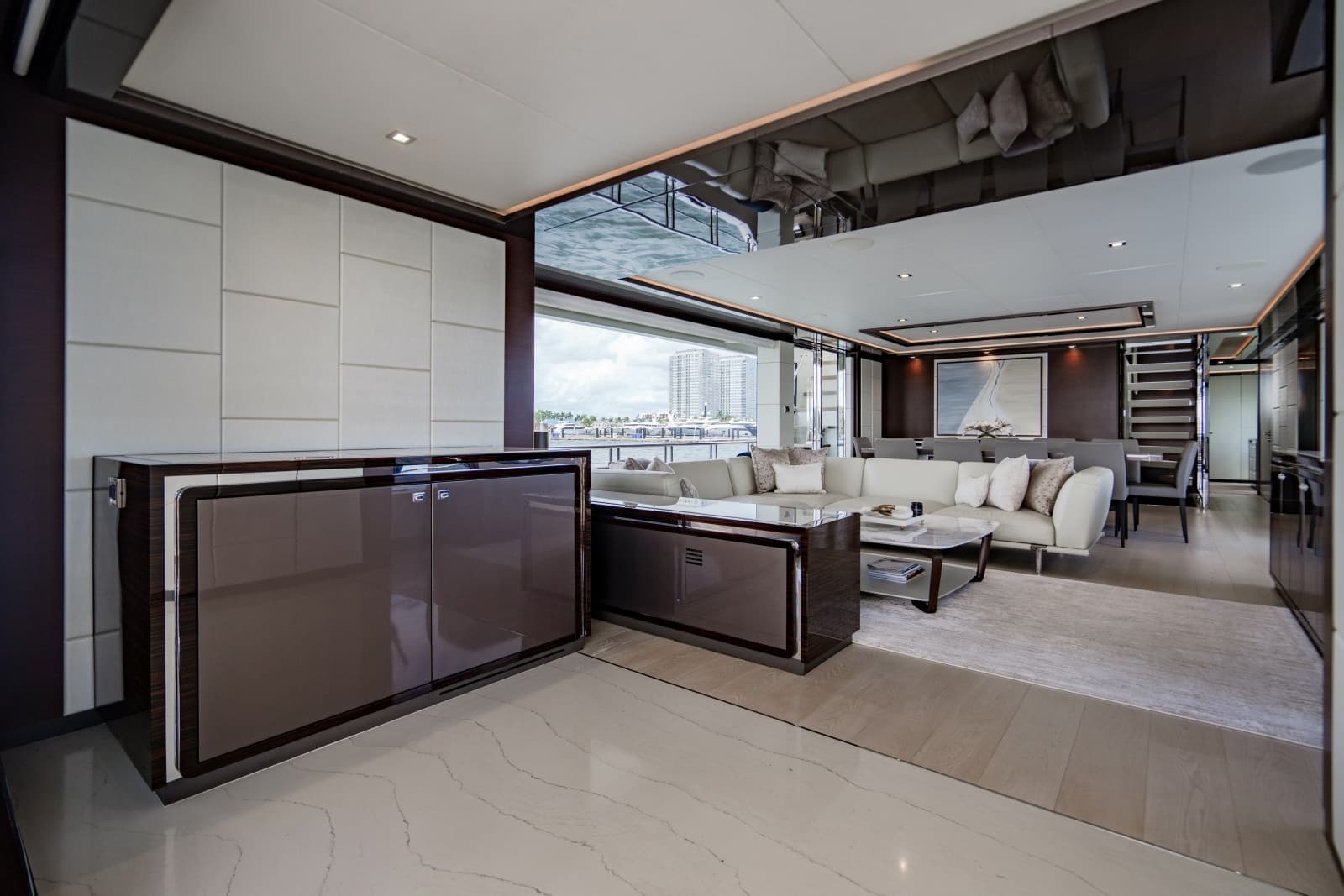

Salon

Custom-designed furniture and sofa.
Custom-designed window mullion with ceiling treatment.
Custom-designed salon table.

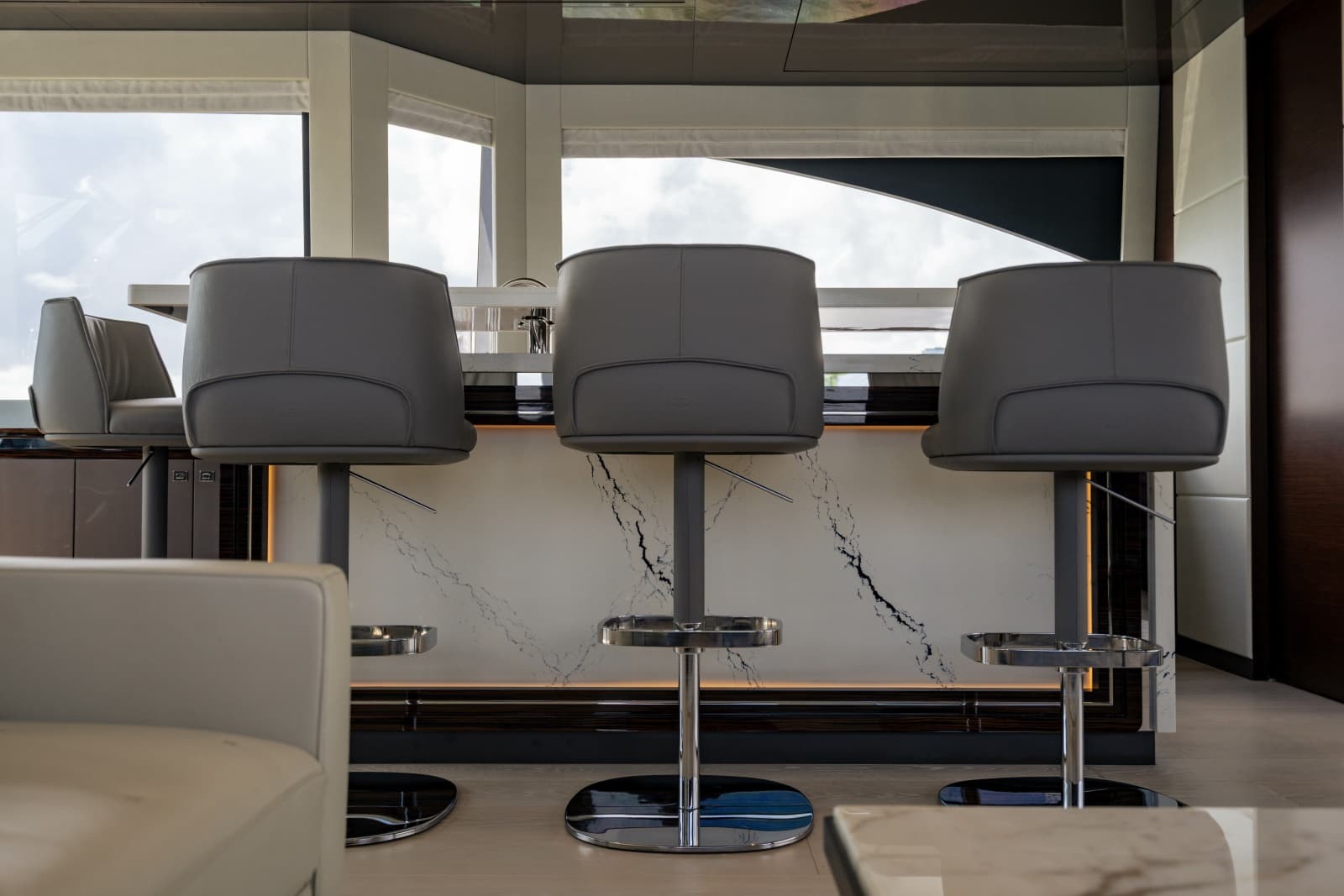

Stone countertop at wet-bar and cabinets.
Refrigerator/ice maker at wet-bar.
Full height electric glass sliding door in lieu of manual sliding door (AFT, Port and Starboard side).
Electric Shades via controller.

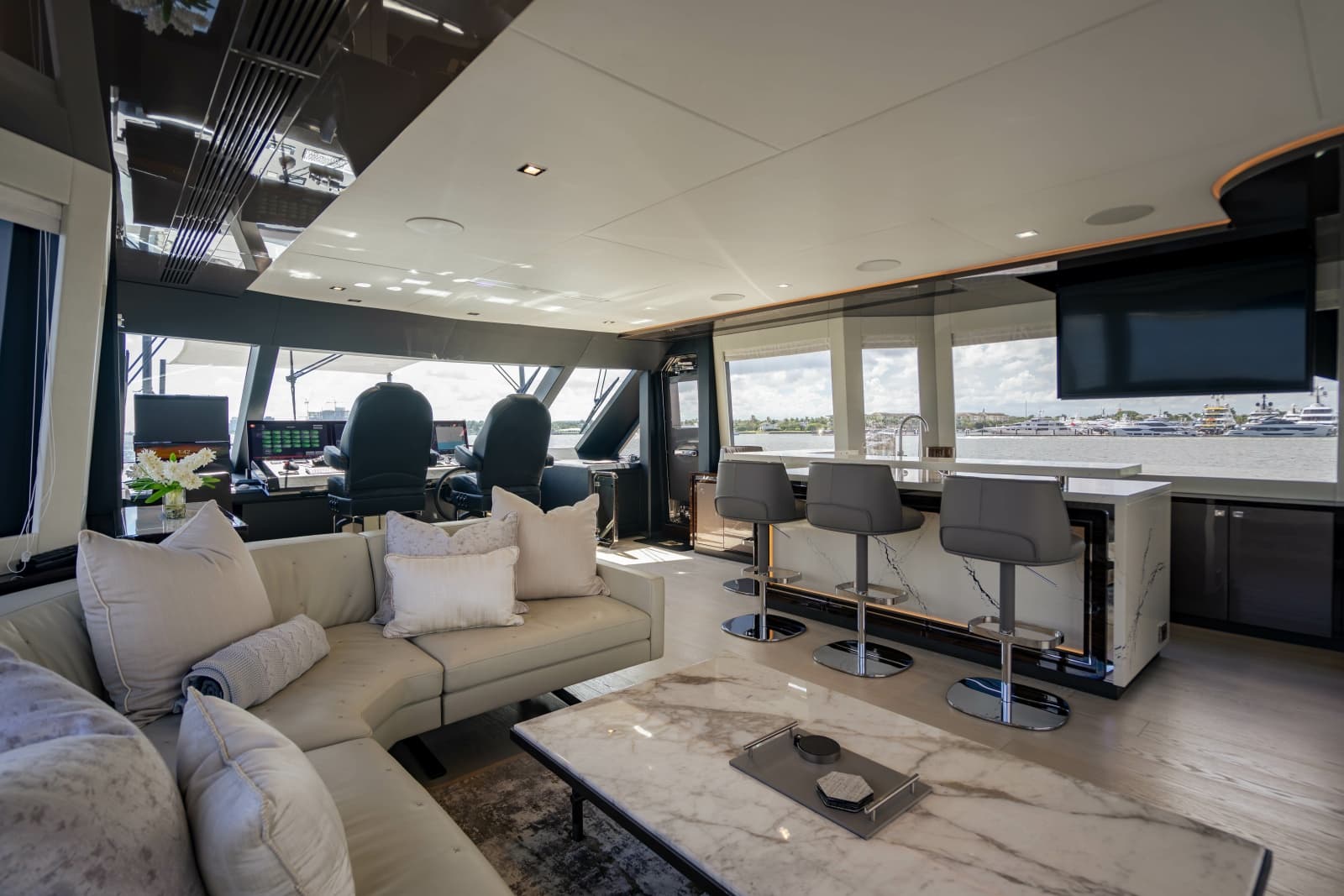

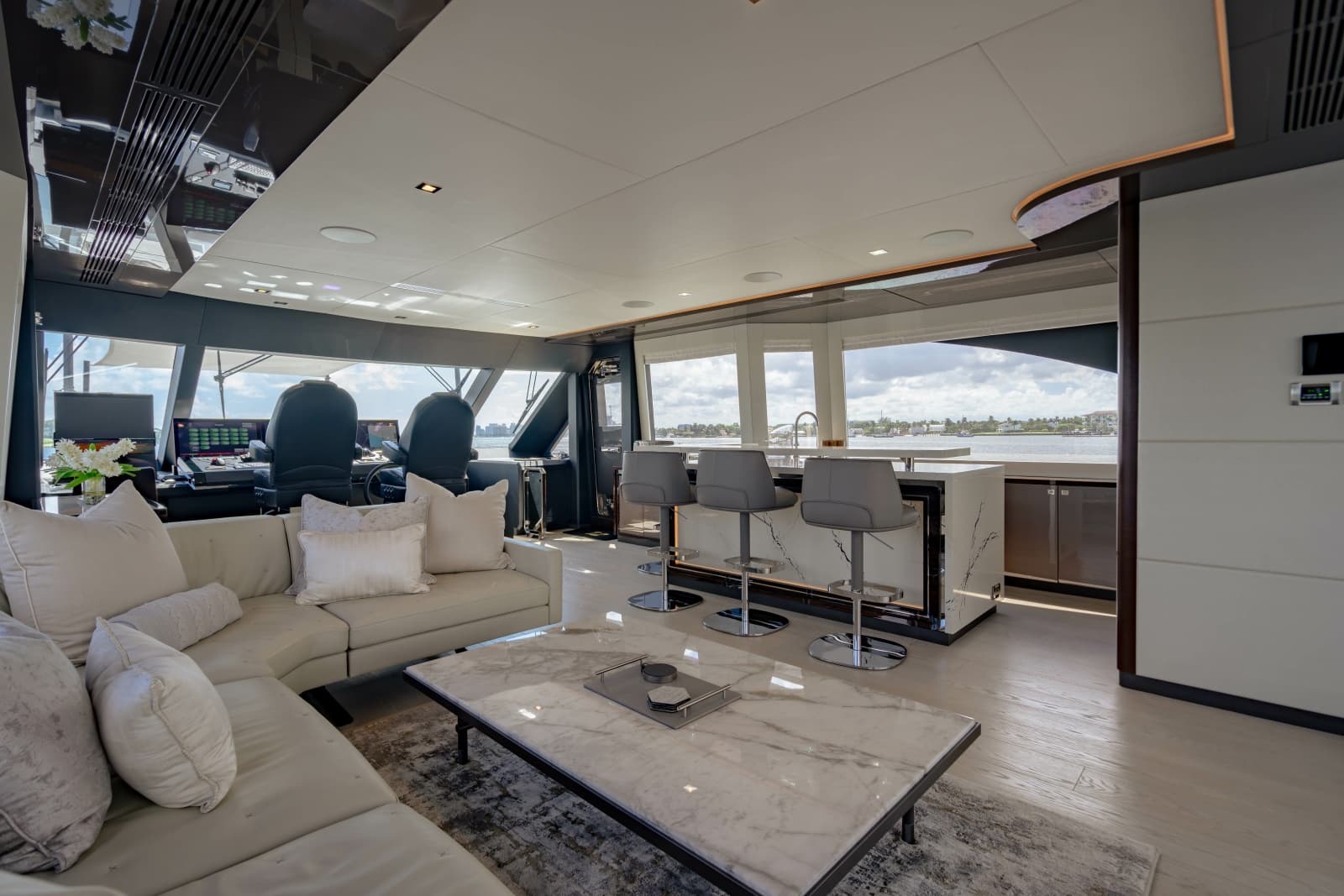

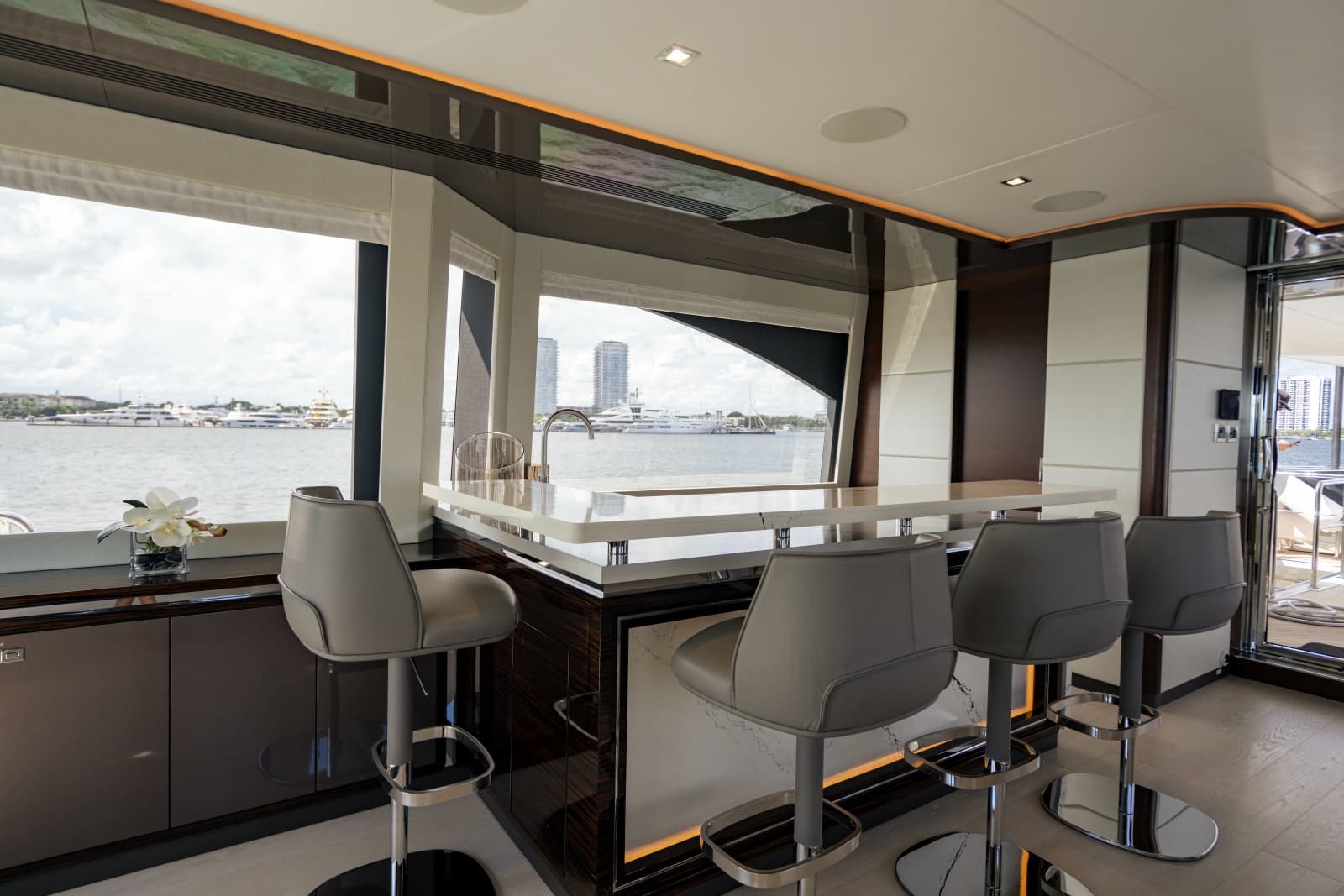

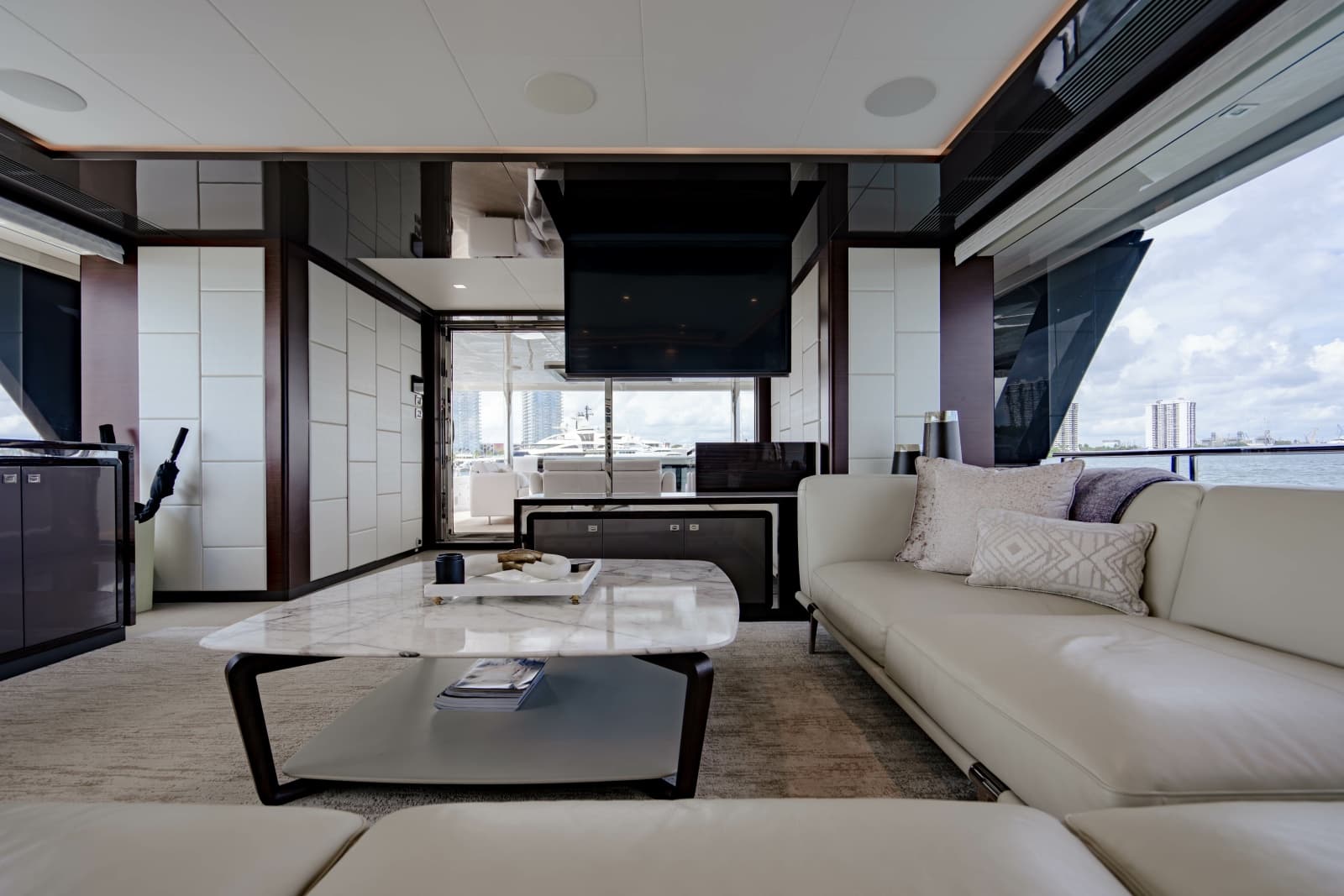

Skylounge

Custom-designed furniture and sofa.
Custom-designed window mullion w/ ceiling treatment.
Cabinet including wet bar, refrigerator and ice maker.
Stone Countertop at wet bar and cabinets.
Full height electric glass sliding door in lieu of manual sliding door.
Electric Shades via conrol.

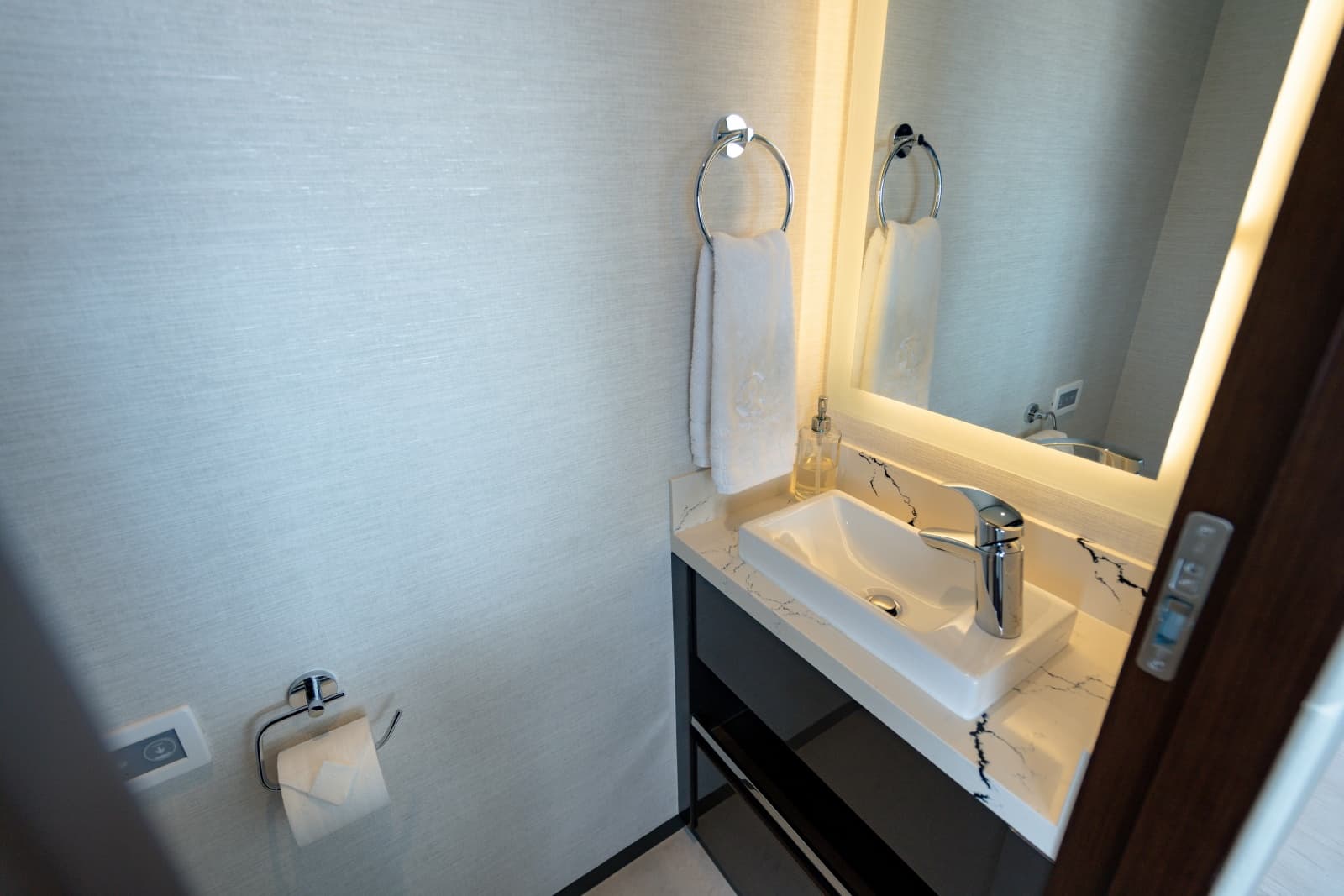

Day head with sink.

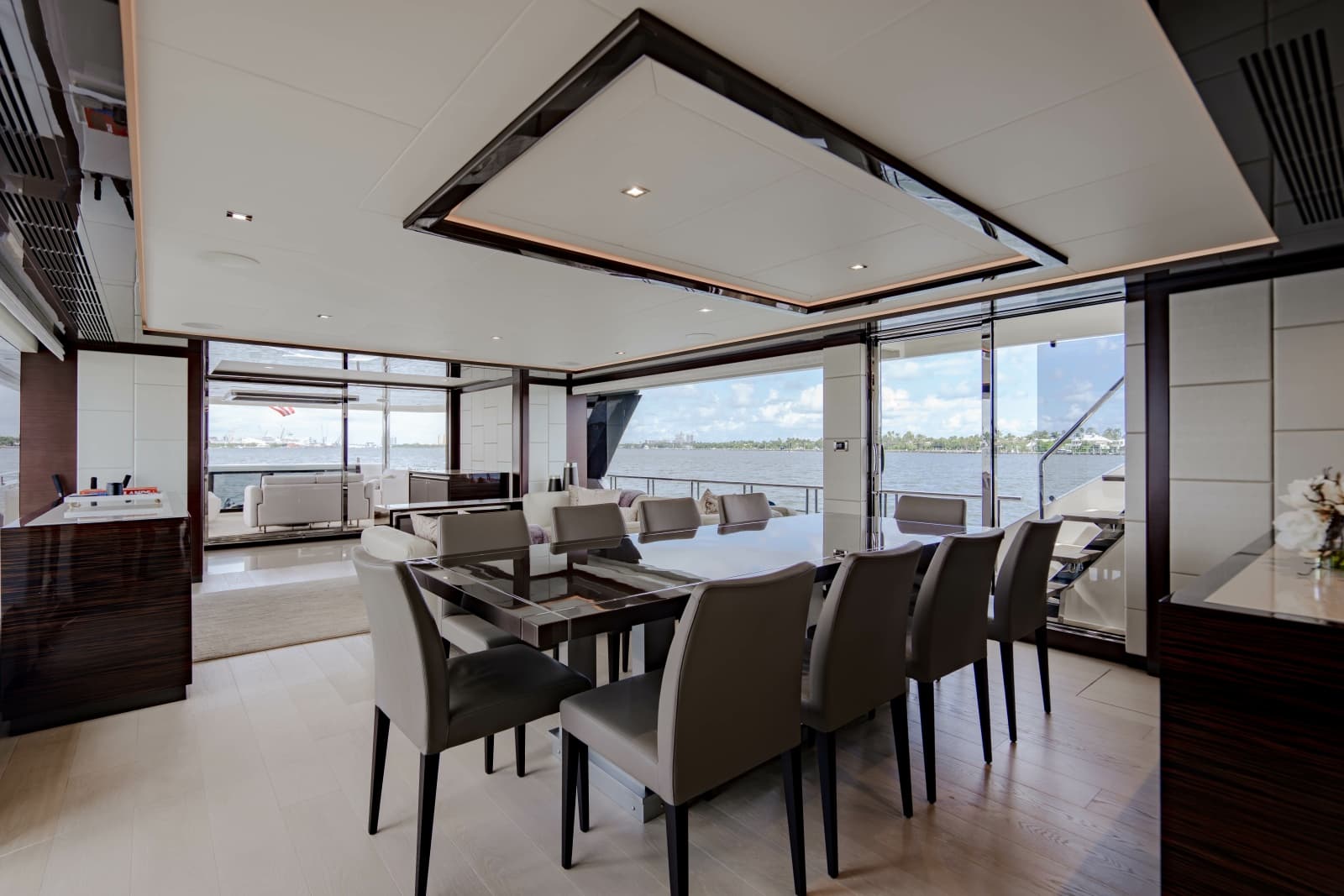

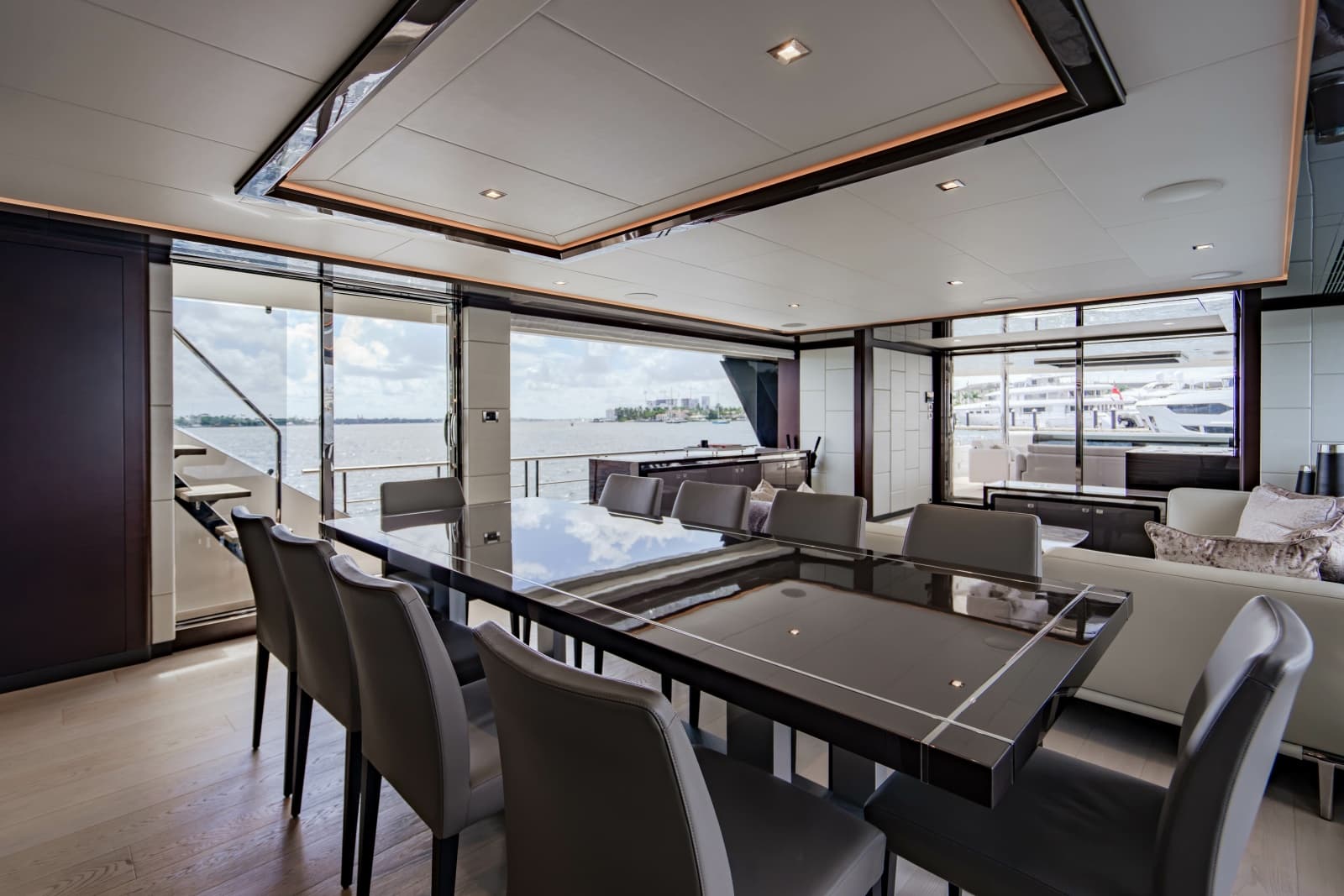

Dining Room

Shelve tracks and dividers installed for china, glass and silver storage.
Ten-person dining table secured with chairs.
Day head with sink and cabinet.

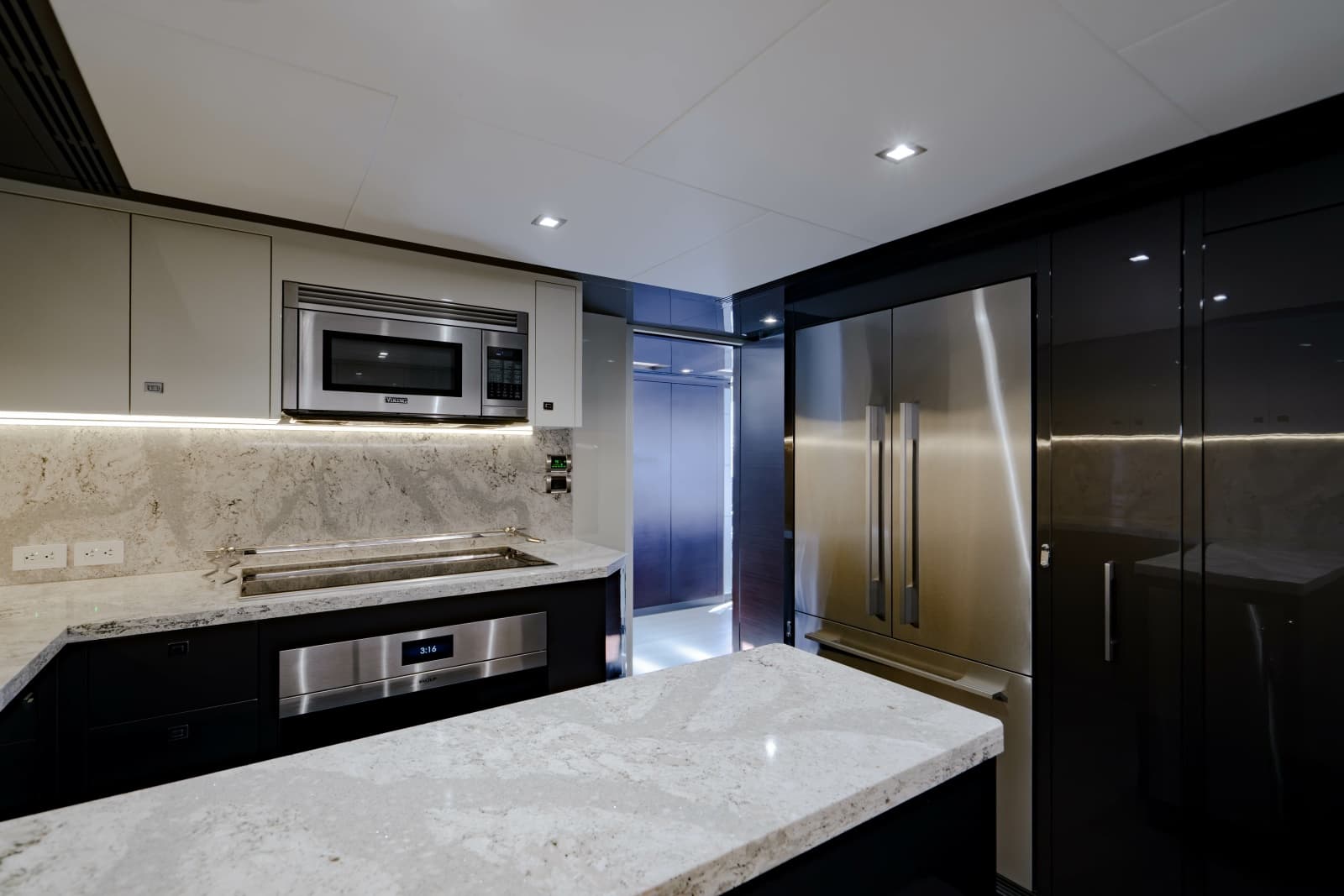

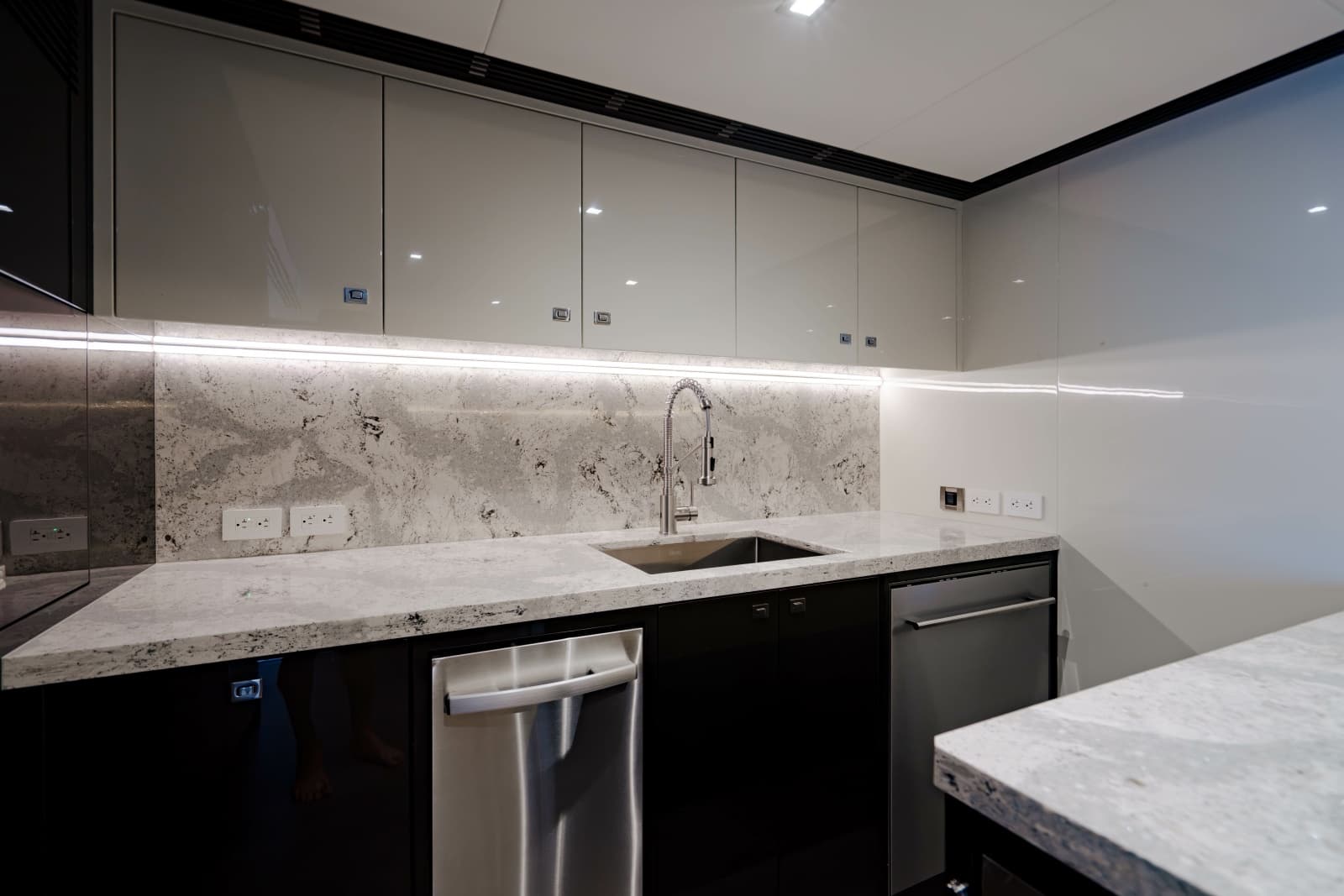

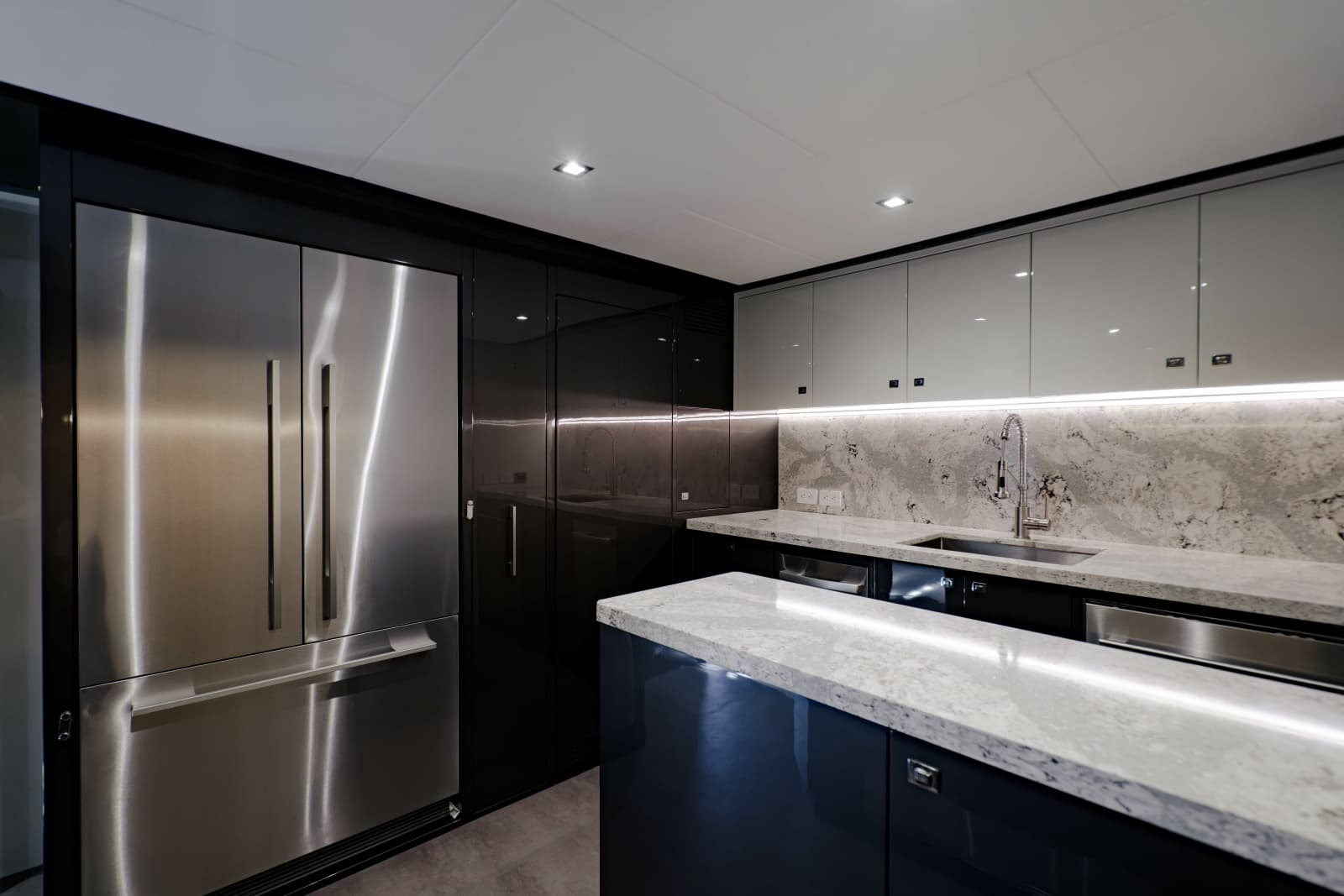

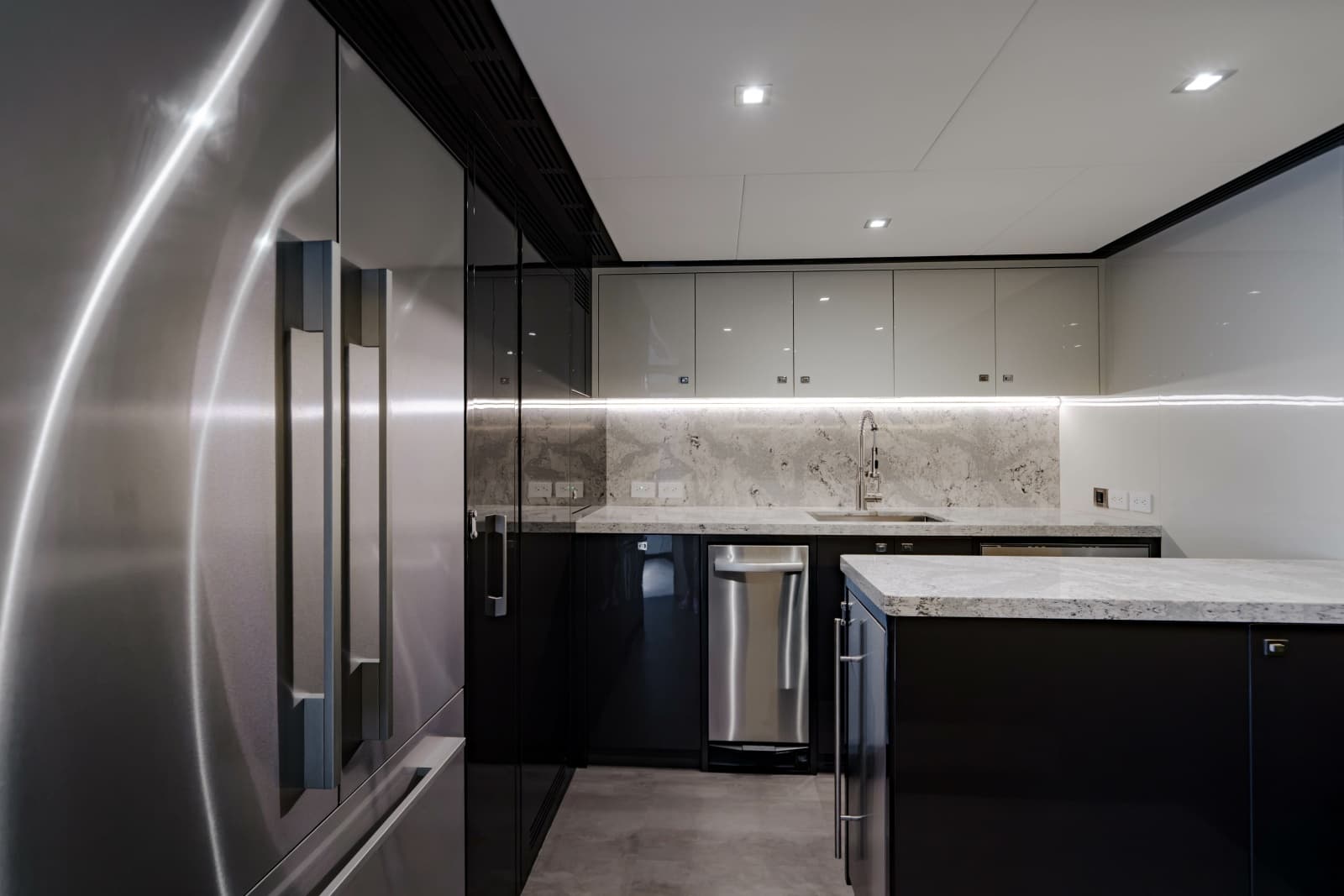

Galley

Wood paneled cabinetry with positive-latch doors.
Stone countertops.
Galley storage cabinetry w/ hidden hinges.
Franke professional series kitchen sink with pull out faucet.
30" Wolf electric cook top.
30" Wolf electric oven.
Fisher & Pakyel refrigerator with ice maker.
Scotsman Brilliance gourmet clear ice maker. Crystal-clean, odorless ice with unique ice cube shape won't clump or dilute drinks.
Whirlpool garbage disposal.
30" Viking over-the-range microwave with exhaust blower.
Asko dishwasher.
Whirlpool trash compactor.
Full height freezer.

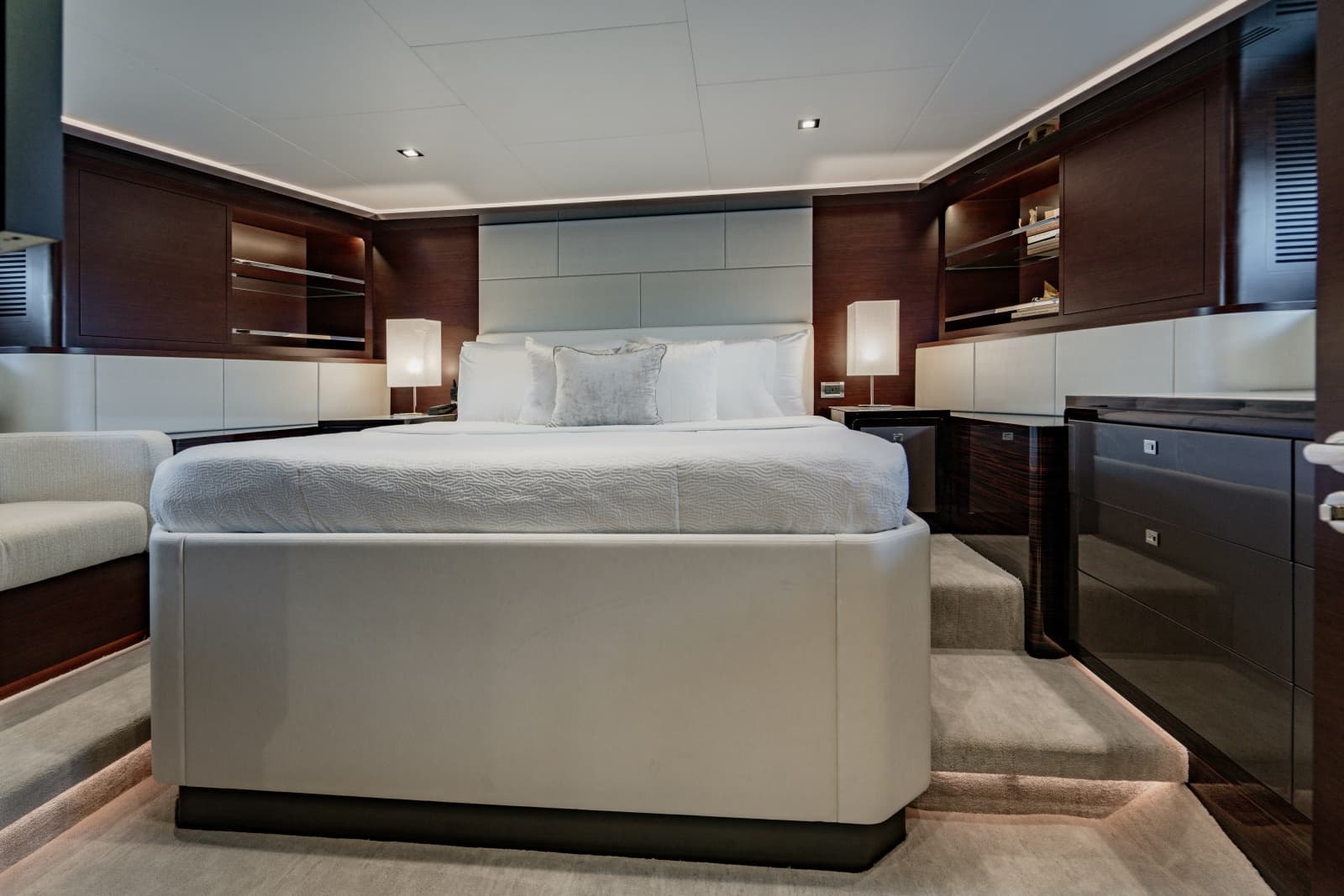

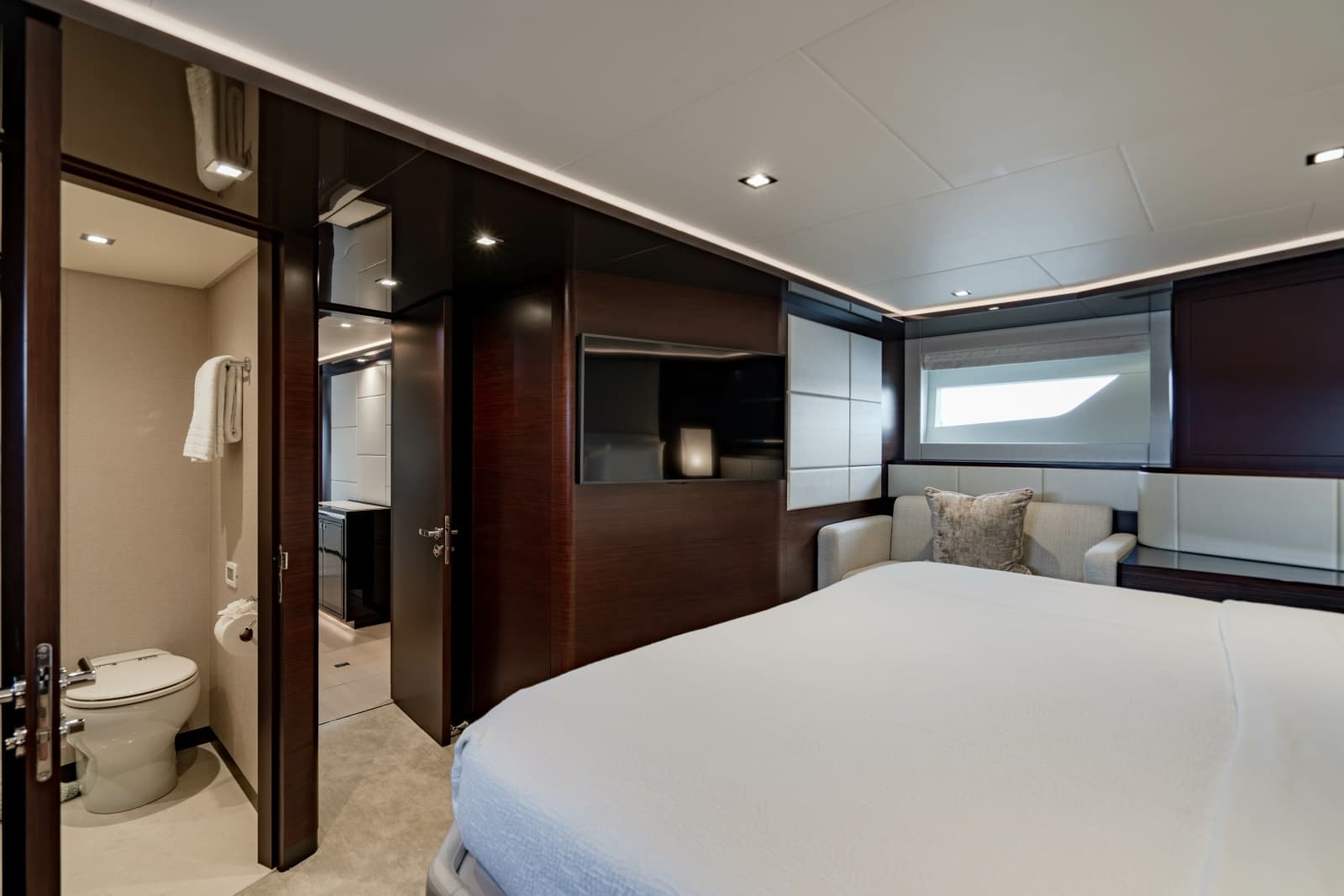

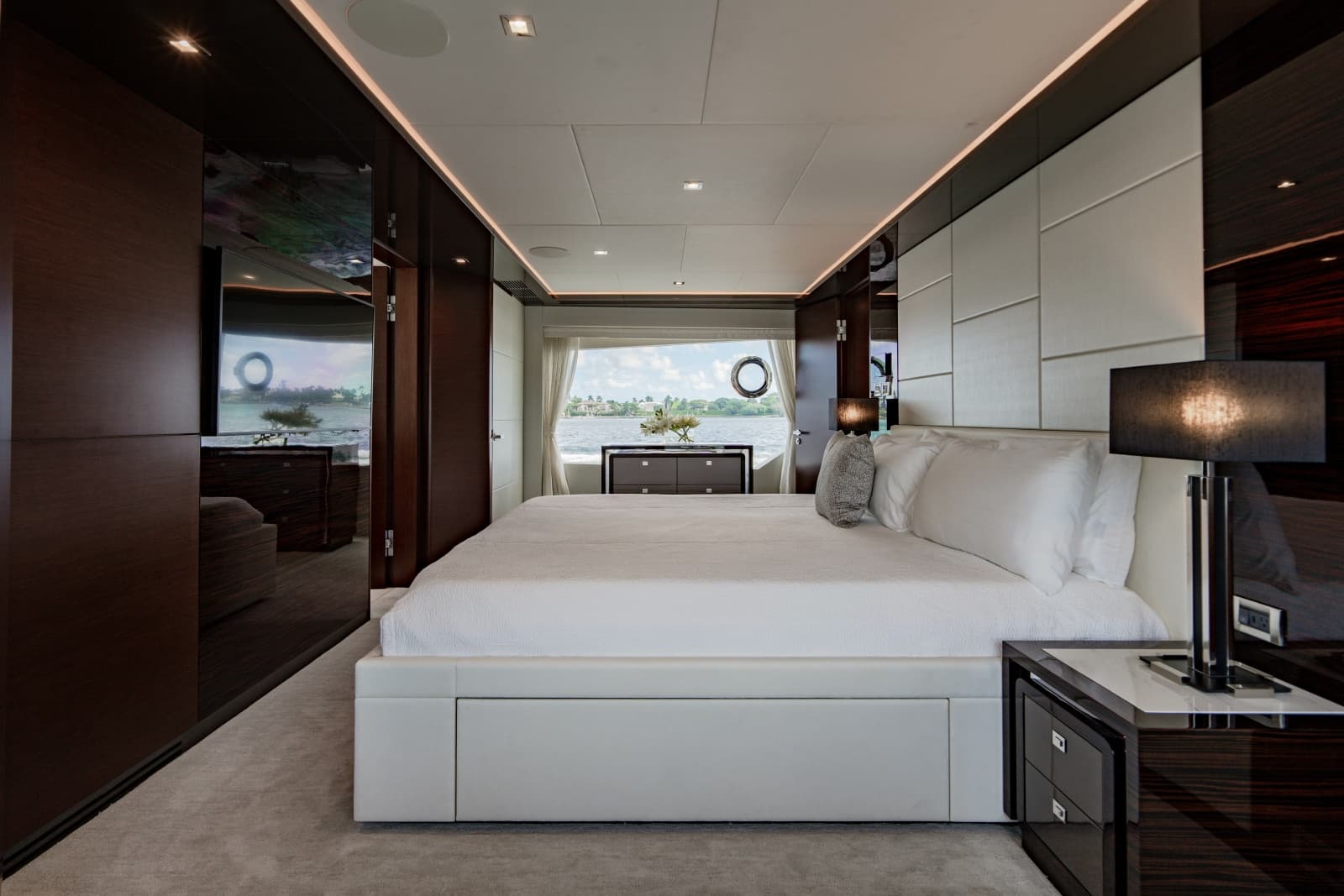

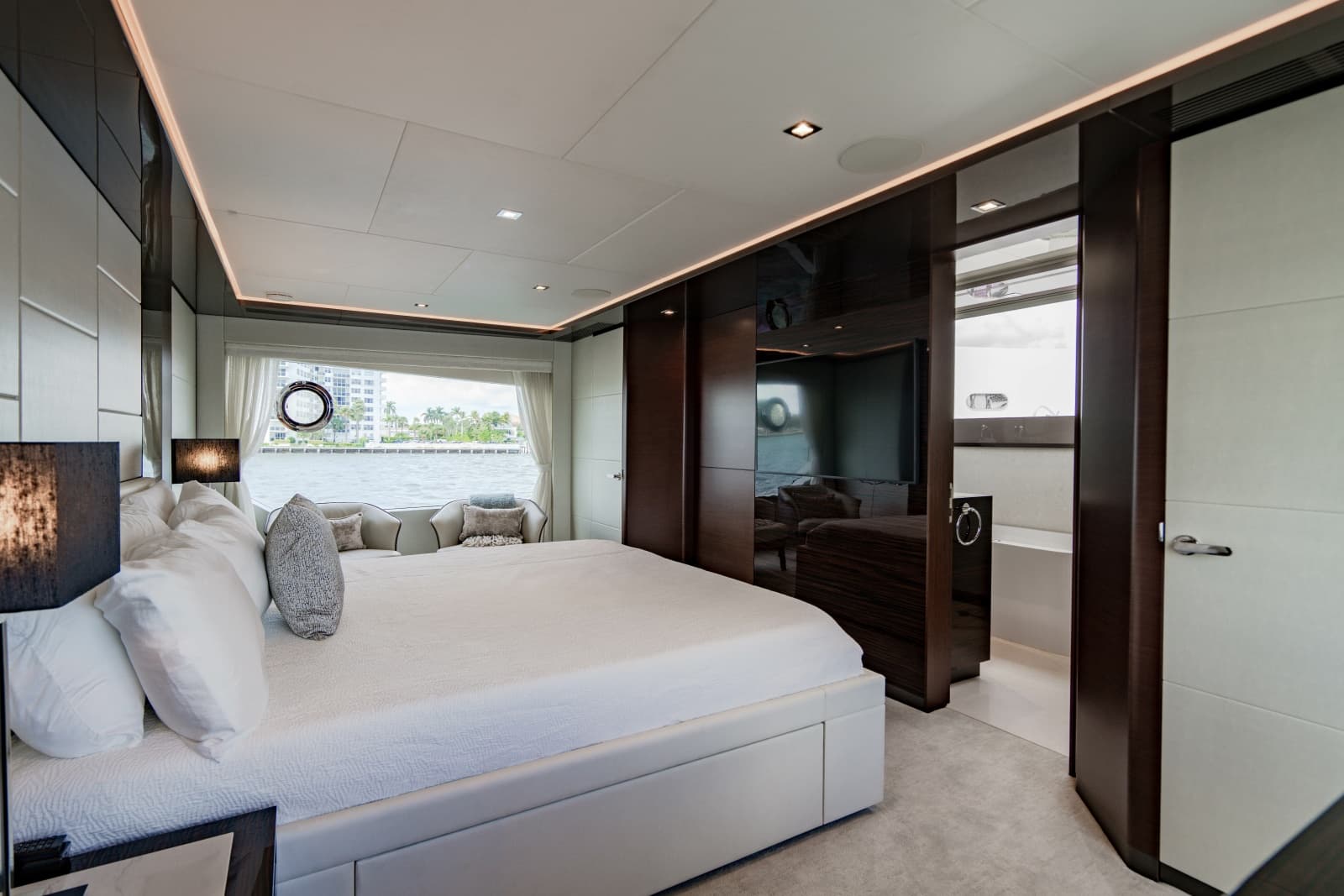

Master Stateroom

King-sized berth with independently coiled his & hers sections to ensure minimal transfer of movement.
Two nightstands with stone countertops.
Walk-in closets on both sides of stateroom (featuring hidden safe for valuables).

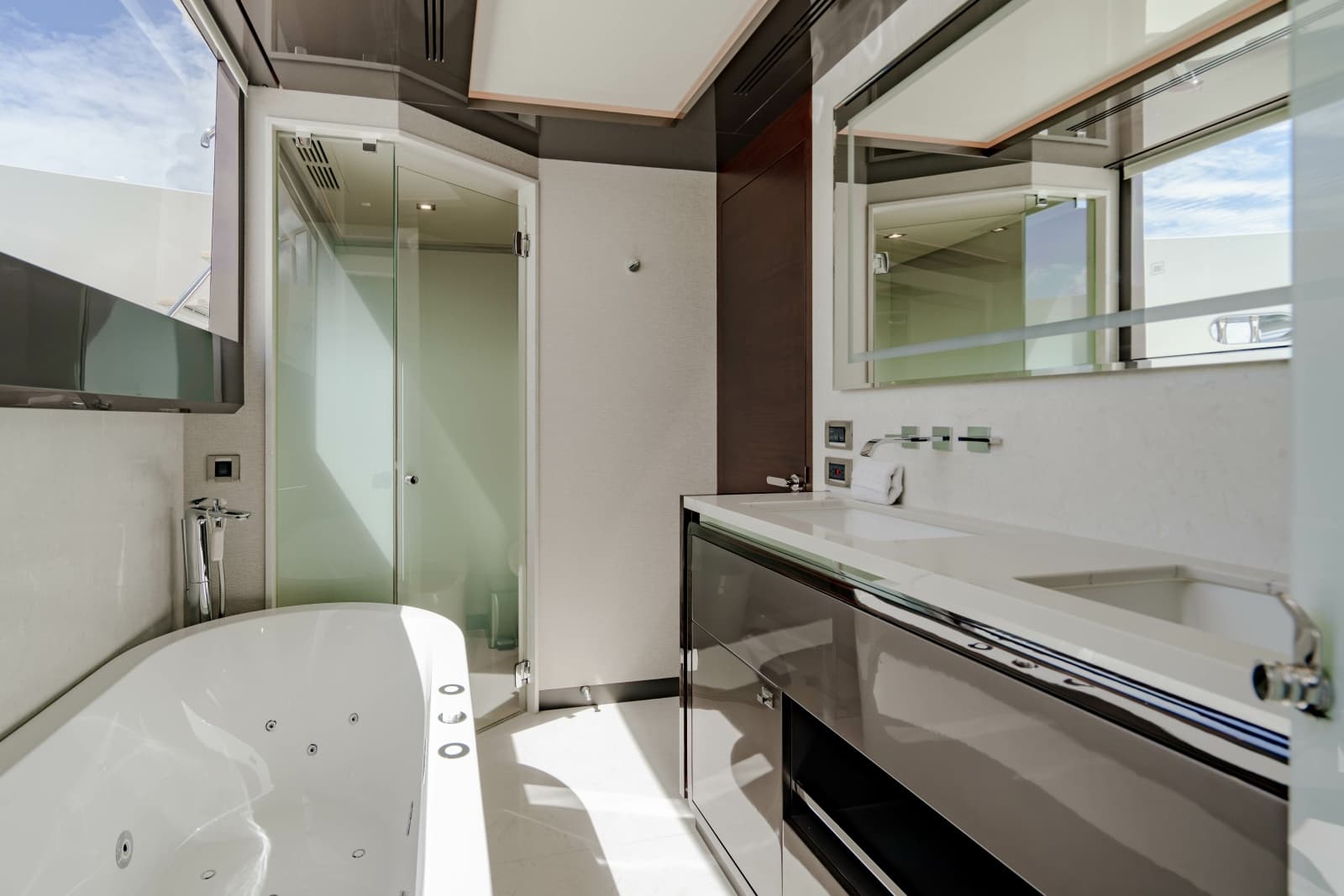

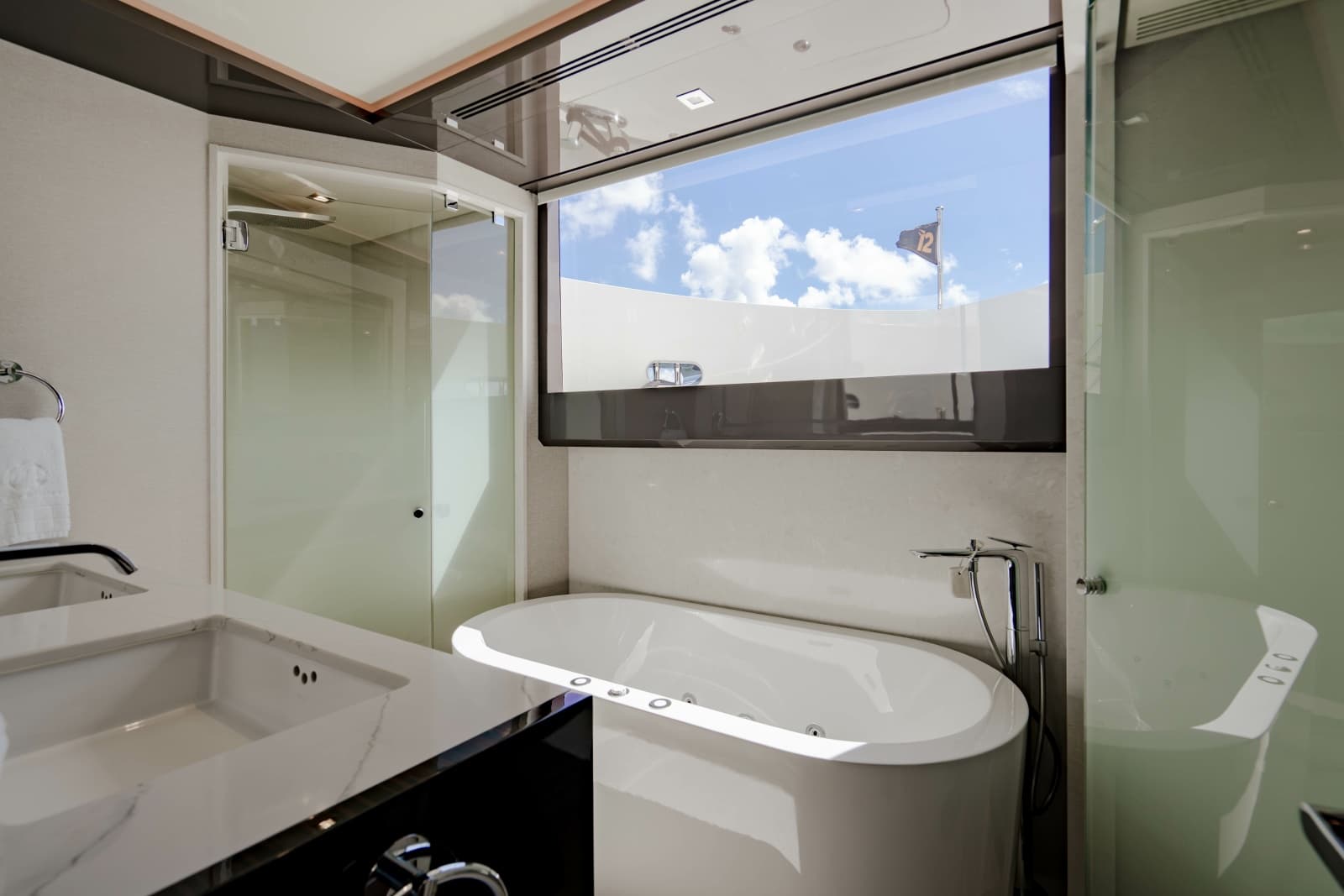

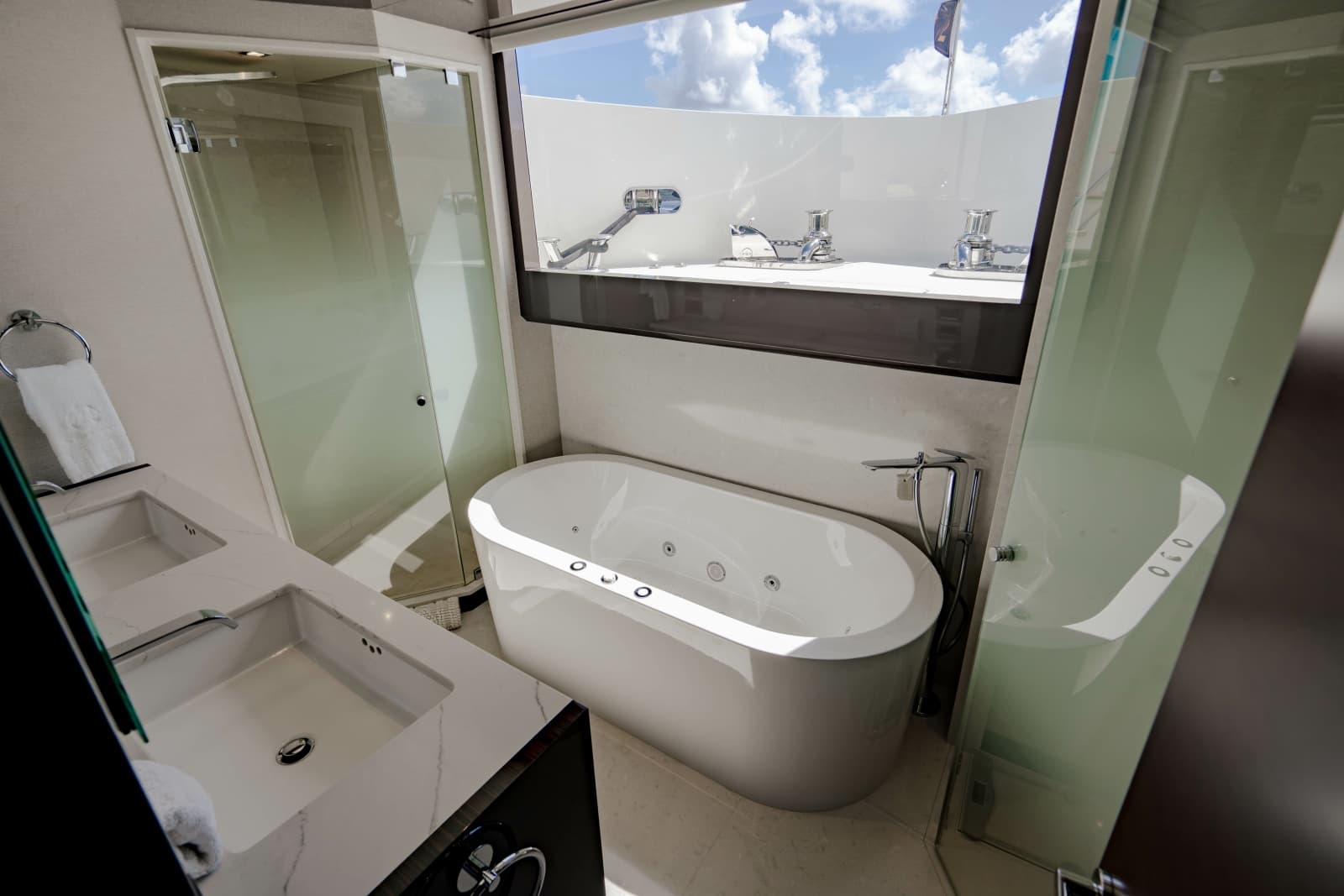

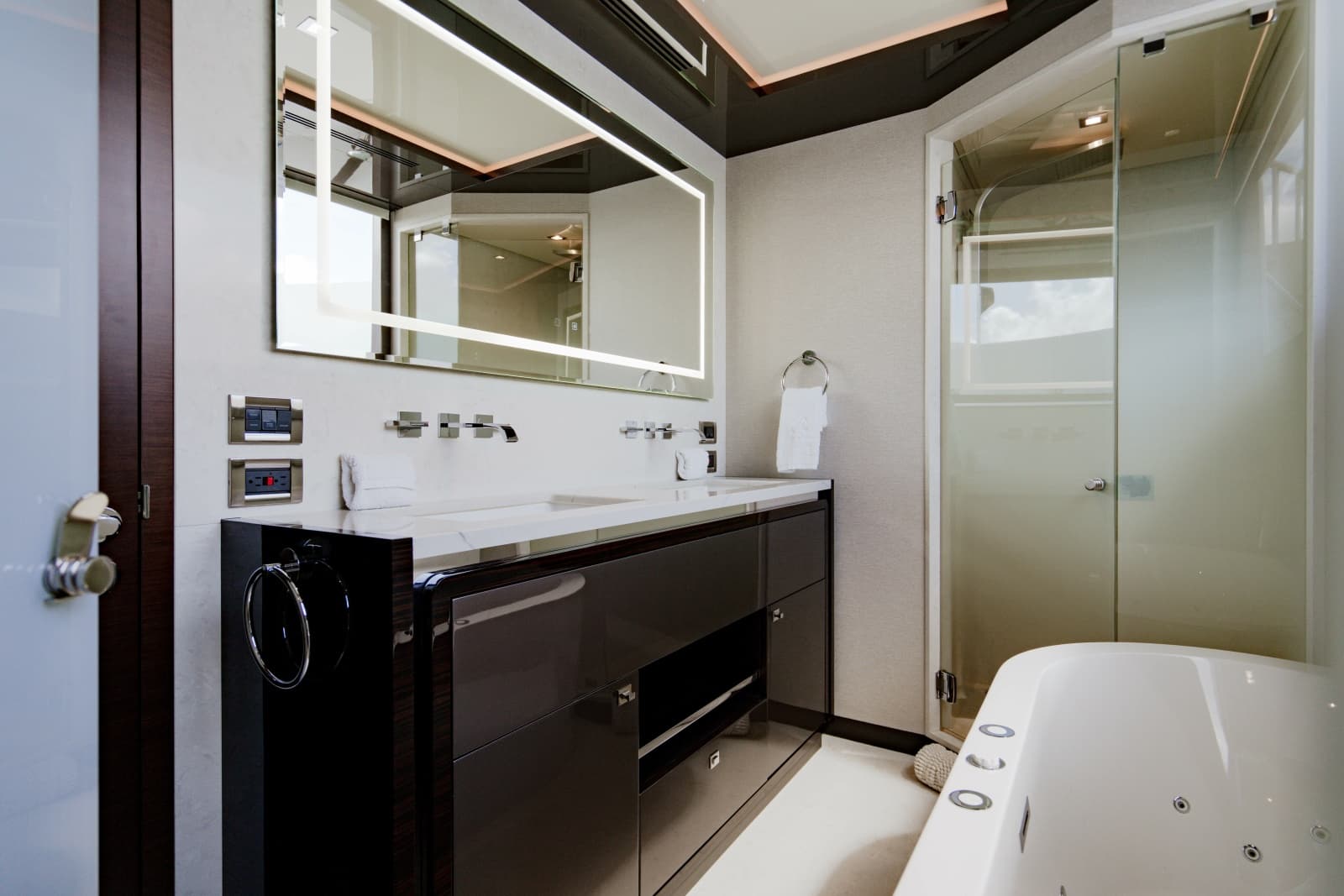

Free standing Jacuzzi tub.
Electric Shades with remote control.

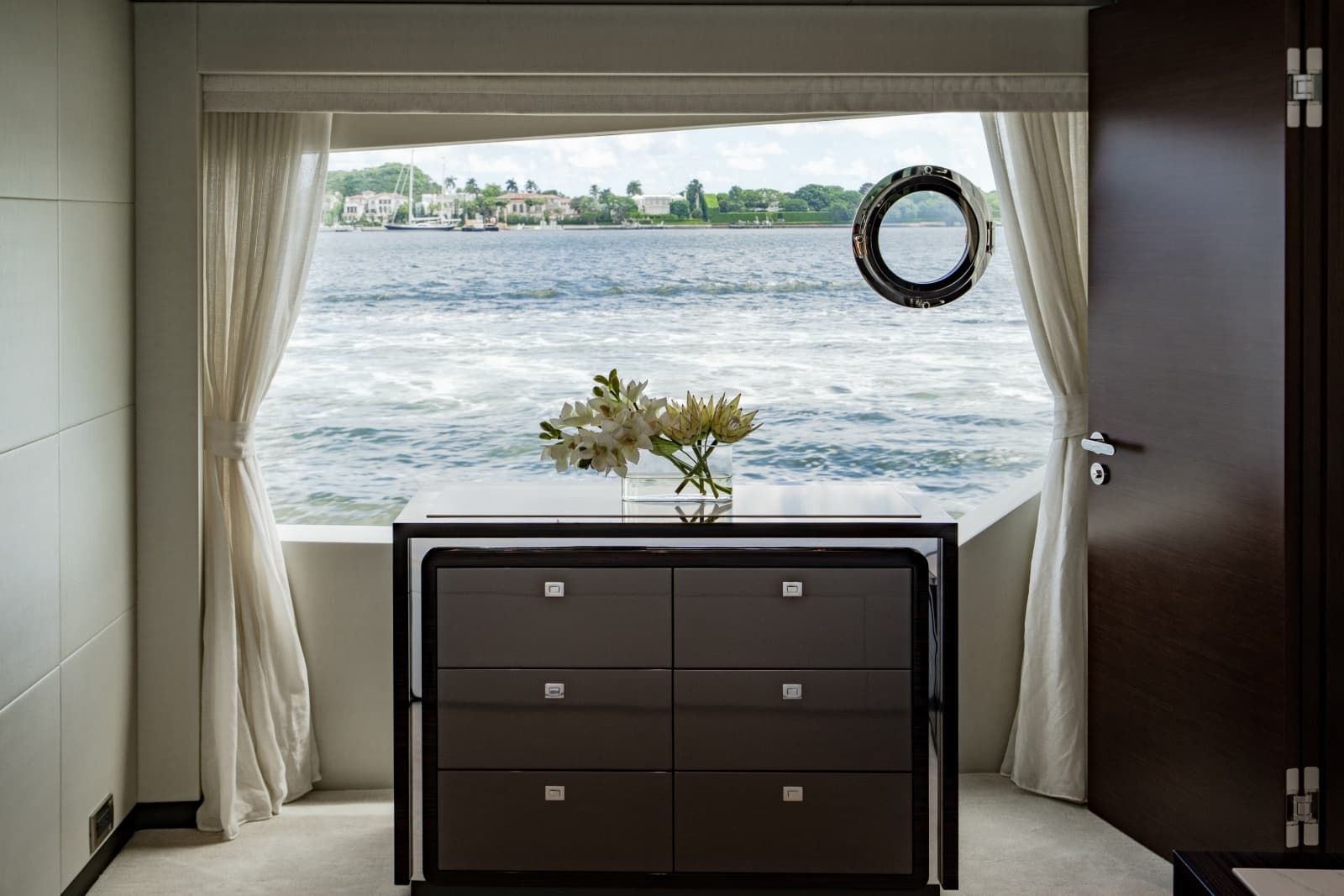

Bureau with chest of drawers in lieu of make-up desk in master.
Heated stone floors in Master bathroom TOTO toilet (1 x for Master). Tornado Flush technology with auto flush, lid closing , heated seat adjustable spray and 3-mode washlet air purifying system with remote control.

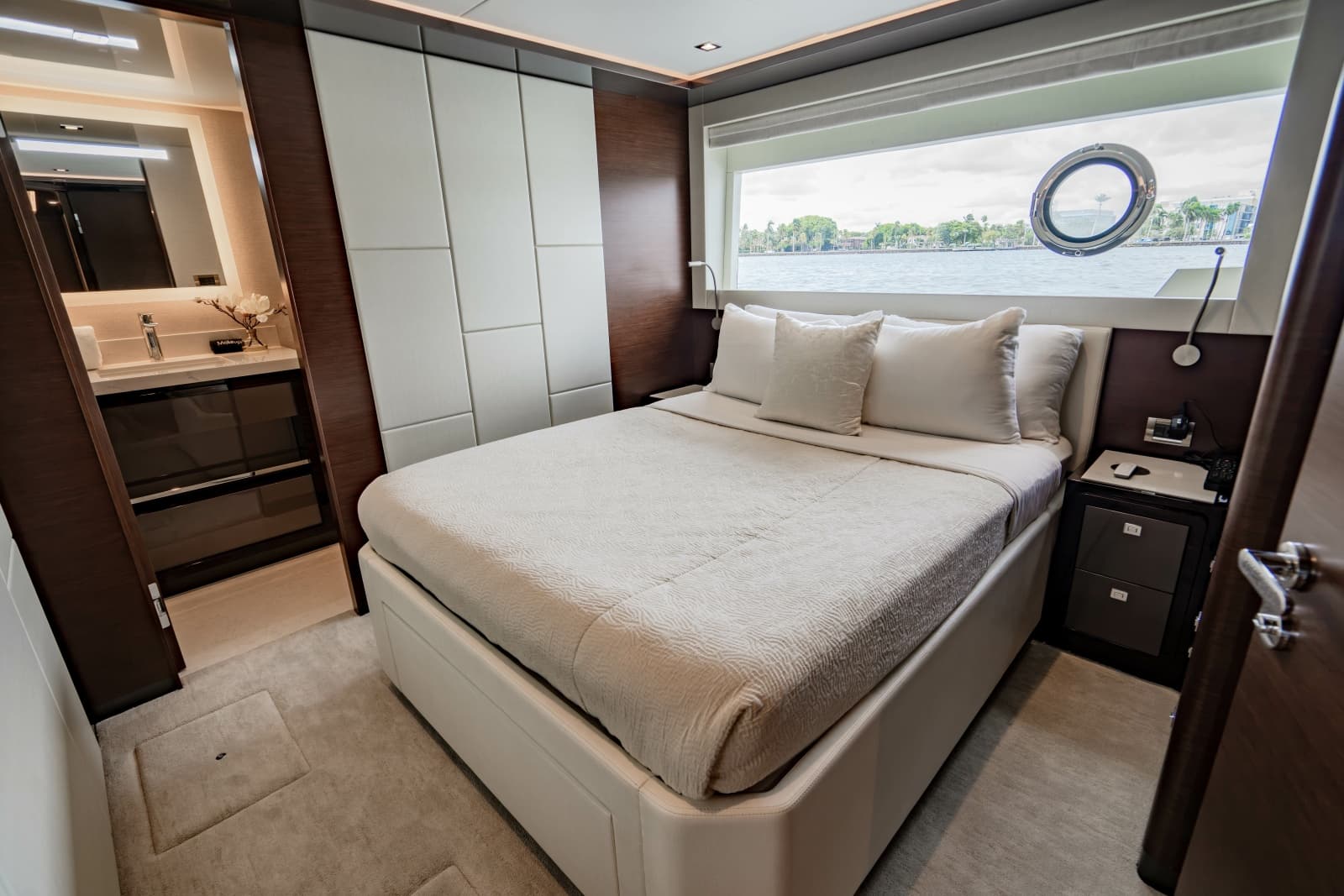

VIP Staterooms

Queeen-size berth with innerspring mattress and storage beneath.
Nightstands with drawers.
Dressing mirror.
Hanging locker with automatic lighting.
Privacy locksets.

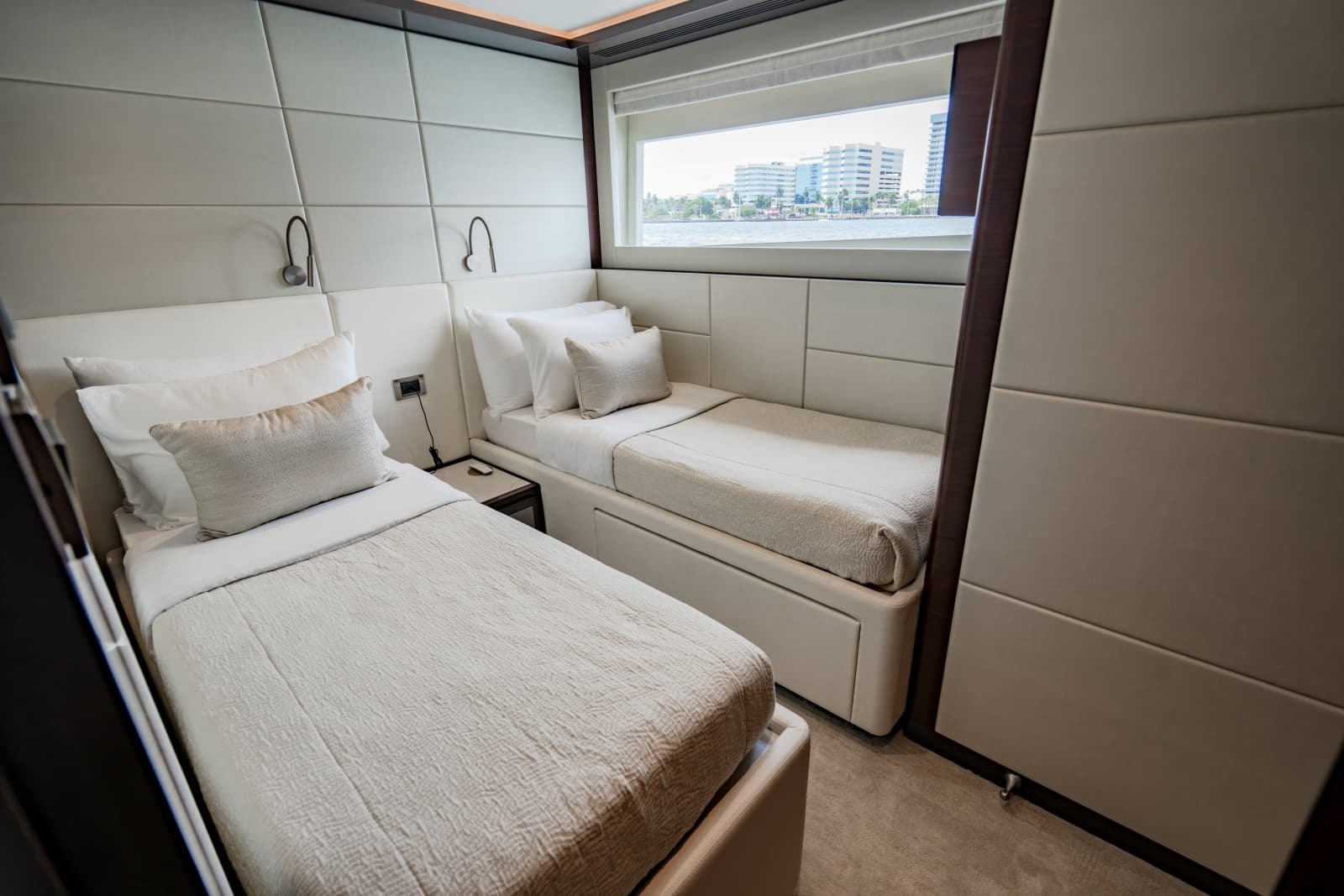

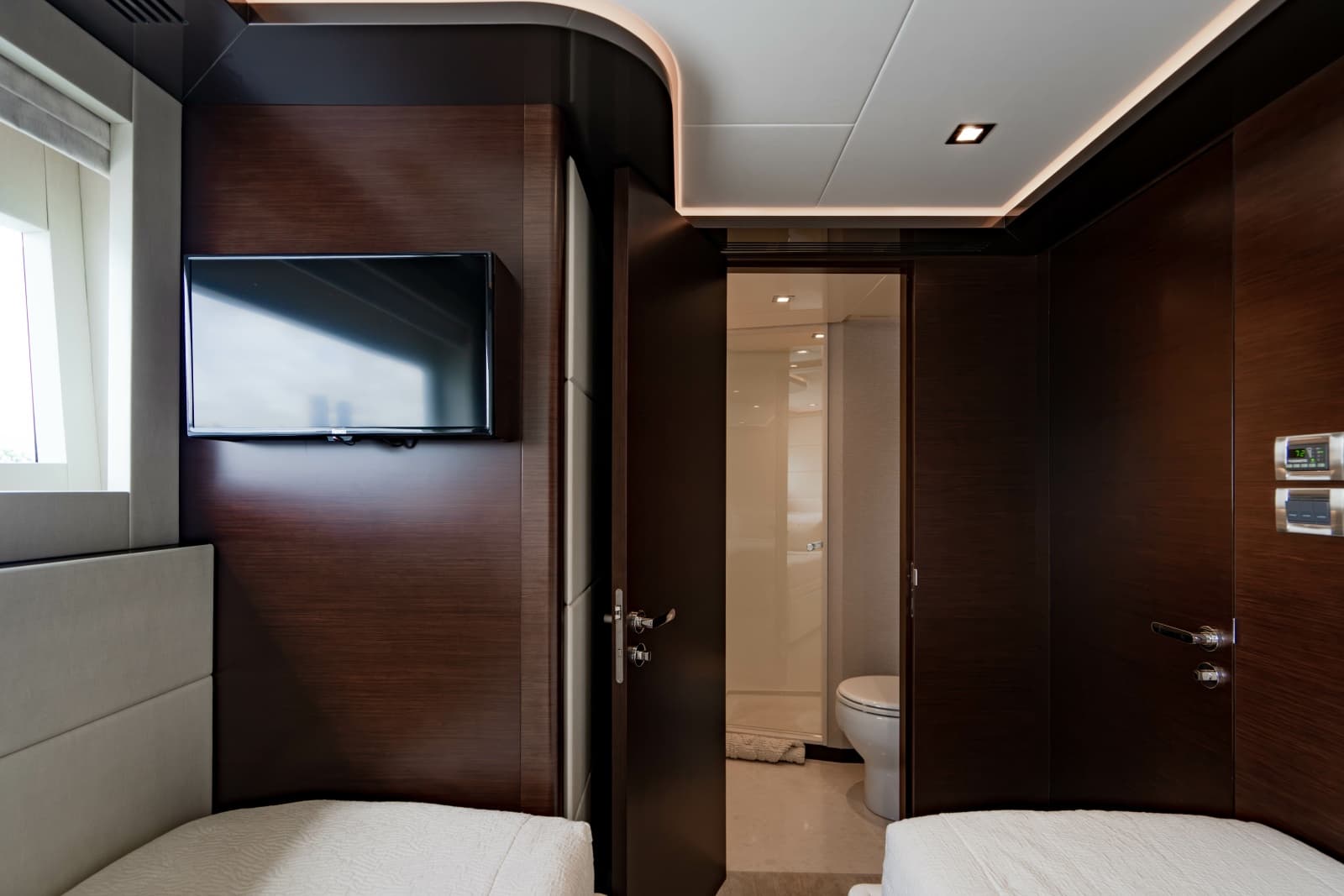

Guest Stateroom

Twin size berth with innerspring mattress and storage beneath.
Side-by-side berths can slide together and convert to single berth.
Nightstands with drawers.
Dressing miror.
Hanging locker with automatic lighting.
Privacy locksets.

Beach Club

L-shaped settee.
Cabinet including wet bar, sink, refrigerator and ice maker.
Dedicated air conditioning.
Sliding glass transom door.

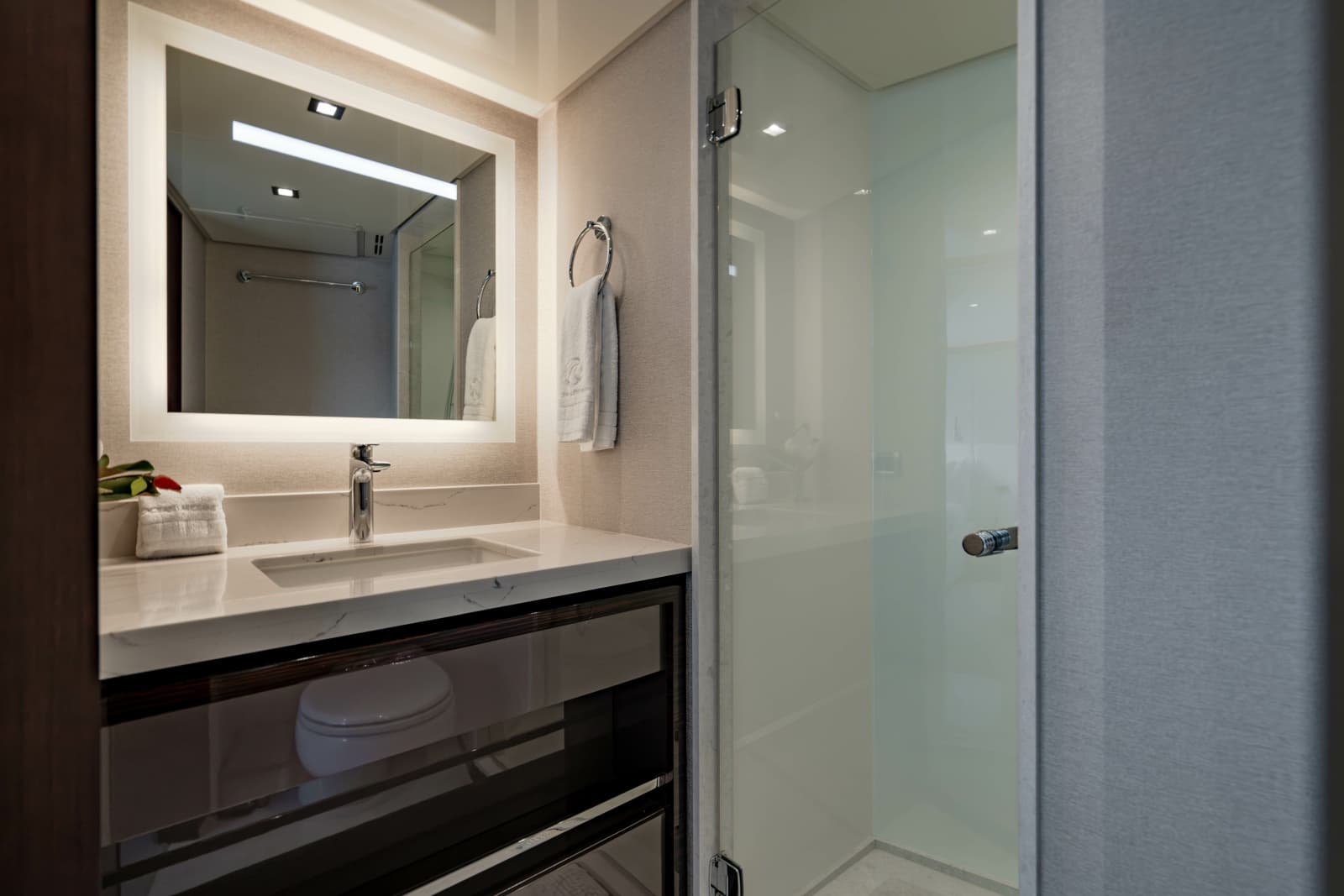

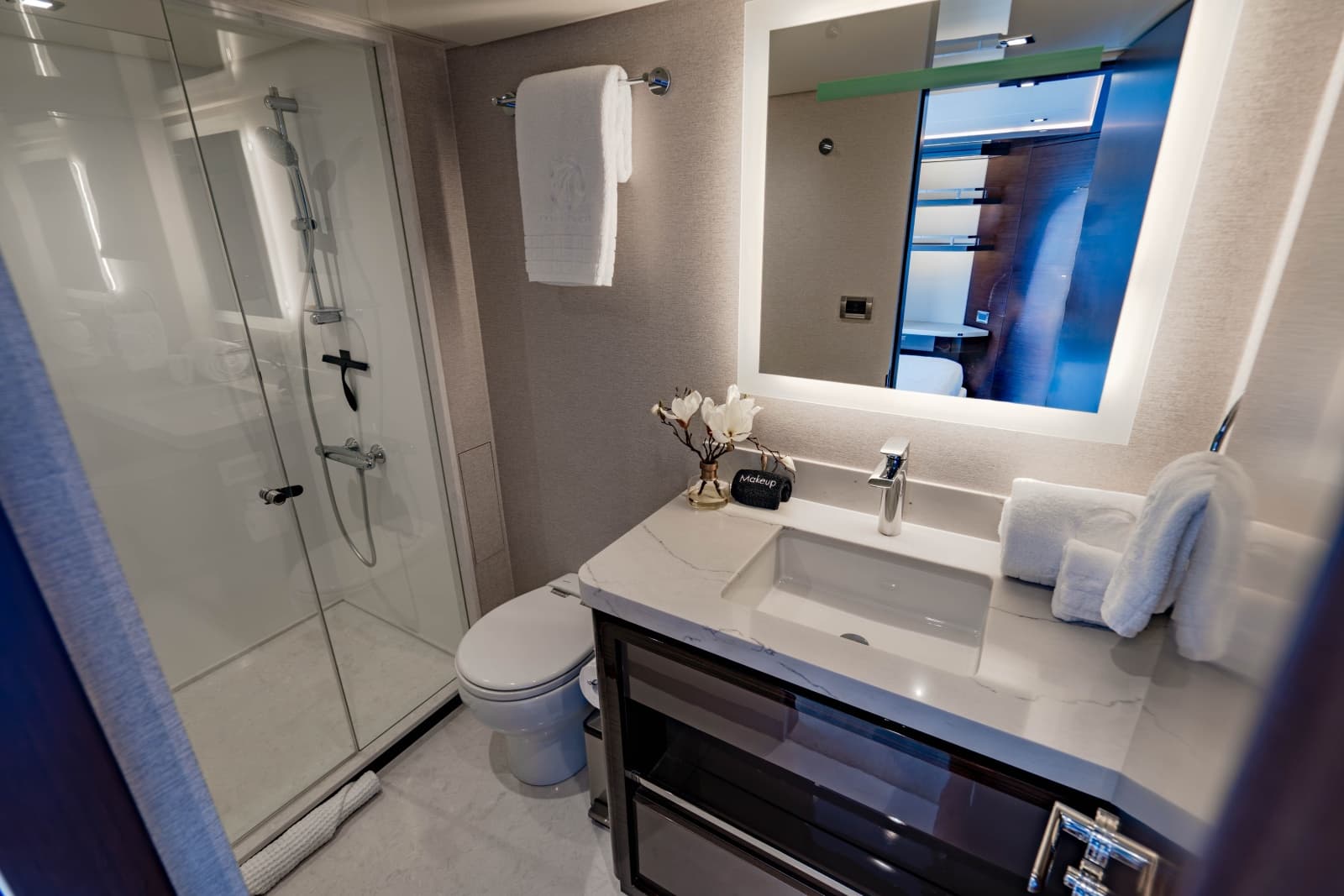

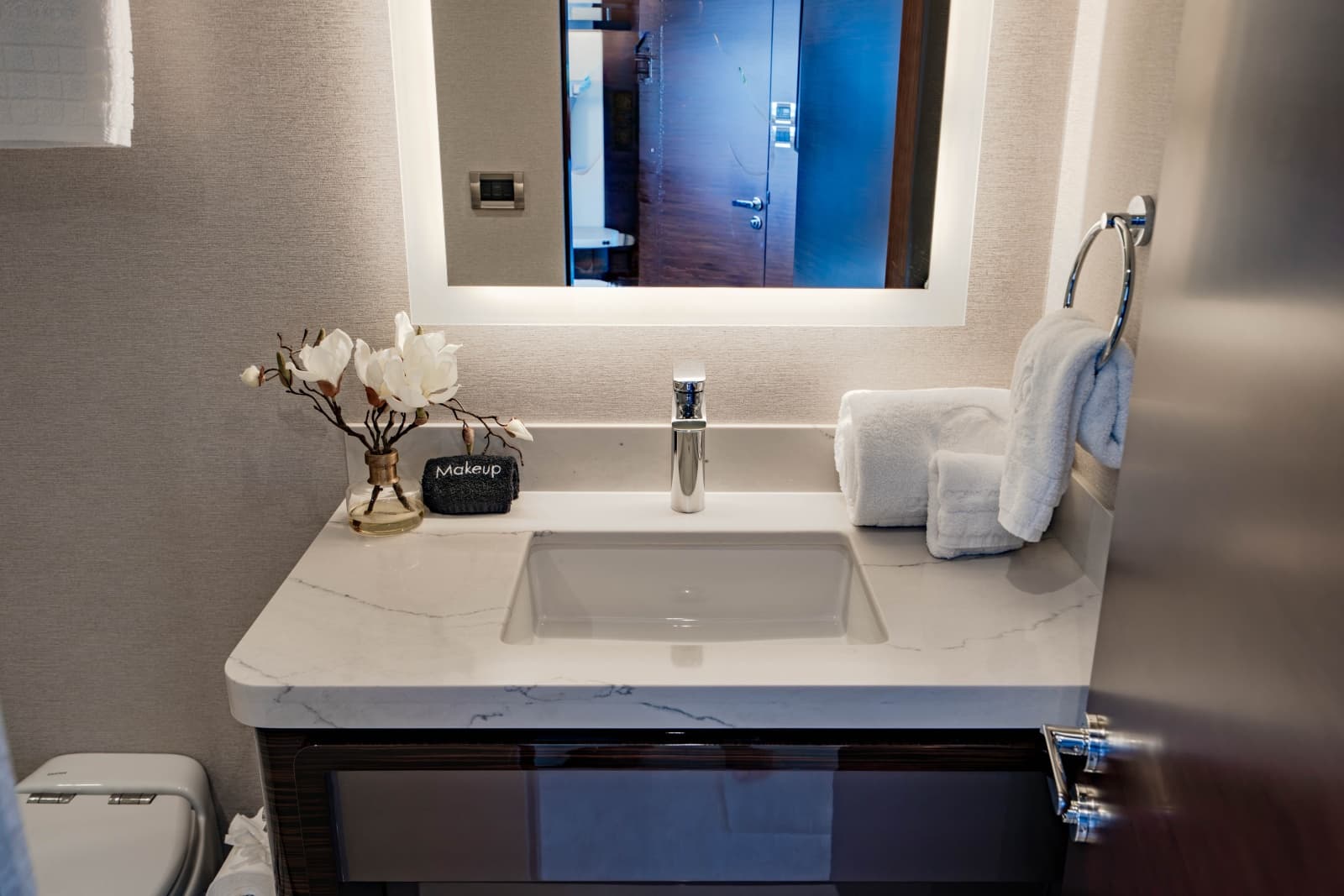

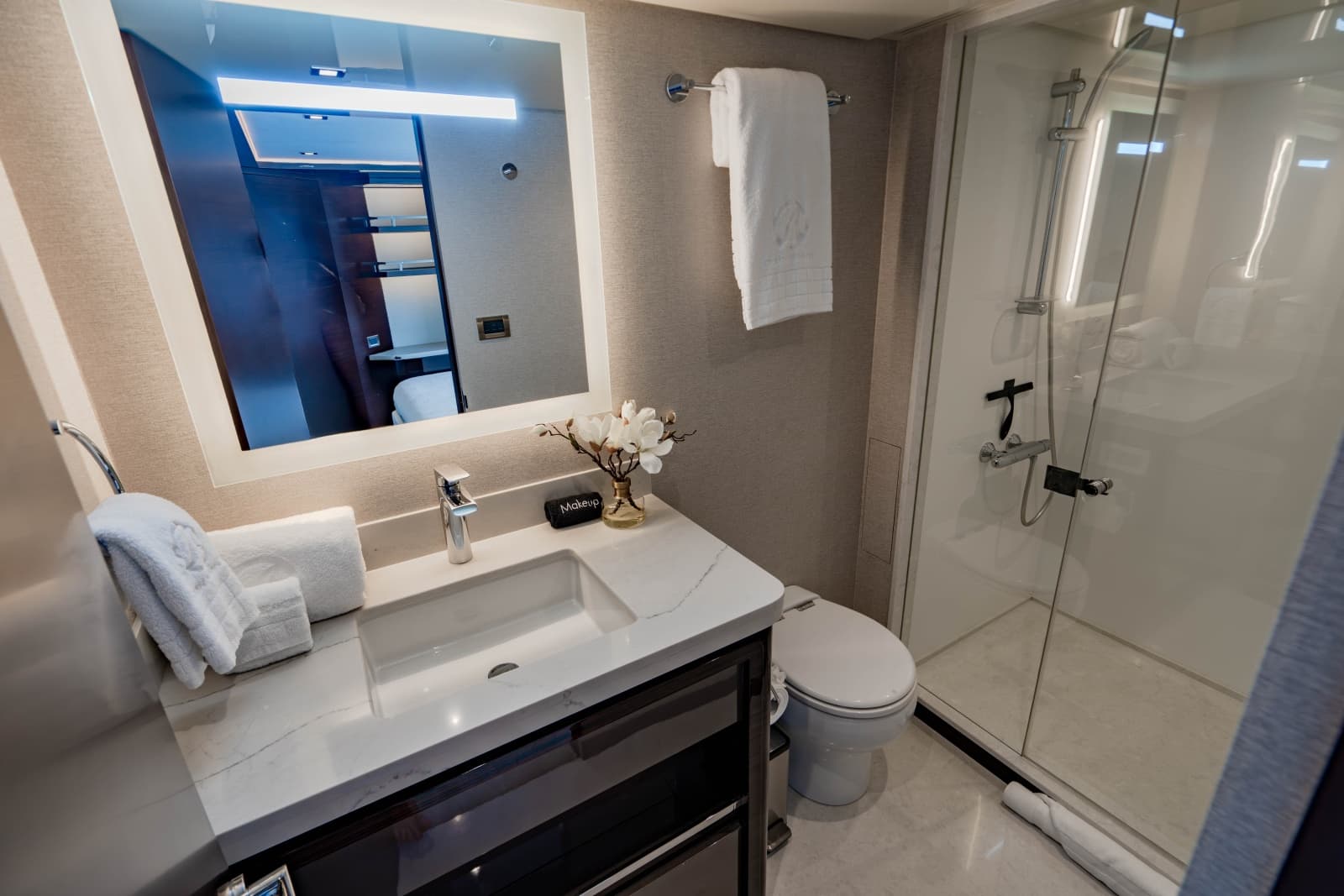

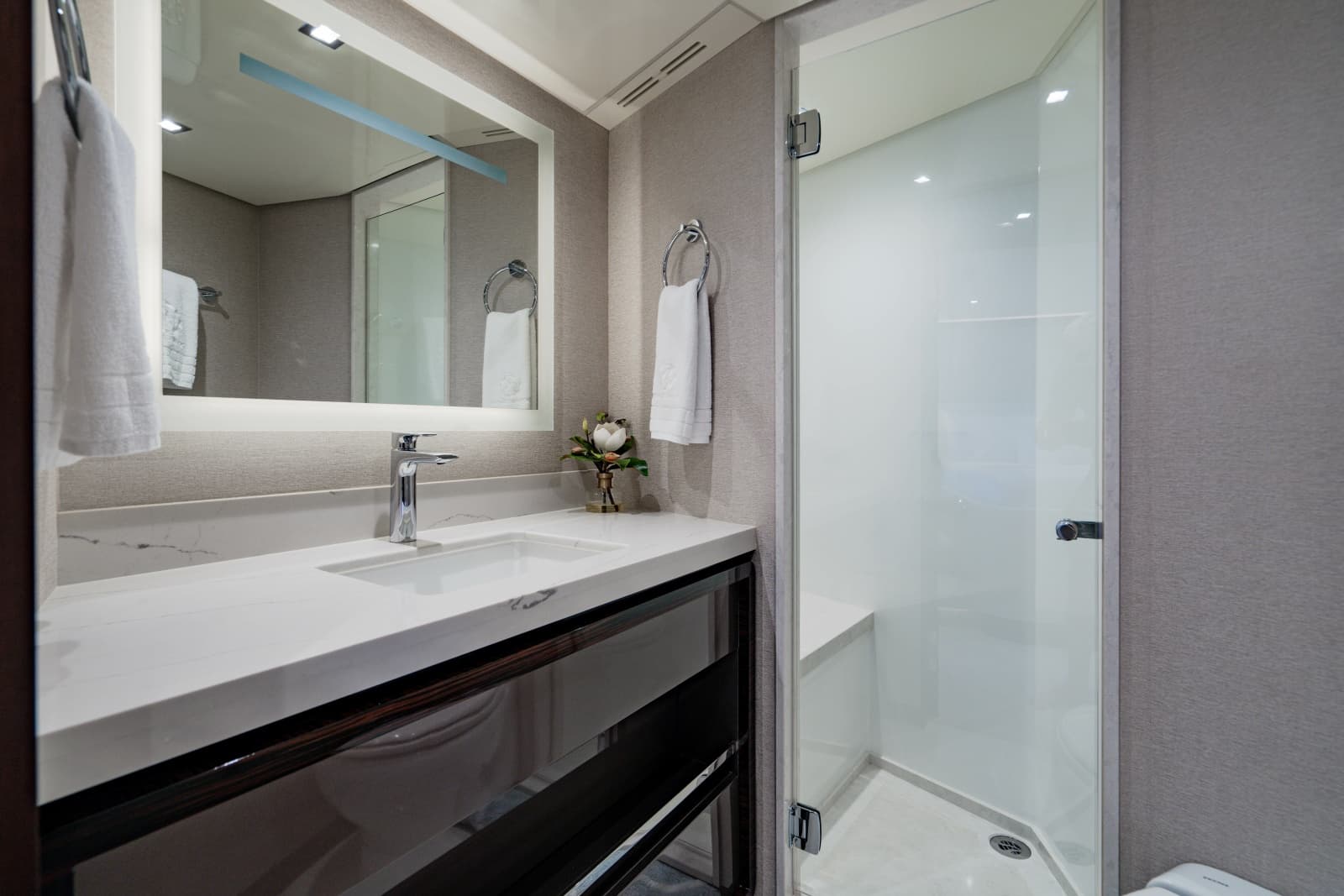

Heads

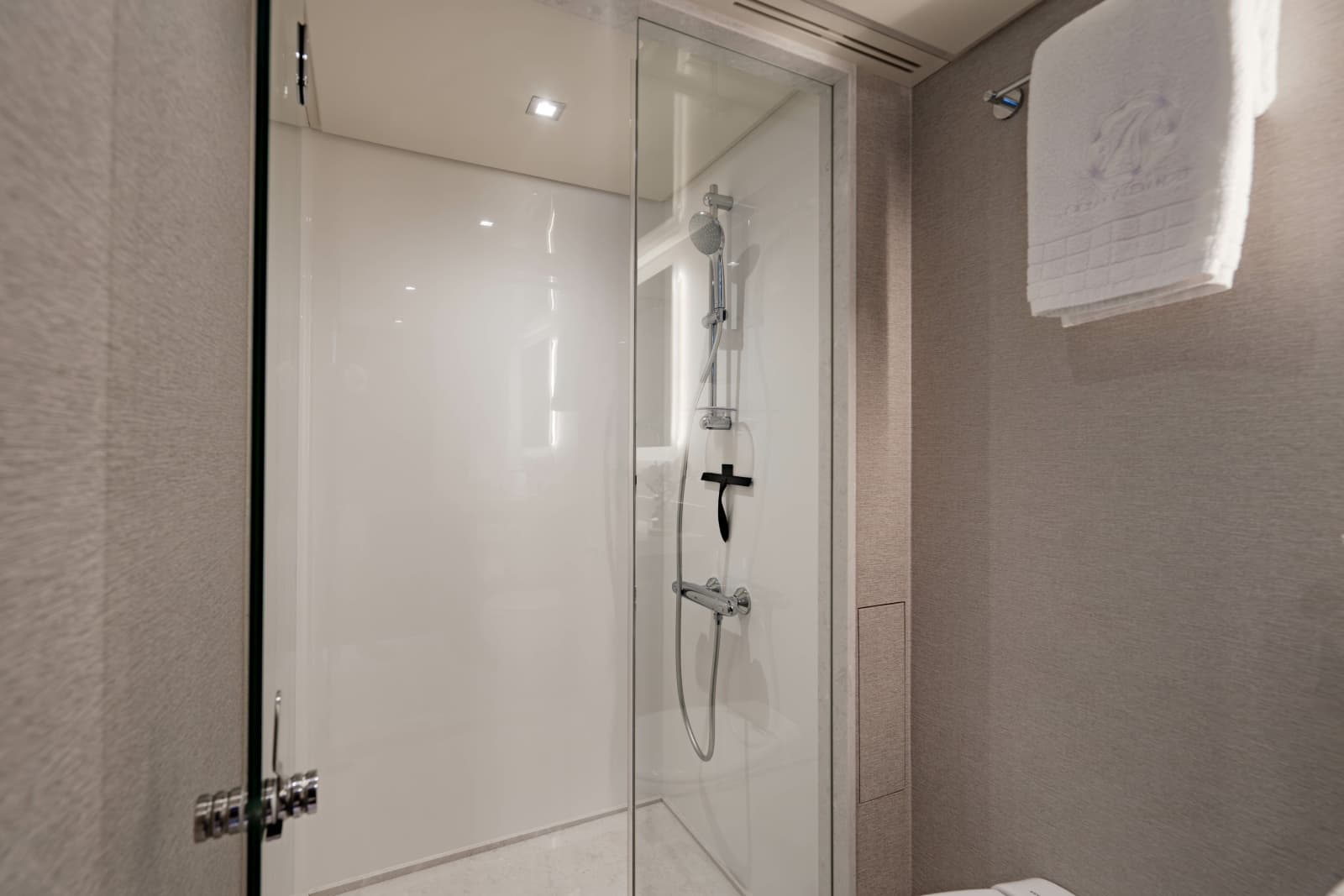

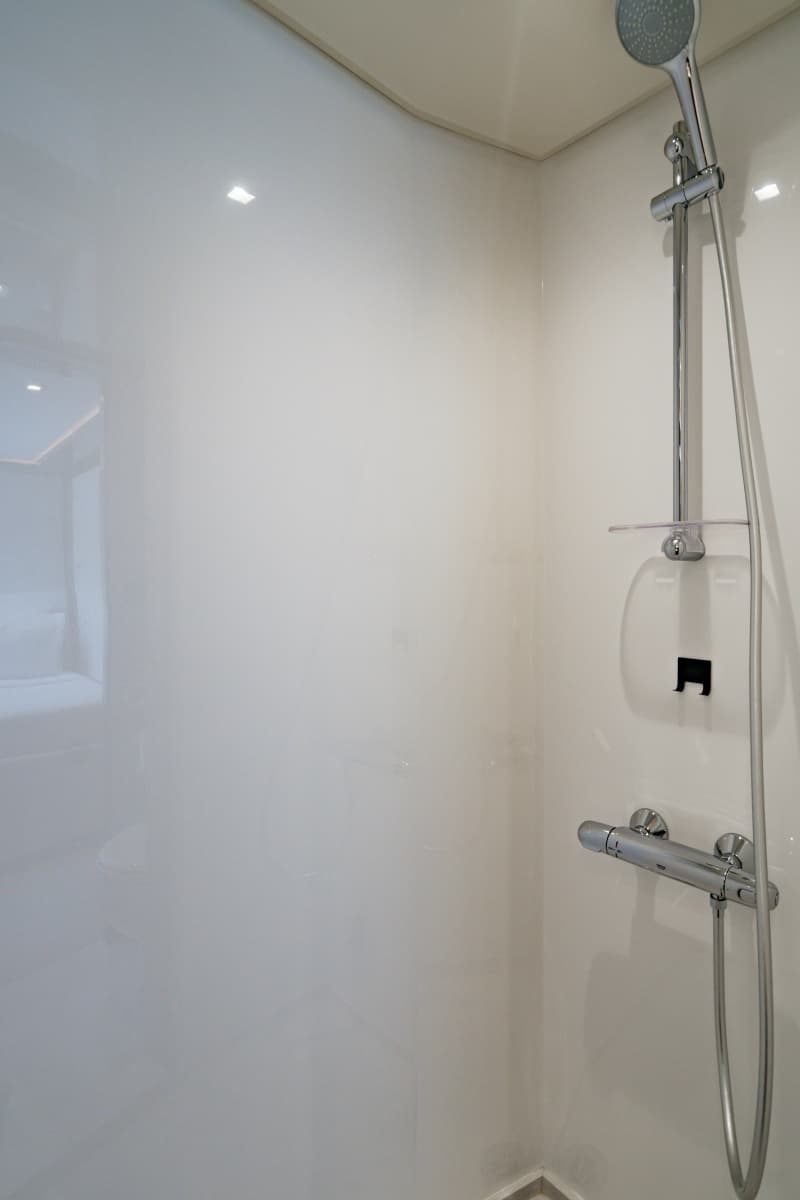

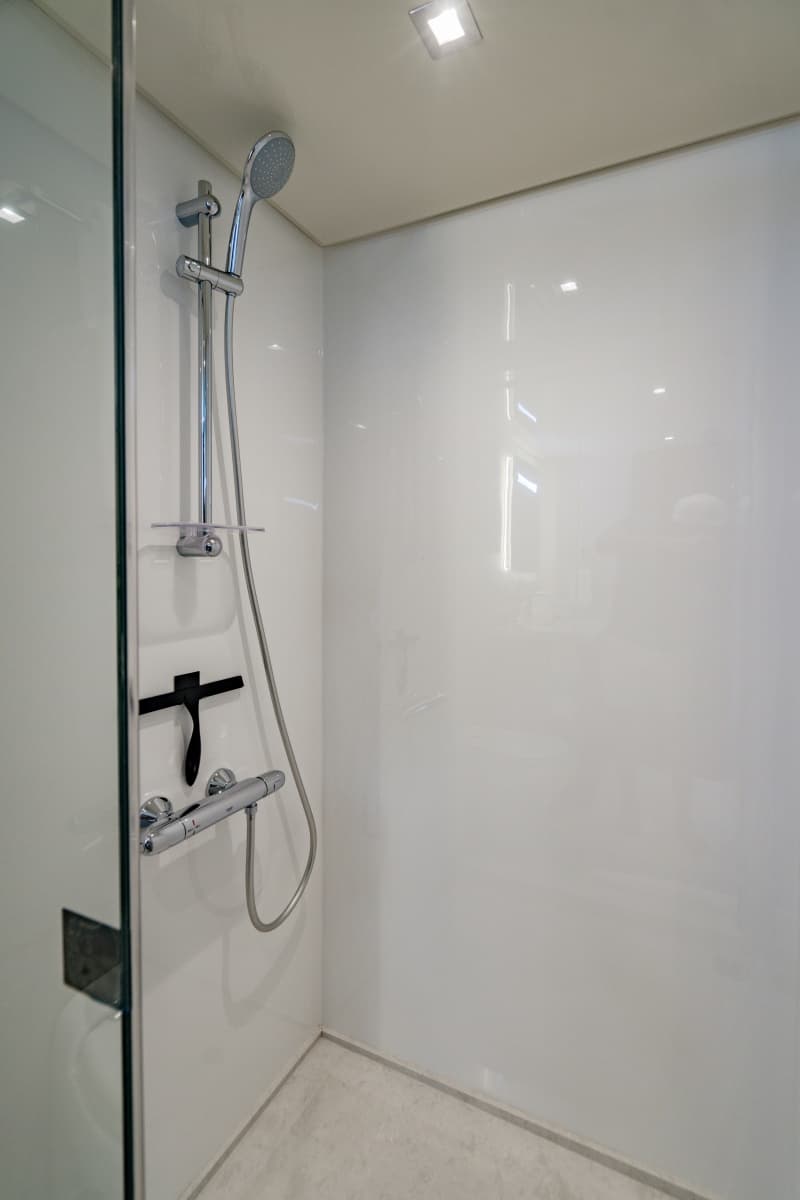

Custom-made seamless fiberglass stall shower w/ one-piece glass door. Reduce mildew by providing a clean, easily disinfecting wipe-down surface.
Air extraction in each head by low noise extraction fans.
Tecma Marine toilet system throughout.

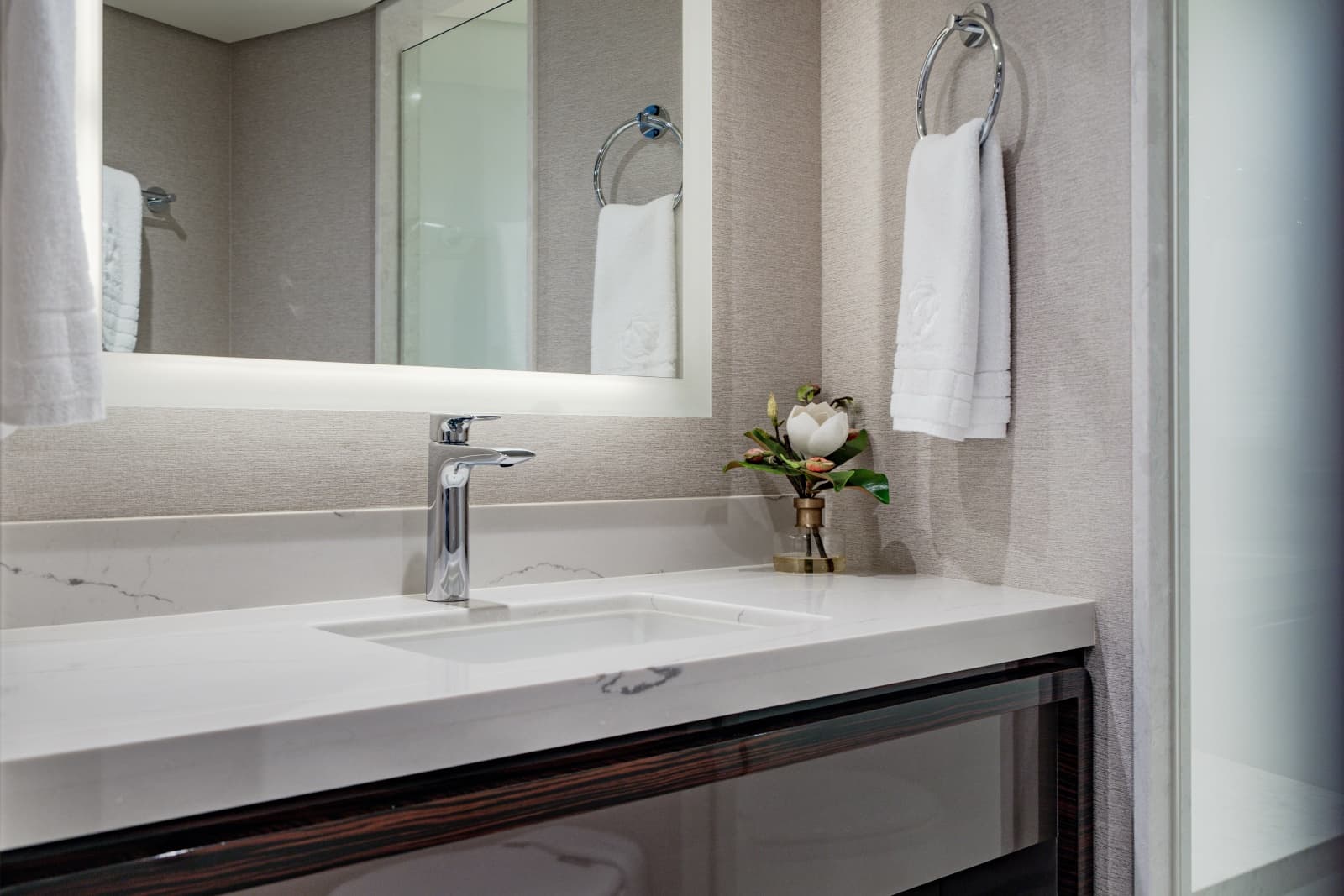

Stone countertops and back splash in heads with bone china sink.

Crew Quarters

Kitchenette (sink, microwave, refrigerator).
Storage locker in each crew stateroom.
Settee with table and storage below.
Three crew staterooms: captain and two high-low bunk staterooms.
Washer and dryer in crew.
Private head and shower.
Work bench and wet locker in crew.

Additional Features

Wheel puller for ship propellers.
1 x 16-person life raft.

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Borden & Associates Yacht Sales. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

This exceptional yacht has been meticulously maintained and thoughtfully upgraded, with a strong emphasis on mechanical reliability, performance, comfort, and presentation. She has benefited from an extensive list of recent service and improvements, making her a truly turn-key vessel for her next ow
