Description

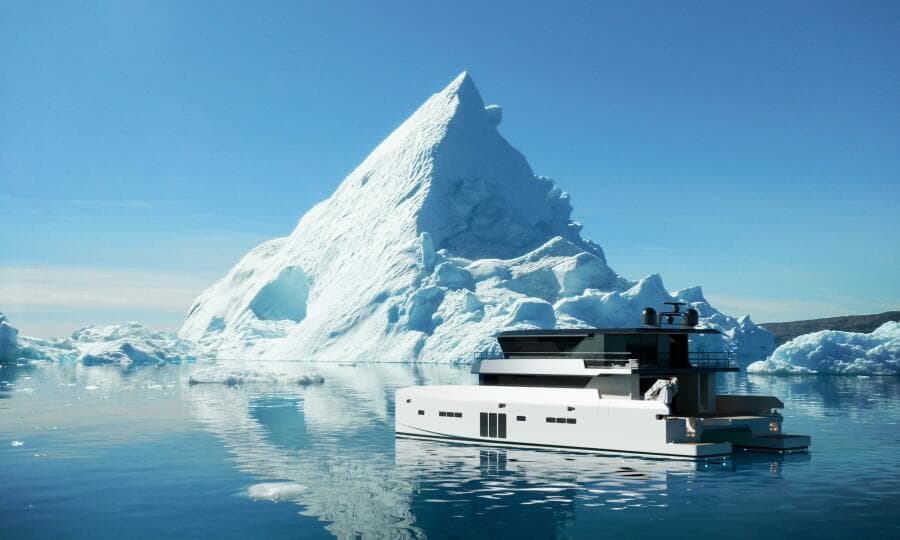

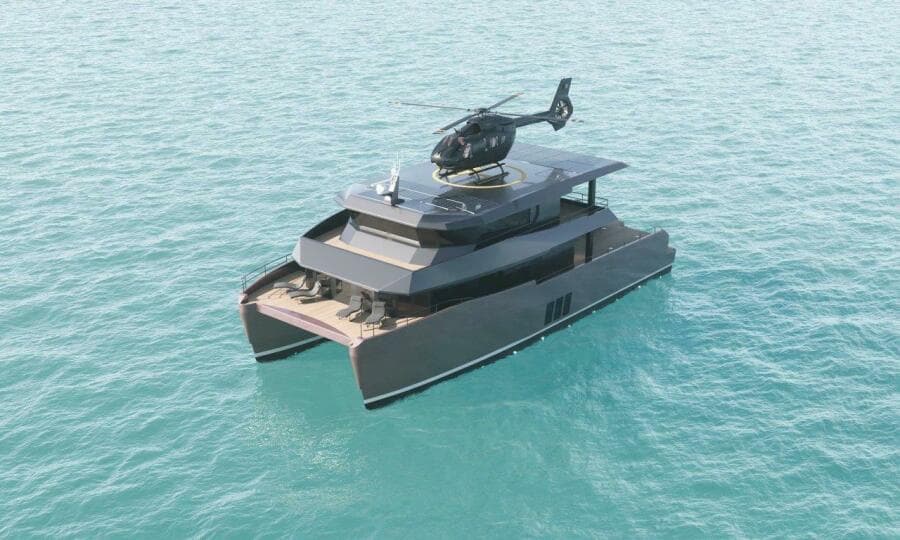

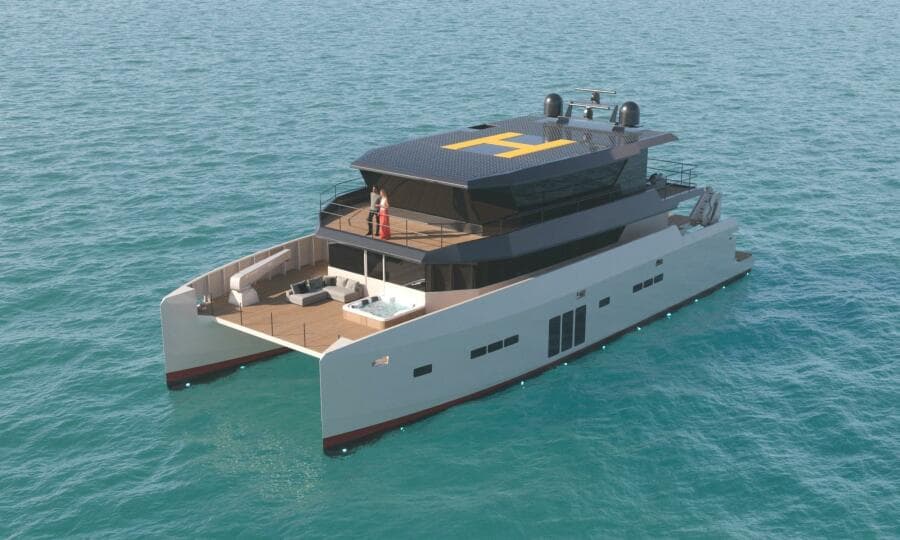

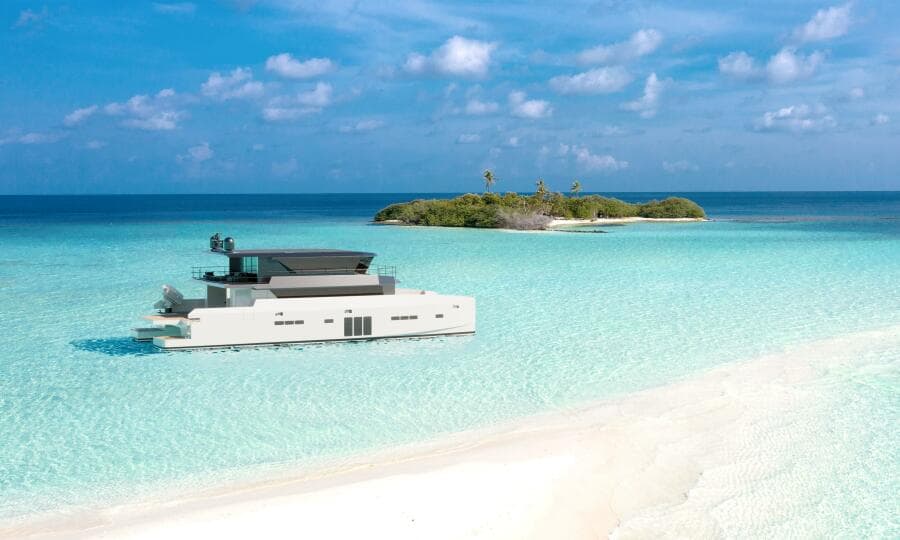

First in the series of global exploration power cats. Currently under construction with an estimated delivery date of early 2027. There is still a chance to customize this to your own requirements. Designed for off grid exploration, the A80 has the range, handling, and space. With Hybrid propulsion, a sophisticated electronics/security package, and the ability to land a helicopter, where do you want to go?

Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Luke Brown Yachts. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel

Overview

UNDER CONSTRUCTION

Key Specifications

LOA80'

Beam36'

Draft Max4' 2"

TypePower

Hull MaterialAluminum

FuelDiesel

Tankage

Fuel2642 gal

Water264 gal

Registration & Documentation

In StockNo

Engines

MAN i-6-850Inboard

MakeMAN

Modeli-6-850

TypeInboard

Fuel TypeDiesel

Power850 HP

LocationPort

MAN i-6-850Inboard

MakeMAN

Modeli-6-850

TypeInboard

Fuel TypeDiesel

Power850 HP

LocationStarboard

Full Details

Standard Layouts

Master Cabin + Four (4) VIP Guest cabins + Crew cabin
Master Cabin + Three (3) VIP Guest cabins + Crew cabin + Captain's cabin

Main Machinery, Propulsion, and Maneuvering Equipment

PROPULSION:

(2) MAN i6-850 main engines, 850 hp/ 625 kW each
(2) Stainless steel propeller shafts with dripless shaft seals and spare seat
(2) Bronze Veem ﬁxed pitch 5-blade propellers with interceptor adjustment blades
Set of propulsion, helm, and speed control panels with levers in upper wheelhouse

POWER SUPPLY SYSTEM:

(1) Marine type generator set (19,0 KVA, 230 VAC @ 50 Hz, single phase

RENEWABLE ENERGY SOURCES:

Set of Solar panels across the entire roof area, giving c.20kW installed power

RUDDERS AND STEERING SYSTEM:

(2) Bronze rudders
(2) Rudder stocks, stainless steel
(2) Sets of self-aligning lower and top bearings
(2) Emergency tillers
Set of Electro-Hydraulic steering system

MANEUVERING EQUIPMENT:

(2) Proportional Sleipner 48V DC bow thrusters
(2) Proportional Sleipner 48V DC stern thrusters
Dockmate system with Dynamic Positioning (DPS)

Deck Equipment

ANCHOR EQUIPMENT:

(2) Quick windlass 3000w, 230 VAC
(2) Galvanized anchor 75 kg VQR, plus 50m 14mm galvanized chain and 100m rode
(1) Emergency anchor 34 kg + 20m chain

MOORING EQUIPMENT:

(1) Mooring kit – 8 Fendertex inﬂatable fenders plus 4 mooring ropes
(2) Lewmar electrical mooring capstans aft
(1) Hinging swim ladder on the sugar scoops

Interior

INTERIOR DESIGN:

Personalized design including:

(2) Days with dedicated Archipelago interior designer
(1) Render of Salon
(1) Reder of Owner’s Cabin
(1) Render of Owner’s Head

FLOORING COVERING:

Laid timber strip synthetic ﬂoor in salon and wheelhouse
Decorative carpet in salon – design type TBA, removable

FURNISHINGS AND INTERIOR OUTFITTING:

Set of galley and household appliances as listed (Siemens or Bosch):

(1) Refrigerator with freezer
(1) Dishwasher
(1) Electric oven
(1) Washer/dryer

Exterior

EXTERNAL HULL FINISHING SYSTEM

DECK COVERINGS:

All working decks ﬁnished with anti-skid painted surface

EXTERNAL DOORS:

(1) Sliding door (manually operated) from cockpit to salon – stainless steel frames
(2) Sliding door (manually operated) from wheelhouse to balcony
Pantograph fore access door for access to foredeck from salon

WINDOWS:

Set of ﬁxed windows with tinted glass on main deck
Set of ﬁxed skylights in salon fore area
Set of window wipers for wheelhouse with wash wipe system

Piping System

FUEL SYSTEM:

Set of separated fuel oil tanks with (2) day tanks, and (4) bunkering tanks (20,000 l total capacity)
(2) Racor Duplex fuel ﬁlters with drip tray and water sensors
(2) Fuel polishing units (one per hull)

BILGE SYSTEM:

(8) Electrical bilge pumps, with oil ﬁlter in engine room, in compliance with MGN280

FRESH WATER:

(2) Fresh water tanks with electronic readout level indicators (volume 1000 l each)
(2) Fresh water pressurizing pumps
(2) Fresh water heaters (100 l capacity each)
(1) Hand shower on deck
(1) Blue Water water maker 280l/h – 220V DECK WASH SYSTEM:
(1) Fresh water outlet on cockpit (female quick-coupling snap connector)
(1) Fresh water outlet for washing the foredeck
(1) Fresh water outlet on balcony
(1) Fresh water outlet in both sugar scoops
(1) Retractable 5m hose in both chain lockers for chain wash SANITARY DRAINS SYSTEM:
(2) Black/ grey water tanks 500L with discharge systems
(2) Electric sewage discharge pumps
Set of 24V electric toilets in bathrooms with fresh water ﬂush

HVAC System:

Set of Termodinamica air conditioning system – capacity 250 000 BTU/h (new technology ultra-eﬃcient – Energy Saving VFD controlled 230V AC)

Electrical Systems

AC DISTRIBUTION SYSTEM (110 or 230VAC, depending on conﬁguration):

Set of AC distribution system and wiring
(1) Main switchboard AC 230V @ 50 Hz, 1 phase
(1) Shore connection (32A, 230V @ 50 Hz, 1 phase)
(1) Shore connection power cord 20m long
(2) Victron Quattro 24V/5000W/120A combined inverter and battery charger
Set of 230V @ 50 Hz sockets, with USB charging

DC DISTRIBUTION SYSTEM:

(1) Main switchboard, 24 V DC
Set of DC distribution system and wiring
(1) DC-DC charger for 24V battery bank
Set of Lithium battery banks (25.6V DC / 14,0 kWh)
(2) Sets of starting batteries for gensets
(2) Chargers for genset starting batteries (one per each engine room)

DIGITAL SWITCHING:

Set of Automation system (digital switching) with following functions shall be installed:
Lighting with dimming
Navigation lights
Control valves and pumps
Tank level monitoring

Lighting System

Set of deck lights
Set of interior lighting with LED lamps
Set of lights in engine rooms
Set of spot lights on sugar scoop steps and side decks
Set of spot lights on front terrace deck and cockpit ceiling
Set of Smart system controlling lights (including dimers for ceiling lights

Navigation Equipment

Set of Solas navigation lights with LED lamps, including NOC lights
(1) Compass (135mm)
(1) Chronometer
(1) Barometer

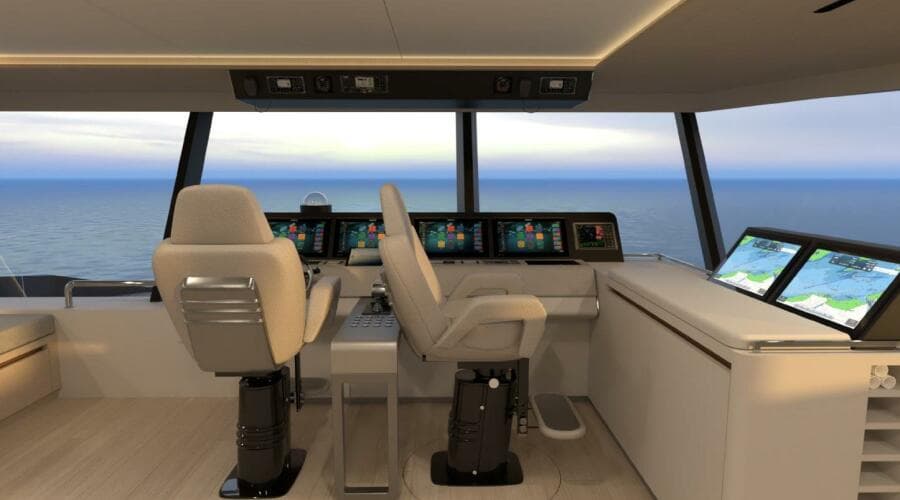

RAYMARINE NAVIGATION PACKAGE:

(3) Raymarine Axiom 16” Touch Multi-function display
(1) Raymarine RD424HD 24” 4kW 608mm digital radome radar
(1) Raymarine Evolution autopilot
(1) Raymarine AIS700 – Automatic Identiﬁcation System
(1) Multisensor (depth, speed & temperature sensor)
(1) Wind sensor
(1) GPS
(1) Raymarine Modular Dual-Station VHF radio system Ray90
(1) Searchlight with control unit
(1) Electric fog horn
(1) Wireless autopilot controller

Further navigational equipment / manufacturers can be supplied as required

Audio/Video/IT Equipment and Services

TV’s:

(1) Wide screen LED 55” TV with installation (salon)
(1) Lifting system up/down (if possible depending on customer layout)
Set of 40” LED TVs with installation (price per cabin)

AUDIO:

Set of Sonos wireless speakers in all living spaces (excluding heads) and eternal for aft deck and balcony

IT:

Set of wireless distribution throughout vessel, including 4G mobile antenna (SIM not included)
(1) Starlink Marine antenna with installation (subscription not included)
