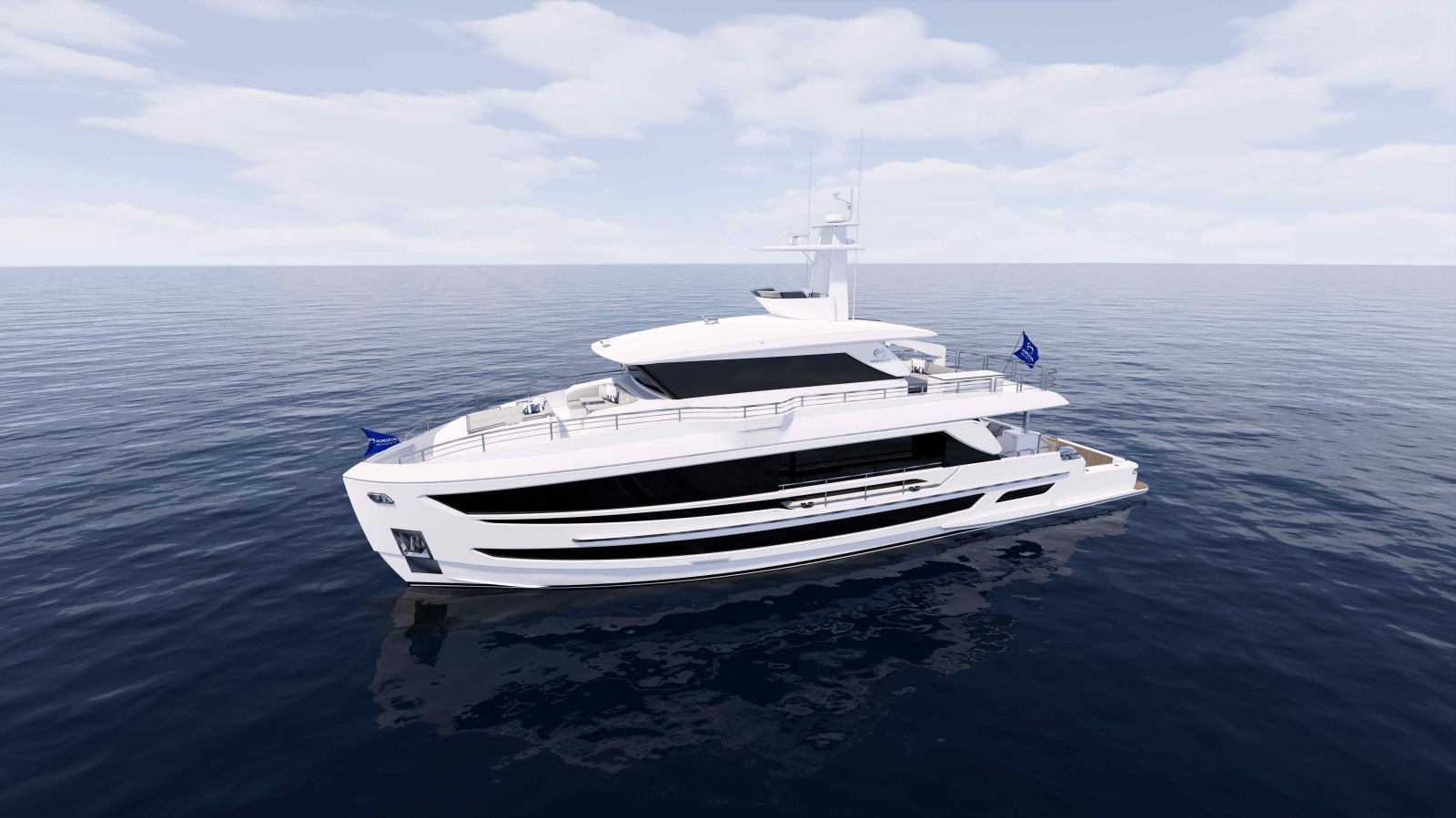

2027 Horizon FD85s
“Horizon FD85s-620”
Description
The Horizon FD85s showcases the shipyard’s dedication to creating yachts that blend sophisticated design, exceptional functionality, and endless possibilities for personalization. Designed with family-focused amenities, expansive alfresco entertaining areas, and versatile spaces that adapt to a variety of cruising lifestyles, the FD85s is as welcoming at anchor as it is capable underway.
Dunigan Marine Group is pleased to assist you in the purchase of this vessel. This boat is centrally listed by Horizon Yacht USA. It is offered as a convenience by this broker/dealer to its clients and is not intended to convey direct representation of a particular vessel
Overview
Key Specifications
Accommodation
Tankage
Registration & Documentation
Engines
Generators
Full Details
QUICK SPECIFICATIONS
Cockpit + fold-down swim platform
Crow's nest w/ compact helm station
Four staterooms, incl. a full-beam on-deck master suite
Enclosed Skylounge w/ main pilot console
Boat deck loose L-shape sofa set & coffee table w/ Hi-Lo propane BBQ
High-performance S-class 5-blade propellers
Side Power SPS93/VF1650 stabilizers
Side Power SH550 bow & stern thrusters
Steelhead davit ES2500 (1130 kg/2,500 lb)
Spot Zero fully automatic watermakers
Maretron monitoring system
HULL AND MAIN STRUCTURE
White gel coat finish
One-piece hull and superstructure utilizing SCRIMP™ technology with Horizons patented 6D infusion, incl. longitudinal and transverse stringers
Hull, deck & superstructure built with licensed process SCRIMP™ for improved strength and less weight
Hybrid design hull bottom with sandwich construction and solid fiberglass
High-density Divinycell or equivalent foam-cored hull sides, decks & superstructure
Stringers with high-density foam coring
Interior structural components all properly bonded to hull
Strong collision bulkhead for extra safety
International brand anti-fouling bottom paint w/anti-osmosis treatment
PropSpeed/PropGold metal paint for underwater appendages
Tunnels for reduced draft
High-Performance Piercing Bow (HPPB) with S/S protection plates
Upper deck with bump-out design at PORT and STBD. side
FOREDECK & AFT DECK
Teak aft Deck
(2) ACCO 300 ft high-tensile 1/2” anchor chains (2) 90kg S/S anchors
(2) Maxwell VWC 3500 windlass
Maxwell VC2500 electrical rope capstan on bow deck
(2) Maxwell VC2500 electrical rope capstans on aft deck
Frameless windows, slightly tinted tempered laminated Low-E glass for windshield
Frameless windows, tinted tempered laminated glass for side windows
Foredeck accessed from stbd. staircase/ walk around on main deck
Foredeck built-in U-shaped seating w/ sliding tables
Foredeck sunpad cushion with cup holders and pop-up lights (x2)
Sunshades for bow seating, per layout
Manual freshwater & seawater anchor chain washdown system
(2) Chain counters in pilothouse
(2) Aft deck bulwark side doors for boarding
Wind door on each side of aft deck to its side walkway.
MarQuipt 7-step side boarding sea stair
43" electrical flip down TV to aft deck
CROW’S NEST
Non-skid deck
Helm bench
Radar arch w/ antenna bracket
Automatic carbon ladder with sliding hatch
Compact helm station (S/S steering wheel, carbon fiber dashboard panel, engine controls, engine start/stop, engine displays, a MFD 9213 13" display, autopilot, a repeater (Marin Instrument), VHF handsets, control of bow and stern thrusters, magnetic compass, an air horn button, cup holder)
COCKPIT
Teak Cockpit and swim platform
Storages under floor
Two transom doors on the aft coaming
Convertible transom fold-down swim platform
(8) Rotating fishing rod holders & (2) Hubbell outlets
Eskimo fishbox ice system & light-up bait tank

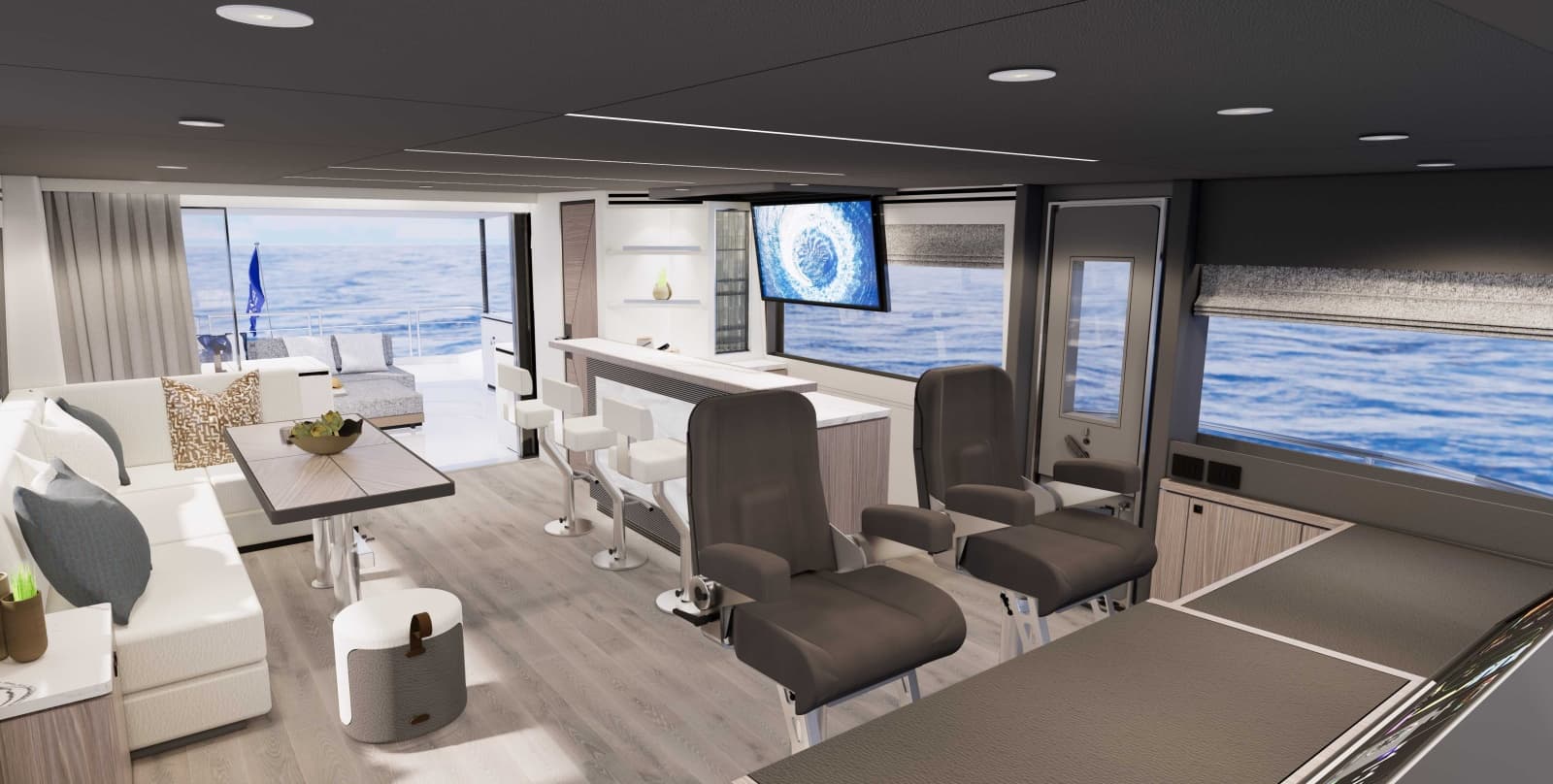

SKYLOUNGE & BOAT DECK

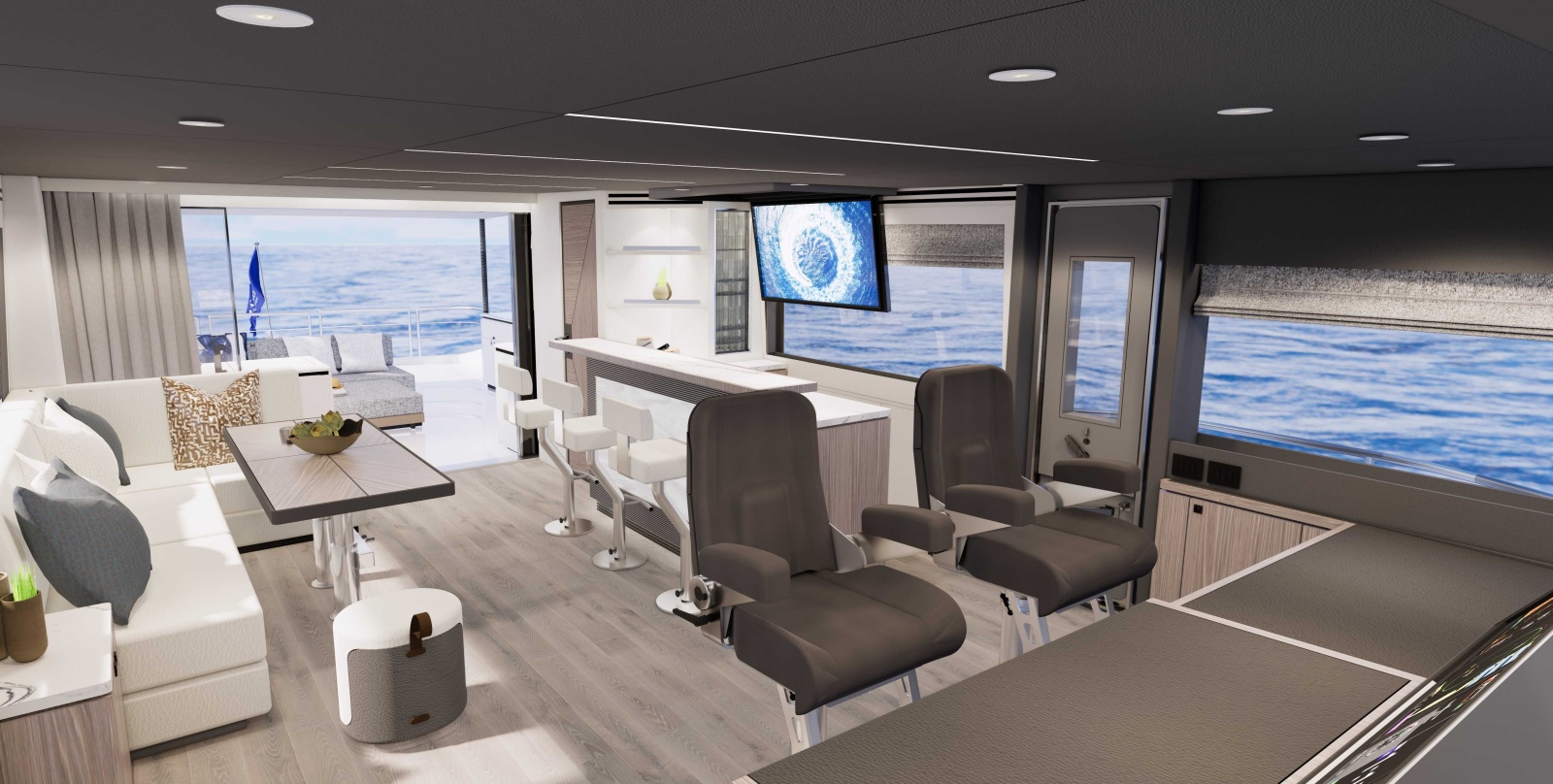

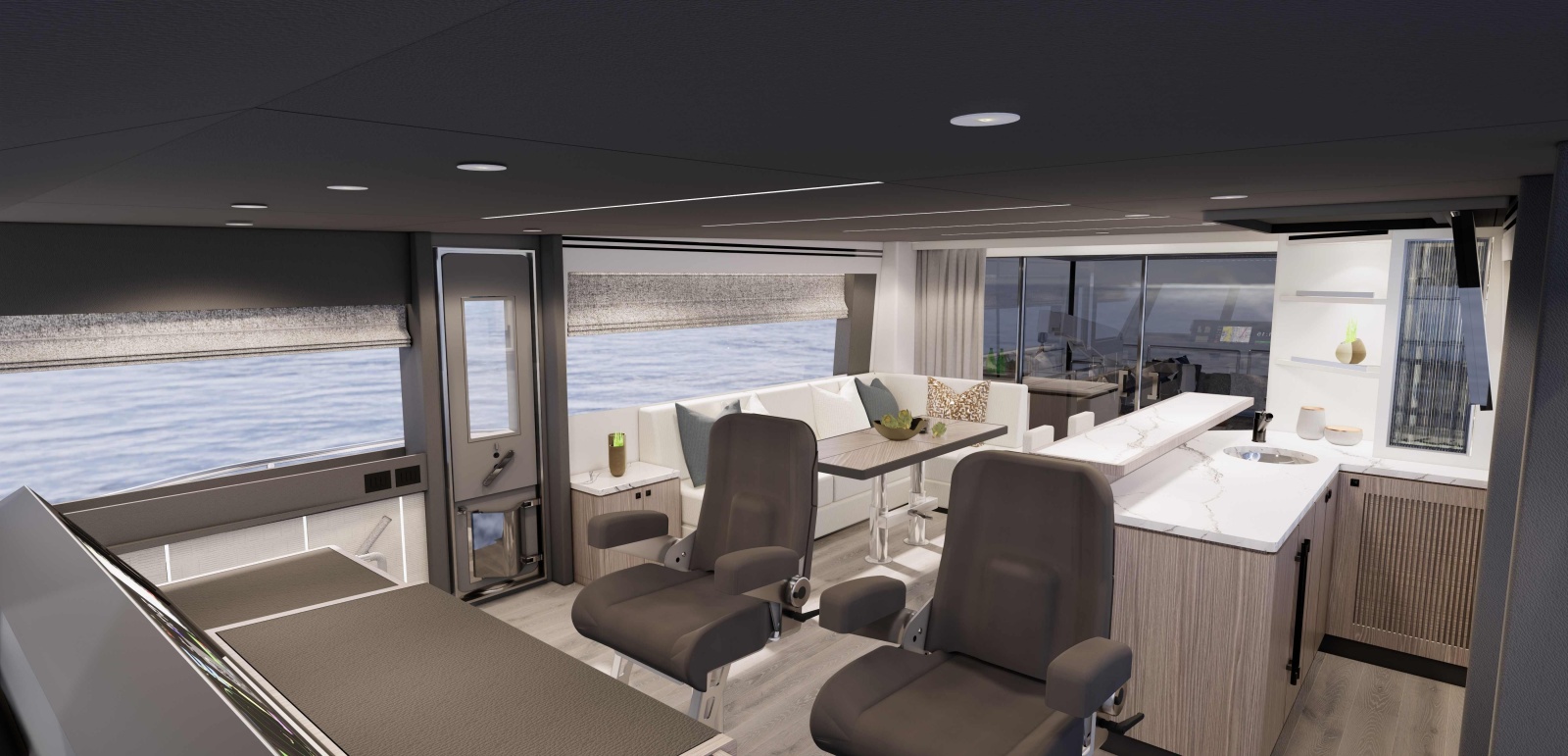

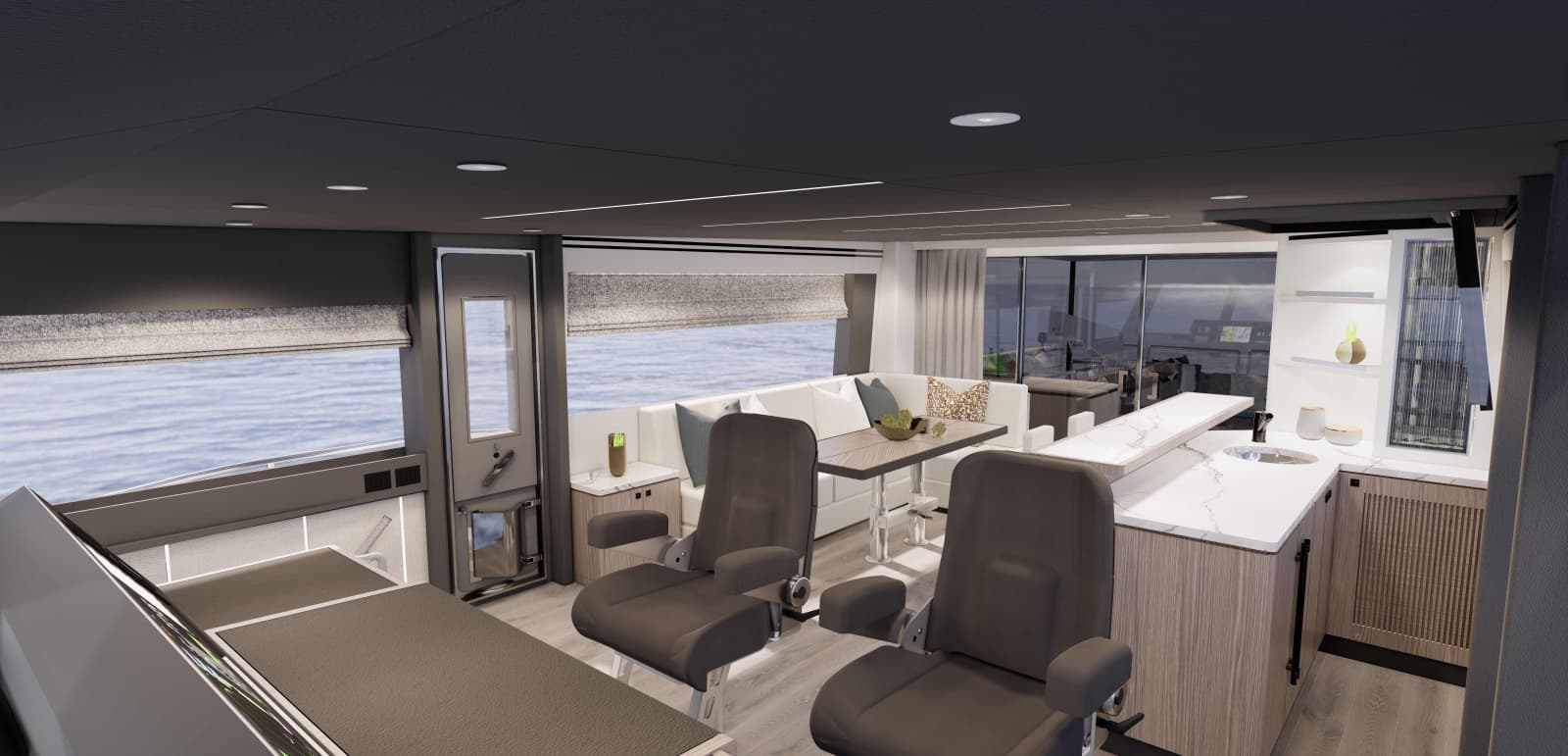

Enclosed skylounge with forward helm station, incl. (2) helm chairs, aft L-shaped settee, and day head, 43” electrical fold-up TV, and custom two-level bar with 3 bar stools, sink, refrigerator, and ice maker
Custom-designed helm w/ full set of engine gauges, monitoring system for important equipment, fuel & water gauges, Riviera ASTRA magnetic compass, surveillance camera system, bilge pump panel & navigational lights
Hydraulic Steelhead davit ES2500 (1130 kg/2,500 lb)
Upper deck w/ L-shaped seating, wet bar w/ sink, chest freezer, 24” Hi-Lo propane BBQ, and storage
ENGINE & PROPULSION DETAILS
Twin CAT C32A 1,600hp engines
Side Power SPS93/VF1650 stabilizers
Side Power SH550 bow thruster + SH550 stern thruster
Zipwake interceptor system
Engine load distributed through flexible mountings on S/S engine bed bonded to FRP hull girder
Engine alarm system as per engine standard
High-performance S-class 5 blade propellers
Bronze struts w/ backing plates
Shaft and Rudder packing glands w/ Tides Marine dripless seals or equivalent
Tethered remote handheld controller (w/ throttles, gears & thrusters) with plug on cockpit & pilothouse
Hydrive marine power steering system
Underwater exhaust system for engines w/ bypass mufflers
Engine room with lightweight floor
Heavy-duty Insulated engine room door
S/S overhead grab rail on each side of engine
Anti-noise treatment to exhaust system
Delta-T engine room demisters
Air compressor
ELECTRICAL SYSTEMS
GFI protection for all AC outlets in exterior, heads, galley
and engine room
Electrolysis bonding system
Cathodic protection with zinc anodes for shafts, struts, etc.
LED lighting system throughout interior & exterior
(6) Underwater lights
(2) Kohler Generators 40kW (60Hz) with sound shield
Maretron monitoring and control system
Shore power connection with (2) 100A boost polarization transformers & (2) 100A Cable masters & (2) 100A shore power plugs and bow inlets
(2) LED search lights
Pre-wired for LED boat name on stern & PORT & STBD skylounge sides
Pre-wired for wireless yacht controller
MECHANICAL SYSTEMS
2700 US gal fuel tanks w/ sight & electrical gauges
(2) Racor 500 MA fuel filters, one on each generator
(2) Electric fuel transfer pumps
Fuel polishing system (210GPH)
400 US gal FRP water tank
(2) 20 US gal water heaters
High-volume AC freshwater pressure pump & backup DC pump
Spot Zero SeaXchange XTC II 1200 water maker & ZTC II 2000 water purifier
Charcoal filters are plumbed into the freshwater line: shore water inlet and galley
Hot water circulation pump
Marine Air VARCX chilled water conditioning system
ELECTRO SEA ElectroStrainer Pro
Tecma toilet system
100 US gal holding tank & deck fitting for dockside pump-out
Sump pump system for grey water
Electric level indicators for holding tank
Headhunter sanitary treatment system
Electric bilge pump
High water level bilge alarm
Bilge exhaust ventilation fans
Fire insulation in engine room
Fire-resistant treatment for pipe penetrations
Automatic fire damper system
(4) Portable fire extinguishers
Integrated fire alarm system in pilothouse, with CO and smoke detector in each cabin
INTERIOR DECOR & EQUIPMENT
INTERIOR DECOR & EQUIPMENT
Guest accommodation includes on-deck master stateroom, fwd. VIP stateroom, port & Stbd. VIP staterooms, all ensuite
Crew area incl. a captain's cabin and a crew cabin, head & shower, access from stbd. salon
Laundry room w/ washer/dryer, ironing board, sink and storage
Customized interior package for interior décor & lighting
Full set of Wedgwood (GIO) galley tableware for 10, including dish holder, pot/pans, dishes, plates, knives, forks, glasses, etc.
Stacked washer/dryer in crew quarters
Extra set of bed sheets for all guest cabins, including crews
SALON
S/S manual sliding entrance door w/self-locking
Dayhead with two access doors
L-shaped sofa & armchair w/ a coffee table
Custom area rug
Port side buffet cabinet behind sofa
Convertible folding dining table & chairs, per layout
Breakfast bar design
Electric sheer shadings
55" TV, fold-down from ceiling
GALLEY
Enclosed galley w/ Hi-Lo blind
Professional galley + extensive storage per layout
Full-height Sub-Zero freezer + full-height Sub-Zero refrigerator
Miele cooktop, oven, dishwasher & Bosch over-the -range microwave
Sub-Zero wine cooler
(1) Opening porthole
MASTER STATEROOM
King bed w/ storage drawers, nightstands, and safe
Electric Roman shades
Ensuite head w/double sinks, rain shower & toilet
Chest drawers on both sides
(1) Opening porthole
55" TV
Escape hatch in Master with ladder

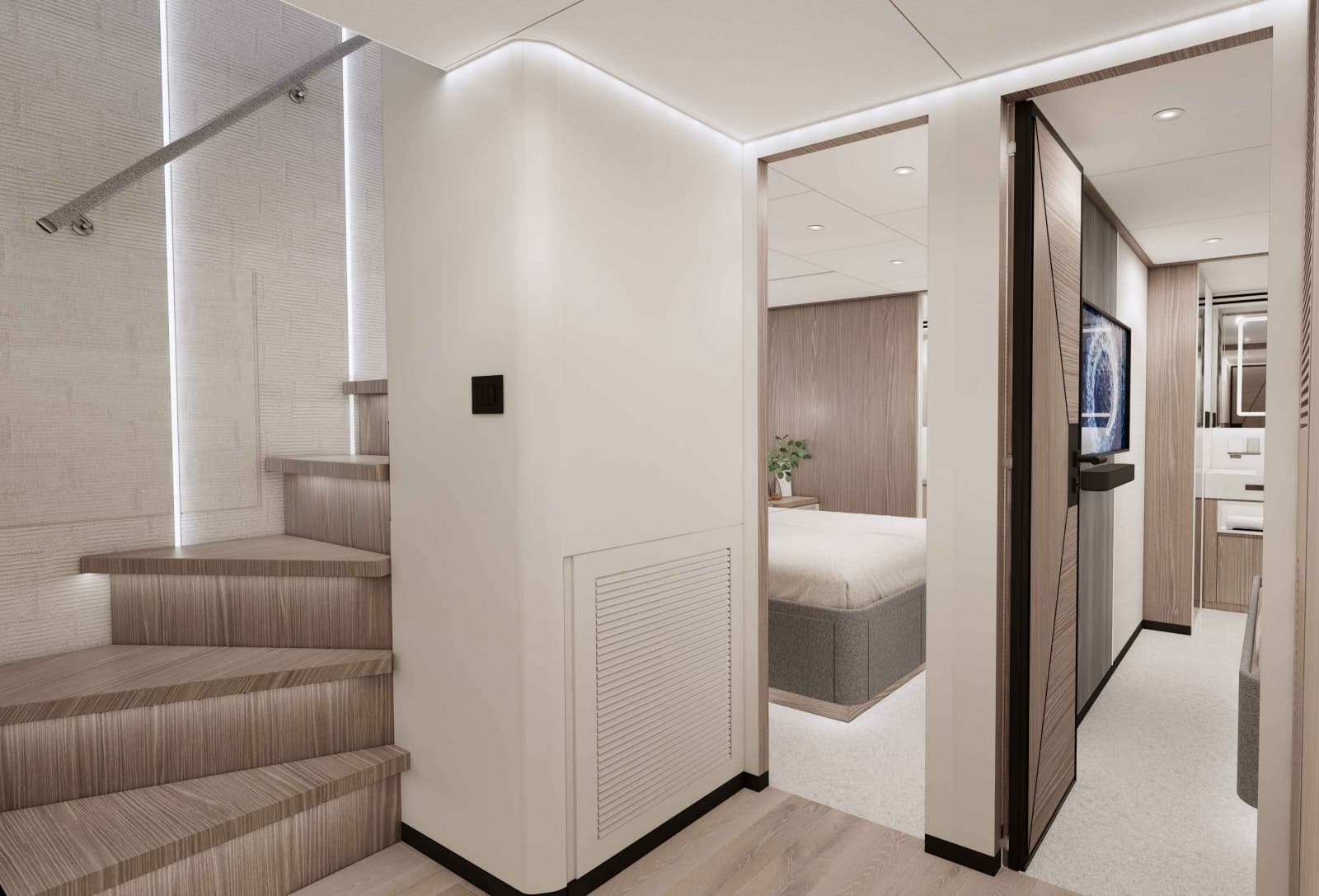

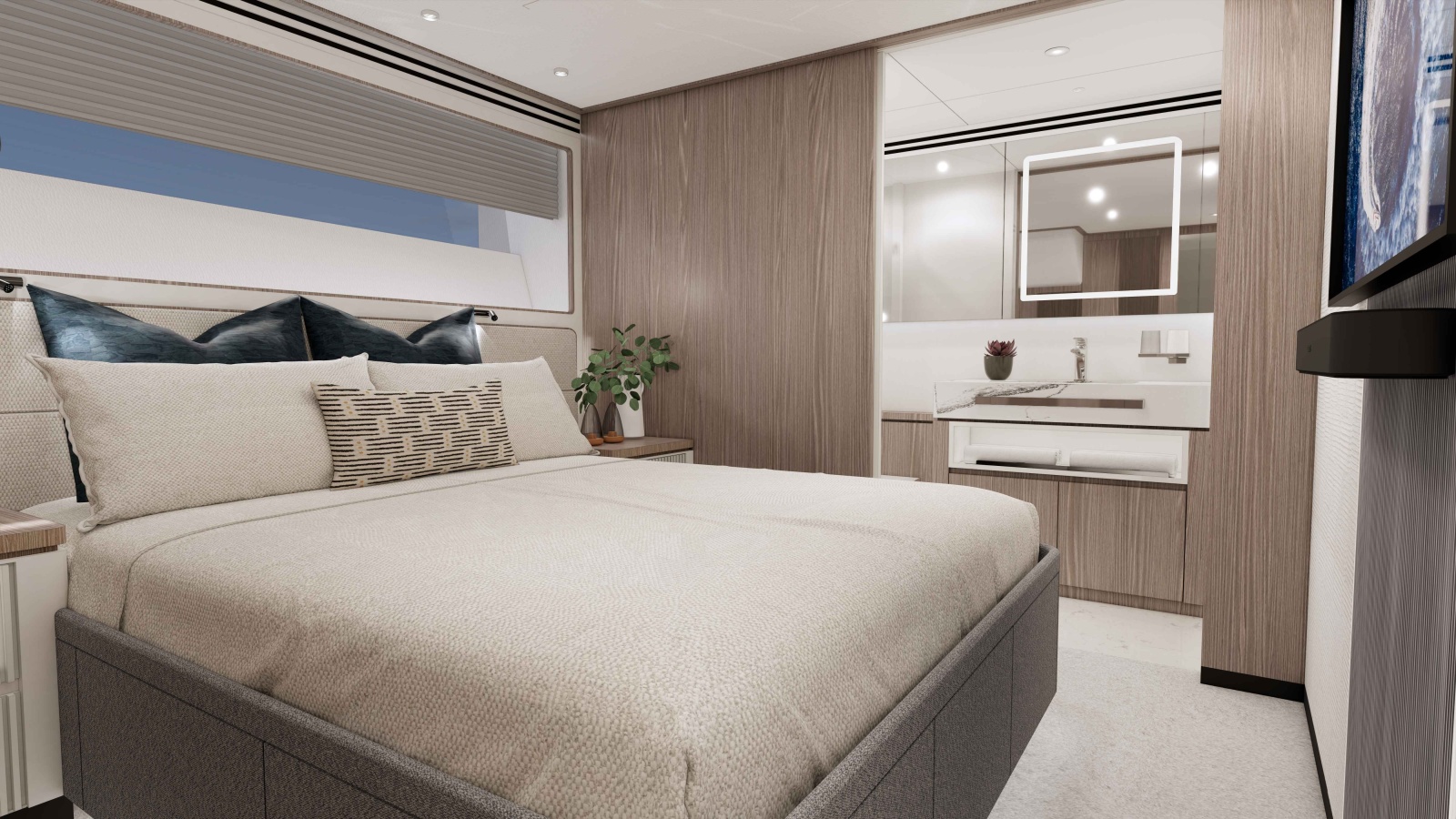

LOWER STATEROOMS

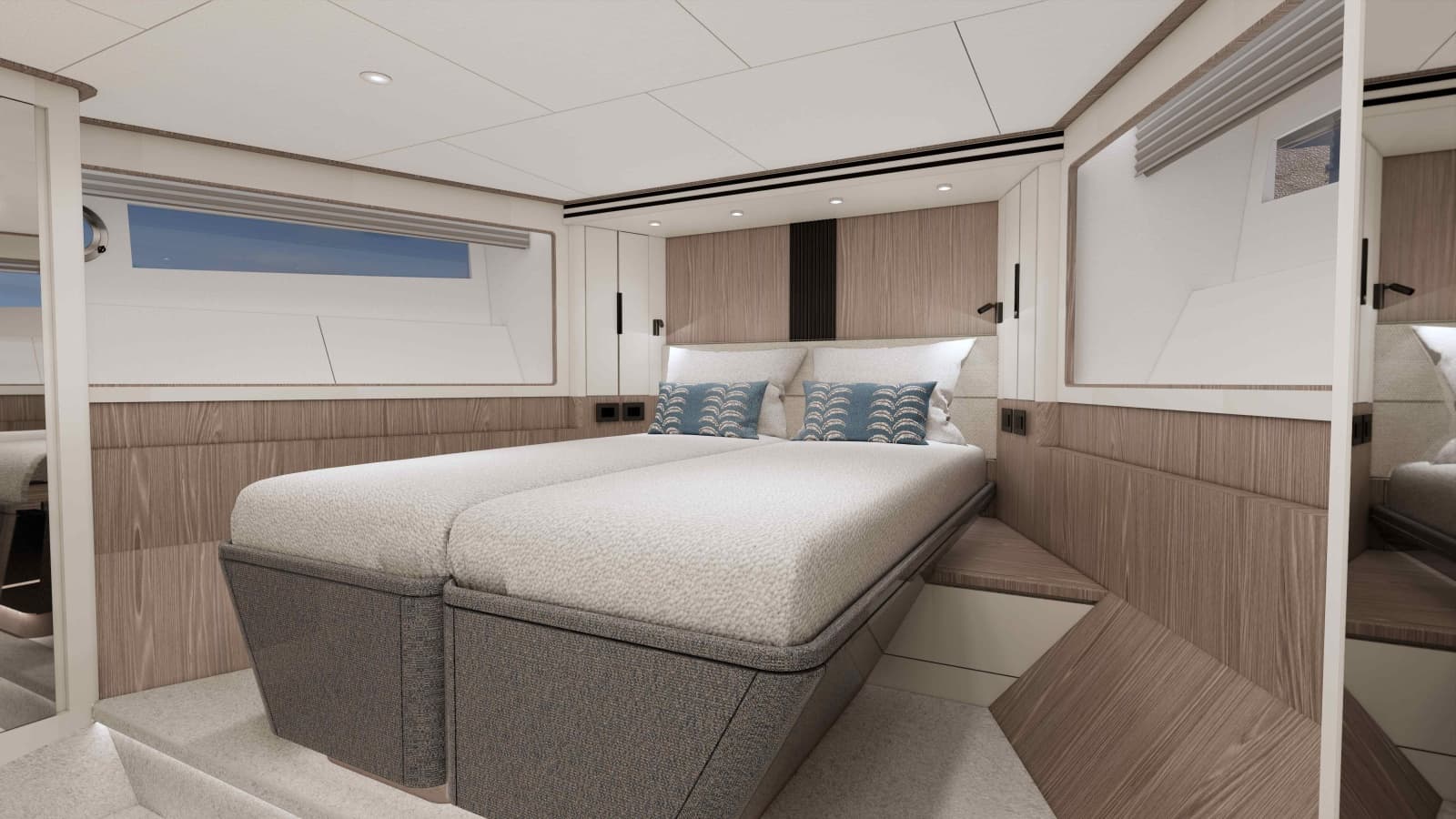

FWD. VIP STATEROOM
A double sliding bed w/ drawers underneath, hanging lockers, storage
Ensuite head w/ sink, rain shower & toilet
32" TV

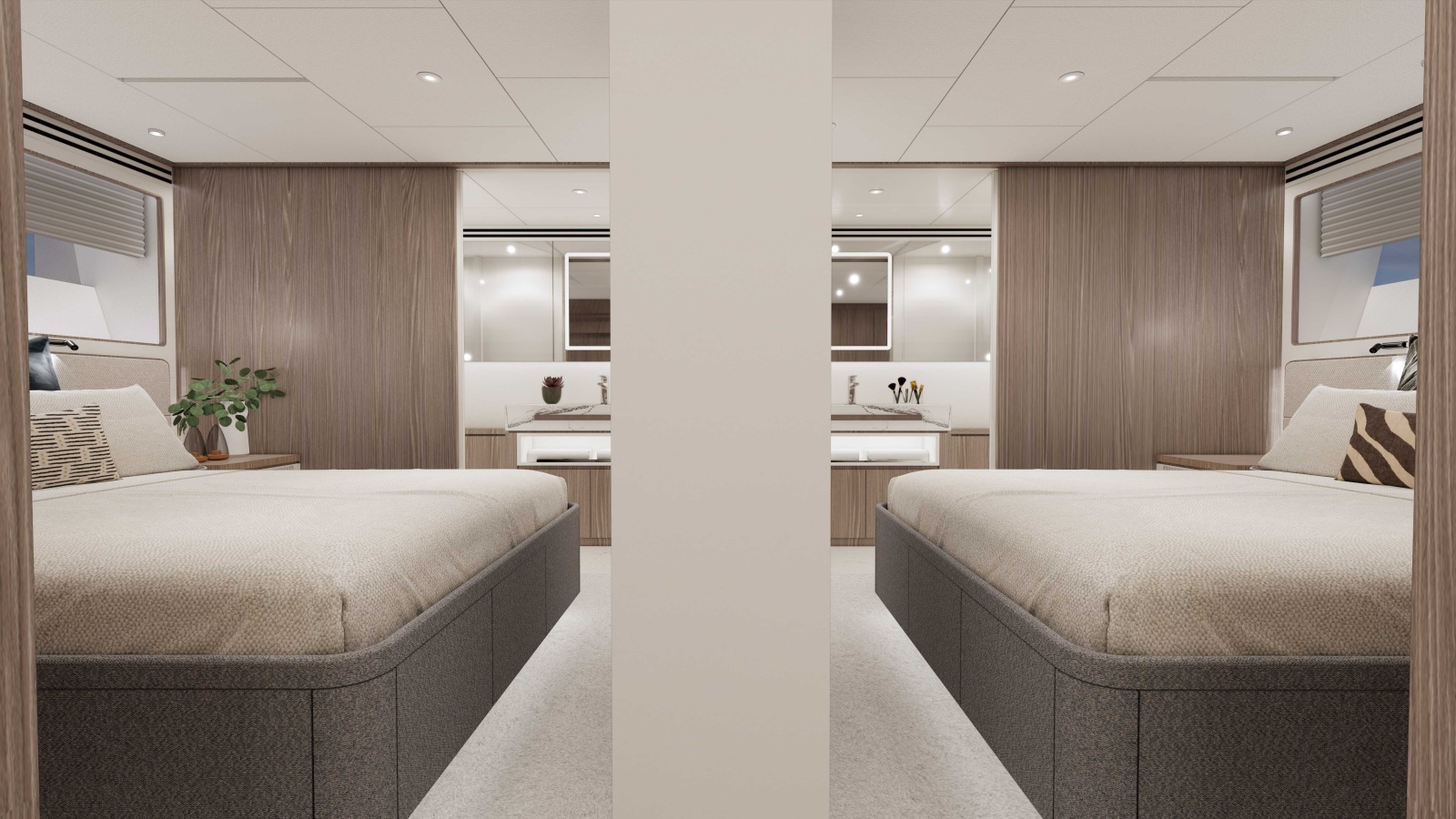

MIRROR STATEROOMS
Queen bed w/ nightstands
Ensuite head w/ sink, rain shower & toilet
43" TV
CREW QUARTERS
(1) Stbd. bunk crew cabin with upper and lower beds
Port Captain Cabin with a double bed
Shared head w/ sink, shower & toilet
Miele washer/dryer
ELECTRONICS
Pre-wired SAT TV & SAT phone
Starlink maritime flat high performance satellite internet kit
4G/5G Cellular router system with WiFi on board
Sonos stereo system w/Control 4 to integrate the AV remotes for fore deck, skylounge, aft deck, main deck incl. salon and master stateroom
PILOTHOUSE NAVIGATION
Full Garmin navigational system includes:
(1) Garmin GMR™ 1236 xHD3 Open Array Radar
(1) Garmin Fantom 24x Dome Radar
(1) Garmin GSD™ 25 Premium Sonar Fish Finder Module
(4) Garmin GPSMAP 9222 22" multifunction displays
Garmin GPS
Garmin Autopilot system
Garmin Wind / Speed / Temp transducer
Garmin VHF with built-in loudhailer
Garmin AIS
